Chery Industrial | 20x40 ft Container Shelter with Closed Back Panel | SUICS2040OZ11WBP

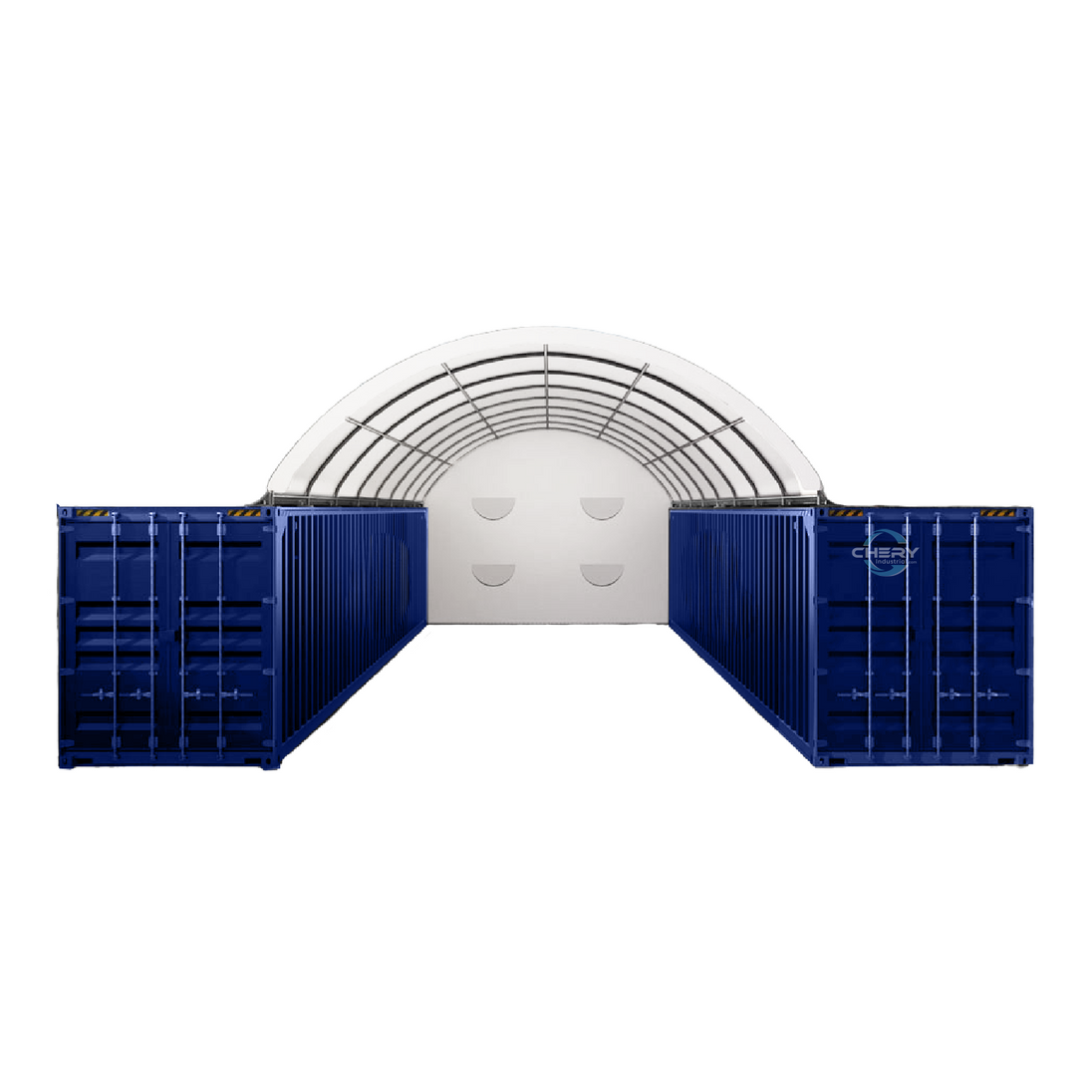

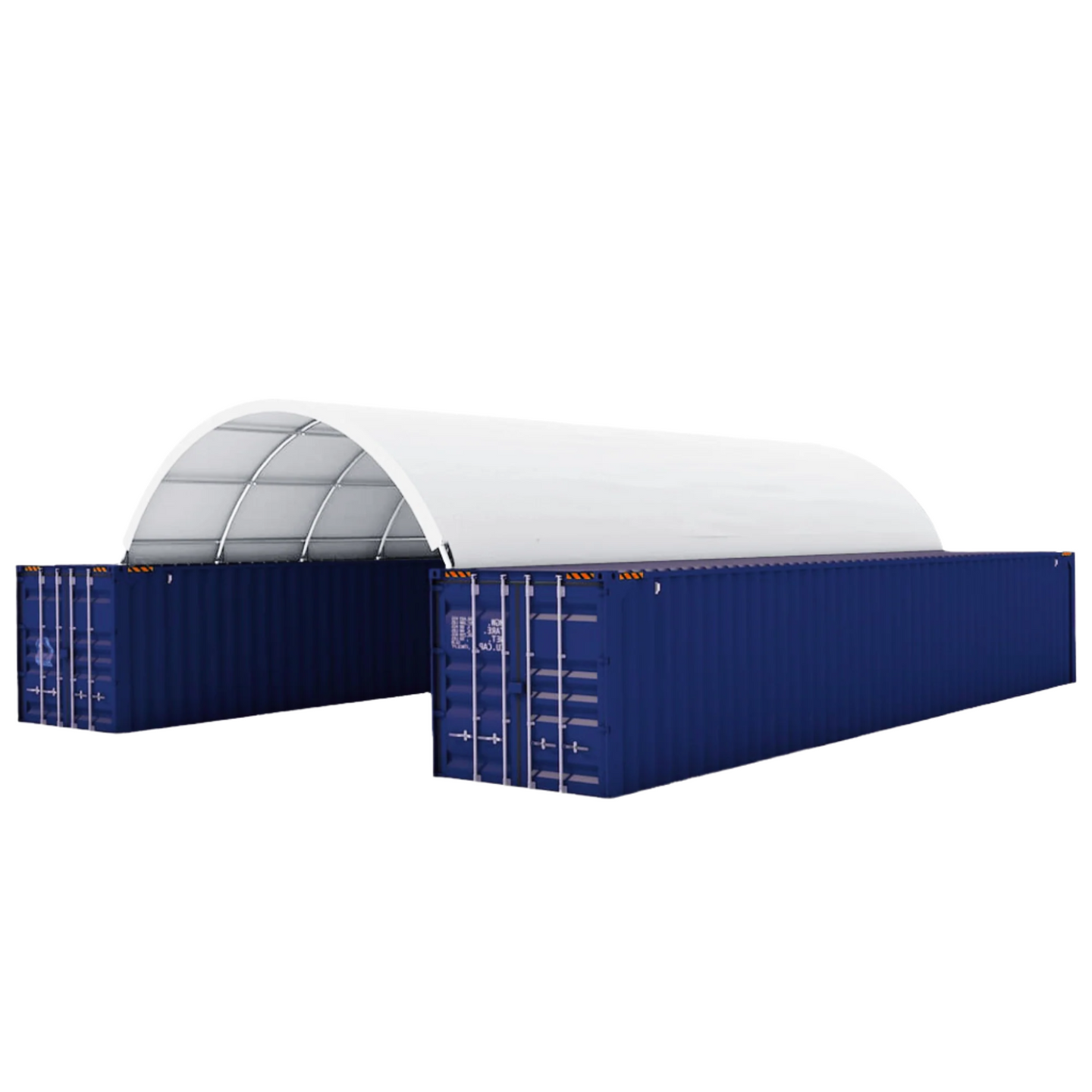

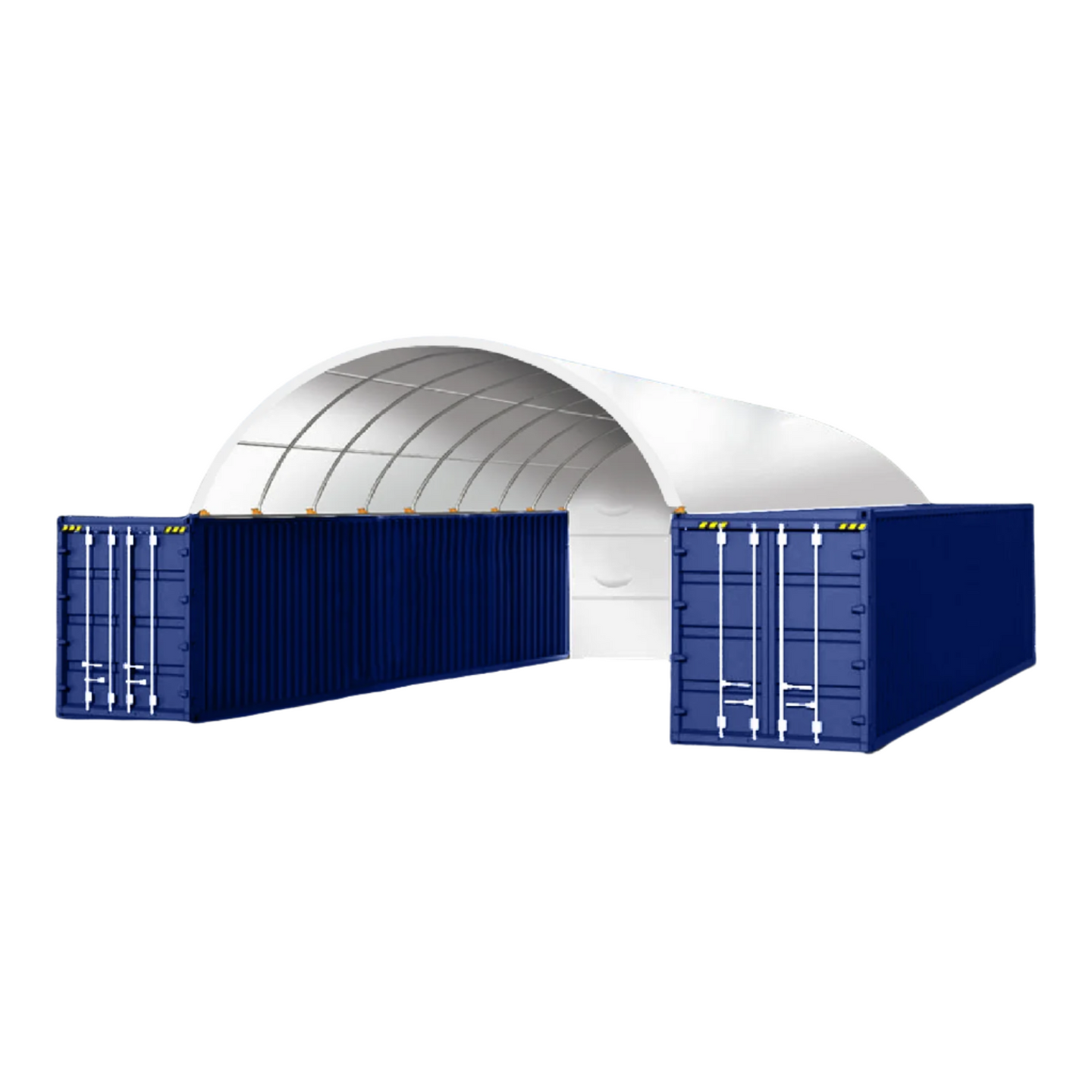

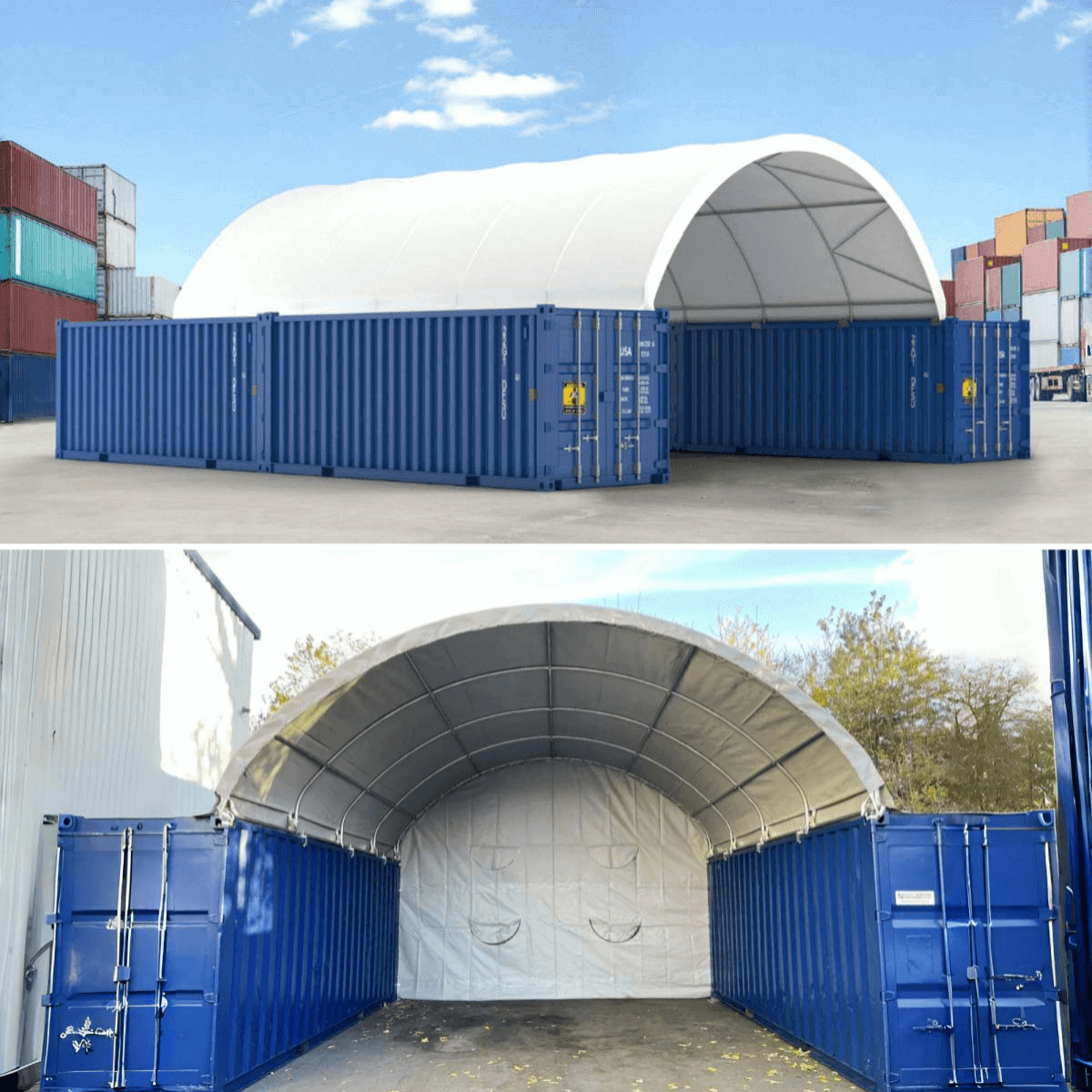

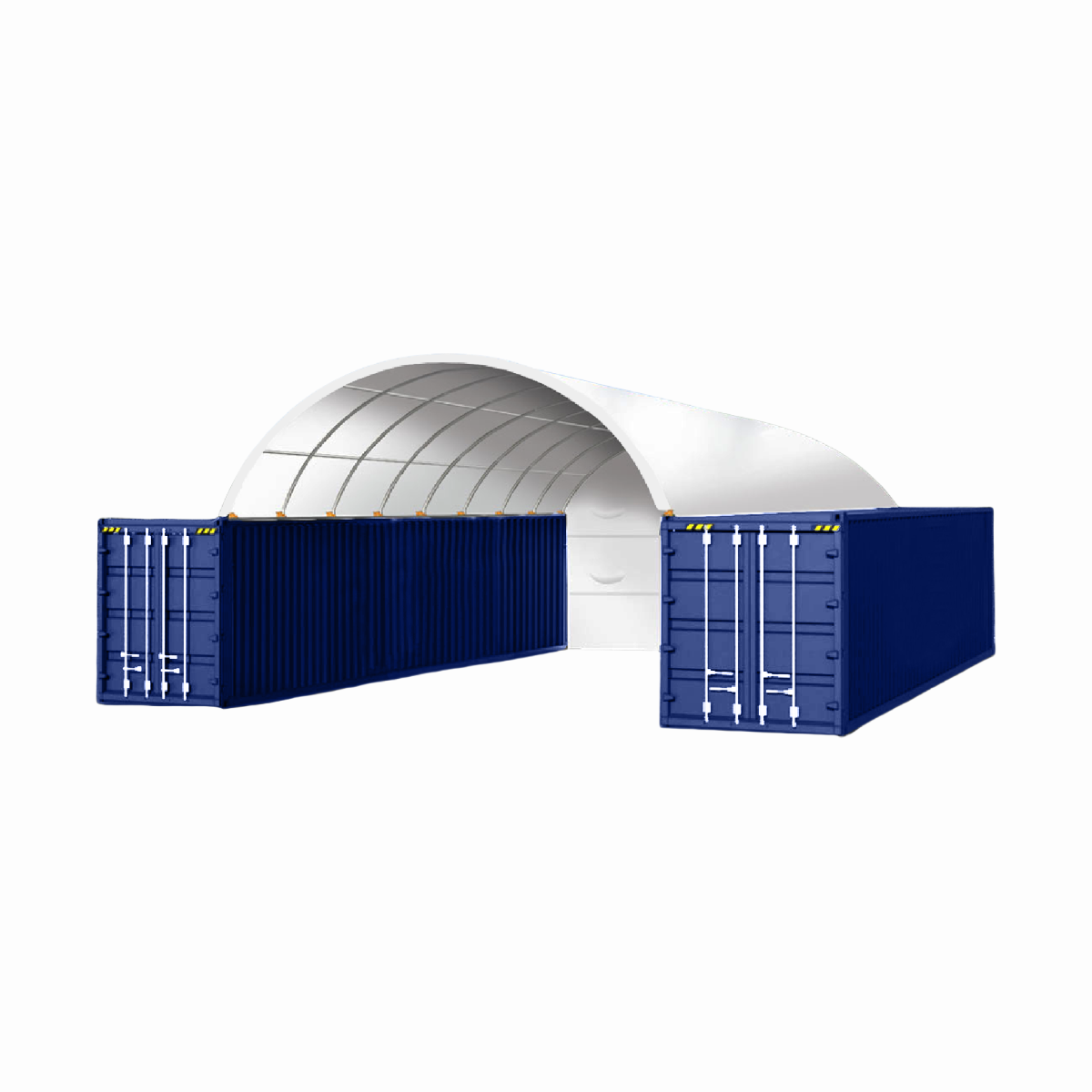

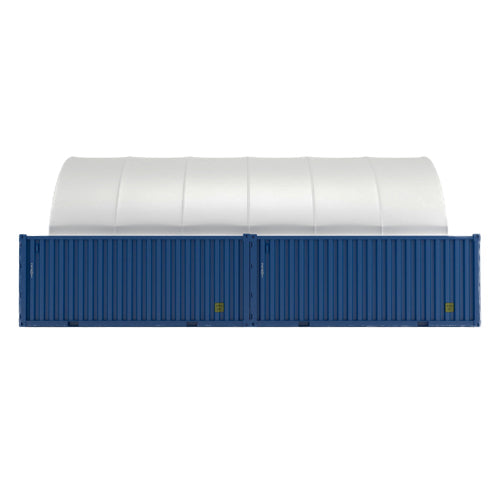

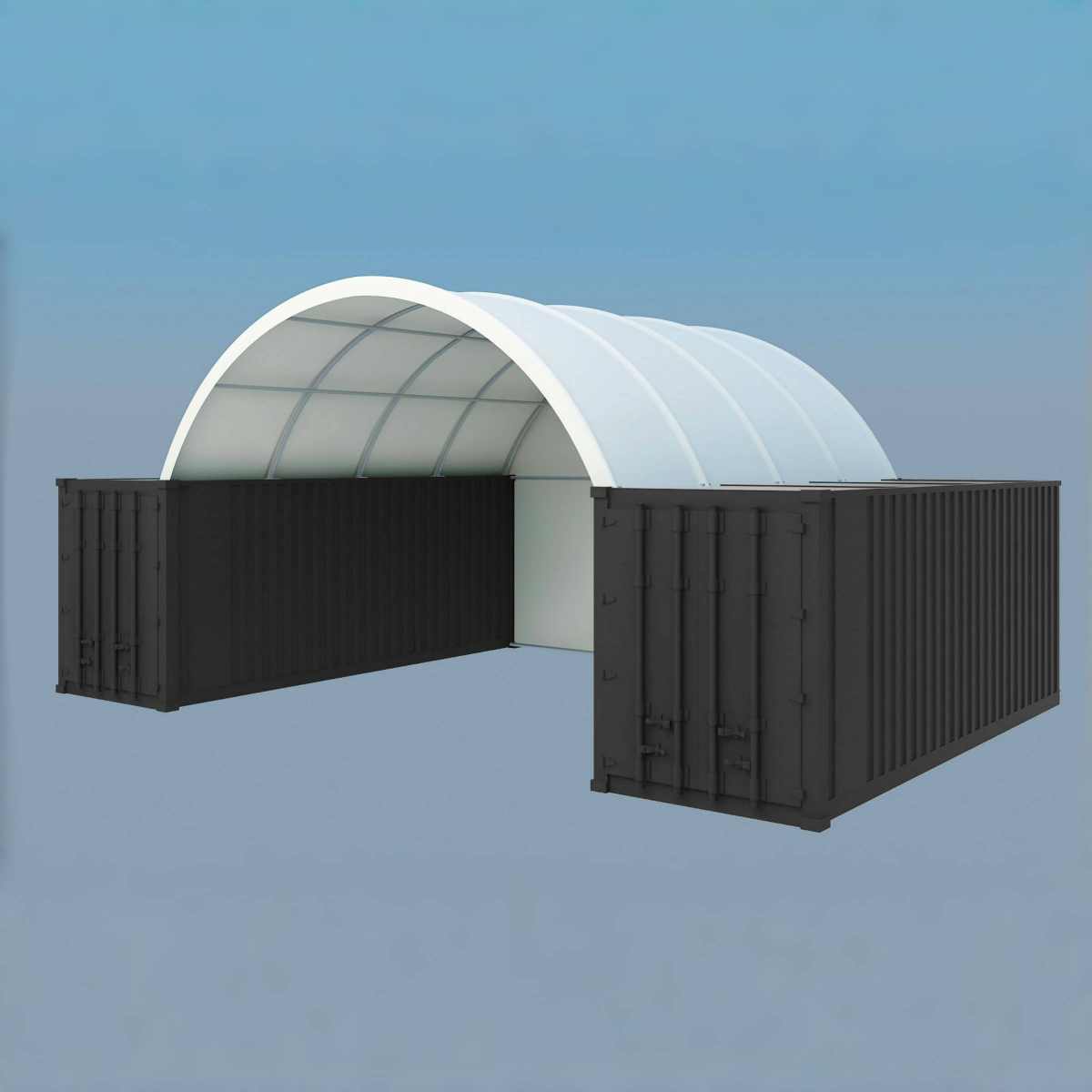

The 20x40 ft Container Shelter with Closed Back Panel

Overview

Durable shelter with versatile tarpaulins and a solid back panel. Big space, tough build, ready for work in any environment.

Benefits

• Durable protection for a variety of environments
• Fabric options from economical PE to heavy-duty PVC
• Interior space is fully usable with no pole inside
• Long tarp and frame lifespans
• Warranty on tarp and frame
• Simple assembly with twist lock and clamp

Features

• PFAS-free tarpaulin and EU REACH compliant
• CSA/TUV Snow rating and SGS fabric certificate

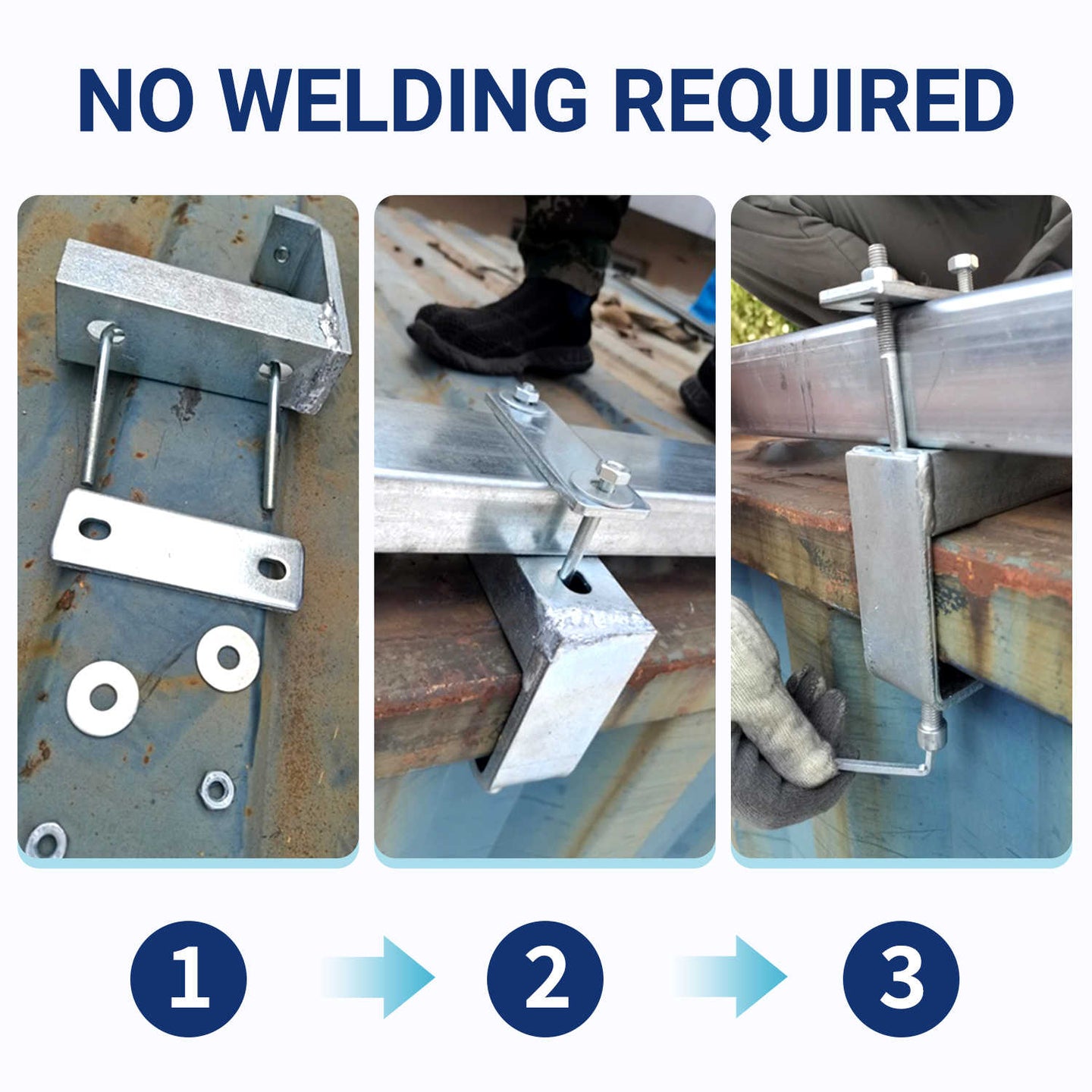

• No welding required
• Snow load: 48 lb/ft²; Wind load: 50 mph
• Arch interval: 5 ft; Arch Ø: Ø45x1.5 mm; Purlin Ø: Ø32x1.2 mm
• Easy installation with pipe and ratchet tie-down system

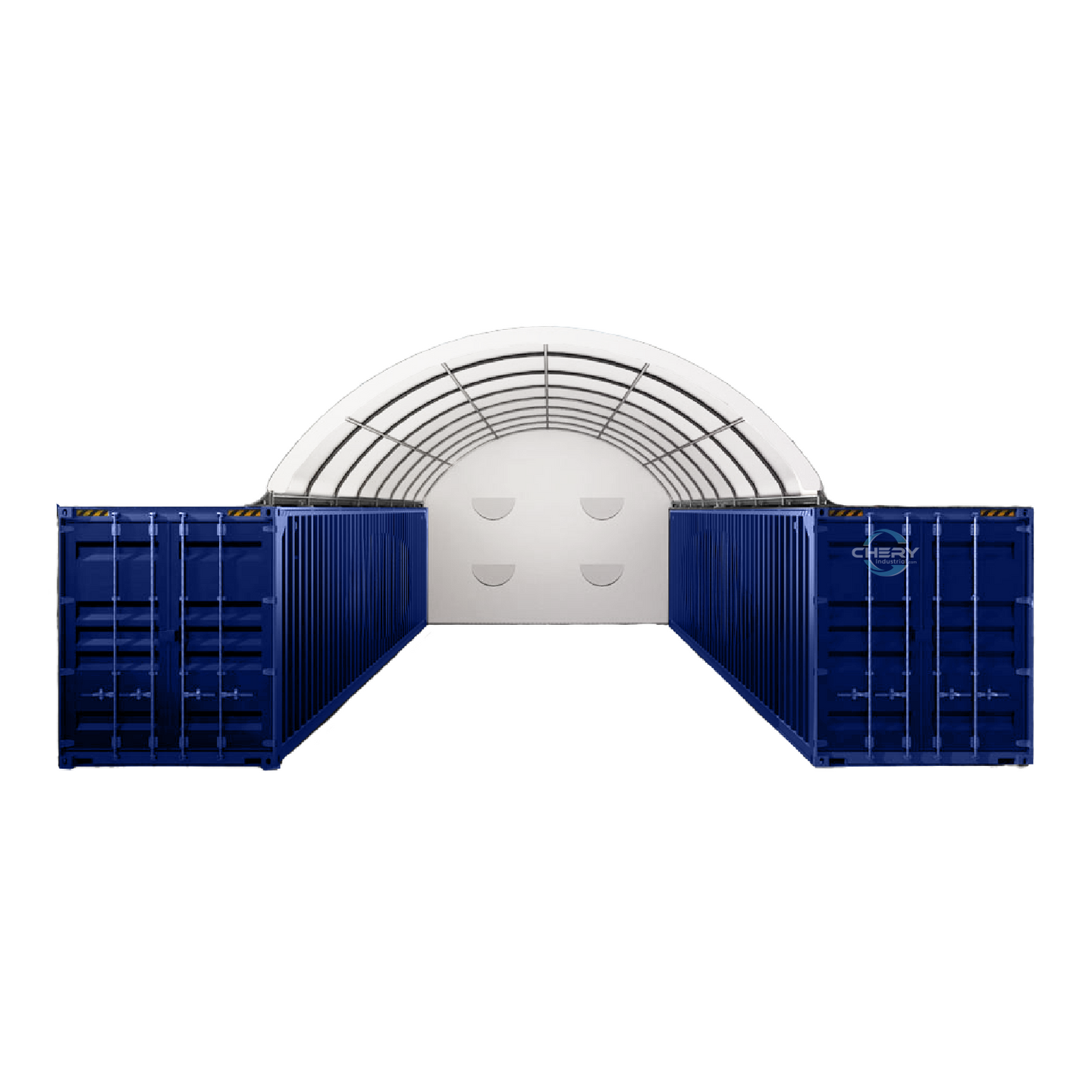

• Optional walls: Front Panel, Half Panel, Rear Panel
• Package options: Box A and Box B with specified dimensions
• Parts available: Cover replacement, Front Panel, Rear Panel, Half Panel

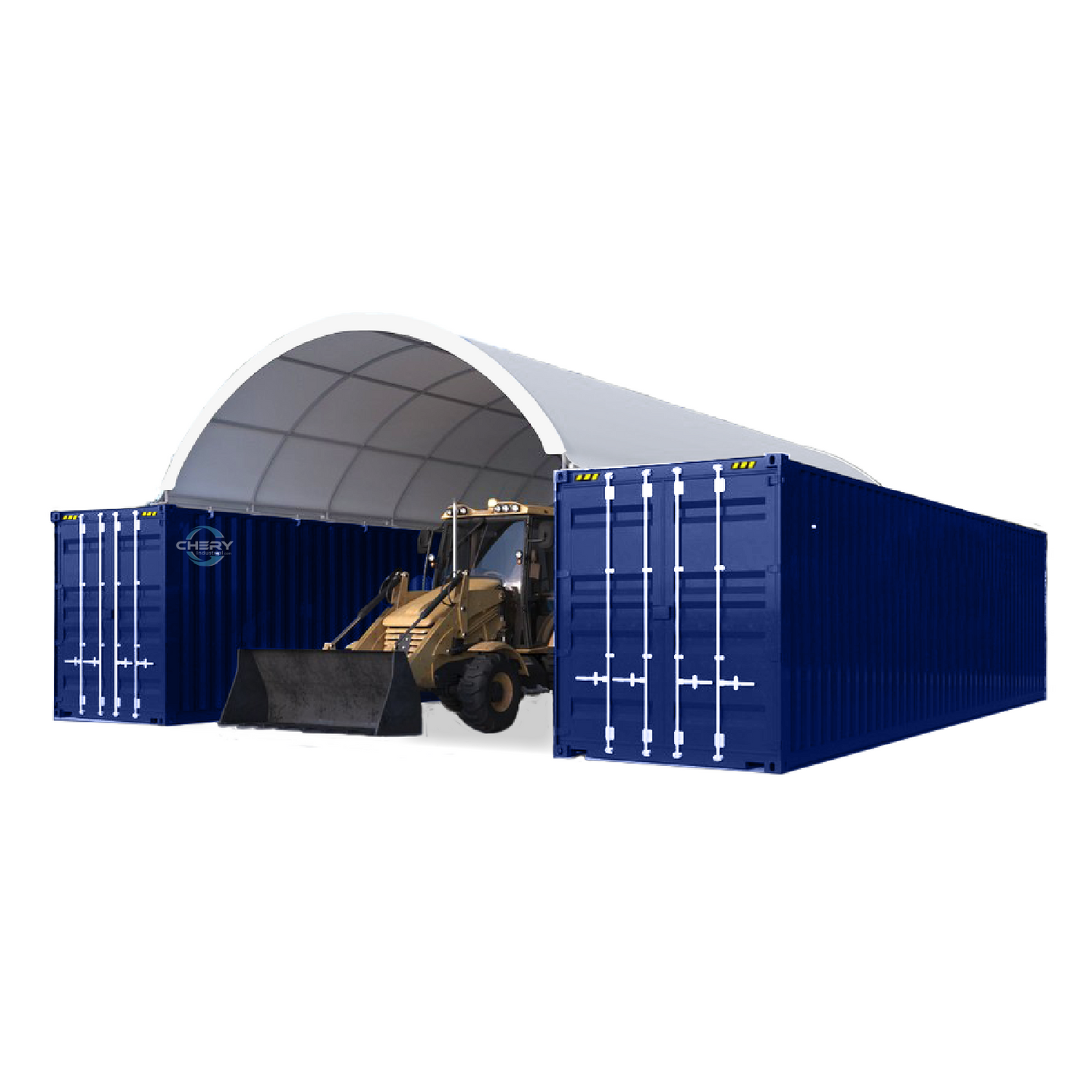

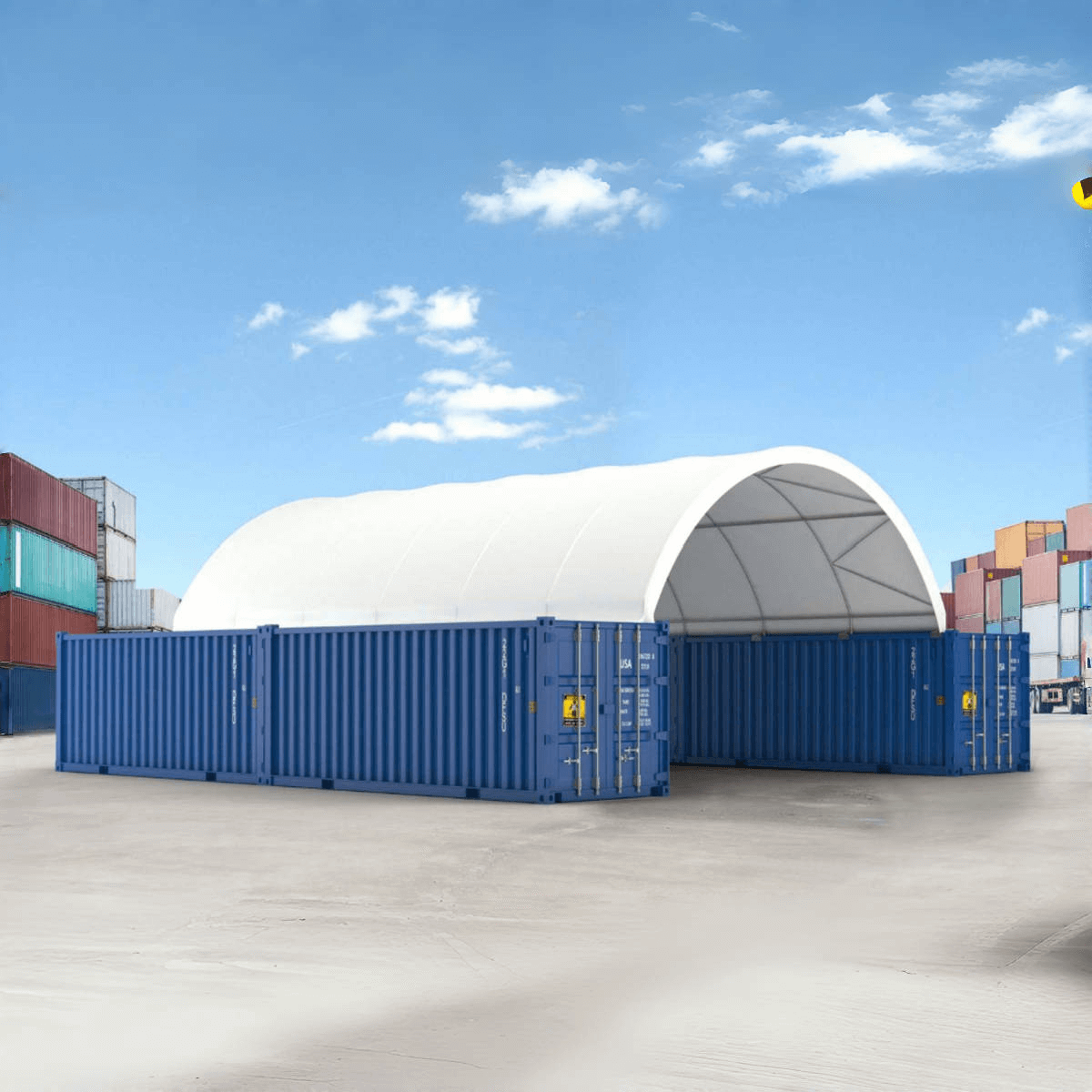

• Usage: Warehouse, farm tent, equipment storage, car lot, temporary office, workshop, events

Specifications

• Model: C2040 Dome Container Shelter

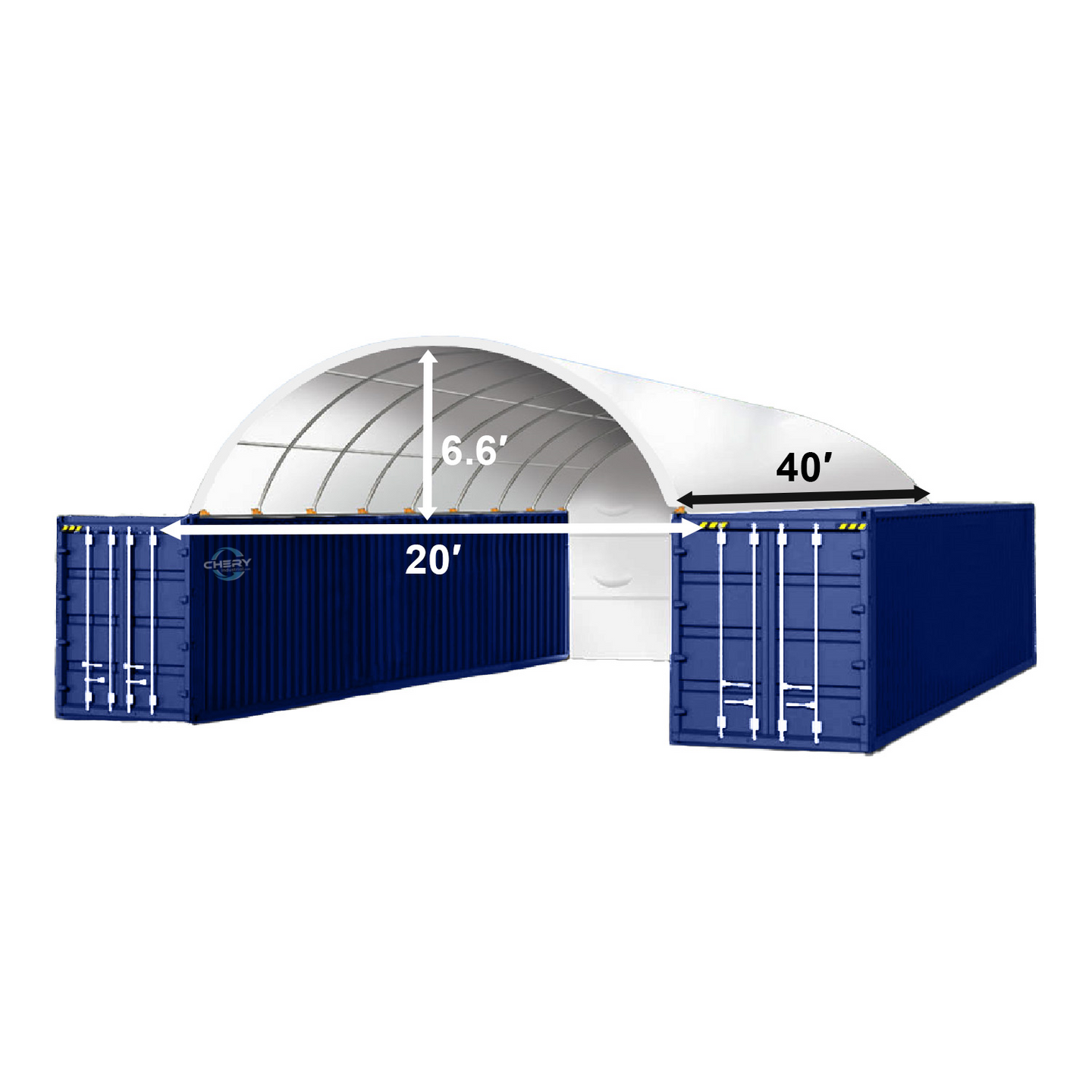

• Dimensions: W20 x L40 x H6.6 ft
• Frame: Single Truss Galvanized Tube
• Steel Structure: High-Grade Hot Dip Galvanized Steel
• Fabric options:
  • Economical - 11 oz/m² (300 gsm) PE tarpaulin
  • Heavy Duty - 15 oz/m² (420 gsm) PVC tarpaulin
  • Heavy Duty - 22 oz/m² (610 gsm) PVC tarpaulin
  • Heavy Duty - 23 oz/m² (650 gsm) PVC tarpaulin
  • Heavy Duty - 32 oz/m² (900 gsm) PVC tarpaulin
• Fabric features: Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning
• Temperature range: -22 to +158°F
• Front/back walls (optional): Front Panel, Half Panel, Rear Panel
• Arch interval: 5 ft
• Arch Ø: Ø45x1.5 mm
• Purlin Ø: Ø32x1.2 mm
• Tension system: Pipe and Ratchet Tie-Down
• Easy installation: Twist lock and clamp
• Weld: No welding required
• Snow load: 48 lb/ft²
• Wind load: 50 mph
• Average assembly time for DIY with 4 persons: Max. 1 day
• Safety: Tarpaulin PFAS-free and EU REACH compliant
• Tarp lifespan: 7–10 years (varies by fabric type and environment)
• Frame lifespan: 15+ years
• Warranty: PE tarps 2 years; PVC tarps 8 years
• Package Size:
  • Box A: LxWxH 75 x 30 x 20 inches; Weight 805 lb; forklift required for unloading
  • Box B: LxWxH 76 x 28.5 x 6 inches; Weight 86 lb; forklift required for unloading
