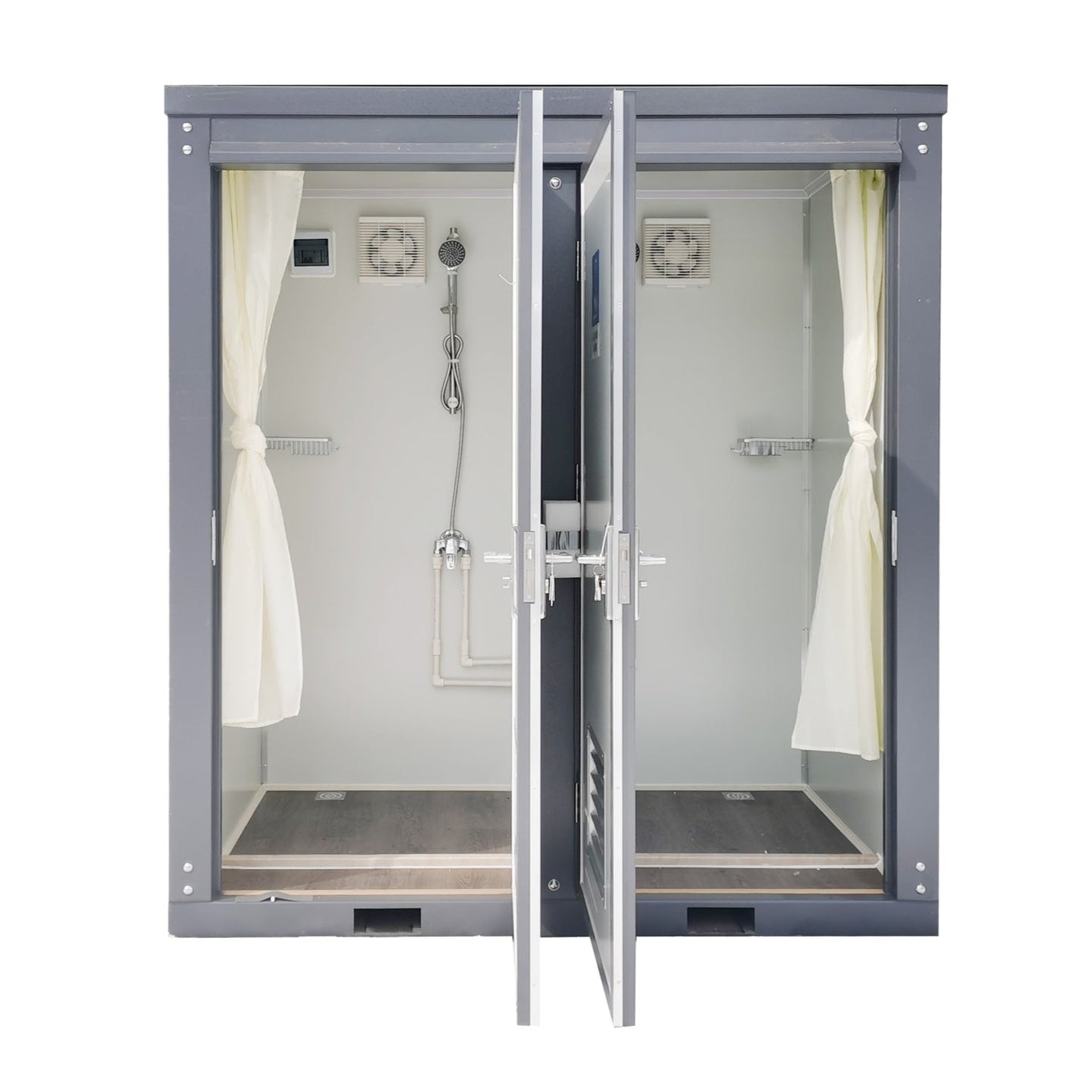

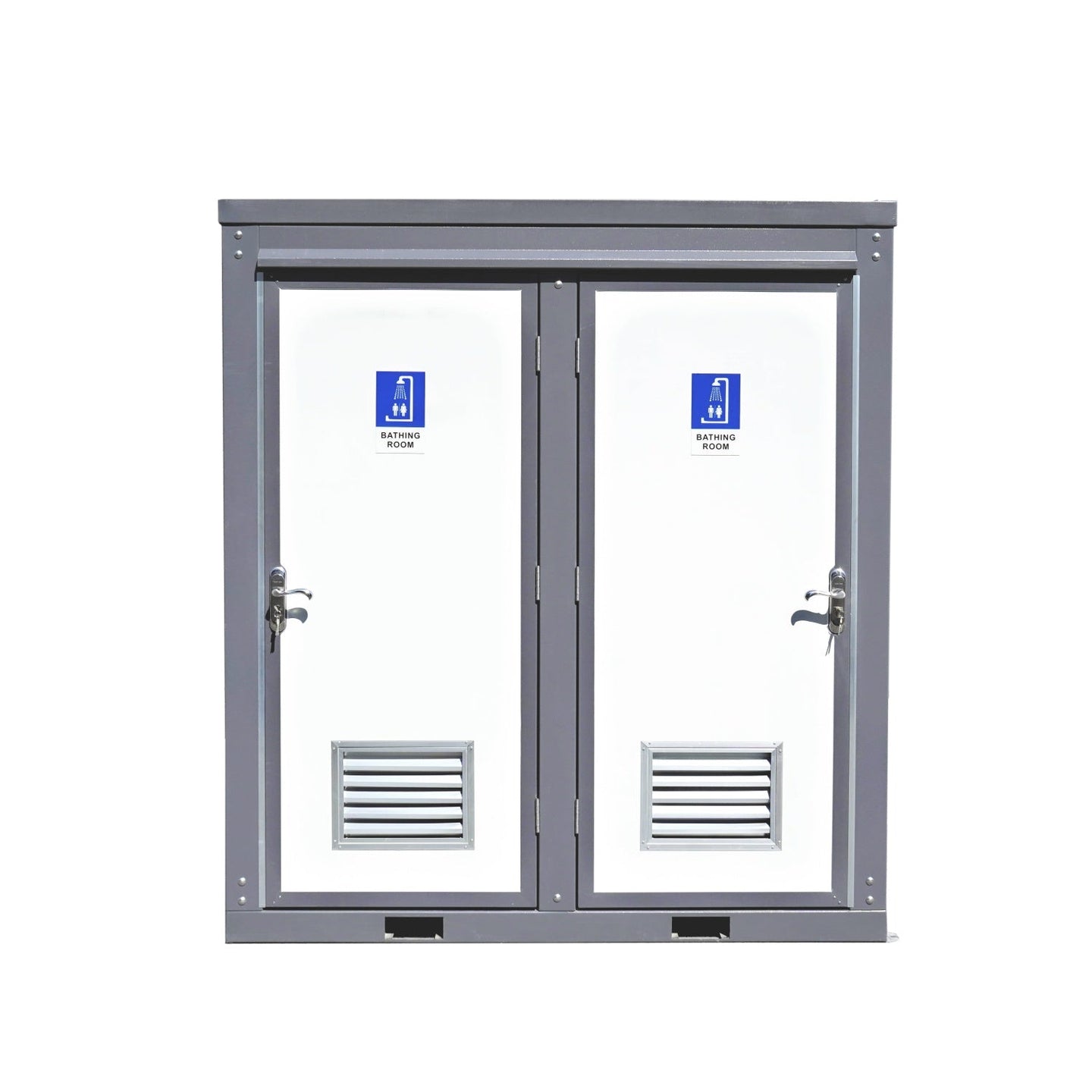

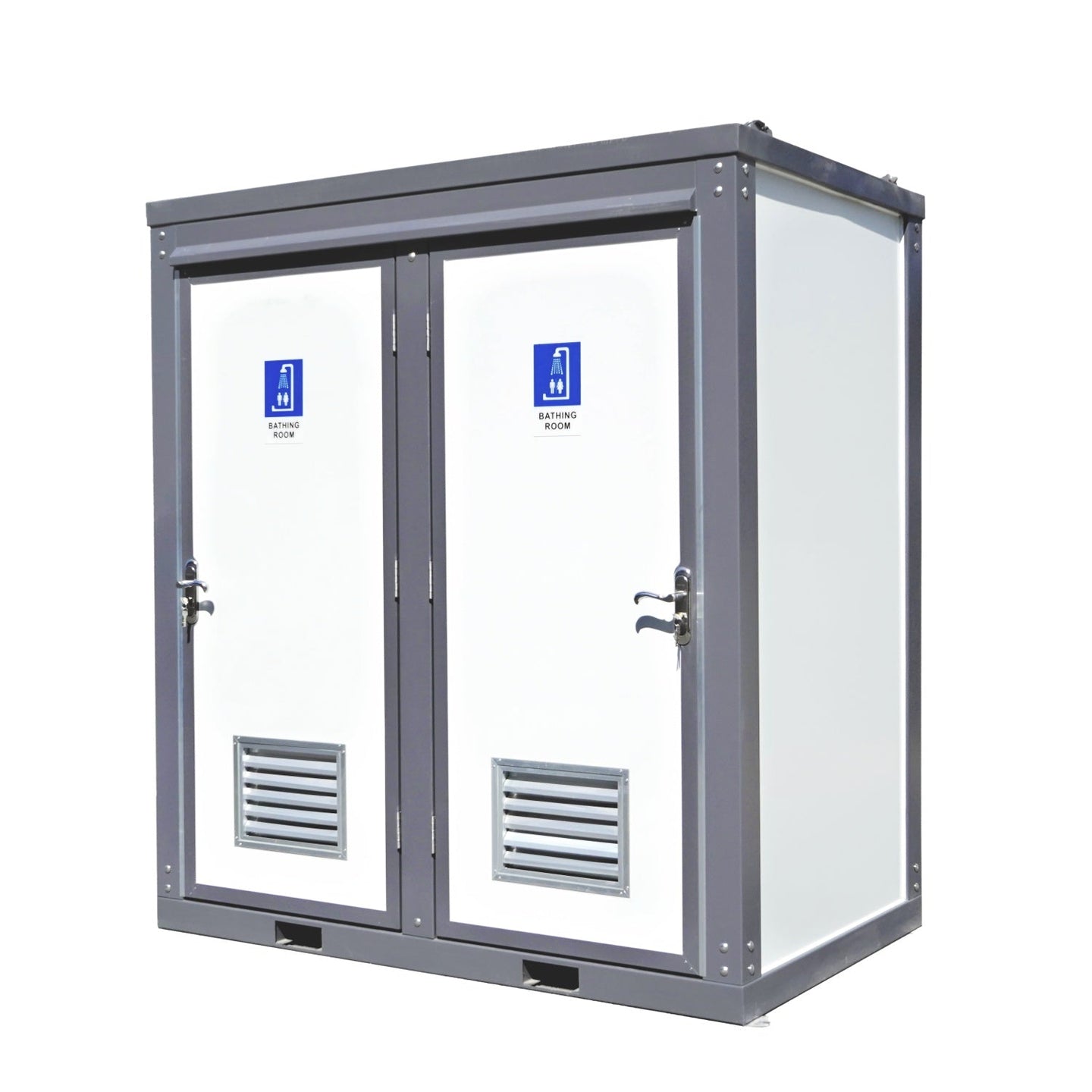

Bastone 2 Private Mobile Shower Room

Overview

Introducing the Bastone 2 Private Mobile Shower Room – your gateway to outdoor convenience. It's a portable, self-contained unit built for camping trips, beach days, and remote destinations.

Benefits

• Private shower on the go when you need it
• Compact and portable for easy transport
• Self-contained unit with integrated systems
• Versatile power options for different sites
• Efficient waste management to stay organized
• Interior comfort and a pleasant feel inside
• Supports elevated outdoor adventures with reliable performance

Features

• On-the-Go Comfort
• Compact and Portable
• Self-Contained Unit
• Versatile Power Options
• Efficient Waste Management
• Interior Beauty and Comfort
• Elevated Outdoor Adventures

Specifications

• Model: 2 Private Mobile Shower Room

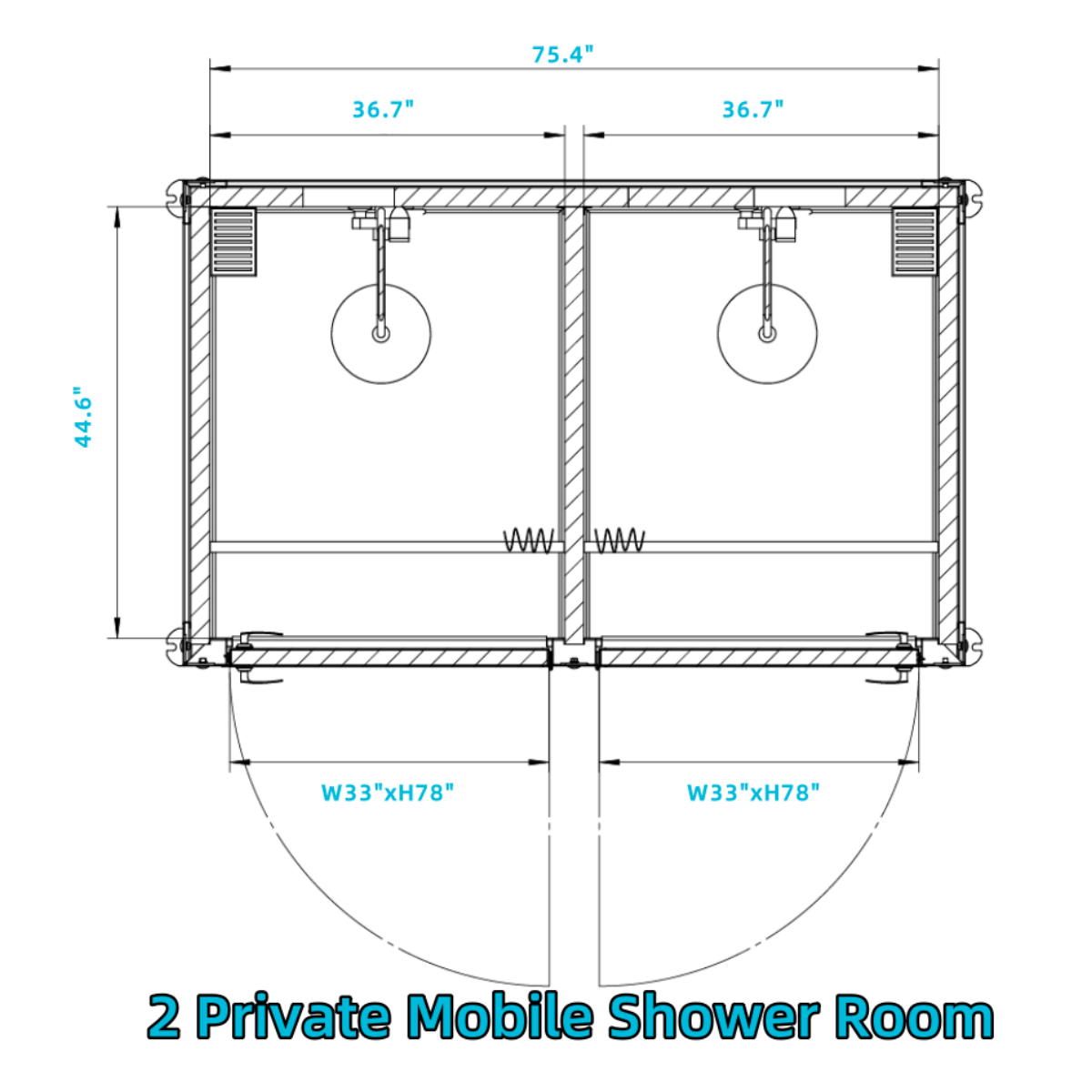

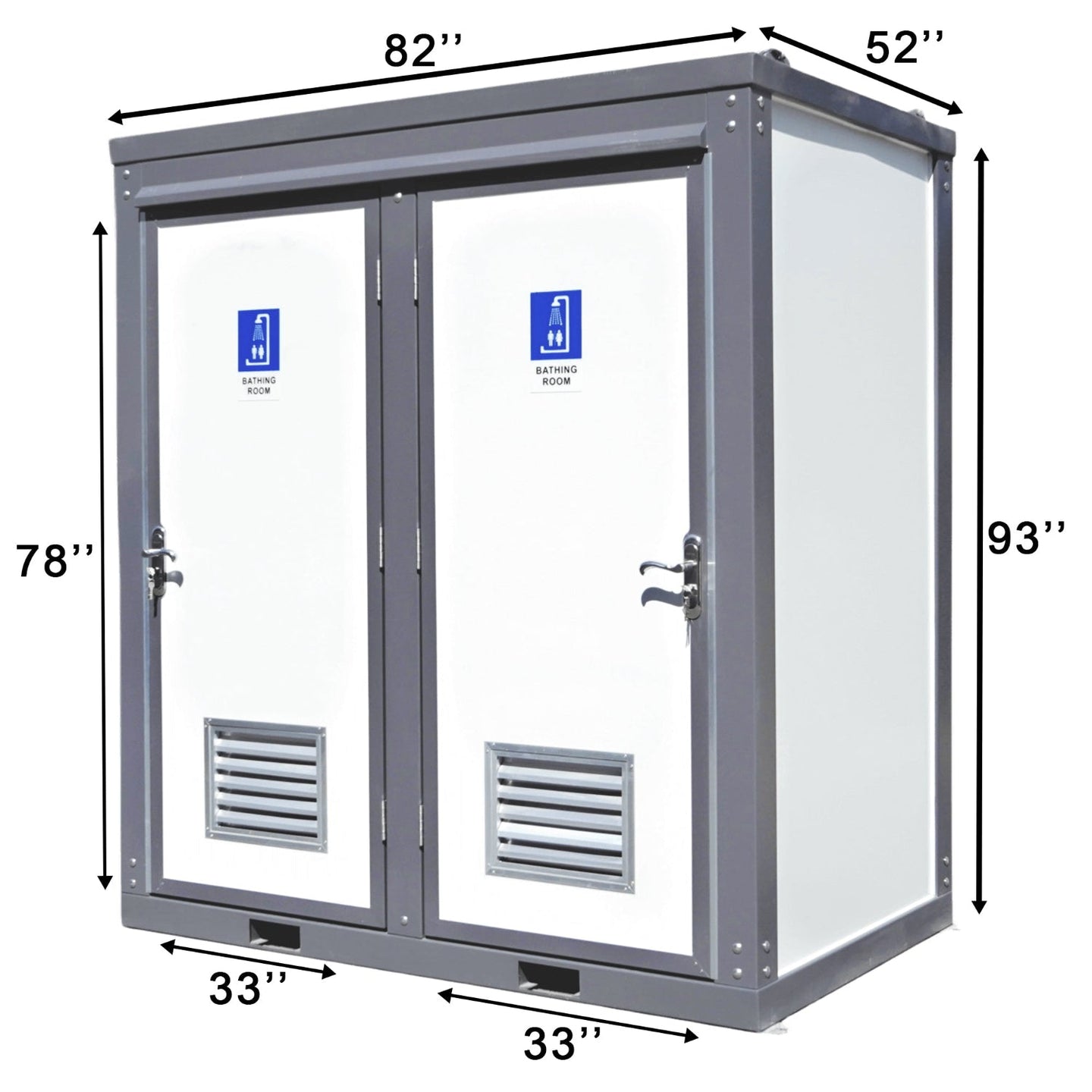

• Exterior dimensions (L x W x H): 82" x 52" x 93"
• Interior dimension per room (L x W): 36.7" x 44.6"
• Door size: W 33" x H 78"
• Net area: 11.4 ft² per room

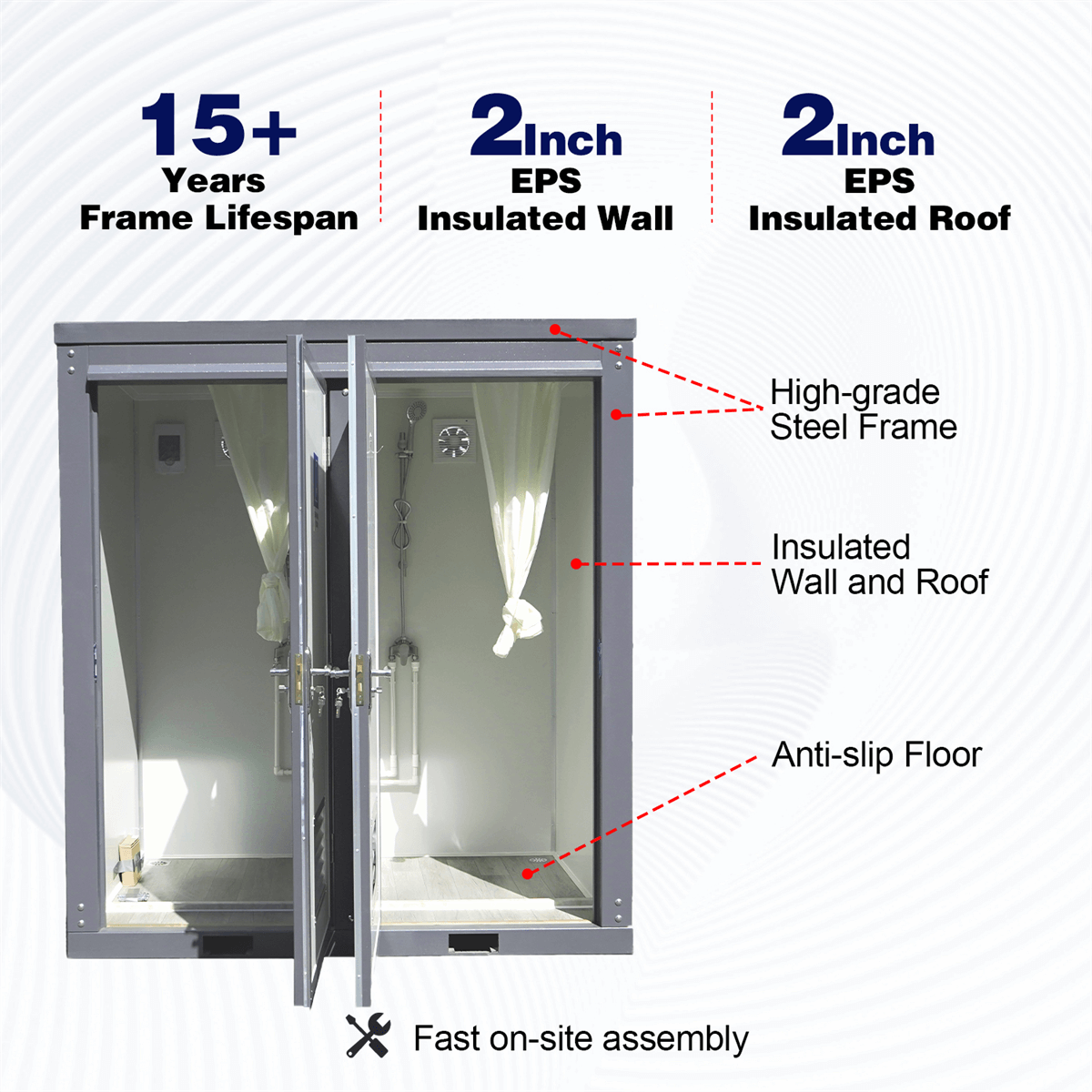

• Frame: Steel
• Surface coating: High-Temperature Resistant Paint
• Roof material: 2-inch EPS fire-resistant insulated roof panels
• Wall material: 2-inch EPS fire-resistant insulated wall panels
• Floor material: Anti-skid and wear-resistant floor leather + hard PVC board
• R-value: 7.09–8.27
• Doors: EPS Composite Panel, outward opening
• Circuit breaker spec: 13–16 Amps
• Power supply: 110V–220V
• Wire info: 3 core 2.5 sqmm
• Wiring instructions: White (Neutral), Black (Live), Green or Yellow-green (Earth)
• Flush volume: 1.6 gpf

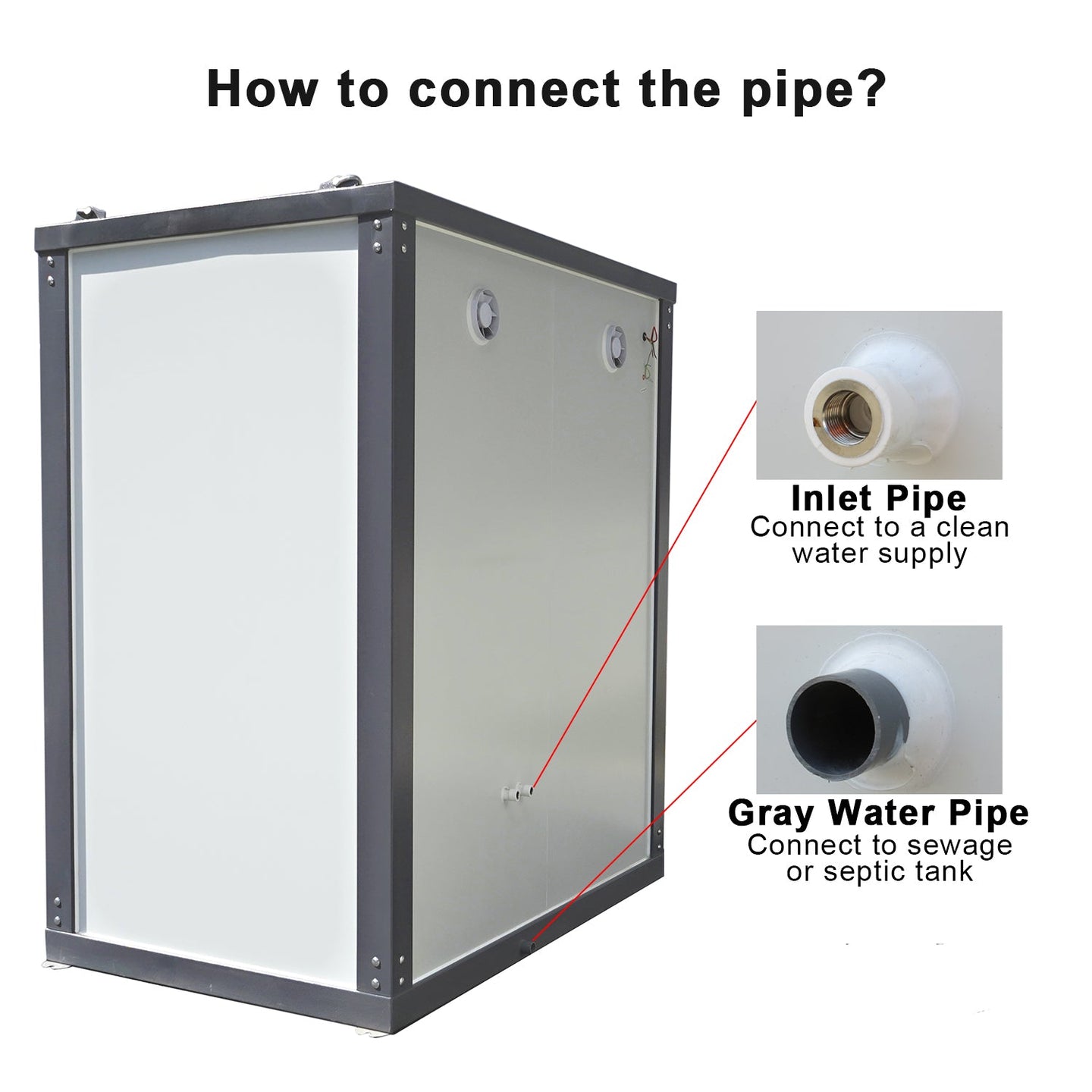

• Inlet pipe material: PPR Pipe
• Inlet pipe inner diameter: 4/5 inch
• Outlet pipe material: PVC Pipe
• Outlet pipe inner diameter: Gray Water 1¼ inch; Black Water 3 inches
• Lowest pipe working temperature: 14°F (if iced, use 122°F water to melt)
• Fire-proof level: B2
• Wind load: 56 MPH
• Snow load: 125 lb/ft²

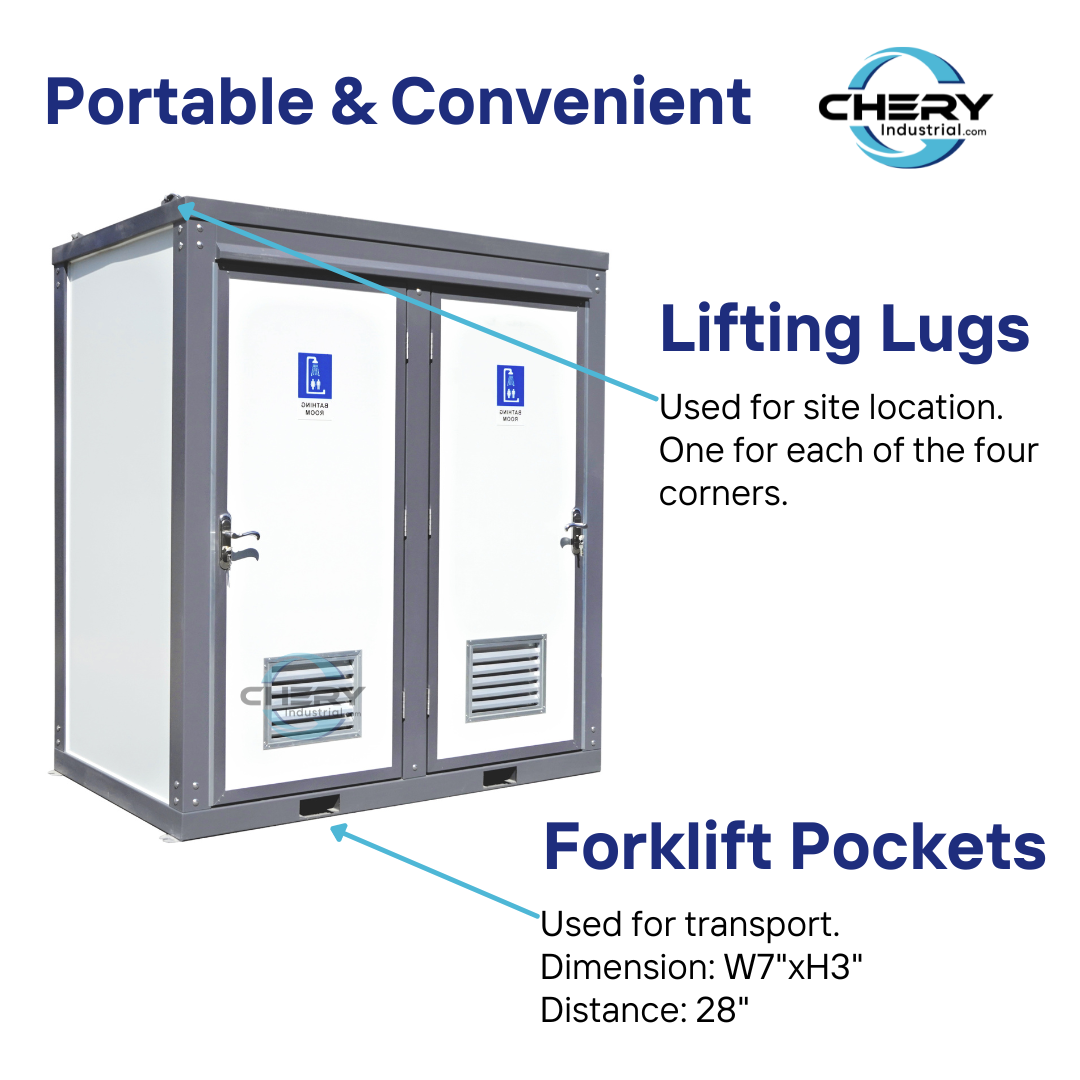

• Forklift pockets: 7" W x 3" H; 28" distance between pockets
• Lifespan: 15+ years
• Warranty: 1 year
• Unloading/setup: 4 lifting lugs on top; forklift slot on bottom; unload with crane or forklift
• Footing options: concrete slab/pads, compacted ground, concrete or steel stumps (surface must be level)
• Notes: wiring must be installed by a licensed electrician; all pipe connections require thread seal tape
• Water and waste: supply city water or well water; sewage must connect to city sewer or a septic system
• Construction site tip: if on a site, connect cold water to the pipe system and hot water to the heating burner; otherwise external tanks may be needed for waste
• Concrete floor anchors: twist-n-lock anchors on four corners; secure with wire rope to top corners
• Soil floor anchors: drive 20–28 inch ground nails on four corners; secure with wire rope to top corners
