PECRON | EB3000-24V Expansion Battery 3072Wh for E2000LFP ONLY

PECRON EB3000-24V Expansion Battery – 3072Wh LiFePO₄ Battery

Exclusive Expansion for the E2000LFP Power Station

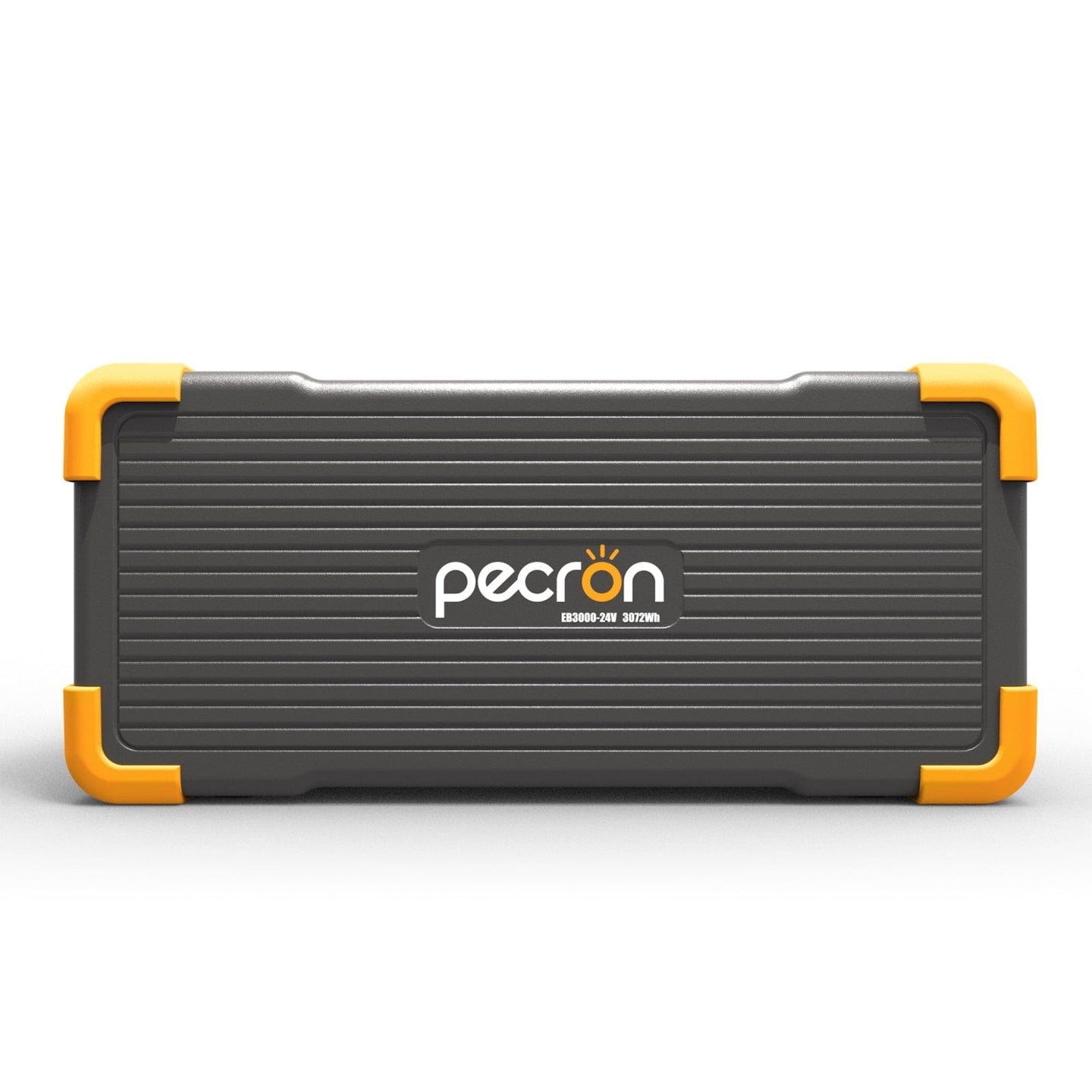

The PECRON EB3000-24V is a high-capacity LiFePO₄ expansion battery engineered specifically for the E2000LFP Power Station. With an impressive 3072Wh of energy storage, it significantly extends runtime for home backup, off-grid living, and outdoor power needs. Designed with safety, scalability, and flexibility in mind, it offers multiple charging methods, built-in MPPT controllers, and the ability to cascade two units for an expanded total capacity of 8064Wh.

High-Capacity Expansion for E2000LFP

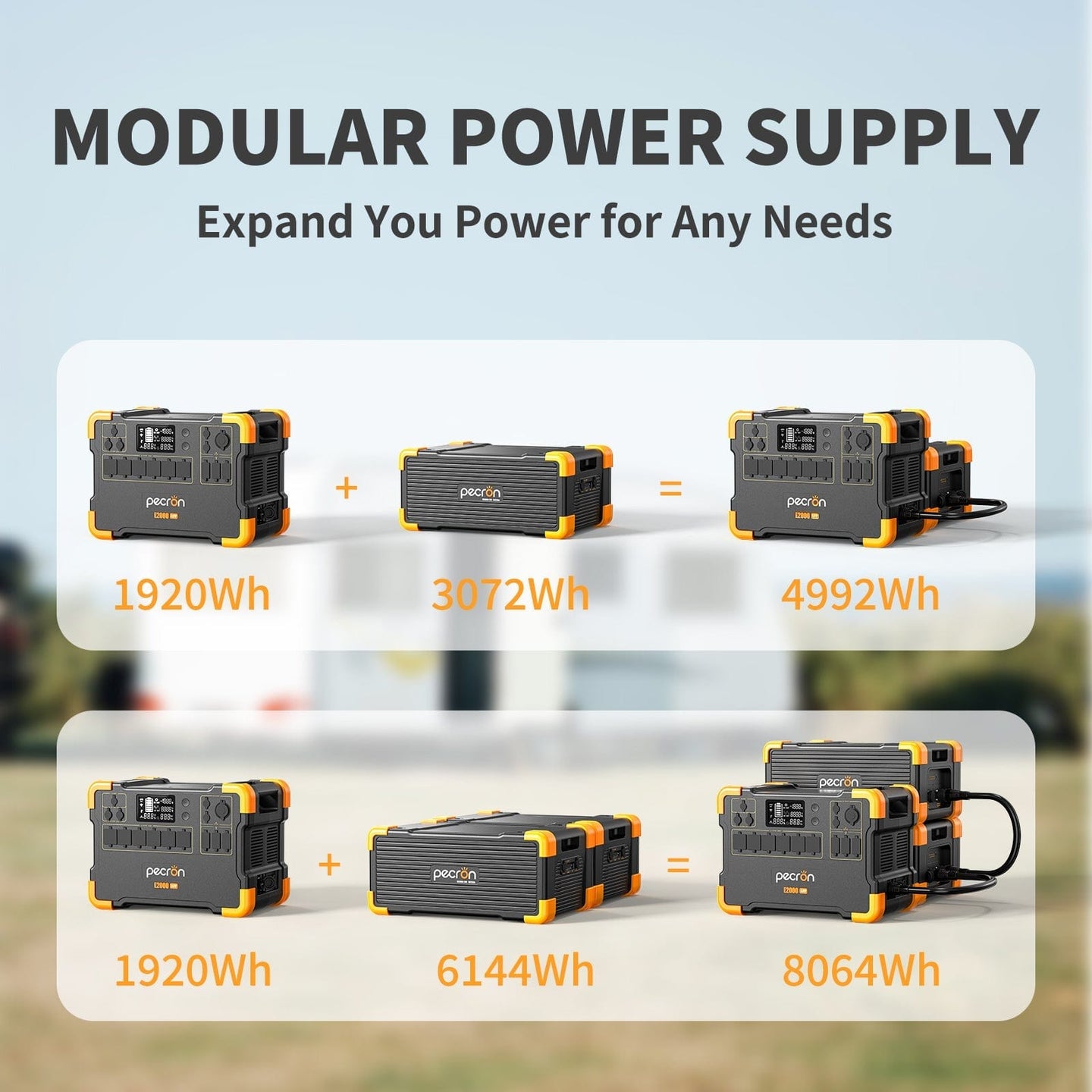

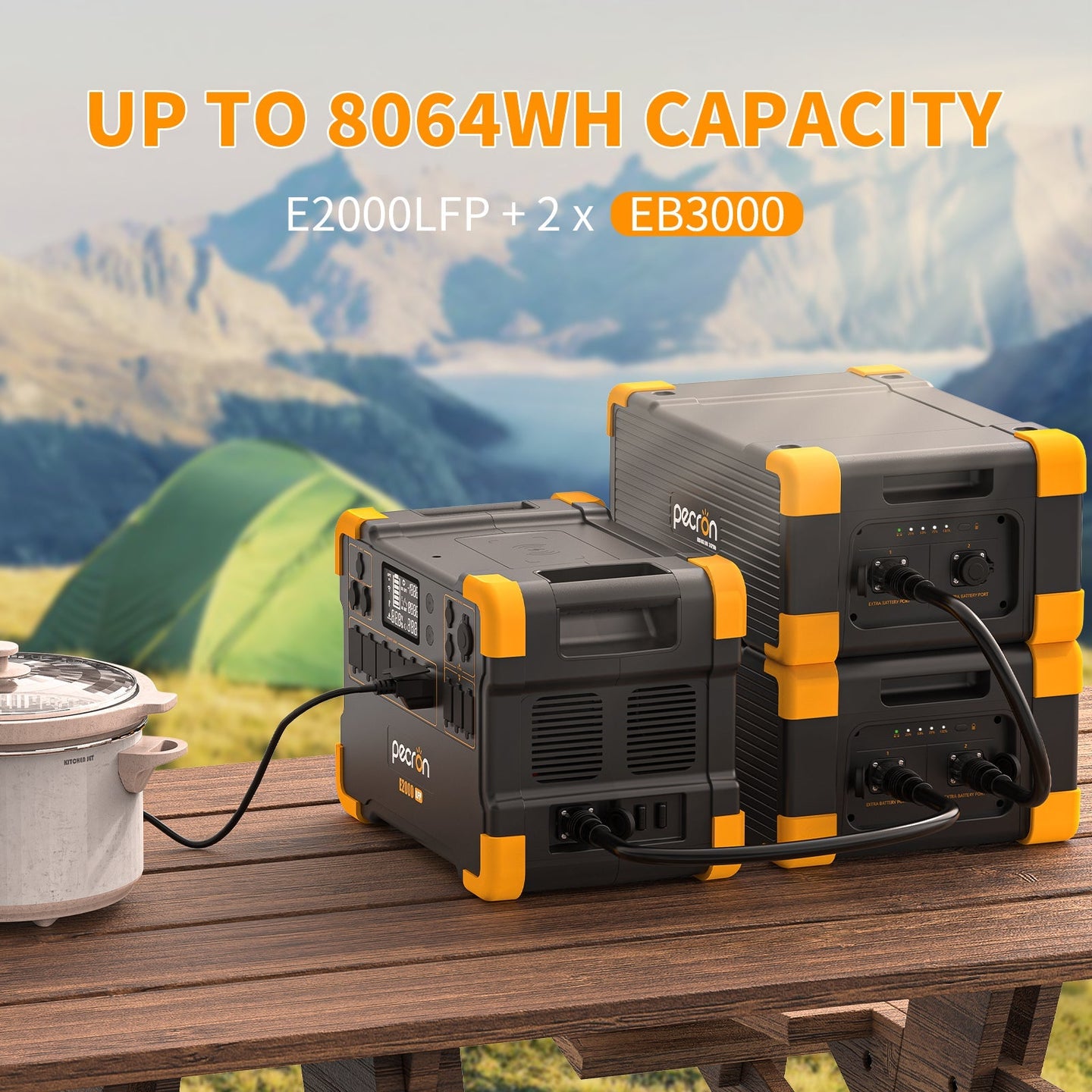

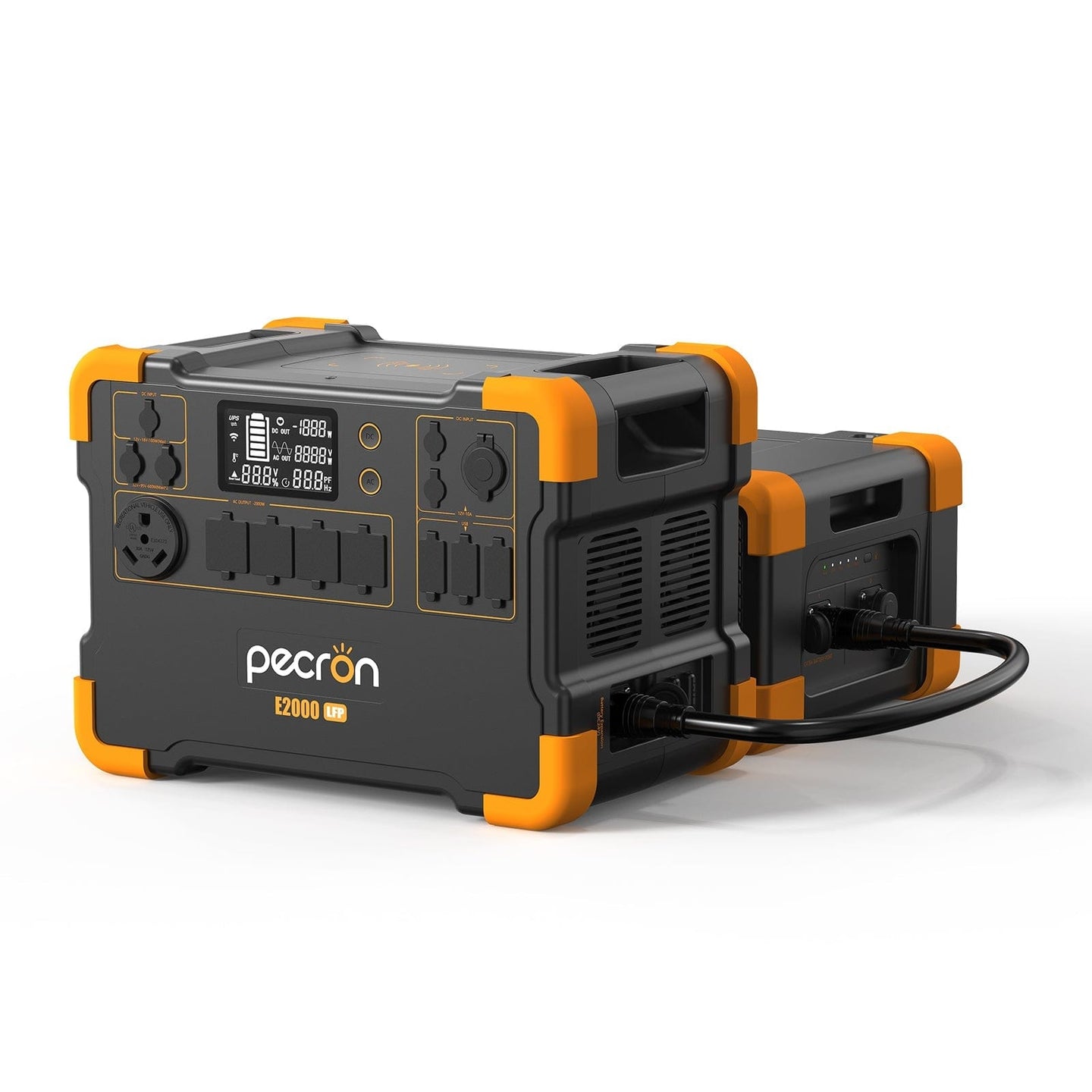

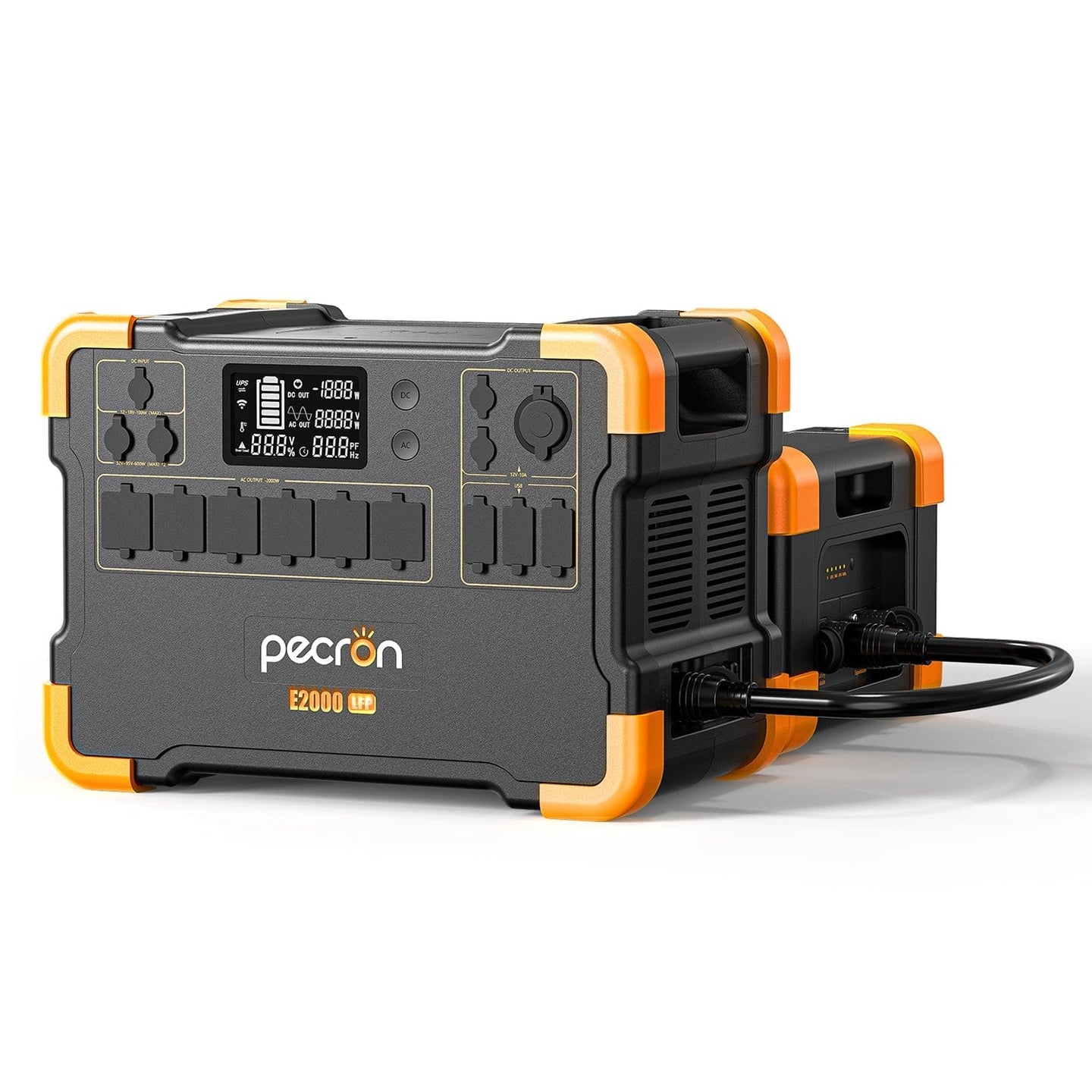

The EB3000-24V delivers 3072Wh (25.6V/120Ah) of long-lasting power to the E2000LFP. Up to two units can be connected to the main power station, providing a total of 8064Wh of usable energy—ideal for powering high-demand appliances, extended off-grid setups, or extended emergency backup use. Please note this battery is exclusively compatible with the PECRON E2000LFP and not with other PECRON models.

Multiple Charging Options
The EB3000-24V supports AC adapter charging, solar charging, and car charging, giving users complete flexibility in how they replenish energy. Its solar input supports up to 400W (12V–95V, 15A max) for efficient off-grid recharging, while the DC car input (12V–95V, 400W max) makes it perfect for on-the-road charging during travel or outdoor expeditions.

Versatile Power Output and Built-In MPPT Controller

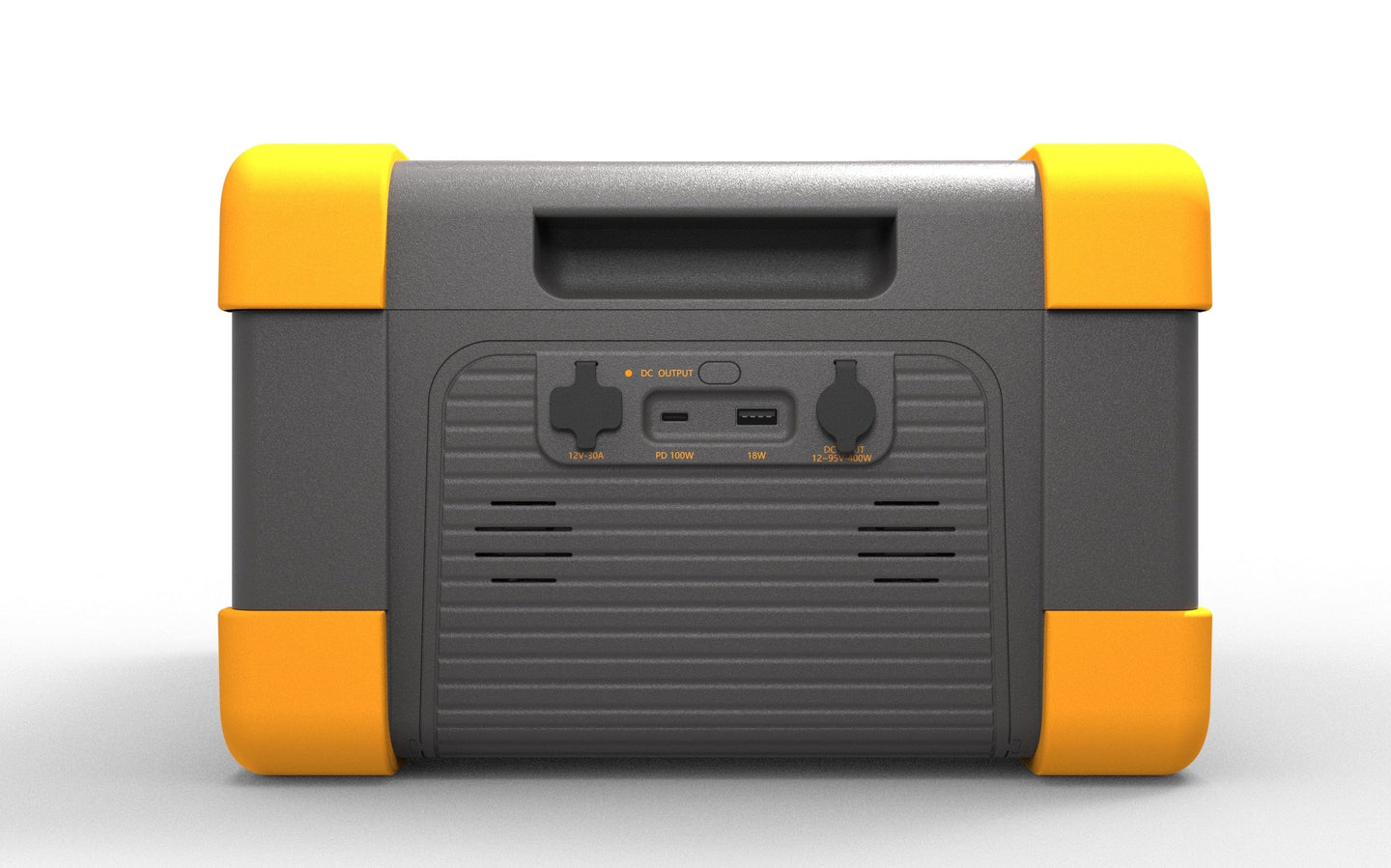

This expansion battery doesn’t just store power—it can also serve as a standalone DC power source. It features an XT60 (30A max) output port for high-demand applications, as well as USB-C PD 100W and USB-A 18W outputs for charging laptops, cameras, and mobile devices directly. The integrated MPPT solar charge controller ensures maximum solar charging efficiency, optimizing energy harvesting from connected panels.

Reliable LiFePO₄ Battery Technology

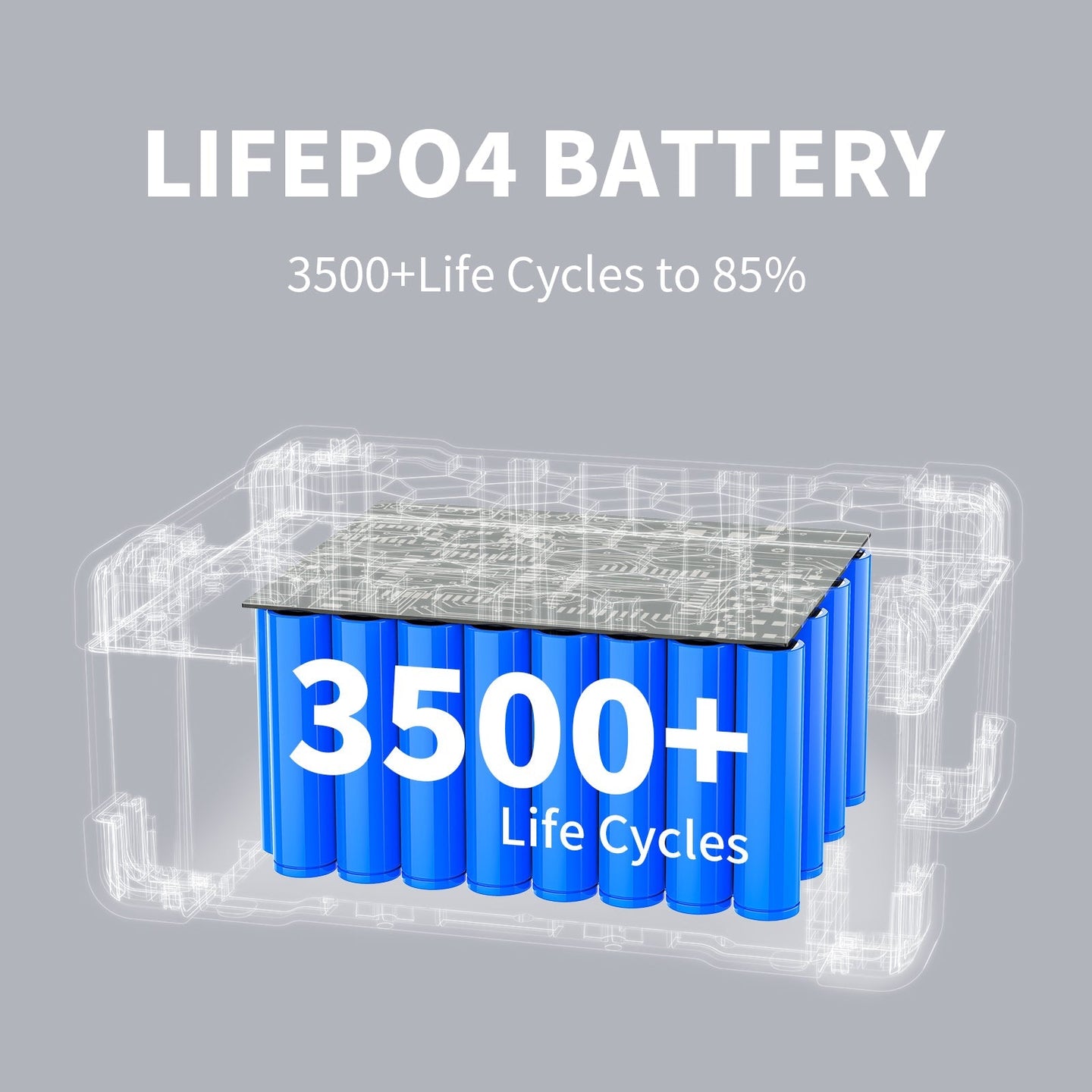

Built with automotive-grade LiFePO₄ cells, the EB3000-24V offers over 3,500 cycles while retaining 80% of its original capacity. These UL-certified battery cells deliver superior safety, stability, and performance, ensuring years of dependable service even under heavy daily use.

Specifications
Model: EB3000-24V
Capacity: 3072Wh (25.6V/120Ah)
Battery Type: LiFePO₄, 3,500+ cycles to 80% capacity
Solar Input: 400W max, 15A max (12V–95V)
Car Input: 12V–95V DC, 400W max
DC Output: XT60 (30A max), USB-C PD 100W, USB-A 18W
Charge Temperature: 0°C–45°C (32°F–113°F)
Discharge Temperature: -20°C–45°C (-4°F–113°F)
Dimensions: 17.3" × 12.2" × 7.8"
Weight: 57.3 lbs (26 kg)

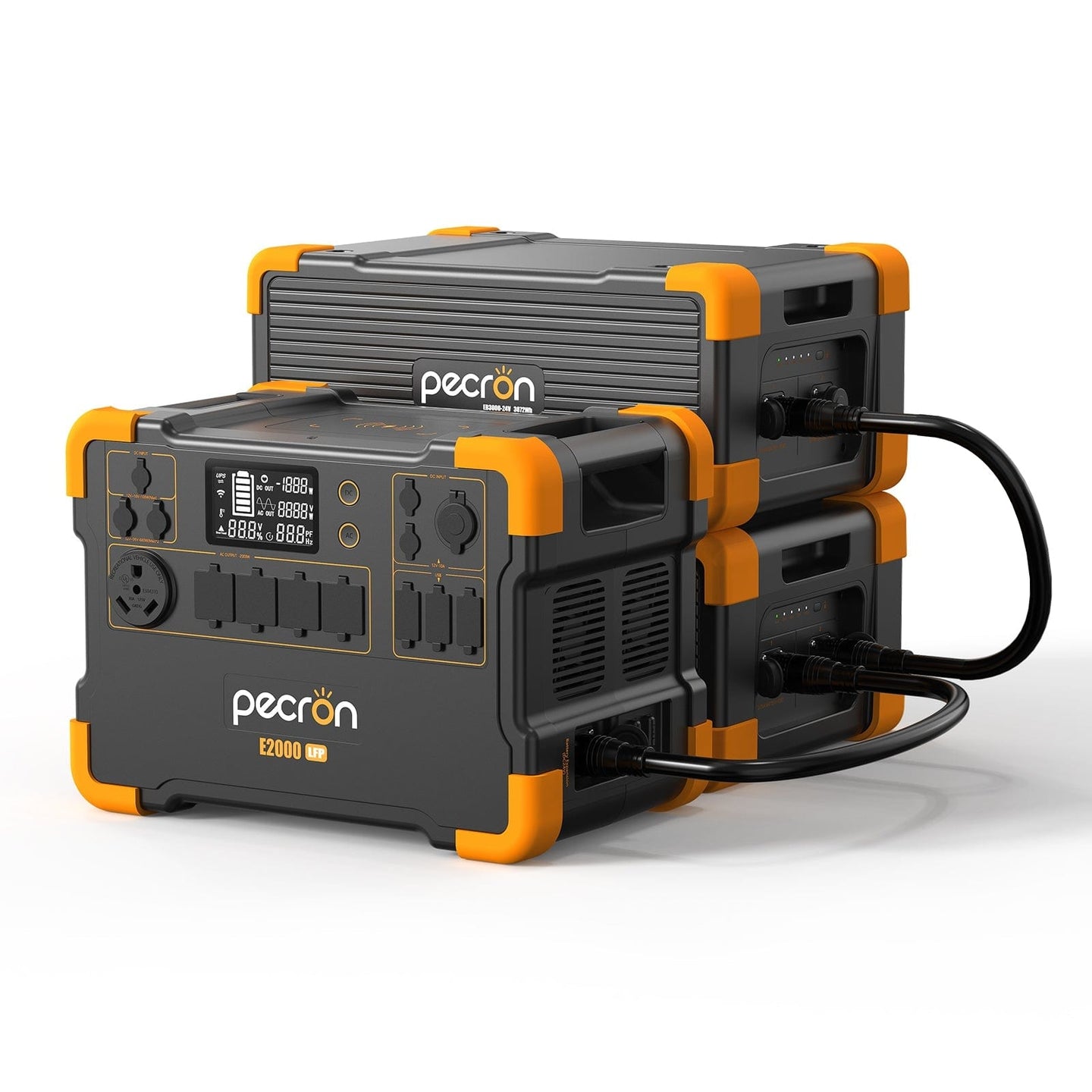

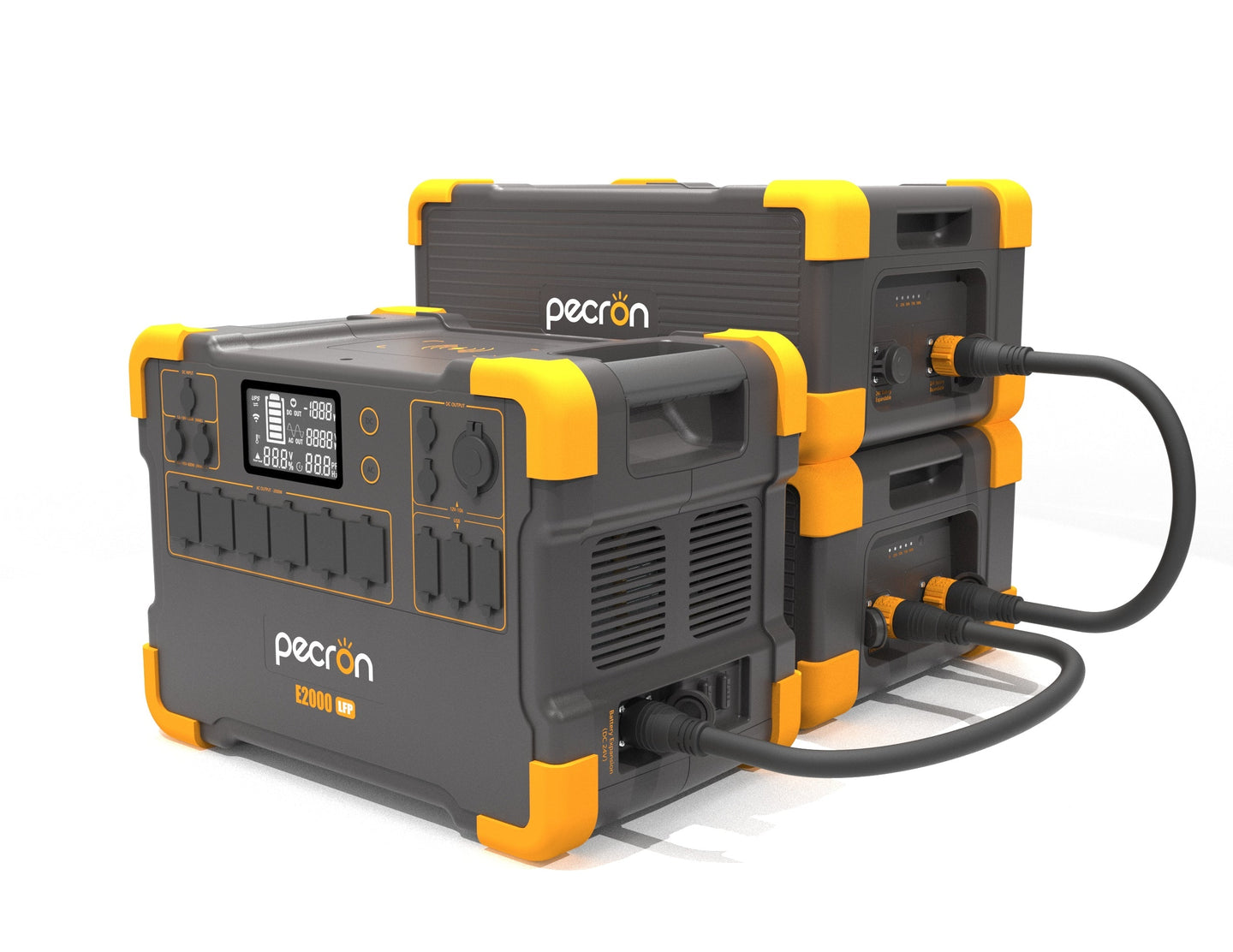

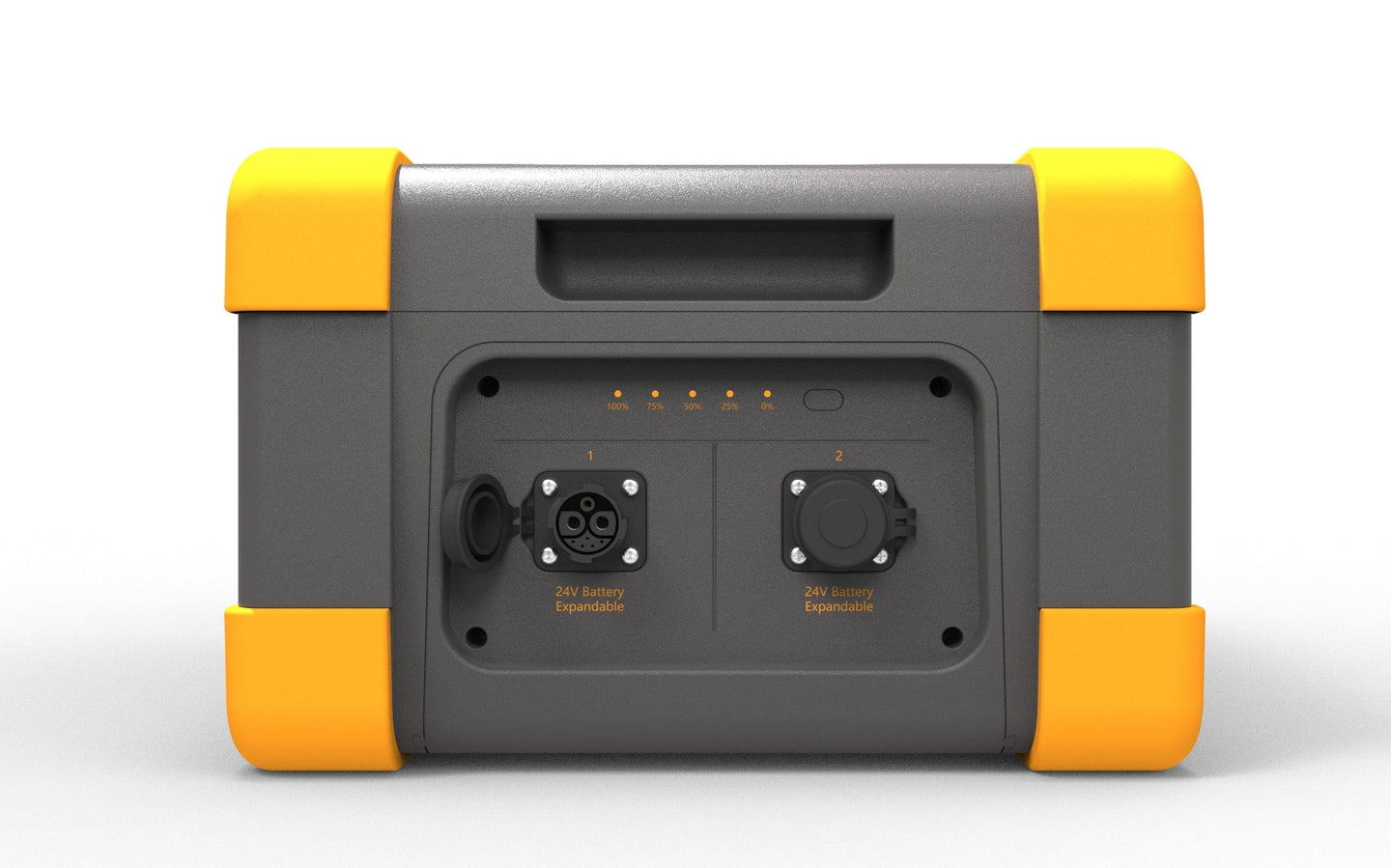

Cascade Compatibility: Up to two units with E2000LFP

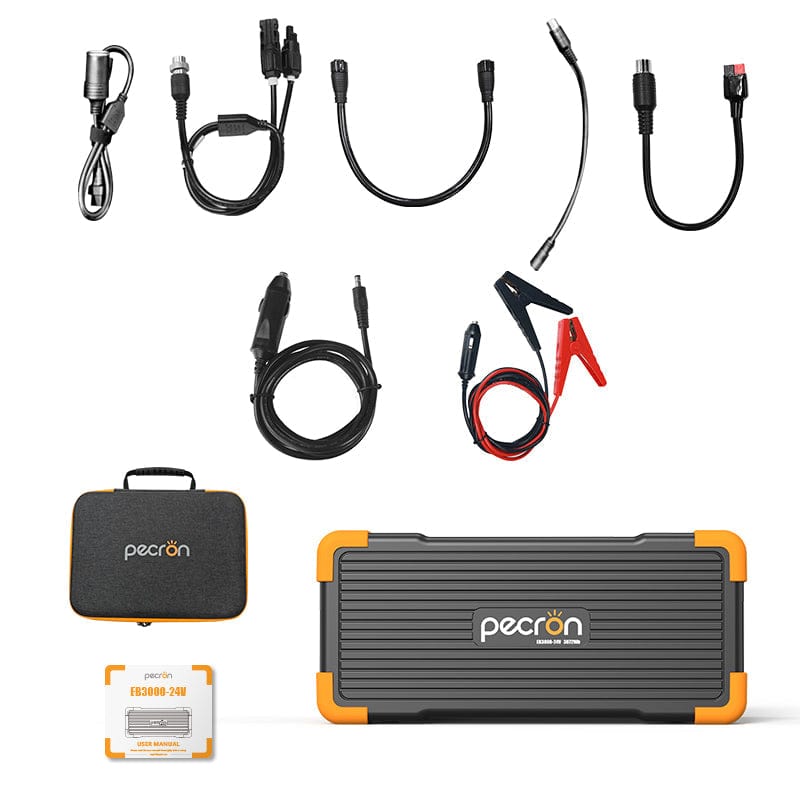

What’s Included
PECRON EB3000-24V Expansion Battery
XT60 to Cigarette Lighter and 5525 Port Cable
MC4 to 5-Pin Solar Charging Cable (LSMC4-5GX16)
M25 Cascade Cable
Solar Cable with 5521 Connector
Anderson Solar Charging Cable
Car Charging Cable with GX16MF-5 Connector
12V Alligator Clips

Why Choose the EB3000-24V Expansion Battery?
The EB3000-24V dramatically extends the runtime of your E2000LFP, providing up to 8064Wh total capacity when fully expanded. It serves as a flexible DC power source on its own, offering multiple outputs and efficient solar recharging with its built-in MPPT controller. Designed with premium LiFePO₄ cells and UL certification, it combines durability, safety, and high performance for years of reliable operation.

The PECRON EB3000-24V Expansion Battery is the perfect solution for E2000LFP users looking to increase energy storage capacity, improve off-grid reliability, and maintain a steady power supply in any environment.
