Fountain Features
-
Floating lake fountain designed for large-scale commercial application.
- Available in 10 HP, 15 HP, 20 HP and 30 HP.
- Suggested LED Lighting Packages:
|
Motor
HP
|
HT
1
|
HT
2
|
HT
3
|
Diam.
|
| 10 |
15' |
10' |
6' |
8' |
| 15 |
18' |
12' |
8' |
9' |
| 20 |
22' |
15' |
10' |
10' |
| 30 |
25' |
18' |
12' |
12' |
Warranty Coverage
All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.
- Pumps and motors: 4-years
Description

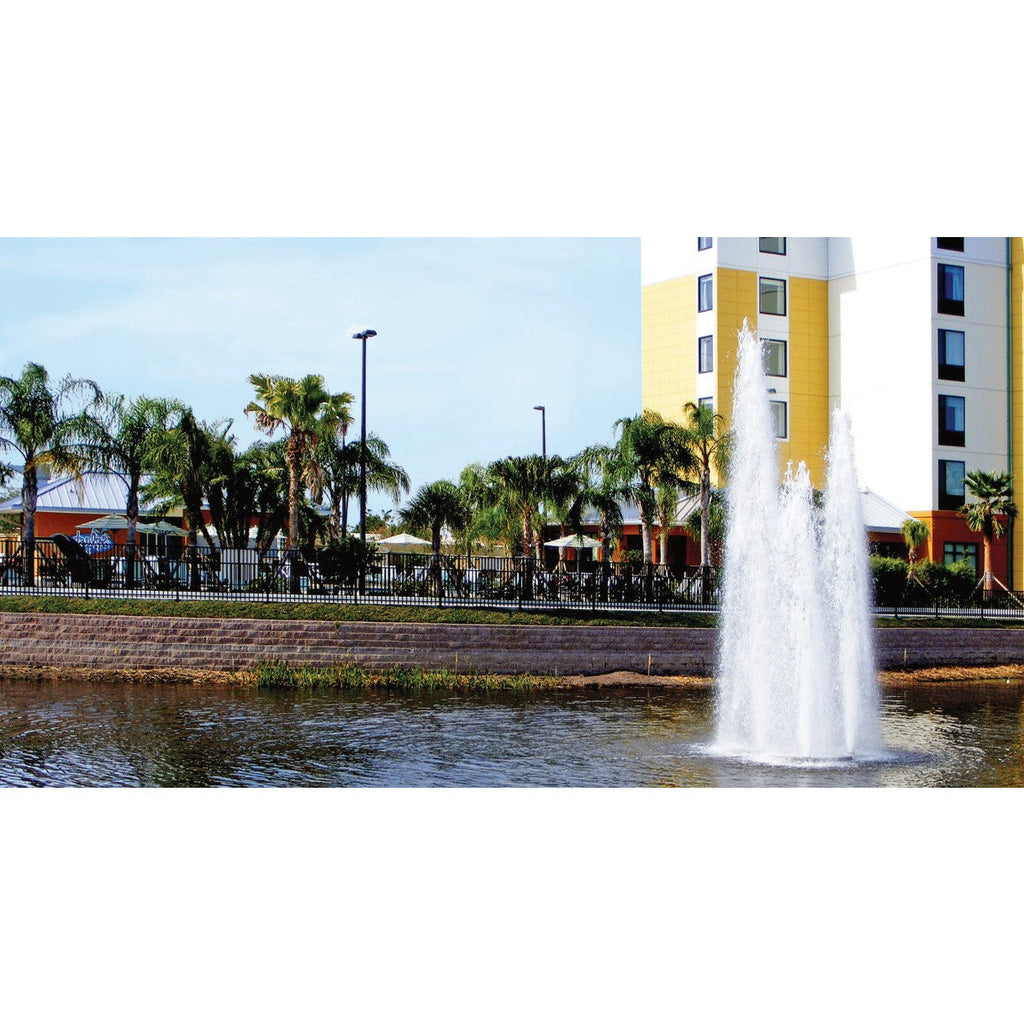

The TriGeyser floating fountain series features three heavily aerated and conical displays that come together to create an impressive pyramid of water, making it a truly unique and stunning water feature. The height proportions of each display can be easily adjusted on site by regulating the valves of each pod, allowing for customizable modifications.
Built with fully waterproof components made of high-quality corrosion-resistant materials, the TriGeyser floating lake fountain line is designed to provide years of dependable and high-performance use. Equipped with a UL listed control panel and heavy-duty submersible turbine pump, these fountains offer reliable and consistent operation.
Specs

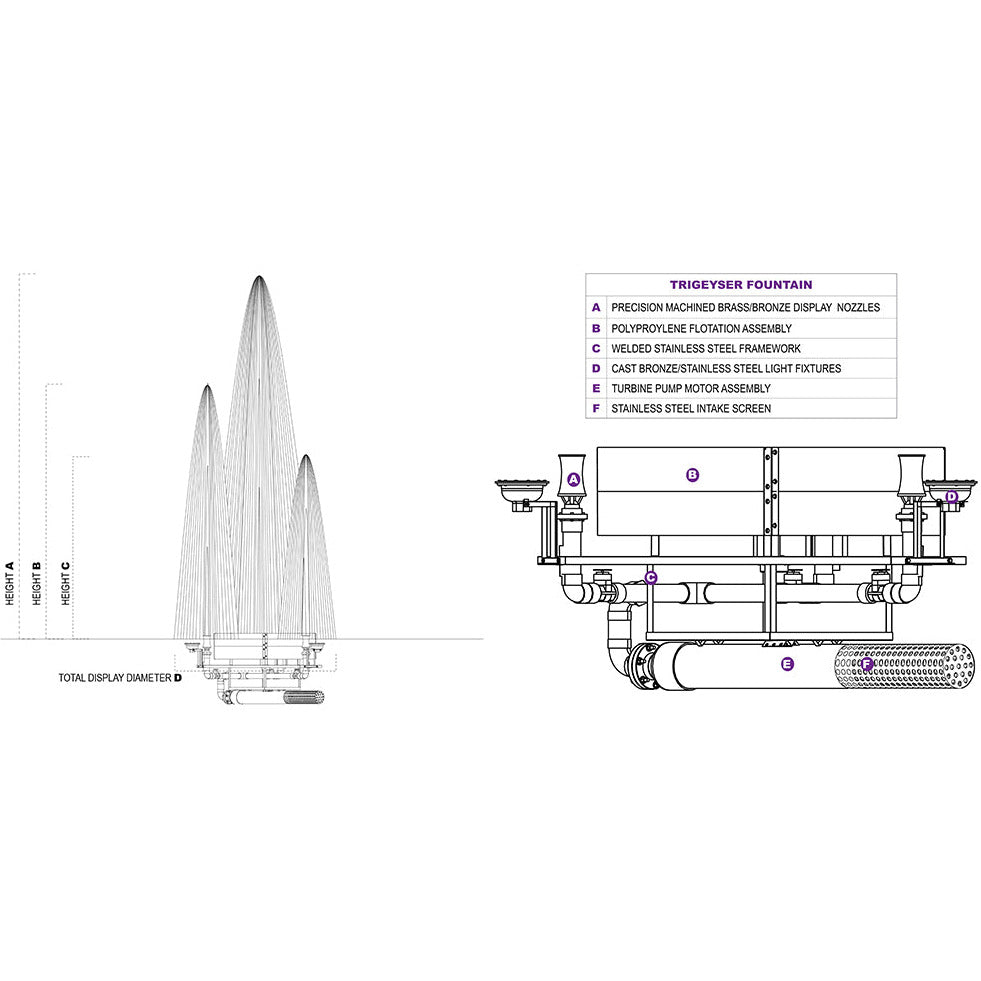

Nozzles
- Precision machined brass/bronze or stainless steel nozzles.
Pumps/Motors
- High performance turbine pump/motor assembly
- Stainless steel construction
- Water cooled: no oils, seals or o-rings to replace
Flotation
- Rotocast polypropylene with UV inhibitors for long life
- Individual leveling compartments for exact adjustments
Control Panel
- UL listed per National Electrical Code
- Weatherproof steel enclosures
Submersible Light Fixtures
- 43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel
- Energy efficient LED, 140 lumens
Cables
(NOT INCLUDED IN LISTED PRICE)
- Call for price on cable
Minimum Water Depth
|
Motor
HP
|
Minimum
Depth
|
| 10 |
6' |
| 15 |
7' |
| 20 |
7' |
| 30 |
8' |
Electrical Specs
|
Motor
HP
|
Total
Wattage
|
Amp
Draw
|
Available
Phase
|
| 10 |
258W
|
3
|
1,3
|
| 15 |
258W
|
3
|
1,3
|
| 20 |
258W
|
3
|
3
|
| 30 |
258W
|
3
|
3
|
Documentation
Vertex TriGeyser Brochure
Vertex TriGeyser System Specifications
Vertex Fountain Owners Manual
Power Cable
Please see below for maximum cable lengths. All cable is sold in 25' increments.
Single Phase: 230V 60HZ
| HP |
14/4 |
12/4 |
10/4 |
8/4 |
6/4 |
4/4 |
2/4 |
| 2 |
150' |
250' |
400' |
|
|
|
|
| 3 |
125' |
200' |
300' |
400' |
|
|
|
| 5 |
|
|
175' |
275' |
400' |
|
|
| 7.5 |
|
|
|
200' |
300' |
400' |
|
| 10 |
|
|
|
150' |
250' |
400' |
|
| 15 |
|
|
|
|
200' |
300' |
400' |
3-Phase: 230V 60HZ
| HP |
14/4 |
12/4 |
10/4 |
8/4 |
6/4 |
4/4 |
2/4 |
| 2 |
275' |
400' |
|
|
|
|
|
| 3 |
200' |
400' |
|
|
|
|
|
| 5 |
|
225' |
325'
|
400' |
|
|
|
| 7.5 |
|
|
225' |
350' |
400' |
|
|
| 10 |
|
|
|
275' |
400' |
|
|
| 15 |
|
|
|
|
300' |
400' |
|
| 20 |
|
|
|
|
200' |
350' |
400' |
| 25 |
|
|
|
|
|
275' |
400' |
| 30 |
|
|
|
|
|
|
300' |
3-Phase: 208V 60HZ
| HP |
14/4 |
12/4 |
10/4 |
8/4 |
6/4 |
4/4 |
2/4 |
| 2 |
225' |
400' |
|
|
|
|
|
| 3 |
175' |
300' |
400' |
|
|
|
|
| 5 |
|
175' |
300'
|
400' |
|
|
|
| 7.5 |
|
|
200' |
300' |
400' |
|
|
| 10 |
|
|
|
225' |
350' |
400' |
|
| 15 |
|
|
|
|
250' |
400' |
|
| 20 |
|
|
|
|
|
300' |
400' |
| 25 |
|
|
|
|
|
|
375' |
| 30 |
|
|
|
|
|
|
300' |
3-Phase: 460V 60HZ
| HP |
14/4 |
12/4 |
10/4 |
8/4 |
| 2 |
400' |
|
|
|
| 3 |
400' |
|
|
|
| 5 |
400' |
|
|
|
| 7.5 |
400' |
|
|
|
| 10 |
300' |
400' |
|
|
| 15 |
|
|
400' |
|
| 20 |
|
|
400' |
|
| 25 |
|
|
|
400' |
| 30 |
|
|
|
400' |
