Vertex | AerationJet Commercial Fountain

Roll over image to zoom in Click on image to zoom

Vertex | AerationJet Commercial Fountain

Vertex Aquatic SolutionsSKU: VTXAJ.10.1

Motor HP: 10 HP

Phase: 1 Phase: 230V

Variant

Price:

$43,880.00

Quantity:

Fountain Features

Floating lake fountain designed for large-scale commercial application.

Available in 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP and 30 HP.

Suggested LED Lighting Packages:

8 lights for 5 HP and 7.5 HP

9 lights for 10 HP

10 lights for 15 HP

11 lights for 20 HP and 30 HP

Motor HP	Center Height	Side Height	Spray Diameter
5	20'	10'	20'
7.5	25'	12'	25'
10	30'	15'	30'
15	35'	20'	33'
20	40'	20'	35'
30	45'	25'	40'

Warranty Coverage

All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.

Display heads: 4-years

Pumps and motors: 4-years

LED Lighting: 2-years

Control Panel: 1-year

Description

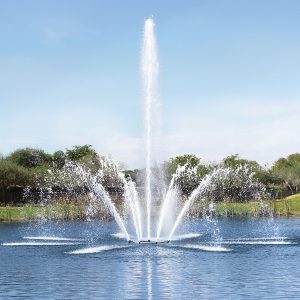

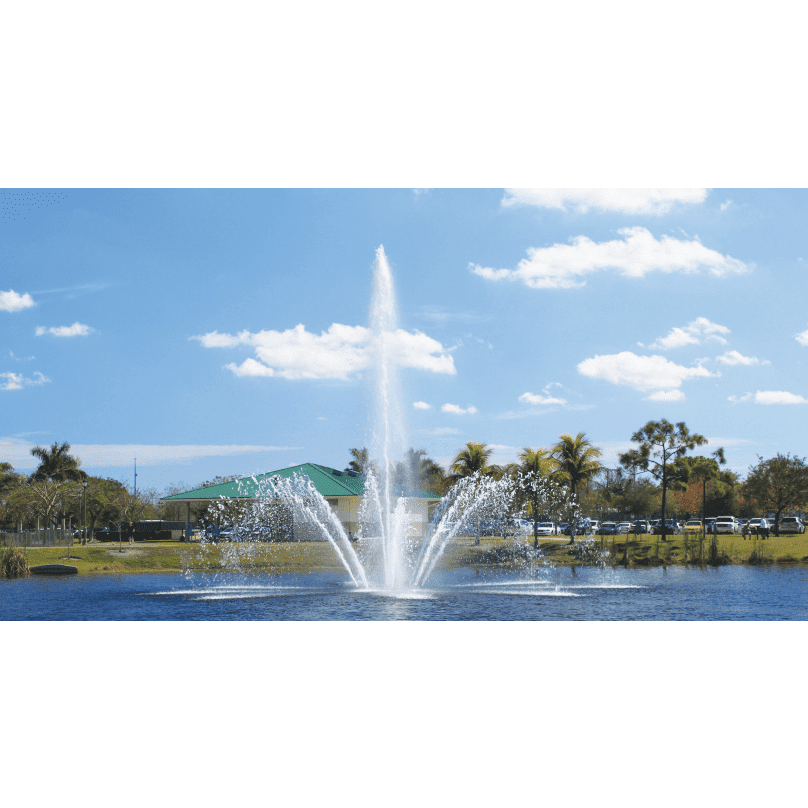

The Vertex AerationJet floating fountain is a heavy-duty water feature designed specifically for large-scale commercial projects, such as business parks, golf courses, municipal ponds and lakes and other similar applications. This impressive fountain boasts a towering height, graceful arches, and superior wind resistance, providing a dramatic water display that adds a stunning feature to any commercial setting.

The AerationJet's heavily aerated jets reach a height of 45 feet, with a diameter that spans up to 40 feet. Its components are fully waterproof and made of the finest corrosion-resistant materials, ensuring years of reliable and high-performance use. The fountain is powered by a UL listed control panel and a heavy-duty submersible turbine pump, both of which are built to withstand the elements and deliver consistent operation.

This fountain is engineered for efficiency and low amp draw and is a perfect choice for those who demand the highest quality and durability in their water features. Its impressive design and exceptional performance make it an eye-catching centerpiece that adds a touch of elegance to any large-scale commercial project.

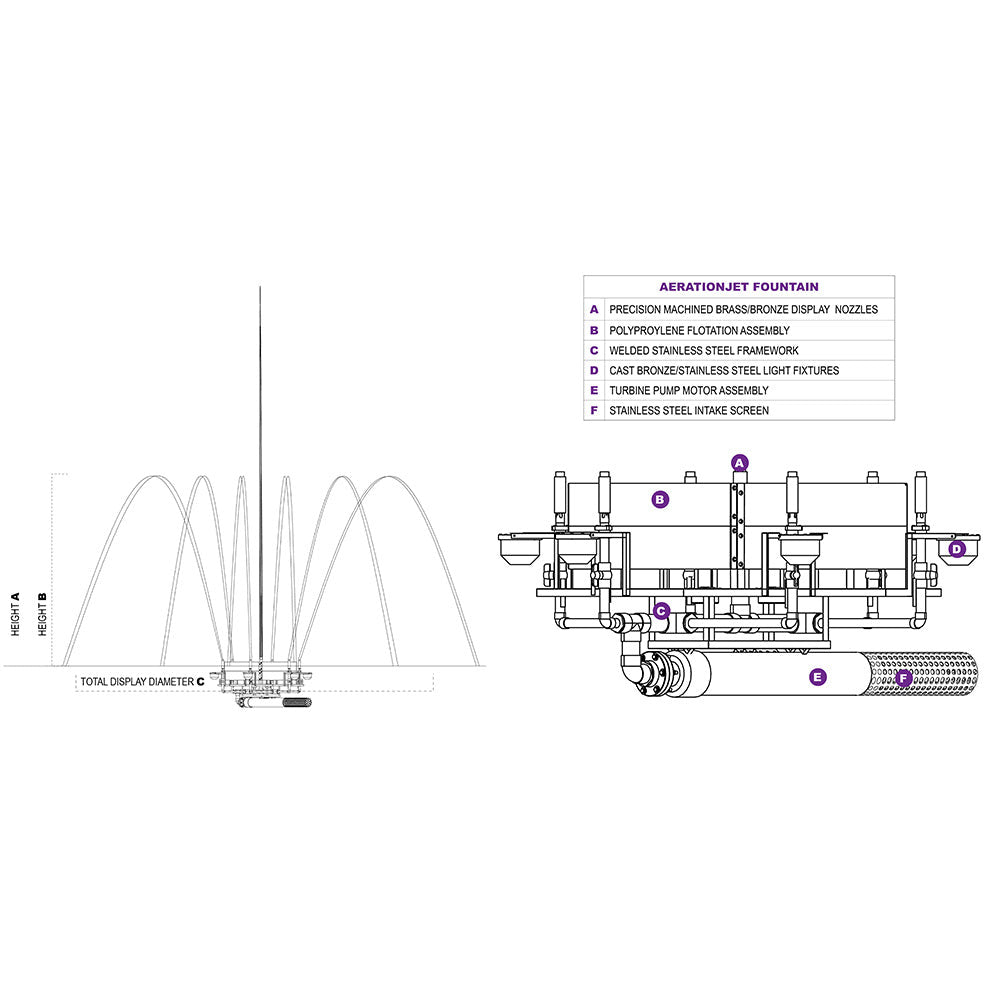

Specs

Nozzles

Precision machined brass/bronze or stainless steel nozzles.

Pumps/Motors

High performance turbine pump/motor assembly

Stainless steel construction

Water cooled: no oils, seals or o-rings to replace

4 year warranty

Flotation

Rotocast polypropylene with UV inhibitors for long life

Individual leveling compartments for exact adjustments

4 year warranty

Control Panel

UL listed per National Electrical Code

Weatherproof steel enclosures

Submersible Light Fixtures

43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel

Energy efficient LED, 140 lumens

Stainless steel housing

2 year warranty

Cables (NOT INCLUDED IN LISTED PRICE)

- Call for price on cable

STW-A rated

4 year warranty

Minimum Water Depth

Motor HP	Minimum Depth
5	4'
7.5	5'
10	6'
15	7'
20	7'
30	8'

Electrical Specs

Motor HP	Total Wattage	Amp Draw	Available Phase
5	344W	4	1,3
7.5	344W	4	1,3
10	387W	4.5	1,3
15	430W	5	1,3
20	473W	5.5	3
30	473W	5.5	3

Documentation

Vertex AerationJet System Specifications

Vertex Fountain Owners Manual

Power Cable

Please see below for maximum cable lengths. All cable is sold in 25' increments.

Single Phase: 230V 60HZ

HP	14/4	12/4	10/4	8/4	6/4	4/4	2/4
2	150'	250'	400'
3	125'	200'	300'	400'
5			175'	275'	400'
7.5				200'	300'	400'
10				150'	250'	400'
15					200'	300'	400'

3-Phase: 230V 60HZ

HP	14/4	12/4	10/4	8/4	6/4	4/4	2/4
2	275'	400'
3	200'	400'
5		225'	325'	400'
7.5			225'	350'	400'
10				275'	400'
15					300'	400'
20					200'	350'	400'
25						275'	400'
30							300'

3-Phase: 208V 60HZ

HP	14/4	12/4	10/4	8/4	6/4	4/4	2/4
2	225'	400'
3	175'	300'	400'
5		175'	300'	400'
7.5			200'	300'	400'
10				225'	350'	400'
15					250'	400'
20						300'	400'
25							375'
30							300'

3-Phase: 460V 60HZ

HP	14/4	12/4	10/4	8/4
2	400'
3	400'
5	400'
7.5	400'
10	300'	400'
15			400'
20			400'
25				400'
30				400'
