Eunorau | FAT-HS/HUNTER X8 | FAT-HS17

Eunorau | FAT-HS/HUNTER X8

Overview

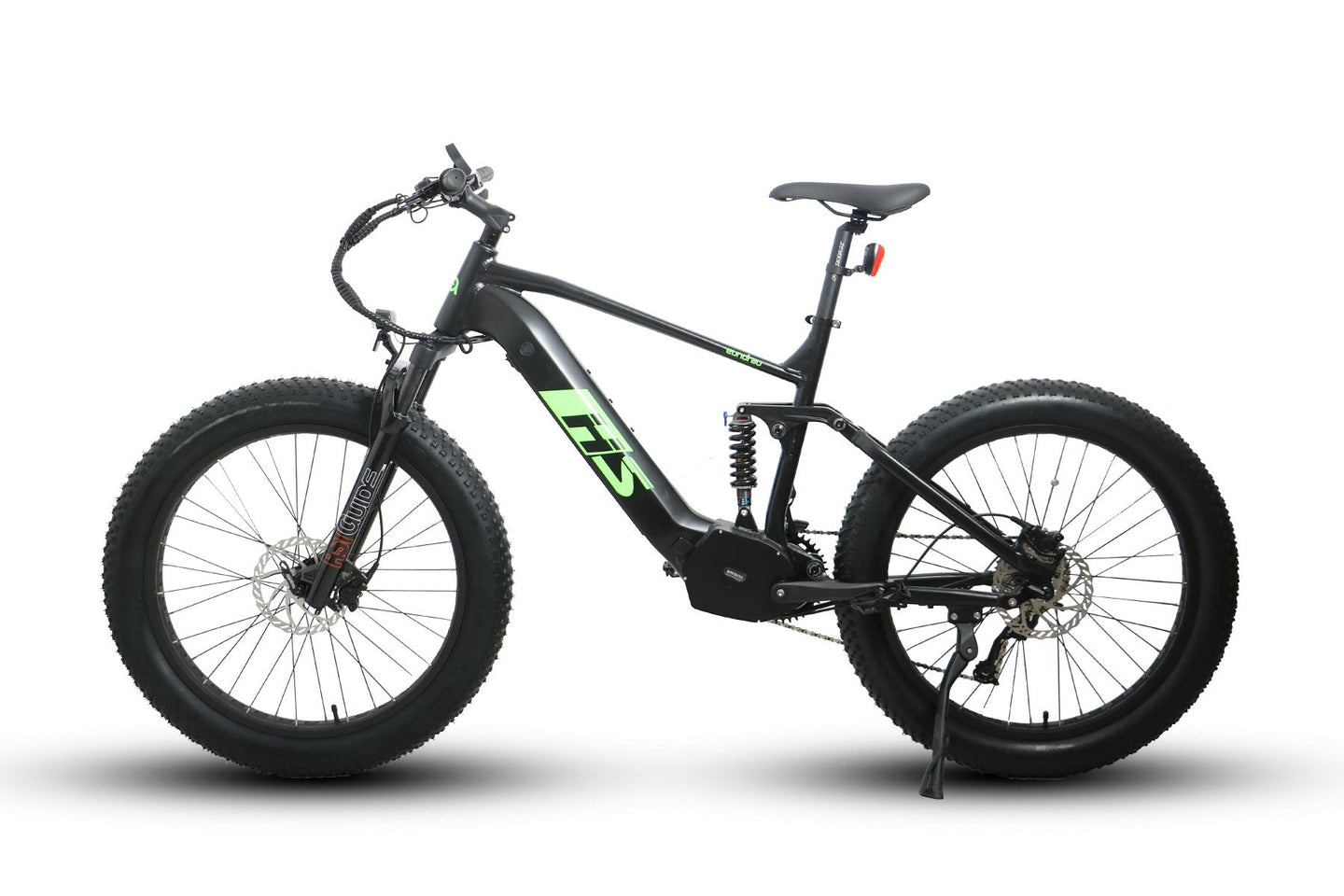

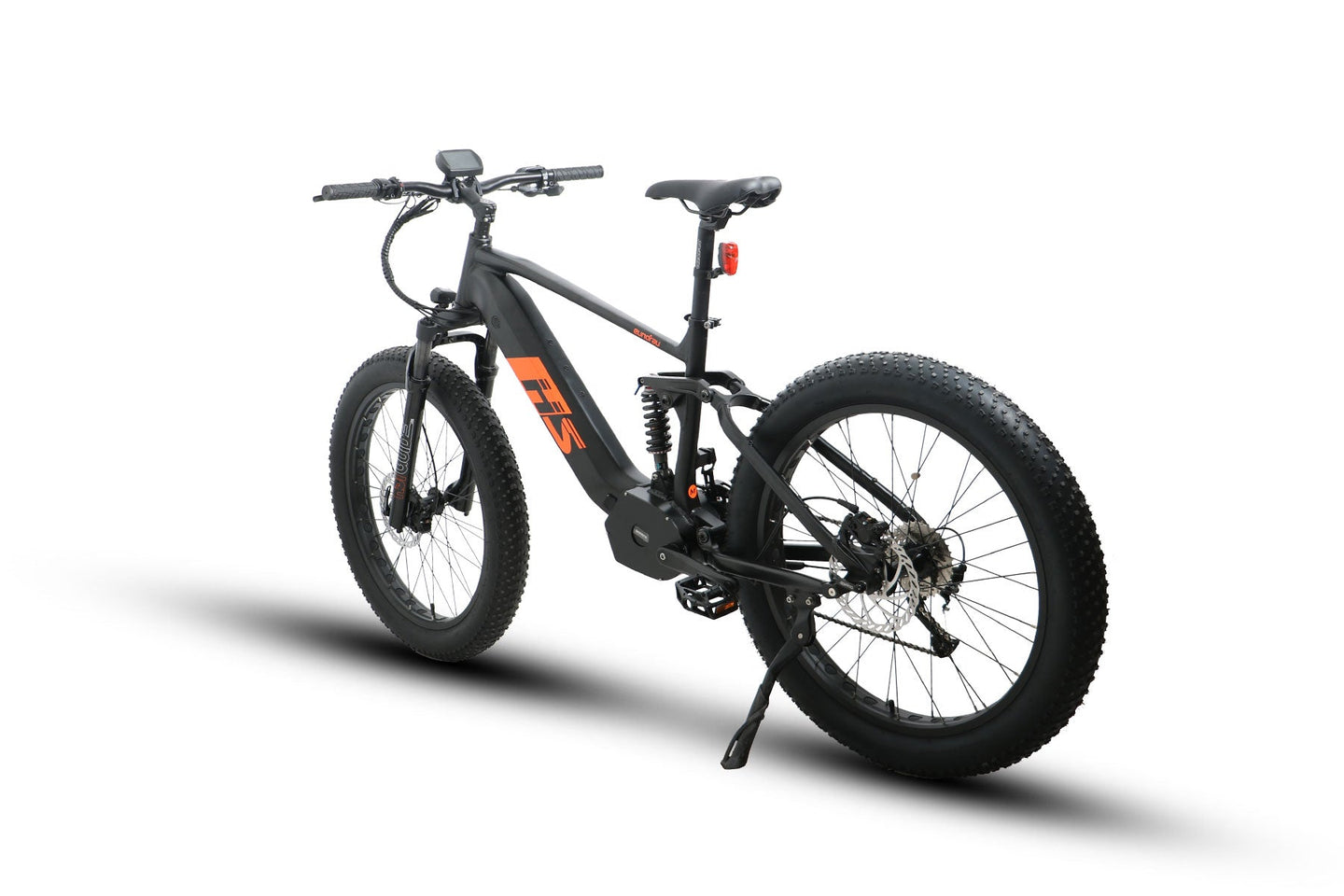

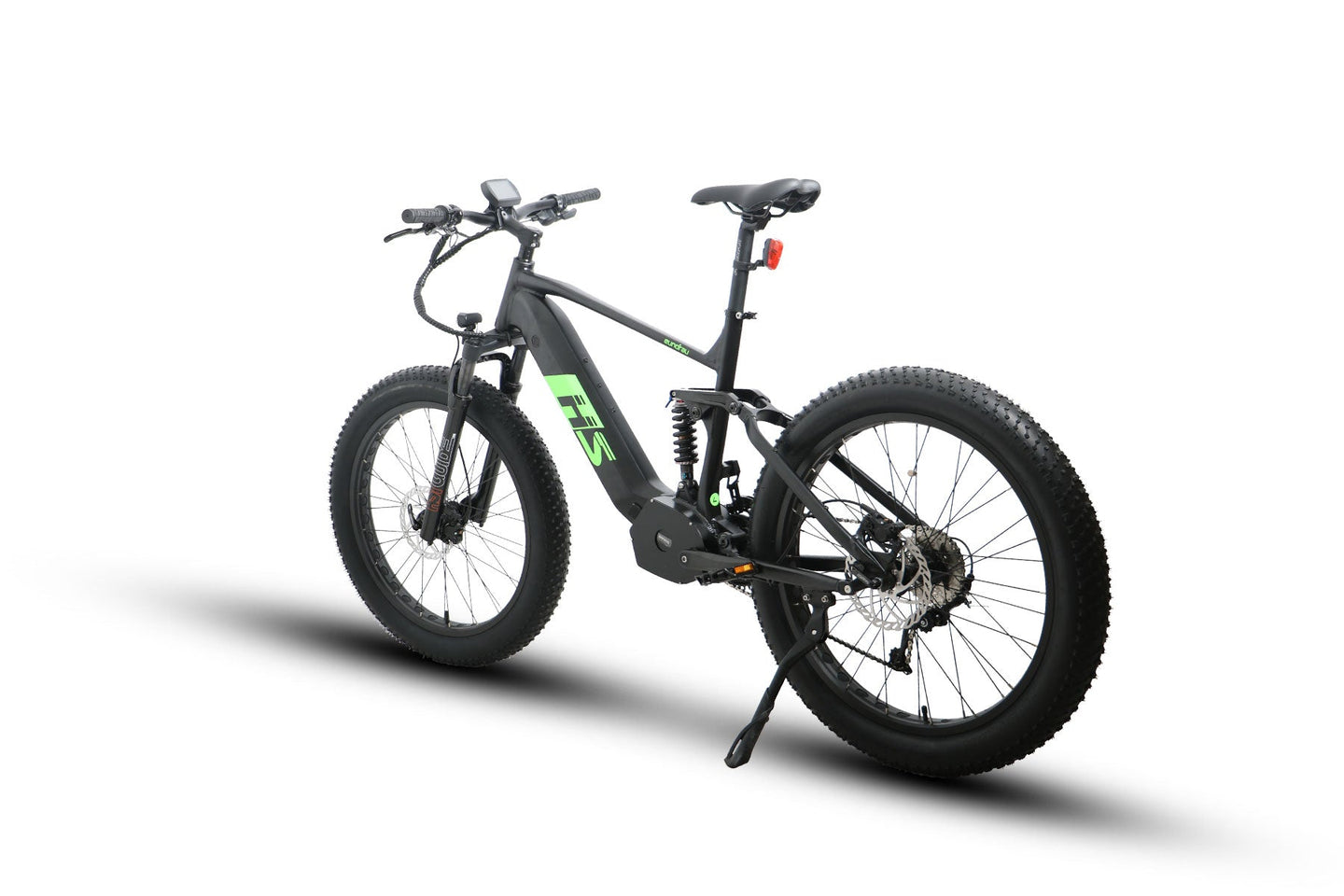

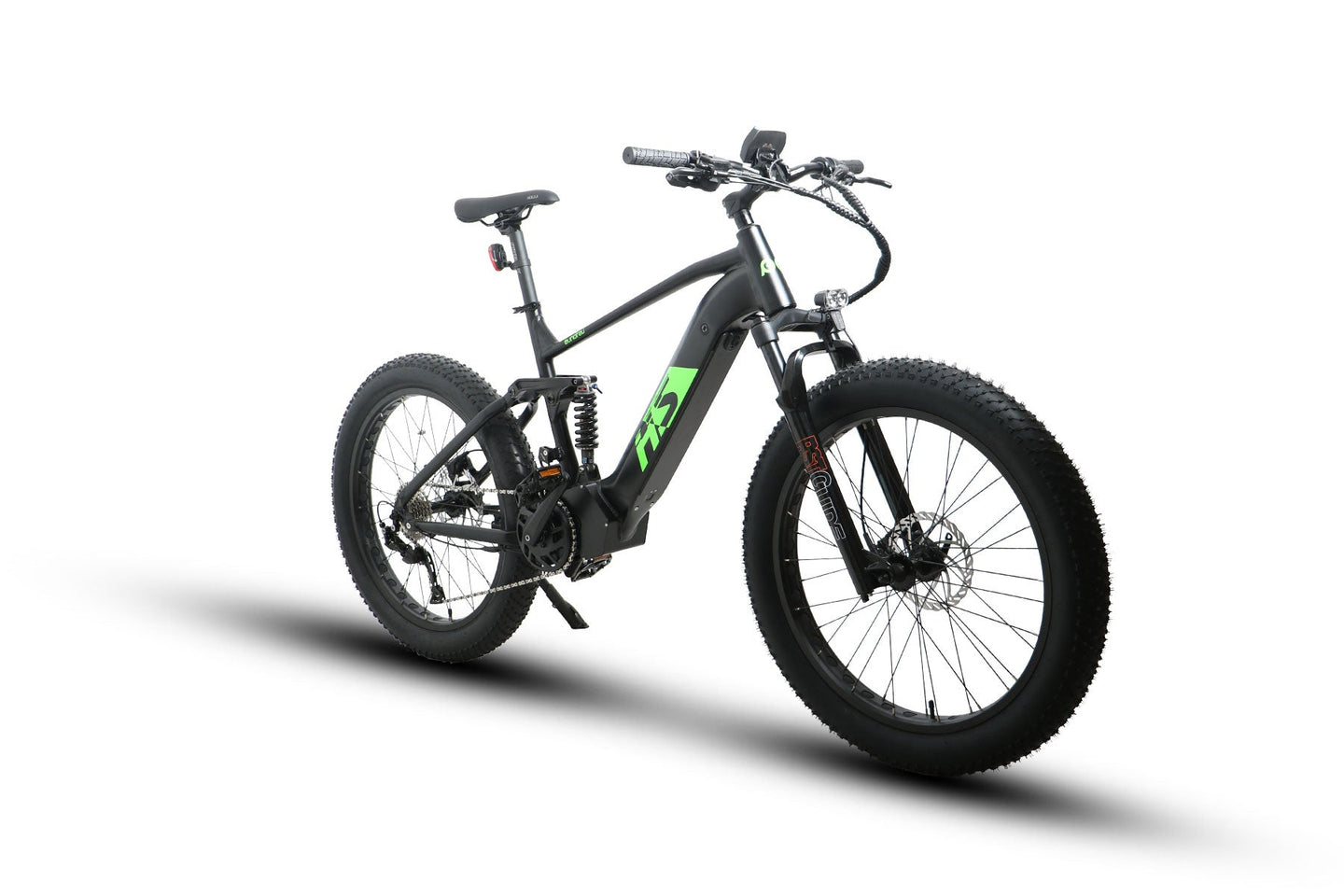

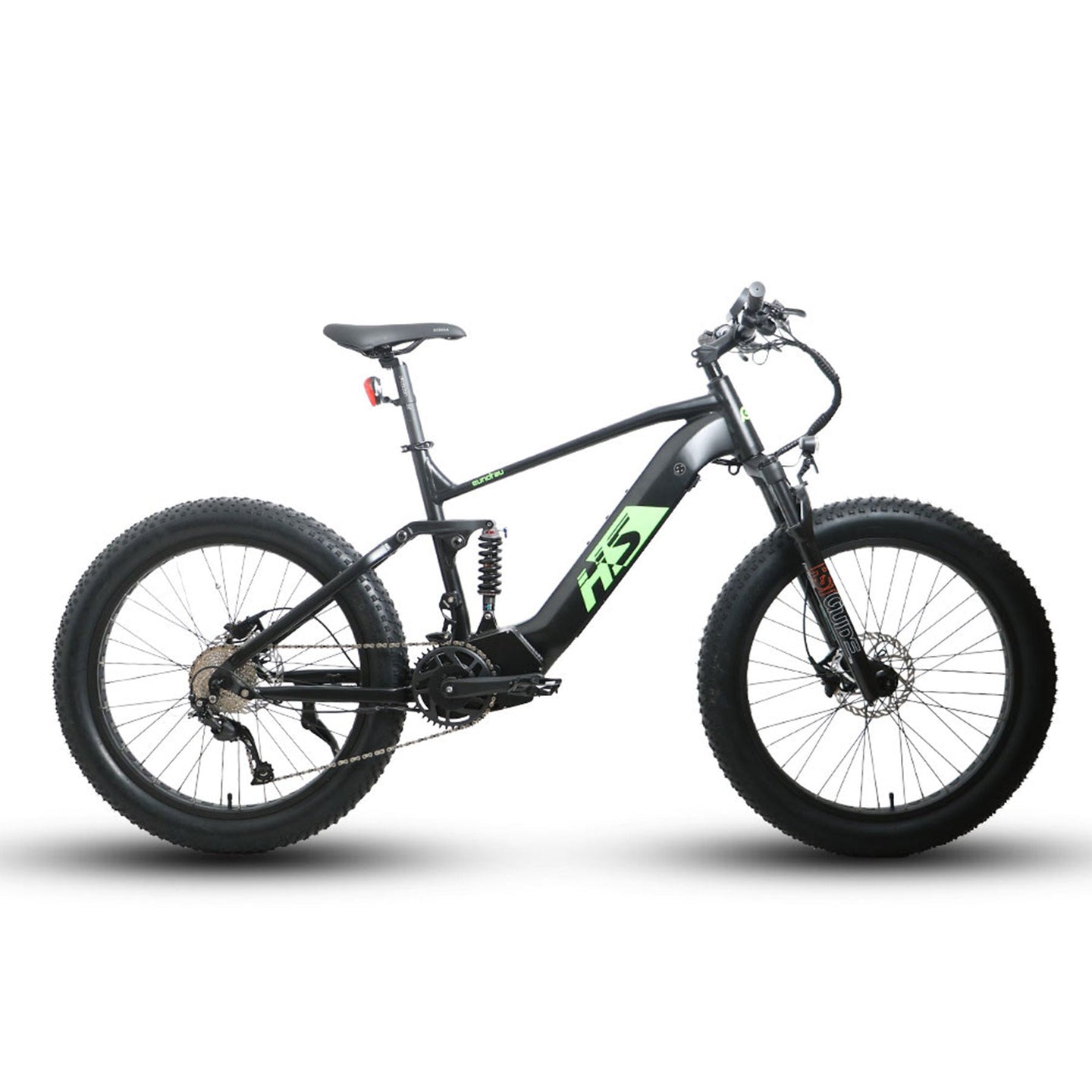

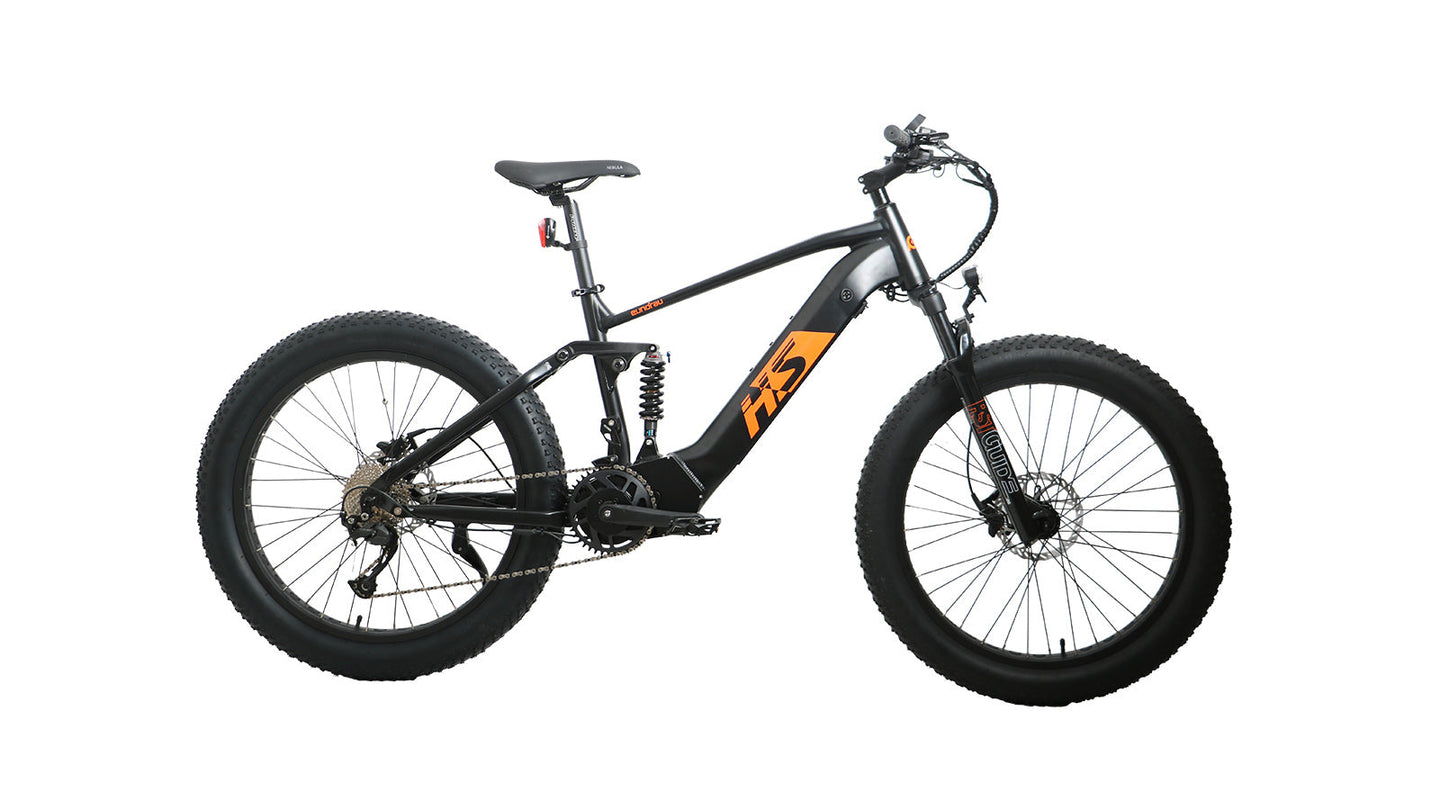

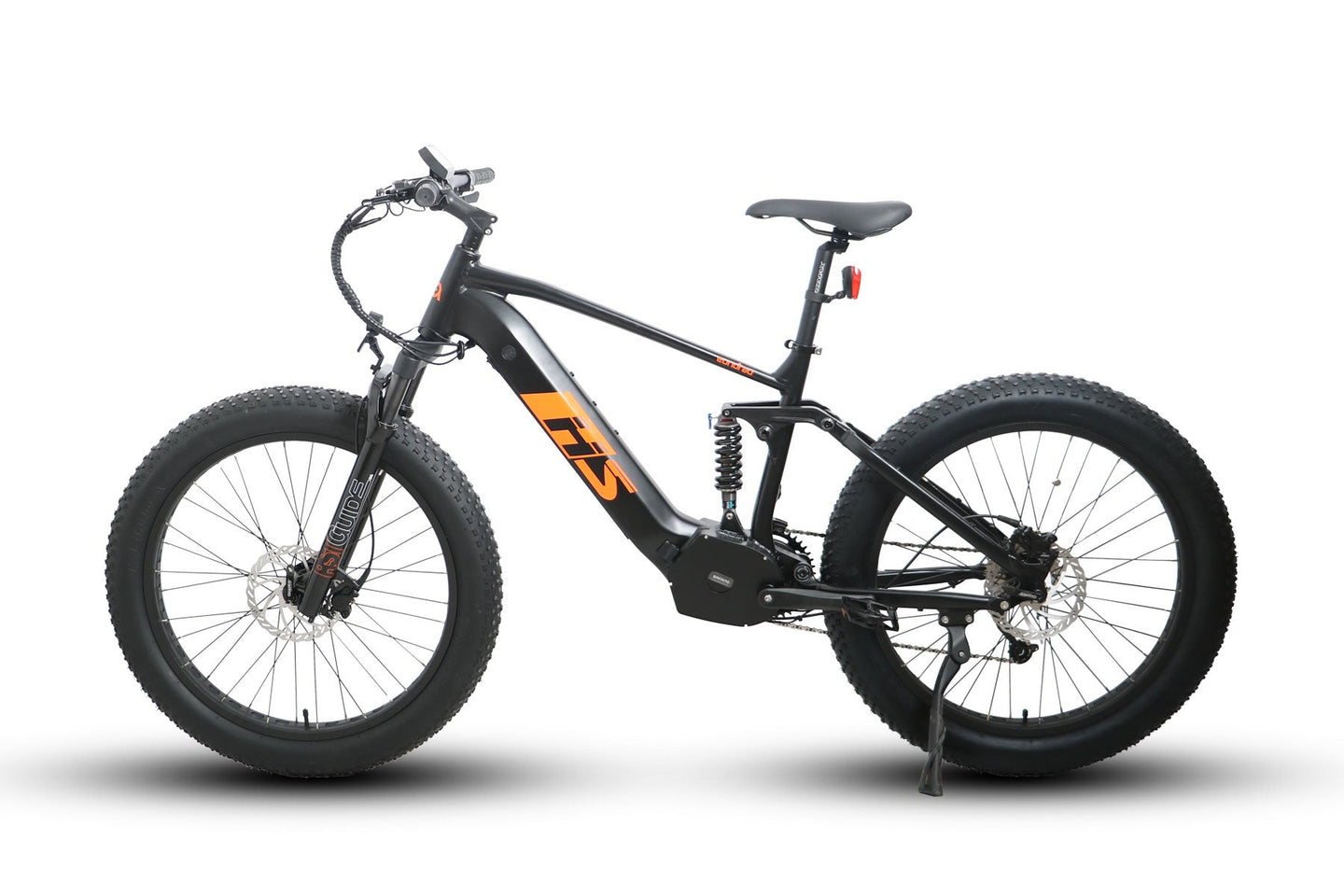

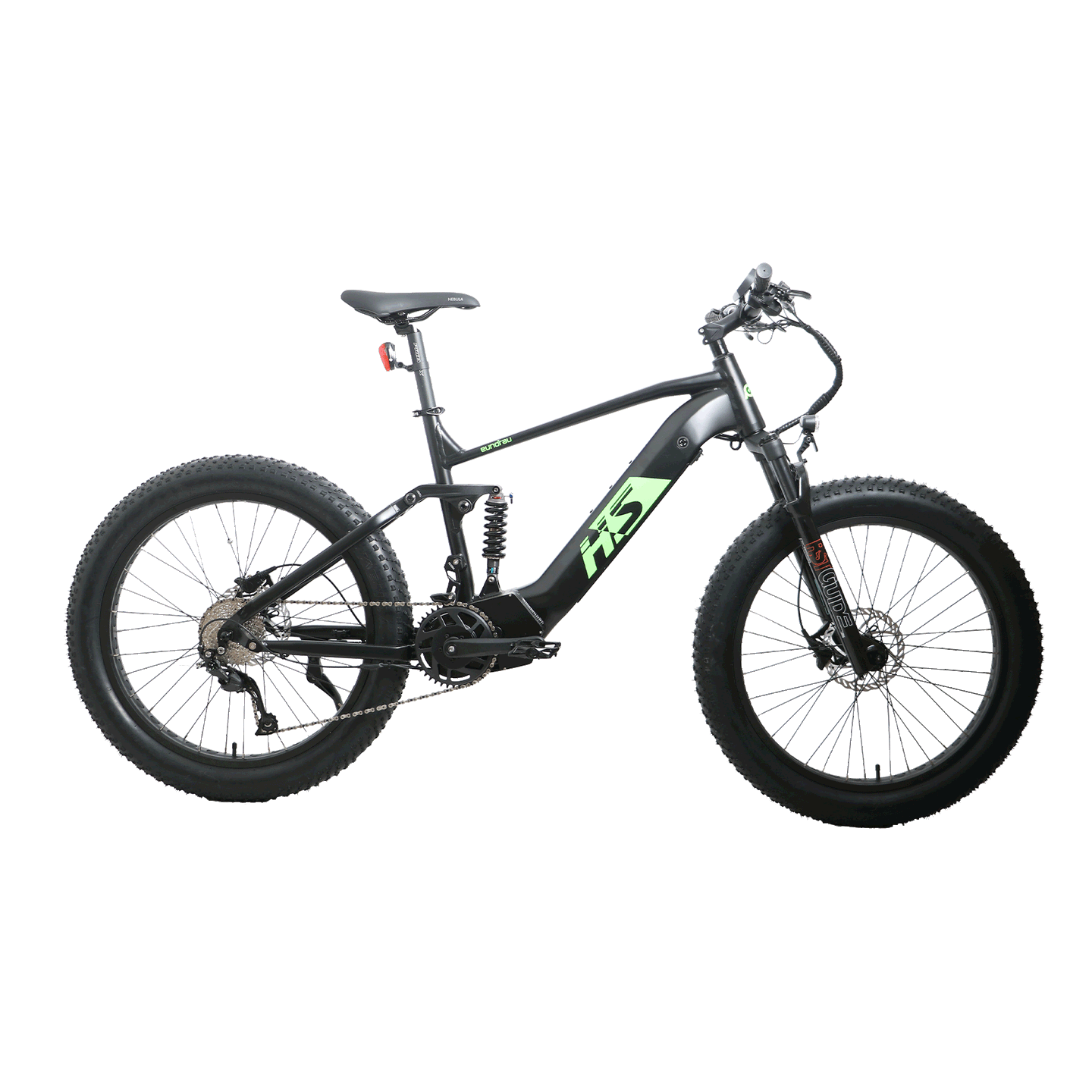

The FAT-HS is a full-suspension fat-tire e-bike built for stable, comfortable rides on mixed terrain. It combines a 1000W Bafang mid-drive motor, large-capacity Samsung batteries (single or dual), hydraulic disc brakes and wide 26" x 4.0" tires to give you confident traction, long range and a smooth ride.

Benefits

• Ride farther without range anxiety — dual-battery options extend trip distance up to about 80 miles in optimal conditions.
• Handle rough trails and soft surfaces more easily thanks to wide tires and front + rear suspension.
• Feel secure when stopping or slowing down because hydraulic disc brakes include motor cut-off sensors.
• Enjoy a more comfortable, less tiring commute with an adjustable stem, cushioned saddle and suspension that absorb bumps.
• Customize cargo and protection with optional rear rack and fenders as needed.

Features

• 48V 1000W Bafang M615 mid-drive motor with cadence sensor and 160 N·m torque for strong, controllable power.
• Full front and rear suspension: RST GUIDE fork (75mm travel) and KS-388L rear shock (190mm).
• Dual-battery capable system for extended range (optional second battery available).
• Thumb throttle and CDC6 LCD display for throttle control and ride information.
• Hydraulic disc brakes (180mm) designed by Eunorau with motor cut-off sensor in the brake handles.
• 9-speed drivetrain (Shimano or Sunrace options) for flexible pedaling across terrains.
• Large 26" x 4.0" Kenda Krusade Sport tires with K-Shield protection for traction and puncture resistance.
• Included owner’s manual and basic tool set for setup and maintenance.

Specifications

• Motor: 48V, 1000W BAFANG M615 mid motor with cadence sensor — 160 N·m torque.

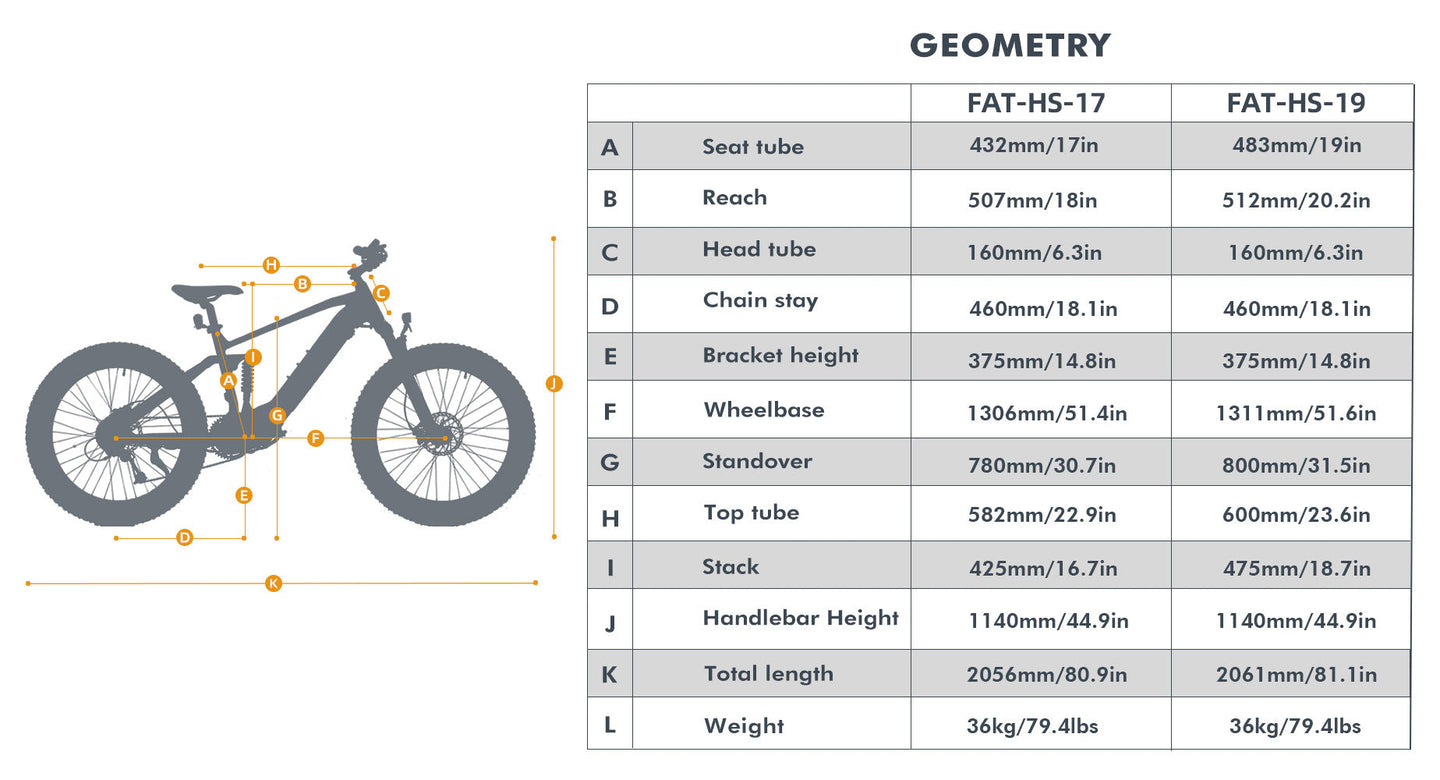

• Frame: Aluminum alloy; available sizes 17" and 19"; front and rear suspension.
• Fork: RST GUIDE, 75mm travel.
• Rear Shock: KS-388L, 190mm travel.
• Battery type: Lithium-Ion (Samsung cells).
• Battery capacity: Standard options include 48V with 15Ah or 17Ah Samsung cells; optional second battery support (14–17Ah).
• Estimated range: Up to ~80 miles in optimal conditions with higher-capacity/dual-battery configuration.
• Charging time: 4–6 hours (per battery).
• Throttle: Thumb throttle.
• Display: CDC6 LCD display.
• Headlight: Front LED headlight; Taillight: included.
• Rear rack: Optional.
• Fender: Optional.
• Rims: 26" black alloy.
• Spokes: Stainless steel.
• Tires: Kenda Krusade Sport 26" x 4.0" with K-Shield protection.
• Cassette / Freewheel: Shimano or Sunrace RDM91 9-speed freewheel.
• Shifter: Shimano or Sunrace 9-speed.
• Chainring: 42T 7075 CNC chain-wheel crank.
• Brakes: Eunorau-designed hydraulic disc brakes, 180mm rotors, motor cut-off sensor in brake handles.
• Handlebar: Adjustable stem, matte black finish.
• Saddle: Comfortable padded saddle.
• Pedals: High-quality nylon pedals.
• Box dimensions (packed): 156 cm (L) x 32.5 cm (W) x 88 cm (H).
• Manual and tool: Included.
• --- This Variant ---
• Color: Black
• Select Frame Size: 17"
