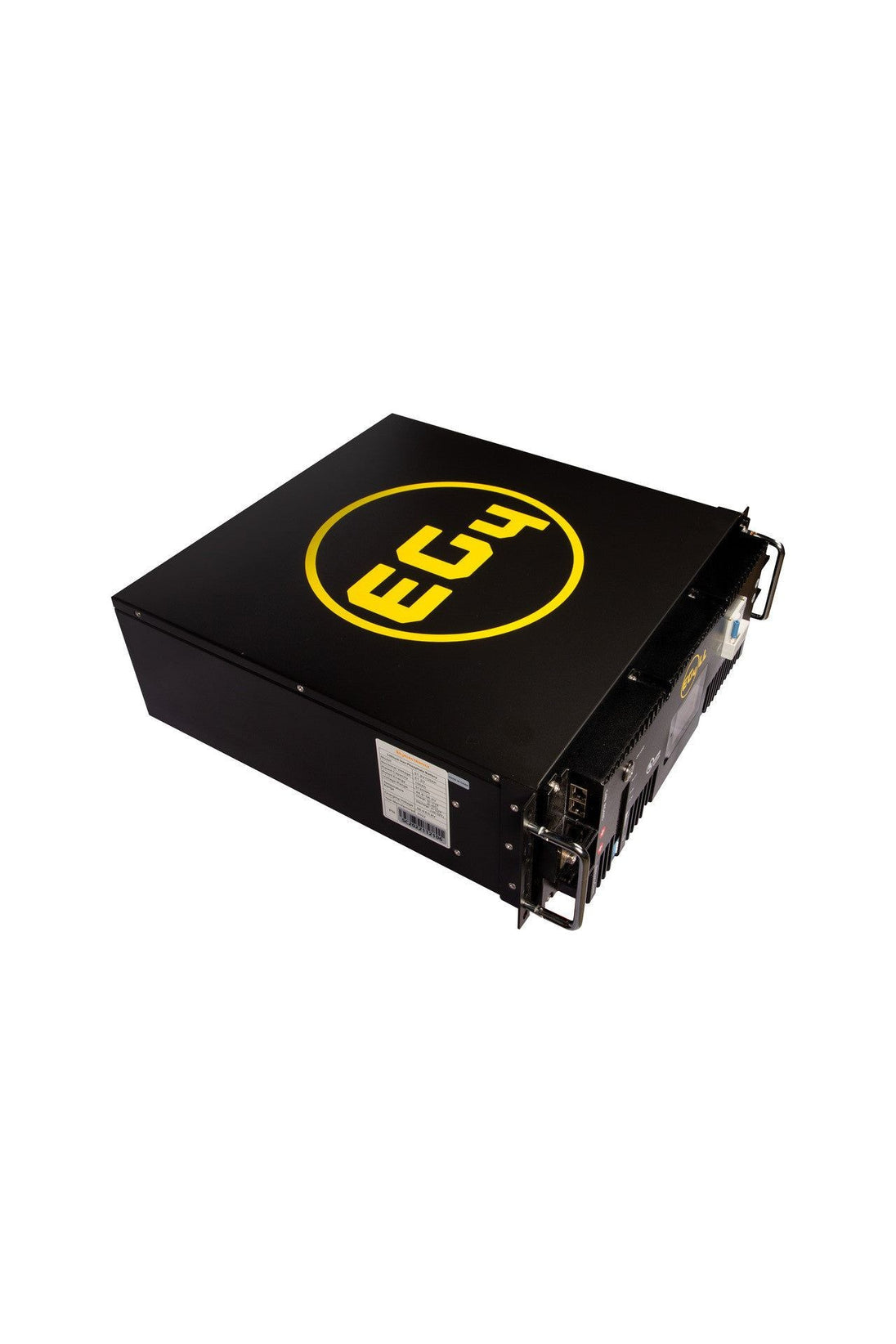

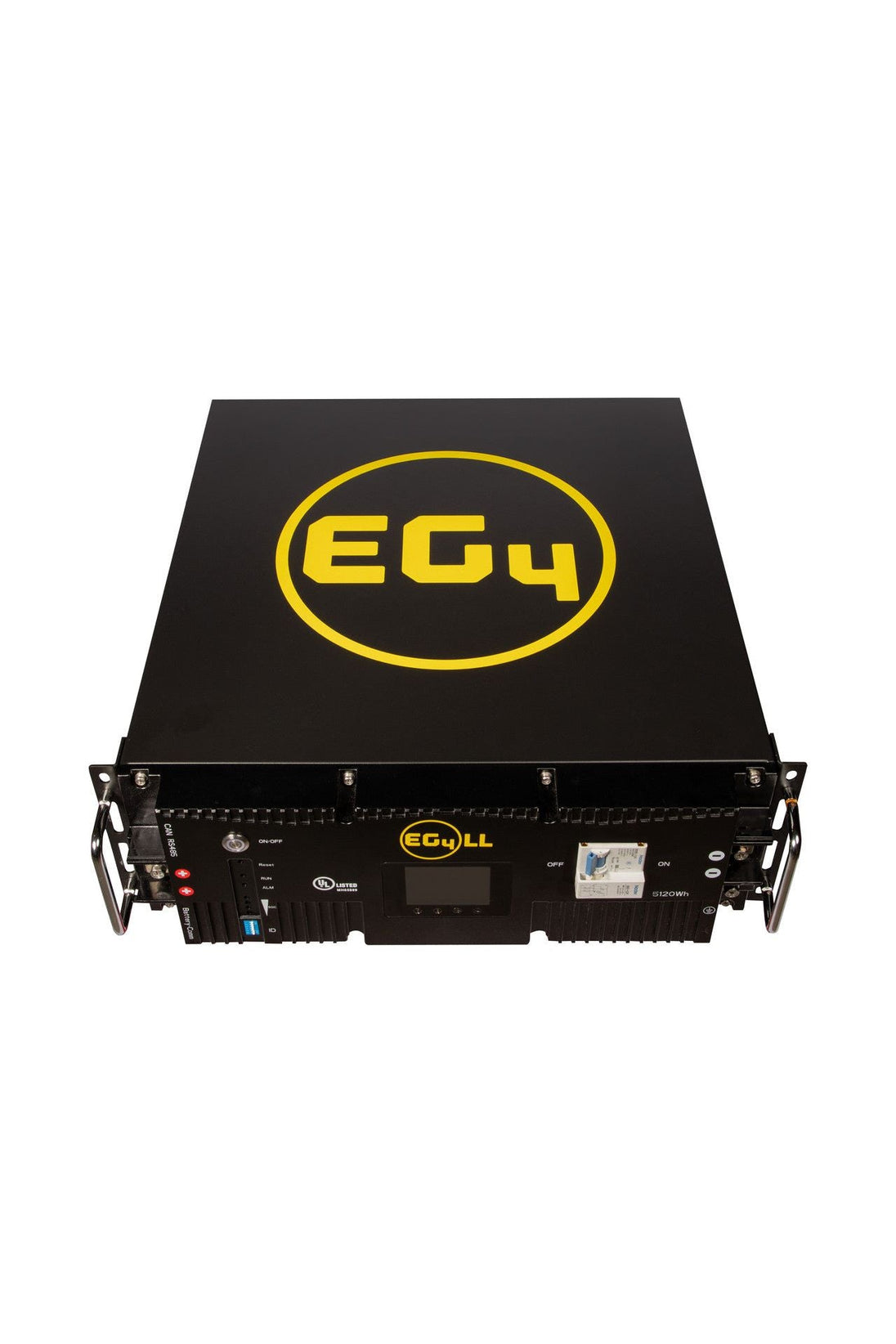

EG4 48V 100AH LL-S Lithium Server Rack Battery

Introducing the EG4 LL-S Lithium Battery
The EG4 LL-S Lithium Battery delivers exceptional performance and longevity. Designed to withstand over 7,000 deep charge and discharge cycles, this battery offers a lifespan of more than 15 years, even with an 80% depth of discharge used daily.

Enjoy the peace of mind that comes with a 10-Year Warranty through EG4 Electronics.

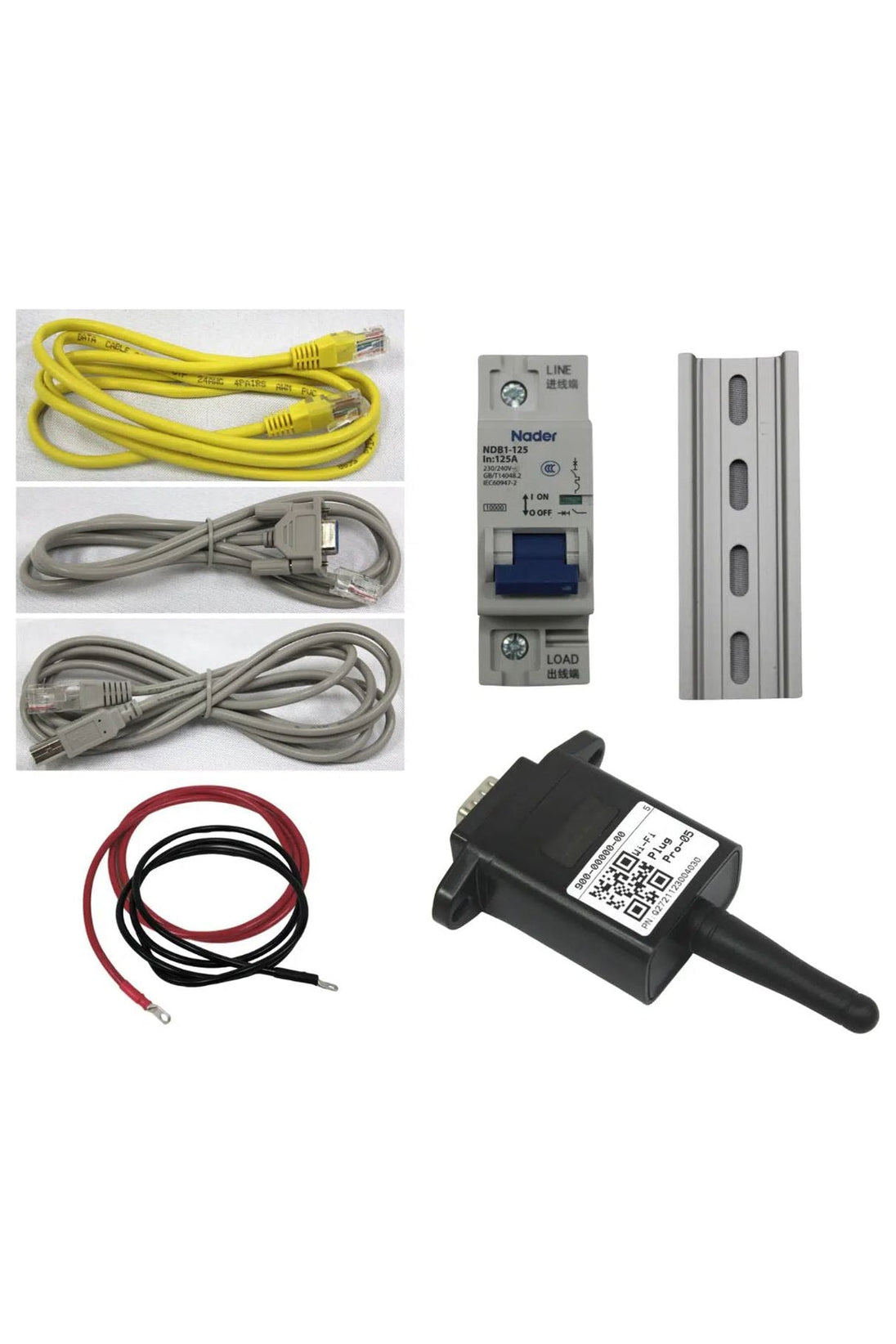

What's Included with the EG4 LL-S Lithium Battery 48V:

• (1) EG4-LL Battery Module
• (1) Inter-battery Communication Cable
• (2) 6-AWG Positive and Negative Connection Cables
• (4) M6-1.0 Terminal Bolts
• (1) Battery to PC Communication Cable

Key Features of the EG4 48V Server Rack Battery:

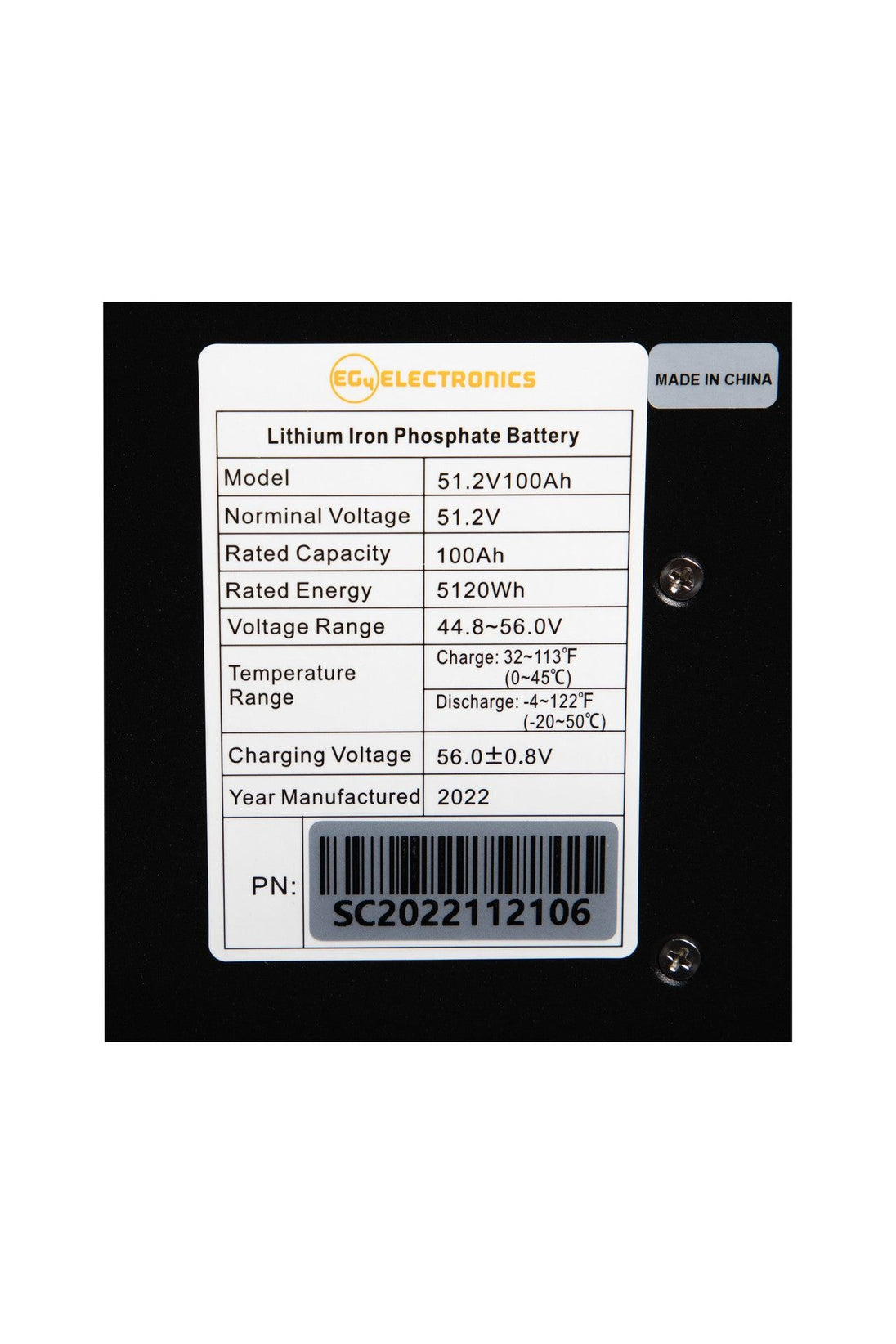

• Nominal Voltage: 51.2V
• Nominal Capacity: 100AH
• Kilowatt-hour(s): 5.12kWh
• Dimensions: 6.1 × 19 × 17.4 in.
• Design Life: 15 Years at 80% Depth of Discharge (DoD)
• Communications: RS485/CAN, compatible with EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters

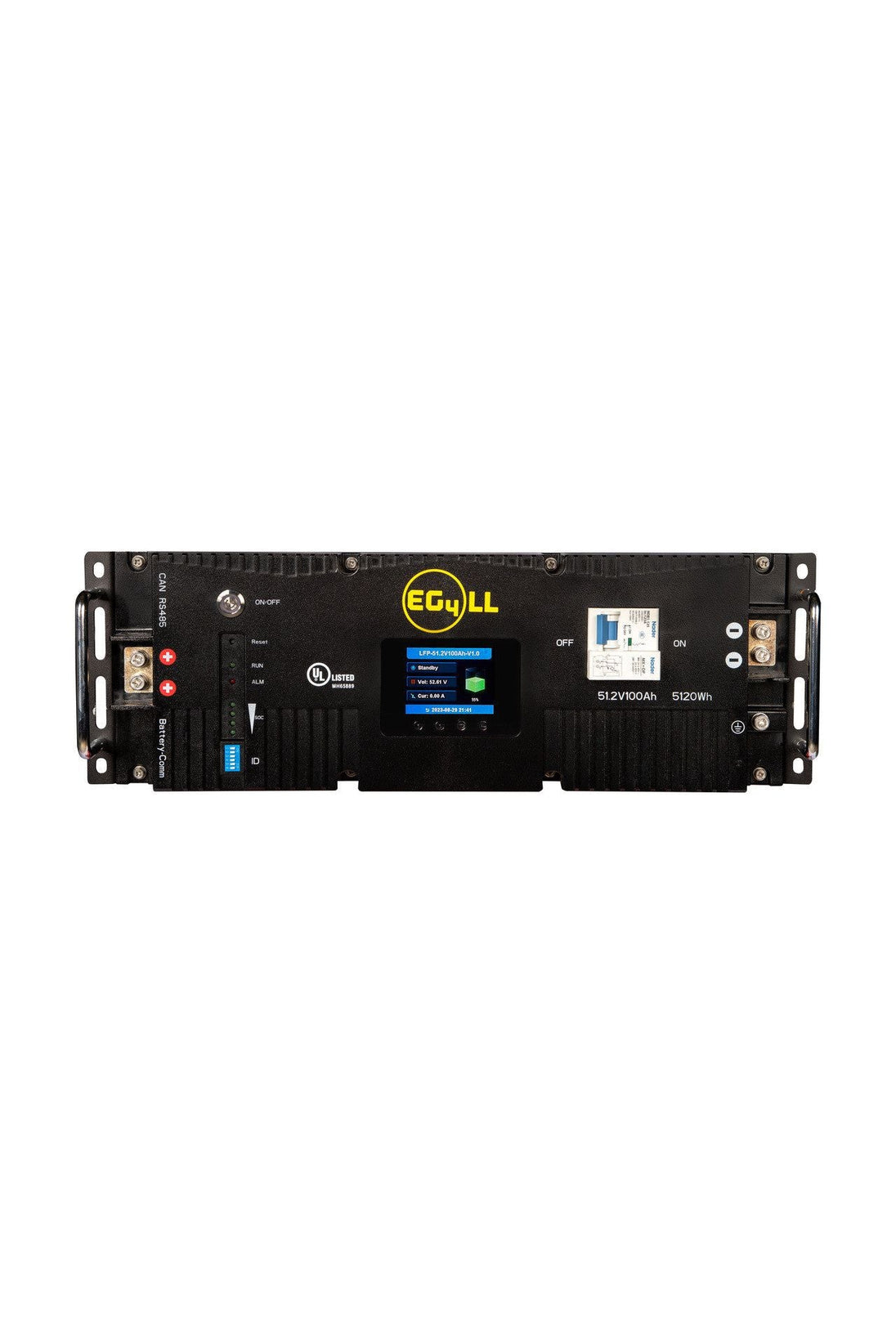

On-Board LCD Touch Screen:

• Easily monitor BMS and enjoy selectable closed-loop communications with compatible inverters including EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye.

Enhanced Safety Features:

• E-Stop Functionality: Provides fail-safe operation in potentially high-risk environments (requires additional RSD/ESS disconnect or pairing with a rapid shutdown inverter for e-stop functionality).

Parallel up to 64 Batteries:

• Maximize power with the ability to parallel up to 64 batteries. Using a 6 DIP switch option, you can achieve up to 327.6kWh while maintaining BMS communication across the system.
