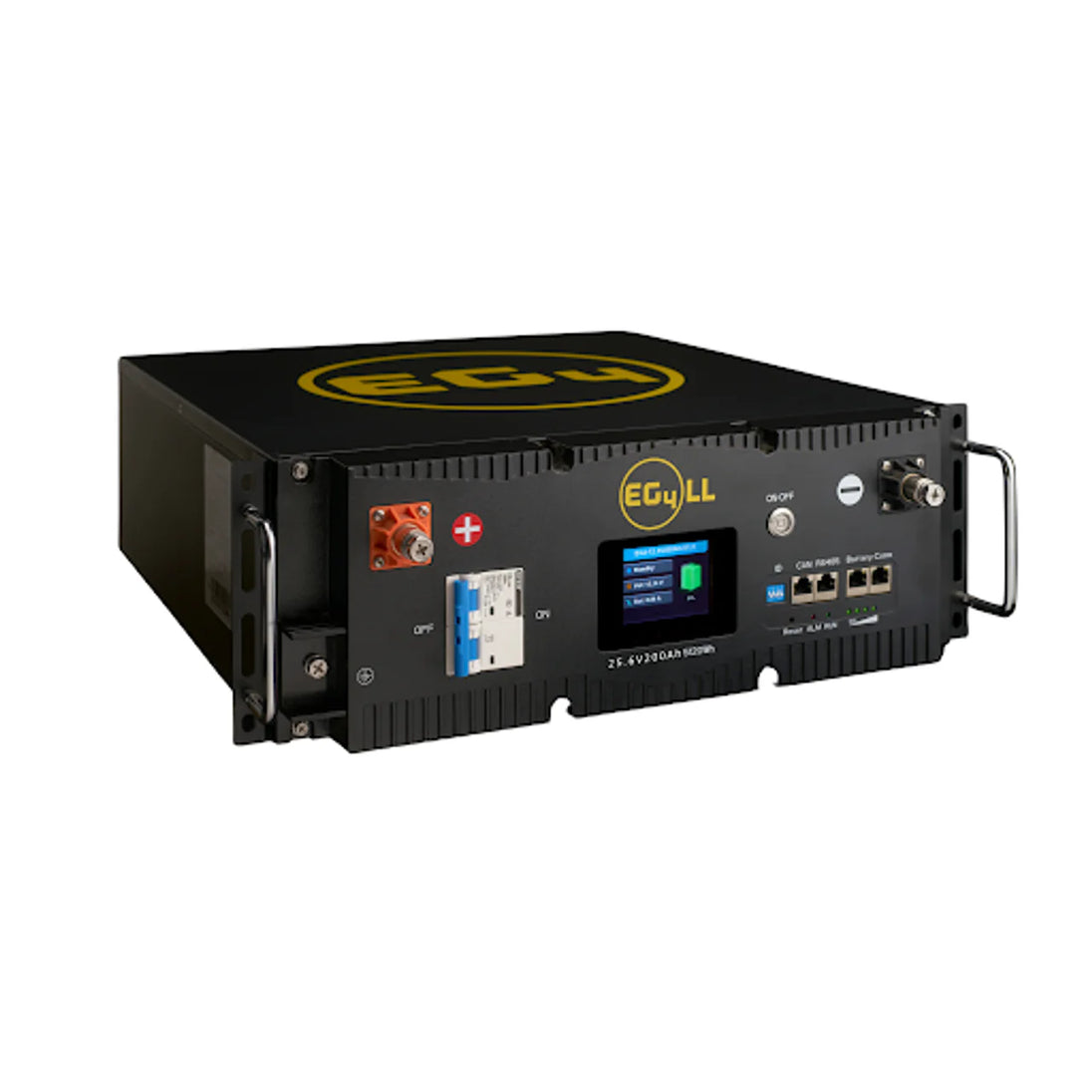

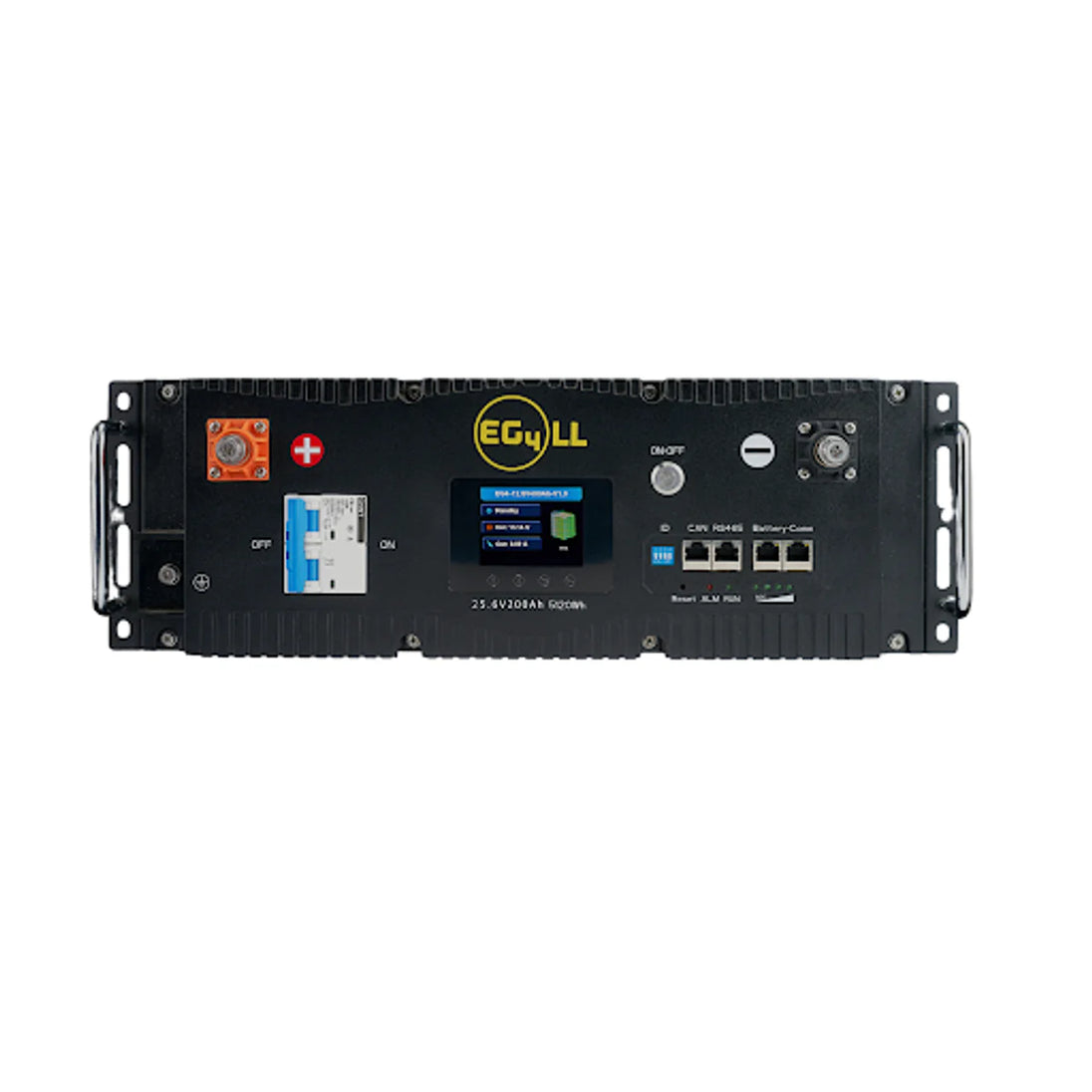

EG4 LL Lithium Battery (V2) | 24V 200AH | Server Rack Battery

The EG4 LL Lithium Battery (V2) is an upgraded version of the renowned EG4-LL (Lifetime Lithium) battery, providing unmatched reliability, performance, and longevity. This 25.6V battery with a 200Ah capacity offers 5.12kWh of energy storage and features a 200A internal Battery Management System (BMS). Designed for a long-lasting lifespan, this battery is capable of 7,000 deep discharge cycles to 80% Depth of Discharge (DoD), ensuring over 15 years of daily operation without issues.

Key Features:

• Nominal Voltage: 25.6V (24V)
• Nominal Capacity: 200Ah
• Energy Capacity: 5.12kWh
• Design Life: +15 years with 80% DoD daily (up to 20 years possible with proper care)
• Rated for: 7,000 deep charge and discharge cycles
• Cell Composition: 16 UL-listed prismatic LiFePO4 cells
• Operating Efficiency: 99% efficiency
• Dimensions: 17.7" x 19.3" x 6.1"
• Weight: 112 lbs (Approx.)

Enhanced Features:

• Long Lifespan: Built to endure over 7,000 deep discharge cycles, offering 15+ years of life at 80% depth of discharge, and up to 20 years under ideal conditions.
• Advanced BMS: Integrated smart BMS for monitoring voltage, current, temperature, and overall health, ensuring long-term reliability.
• Expandable: Allows for parallel connections of up to 16 batteries, scaling up to a maximum of 81.9kWh while maintaining communications and safety.
• Selectable Closed-Loop Communication: Compatible with Schneider, Solark, Victron, Growatt, and EG4 inverters, enabling seamless integration with various systems.
• Fire Safety: Dual onboard automatic fire arrestors offer additional safety by protecting against rare hardware failure, particularly in high-risk environments.
• Real-Time Monitoring: Equipped with an LCD screen for immediate access to battery status, including voltage, charge, and health metrics.
• Communication Cables: Includes RS485 communication cable and parallel cables for easy setup and integration with your system.
• PC Monitoring Software: Provides advanced configuration options and lifetime firmware updates to keep your system running optimally.

Warranty:

• 10-Year Warranty through EG4 Electronics, offering peace of mind for long-term use.

Additional Information:

• A+ Tier One Cells: Featuring high-performance LiFePO4 16-cell packs, known for their long lifespan and safety.
• Energy Density: Offers the highest energy density for a server rack battery form factor, making it ideal for applications like off-grid systems, backup power, and solar power storage.
• Easy Expansion: Expanding your battery bank is straightforward, allowing users to add more batteries as energy needs grow without hassle.

What's Included:

• (1) EG4 LL 24V 200AH Lithium Battery (V2)
• (1) 1-foot RS485 Communication Cable
• (1) Set of Parallel Cables (for each battery)
• (1) RS485 USB Battery Comm Cable (for up to 6 batteries)

The EG4 LL Lithium Battery (V2) is the ultimate solution for users seeking reliable, high-capacity energy storage with future-proof scalability and enhanced safety features.
