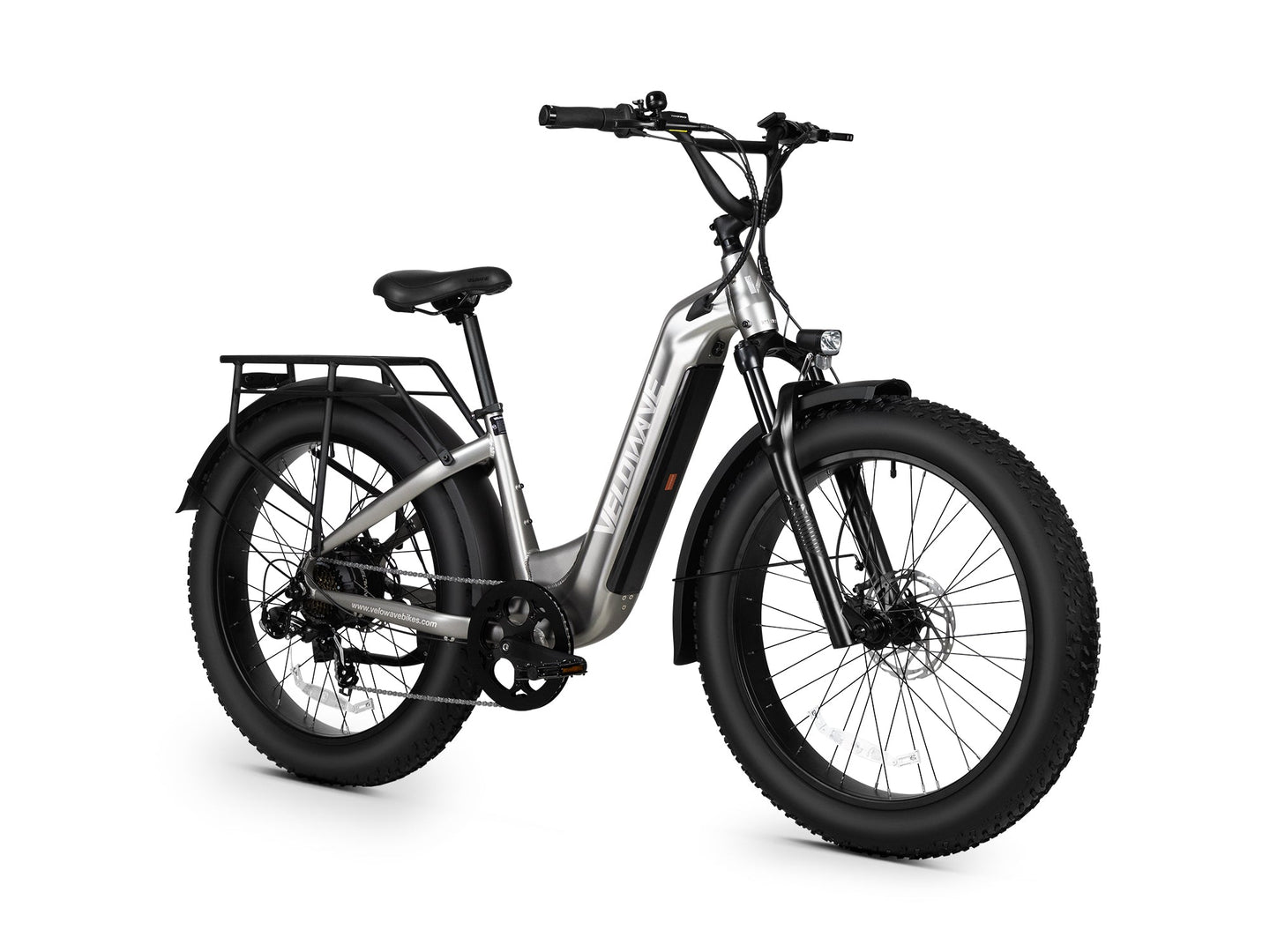

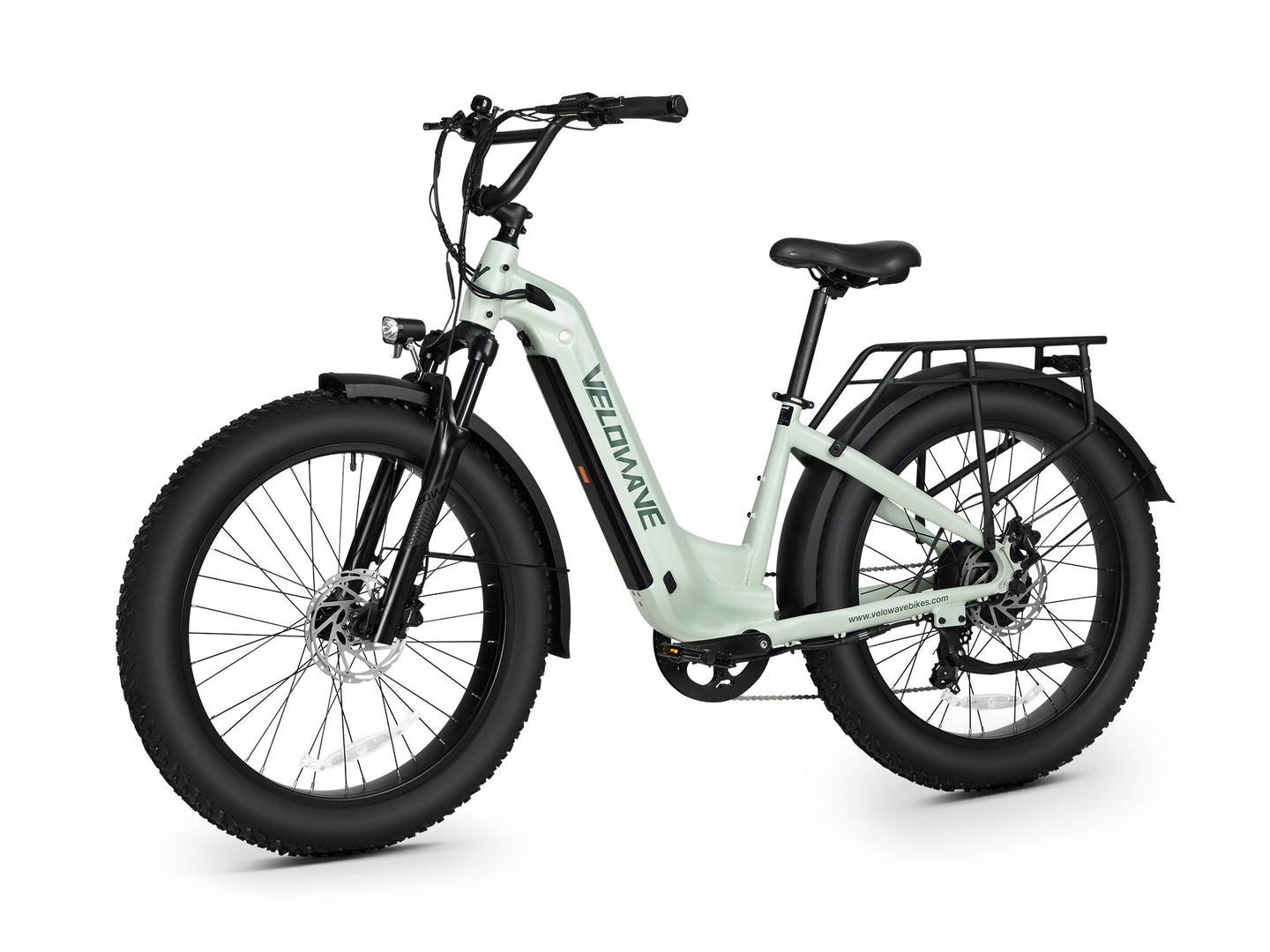

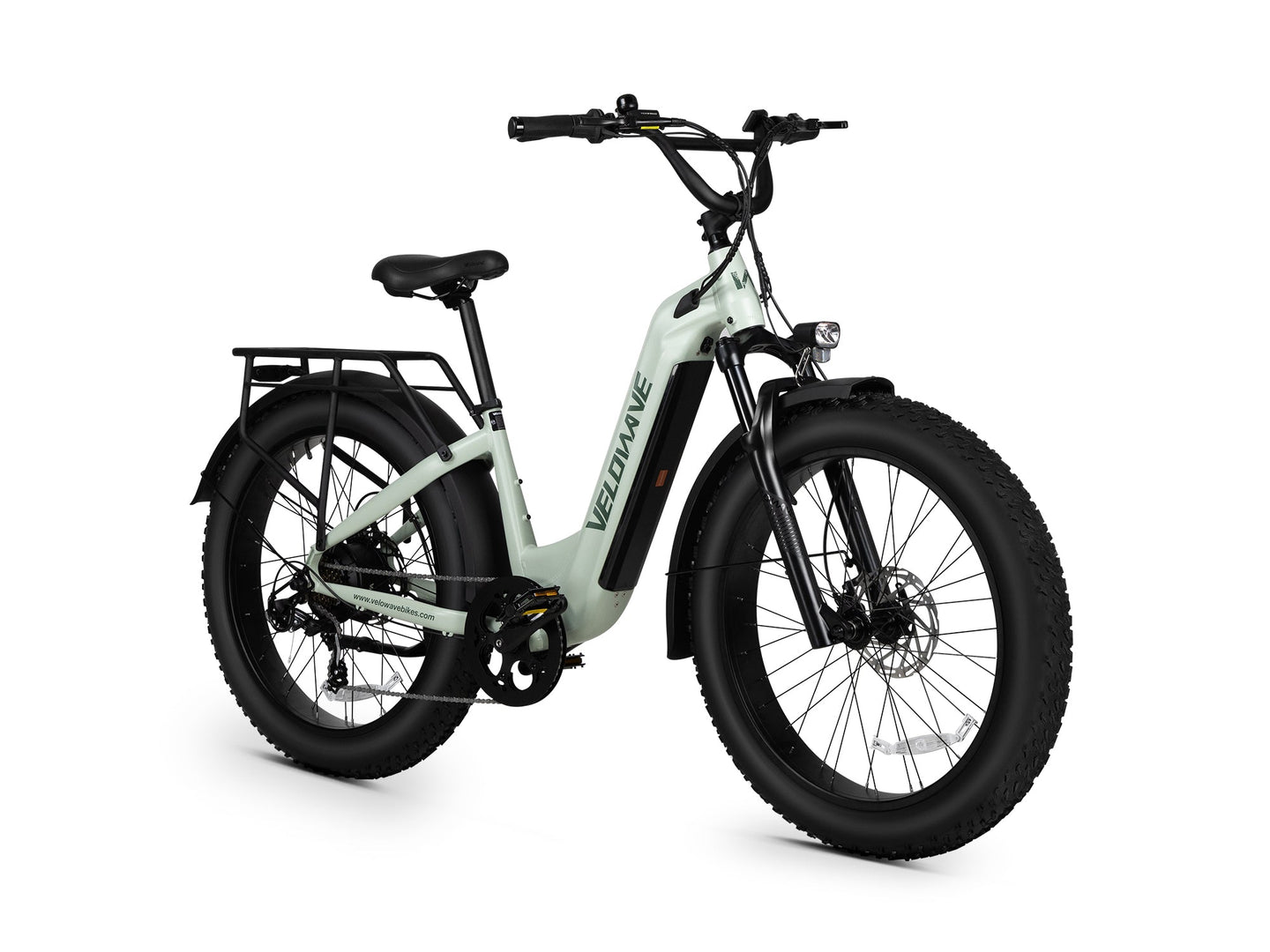

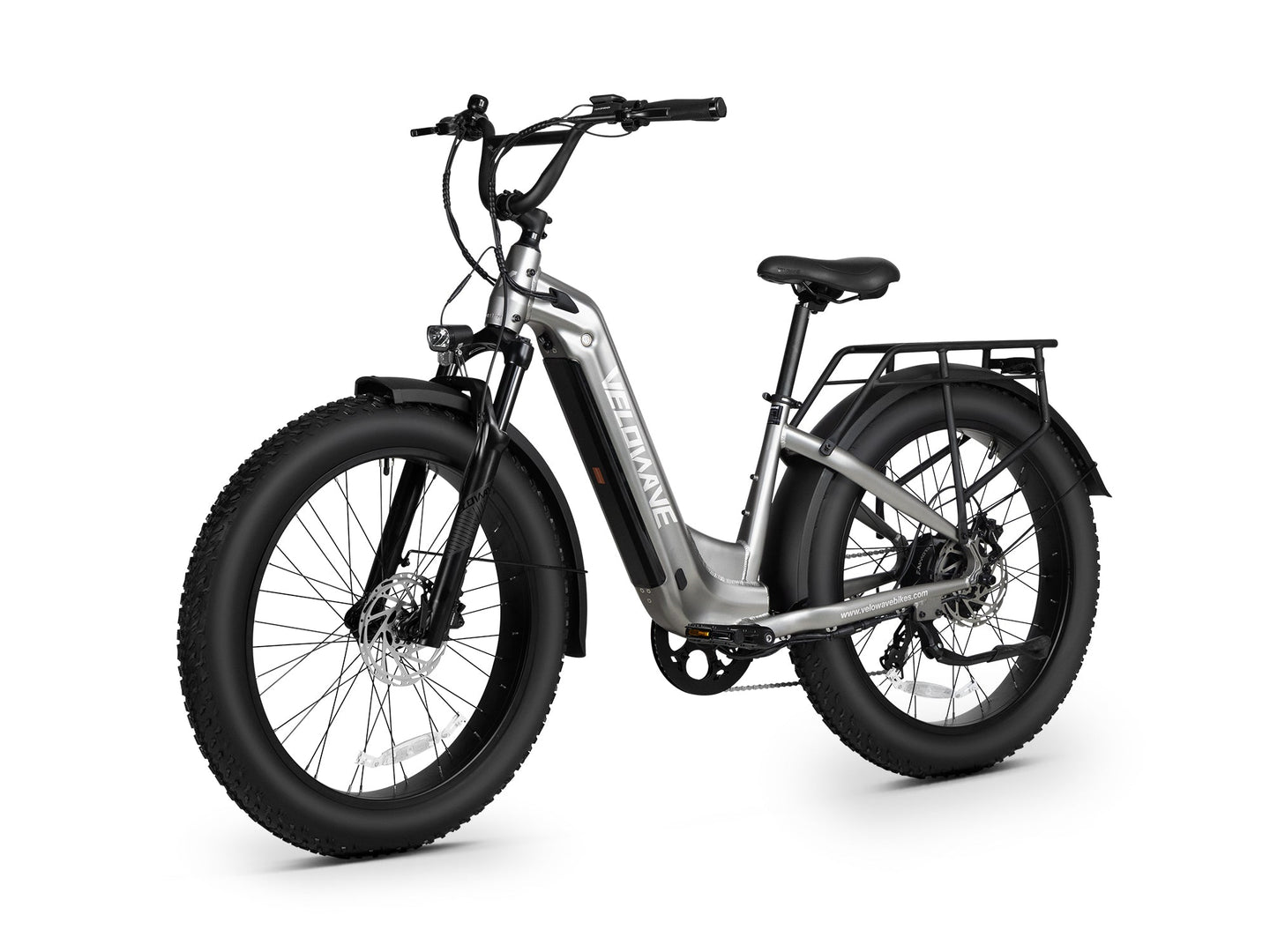

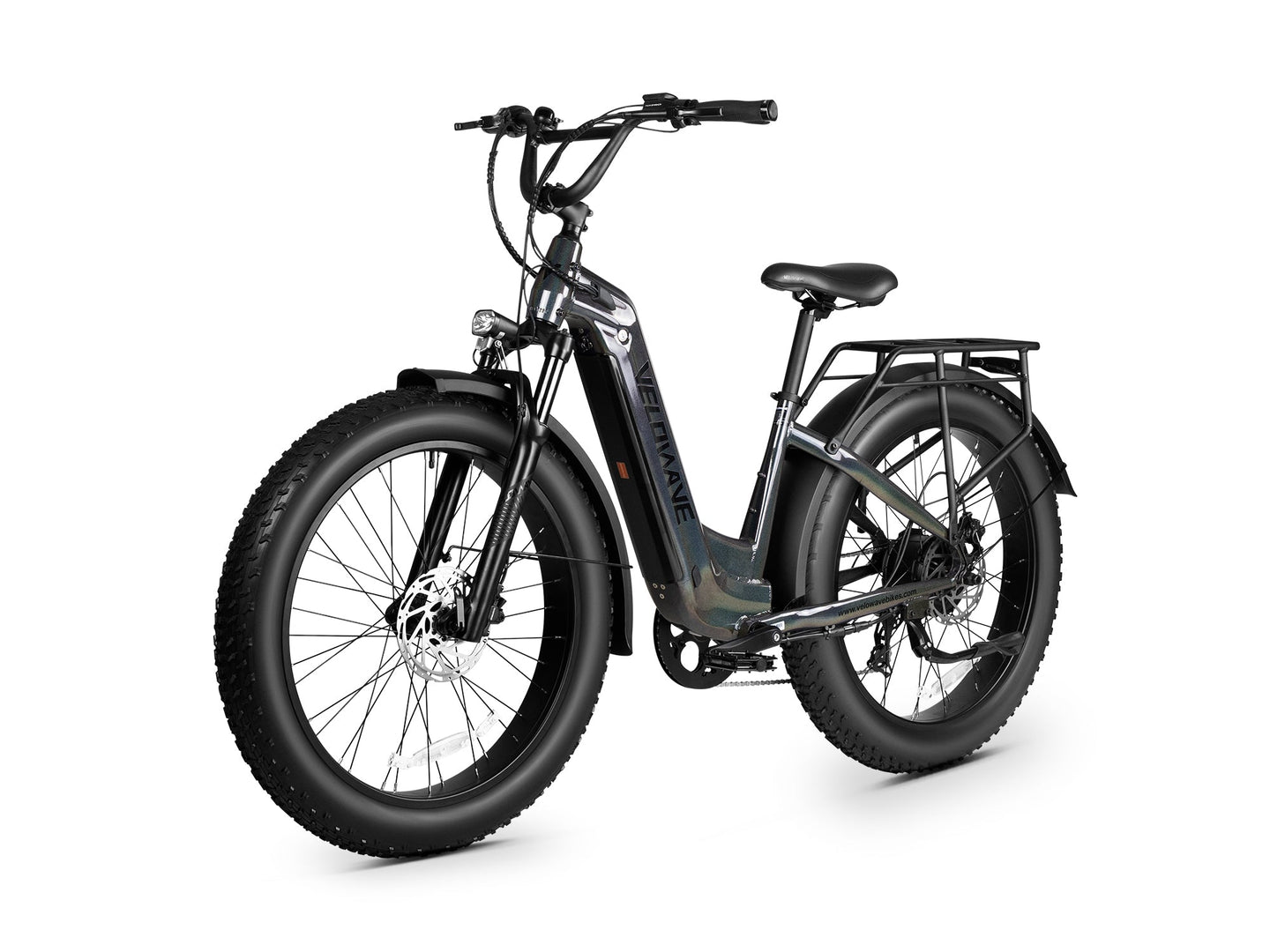

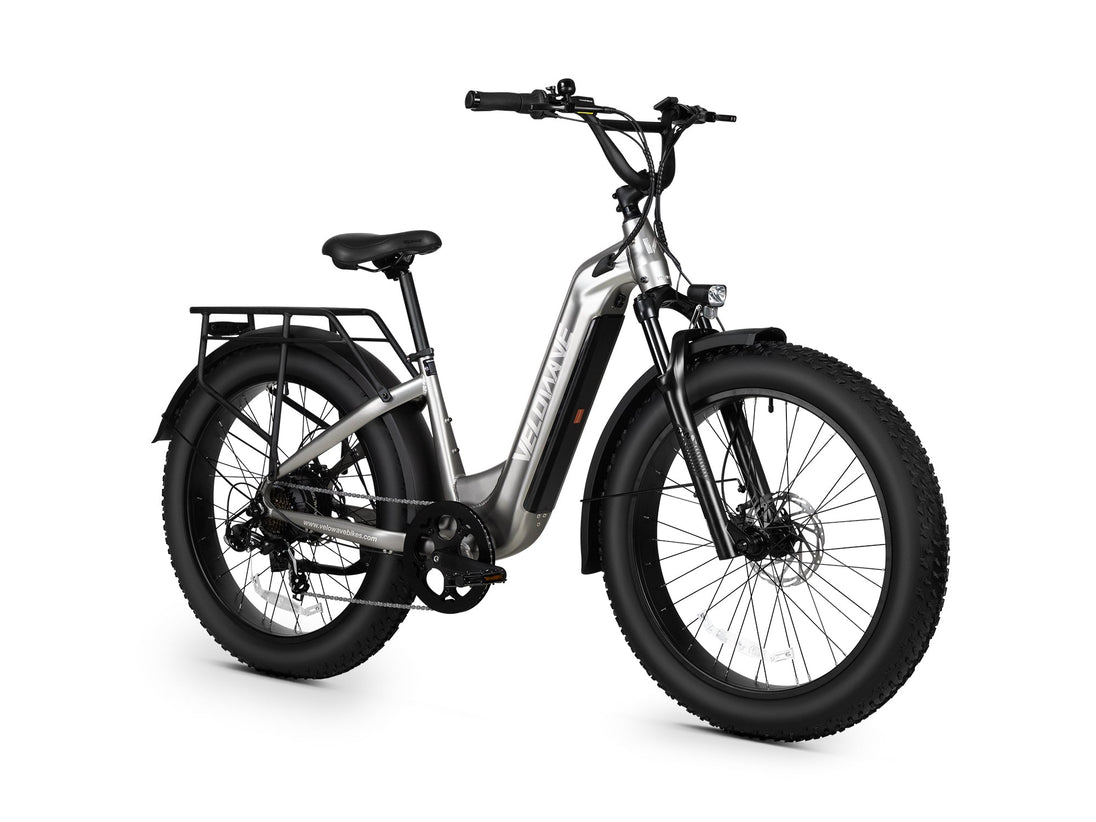

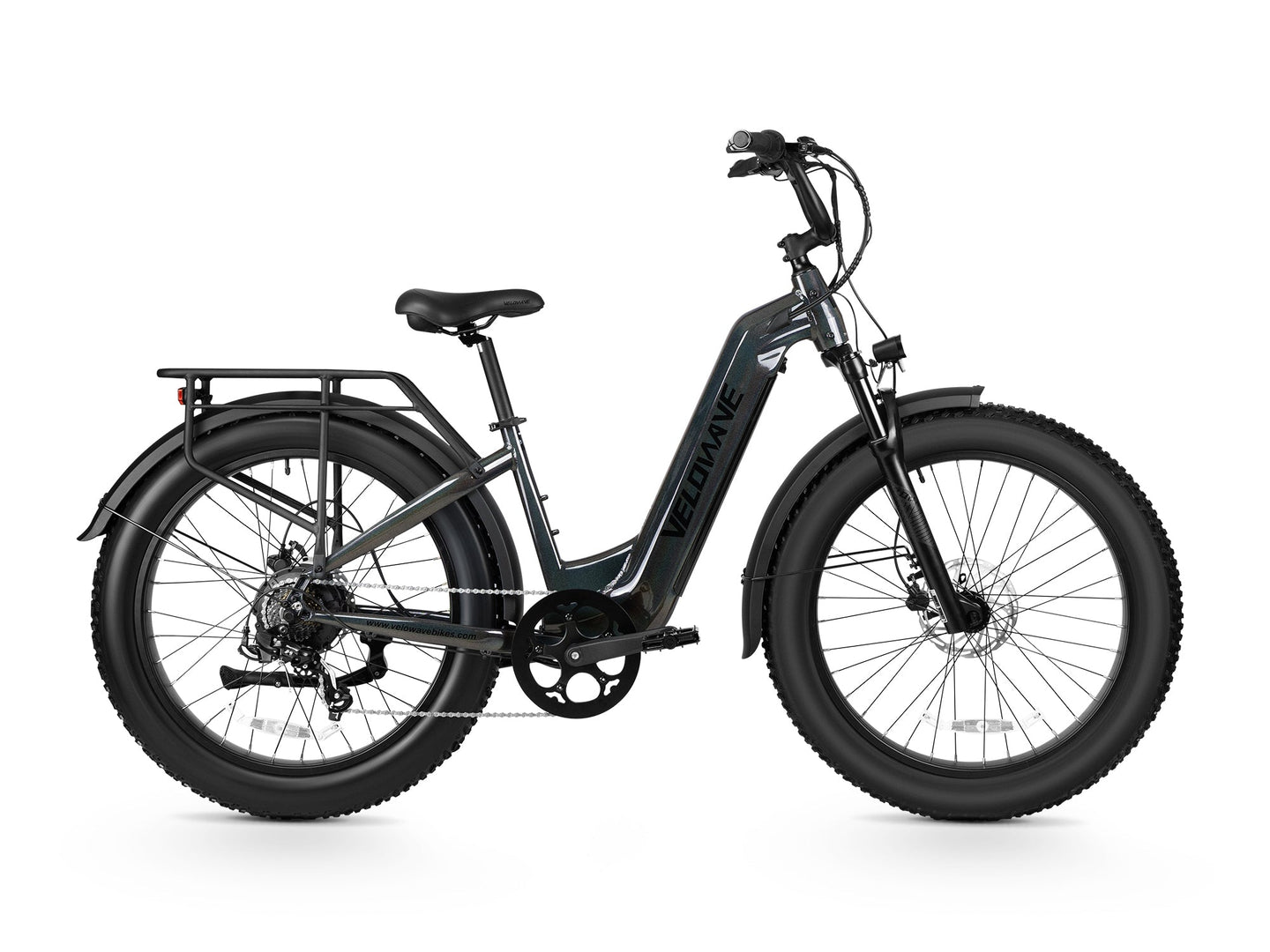

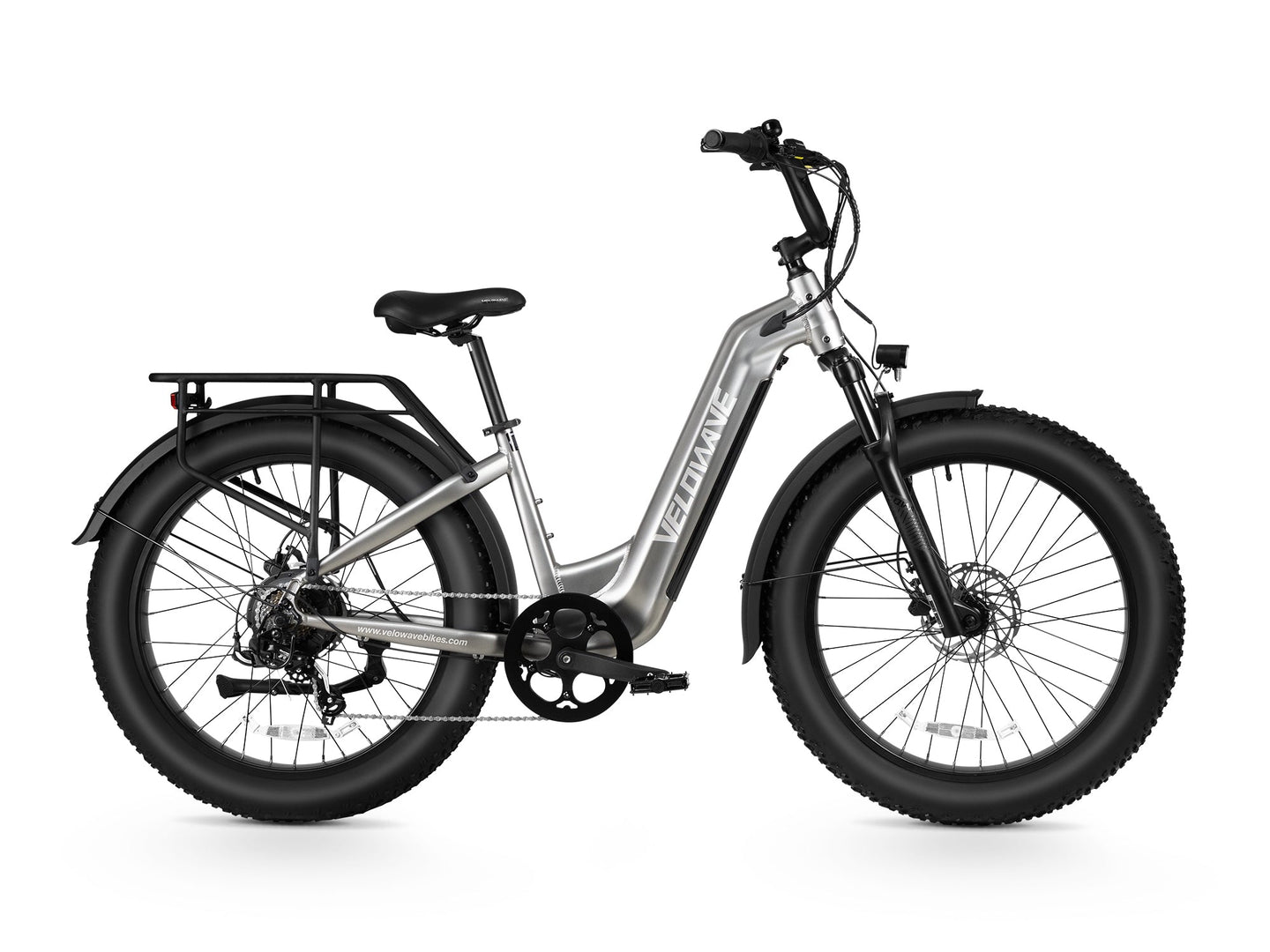

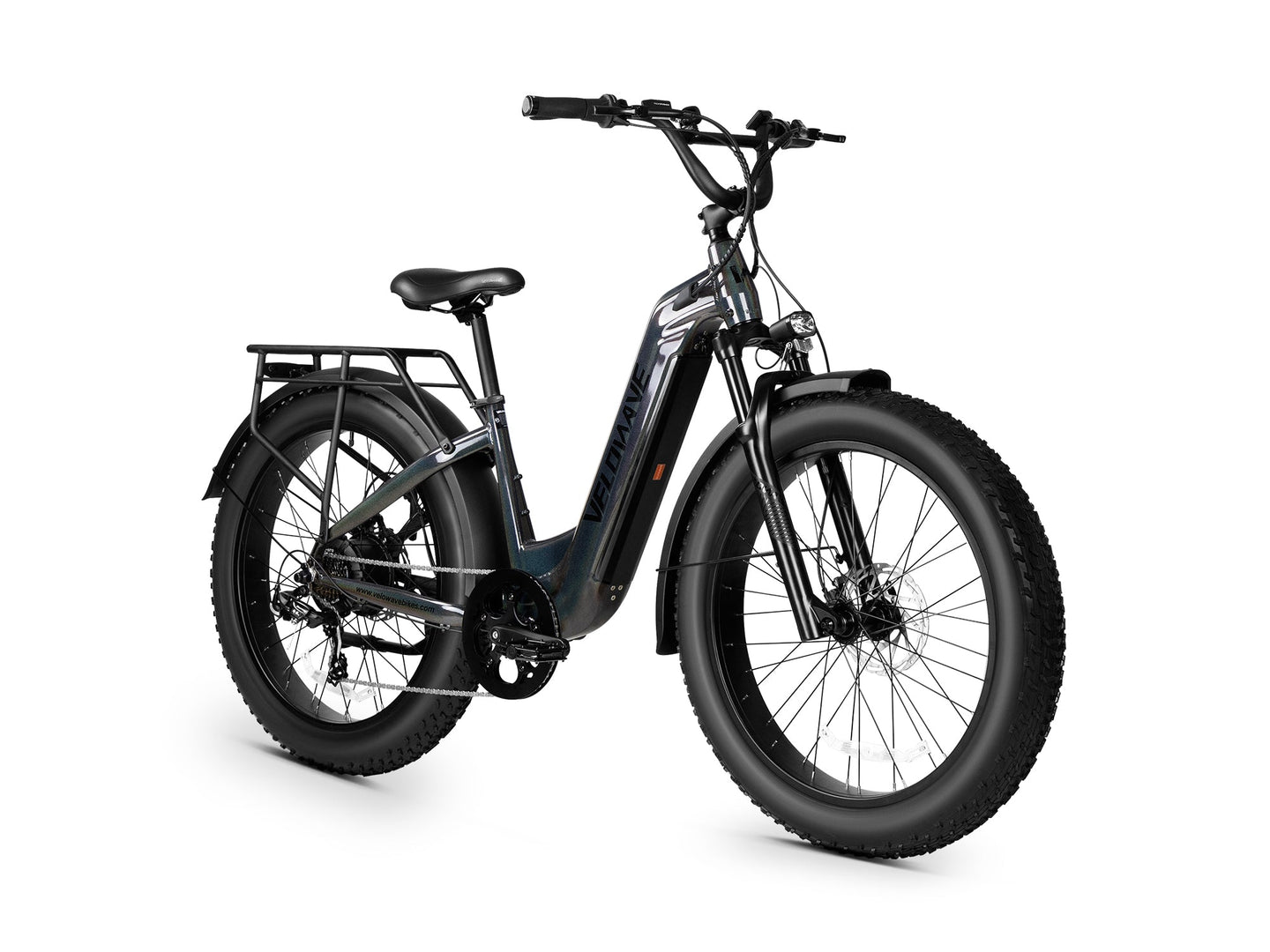

Velowave Ranger ST 3.0 Step-Through Fat Tire Electric Bike 750W Torque Sensor

The Ranger ST 3.0 combines the torque-sensor intelligence of the 3.0 platform with the easy-access step-through frame riders depend on. The 750W motor peaks at 1000W with 85Nm of torque, and the torque sensor reads your pedaling effort in real time to deliver smooth, proportional assist instead of the binary on/off feel of cadence-based systems. Up to 90 miles of range on Level 1 PAS from the 48V 15Ah LG battery means full-day riding without range anxiety.

The step-through 6061 aluminum frame drops the standover to just 457mm while maintaining the structural rigidity needed for a 300 lb payload capacity. The TFT color display, 26x4-inch Kenda fat tires, hydraulic disc brakes with power-cut-off, and included rear rack and fenders round out a package that is ready for daily commuting or weekend trail riding straight from the box.

Features

• Torque Sensor Pedal Assist - Proportional power delivery based on pedaling force for a natural, intuitive ride

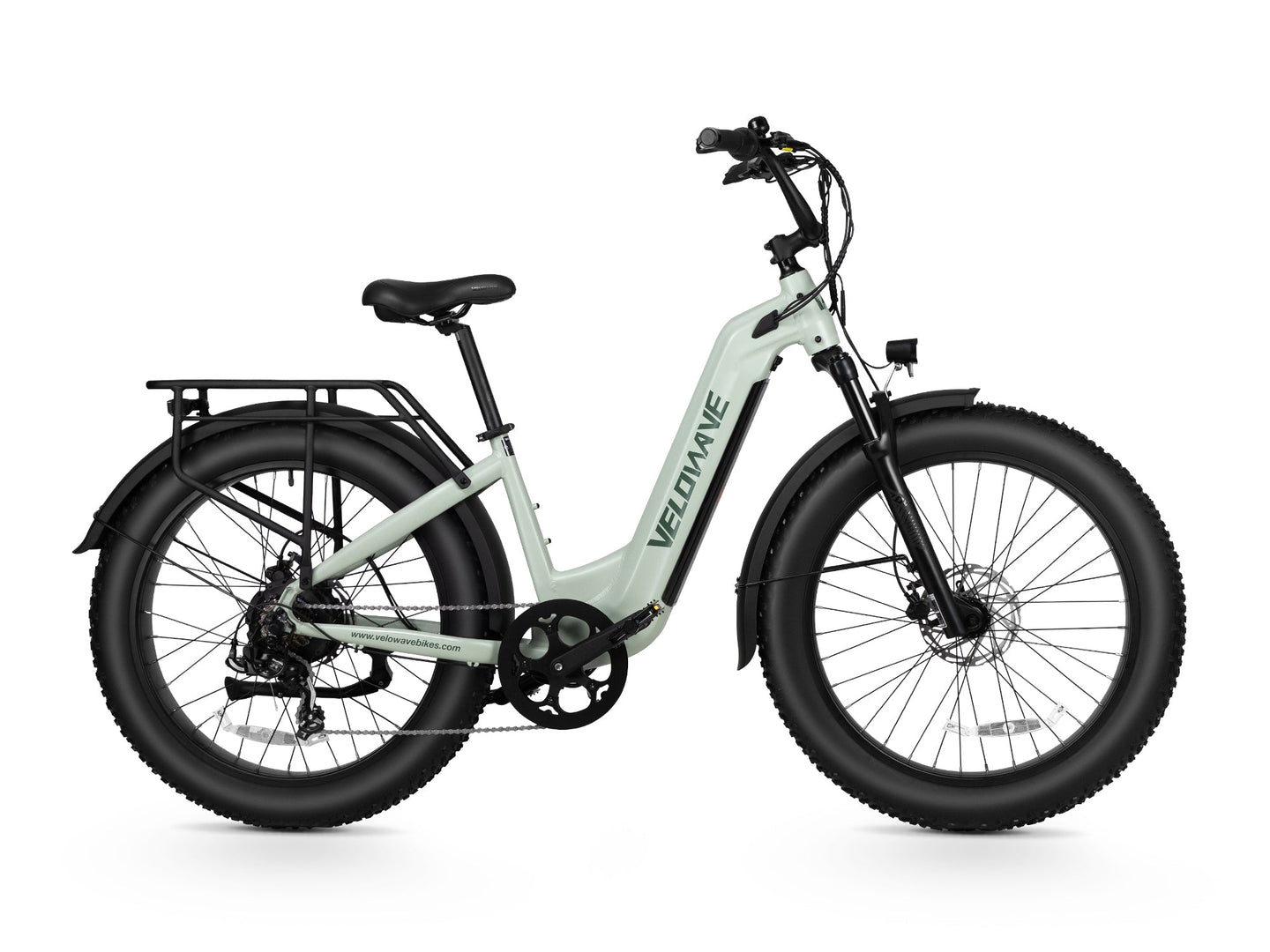

• Step-Through Frame - 457mm standover height for easy mounting and dismounting for all riders

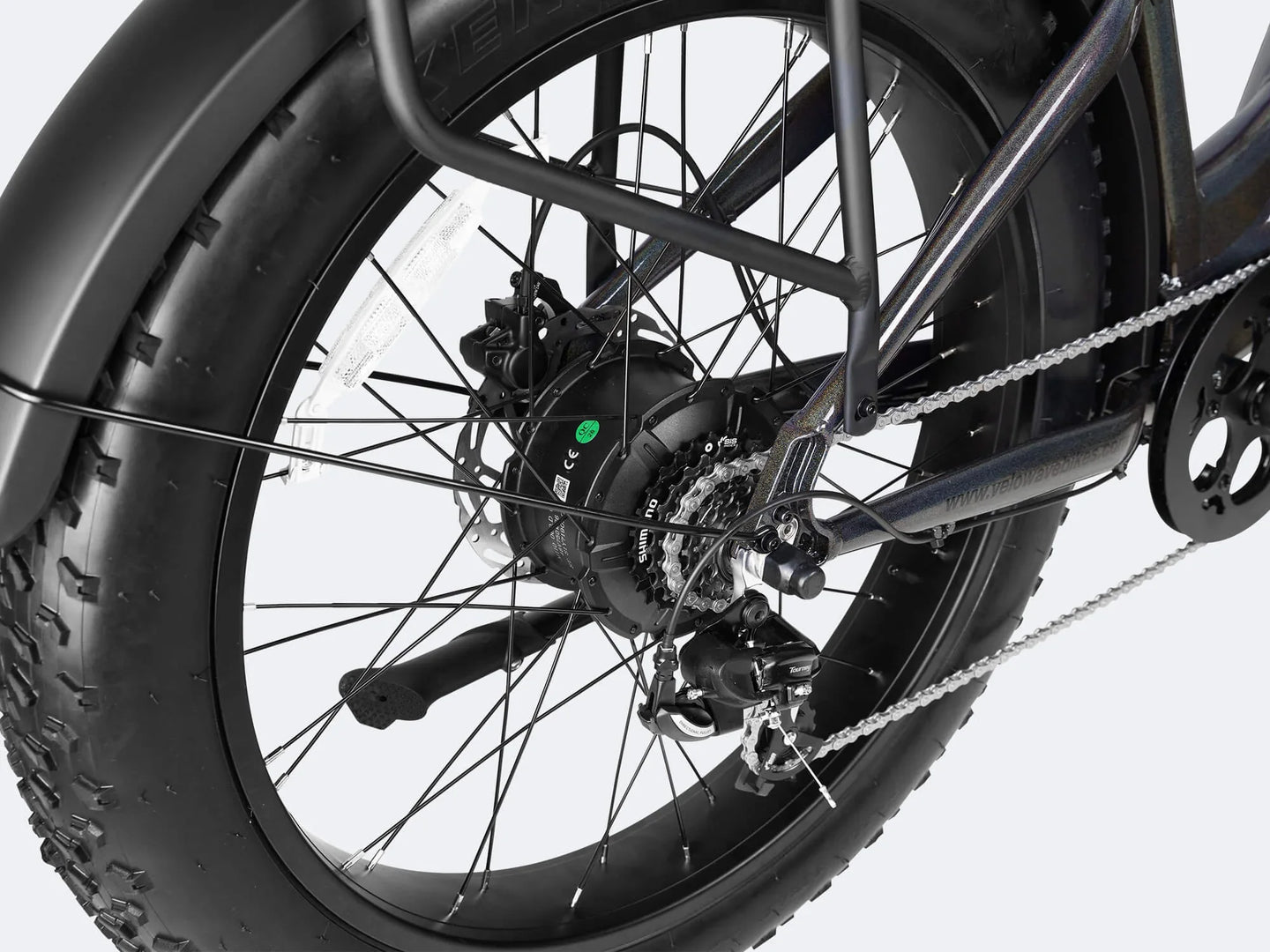

• 750W Motor (1000W Peak, 85Nm) - Strong climbing torque with refined power delivery across all PAS levels
• 48V 15Ah LG Battery (720Wh) - Up to 90 miles range, removable, internally integrated

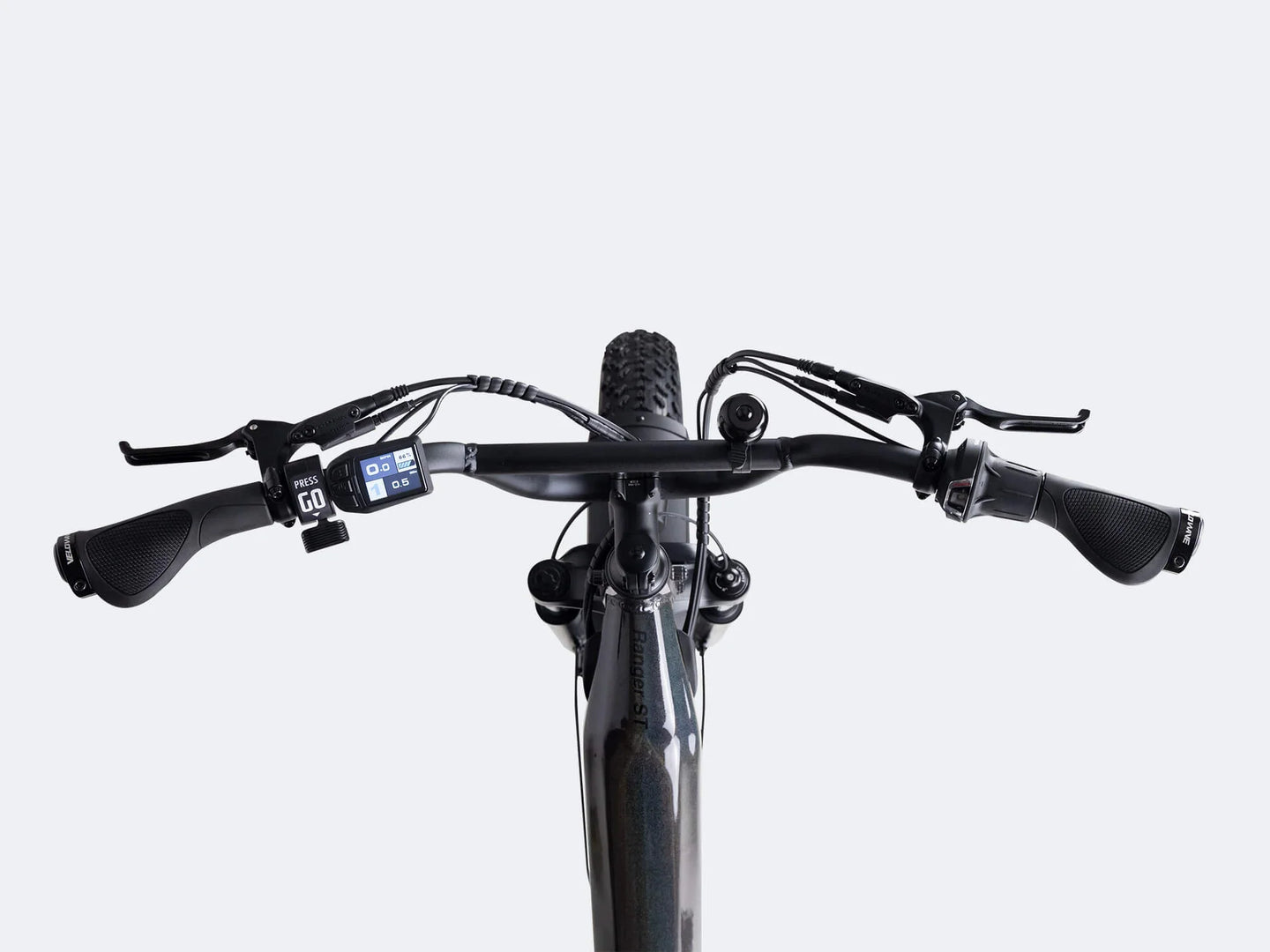

• TFT Smart Color Display - High-visibility screen with backlight for real-time ride data
• 26" x 4.0" Kenda Fat Tires - All-terrain grip on sand, snow, gravel, and pavement
• Hydraulic Disc Brakes - 180mm rotors with power-cut-off function
• Shimano 7-Speed Drivetrain - Smooth shifting for varied terrain and riding conditions
• 75 LUX Front LED + Rear Brake Light - Strong lighting package for safe riding in low-light conditions
• Rear Rack and Fenders Included - Commuter-ready out of the box

Specifications

• Class: Class 3 (28 MPH pedal assist, 20 MPH throttle)
• Motor: 750W (Peak 1000W), 85Nm Torque

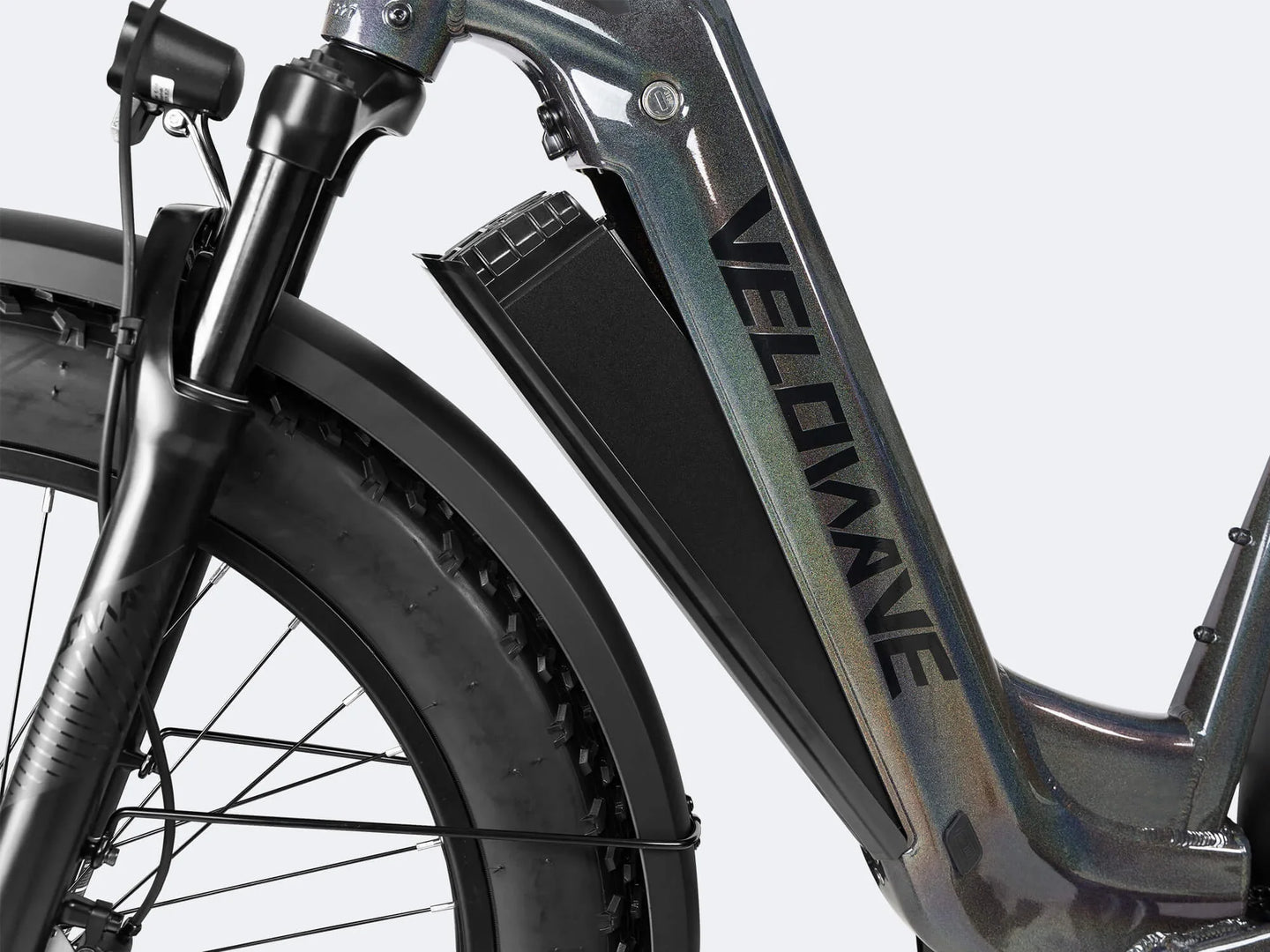

• Battery: 48V 15Ah (720Wh), LG Cells, Removable Internal
• Charger: 48V 2A, Approx. 8 Hour Charge
• Range: Avg. 65 Miles PAS / Up to 90 Miles Level 1 / 30 Miles Throttle
• Pedal Assist: 5 Levels, Torque Sensor
• Throttle: On Demand from Complete Stop
• Display: TFT Smart Color Display with Backlight

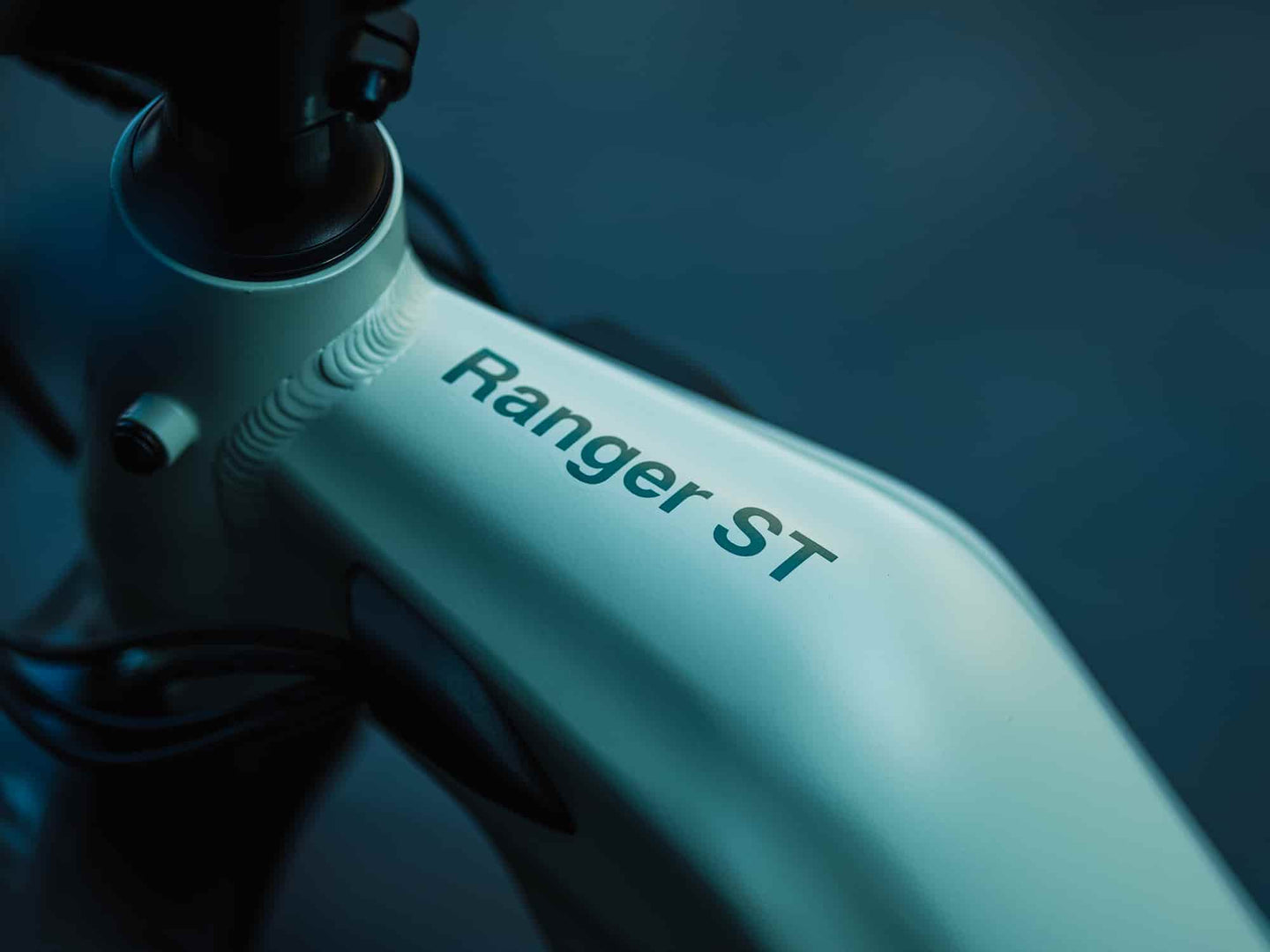

• Frame: 6061 Aluminum Alloy Step-Through, Internal Battery
• Fork: Hydraulic Suspension, 60mm Travel, Lockout
• Tires: Kenda 26" x 4.0" Fat Tires
• Brakes: Hydraulic Disc, 180mm Rotors, Power-Cut-Off
• Shifter: Shimano 7-Speed RevoShift
• Derailleur: Shimano ARDTY500D 7-Speed
• Front Light: 48V LED, 75 LUX

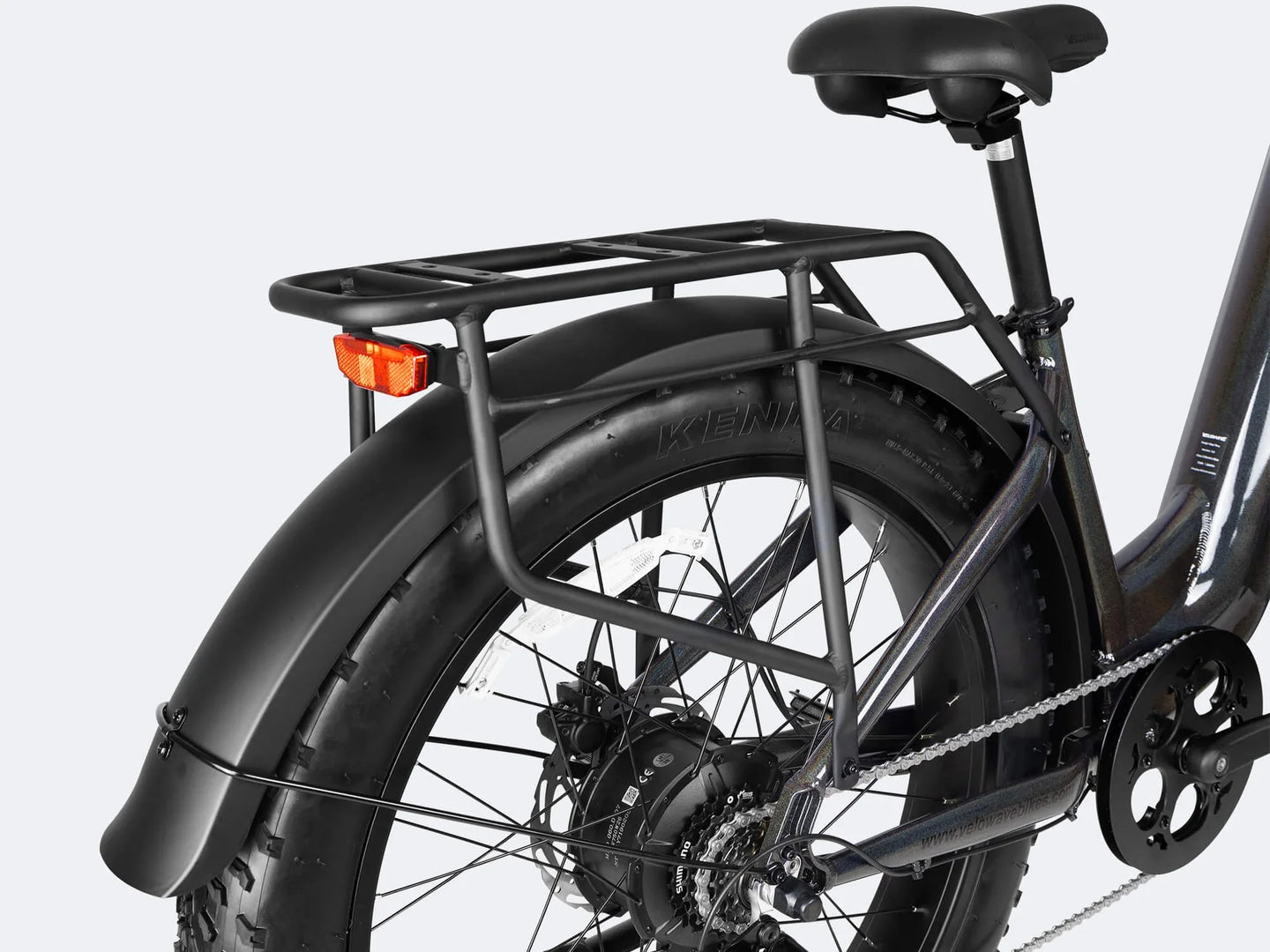

• Tail Light: Rear Brake Light, 12V 20 LUX
• Net Weight: 78.26 lbs / 35.5 kg (with battery)
• Gross Weight: 96.12 lbs / 43.6 kg
• Battery Weight: 8.82 lbs / 4 kg
• Max Payload: 300 lbs
• Standover Height: 457mm
• Seat Height: 819-1009mm
• Wheelbase: 1172mm
• Product Size: 1930 x 740 x 1210mm
