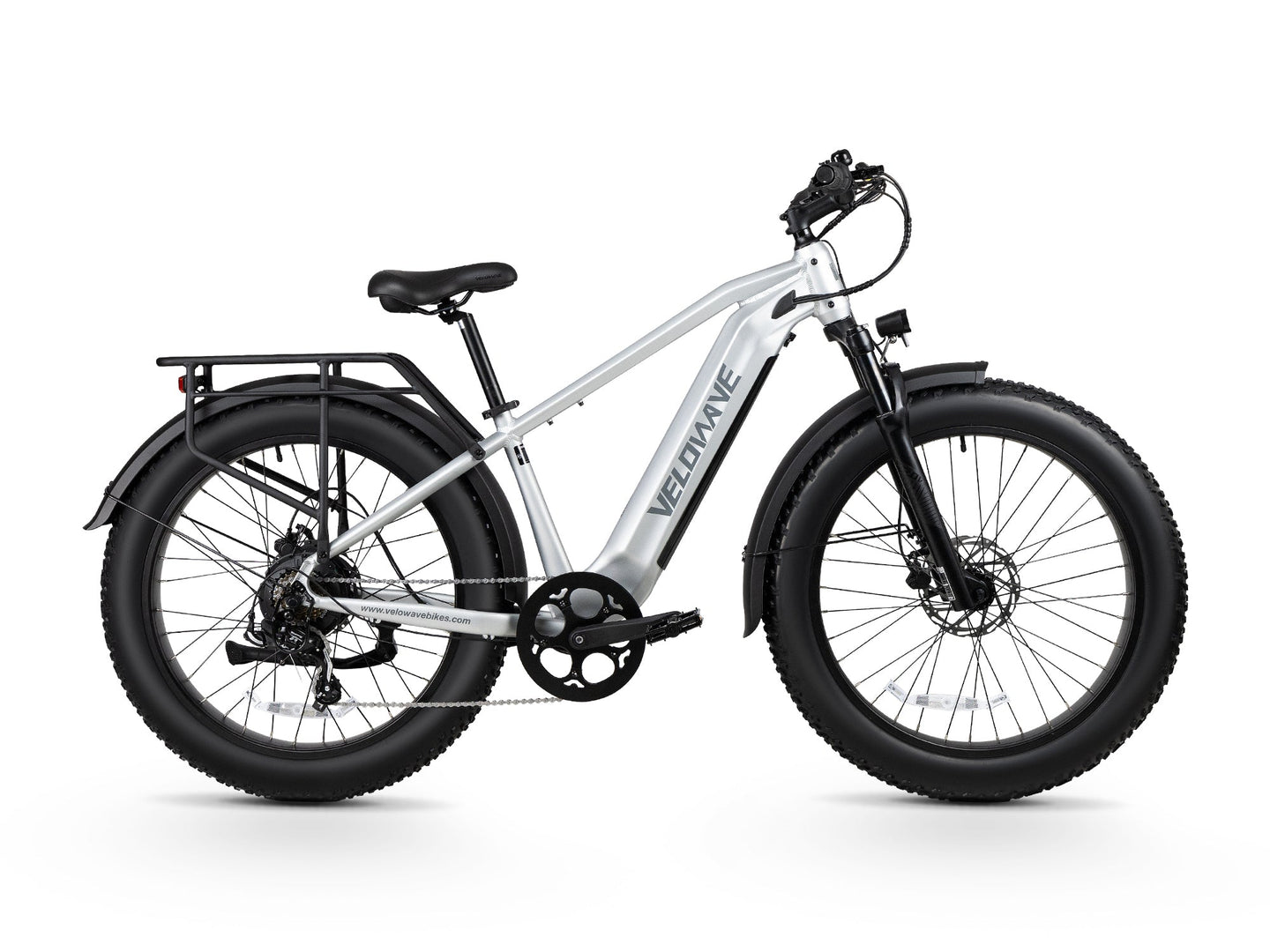

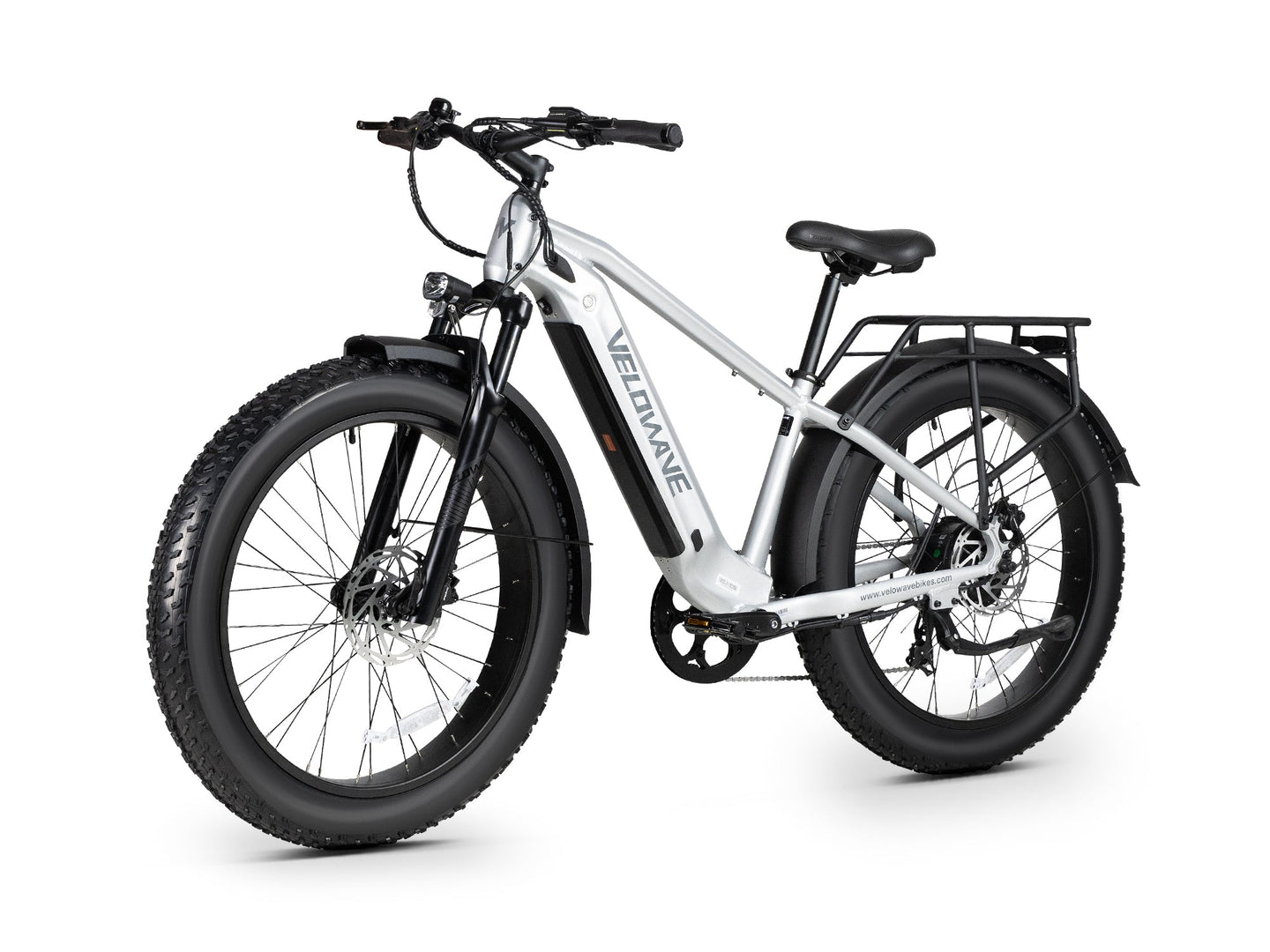

Velowave Ranger 3.0 Fat Tire Electric Bike 750W Torque Sensor

The Ranger 3.0 is the torque-sensor upgrade to Velowave's proven fat tire platform. A 750W motor peaking at 1000W delivers 85Nm of torque through a responsive torque sensor that measures your actual pedaling force and adjusts power proportionally - not the on/off cadence-based assist of the 2.0. The result is a ride that feels natural and intuitive whether you are climbing steep grades or cruising flats, with up to 90 miles of range from the 48V 15Ah LG battery.

Built on a 6061 aluminum alloy frame with internal battery integration, the Ranger 3.0 pairs its upgraded drivetrain with a TFT color display that is a clear step above basic LCD screens. Hydraulic disc brakes with 180mm rotors and power-cut-off handle stopping duties. Kenda 26x4-inch fat tires maintain the all-terrain grip the Ranger line is built around. Rear rack, fenders, and a 75 LUX front light come standard.

Features

• Torque Sensor Pedal Assist - Measures your pedaling force for smooth, proportional motor response that feels natural on climbs and flats
• 750W Motor (1000W Peak, 85Nm) - More refined power delivery than the 2.0, with strong torque for technical terrain and loaded riding
• 48V 15Ah LG Battery (720Wh) - Removable, internally integrated, with up to 90 miles range on PAS Level 1

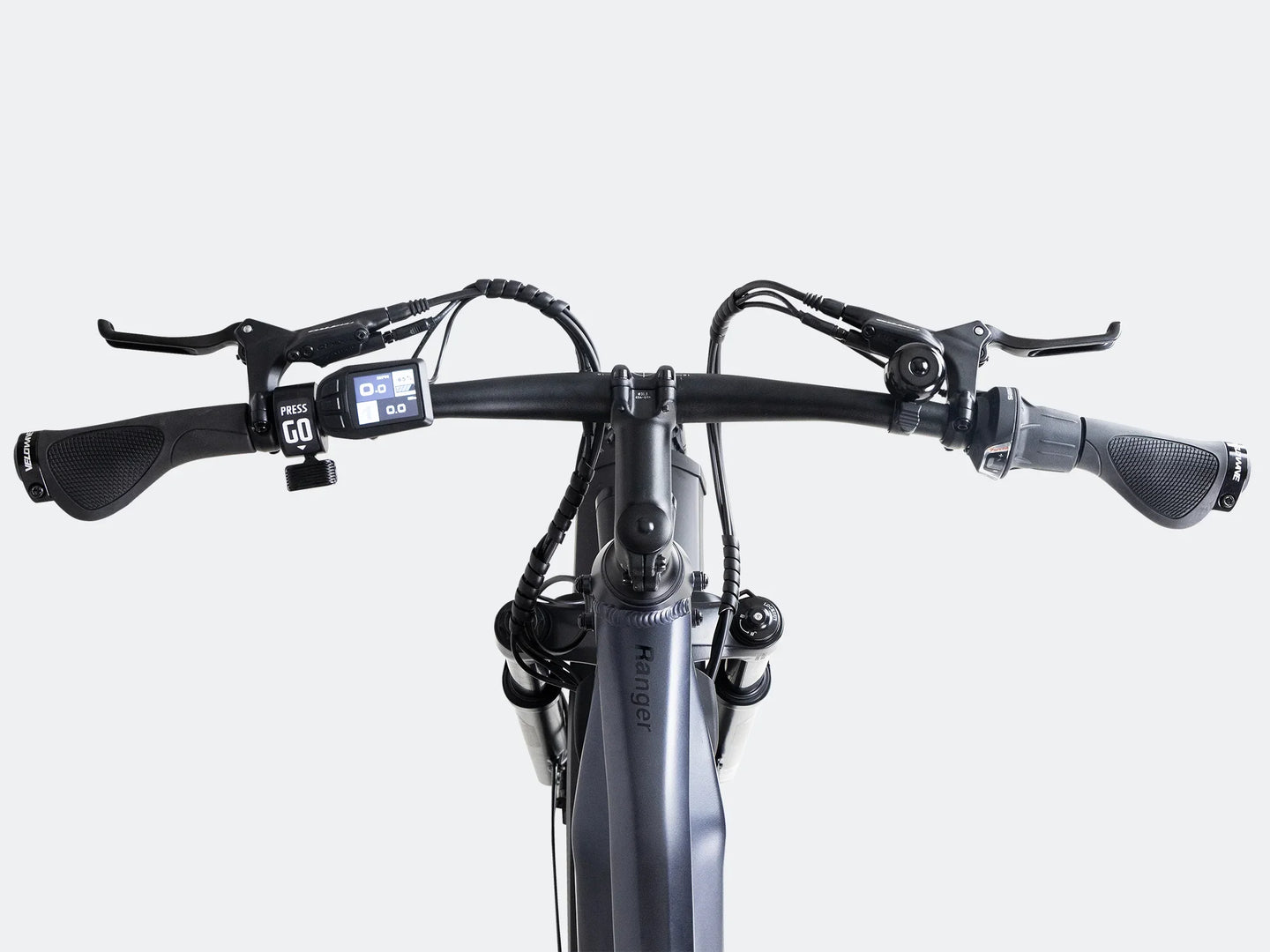

• TFT Color Display - Smart easy-read screen with backlight replaces the basic LCD of the 2.0 series
• 26" x 4.0" Kenda Fat Tires - Proven all-terrain grip on sand, snow, gravel, and rough city streets
• Hydraulic Disc Brakes - 180mm rotors with power-cut-off for confident, responsive stops

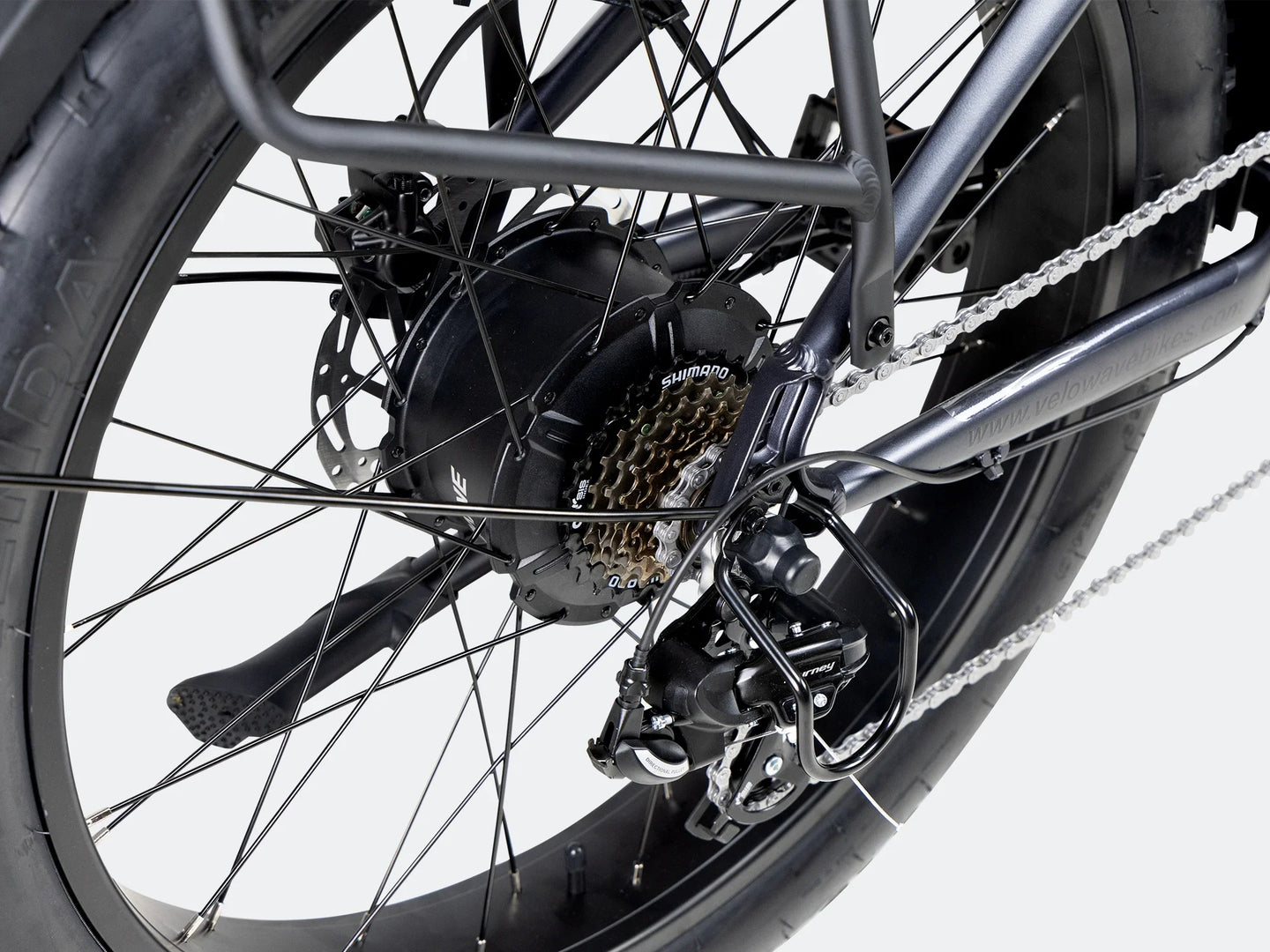

• Shimano 7-Speed Drivetrain - Reliable shifting with 14-28T freewheel for varied terrain

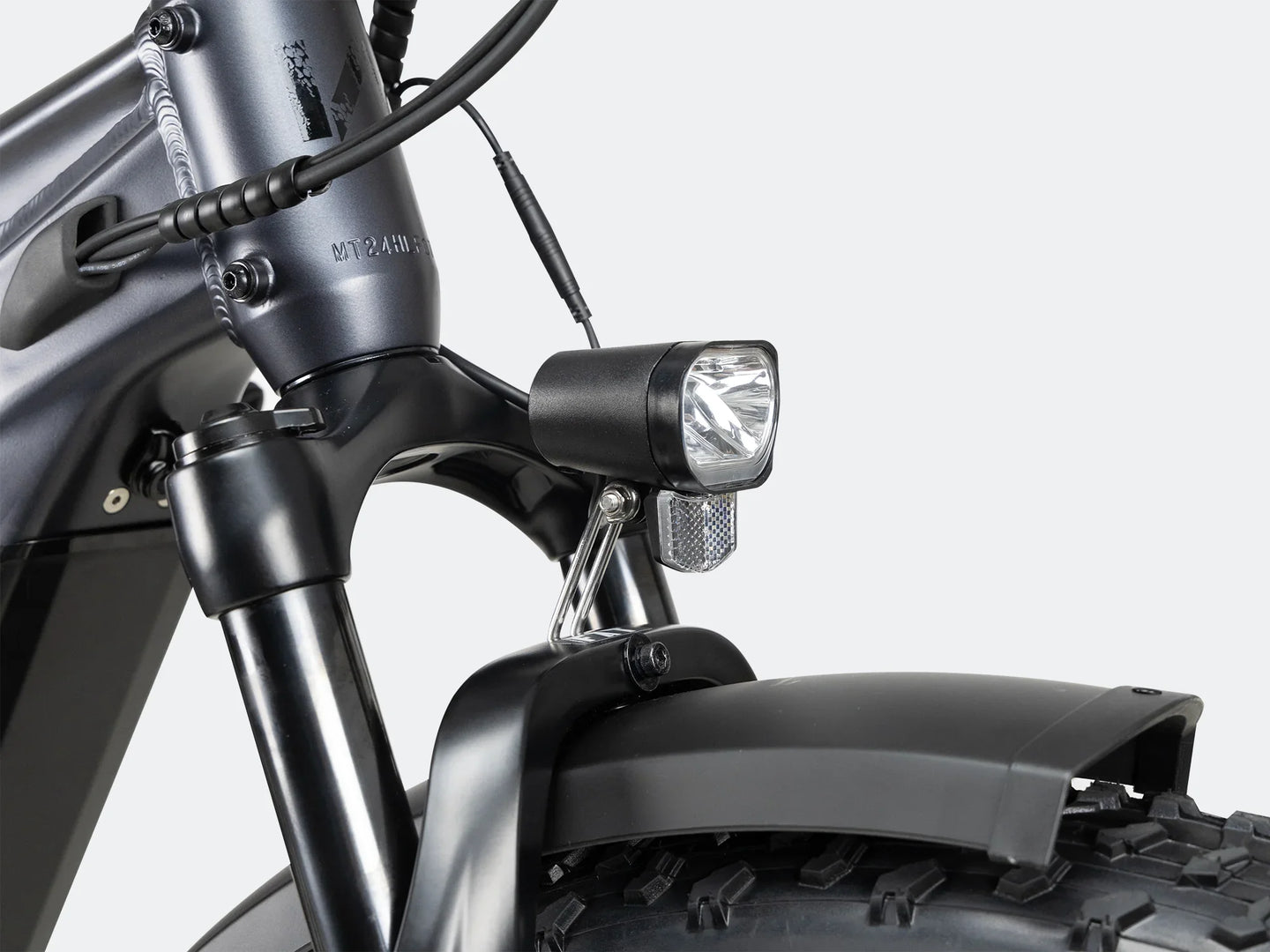

• 75 LUX Front LED Light - Significantly brighter than the 2.0's 30 LUX for better night visibility
• Rear Brake Light - 12V 20 LUX rear light activates on braking for added safety
• Rear Rack and Fenders - Aluminum rack and plastic fenders included standard

Specifications

• Class: Class 3 (28 MPH pedal assist, 20 MPH throttle)
• Motor: 750W (Peak 1000W), 85Nm Torque
• Battery: 48V 15Ah (720Wh), LG Cells, Removable Internal
• Charger: 48V 2A, Approx. 8 Hour Charge
• Range: Avg. 65 Miles PAS / Up to 90 Miles Level 1 / 30 Miles Throttle
• Pedal Assist: 5 Levels, Torque Sensor
• Throttle: On Demand from Complete Stop
• Display: TFT Smart Color Display with Backlight

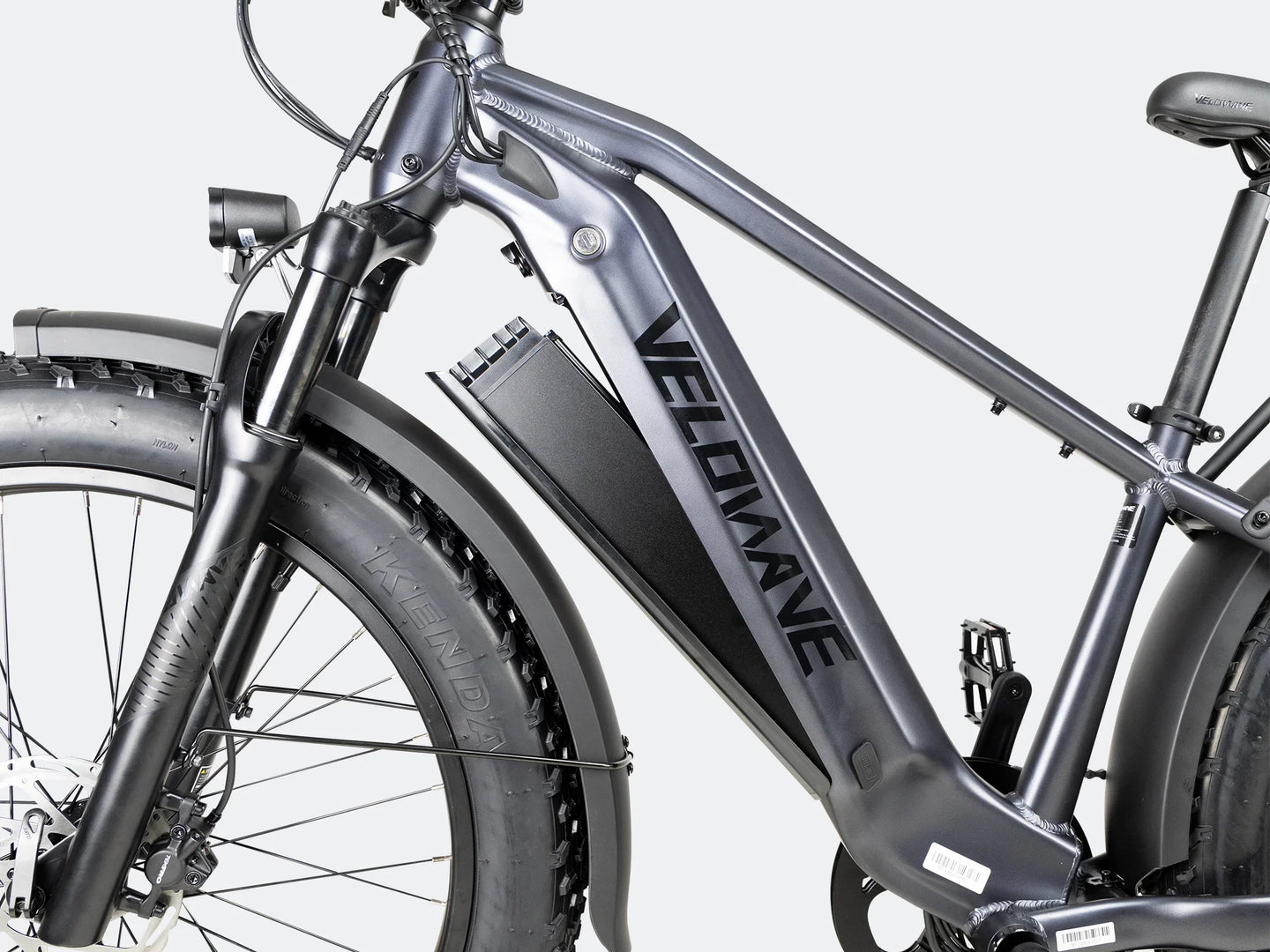

• Frame: 6061 Aluminum Alloy, Internal Battery
• Fork: Hydraulic Suspension, 60mm Travel, Lockout
• Tires: Kenda 26" x 4.0" Fat Tires
• Rims: Aluminum 26" 36H Front and Rear
• Brakes: Hydraulic Disc, 180mm Rotors, Power-Cut-Off
• Shifter: Shimano 7-Speed RevoShift
• Derailleur: Shimano ARDTY500D 7-Speed
• Crankset: 170mm w/ 52T
• Freewheel: Shimano 14-28T, 7-Speed
• Chain: KMC 124 Link, 7-Speed
• Front Light: 48V LED, 75 LUX
• Tail Light: Rear Brake Light, 12V 20 LUX
• Net Weight: 82.67 lbs / 37.5 kg (with battery)
• Gross Weight: 100.53 lbs / 45.6 kg
• Battery Weight: 8.82 lbs / 4 kg
• Max Payload: 300 lbs
• Standover Height: 753mm
• Seat Height: 823-1012mm
• Wheelbase: 1165mm
• Product Size: 1930 x 755 x 1110mm
