Rich Solar | Hybrid Inverter 6500W 48V NOVA 6500S | RS-H6548S

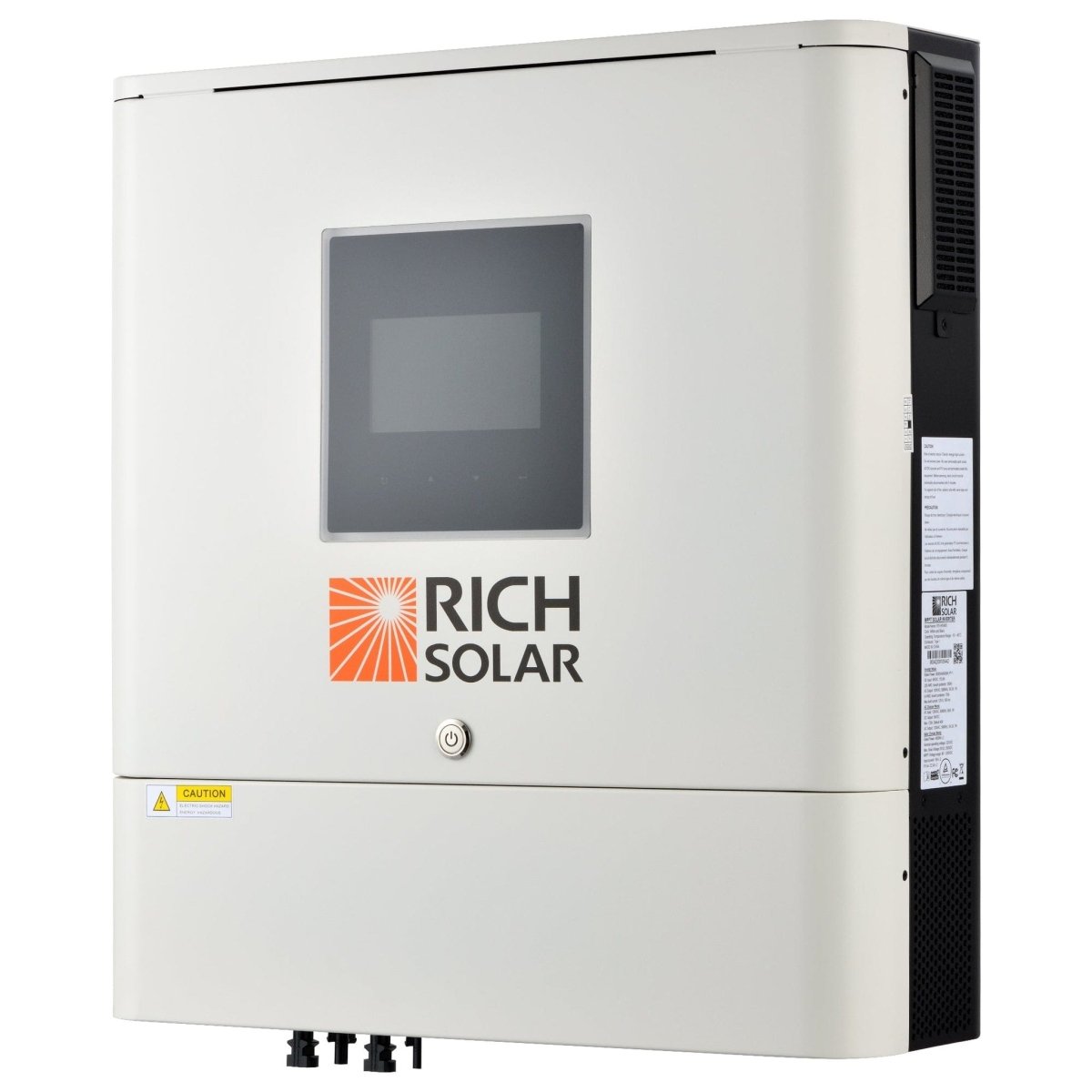

NOVA 6500S | 6500 Watt 48 Volt Off Grid Hybrid Solar Inverter | UL Certified

Overview

The NOVA 6500S is a 6500 Watt 48 Volt off grid hybrid solar inverter designed for reliable solar energy management. It supports various system configurations for homes, cabins, and commercial uses. This UL certified inverter provides flexible, scalable power solutions with advanced monitoring and battery management capabilities.

Benefits

• Safe operation with UL certification meeting rigorous standards
• Real time system monitoring with RGB LED status indicators
• Mobile monitoring via integrated Wi Fi compatibility with Android and iOS apps
• USB On the Go support for easy data transfer and updates
• Stores event history for simplified troubleshooting

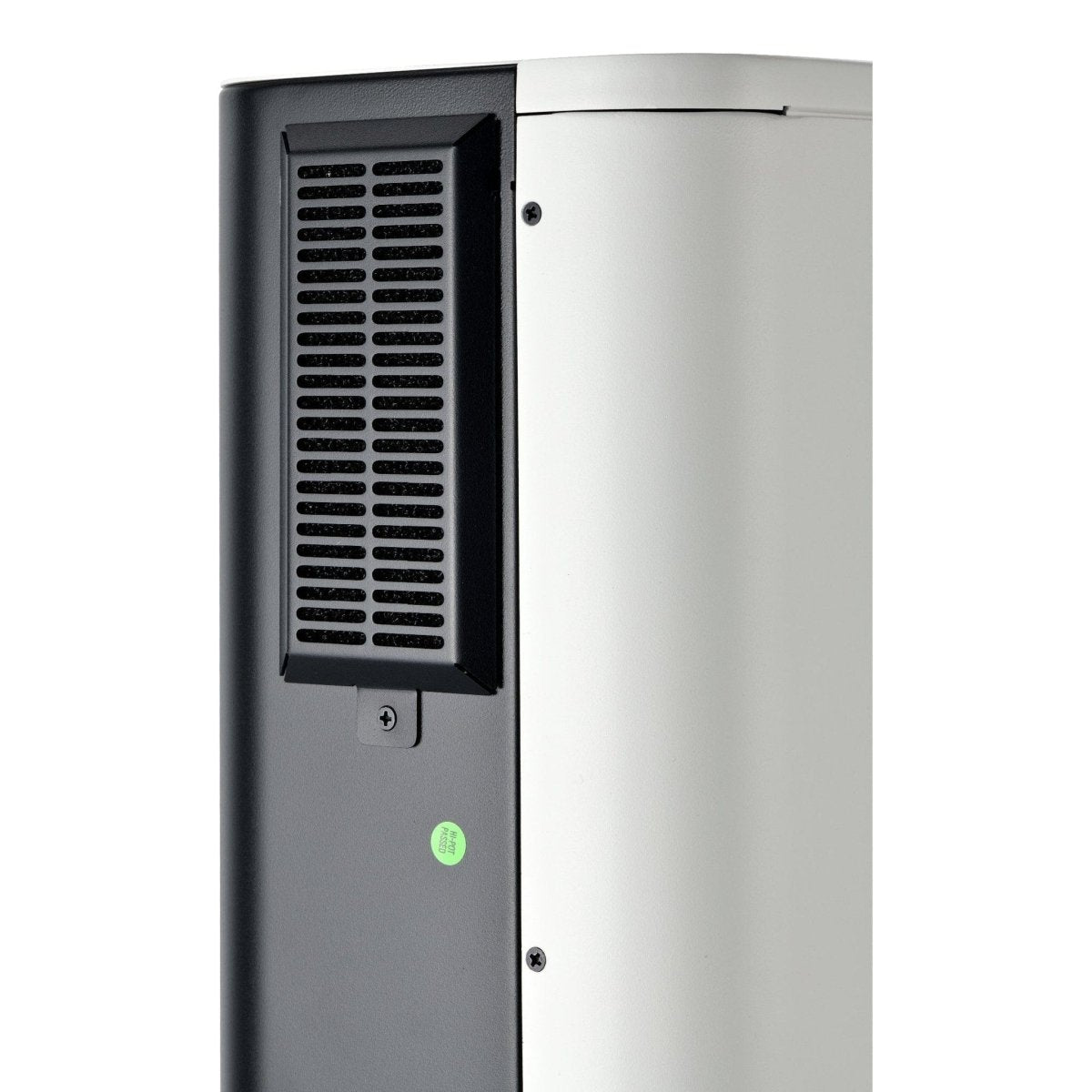

• Easy maintenance with a replaceable fan design
• Operates independently of batteries for versatile system designs
• Configurable load management with timers and priority settings
• Adjustable charging current and voltage settings for different appliances and systems
• Durable dustproof construction for harsh environments
• Optional DC output supports DC appliances such as fans and LED bulbs
• Parallel operation capability allowing up to six units to scale system power

Features

• Continuous output power of 6500 Watts with surge capacity up to 13000 Watts
• Supports single phase, split phase, and three phase configurations
• Battery optional operation compatible with multiple battery types including AGM, Pylontech, WECO, Soltaro, LIB Protocol, and third party lithium batteries
• MPPT solar charger operating within 90 to 230 Volts DC enhancing efficiency and battery protection
• Pure sine wave output ensures stable power quality and quiet operation
• Wide input voltage range from 80 to 140 Volts AC suitable for various electronics
• High power charging capability from 10 to 120 Amps
• Multiple charging modes for flexible power management
• Various load output modes for adaptable energy distribution
• Multiple protection features including overload, over temperature, and short circuit safeguards
• Battery management system integration through RS485, CAN BUS, and RS232 ports
• Operates within temperature range of minus 10 to 50 degrees Celsius
• Supports humidity levels from 5 to 95 percent non condensing

Specifications

• Model: RS H6548S
• Rated Inverter Power: 6500 VA / 6500 W
• Parallel Capability: Up to 6 units
• Input Voltage: 120 VAC
• Selectable Voltage Range: 90 to 140 VAC for computers, 80 to 140 VAC for home appliances
• Frequency Range: 50 Hz / 60 Hz automatic sensing
• Output AC Voltage Regulation (Battery Mode): 120 VAC ± 5%
• Surge Power: 13000 VA
• Peak Efficiency: 91%
• Transfer Time: 15 ms for personal computers, 20 ms for home appliances
• Waveform: Pure sine wave
• No Load Power Consumption: Less than 70 Watts
• Optional DC Output Voltage: 12 VDC ± 5%, 100 W
• Dual Outputs: Yes
• Battery Voltage: 48 VDC
• Floating Charge Voltage: 54 VDC
• Overcharge Protection Voltage: 66 VDC
• Solar Charger Type: MPPT

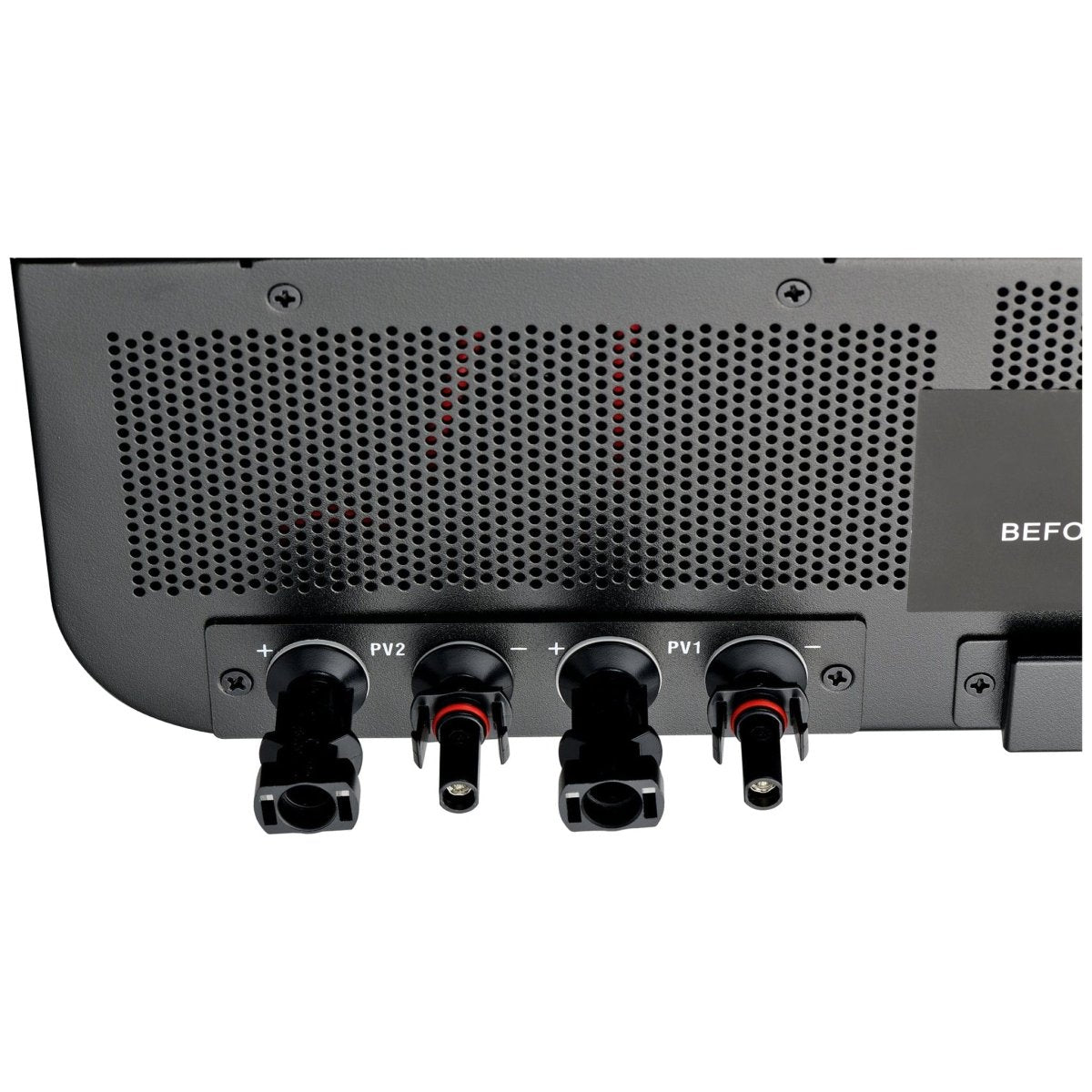

• Maximum PV Array Power: 8000 W (4000 W x 2)
• MPPT Operating Voltage Range: 90 to 230 VDC
• Maximum PV Array Open Circuit Voltage: 250 VDC
• Maximum Solar Charge Current: 120 A
• Maximum AC Charge Current: 120 A
• Maximum Charge Current: 120 A
• Dimensions (D x W x H): 5.8 x 17.0 x 21.8 inches
• Net Weight: 44.09 pounds

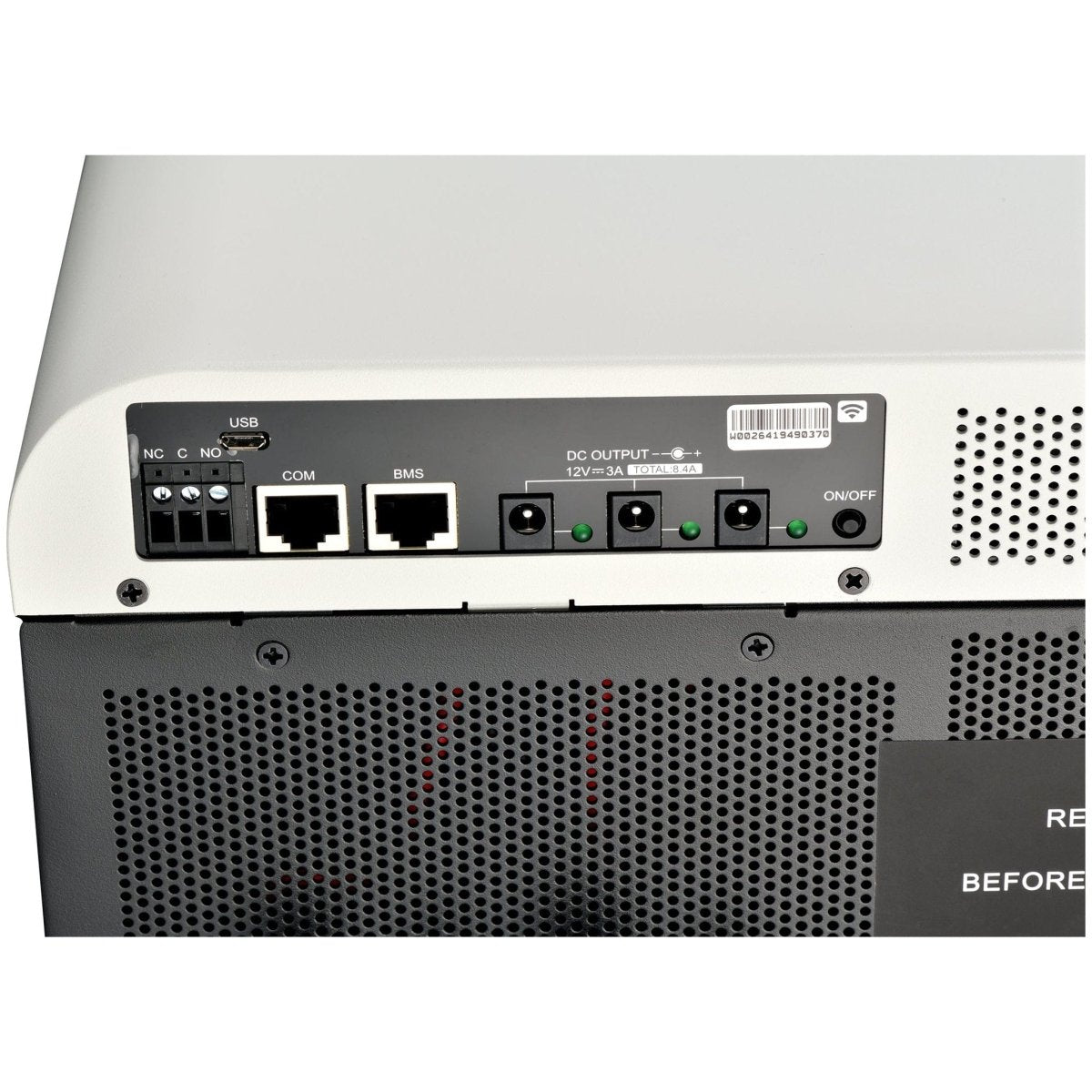

• Communication Interfaces: USB, RS232, RS485, Wi Fi, Dry contact
• Operating Humidity: 5 to 95 percent relative humidity non condensing
• Operating Temperature: Minus 10 to 50 degrees Celsius
• Storage Temperature: Minus 15 to 60 degrees Celsius
• Compliance Safety: UL Certified
