Rich Solar | Hybrid Inverter 6500W 48V 550V PV Input | RS-H6548V5

Regular price: $1,299.99

Regular price: $1,299.99

FREE SHIPPING i Free shipping to the contiguous United States on every order. The price you see is the price you pay — no extra shipping or freight fees added at checkout.

Authorized RICH SOLAR Dealer

Manufacturer Warranty Included

✓Authorized Online Dealer
✓Free Shipping · No Sales Tax (excluding MI)
✓Lowest Price Guarantee
✓Ships in 1–2 business days · 4–7 day transit
✓Questions? Call us at (734) 228-0441

Use code: SPRING5 (5% OFF)

Quantity

Product Description

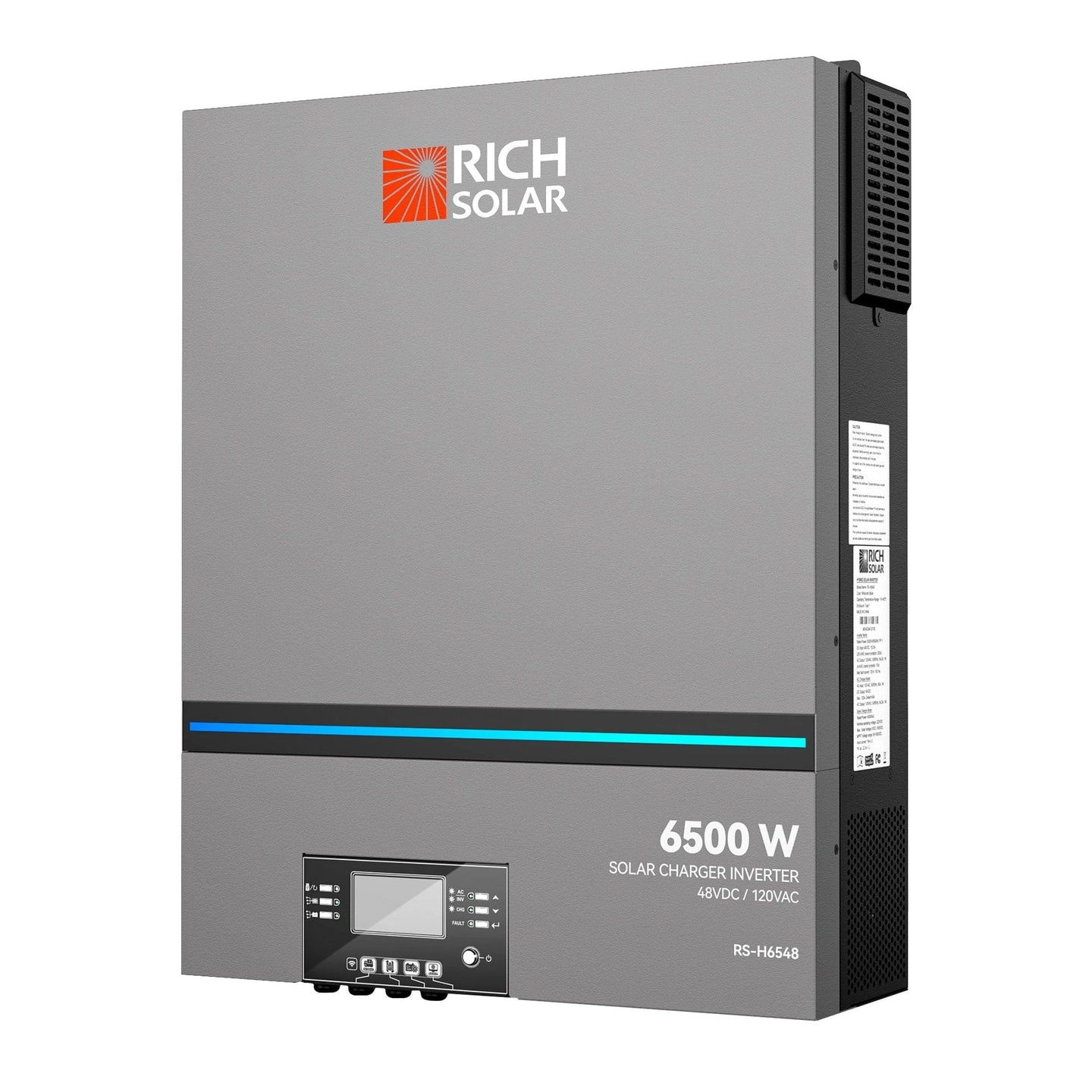

NOVA 6K | 6500 Watt 48 Volt Off Grid Hybrid Solar Inverter | 550 Volt PV Input | UL Certified

Overview

The NOVA 6K is a reliable off grid hybrid solar inverter designed for residential and commercial solar energy systems. It provides 6500 watts of output power and accepts up to 550 volt PV input. The inverter integrates solar energy, battery management, and generator backup into one compact device.

Benefits

Provides clean and stable pure sine wave output suitable for sensitive electronics and heavy appliances
Dynamic RGB LED status bar allows quick system monitoring with customizable colors
Integrated Wi Fi connectivity enables monitoring and control via a mobile app on Android and iOS
USB on the go supports external storage for data logging and firmware updates
Advanced cooling system with dust protection extends device lifespan in harsh environments
Detachable LCD control panel offers flexible installation and multiple communication ports for battery management system integration
User configurable settings for input voltage, output timers, charging current, and power source prioritization through the LCD panel
Smart battery charging system improves battery performance and longevity across different battery types
Compatible with solar arrays, generator input, and utility mains to maximize uptime
Built in protections guard against overload, overheating, and short circuits
Cold start function allows power up even when the battery is fully drained for emergency backup

Features

Pure sine wave output
Dynamic RGB LED status bar
Integrated Wi Fi connectivity with mobile app support
USB on the go for data logging and firmware updates
Advanced cooling and dust protection
Detachable LCD control panel with RS485 CAN BUS and RS232 communication ports
User configurable settings on LCD panel
Smart battery charging system
Flexible power source compatibility including solar generator and utility mains
Built in overload overheating and short circuit protections
Cold start capability

Specifications

Model: RS H6548V5
Rated Output Power: 6500W
Parallel Capability: Yes up to 6 units
Input Voltage: 120 VAC
Efficiency: Greater than 95 percent at rated resistive load with fully charged battery
Frequency Range: 50Hz and 60Hz auto detection
Output Voltage Waveform: Pure sine wave
Output Voltage Regulation: 120 VAC plus or minus 5 percent
Peak Efficiency: 91 percent
Surge Capacity: Two times rated power for five seconds
Nominal DC Input Voltage: 48 VDC
Cold Start Voltage: 46.0 VDC
Battery Voltage: 48 VDC
Floating Charge Voltage: 54 VDC
Overcharge Protection: 66 VDC
Operating Temperature Range: Negative 10 degrees Celsius to 40 degrees Celsius
Storage Temperature: Negative 15 degrees Celsius to 60 degrees Celsius
Humidity: 5 percent to 95 percent relative humidity non condensing
Dimensions (millimeters): 147.4 by 432.5 by 575.6 (620.6 with extension box)
Net Weight: 18.4 kilograms or 41 pounds
