Rich Solar | Battery Monitor 8~120V 500A + SKU | RS-BM500

Precise Battery Monitoring for Any System

Overview

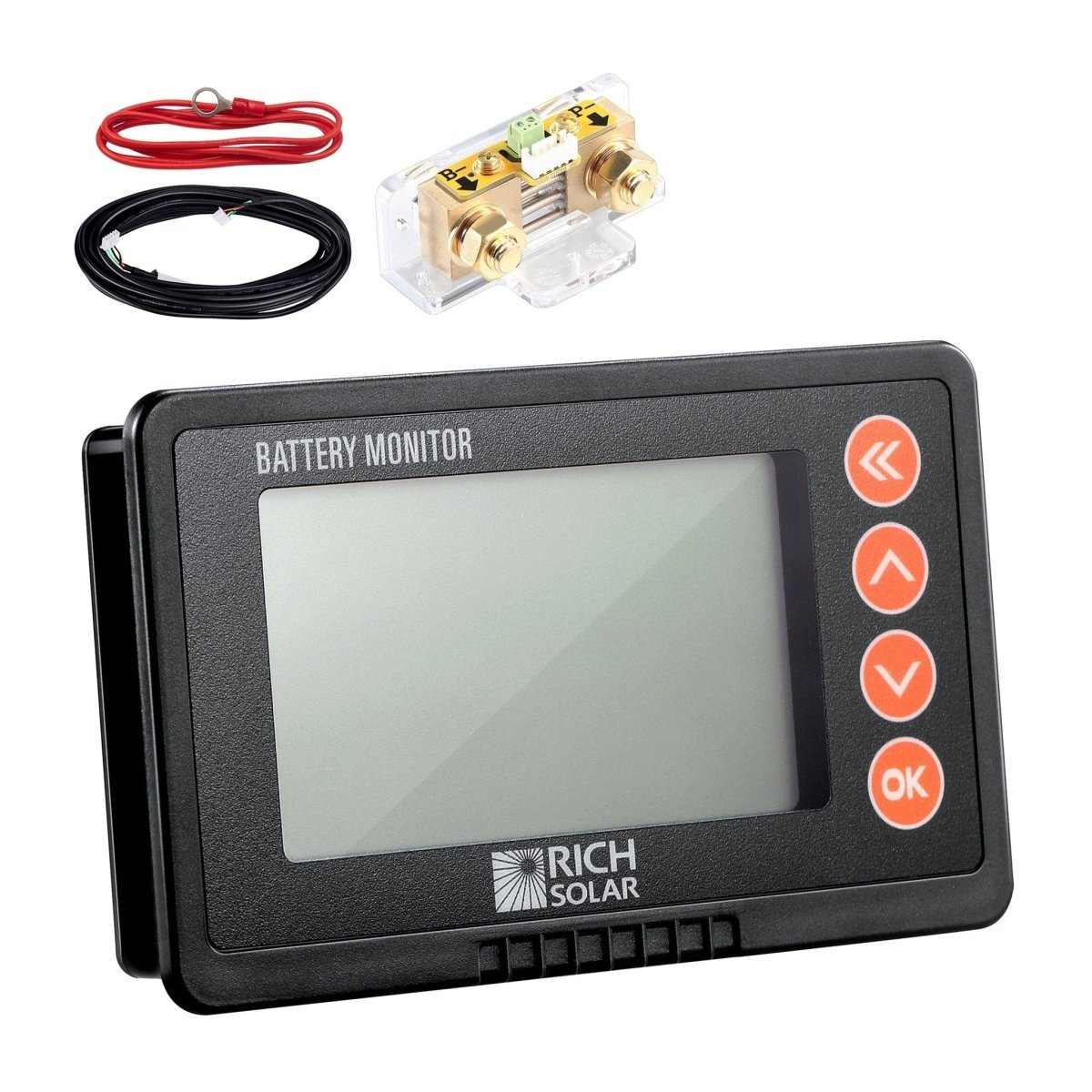

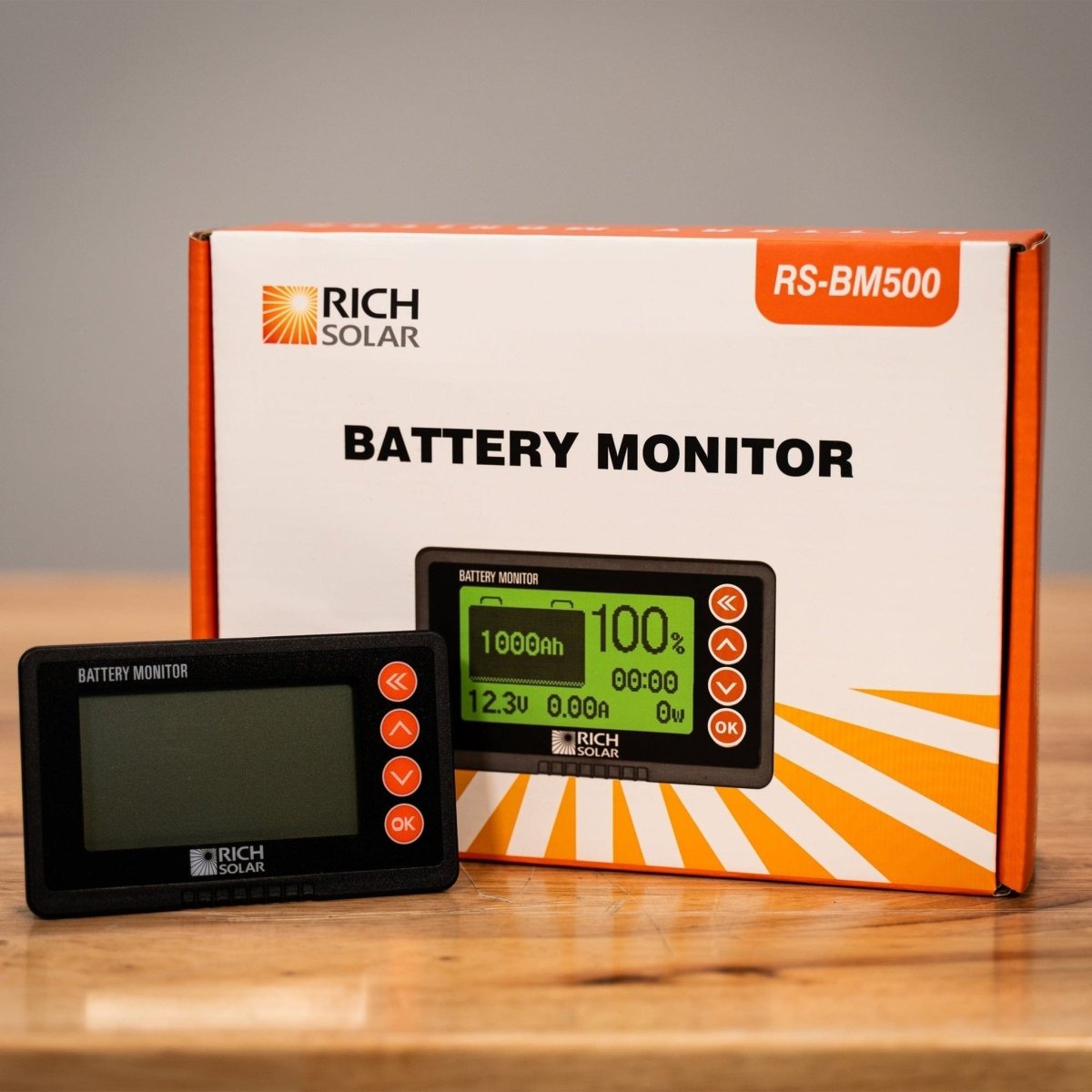

Easily monitor your battery performance with the 500 Amp Battery Monitor with Shunt. Suitable for systems from 8V to 120V, it provides accurate real-time information on voltage, current, and state of charge. This monitor is well suited for solar power setups, recreational vehicles, boats, and backup battery systems.

Benefits

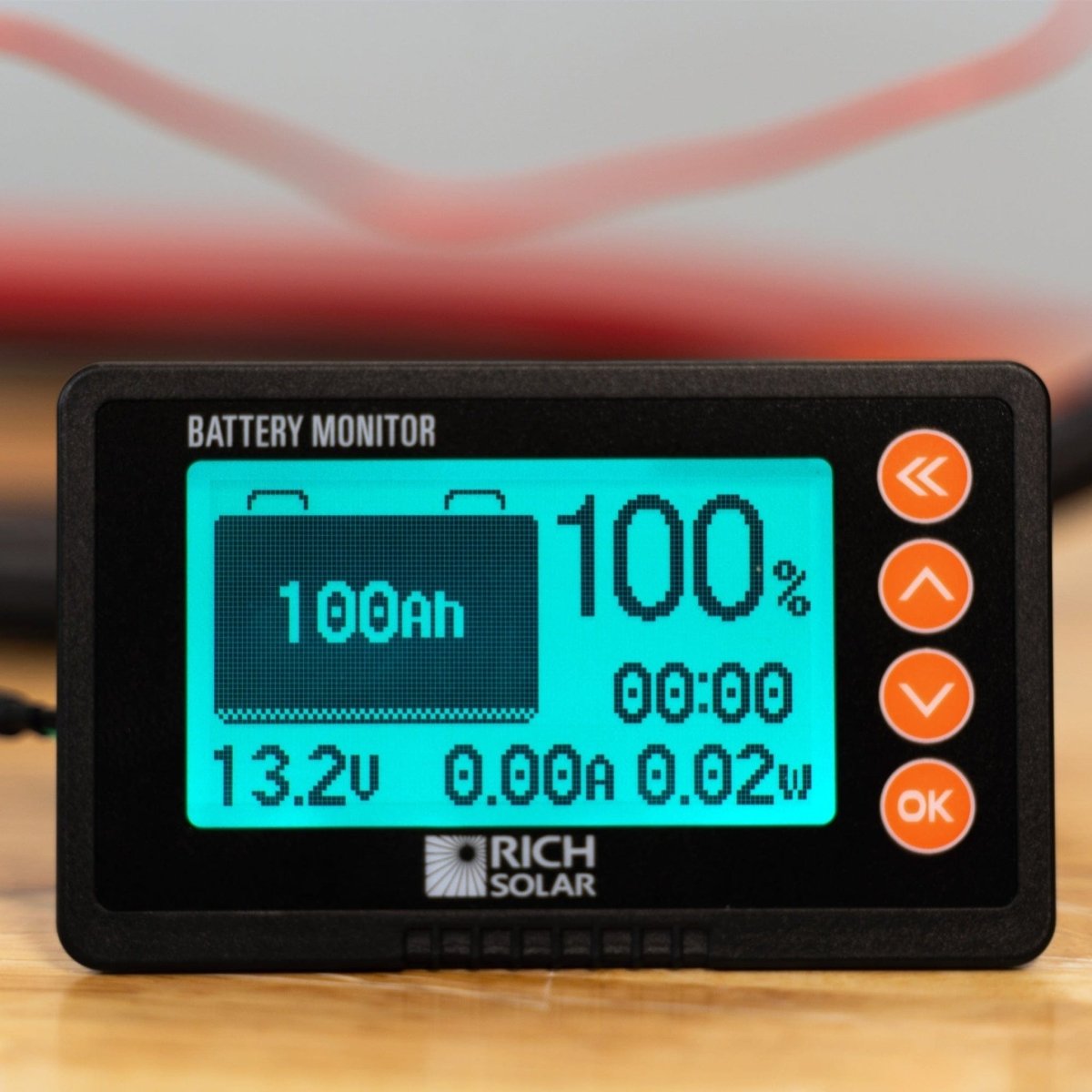

• Accurate real-time data on battery voltage, current, and state of charge
• Compatible with a wide voltage range from 8 to 120 volts
• Suitable for various applications including solar, RV, marine, and backup systems
• Remote display for easy monitoring at a glance
• Low power consumption with working dissipation of 10mA and standby dissipation of 1mA

Features

• RS-BM500 shunt should be installed close to the battery for accurate measurements

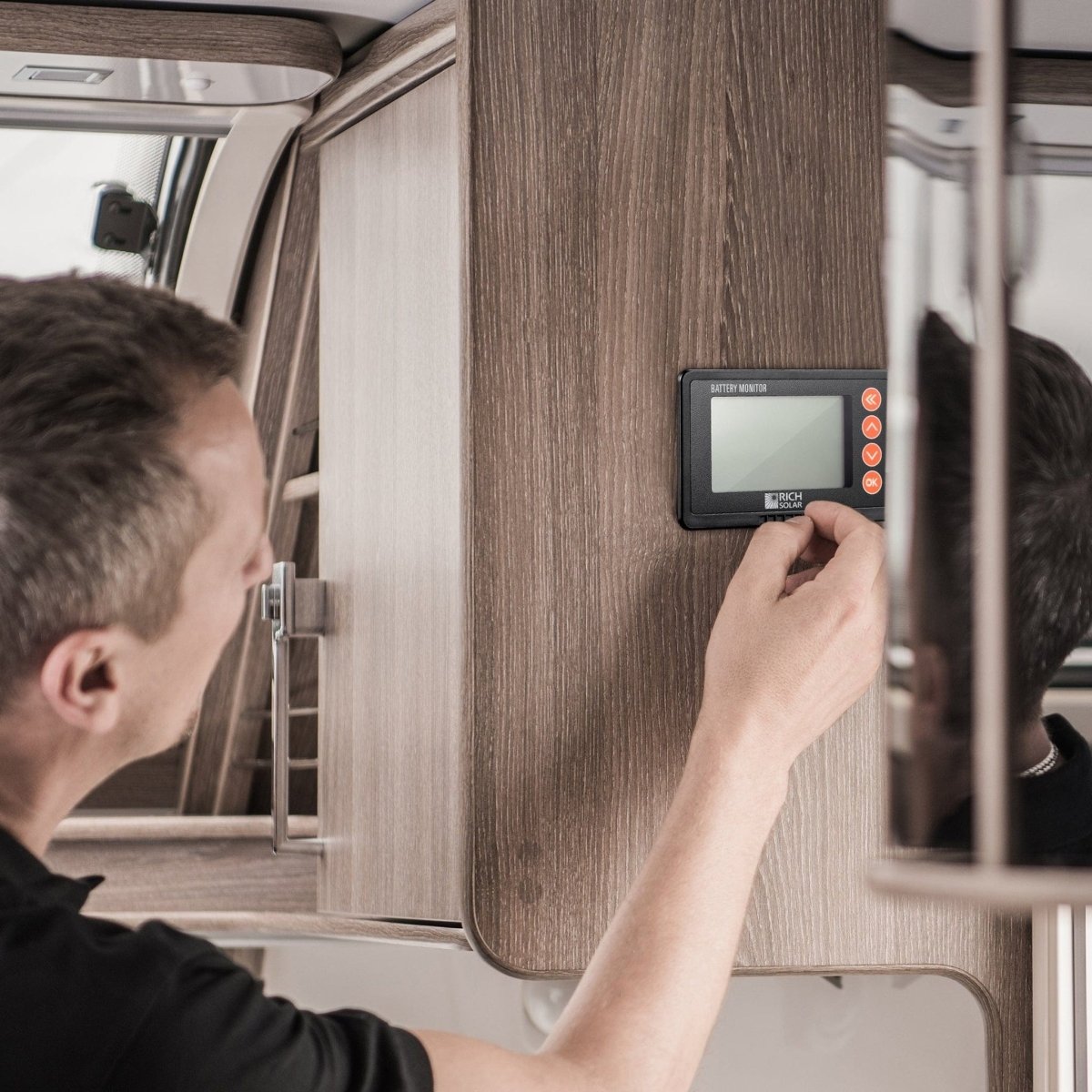

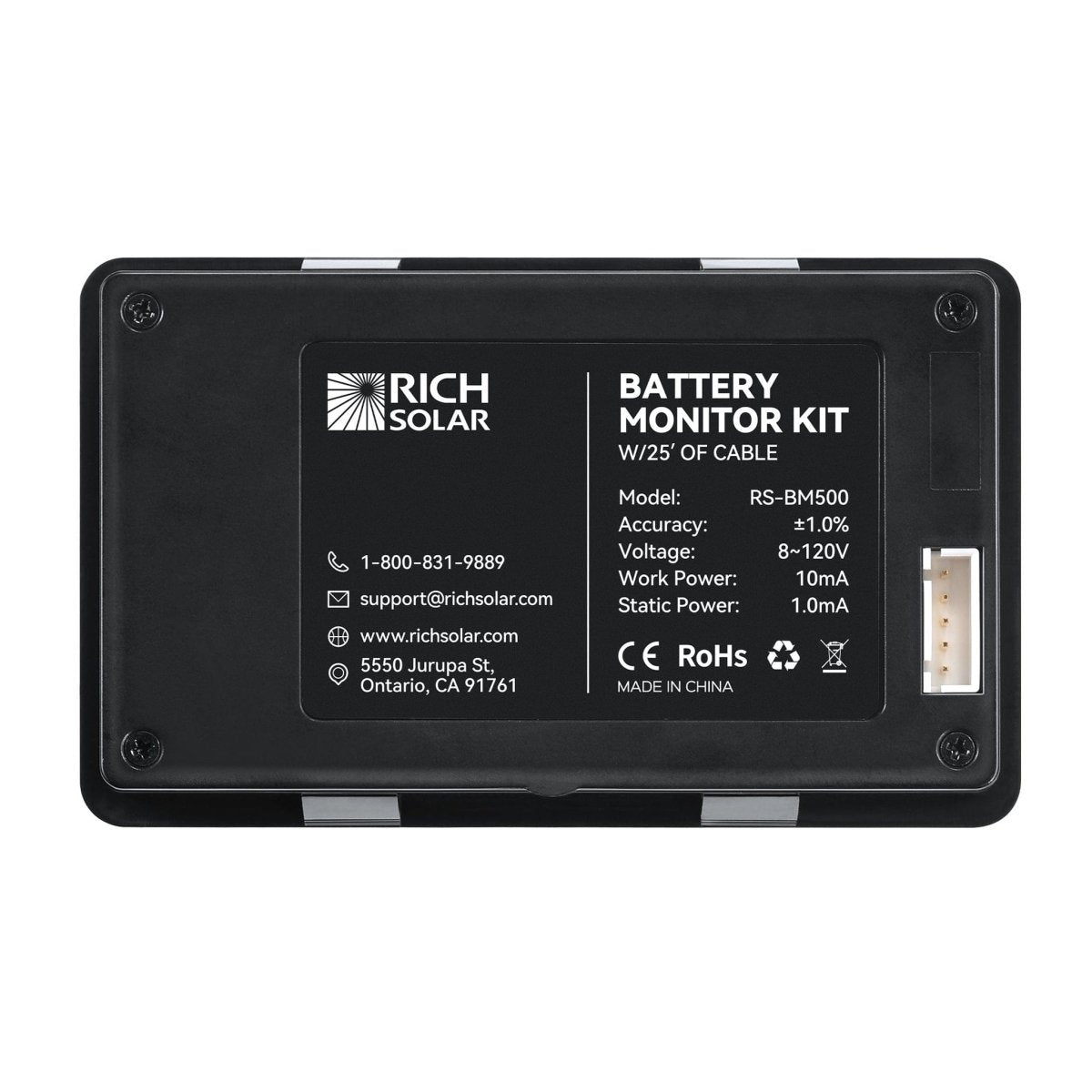

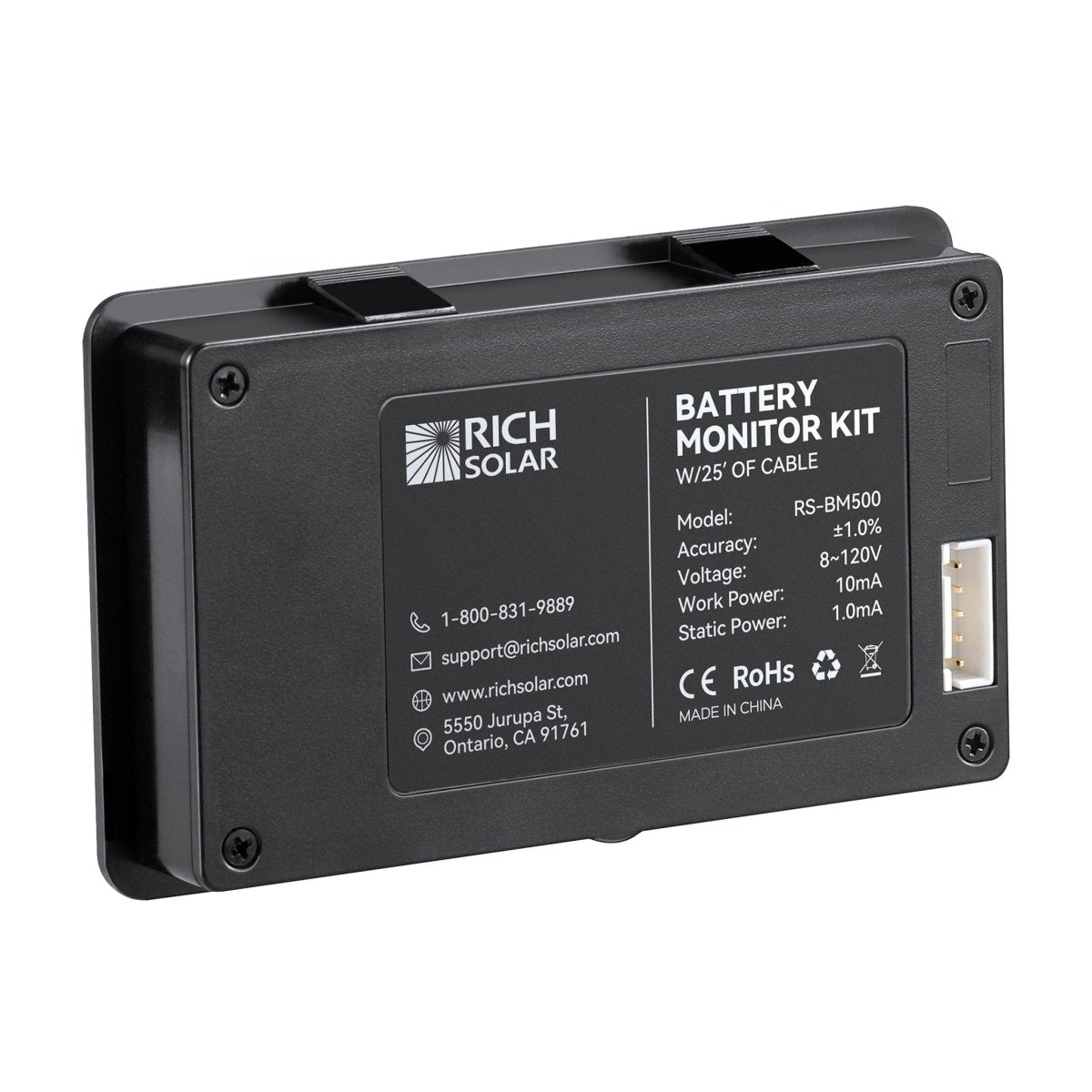

• Remote display mounts easily on a wall and connects via shielded cable
• Includes wiring diagram for correct installation
• Settings allow adjustment of battery capacity, voltage alarms, and audible alerts
• Installation requires disconnection of the battery negative cable and use of ring terminals and crimp tool
• Basic setup includes entering the settings screen, selecting battery capacity, and configuring voltage limits

Specifications

• Model: RS-BM500
• Battery Voltage Range: 8 to 120 volts
• Working Dissipation: 10 milliamps
• Standby Dissipation: 1 milliamp
• Capacity Accuracy: ± 1.0 percent
• Voltage Accuracy: ± 1.0 percent
• Current Accuracy: ± 1.0 percent
• Backlight On Current: 80 milliamps
• Capacity Setting Value: 0 to 500 amps
• Current Range: 0.1 to 9999 amp-hours
