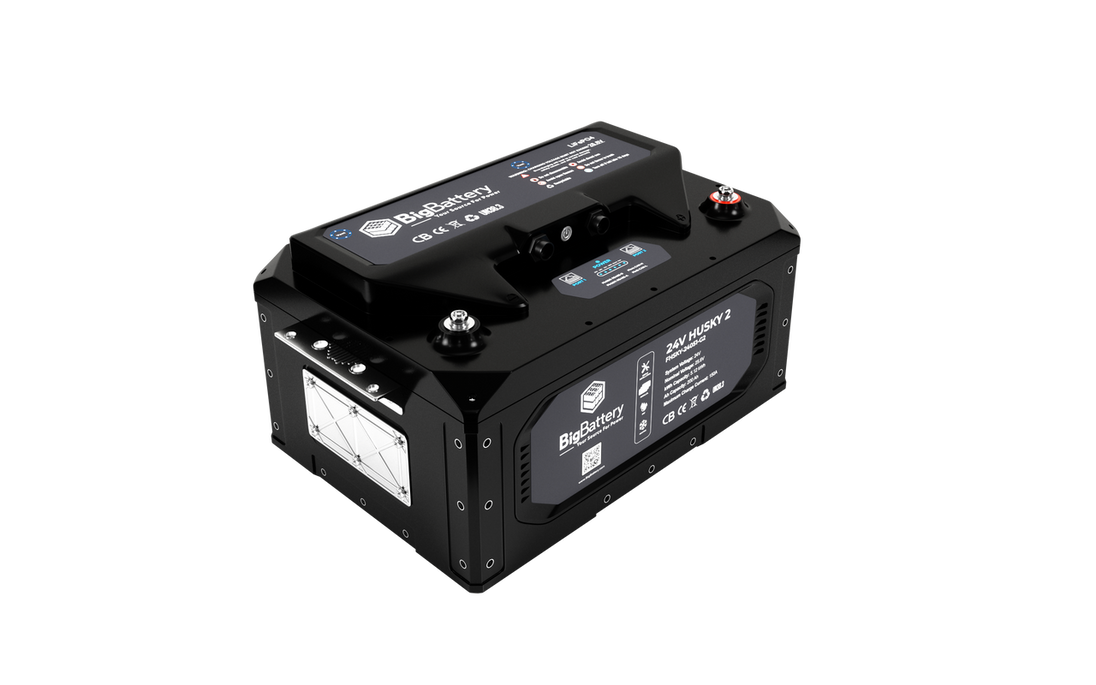

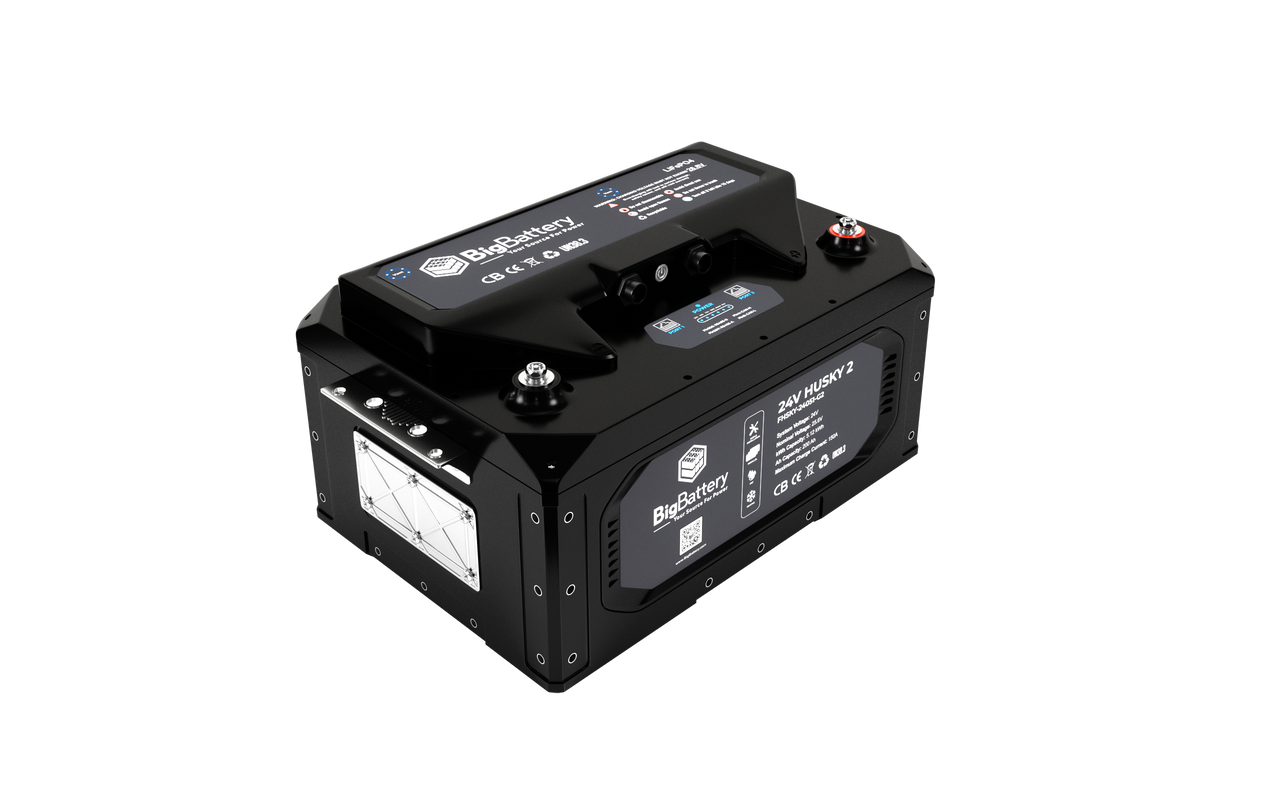

BigBattery | 24V HUSKY 2 | LiFePO4 Lithium Battery 5.12kWh | For RVs, Camper Vans & Commercial Vehicles

BigBattery 24V HUSKY 2 LiFePO4 Lithium Battery 5.12kWh for RVs Camper Vans and Commercial Vehicles

Overview

The 24V 5.12 kWh LiFePO4 HUSKY 2 battery is designed for low voltage applications including golf carts and solar systems. This battery offers reliable performance and can be expanded for higher capacity needs.

Benefits

• Consistent power delivery under various conditions
• Expandable capacity up to 40 kWh with parallel connections
• Built-in safety systems to protect battery and users
• Operates effectively in a wide range of temperatures
• Easy monitoring with LED indicators and Bluetooth connectivity
• Compatible with common communication protocols for integration

Features

• LiFePO4 chemistry for durability and stability
• Intelligent Battery Management System monitoring cell voltage continuously
• Fire extinguishing modules and passive balancing for safety
• IP65 rated enclosure for water and dust resistance
• Heating function to allow charging in cold environments
• LED State of Charge display and Bluetooth app for status updates
• Supports CANBus and RS485 communication
• Expandable with up to 16 units connected in parallel

Specifications

• System Voltage: 24V
• Nominal Voltage: 25.6V
• Chemistry: LiFePO4
• Capacity: 5.12 kWh (200 Ah)
• Charging Voltage Range: 27.8V to 28V
• Maximum Charge Voltage: 29.2V
• Operating Voltage Range: 24V to 28.8V
• Suggested Low Voltage Cutoff: 24V to 25.4V
• BMS Cutoff Range: 21V to 23.5V
• Cell Configuration: 8S
• Max Continuous Discharge Current: 200A
• Max Continuous Power: 5120W
• Max Discharge Peak Current: 300A (for 5 seconds)
• Max Charge Current: 150A
• Charge Temperature Range: -4°F to 113°F (-20°C to 45°C)
• Optimal Discharge Temperature Range: 59°F to 95°F (15°C to 35°C)
• Storage Temperature Range: -4°F to 113°F (-20°C to 45°C), maximum 6 months
• Dimensions (DxWxH): 12.6 x 18.1 x 9.8 inches (320 x 460 x 249 mm)
• Weight: 95 lbs (43.1 kg)
• Maximum Parallel Connections: 16 units
• Protection Rating: IP65
• Communication Protocols: CANBus and RS485
• Heating Function Included
