Fountain Features
-
Floating lake fountain designed for large-scale commercial application.
- Available in 2 HP, 3 HP 5 HP, 7.5 HP, and 10 HP.
- Suggested LED Lighting Packages:
|
Motor
HP
|
Spray
Height
|
Spray
Diameter
|
| 2 |
6' |
25' |
| 3 |
7' |
30' |
| 5 |
8'' |
35'' |
| 7.5 |
8'' |
45' |
| 10 |
9' |
50' |
Warranty Coverage
All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.
- Pumps and motors: 4-years
Description
The FunnelJet floating fountain series produces a striking display of sparkling water, creating a wide ring that adds elegance and power to any lake or pond. Designed with a low profile pattern, this fountain series is perfect for those who want a water feature without obstructing the surrounding views.
Constructed with fully waterproof components made of high-quality corrosion-resistant materials, FunnelJet floating lake fountains are dependable and provide exceptional performance for years to come. All FunnelJet fountains are equipped with a UL listed control panel and heavy-duty submersible turbine pump to ensure consistent and reliable operation.

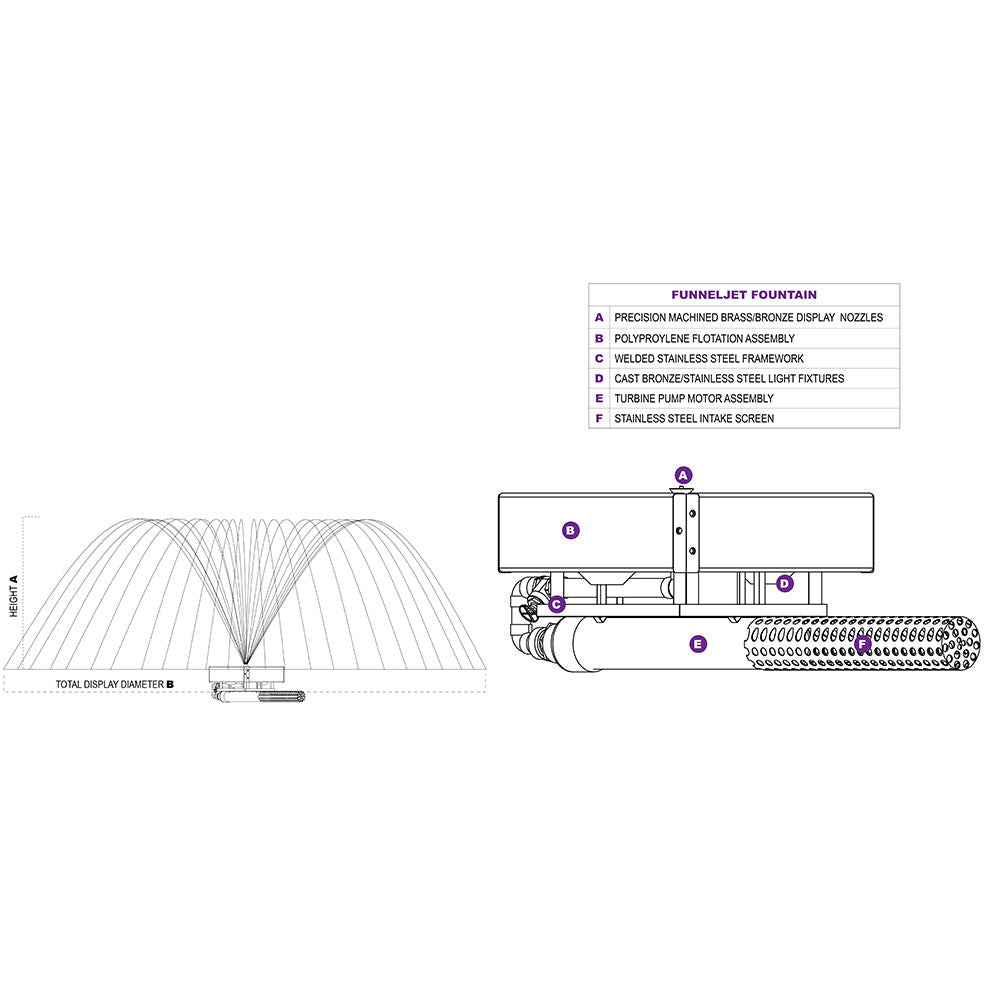

Specs
Nozzles
- Precision machined brass/bronze or stainless steel nozzles.
Pumps/Motors
- High performance turbine pump/motor assembly
- Stainless steel construction
- Water cooled: no oils, seals or o-rings to replace
Flotation
- Rotocast polypropylene with UV inhibitors for long life
- Individual leveling compartments for exact adjustments
Control Panel
- UL listed per National Electrical Code
- Weatherproof steel enclosures
Submersible Light Fixtures
- 43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel
- Energy efficient LED, 140 lumens
Cables
(NOT INCLUDED IN LISTED PRICE)
- Call for price on cable
Minimum Water Depth
|
Motor
HP
|
Minimum
Depth
|
| 2 |
3' |
| 3 |
3' |
| 5 |
4' |
| 7.5 |
5' |
| 10 |
6' |
Electrical Specs
|
Motor
HP
|
Total
Wattage
|
Amp
Draw
|
Available
Phase
|
| 2 |
86W |
1 |
1,3 |
| 3 |
86W |
1 |
1,3 |
| 5 |
86W |
1
|
1,3
|
| 7.5 |
86W |
1
|
1,3
|
| 10 |
86W |
1
|
1,3
|
Documentation
Vertex FunnelJet Brochure
Vertex FunnelJet System Specifications
Vertex Fountain Owners Manual
Power Cable
Please see below for maximum cable lengths. All cable is sold in 25' increments.
Single Phase: 230V 60HZ
| HP |
14/4 |
12/4 |
10/4 |
8/4 |
6/4 |
4/4 |
2/4 |
| 2 |
150' |
250' |
400' |
|
|
|
|
| 3 |
125' |
200' |
300' |
400' |
|
|
|
| 5 |
|
|
175' |
275' |
400' |
|
|
| 7.5 |
|
|
|
200' |
300' |
400' |
|
| 10 |
|
|
|
150' |
250' |
400' |
|
| 15 |
|
|
|
|
200' |
300' |
400' |
3-Phase: 230V 60HZ
| HP |
14/4 |
12/4 |
10/4 |
8/4 |
6/4 |
4/4 |
2/4 |
| 2 |
275' |
400' |
|
|
|
|
|
| 3 |
200' |
400' |
|
|
|
|
|
| 5 |
|
225' |
325'
|
400' |
|
|
|
| 7.5 |
|
|
225' |
350' |
400' |
|
|
| 10 |
|
|
|
275' |
400' |
|
|
| 15 |
|
|
|
|
300' |
400' |
|
| 20 |
|
|
|
|
200' |
350' |
400' |
| 25 |
|
|
|
|
|
275' |
400' |
| 30 |
|
|
|
|
|
|
300' |
3-Phase: 208V 60HZ
| HP |
14/4 |
12/4 |
10/4 |
8/4 |
6/4 |
4/4 |
2/4 |
| 2 |
225' |
400' |
|
|
|
|
|
| 3 |
175' |
300' |
400' |
|
|
|
|
| 5 |
|
175' |
300'
|
400' |
|
|
|
| 7.5 |
|
|
200' |
300' |
400' |
|
|
| 10 |
|
|
|
225' |
350' |
400' |
|
| 15 |
|
|
|
|
250' |
400' |
|
| 20 |
|
|
|
|
|
300' |
400' |
| 25 |
|
|
|
|
|
|
375' |
| 30 |
|
|
|
|
|
|
300' |
3-Phase: 460V 60HZ
| HP |
14/4 |
12/4 |
10/4 |
8/4 |
| 2 |
400' |
|
|
|
| 3 |
400' |
|
|
|
| 5 |
400' |
|
|
|
| 7.5 |
400' |
|
|
|
| 10 |
300' |
400' |
|
|
| 15 |
|
|
400' |
|
| 20 |
|
|
400' |
|
| 25 |
|
|
|
400' |
| 30 |
|
|
|
400' |
