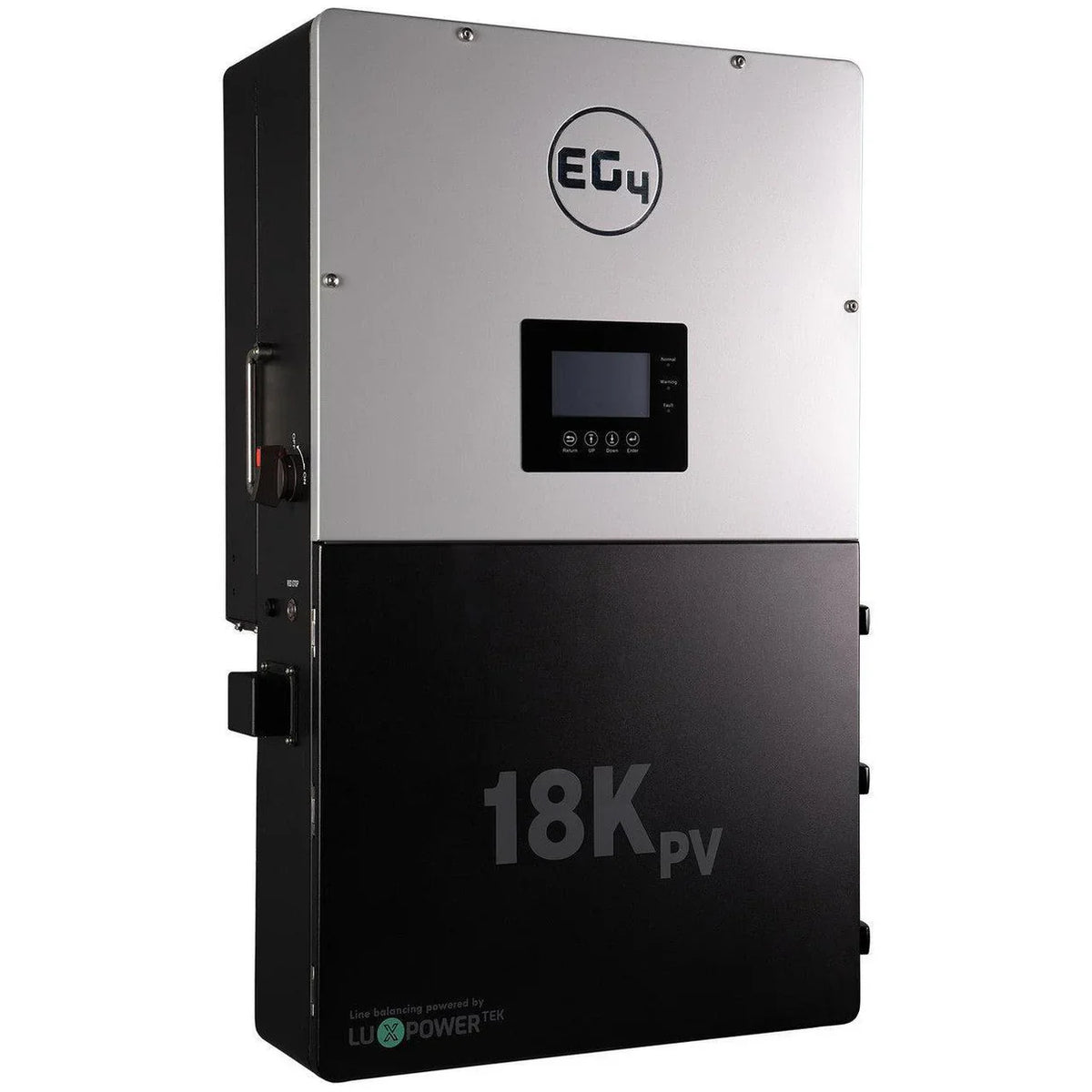

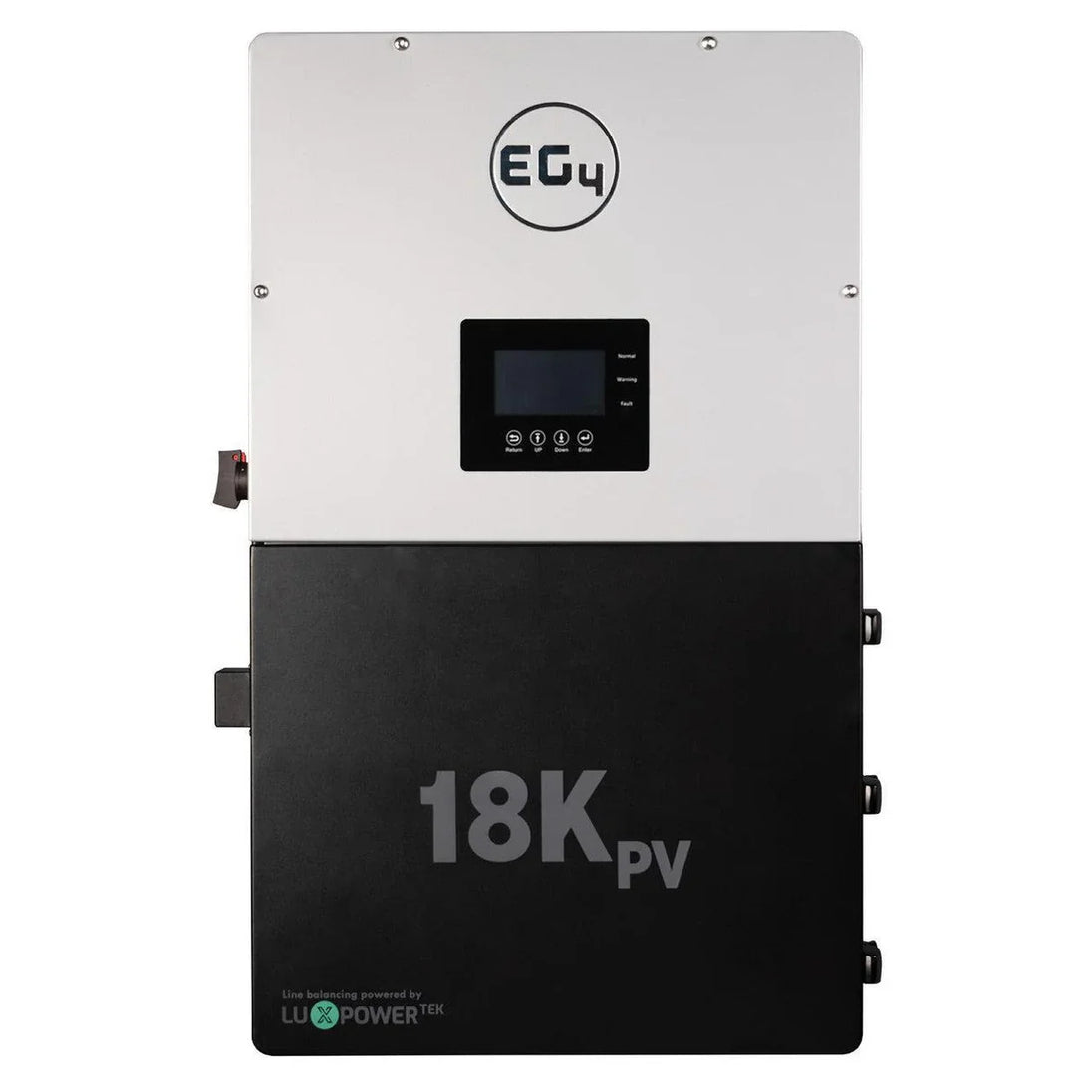

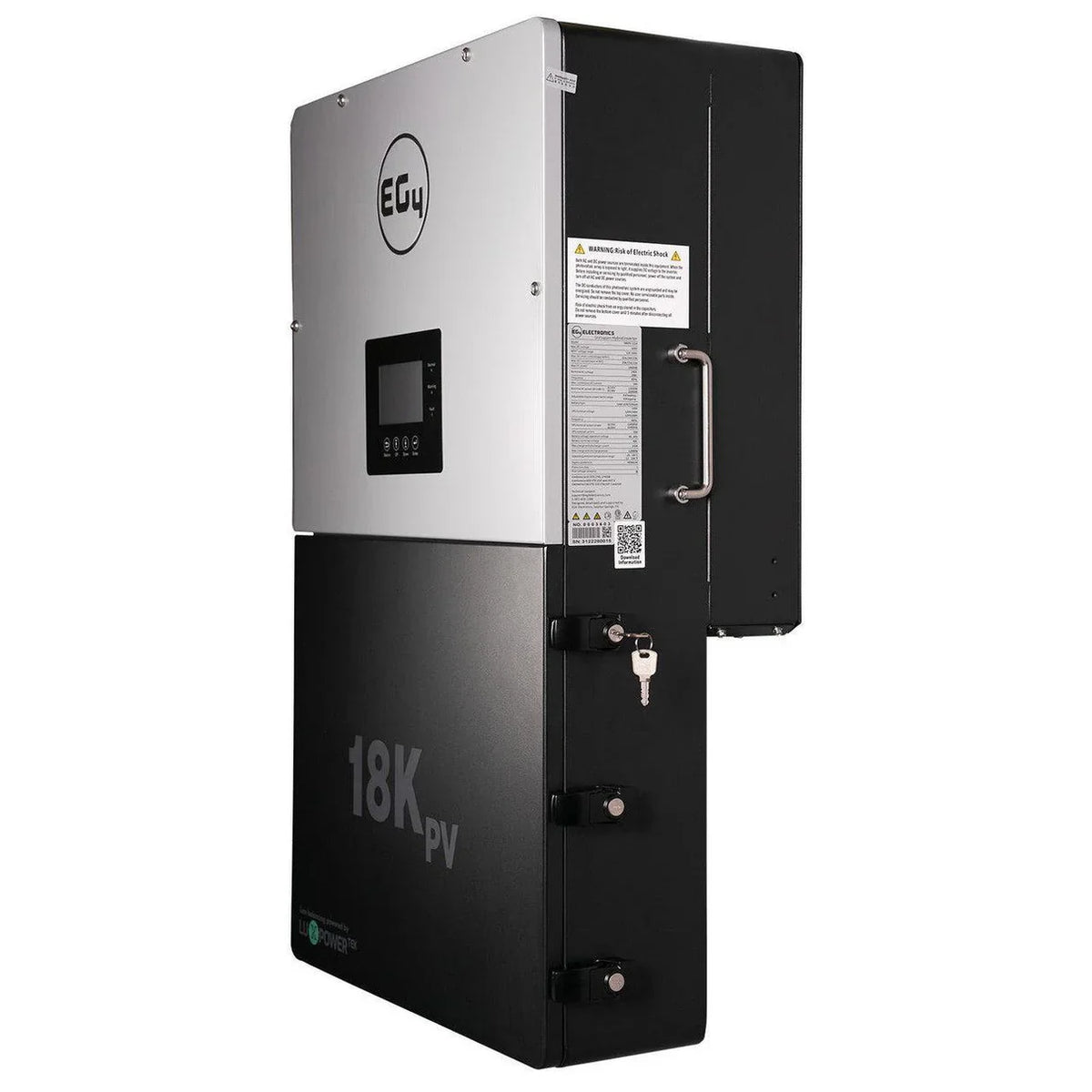

EG4 18KPV Hybrid Inverter
Introducing the EG4 18kPV All-In-One Hybrid Inverter, the ultimate power solution for your solar projects! This cutting-edge hybrid inverter seamlessly combines the capabilities of a grid-tied and off-grid system, eliminating the need for separate charge controllers or transformers. It's an independent, all-in-one powerhouse designed for maximum efficiency and flexibility. With a wide range of certifications and compliance with electrical regulations, this inverter is built for reliable, high-performance energy management.

EG4 18KPV Features

• Powerful Performance:

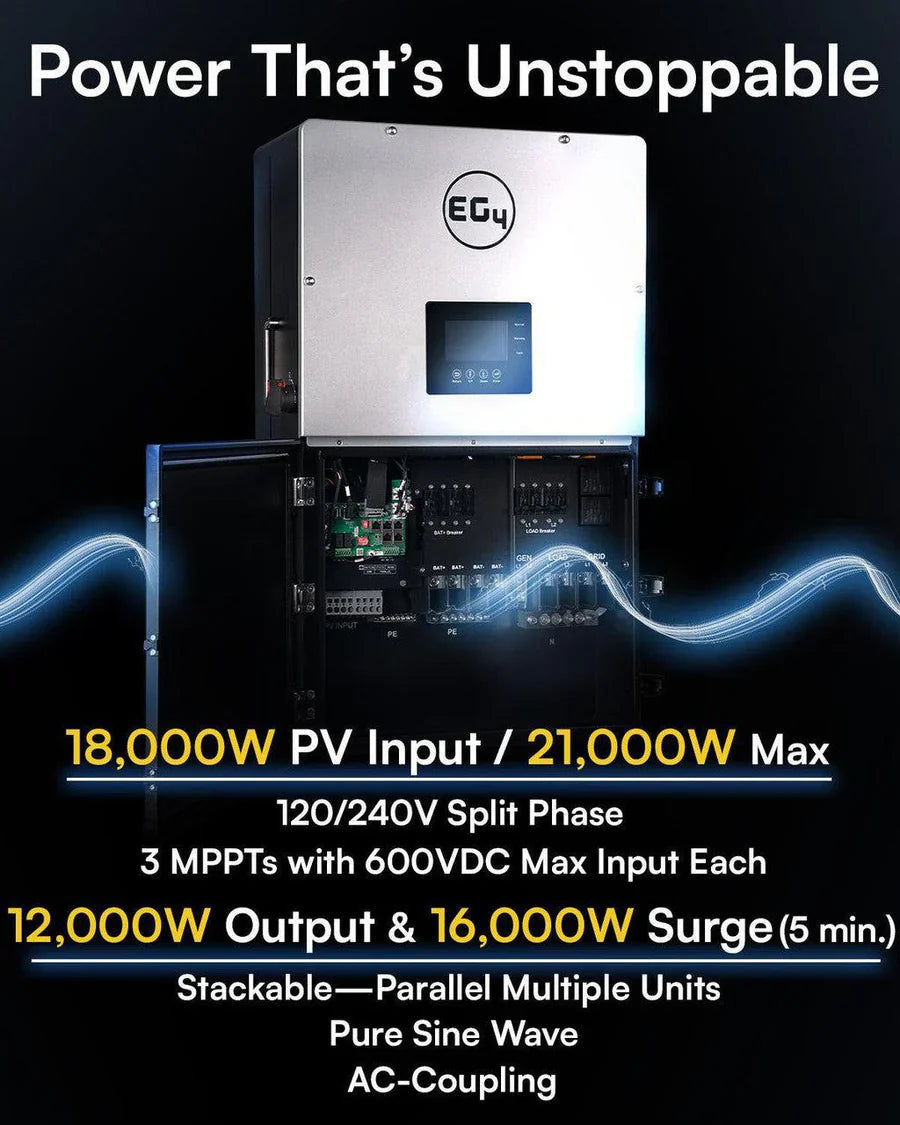

  • 18,000W PV input and 12,000W continuous output for efficient energy conversion.
  • 48V, 120/240V split-phase configuration, ensuring reliable power distribution across various applications.

• Versatile Power Use:

  • Simultaneously utilize solar power, battery storage, and grid power to deliver uninterrupted power for homes, businesses, RVs, or any solar projects.
  • In the event of a power outage, the EG4 18kPV functions as a backup power system, even without solar input.

• Easy Plug-and-Play Installation:

  • Quick installation and inverter management make it perfect for homeowners and businesses looking for simple, effective energy solutions.
  • Efficiently manages power from solar, battery storage, and grid simultaneously.

What's Included with the EG4 18KPV:

• Hybrid Inverter (1)
• User Manual
• 1"CT x2
• Wifi Dongle
• Knockout Plugs
• Mounting Hardware
• Battery Communication Cable (2m, Orange)
• Parallel Communication Cable (2m, Grey)
• Key
• Paperboard

Performance Components:

• 18,000W PV input, 12,000W continuous output
• Stackable design for paralleling multiple units
• Closed-loop communication with EG4 batteries
• Protection against overloads, short circuits, and over-temperature
• Line balancing for efficient operation

All-In-One Design:

• Includes everything needed to get started
• Simple plug-and-play installation and inverter management
• Manages power from energy storage systems and the grid simultaneously
• 120/240V split-phase configuration
• Fully outdoor rated (ensure protection from direct sunlight)

Fully Remote Monitoring & Firmware Upgrades:

• Remotely monitor and view your system's performance
• Track solar yield, battery charging/discharging rates, and consumption
• Real-time energy data display, including battery charge/discharge limits, warnings, and faults
• View daily power curves and system parameters over a 24-hour period
• Access historical system data for analysis and maintenance
• Remote firmware updates anytime, anywhere

EG4 18KPV Hybrid Inverter Certifications:

• Safety Certifications: UL1741SB Rule 21, RSD NEC 2020:690.12, AFCI NEC 2020:690.11 / UL1699B, GFDI NEC 2020:690.41(B), CSA 22.2.107.1, CSA 22.2.330
• Grid Connection Standards: IEEE 1547.1:2020, IEEE 1547:2018, Hawaii Rule 14H, California Rule 21 Phase I, II, III
• EMC Compliance: FCC Part 15 Class B
• Outdoor Rating: NEMA 4X / IP65

The EG4 18KPV Hybrid Inverter is the all-in-one, efficient, and reliable solution for your solar power needs, providing both flexibility and high performance while meeting industry safety and compliance standards.
