Velowave | Forest SM Full Suspension Electric Mountain Bike 500W | FR-FSM17DB
- Regular price
- $2,999.00
- Regular price
- $2,999.00
- ✓Authorized Online Dealer
- ✓Free Shipping · No Sales Tax (excluding MI)
- ✓Lowest Price Guarantee
- ✓Ships in 1–2 business days · 4–7 day transit
- ✓Questions? Call us at (734) 228-0441
Couldn't load pickup availability
Product Description

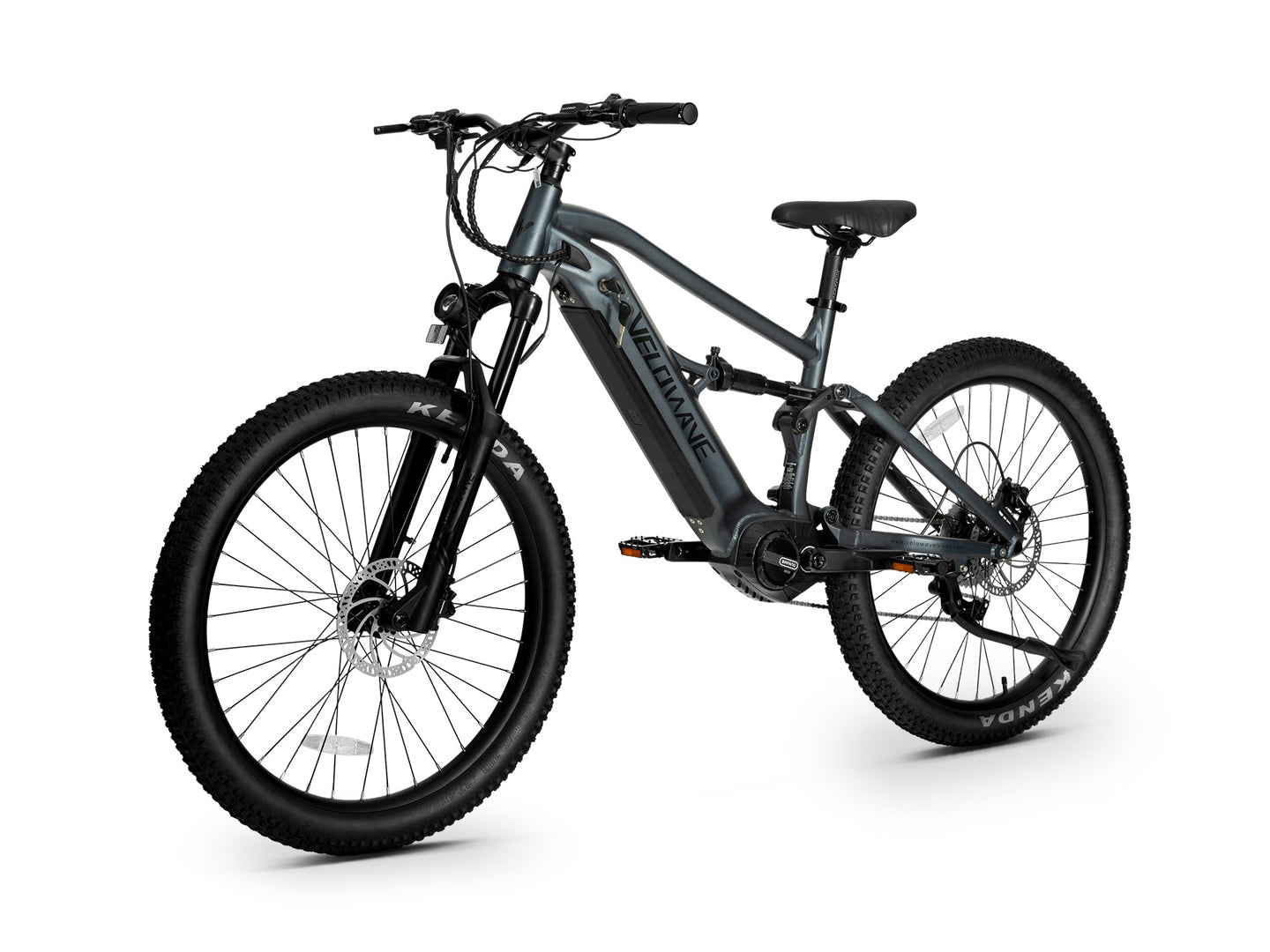

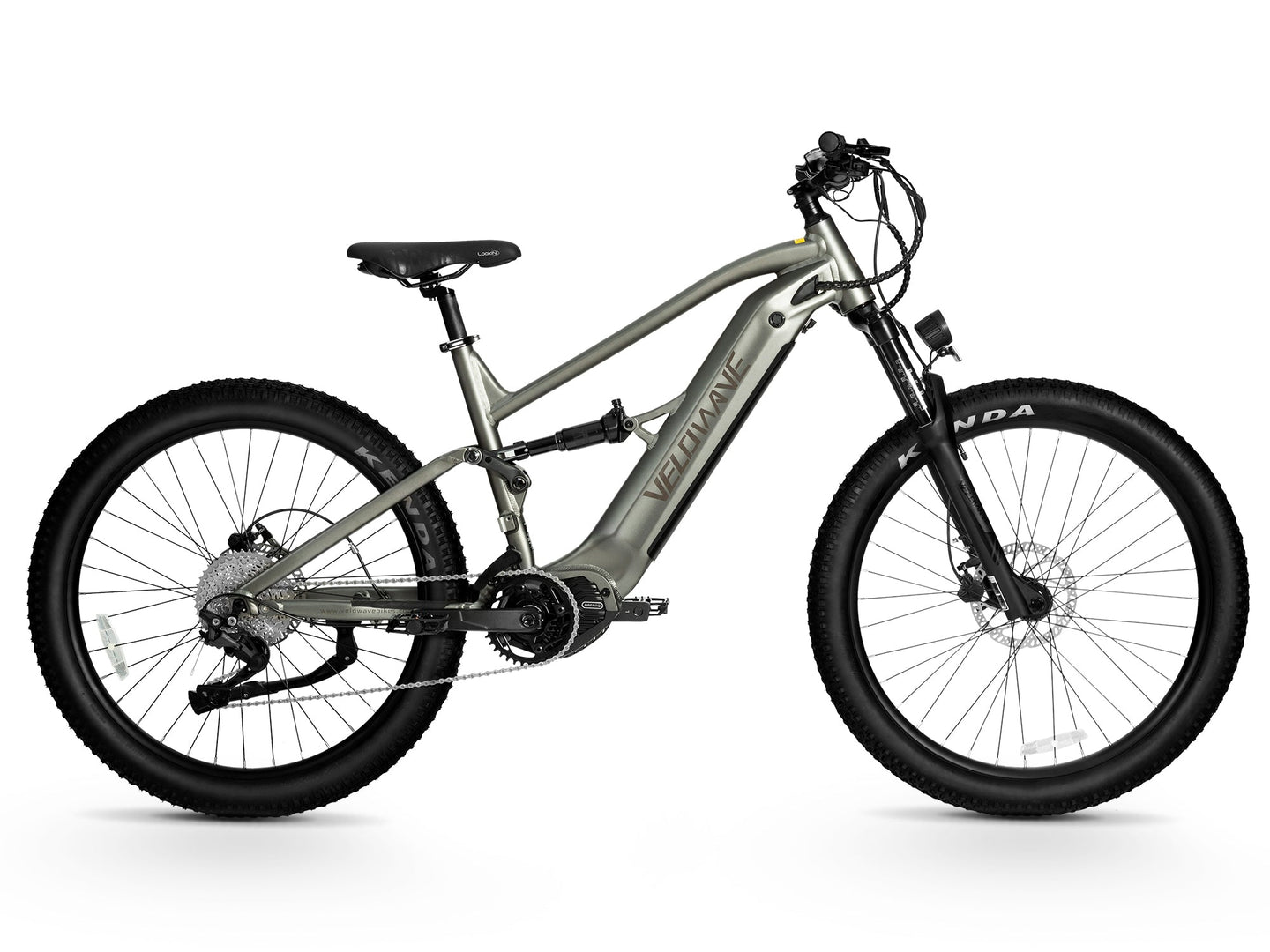

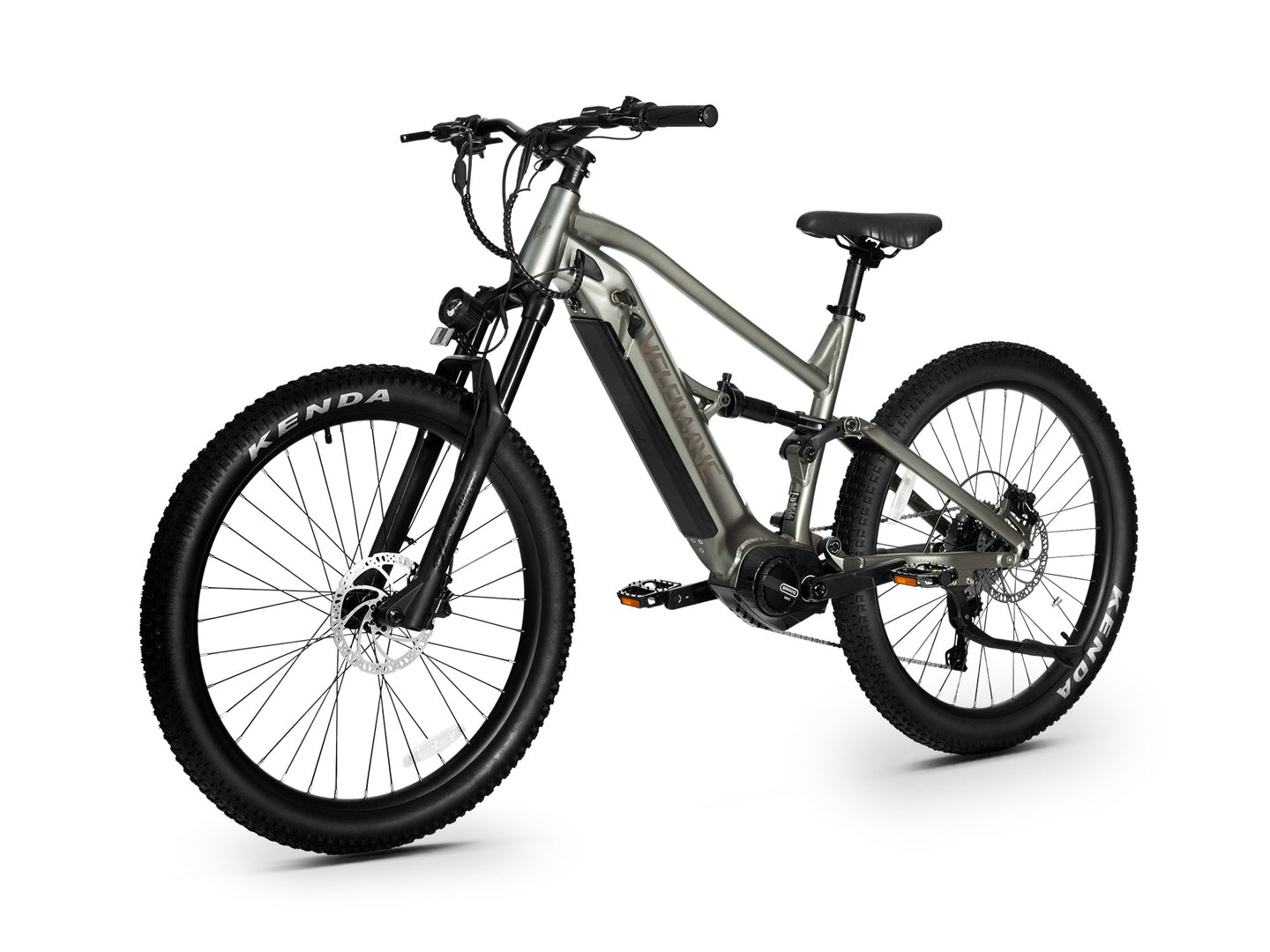

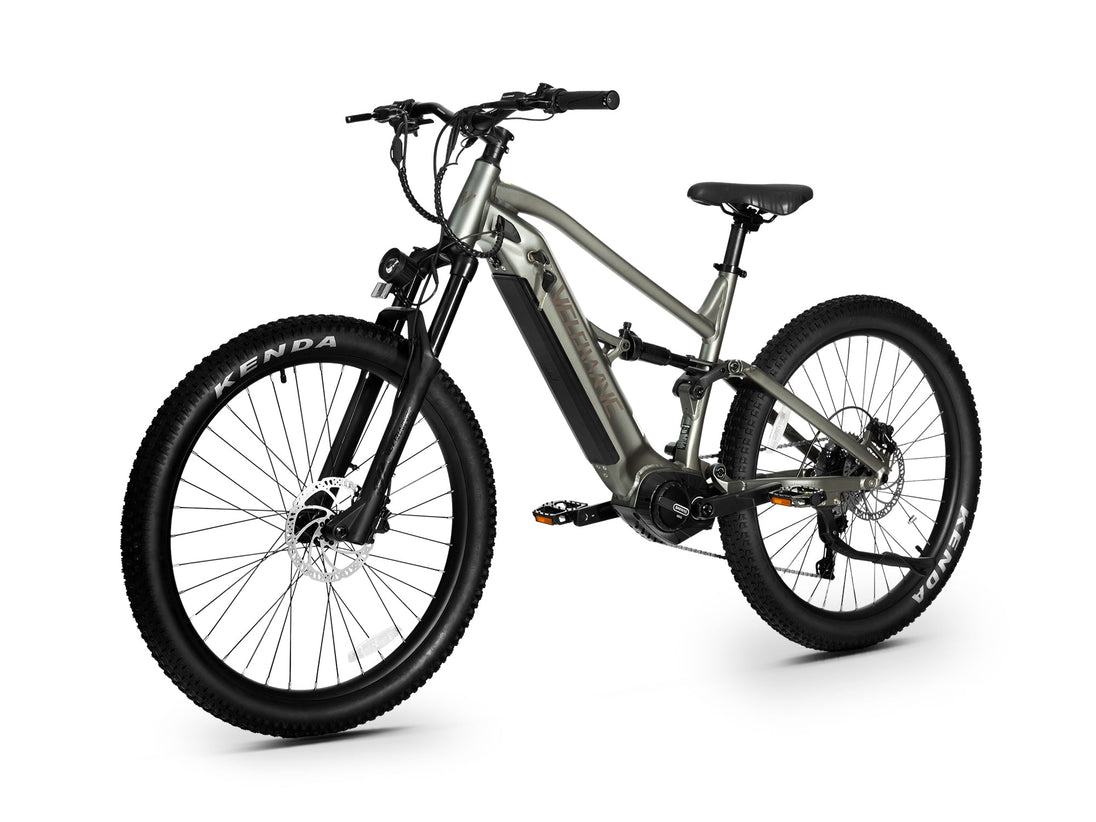

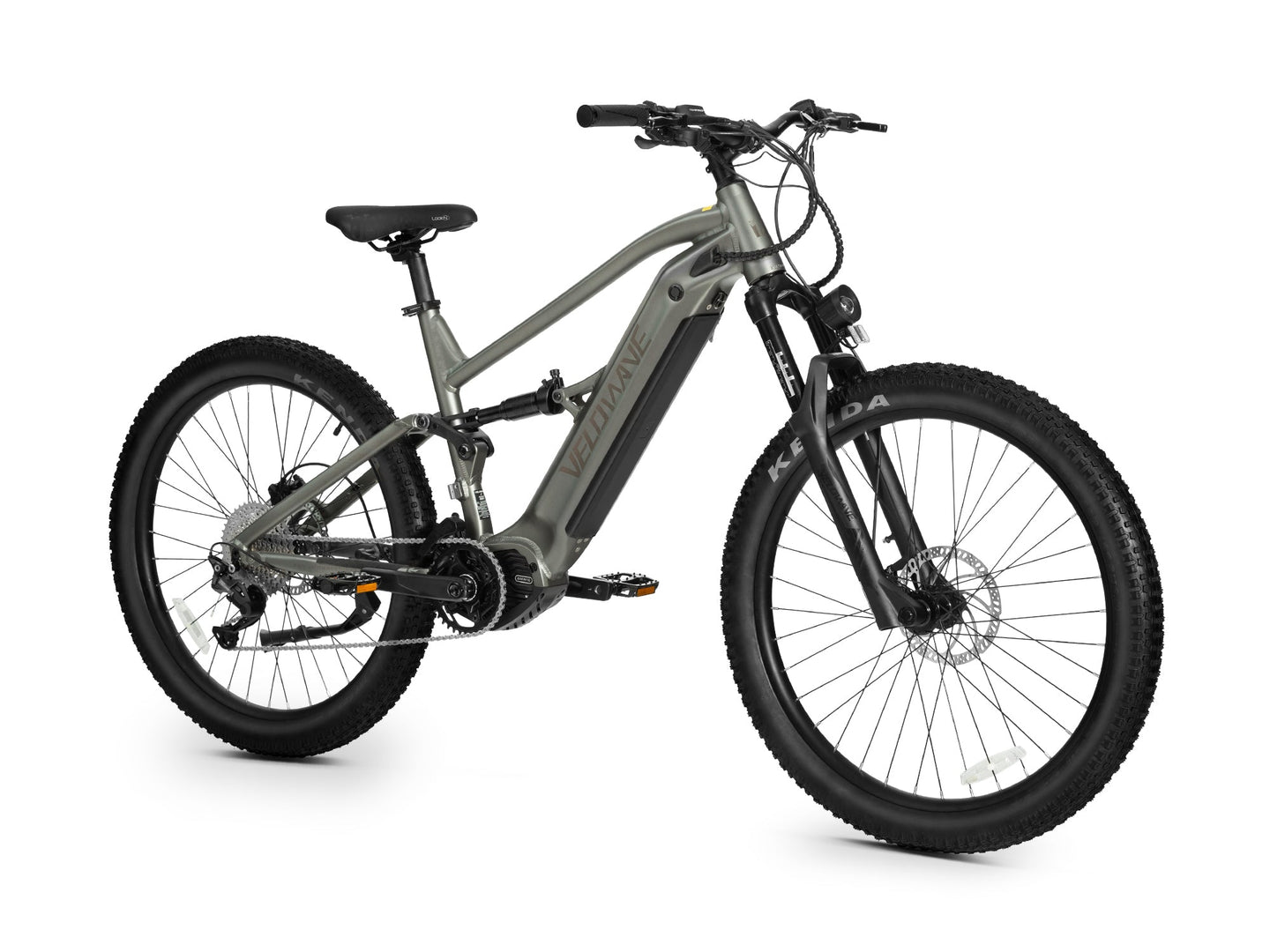

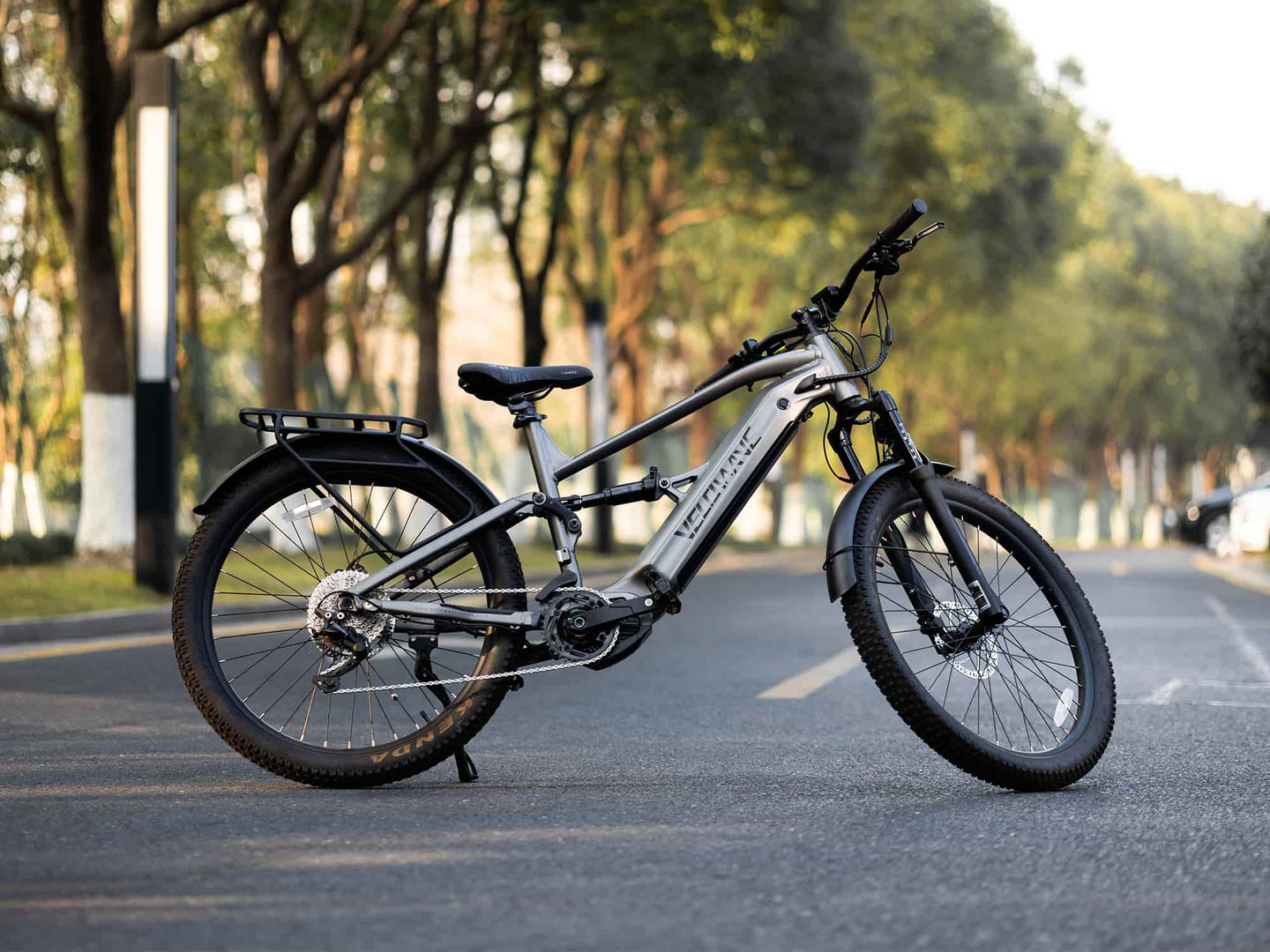

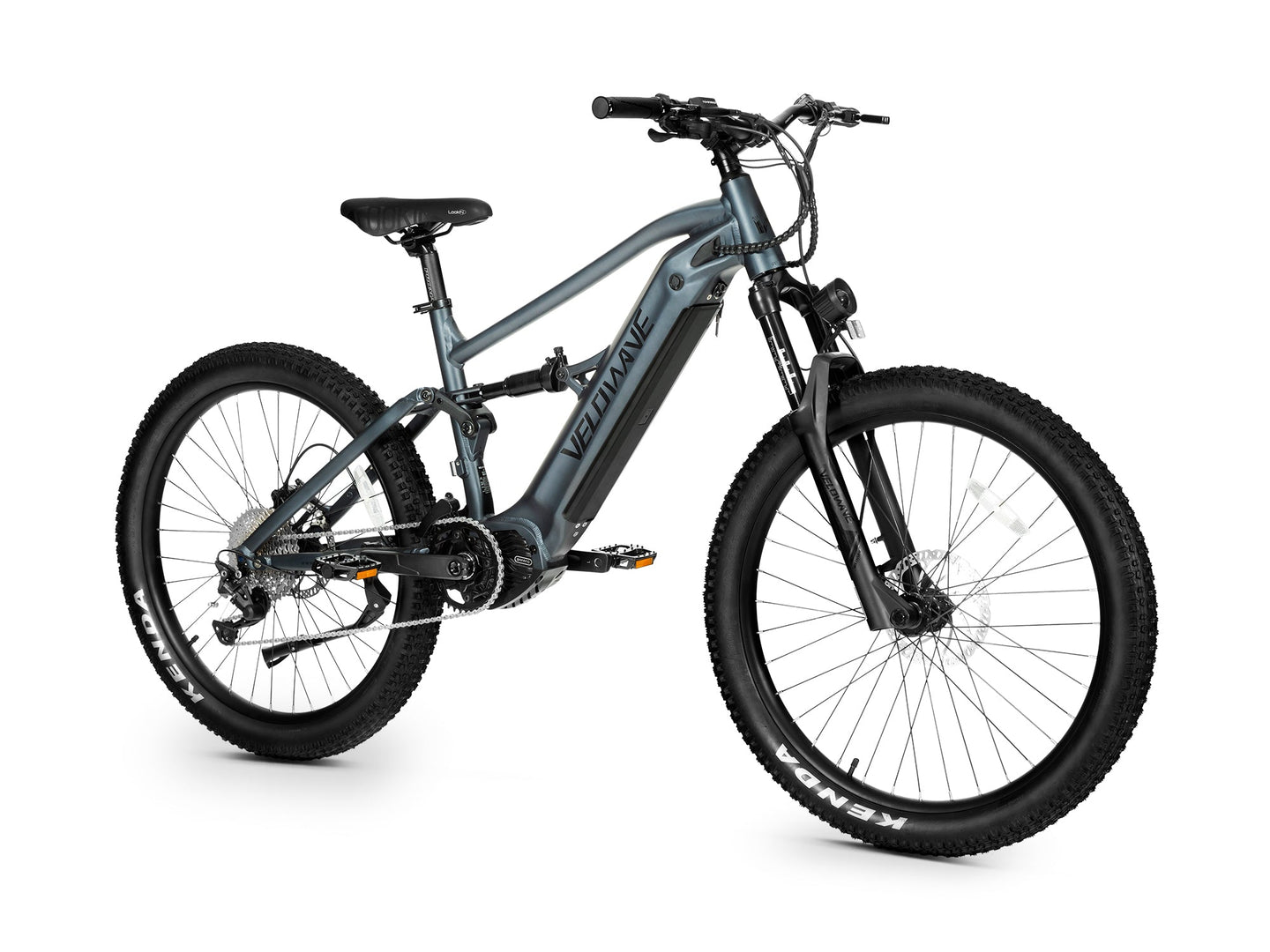

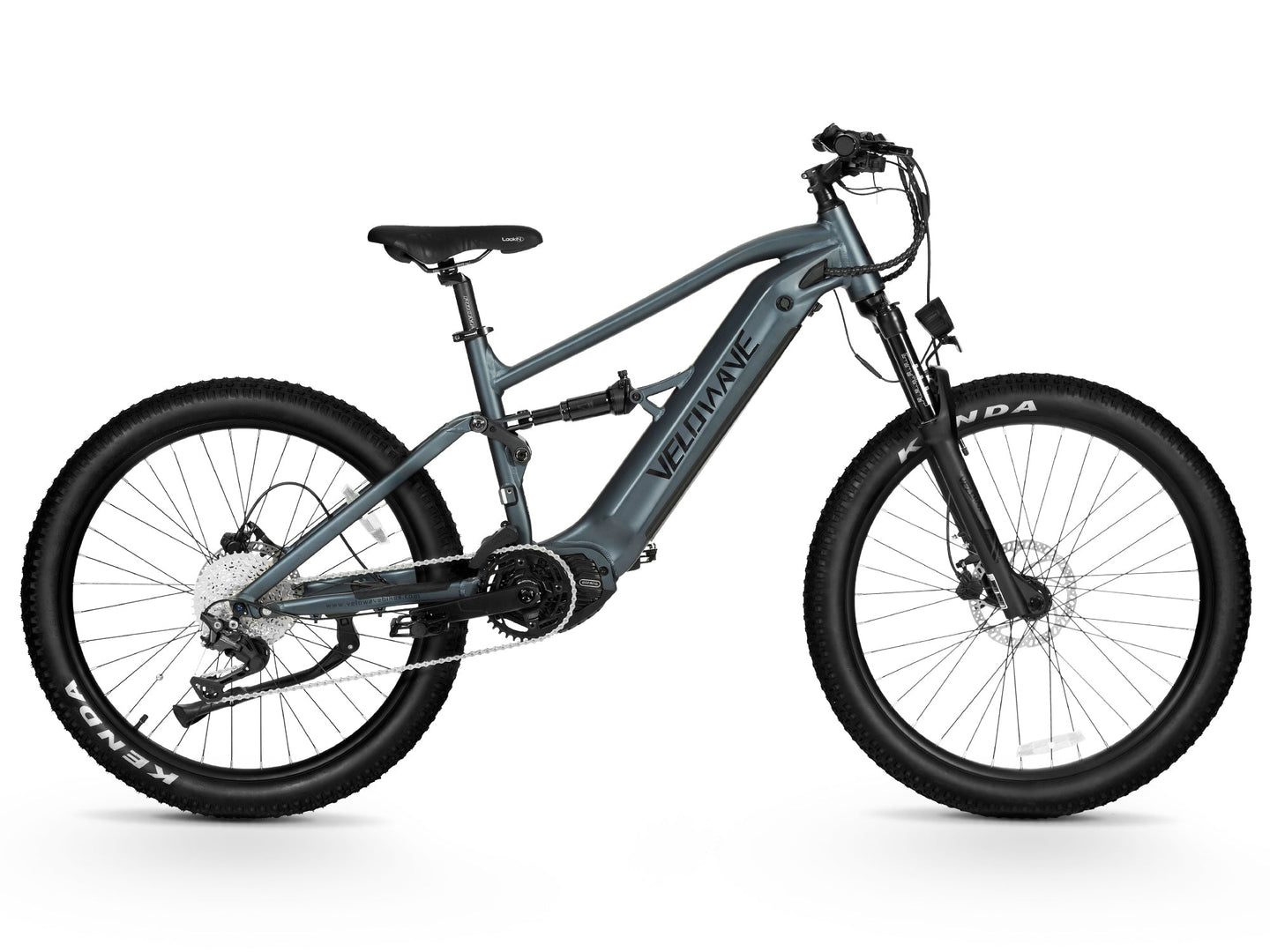

Velowave Forest SM Full Suspension Electric Mountain Bike 500W
The Forest SM delivers full suspension trail capability at a lower power tier and lighter weight than the XM. A 500W motor (760W peak) with 130Nm of torque provides strong climbing ability through a torque sensor that keeps power delivery smooth and responsive. At 64 lbs, it is the lightest full-suspension bike Velowave makes - 12 lbs lighter than the Forest XM - which translates to more agile handling on singletrack and easier transport to the trailhead.
Suspension duties are handled by a 140mm air fork up front and a 185x45 rear air shock with 42mm travel and external rebound adjustment, providing 121mm of total frame travel. The 48V 15Ah LG battery (720Wh) delivers up to 70 miles on PAS and 40 miles on throttle, with a faster 5-hour charge time thanks to the included 3A charger. Shimano 10-speed drivetrain with Deore derailleur, Tektro hydraulic disc brakes, and 27.5" x 2.8" Kenda tires complete a trail-ready package that favors nimble handling over raw power.
Features
- 500W Motor (760W Peak, 130Nm) - Strong torque delivery with lighter weight penalty for more agile trail handling
- Full Suspension - 140mm air fork + rear air shock with 42mm travel and external rebound for 121mm total frame travel
- 64 lbs Total Weight - Lightest full-suspension Velowave for nimble singletrack performance
- 48V 15Ah LG Battery (720Wh) - Up to 70 miles on PAS with fast 5-hour charge via 3A charger
- 27.5" x 2.8" Kenda Tires - Trail-width tires for fast rolling with solid off-road grip
- Torque Sensor with 6-Level PAS - Fine-tuned proportional assist for technical terrain
- Shimano 10-Speed Drivetrain - Deore RD-M4120 with 11-42T cassette for wide gear range
- Tektro Hydraulic Disc Brakes - 180mm rotors with power-cut-off
- TFT Smart Color Display - Backlit for easy reading in all conditions
- 385 lb Payload Capacity - Accommodates heavier riders on technical terrain
Specifications
- Class: Class 3 (28 MPH pedal assist, 20 MPH throttle)

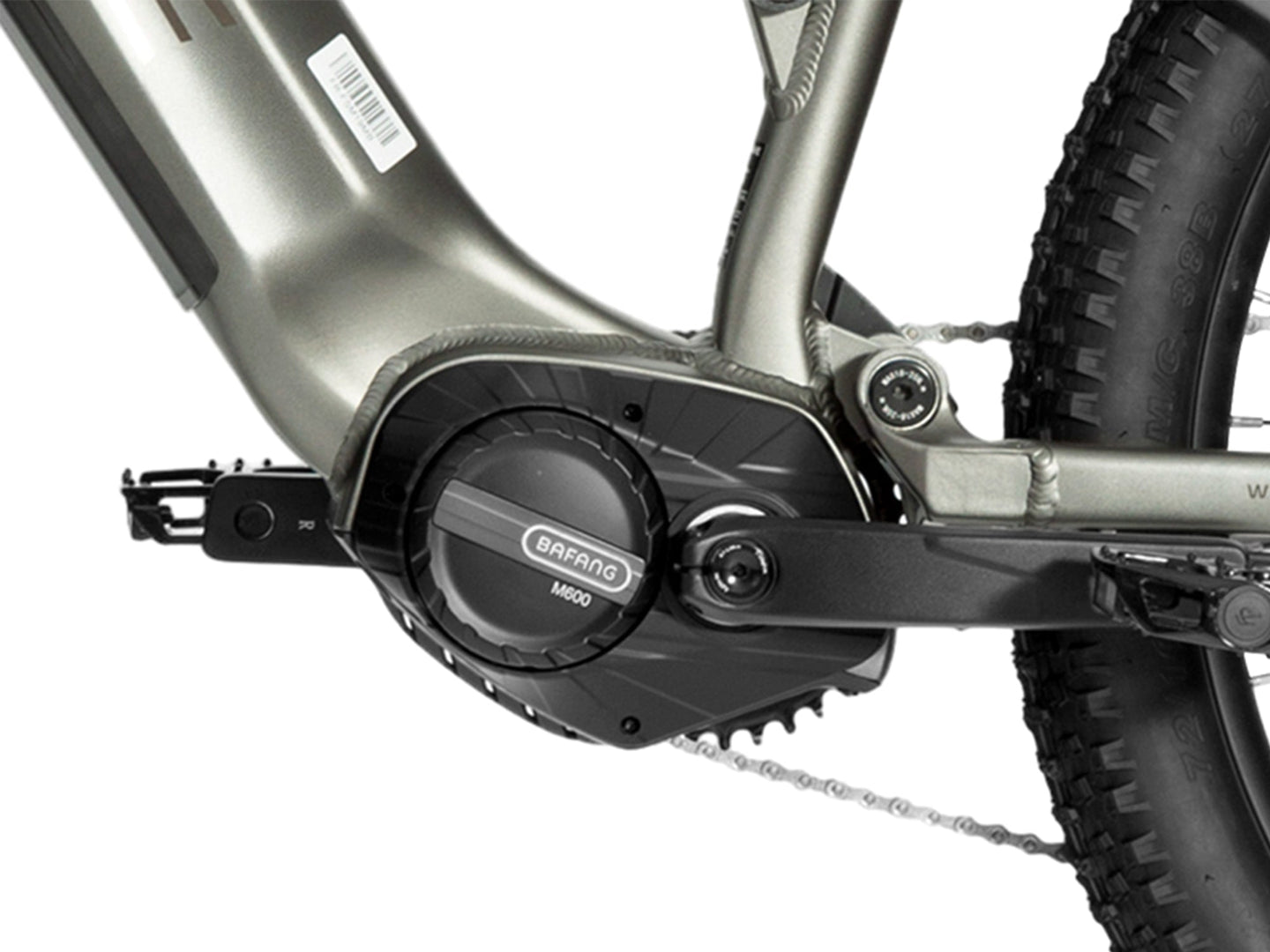

- Motor: 500W (Peak 760W), 130Nm Torque
- Battery: 48V 15Ah (720Wh), LG Cells, Removable Internal
- Charger: 48V 3A, Approx. 5 Hour Charge
- Range: 60 Miles PAS / Up to 70 Miles Level 1 / 40 Miles Throttle
- Pedal Assist: 6 Levels, Torque Sensor
- Throttle: On Demand from Complete Stop

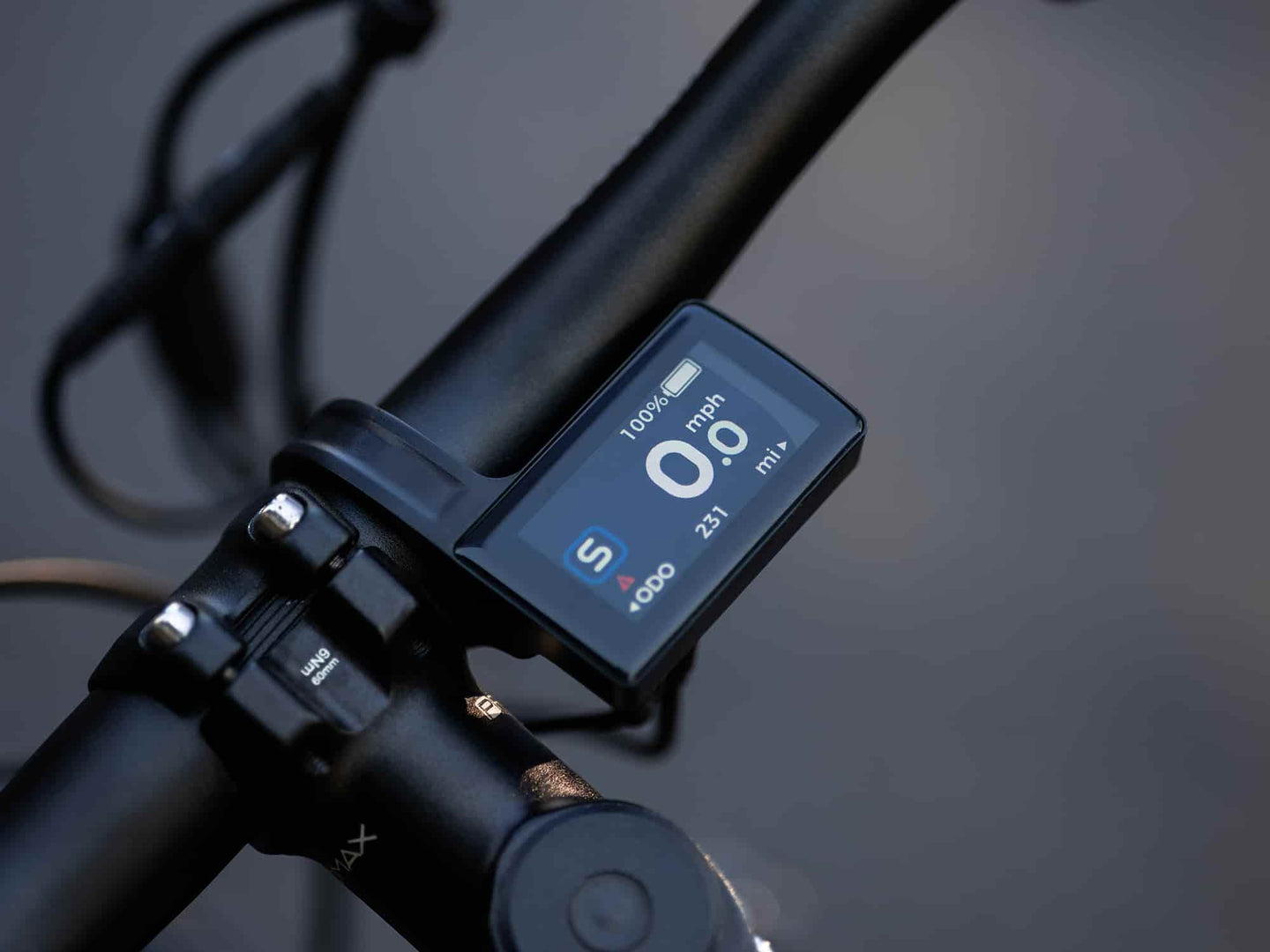

- Display: TFT Smart Color Display with Backlight
- Frame: 6061 Aluminum Alloy, Internal Battery, Full Suspension, 121mm Frame Travel

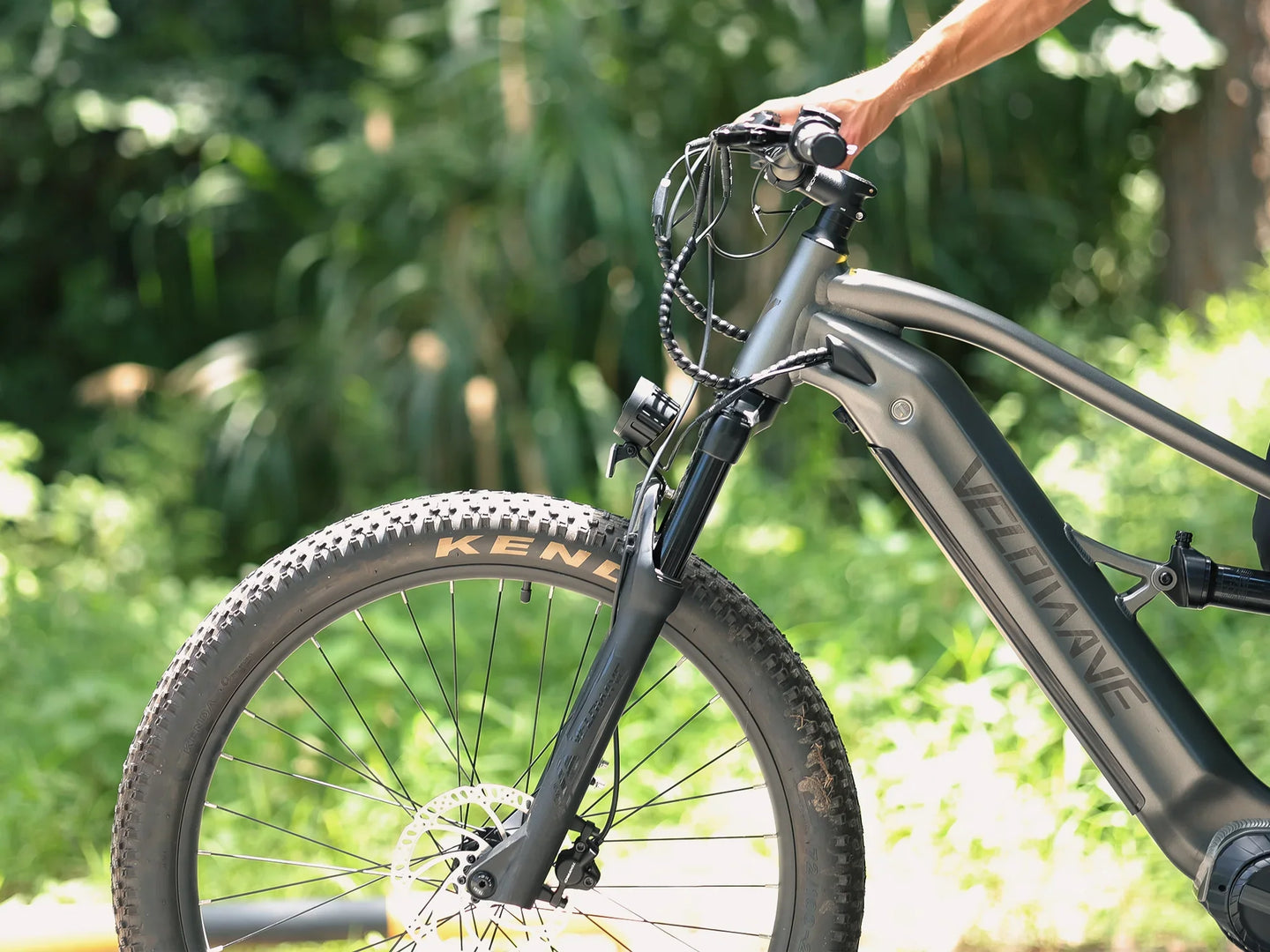

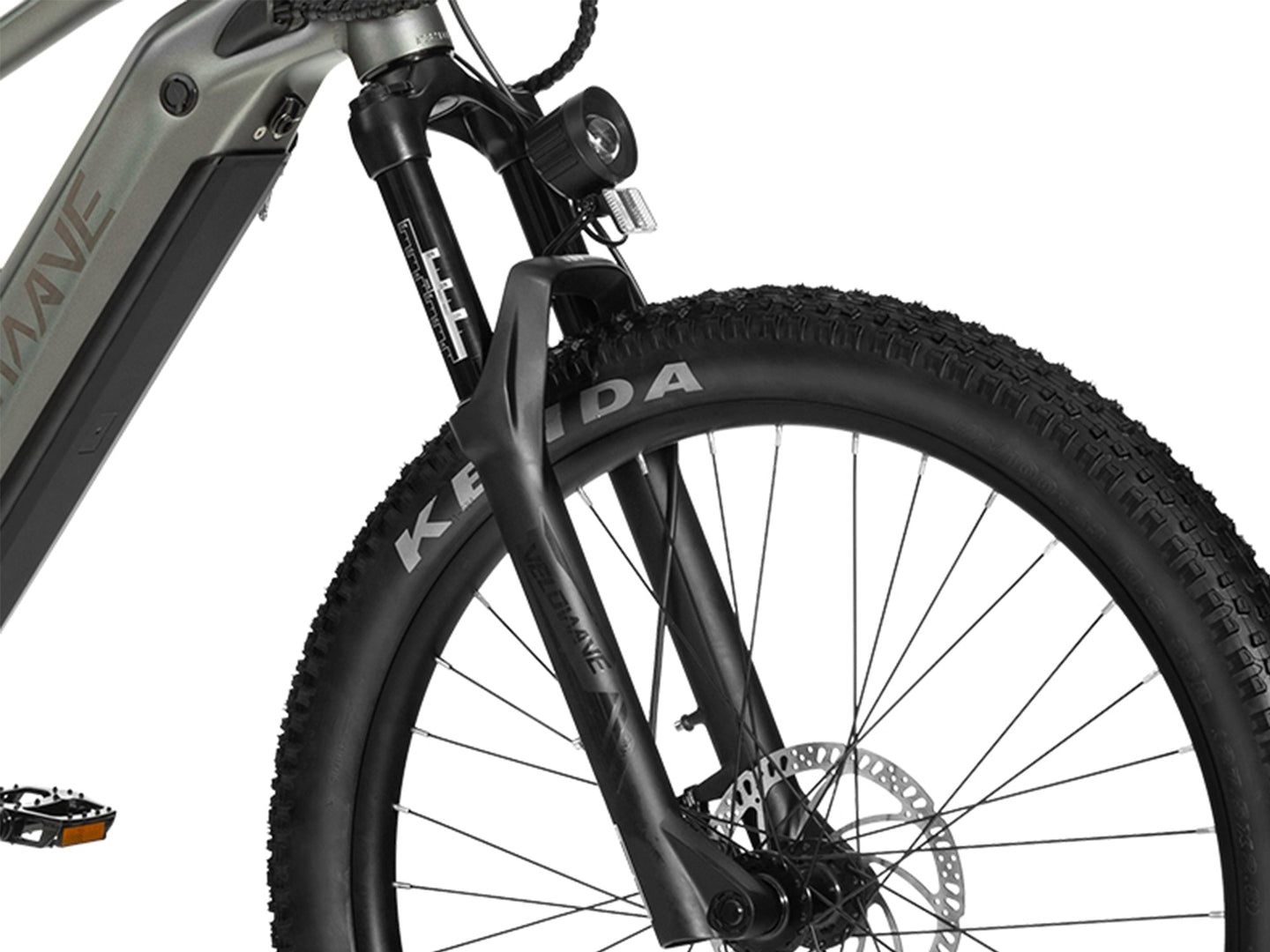

- Fork: Air Suspension, 140mm Travel, Lockout

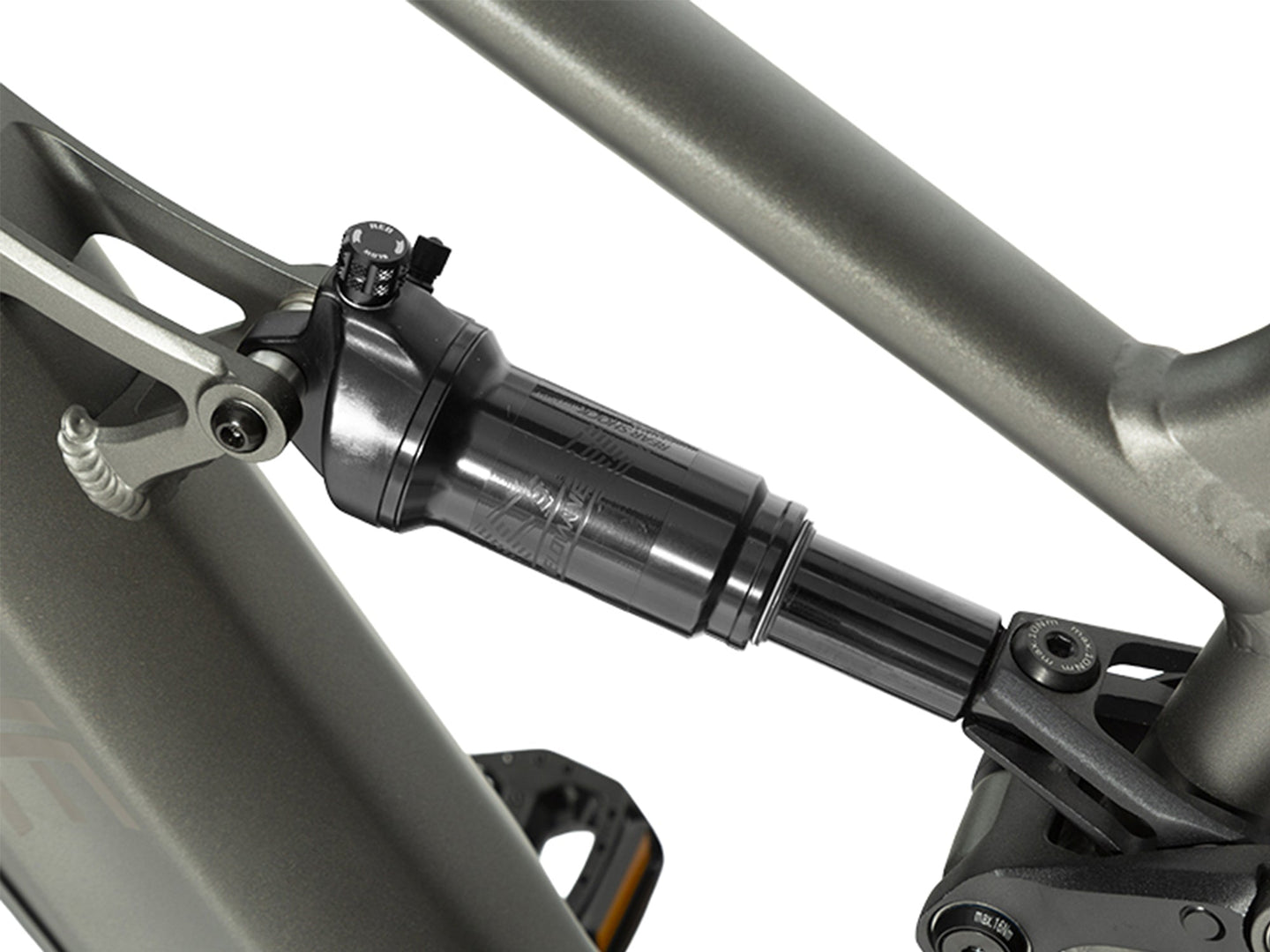

- Rear Suspension: 185x45 Air Spring, 42mm Travel, External Rebound
- Tires: Kenda 27.5" x 2.8"
- Rims: Aluminum 27.5" 36H Front and Rear
- Brakes: Tektro Hydraulic Disc, 180mm Rotors, Power-Cut-Off
- Shifter: Shimano 10-Speed Thumb Shift

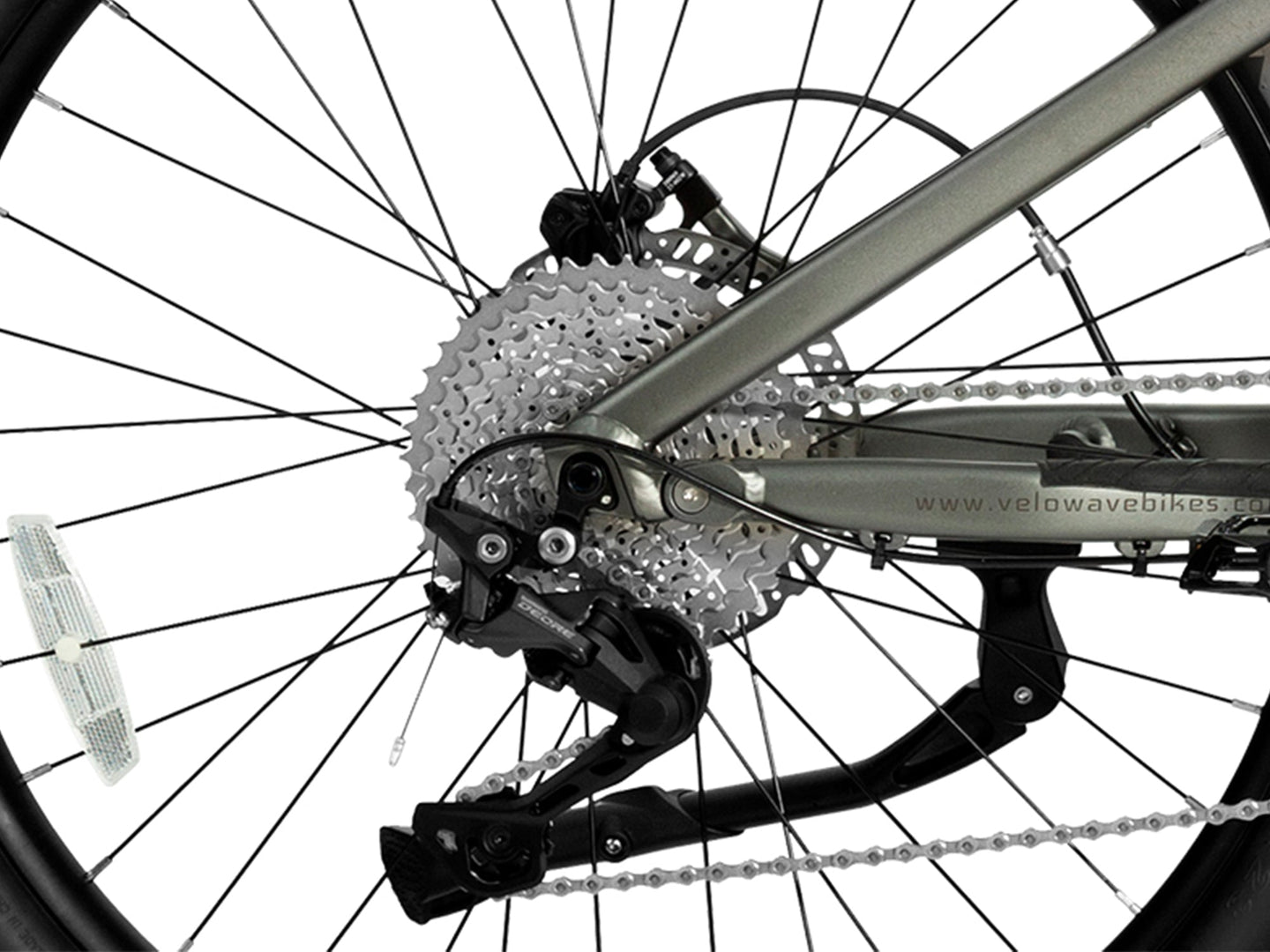

- Derailleur: Shimano Deore RD-M4120 10-Speed
- Crankset: 170mm w/ 38T
- Cassette: Shimano 11-42T, 10-Speed
- Chain: KMC 122 Link, 10-Speed
- Front Light: 48V LED, 80 LUX
- Tail Light: Rear Blinking Light
- Net Weight: 64 lbs / 29.2 kg
- Gross Weight: 91 lbs / 41.2 kg
- Battery Weight: 8.7 lbs / 3.95 kg
- Max Payload: 385 lbs / 175 kg
- Fenders: Not Included
- Rear Rack: Not Included
- Frame Size: 17"
- Standover Height: 750mm
- Seat Height: 855-1033mm
- Wheelbase: 1272mm
- Product Size: 2035 x 1110 x 745mm
