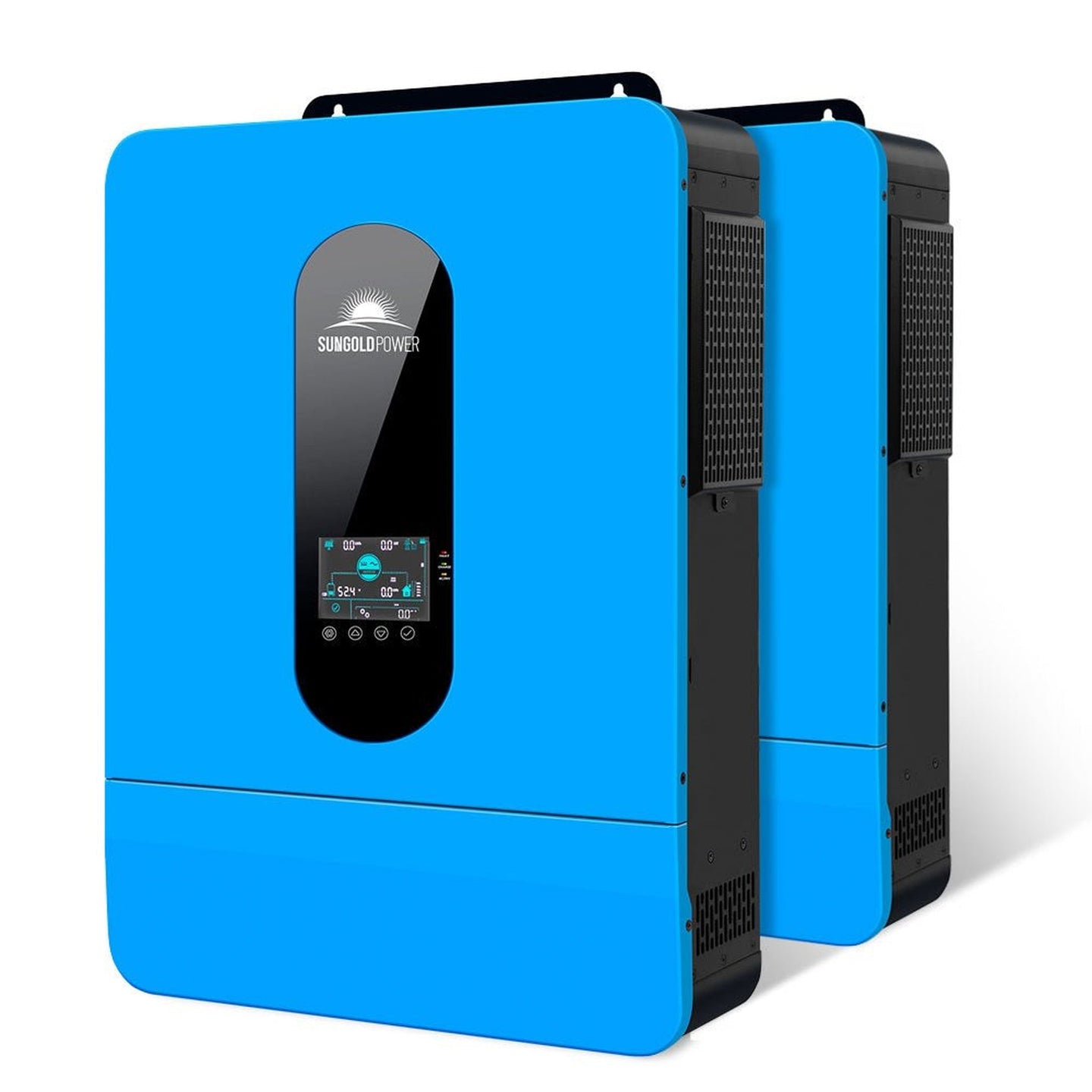

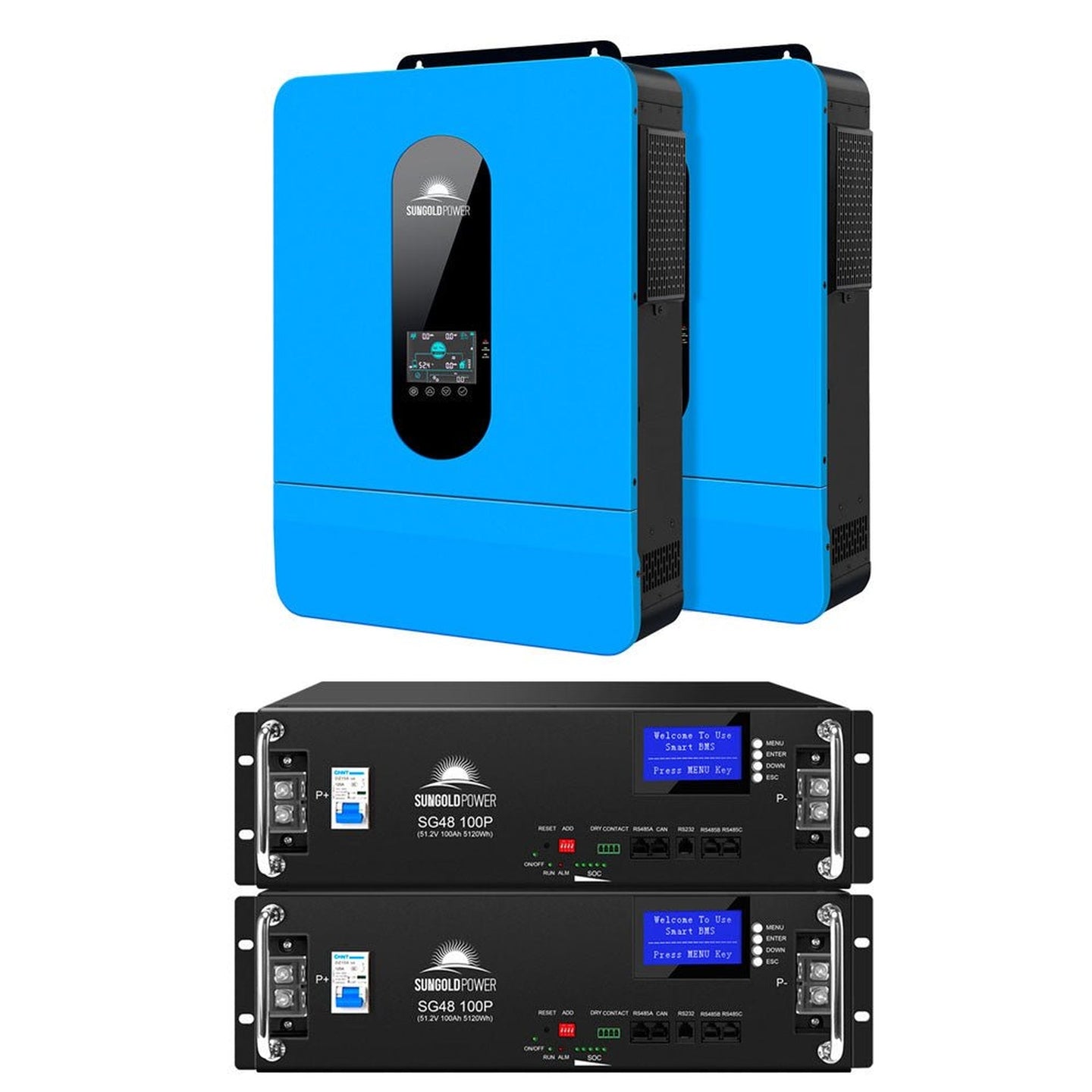

13000W 48V Solar Charge Inverter Split Phase + Wi-Fi Monitor (2 Units Parallel)

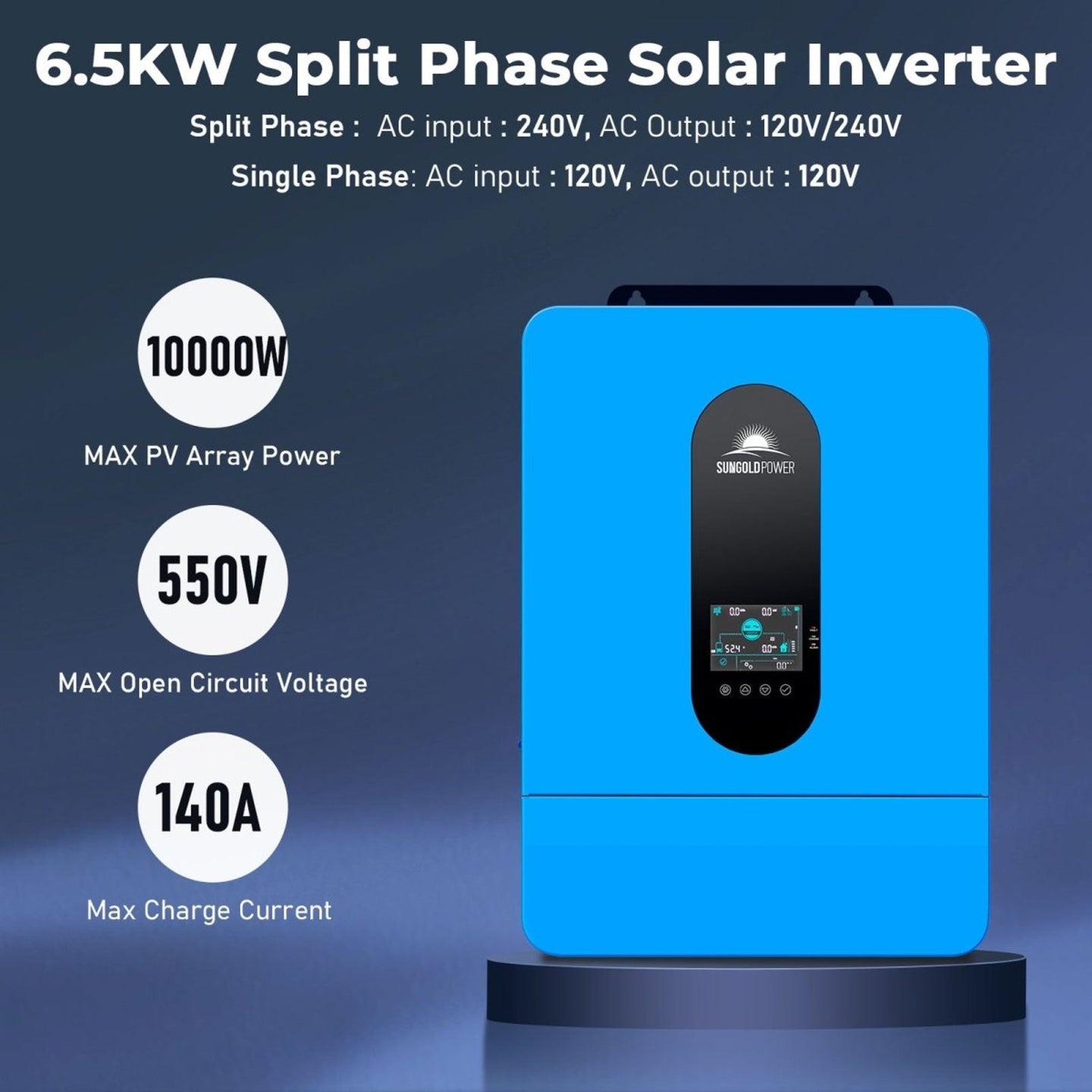

This 6.5KW Pure Sine Wave Solar Inverter is a versatile and high-performance solution for efficient solar energy conversion, battery charging, and power management. With a maximum battery charging capacity of 140A and dual MPPT solar controllers, this inverter offers excellent power handling and flexibility for various residential and commercial setups.

Features

• All-in-One Unit - Combines a 6.5KW pure sine wave inverter and two MPPT solar controllers for seamless solar energy conversion
• Supports up to 550VDC open - circuit voltage for a wide range of solar panel configurations
• Split phase (120V/240V) and - single phase (120V) output options for flexibility in system design

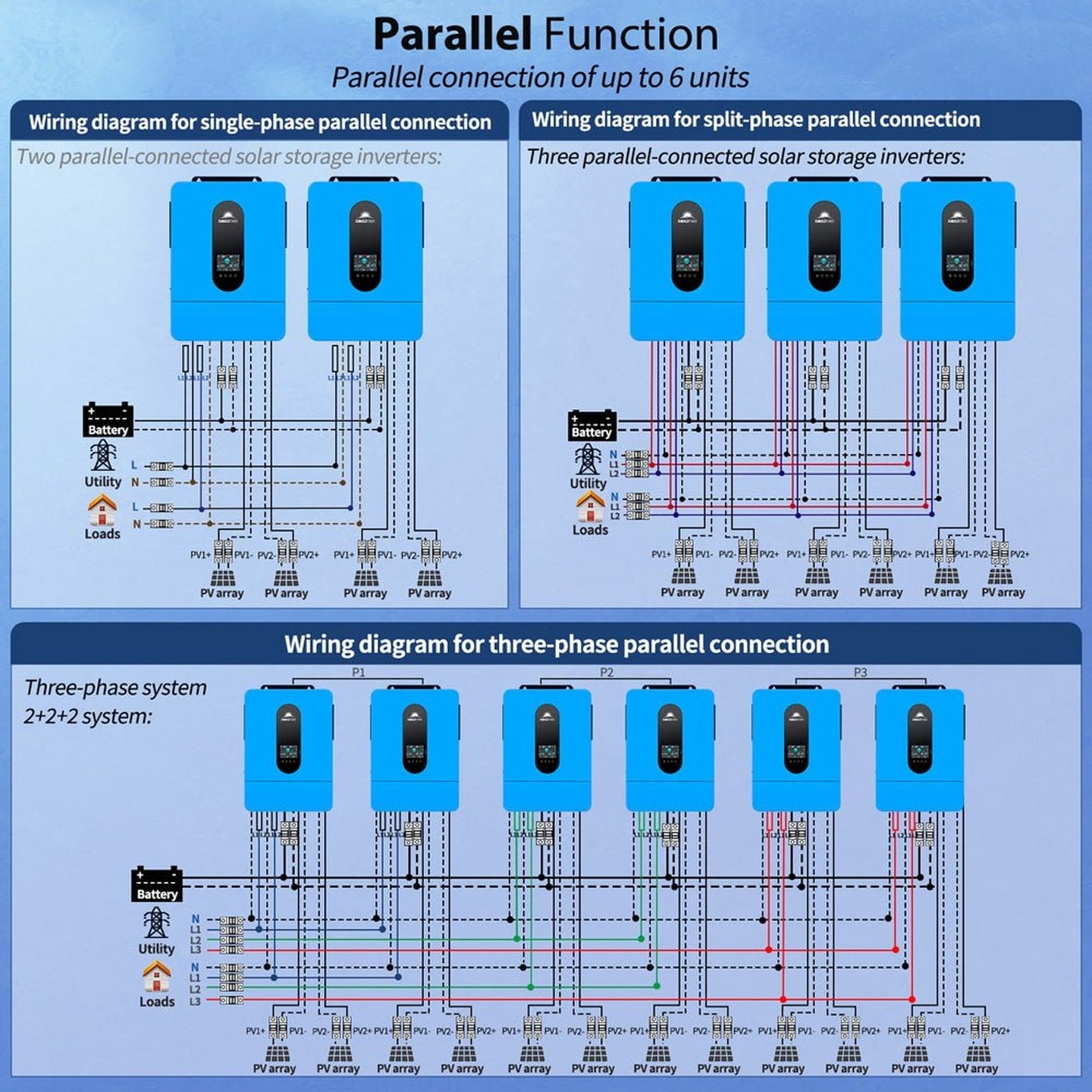

• Parallel Kit - The inverter can be expanded by connecting up to 6 units in parallel, offering a total output of 39KW for larger power demands
• Supports 120V single phase, - 120V/240V split phase, or 208V 3-phase (with more than 3 units)
• Great for scaling up - to meet increasing energy requirements
• Stable AC Output & Smart Protection - Rated at 6500W with a maximum peak power of 13,000VA, the inverter is capable of delivering consistent and stable AC power
• Built - in protections against PV input over-voltage/current, AC input over-voltage, battery over-voltage, and overload to ensure safe and reliable operation

Specifications

• Product Model SPH: 6548P
• Rated Output Power: 6500W
• Max.Peak Power: 13,000 VA
• Rated Output Voltage: 120/240Vac ( split phase/single phase )
• Rated AC Frequency: 50/60Hz
• Output wave: Pure Sine Wave
• Switch Time: 10ms ( typical )
• Parallel number: 6

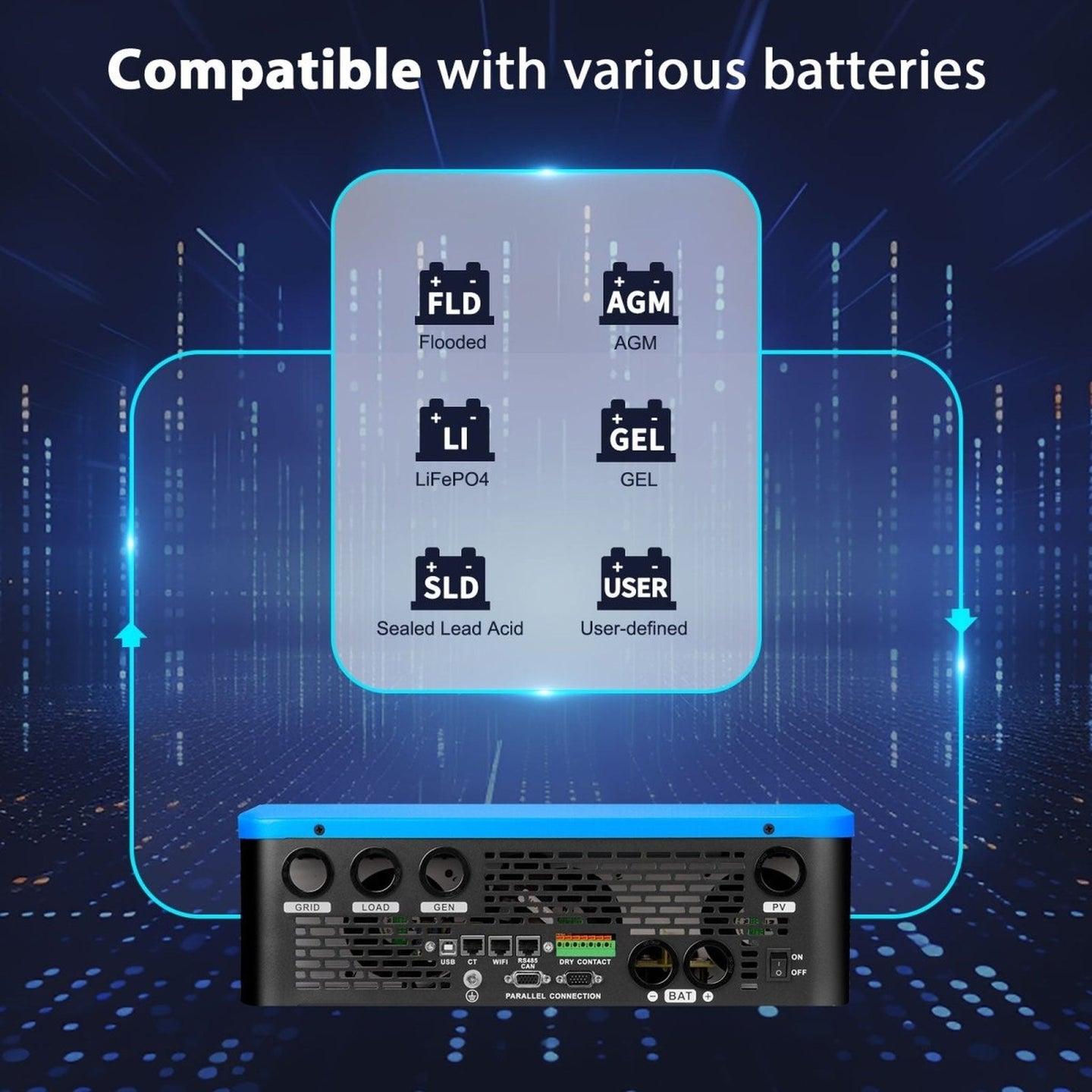

• Battery Type: Lithium-ion battery/lead-acid battery/user-defined battery
• Rated Battery Voltage: 48Vdc
• Voltage Range: 40Vdc-60Vde
• Max.Mains/Generator Charging Current: 80A
• Maximum mix charge current: 140A
• MPPT channel number: 2
• Maximum input power: 5000W+5000W
• Maximum Input Current: 18/18A
• Maximum open circuit voltage: 550Vdc+550Vdc
• MPPT operating voltage range: 150Vdc-450Vde

Warranty and Resources

2 Years Warranty

• User's Manual
