SunGold Power | 10KW 48V Split Phase Solar Inverter | SG48100P

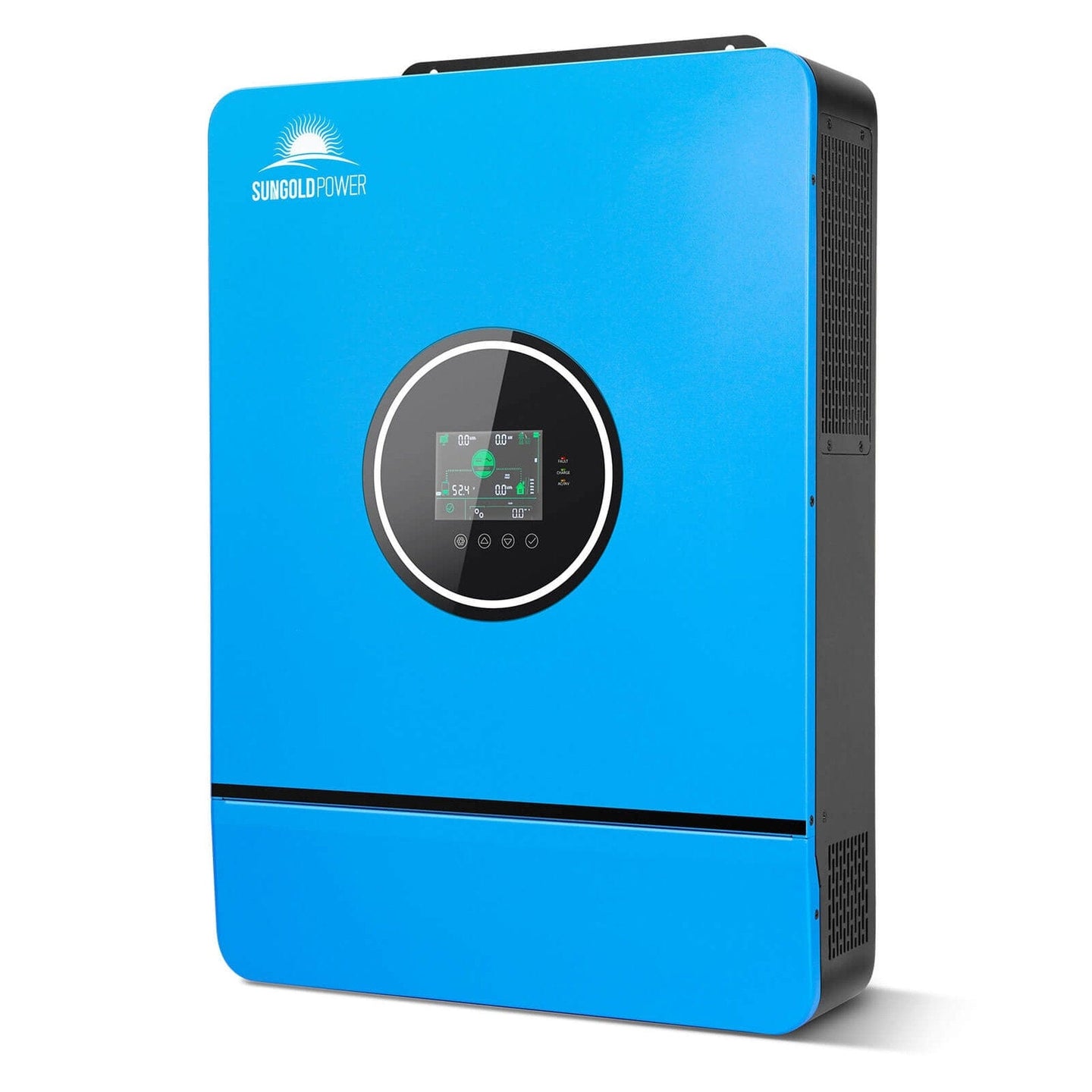

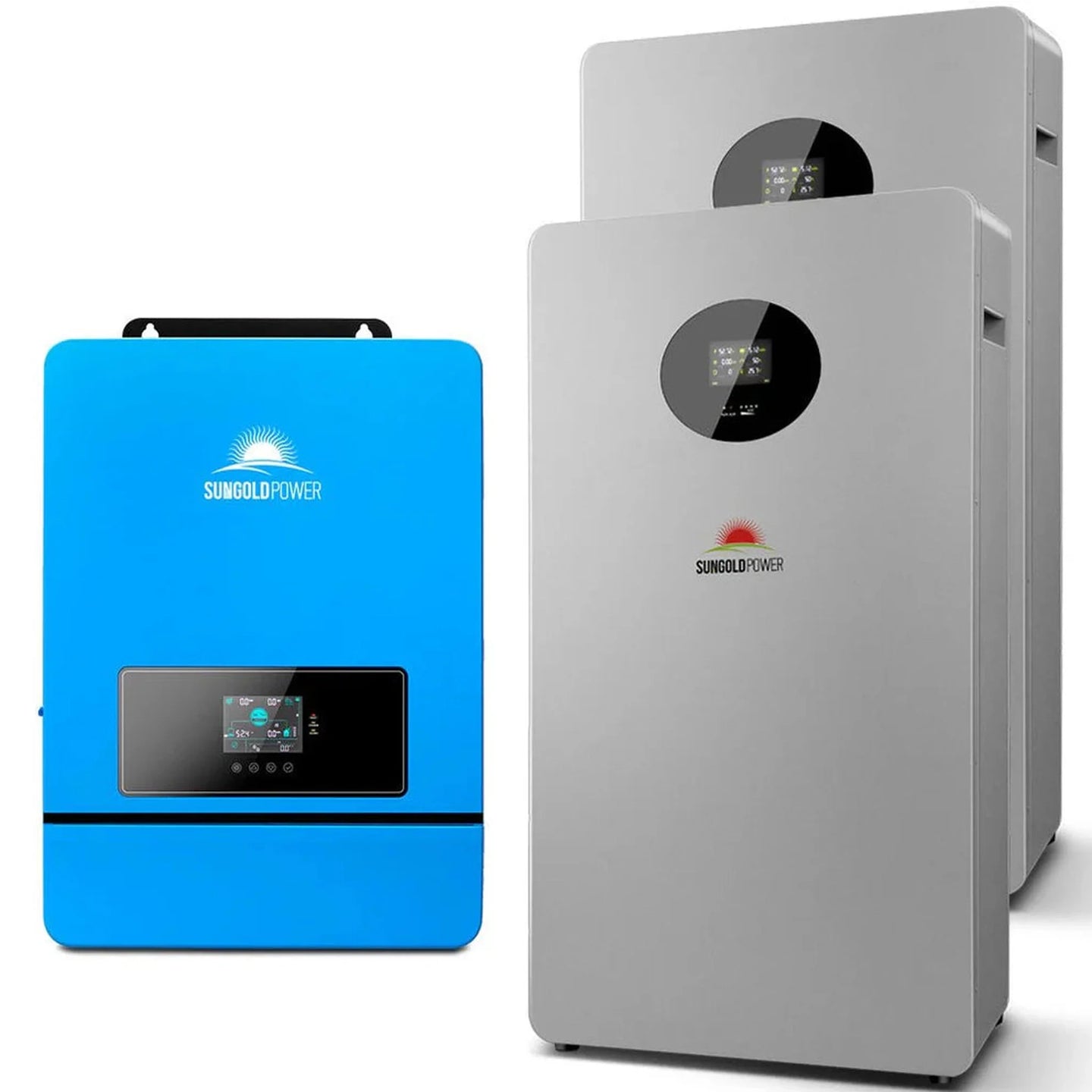

10KW 48V Split Phase Solar Inverter

Engineered for high-performance solar energy conversion, the 10kW 48V Split Phase Inverter delivers robust and flexible power for residential and commercial off-grid applications. Featuring a pure sine wave output with 120V/240V split-phase or 120V single-phase support, this inverter includes two built-in MPPT solar controllers and supports up to 11,000W of PV input with a 500VDC open circuit voltage.

With parallel capability of up to 6 units (60KW total) and UL1741 certification by ETL, it ensures safety, reliability, and scalability. Remote system monitoring is made easy through the included Wi-Fi module and mobile app.

Features

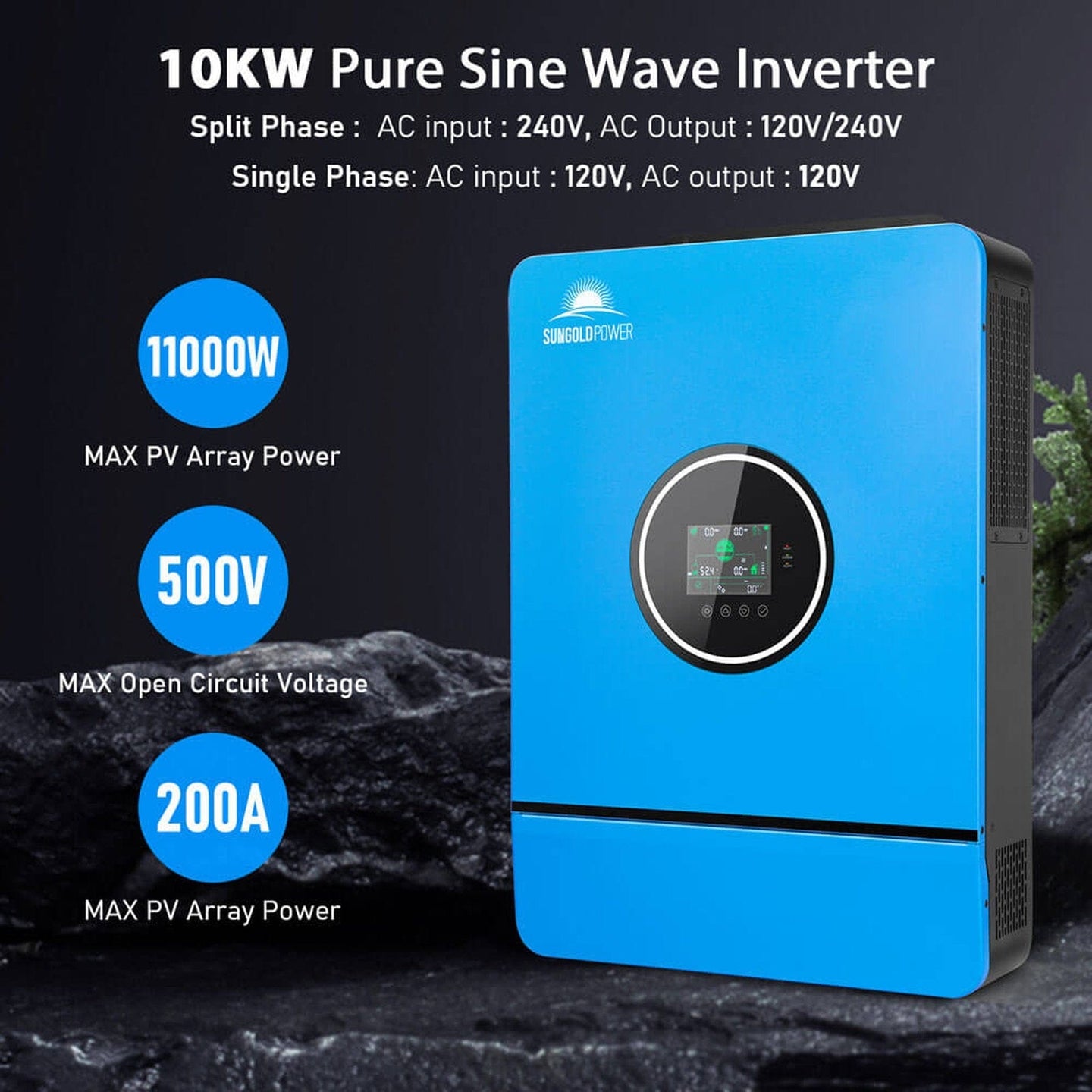

• 10,000W Rated Output – - Pure sine wave power for stable operation; up to 20,000W surge power
• Dual MPPT Solar Controllers - – Max. PV input 11,000W with 500VDC open circuit voltage and 22A per MPPT
• Split-Phase & Single - Phase Output – Supports both 120V/240V and 120V configurations for versatile use
• Parallel Capable – Connect - up to 6 inverters (60KW total) with 120V/240V split-phase or 208V three-phase support

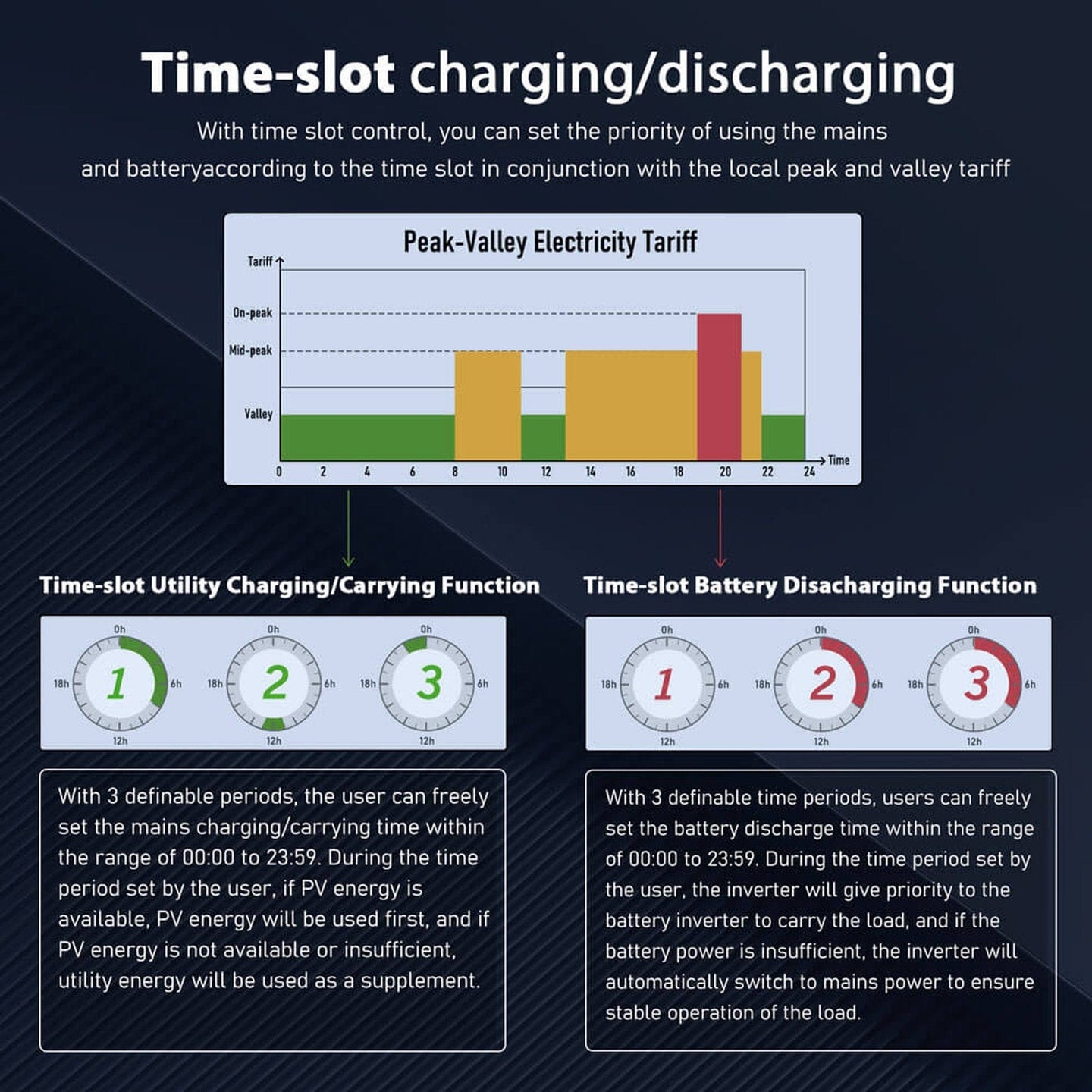

• Smart Energy Management – - Time-slot charging/discharging functionality to maximize efficiency and reduce costs

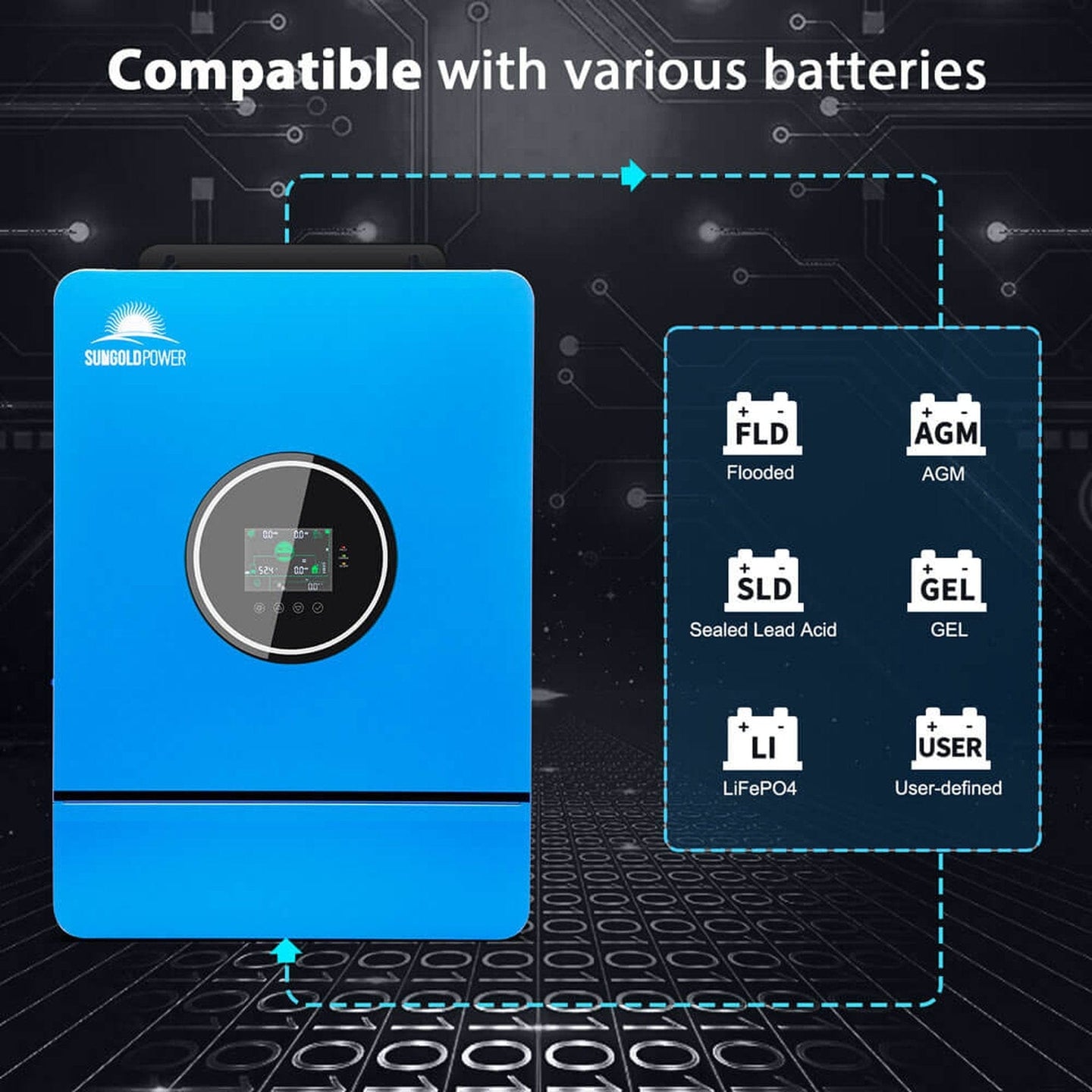

• Battery Flexibility – Compatible - with 48V AGM, Gel, Sealed, Flooded, and Lithium batteries; supports CAN/RS485

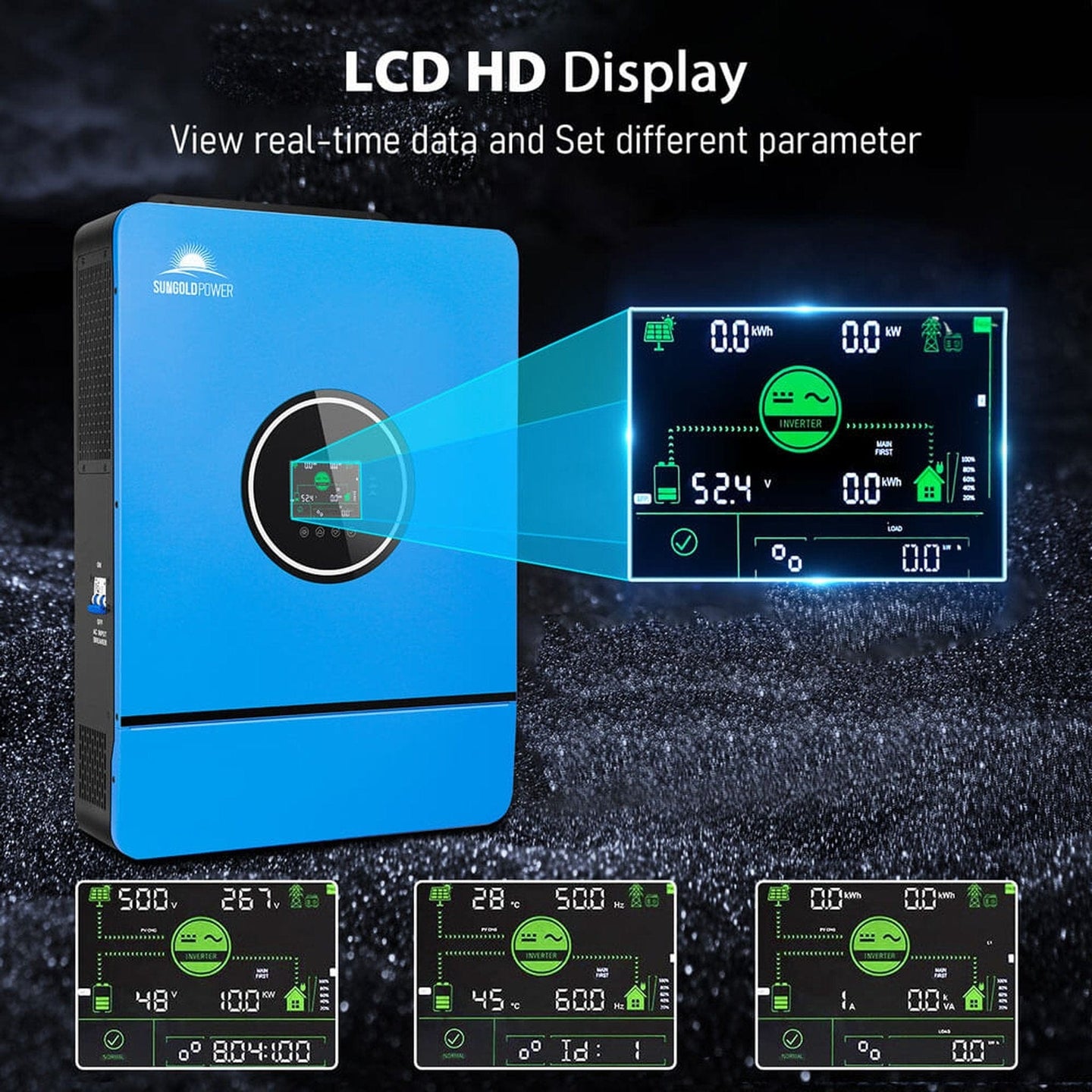

• App-Based Monitoring – Wi-Fi - module enables real-time status and settings control via smartphone
• Comprehensive Protection – Built-in - safeguards against PV over-voltage, overloads, short circuits, and more

Specifications

• MODEL SPH: 8K48SP SPH10K48SP
• resume output after: 3 minutes, 5 consecutive overloads will
• Overload (: 102% <load<110%) +10%: error and output shutdown after 5min;

Warranty and Resources

2 Years Warranty

• SPH Split Phase Solar Charger Inverter User Manual B83D 4a35 8926
