Important Manufacturer Note from Scott Aerator:
Please note that 115V units are only compatible with power cords up to 100ft in length from the main breaker to the fountain. If you are needing a longer power cord length, please go up to our 230V units to avoid amperage drops.
L6-20 plug is required by the 230V and a 20 amp double pole breaker.
* Call for 2HP, 3HP pricing.
Quick Facts
3/4 HP Spray Sizes
|
| Spray Pattern |
Spray Size |
| Gusher |
30' H x 6' W |
| Cambridge |
25' H x 35' W |
| Baystone |
10' H x 25' W |
| Millbrook |
12' H x 25' W |
| Tudor |
10' H x 35' W |
|
1 HP Spray Sizes
|
| Spray Pattern |
Spray Size |
| Gusher |
35' H x 6' W |
| Cambridge |
30' H x 40' W |
| Baystone |
14' H x 30' W |
| Millbrook |
15' H x 30' W |
| Tudor |
12' H x 40' W |
|
- Floating pond & lake fountain with 5 interchangeable display patterns.
- Designed for 24-hour, 4-season operation.
- Easy installation, requires no maintenance.
- Available in 3/4 HP and 1 HP.
- Approved for use in salt water.
- ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages.
- GFCI required. Please disconnect power source when swimmers are present.
-
Common Applications include HOA’s, Golf Courses, Recreational Ponds & Lakes, Commercial Properties, Country Clubs, Retention Ponds, Farm Ponds and Business Parks.
Five Fountains in One!
The Great Lakes Fountain provides a versatile, beautiful water feature that improves the health of your pond. Five different brass nozzles are included with this fountain, each of which can be easily changed — tool-free!
The Great Lakes Fountain offers a variety of elegant stream options:

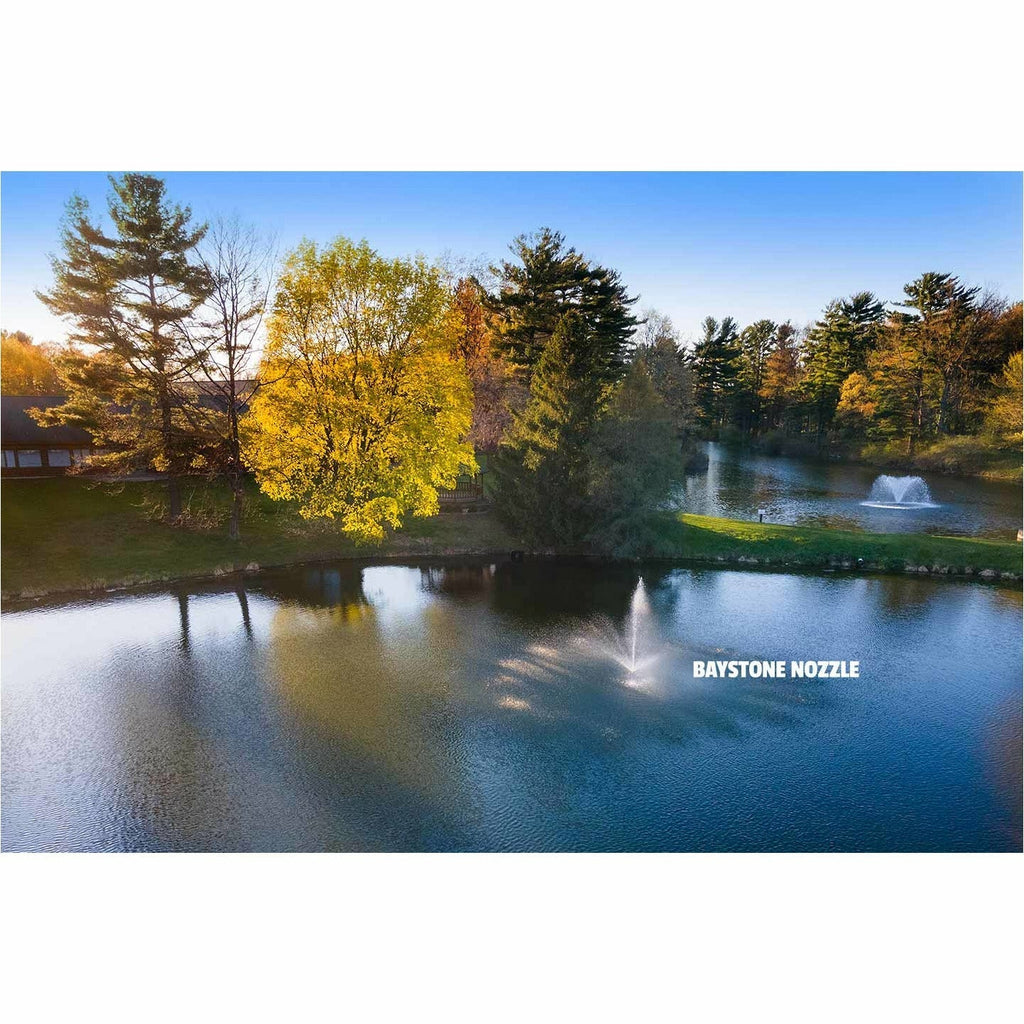

- a layered, beautiful style from the “Baystone” nozzle
- a striking, cascading style from the “Cambridge” nozzle
- a wider, cascading style from the “Tudor” nozzle
- a cone-shaped, elegant style from the “Millbrook” nozzle
- a more traditional geyser style from the “Gusher” nozzle
Any of the five options will provide a dynamic, aesthetically pleasing addition to your pond or lakescape while helping to maintain water clarity and oxygen levels, while promoting a healthy aquatic environment.
The Great Lakes Fountain is manufactured utilizing a stainless steel, oil-free, submersible motor and pump, making it the most environmentally friendly fountain on the market.
The Scott Aerator Company has engineered all of its water features to eliminate the need for costly, time-consuming winterization. Simply leave your fountain in the water, turn off its power supply, and forget about it all winter. Once the water thaws in the spring, re-establish power to the unit and you’re good to go. All components will withstand sub-zero conditions without damage.
The Great Lakes Fountain is proudly manufactured in the USA and carries an unconditional 5-year motor warranty.
Pond Requirements
Minimum Pond Size
|
| Pump Size |
Min. Pond Size |
| 3/4 HP |
0.25 Acre
|
| 1 HP |
0.25 Acre |
|
Required Water Depth
|
| Pump Size |
Min. Depth |
| 3/4 HP |
36" |
| 1 HP |
36" |
|
Electrical
Electrical Specs & Avg. Hourly Cost
|
|
Pump Size
|
Amps
|
Avg. Cost/kWh
|
| 3/4 HP 115V |
11.5 |
$0.09 |
| 3/4 HP 230V |
8.2
|
$0.10 |
| 1 HP 115V |
11.5 |
$0.12 |
| 1 HP 230V |
8.2 |
$0.13 |
|
*Average cost is calculated using the U.S. national average cost per killowatthour. Rates will vary regionally.
Cable Size & Max Distance From Fountain to Breaker
|
| Pump Size |
#12 |
#10 |
#8 |
| 3/4 HP 115V |
125’ |
200’ |
300’ |
| 3/4 HP 230V |
480' |
760' |
1200' |
| 1 HP 115V |
100' |
150’ |
225' |
| 1 HP 230V |
400' |
630' |
990' |
|
