Rich Solar | MPPT Solar Charge Controller 60 Amp | RS-MPPT60

60 Amp MPPT Solar Charge Controller – High Efficiency Power Regulation

Overview

The Rich Solar Charge Controller is designed to optimize your solar energy system’s performance by maximizing power conversion efficiency and extending battery life. Using advanced Maximum Power Point Tracking technology, the controller offers high tracking efficiency, intelligent real-time monitoring, and reliable protection. It is suitable for off grid systems, RV setups, and solar battery installations. Whether for small residential or large off grid systems, this controller provides consistent, efficient, and safe energy regulation.

Benefits

• Automatically detects system voltages of 12 volts, 24 volts, 36 volts, or 48 volts for easy integration
• Compatible with sealed, gel, flooded, and lithium deep cycle batteries
• High tracking efficiency of up to 99 percent with a peak conversion rate of 98 percent
• Protects against reverse polarity, overcharging, over discharging, overload, short circuits, and reverse current

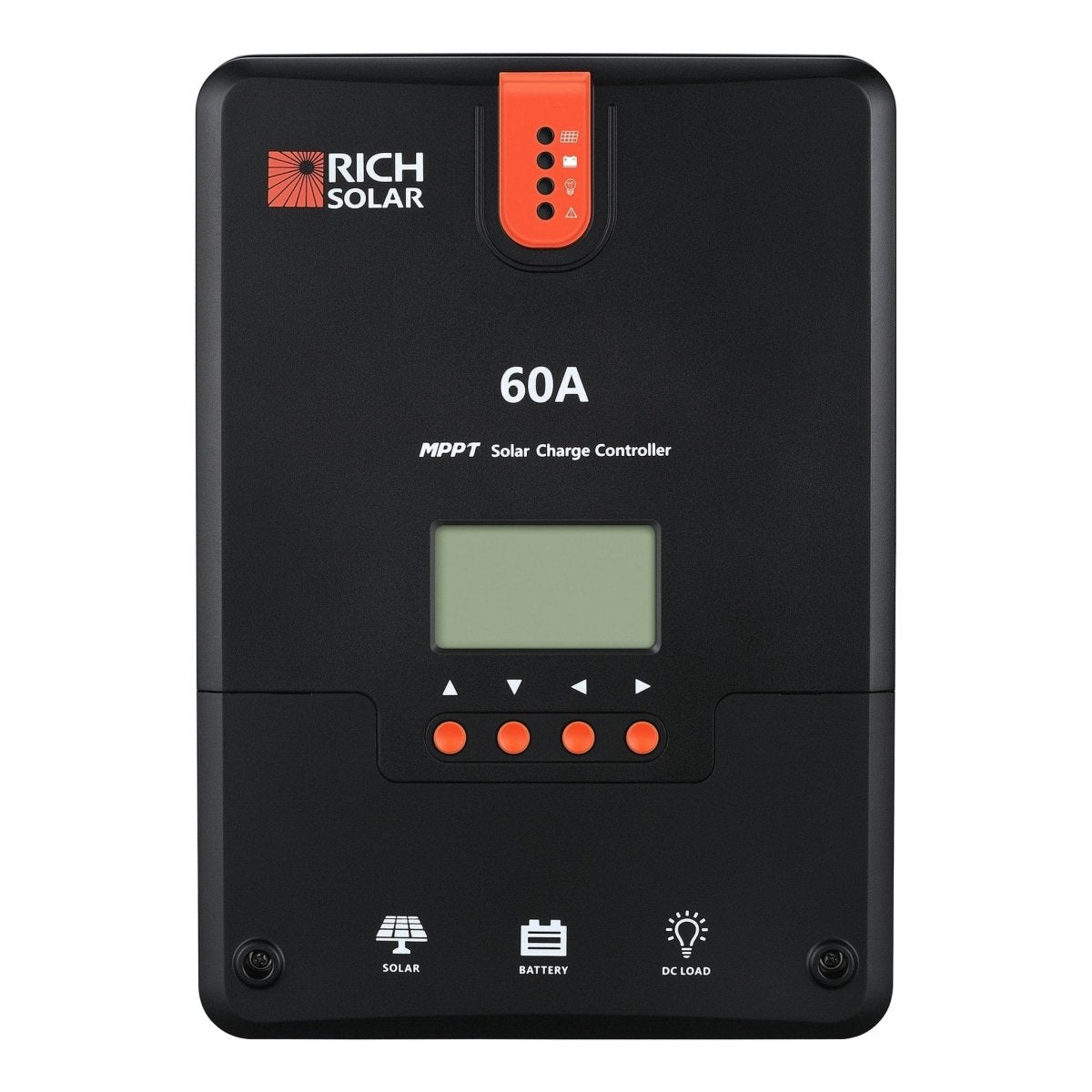

• Provides clear real time status through an LCD screen and LED indicators including diagnostic error codes
• Manages various load types and can recharge over discharged lithium batteries

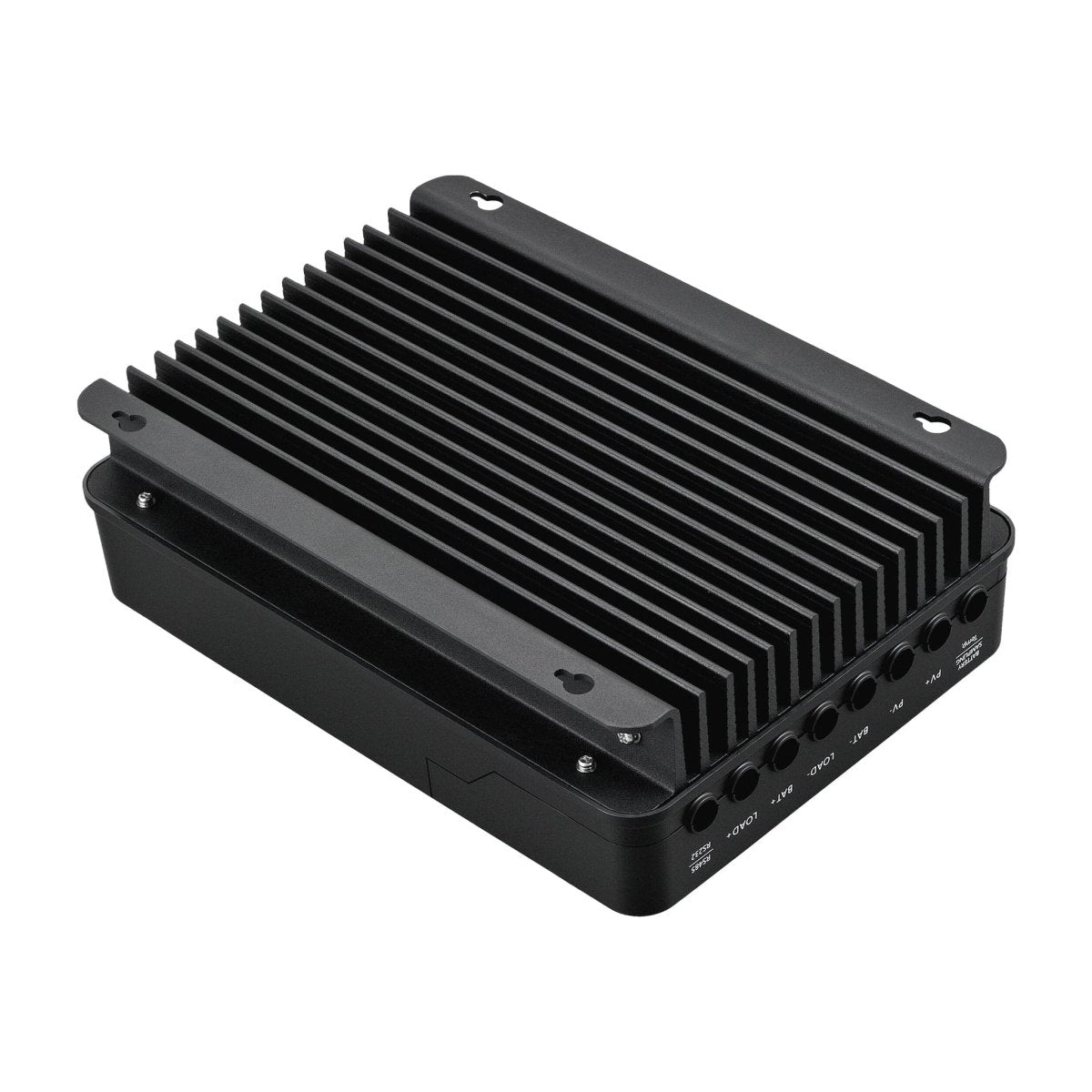

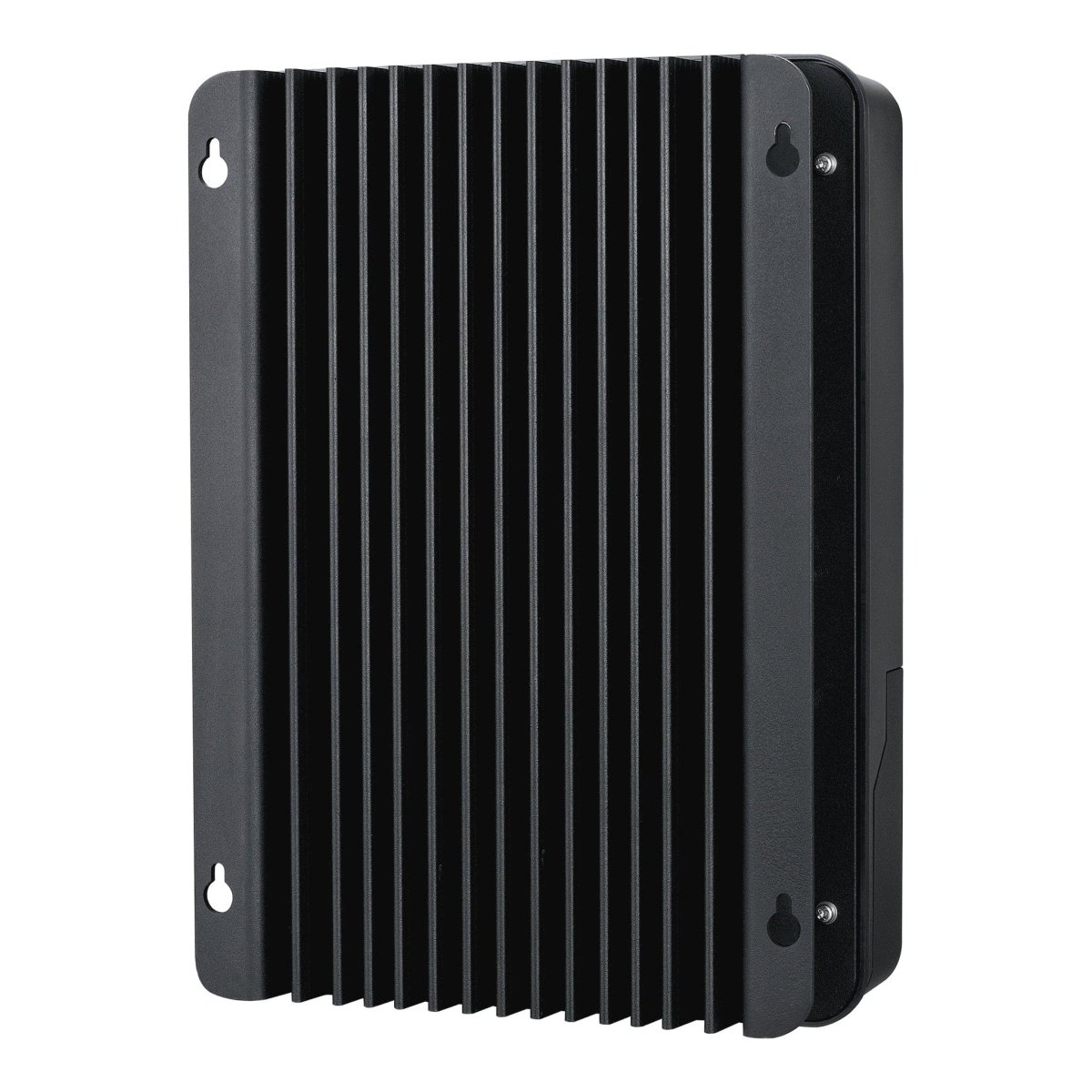

• Die cast aluminum construction for effective heat dissipation and durability
• Optional Bluetooth connectivity for remote monitoring and control via RS232 port

Features

• Auto detection of system voltage for seamless setup
• Wide battery compatibility ensuring versatile use
• Advanced MPPT technology for maximizing solar input efficiency
• Comprehensive electronic protections ensuring system safety
• User friendly LCD and LED displays for system monitoring
• Smart load control managing diverse power demands
• Robust heat dissipation through die cast aluminum housing
• Bluetooth support available for convenient remote access

Specifications

• Rated battery current: 60 amps
• Rated load current: 20 amps
• Maximum solar input voltage: 150 volts
• Maximum solar input power: 800 watts at 12 volts, 1600 watts at 24 volts, 2400 watts at 36 volts, 3200 watts at 48 volts
• Charge circuit voltage drop: 0.26 volts
• Discharge circuit voltage drop: 0.15 volts
• Operating temperature range: -31 degrees Fahrenheit to 113 degrees Fahrenheit

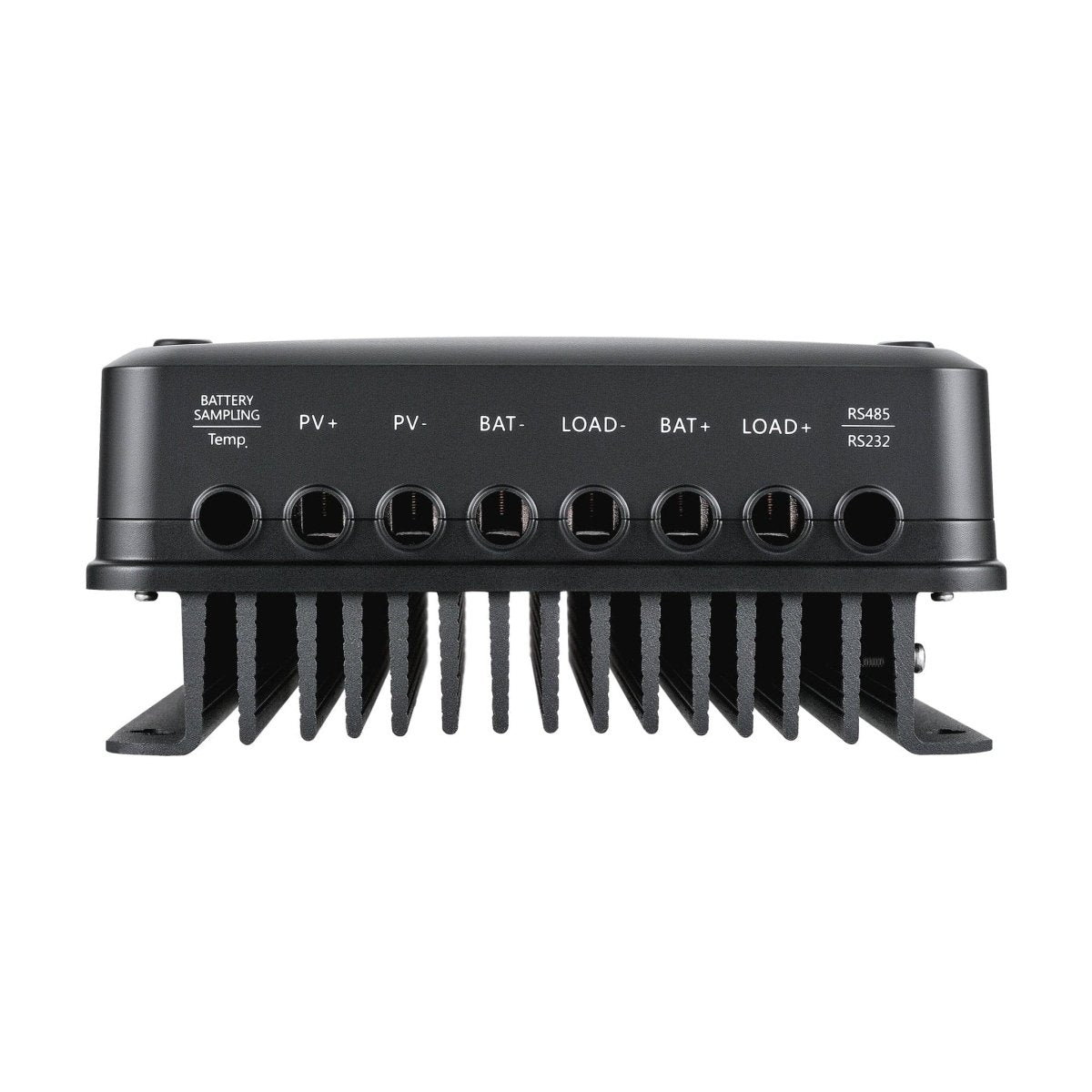

• Maximum terminal size: 4 AWG
• Overall dimensions: 11.2 inches by 8.1 inches by 4.0 inches
• Net weight: 7.9 pounds
