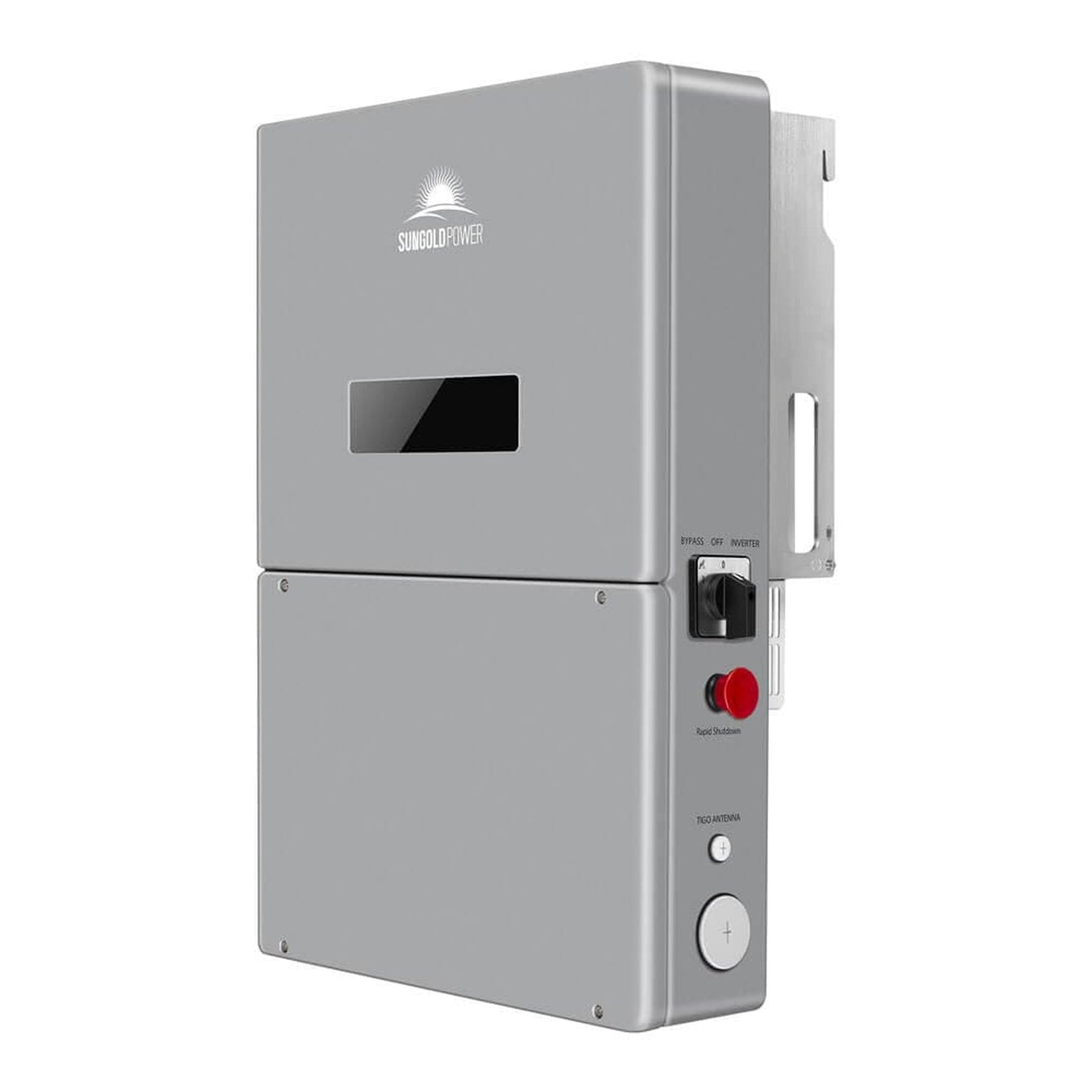

SunGold Power | High Voltage 11.4KW Hybrid Split Phase Inverter with Aps Transmitter | SG11.4KHB-HV

High Voltage 11.4KW Hybrid Split Phase Inverter with Aps Transmitter

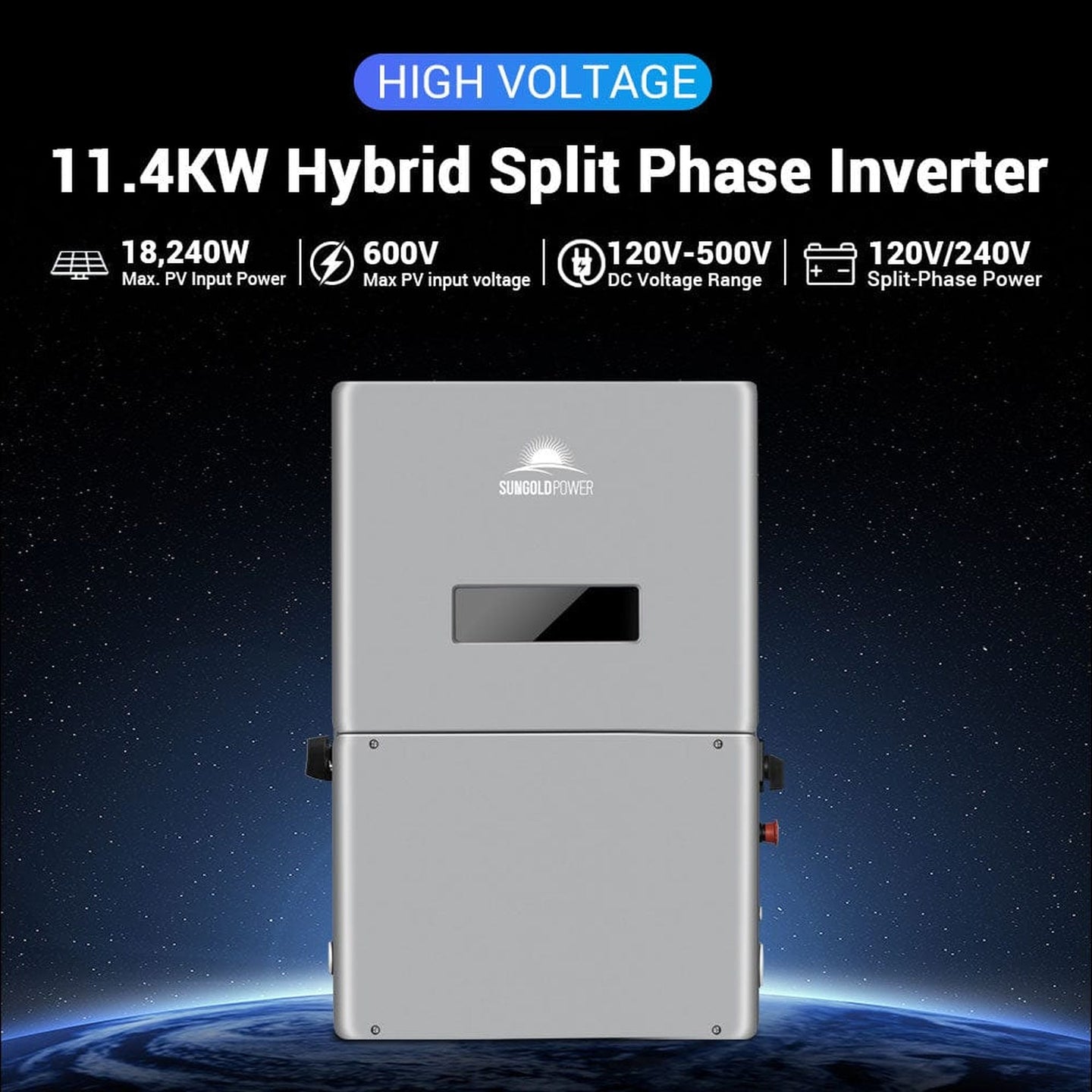

The SG11.4KHB-HV is a High Voltage 11.4KW Hybrid Split Phase Inverter designed for maximum efficiency and flexibility in advanced solar energy systems. With 4 MPPTs, a PV input capacity of 18kW, and support for high-voltage lithium-ion batteries (120V–500V), this inverter delivers 120V/240V AC output, making it ideal for residential and commercial power applications.

Its integrated APS transmitter ensures compatibility with utility requirements, while generator support enables backup during outages. With parallel capability (up to 3 units) and seamless operation in on-grid, off-grid, and hybrid configurations, the SG11.4KHB-HV adapts to various energy scenarios with ease.

Features

• High PV Input - 18kW across 4 MPPTs, up to 600V DC input
• Battery Voltage Range - 120V–500V high-voltage lithium-ion compatibility
• Output - 11.4KW continuous power with 120V/240V AC split-phase output
• Scalable - Supports parallel connection of up to 3 inverters
• Generator-Compatible - Use as a grid source for enhanced backup

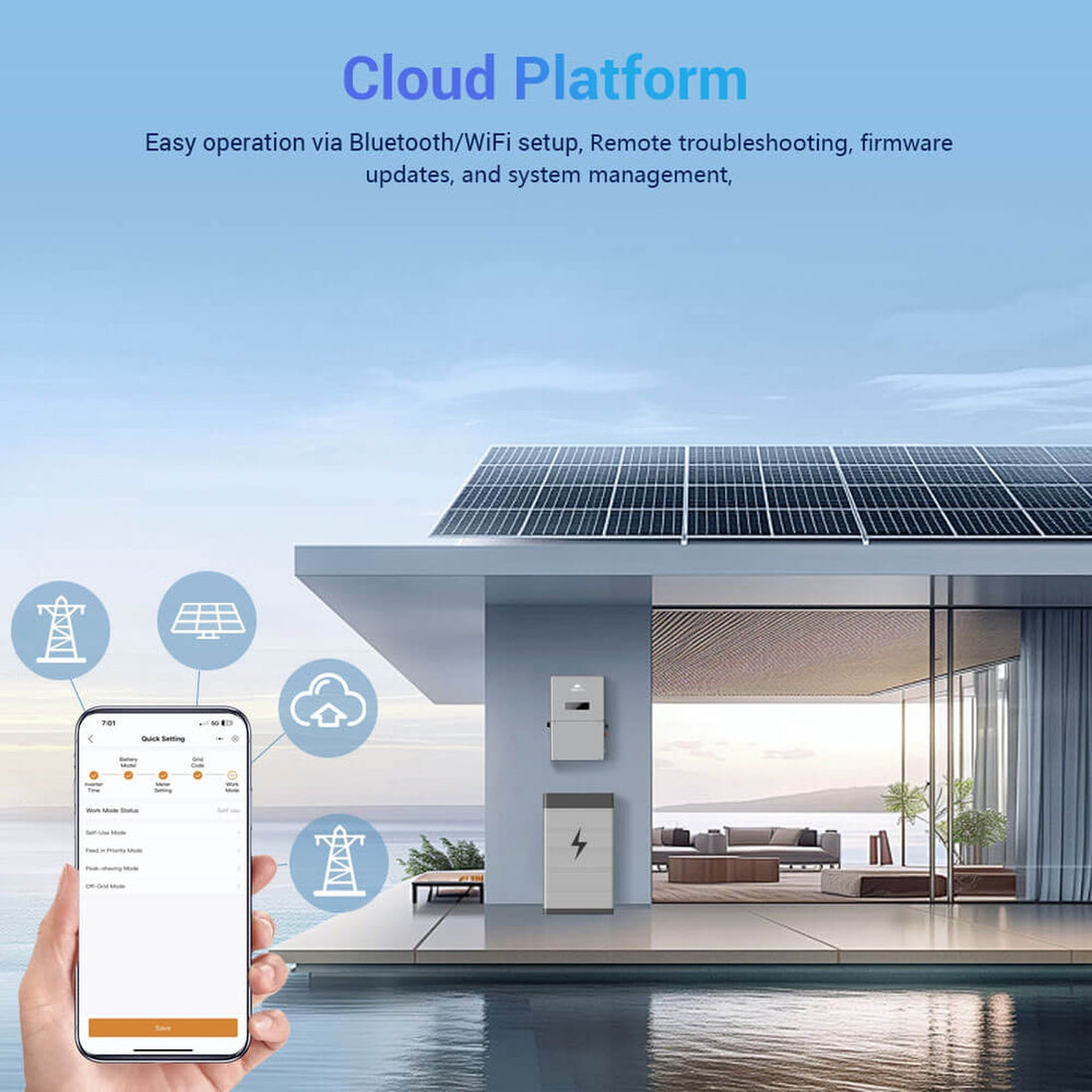

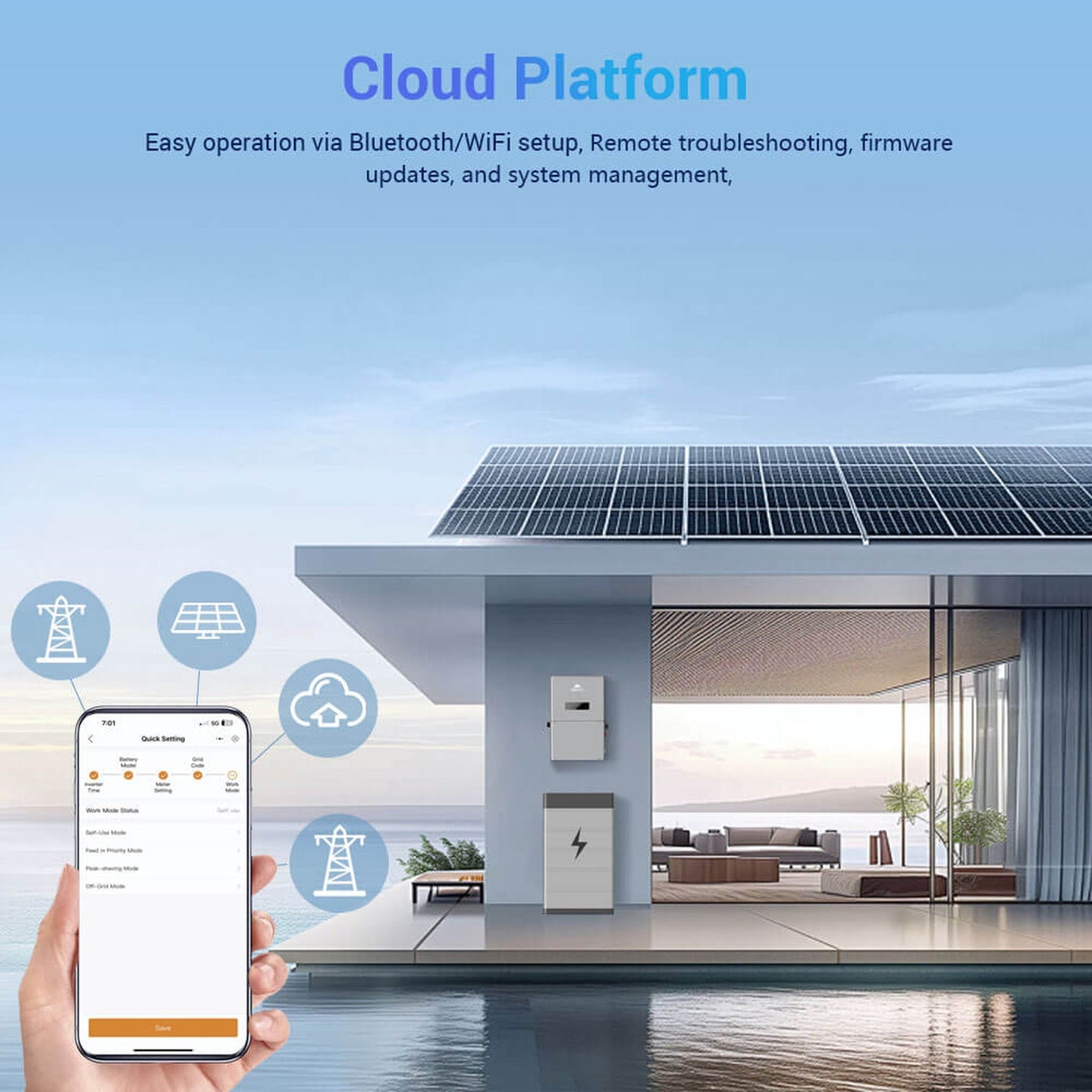

• Remote Access - Cloud platform for monitoring, firmware upgrades, and diagnostics
• Certifications - UL1741 SB/SA, IEEE1547.1-2020, UL1699B, FCC Part15 Class B, NEC 690.12-2020, and more

Specifications

• Product Model SG: 11.4KHB-HV
• Recommended max.PV power: 18,240W
• Max.input voltage: 600V
• MPPT voltage range: 80-550V
• Max.input current per string: 16A
• Number of MPPTs/Number of strings per MPPT: 4/1
• Battery type: Lithium-ion
• Battery voltage range: 120-500V
• Maximum charge/discharge current: 50A
• Battery Communication CAN/RS: 485
• Ac output (: Grid)
• Rated output power: 11.4kW
• Rated output voltage: 240V
• Rated frequency: 60 Hz

Warranty and Resources

• User manual
