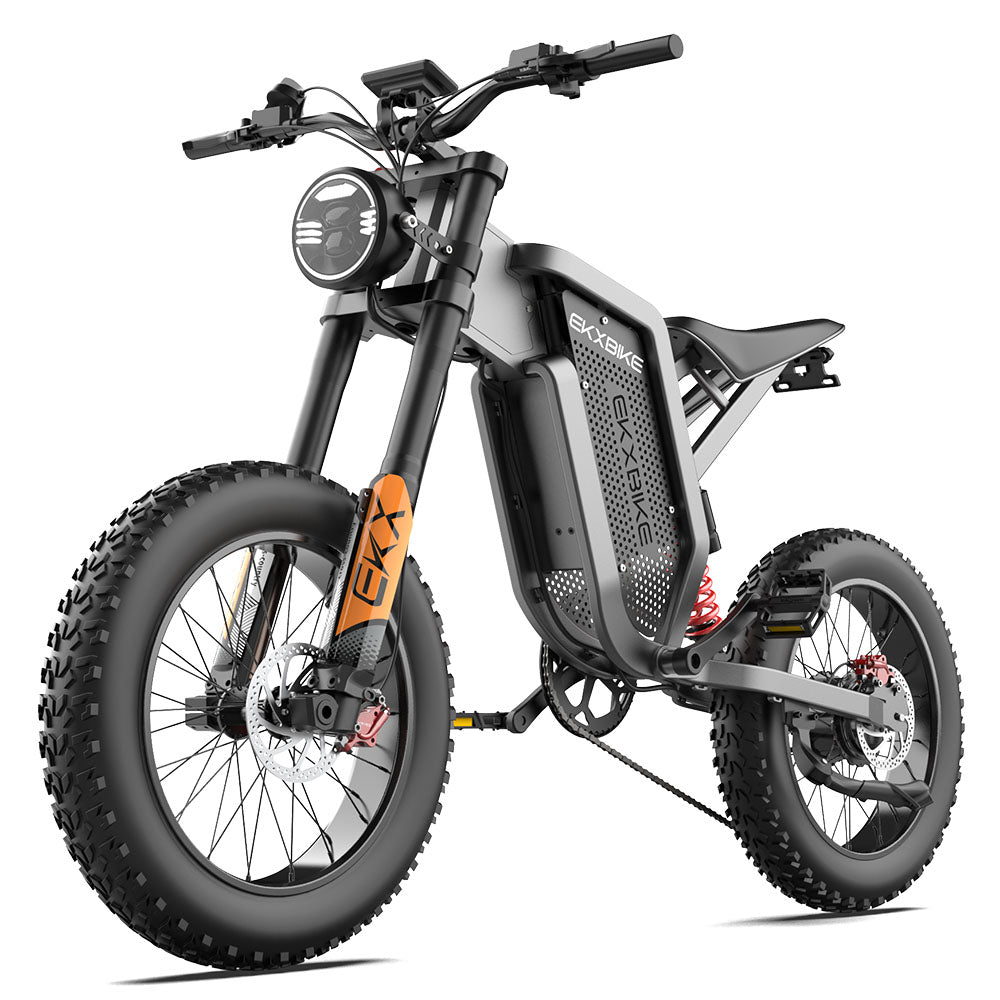

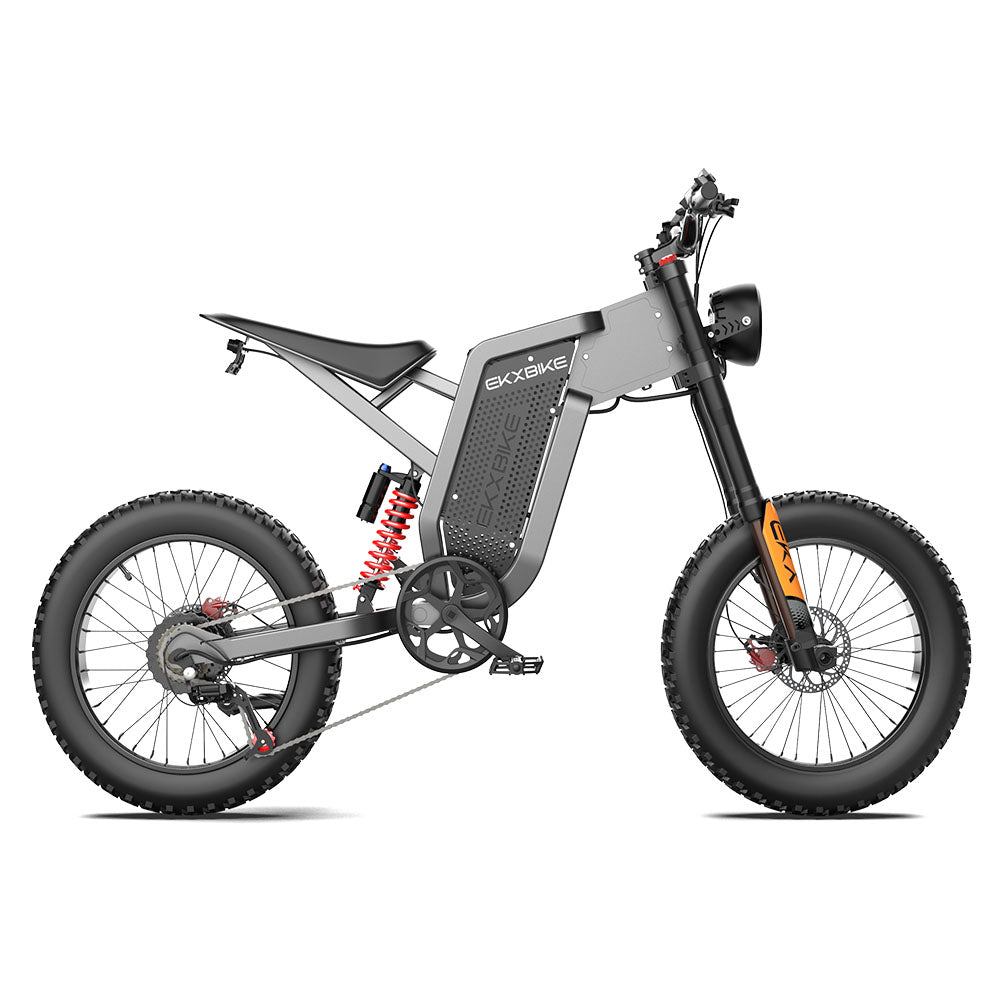

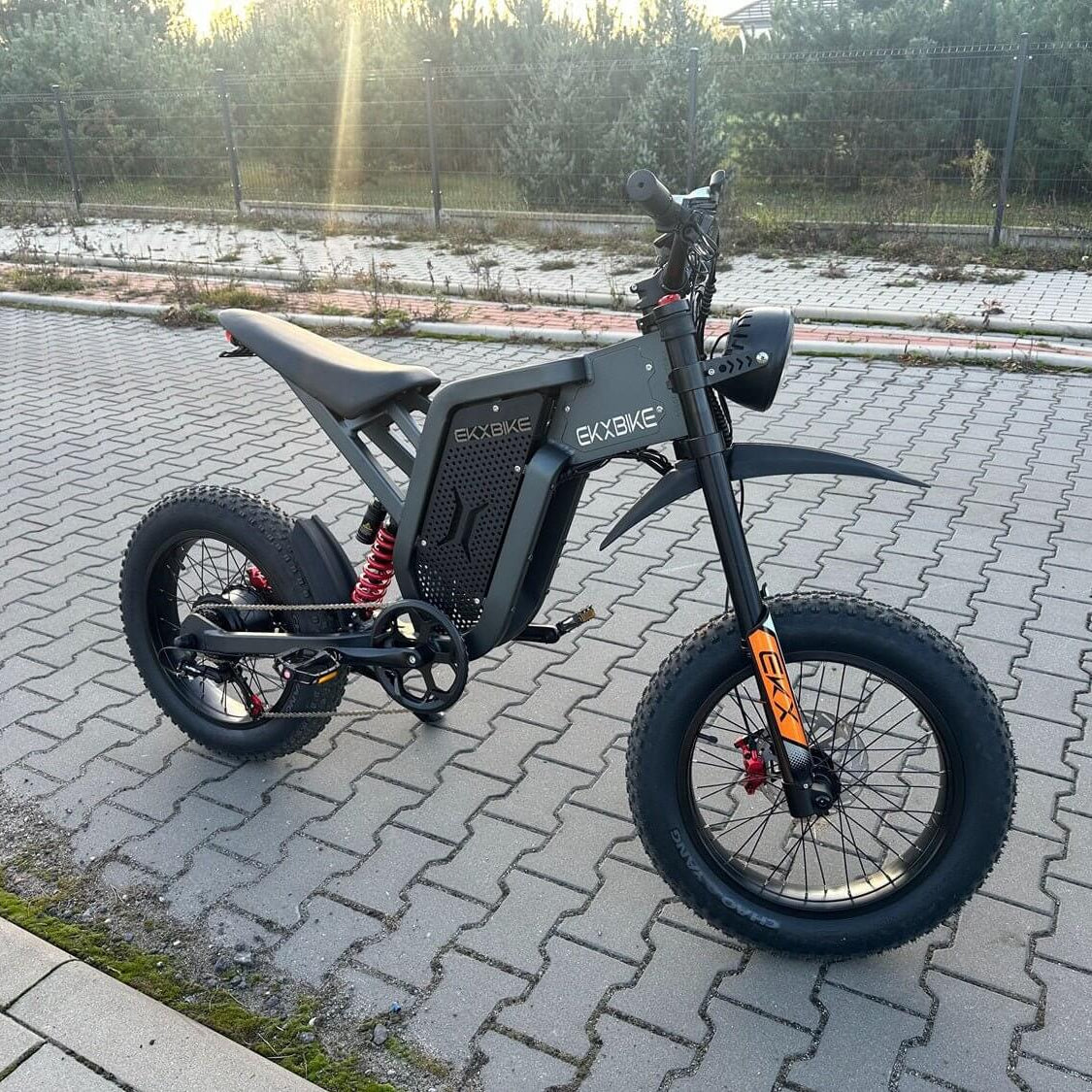

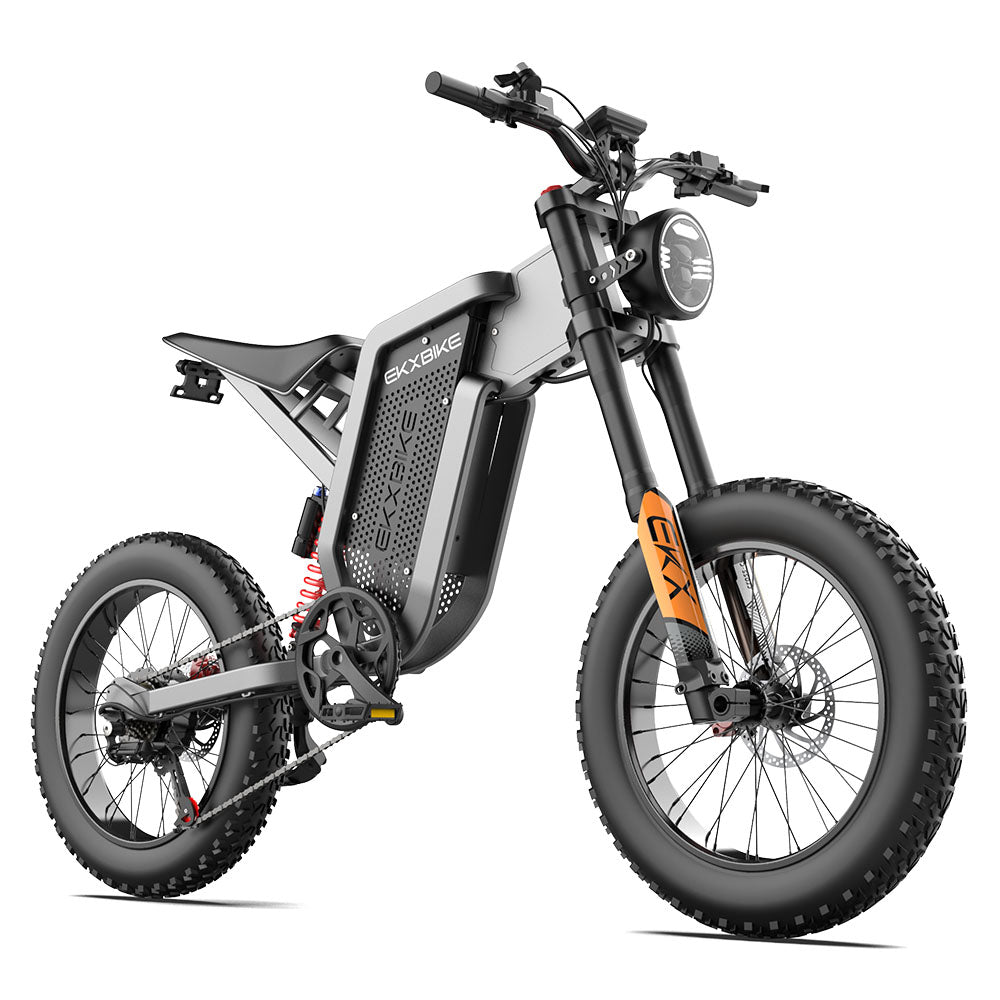

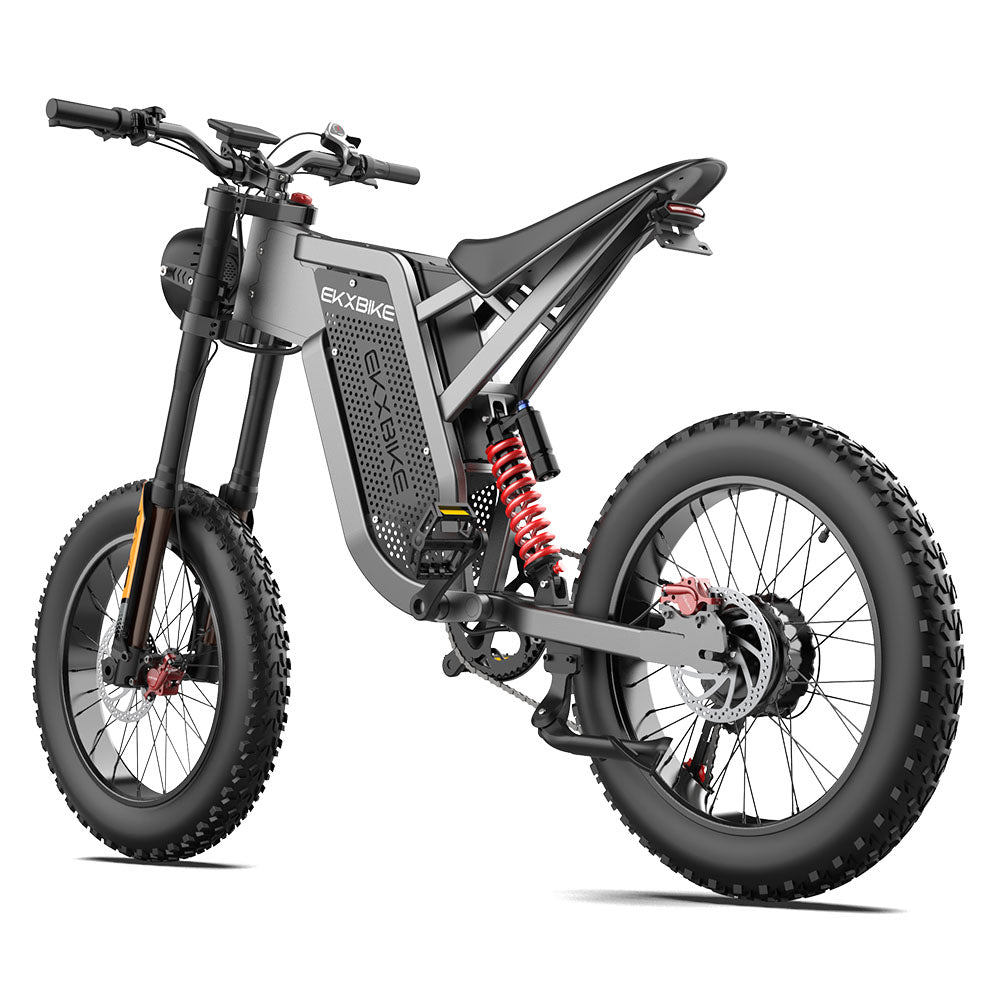

EKX X21 | Off-Road Electric Bike

The EKX X21 Off-Road Electric Bike is a full-suspension fat-tire e-bike built for riders who want to leave the pavement behind without leaving comfort behind. A twin 1000W (2000W peak) 48V brushless rear-hub motor system delivers confident power up steep climbs and across loose terrain, while grippy 20" x 4.0" Kenda fat tires and front-and-rear suspension keep you planted through ruts, gravel, and trail. With a range of up to 90 km (56 miles) on a single motor — and up to 150 km (93 miles) in pedal-assist — the X21 is equally at home on a daily commute or a weekend backcountry adventure.

Five levels of pedal assist and a bright, easy-read color LCD display let you dial in exactly how much help you want, while hydraulic disc brakes and a dual leather seat make long rides safe and comfortable. A 180 kg (396 lb) weight capacity and aluminum-alloy frame mean it's ready for riders of nearly any size.

At a Glance

• Motor: 2 x 1000W (2000W peak), 48V brushless rear-hub
• Battery: Lithium-ion 48V, 35Ah
• Top Speed: Default 25 km/h (15.5 mph) • Unlocked 50 km/h (31 mph)
• Range: Single motor 90 km / 56 mi • Pedal assist up to 150 km / 93 mi
• Weight: 42 kg / 92.5 lbs

Performance & Range

• Range: Single Motor 90 km / 56 mi • Dual Motor 80 km / 50 mi • Pedal Assist up to 150 km / 93 mi
• Speed: Default 25 km/h (15.5 mph) • Unlocked 50 km/h (31 mph)
• Maximum Torque: 50 N·m
• Pedal Assist: 5 levels
• Transmission: 7-speed
• Suspension: Front spring fork & rear suspension
• Tires: Kenda 20" x 4.0" fat tires
• Bike Weight: 42 kg / 92.5 lbs
• Weight Capacity: 180 kg / 396 lbs
• Recommended Rider Height: 160–200 cm (63–78.7 in)
• Folding Parts: Rear footrest

Motor & Electronics

• Motor: 2 x 1000W, 48V brushless rear-hub motor
• Battery: Lithium-ion 48V, 35Ah
• Charger: 56V 2A charger, 9–11 hour charge time
• Display: Smart, easy-read color LCD display

Components

• Frame: Aluminum alloy
• Handlebars: Aluminum 22.2 mm, 700 mm
• Fork: Spring suspension
• Brakes: Hydraulic disc brakes
• Wheels: Aluminum 36H front & rear
• Headlight: LED
• Taillight: Integrated brake light
• Chain Ring: 130-link, 1/2" x 3/32"
• Seat: Dual leather seat
• Horn: Electronic horn

Size & Fit

• Max. E-bike Height: 1135 mm / 44.7 in
• Max. Frame Height: 880 mm / 34.6 in
• Bottom Bracket Height: 400 mm / 15.7 in
• Frame Size: 550 mm / 21.7 in
• Standover Height: 500 mm / 19.7 in
• Rear Seat Height: 860 mm / 33.9 in
• Seat Length: 630 mm / 24.8 in
• Wheelbase Length: 1200 mm / 47.2 in
• Total Length: 1730 mm / 68.1 in
• Riding Position: 795 mm / 31.3 in

What's in the Box

EKX X21 Off-Road electric bike, charger, toolkit, and user manual. Backed by free shipping and a comprehensive 1-year warranty.
