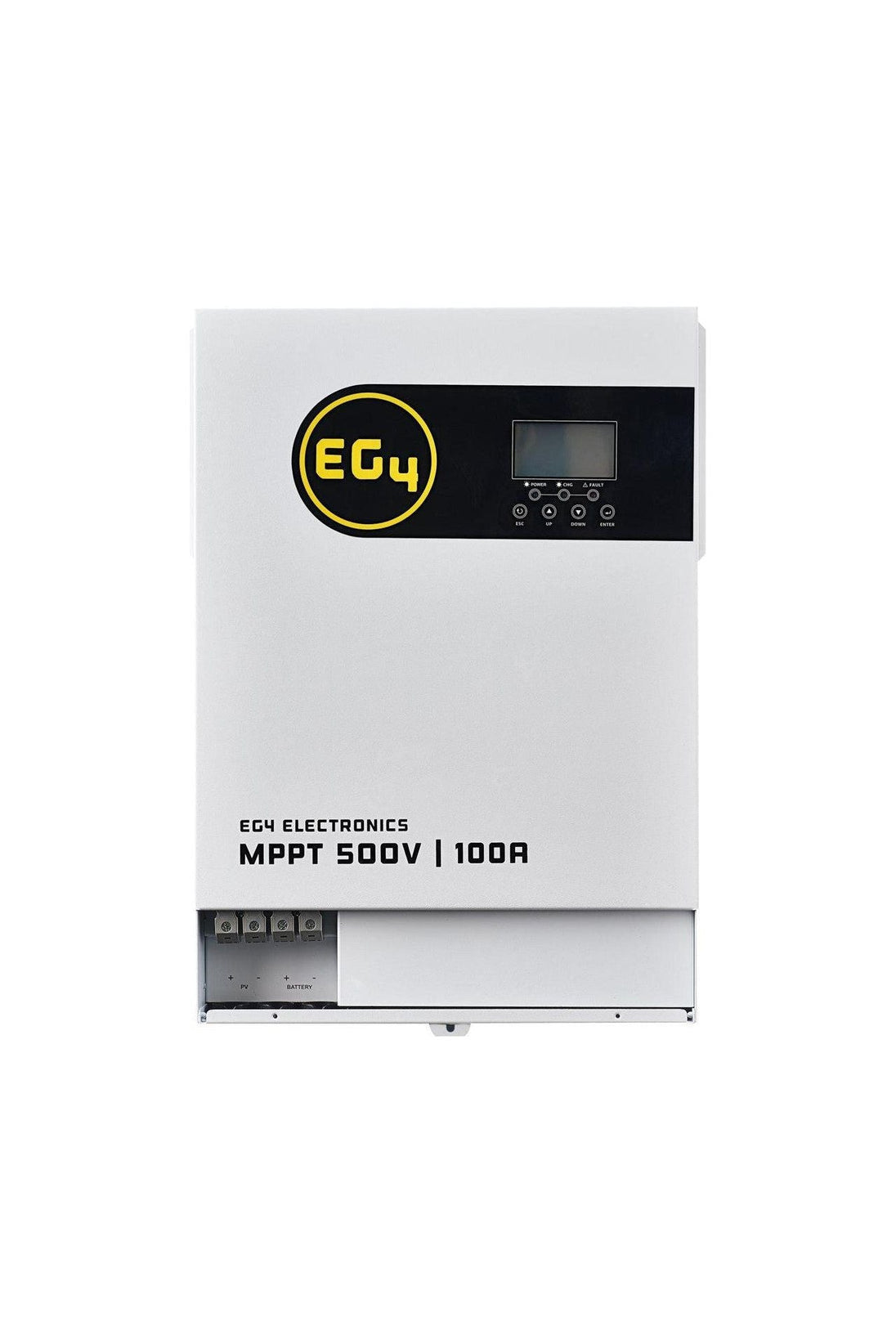

The EG4 MPPT100-48HV is a reliable and cost-effective Maximum Power Point Tracking (MPPT) solar charge controller that builds upon the technology used in the EG4 3kW All-in-One Solar Inverter. This unit is designed to maximize the energy harvested from your solar panels and efficiently charge your battery bank, enhancing the overall performance of your solar power system.
Key Features:
-
Maximized Power Harvesting: The MPPT100-48HV ensures that your solar system extracts the maximum possible energy from your photovoltaic (PV) modules, optimizing solar generation and enhancing battery charging efficiency.
-
Wide PV Array Voltage Range: No need for additional combiner boxes.
- Maximum open-circuit voltage: 500VDC
- Up to 5500W max usable solar panel capacity when combining two strings with a branch connector.
-
22A max PV string current for versatile system setups.
-
High Charging Capacity:
- Supports 100A max charging current, which allows for rapid battery charging.
- Adjustable charging current from 0A to 100A (default 80A).
- Can charge a 5.12kWh EG4 battery in approximately 1 hour at 100A.
-
Recommended operating current: 80A total or 30A per battery to extend battery lifespan.
-
Optimized Charging Voltage:
- Battery voltage: 48V nominal.
- Charging voltage range: 48V to 62VDC, with a default charging voltage of 56VDC.
-
Built-in Protection:
-

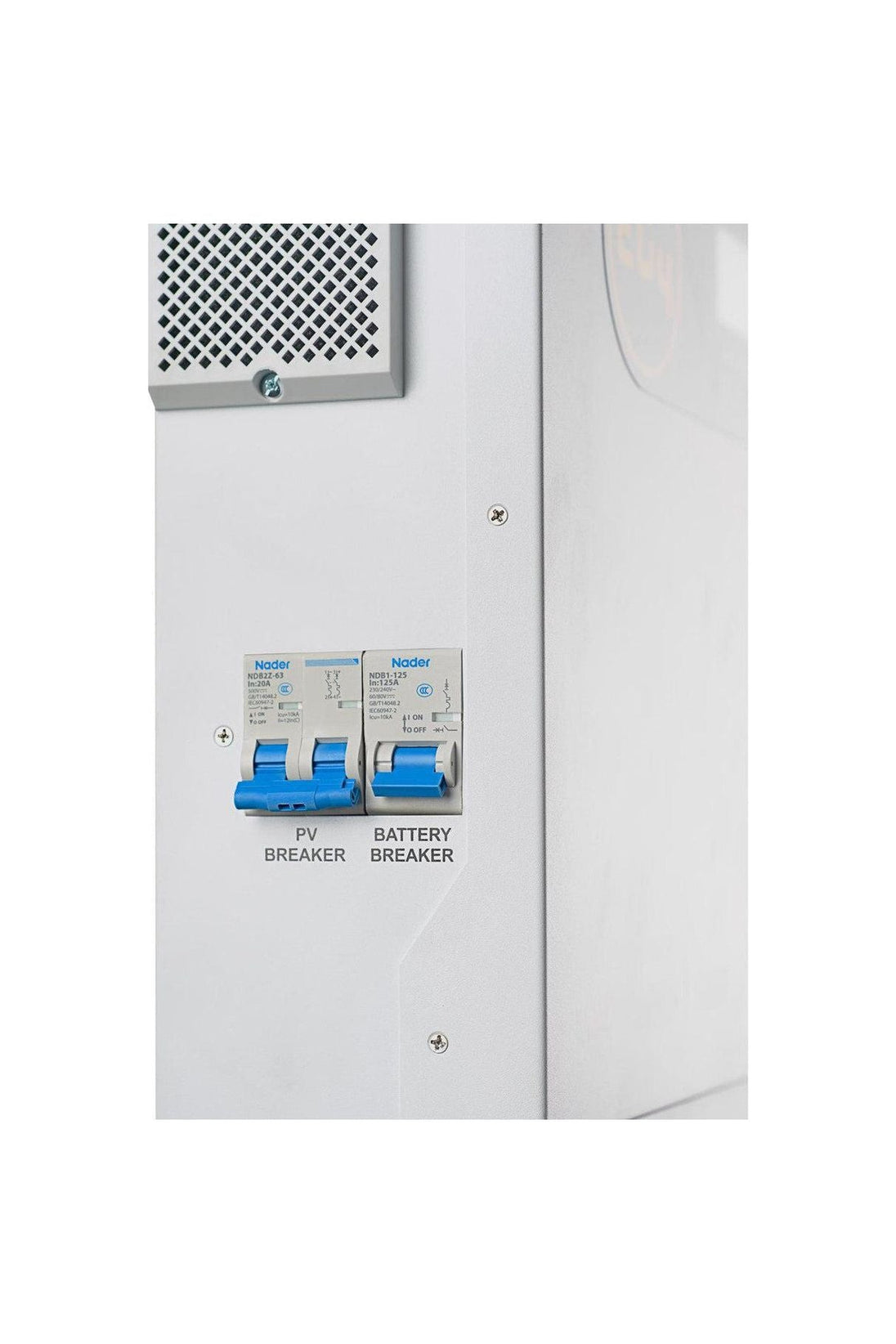

PV array DC disconnect breaker and built-in battery breaker for added safety and protection.
-
Highly Efficient:
-
94% maximum efficiency ensures optimal energy conversion.
- Low self-consumption: <25W.
-
BMS Communication:

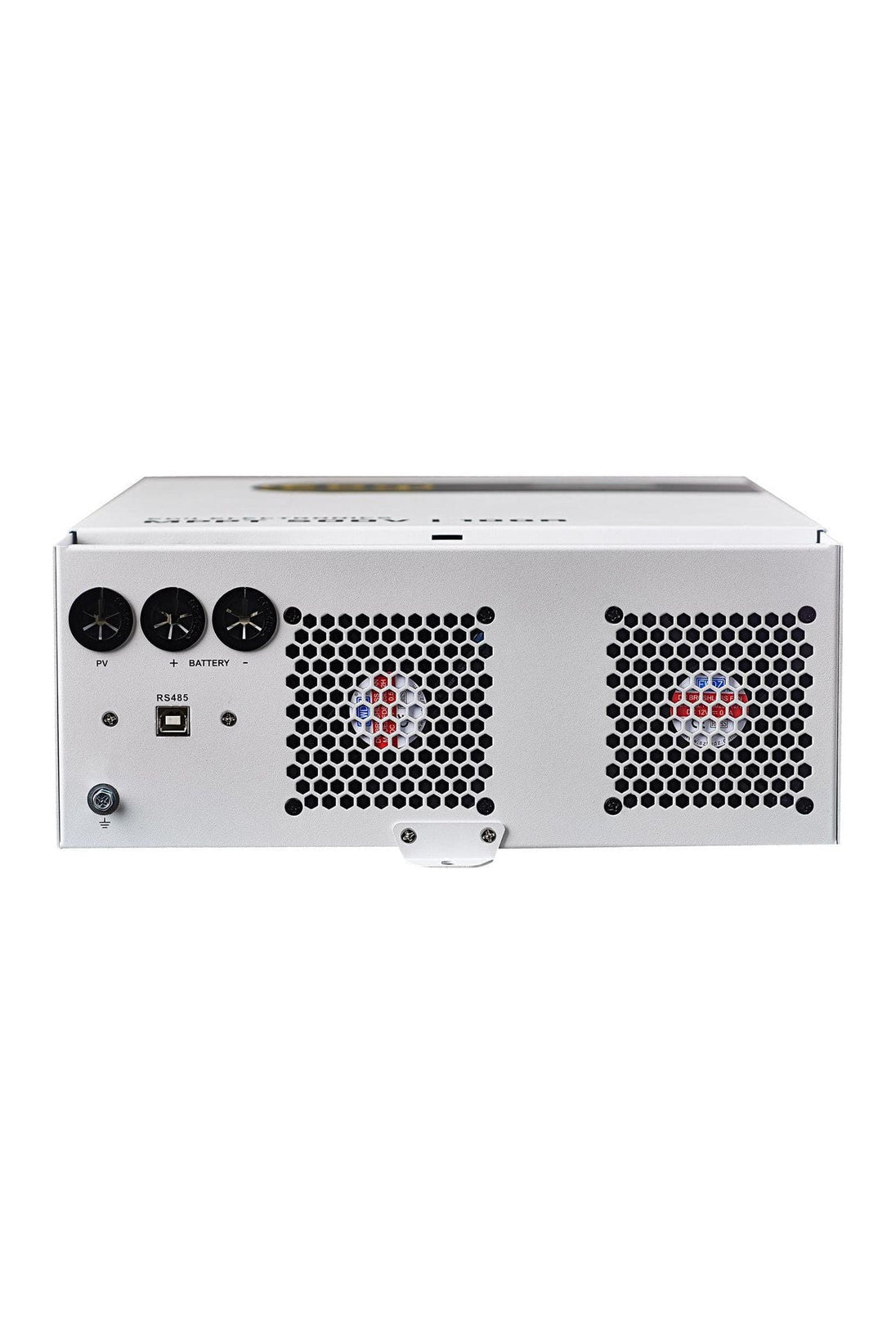

- RS485 BMS port allows for communication with EG4 batteries, even when used with non-EG4 compatible inverters, ensuring seamless integration.
-
Simple and Affordable: This MPPT charge controller offers a powerful and efficient solution without the complexity or high costs of other systems, making it ideal for both new and existing solar power setups.
What is an MPPT Charge Controller?
An MPPT (Maximum Power Point Tracking) charge controller is a DC-to-DC converter that maximizes the power output from the solar panels by tracking and adjusting the voltage and current to ensure that the battery is charged at the most efficient rate. By converting the higher voltage output from the solar array into a lower voltage suitable for charging the battery, it optimizes energy flow and enhances the efficiency of the entire solar system.
With the EG4 MPPT100-48HV, you can enjoy the benefits of a high-efficiency, easy-to-integrate solar charge controller that significantly improves the performance of your solar power system while keeping costs down.
