BigBattery | 350A Battery Capacity Meter

350A Battery Capacity Meter

Overview

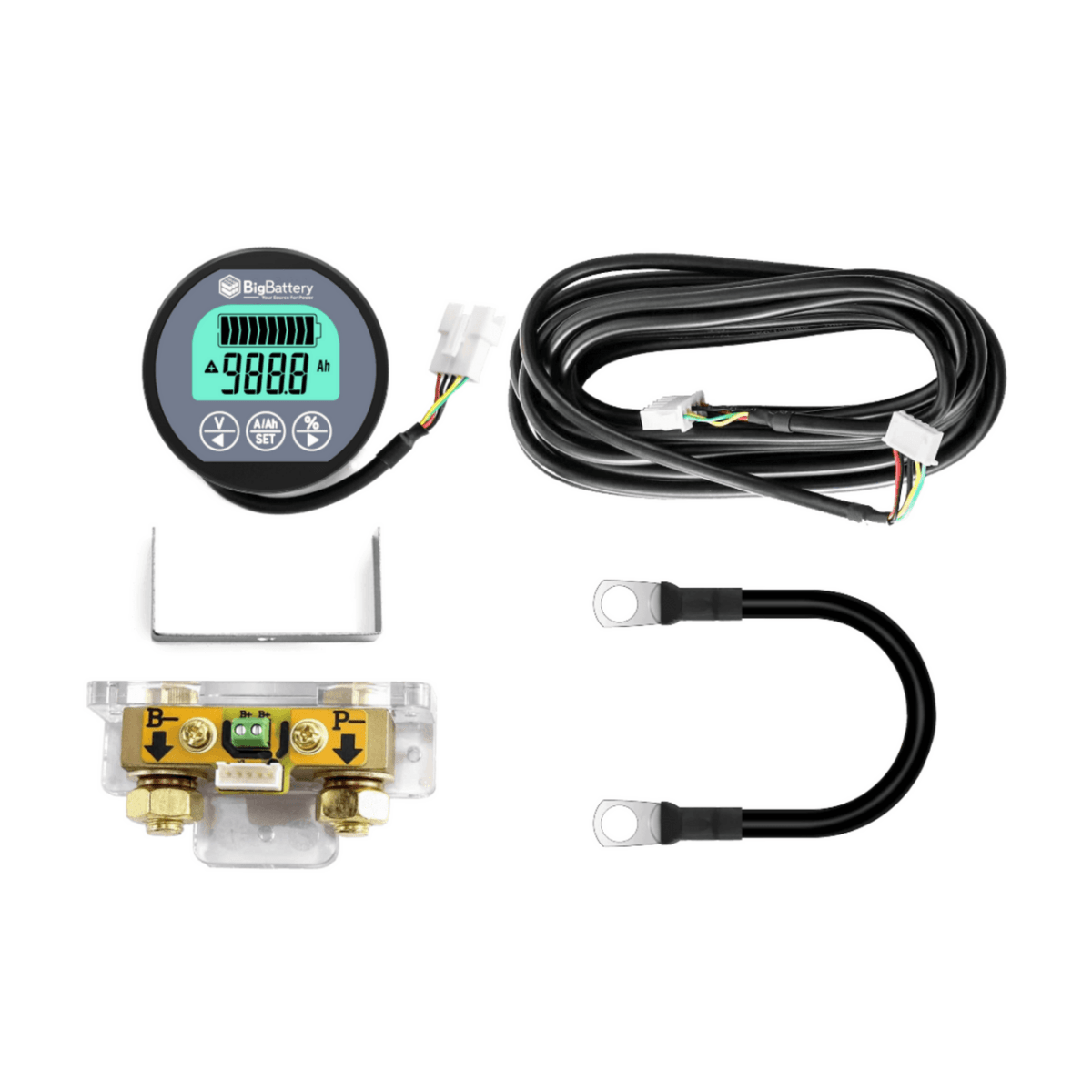

The BigBattery Capacity Meter provides clear and accurate monitoring of your power system. Its LCD display shows key metrics such as charge and discharge current, voltage, remaining capacity, and state of charge. The device is easy to install and includes a pure copper shunt, base mount, mounting bracket, and shielded wiring to ensure stable signal transmission. Designed for durability and water resistance, this meter supports reliable battery monitoring in various applications.

Benefits

• Provides accurate real-time data on battery performance
• Simple installation with all necessary components included
• Durable and water resistant for use in different environments
• Shielded wiring reduces interference for stable readings
• Compact size for convenient mounting

Features

• High precision current detection
• In-depth LCD display with multiple battery metrics
• Data storage for testing and analysis
• Pure copper shunt for low resistance and accurate measurement
• Shielded wiring to enhance signal stability
• Water resistant casing

Specifications

• Working voltage: 8 to 120 volts
• Working dissipation: 10 to 12 milliamps
• Standby dissipation: 0.5 to 0.6 milliamps
• Sleep dissipation: 50 to 60 microamps
• Voltage accuracy: plus or minus 1 percent
• Current accuracy: plus or minus 1 percent
• Capacity accuracy: plus or minus 1 percent
• Preset capacity value: 0.1 to 999 ampere hours
• Sampler current: 350 amps continuous, 500 amps peak
• Operating temperature range: 14 degrees to 140 degrees Fahrenheit minus 10 degrees to 60 degrees Celsius
• Weight: 0.9 pounds (410 grams)
• Dimensions: height 2.32 inches (59 millimeters), width 2.32 inches (59 millimeters), depth 0.78 inches (20 millimeters)
• Cable length: 13.1 feet (4 meters)
• SKU: 1622017
• Instruction Guide Download
