Description
Reliable Power Anytime, Anywhere

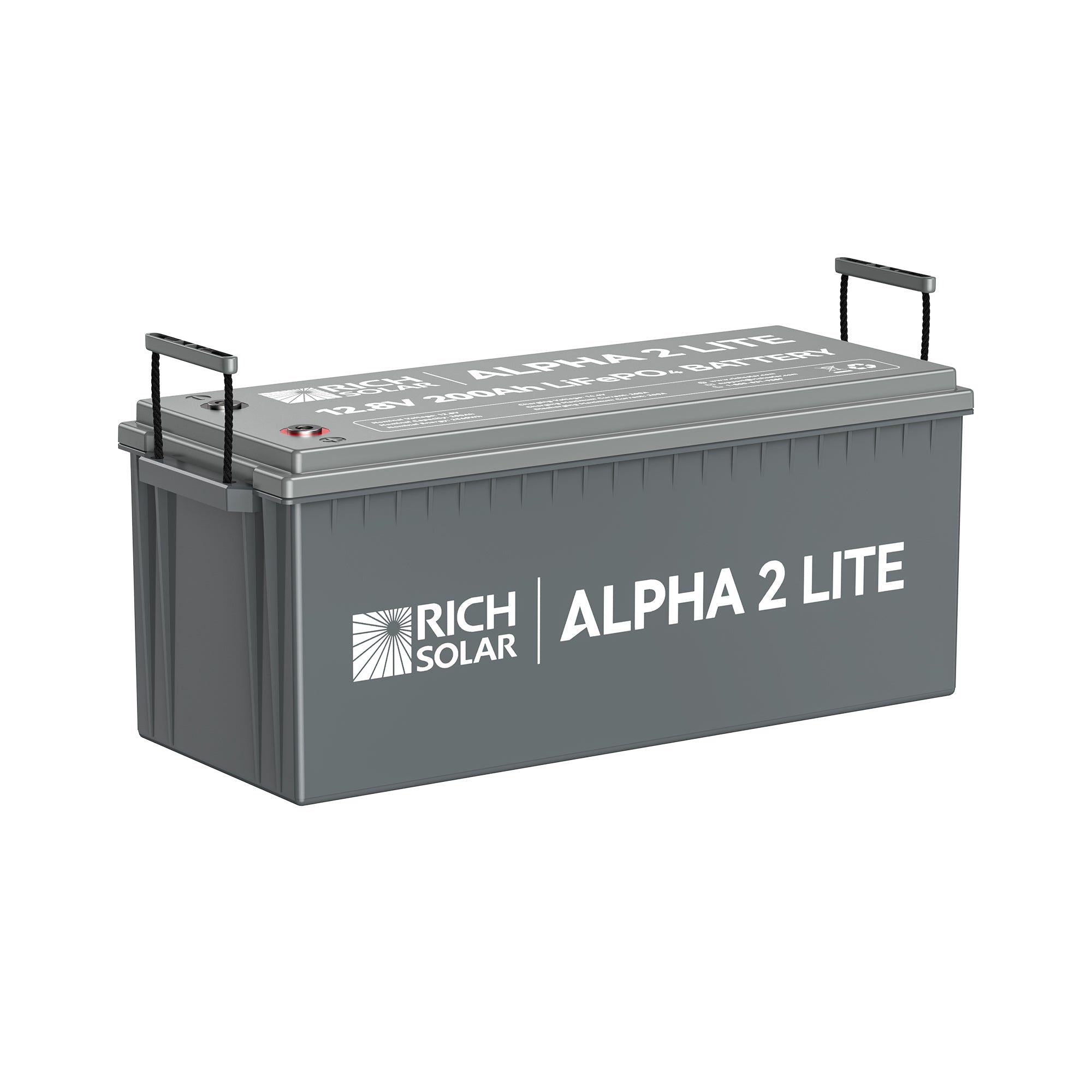

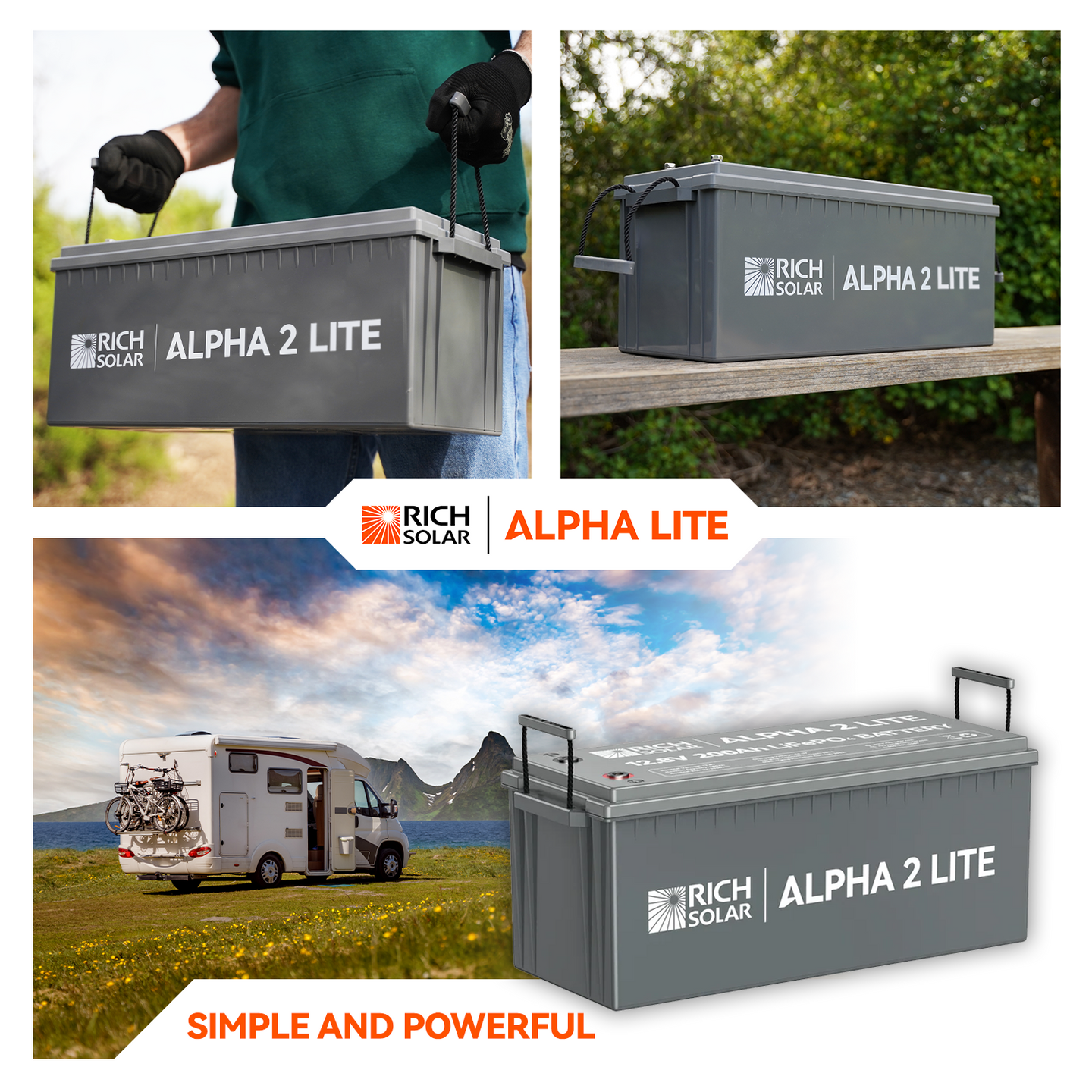

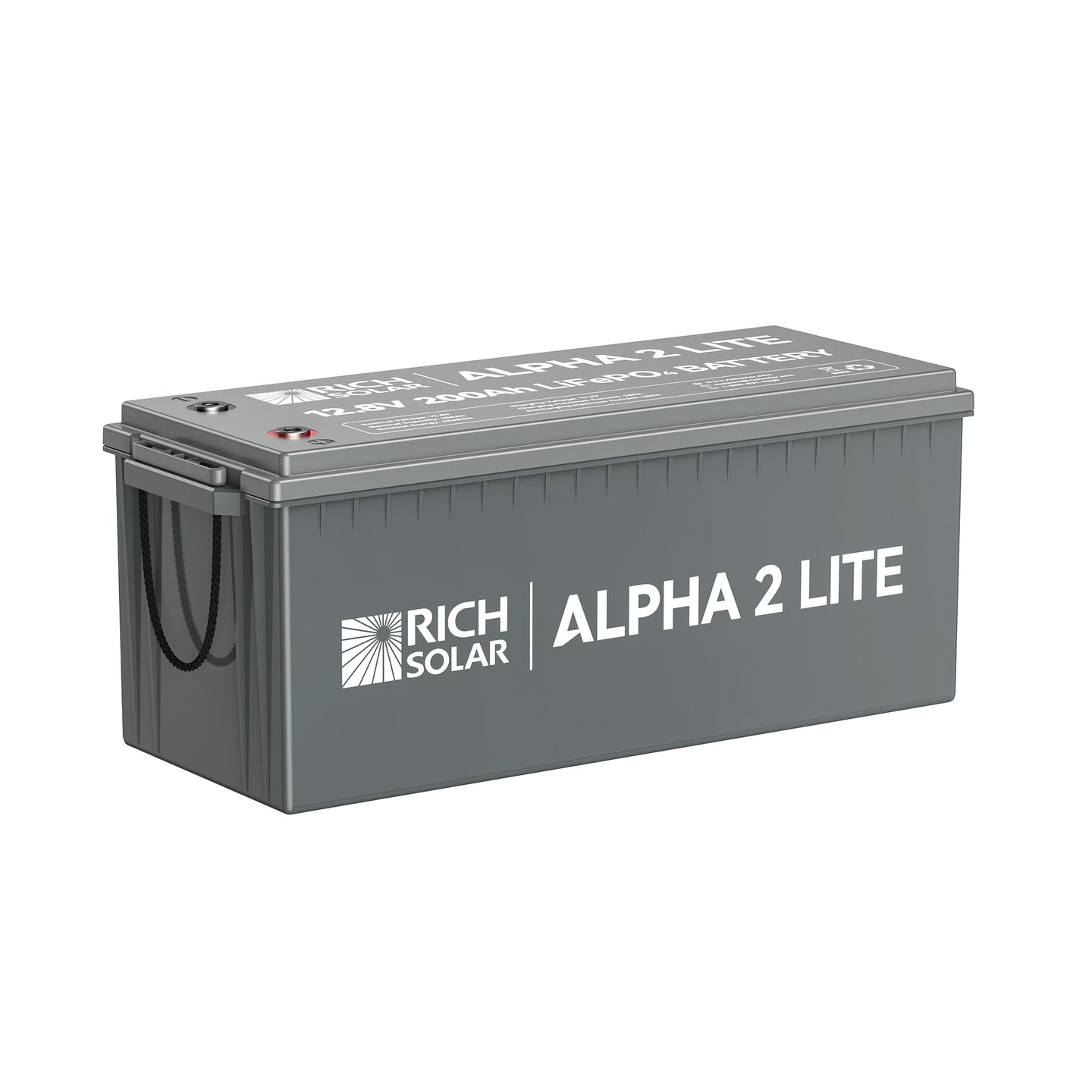

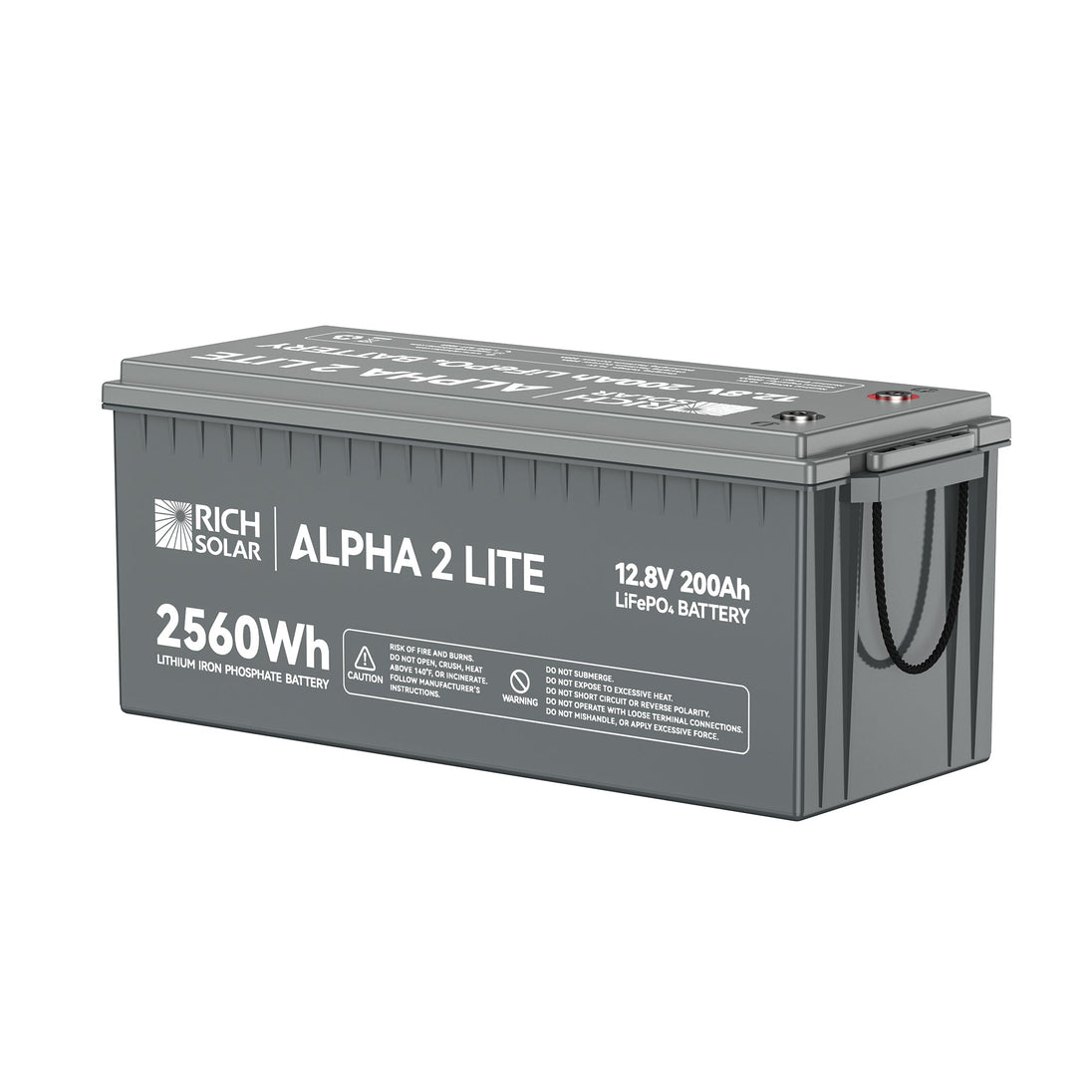

For outdoor enthusiasts and off-grid explorers seeking a robust and high-performance energy storage solution, the new ALPHA 2 LITE is a 12V 200Ah LiFePO4 battery built to deliver. With its rugged design and individually fused LiFePO4 cells, this battery offers superior protection against excessive heat, short circuits, and individual cell failures.
With a capacity of 2560Wh and an integrated Battery Management System (BMS) for optimal safety, you can rest easy knowing you'll always have power. Whether you're powering your backup system or off-grid camping in the summer, the ALPHA 2 LITE gives you the flexibility to venture anywhere without worry.
Specifications
Battery
- Nominal Voltage: 12.8V
- Nominal Capacity: 200Ah
- Minimum Capacity: 199Ah
- Cycle Life: >4000 cycles
Operating Specifications
- Capacity: 200Ah
- Energy: 2560 Wh
- Charge Voltage: 14.4V
- Continuous Discharge Current: 200A
- Self Discharge Rate: <5% per month
Temperature Performance
- Charge Temperature Range: 32°F to 131°F (0°C to 55°C)
- Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)
- Storage Temperature Range: 14°F to 113°F (-10°C to 45°C), 90% RH Max (for storage longer than 3 months)
Physical Specifications
- Battery Dimensions (L x W x H): 20.9 x 8.1 x 8.5 in
- Weight: 52.9 lbs
BMS Protection Features
-
Overcharge Protection:
- Detection Voltage: 3.75V ± 0.03V
- Detection Delay Time: 1000ms ± 500ms
- Recovery Voltage: 3.55V (Min 3.40V, Max 3.60V)
-
Over Discharge Protection:
- Detection Voltage: 2.20V ± 0.08V
- Detection Delay Time: 1000ms ± 500ms
- Recovery Voltage: 2.70V ± 0.10V
-
Short Circuit Protection: Yes
Warranty: 5 years
