Description
Specifications

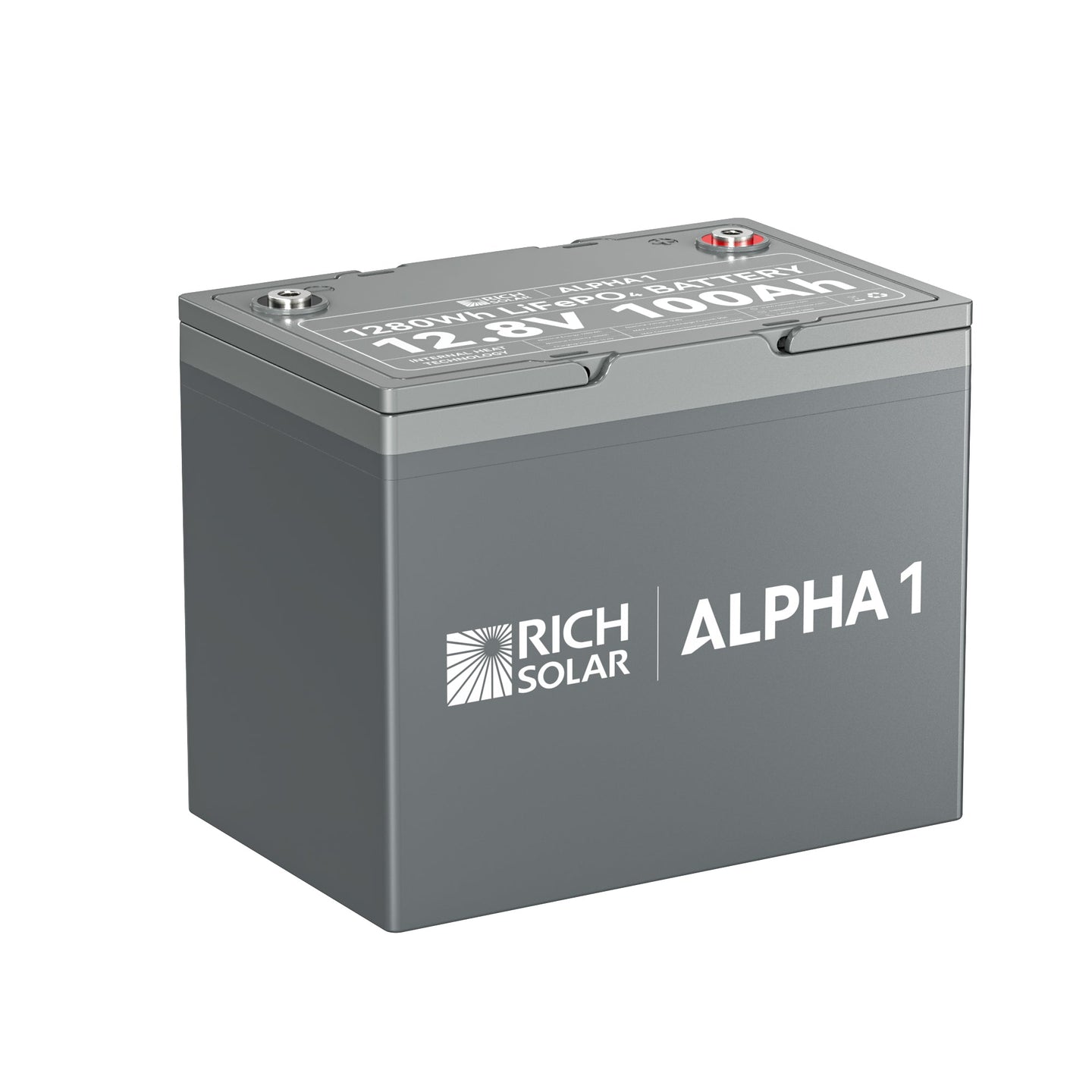

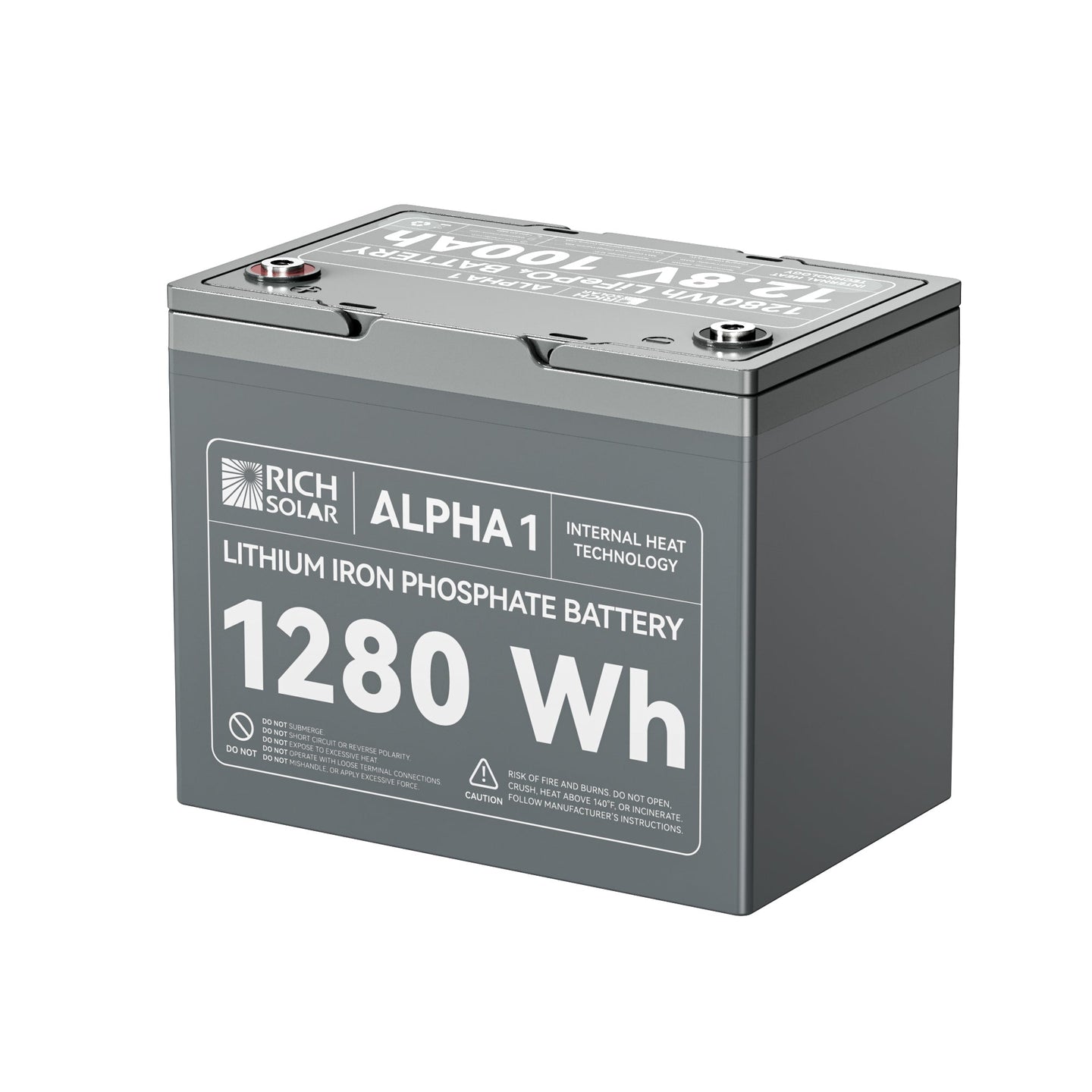

Battery
- Cell Type: LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage: 12.8V
- Nominal Capacity: 100Ah
- Nominal Energy: 1280Wh
- Cycle Life: 5000 cycles
Battery Management System (BMS)
- BMS Rating: 100A
- Maximum Charging Current: 100A
- Maximum Continuous Discharge Current: 100A
- Maximum Discharge Current (10 seconds): 110A
Charging
- Charge Method: Constant Current/Constant Voltage (CC/CV)
- Charge Voltage: 14.4V ± 0.2V
- Recommended Charge Current: 50A (0.2C)
Temperature
- Charge Temperature Range: 32℉ to 131℉ (0℃ to 55℃)
- Discharge Temperature Range: -4℉ to 140℉ (-20℃ to 60℃)
- Storage Temperature Range: 14℉ to 113℉ (-10℃ to 45℃)

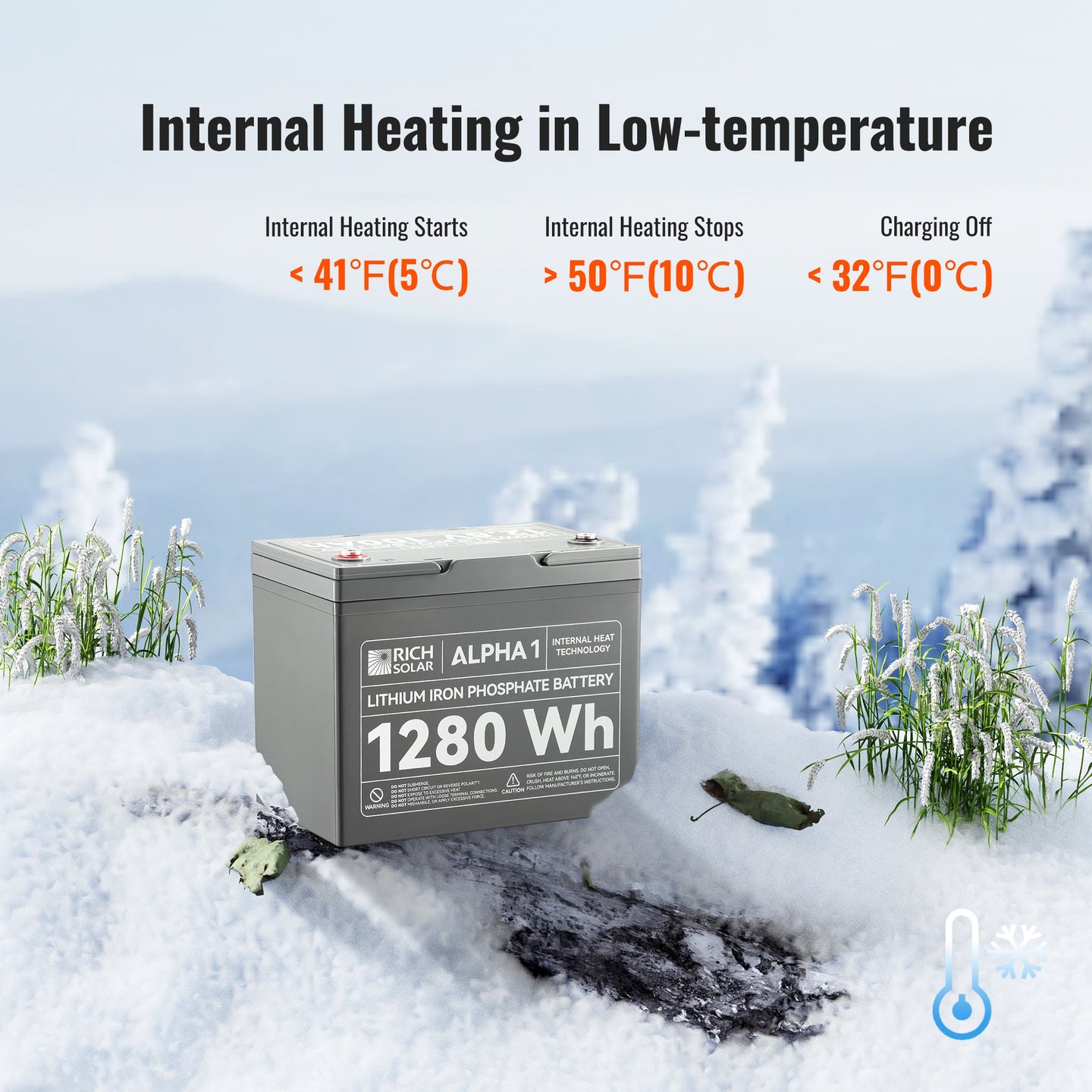

Self-Heating
- External Power Draw for Heating: 100W
- Internal Heating Start Temperature: < 41℉ (5℃)
- Internal Heating Stop Temperature: > 50℉ (10℃)
Other Specifications
- Net Weight: 24.0 lb
- Dimensions (LWH): 10.2 x 6.6 x 8.3 inches (Group 24 size)
- Housing Material: ABS (Flame Retardant Plastic)
- Protection Class: IP65
- Warranty: 5 years
