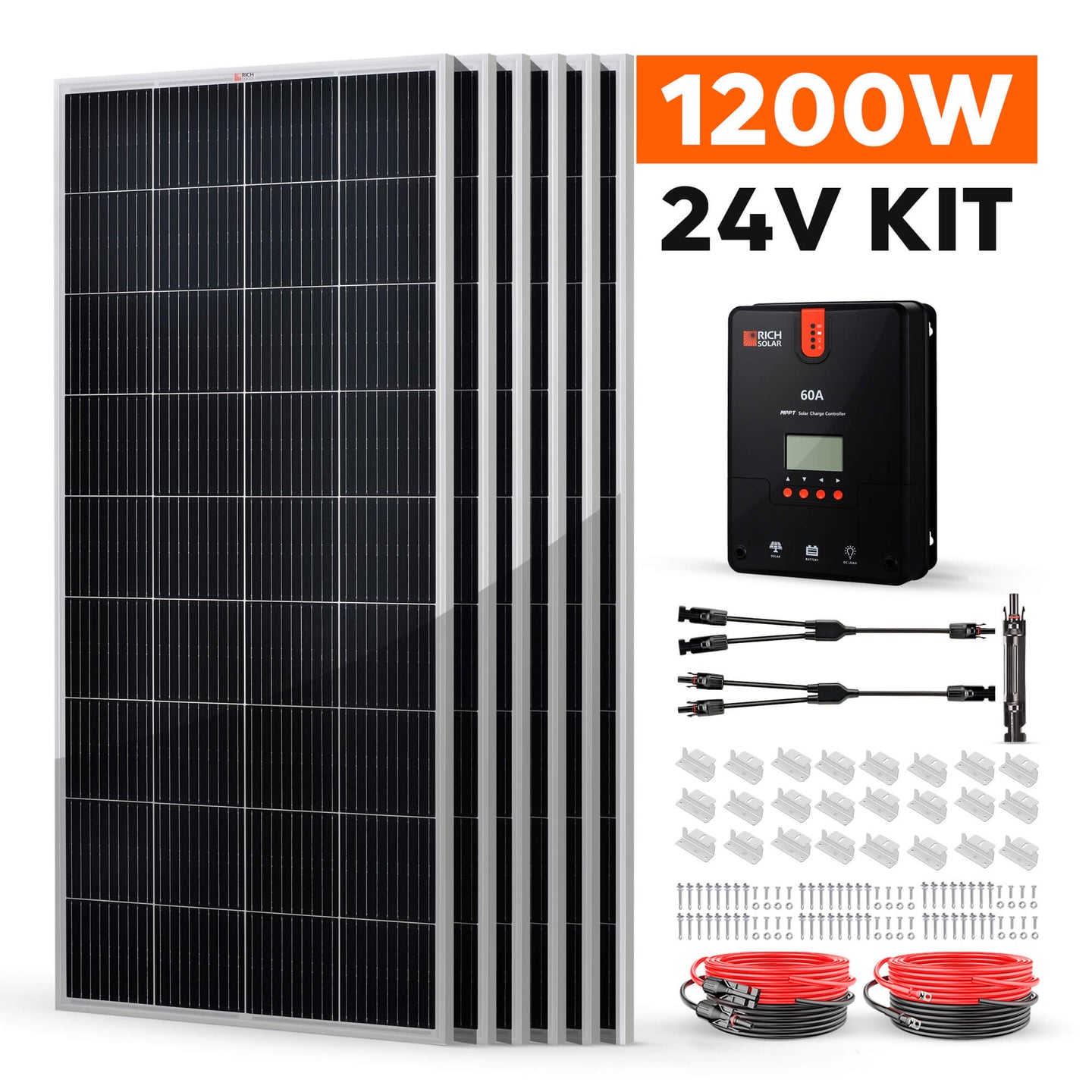

This 24V 1200W solar kit includes six high-efficiency 200W Monocrystalline panels with 9 busbars, along with a 60A MPPT charge controller. Designed for DIY RV solar setups, this kit is perfect when paired with a 300AH 24V battery bank and can provide ample power for most RVs. Experience a quieter and more peaceful outdoor lifestyle by going solar and start powering your RV, boat, or trailer today!

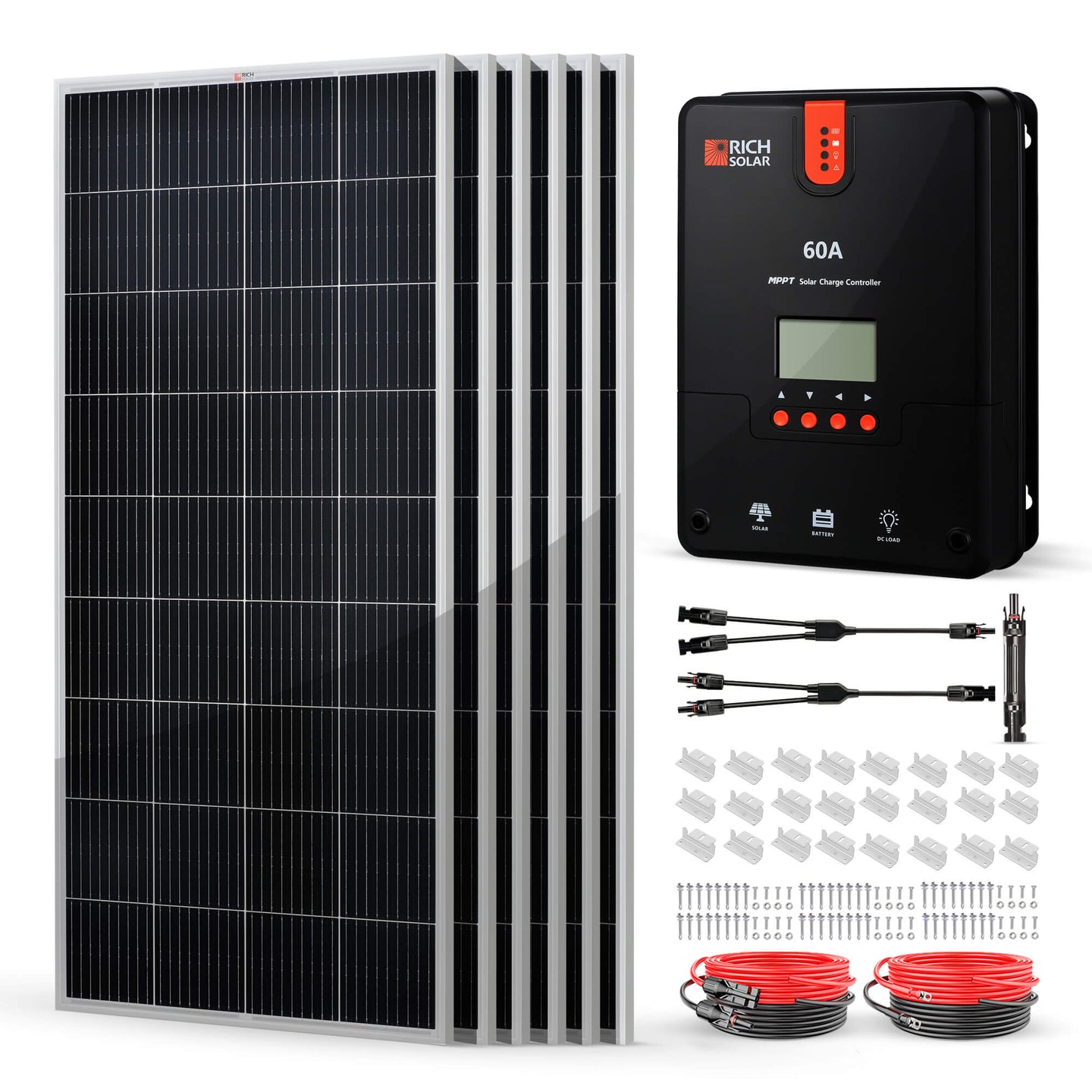

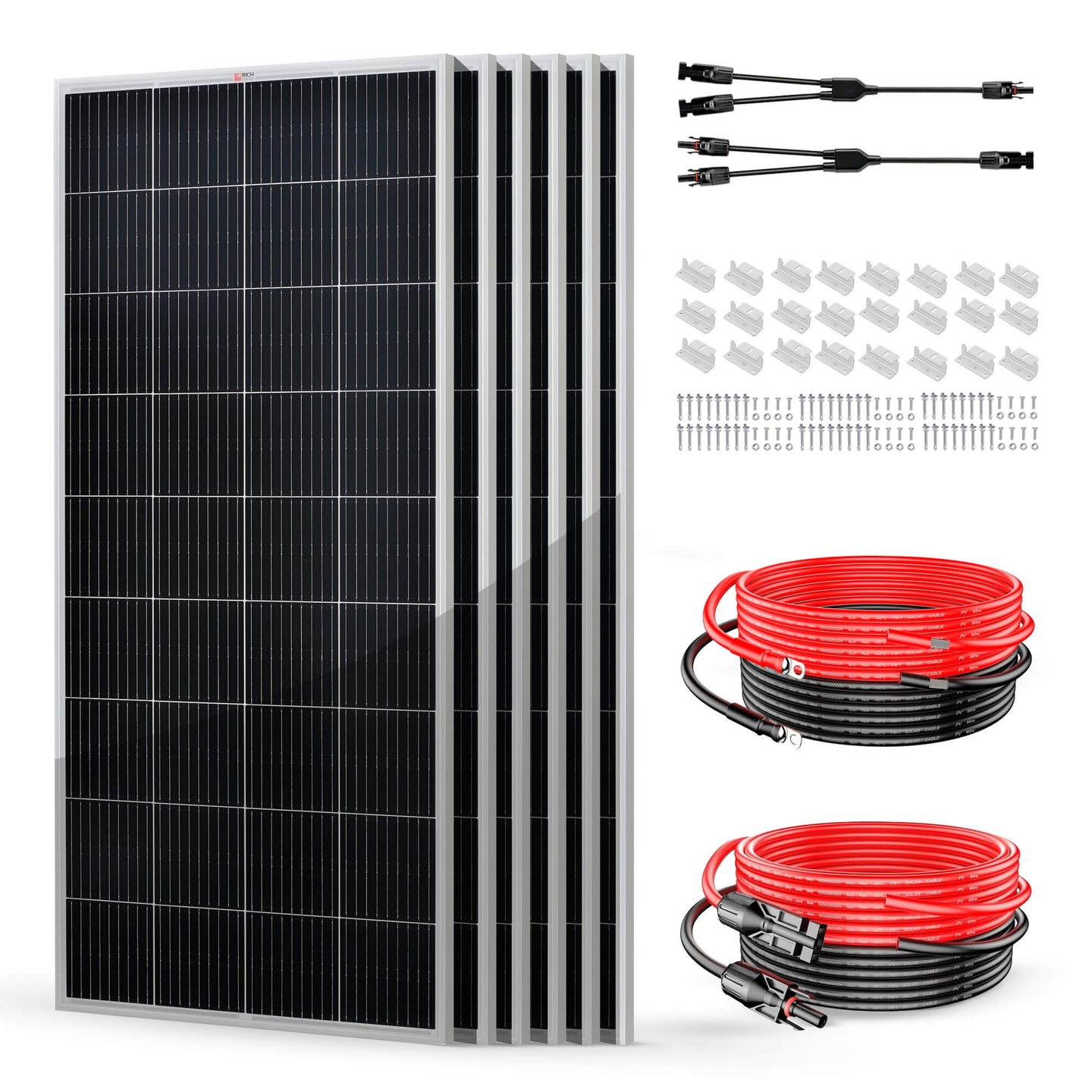

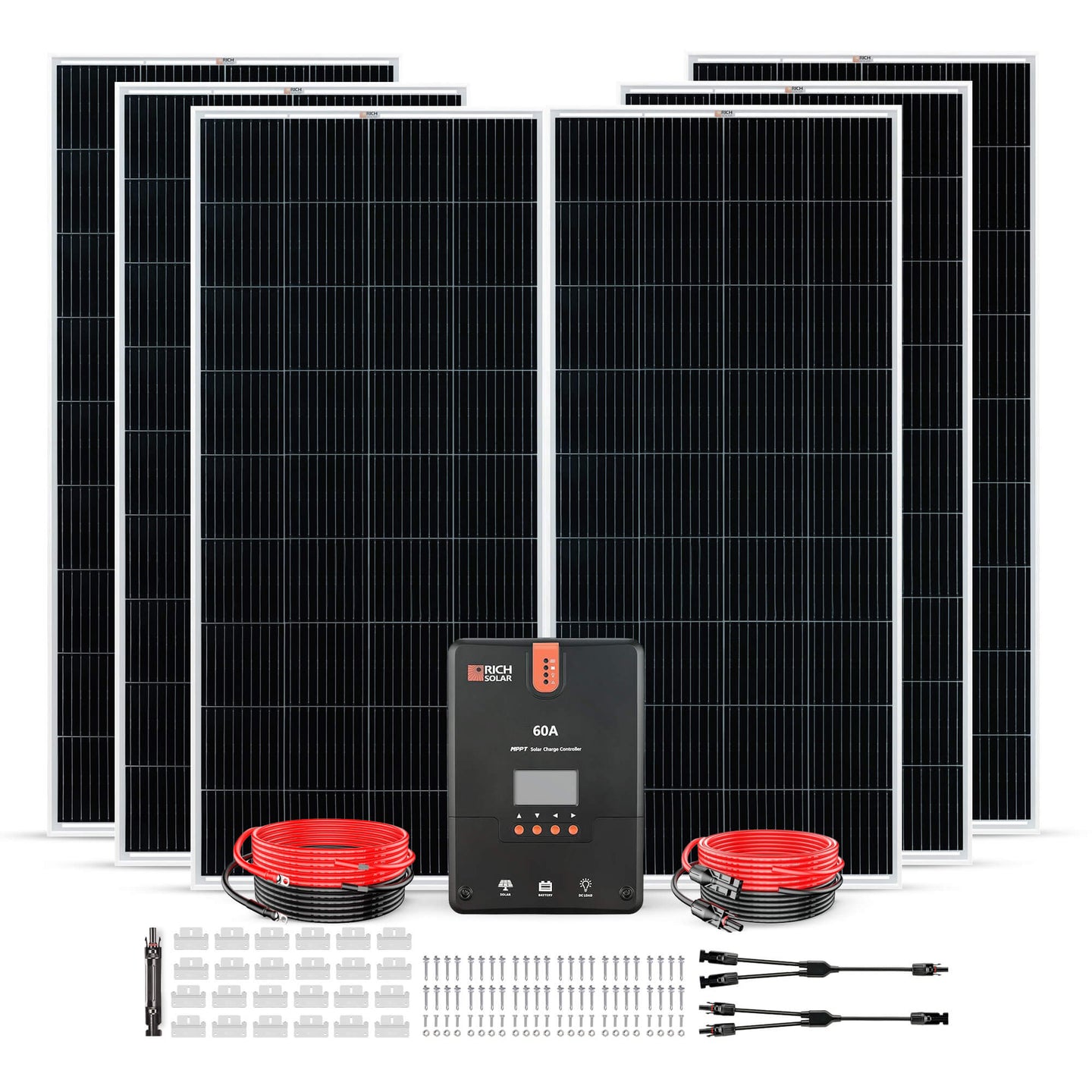

Package Includes:
- 6 x 200W Monocrystalline Solar Panels (RS-M200)
- 1 x 60A MPPT Solar Charge Controller (RS-MPPT60)
- 1 x 20' #10 Gauge Solar Cable (Red) – connects solar panels to the controller (RS-20101)
- 1 x 20' #10 Gauge Solar Cable (Black) – connects solar panels to the controller (RS-20101)
- 1 x 10' #8 Gauge Battery Cable (Red) – connects controller to the battery (RS-810)
- 1 x 10' #8 Gauge Battery Cable (Black) – connects controller to the battery (RS-810)
- 6 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
- 1 x 30A Inline Fuse Holder with Fuse (RS-SC30F)
- 1 x Y Branch Parallel Adapter (RS-T2)
High-Efficiency Solar Panels
Our 200W panels feature top-grade monocrystalline solar cells for maximum performance, and their anti-reflective coating ensures optimal light absorption for greater energy output.
Easy Installation
Setting up your RV solar system is a breeze with our pre-assembled wiring harness that doesn’t require crimping tools. All of our components are fully compatible, making it easy to expand or upgrade your system — just plug and go! Installing solar panels on RVs, trailers, and vans has never been simpler.
Reliable and User-Friendly
The digital MPPT charge controller provides real-time monitoring of your system, displaying volts, amps, and amp hours at a glance. It also protects your system from overcharging, ensuring peace of mind.
25-Year Output Warranty
Invest with confidence knowing that your off-grid RV solar system is backed by a 25-year output warranty, guaranteeing long-term performance.
200W Solar Panel Specifications:
- Maximum Power (Pmax): 200W
- Maximum Power Voltage (Vmp): 20.4V
- Maximum Power Current (Imp): 9.80A
- Open Circuit Voltage (Voc): 24.3V
- Short Circuit Current (Isc): 10.2A
- Weight: 26.5 lbs
- Dimensions: 58.7 x 26.8 x 1.4 in
- Warranty: 25-year output guarantee
Start enjoying the benefits of solar power with a reliable and efficient RV solar system that’s designed to last!
