Fountain Features

Floating lake fountain designed for large-scale commercial application.

Available in 2 HP, 3 HP, and 5 HP.

Suggested LED Lighting Packages:

2 lights for 2 HP and 3 HP
3 lights for 5 HP

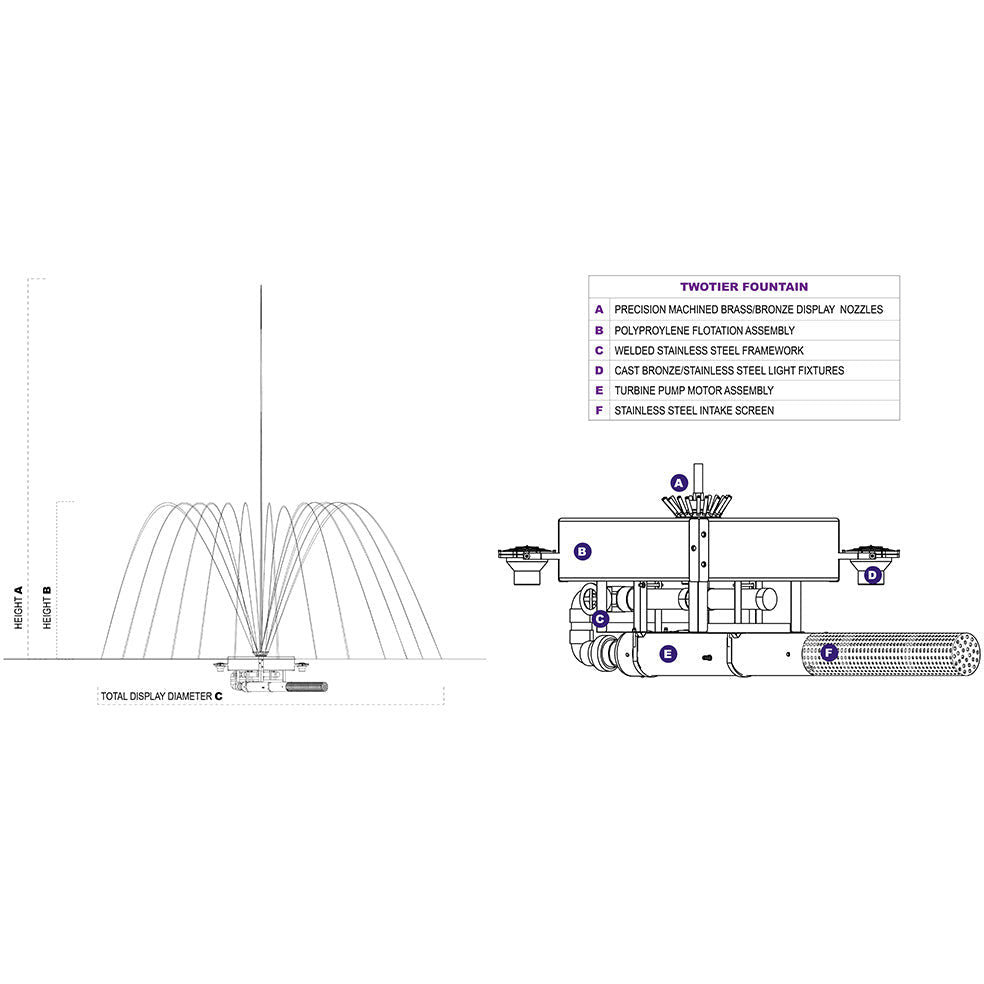

Motor HP	Center Height	Side Height	Spray Diameter
2	18'	8'	20'
3	23'	10'	25'
5	26'	12'	30'

Warranty Coverage

All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.

Display heads: 4-years

Pumps and motors: 4-years

LED Lighting: 2-years

Control Panel: 1-year

Description

The Vertex Vertical Pond Fountain models were developed using the same strict standards as our larger models and are covered under the same warranty program with 4 year coverage for display heads, pumps and motors, 2 years on LED lighting and 1 year for the control panel.

Competitively priced

Quicker installations with a self leveling design

Smaller profile/lower weight makes handling easier and reduces freight costs

Lower maintenance costs with no oils, 0-rings or seals to change

Quality and Durability

Rugged, commercial grade construction stainless steel turbine pumps/motors

Precision machined brass/stainless steel display nozzles with defined patterns

Customize your displays and/or controls

Stainless steel LED lights

Specs

Nozzles

Precision stainless steel nozzles.

Pumps/Motors

High performance turbine pump/motor assembly

Stainless steel construction

Water cooled: no oils, seals or o-rings to replace

4 year warranty

Flotation

Rotocast polypropylene with UV inhibitors for long life

Individual leveling compartments for exact adjustments

4 year warranty

Control Panel

UL listed per National Electrical Code

Weatherproof steel enclosures

Submersible Light Fixtures

43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel

Energy efficient LED, 140 lumens

Stainless steel housing

2 year warranty

Cables

(NOT INCLUDED IN LISTED PRICE)

- Call for price on cable

STW-A rated

4 year warranty

Minimum Water Depth

Motor HP	Minimum Depth
2	6.5'
3	6.5'
5	6.5'

Electrical Specs

Motor HP	Total Wattage	Amp Draw	Available Phase
2	86W	0.8	1,3
3	86W	0.8	1,3
5	129W	1.1	1,3

Documentation

Vertex Vertical Pond Fountains Brochure

Vertex Vertical TwoTier System Specifications

Vertex Vertical Fountain Manual

Power Cable

Please see below for maximum cable lengths. All cable is sold in 25' increments.

Single Phase: 230V 60HZ

HP	14/4	12/4	10/4	8/4	6/4	4/4	2/4
2	150'	250'	400'
3	125'	200'	300'	400'
5			175'	275'	400'
7.5				200'	300'	400'
10				150'	250'	400'
15					200'	300'	400'

3-Phase: 230V 60HZ

HP	14/4	12/4	10/4	8/4	6/4	4/4	2/4
2	275'	400'
3	200'	400'
5		225'	325'	400'
7.5			225'	350'	400'
10				275'	400'
15					300'	400'
20					200'	350'	400'
25						275'	400'
30							300'

3-Phase: 208V 60HZ

HP	14/4	12/4	10/4	8/4	6/4	4/4	2/4
2	225'	400'
3	175'	300'	400'
5		175'	300'	400'
7.5			200'	300'	400'
10				225'	350'	400'
15					250'	400'
20						300'	400'
25							375'
30							300'

3-Phase: 460V 60HZ

HP	14/4	12/4	10/4	8/4
2	400'
3	400'
5	400'
7.5	400'
10	300'	400'
15			400'
20			400'
25				400'
30				400'
