Fountain Features

Floating lake fountain designed for large-scale commercial application.

Available in 10 HP, 15 HP, 20 HP and 30 HP.

Suggested LED Lighting Packages:

6 lights for all sizes

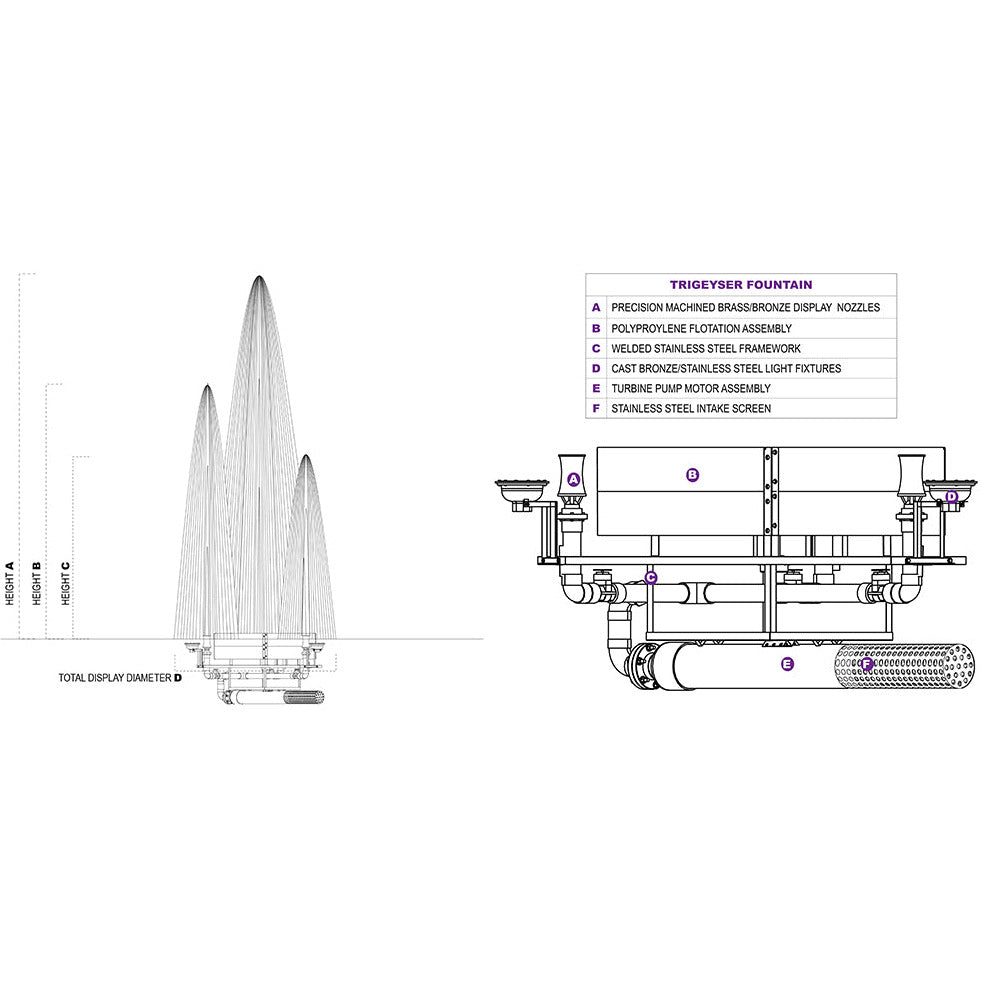

Motor HP	HT 1	HT 2	HT 3	Diam.
10	15'	10'	6'	8'
15	18'	12'	8'	9'
20	22'	15'	10'	10'
30	25'	18'	12'	12'

Warranty Coverage

All Vertex floating lake fountain designs go through extensive production quality control processes as well as continued testing after installation to ensure your product lasts.

Display heads: 4-years

Pumps and motors: 4-years

LED Lighting: 2-years

Control Panel: 1-year

Description

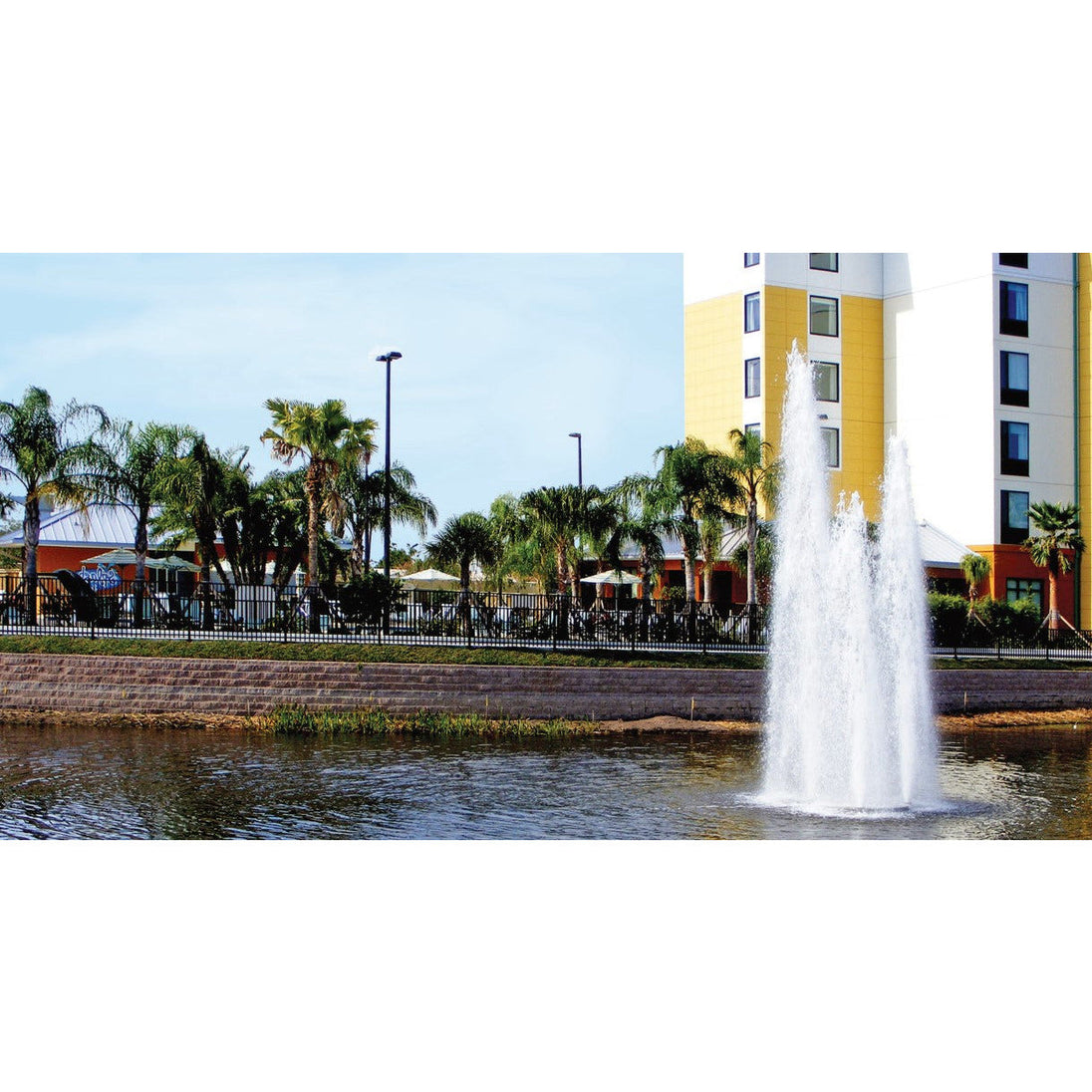

The TriGeyser floating fountain series features three heavily aerated and conical displays that come together to create an impressive pyramid of water, making it a truly unique and stunning water feature. The height proportions of each display can be easily adjusted on site by regulating the valves of each pod, allowing for customizable modifications.

Built with fully waterproof components made of high-quality corrosion-resistant materials, the TriGeyser floating lake fountain line is designed to provide years of dependable and high-performance use. Equipped with a UL listed control panel and heavy-duty submersible turbine pump, these fountains offer reliable and consistent operation.

Specs

Nozzles

Precision machined brass/bronze or stainless steel nozzles.

Pumps/Motors

High performance turbine pump/motor assembly

Stainless steel construction

Water cooled: no oils, seals or o-rings to replace

4 year warranty

Flotation

Rotocast polypropylene with UV inhibitors for long life

Individual leveling compartments for exact adjustments

4 year warranty

Control Panel

UL listed per National Electrical Code

Weatherproof steel enclosures

Submersible Light Fixtures

43Watt, 120V clear, stainless steel LED light fixtures with tempered lens and neoprene gaskets, mounting brackets and fastenings of stainless steel

Energy efficient LED, 140 lumens

Stainless steel housing

2 year warranty

Cables

(NOT INCLUDED IN LISTED PRICE)

- Call for price on cable

STW-A rated

4 year warranty

Minimum Water Depth

Motor HP	Minimum Depth
10	6'
15	7'
20	7'
30	8'

Electrical Specs

Motor HP	Total Wattage	Amp Draw	Available Phase
10	258W	3	1,3
15	258W	3	1,3
20	258W	3	3
30	258W	3	3

Documentation

Vertex TriGeyser Brochure

Vertex TriGeyser System Specifications

Vertex Fountain Owners Manual

Power Cable

Please see below for maximum cable lengths. All cable is sold in 25' increments.

Single Phase: 230V 60HZ

HP	14/4	12/4	10/4	8/4	6/4	4/4	2/4
2	150'	250'	400'
3	125'	200'	300'	400'
5			175'	275'	400'
7.5				200'	300'	400'
10				150'	250'	400'
15					200'	300'	400'

3-Phase: 230V 60HZ

HP	14/4	12/4	10/4	8/4	6/4	4/4	2/4
2	275'	400'
3	200'	400'
5		225'	325'	400'
7.5			225'	350'	400'
10				275'	400'
15					300'	400'
20					200'	350'	400'
25						275'	400'
30							300'

3-Phase: 208V 60HZ

HP	14/4	12/4	10/4	8/4	6/4	4/4	2/4
2	225'	400'
3	175'	300'	400'
5		175'	300'	400'
7.5			200'	300'	400'
10				225'	350'	400'
15					250'	400'
20						300'	400'
25							375'
30							300'

3-Phase: 460V 60HZ

HP	14/4	12/4	10/4	8/4
2	400'
3	400'
5	400'
7.5	400'
10	300'	400'
15			400'
20			400'
25				400'
30				400'

Vertex Aquatic Solutions

Vertex | TriGeyser Commercial Fountain

SKU VTXTG.10.1

Regular price: $27,810.00
