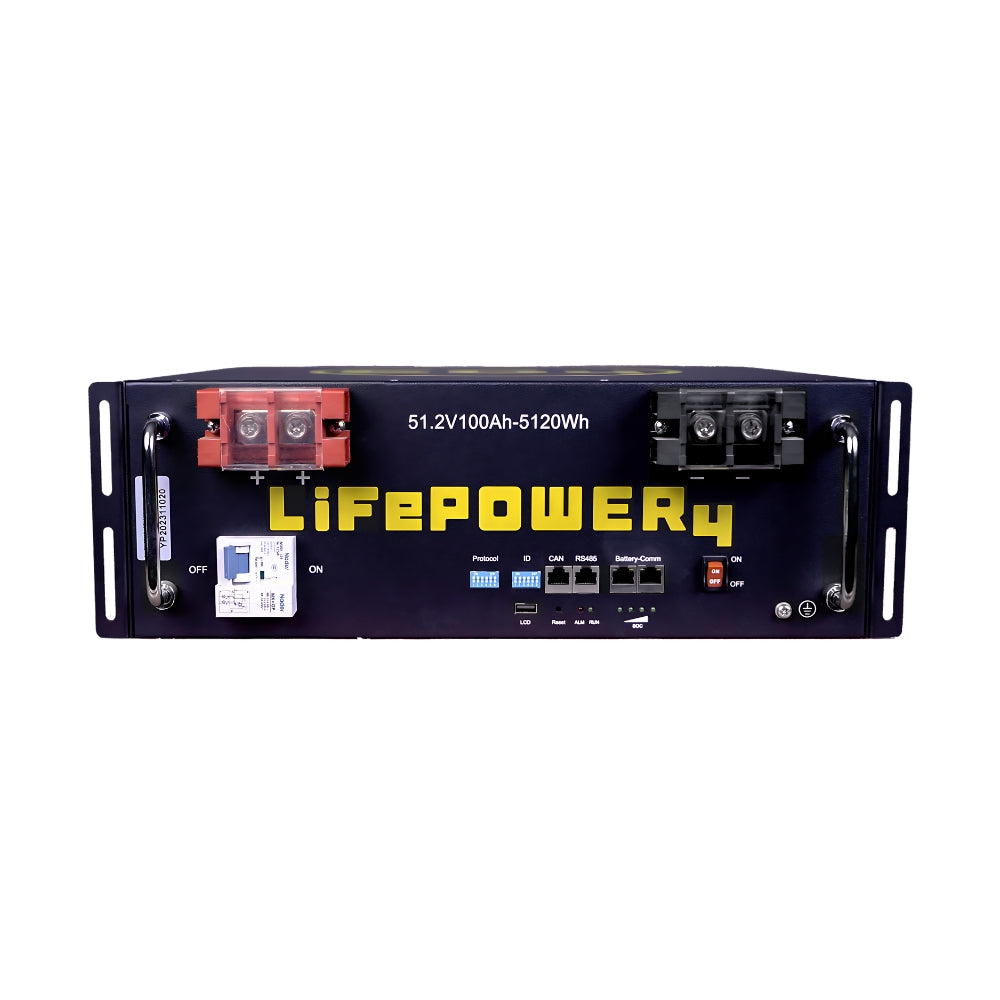

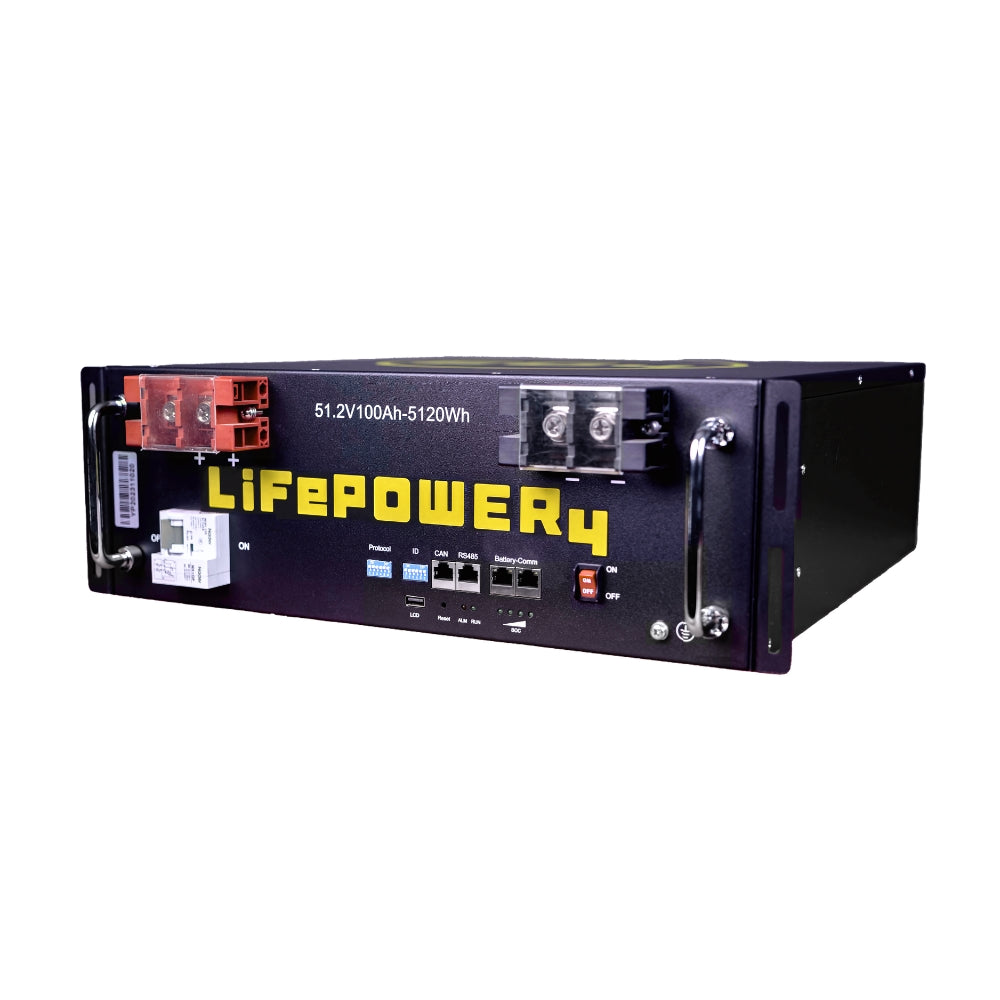

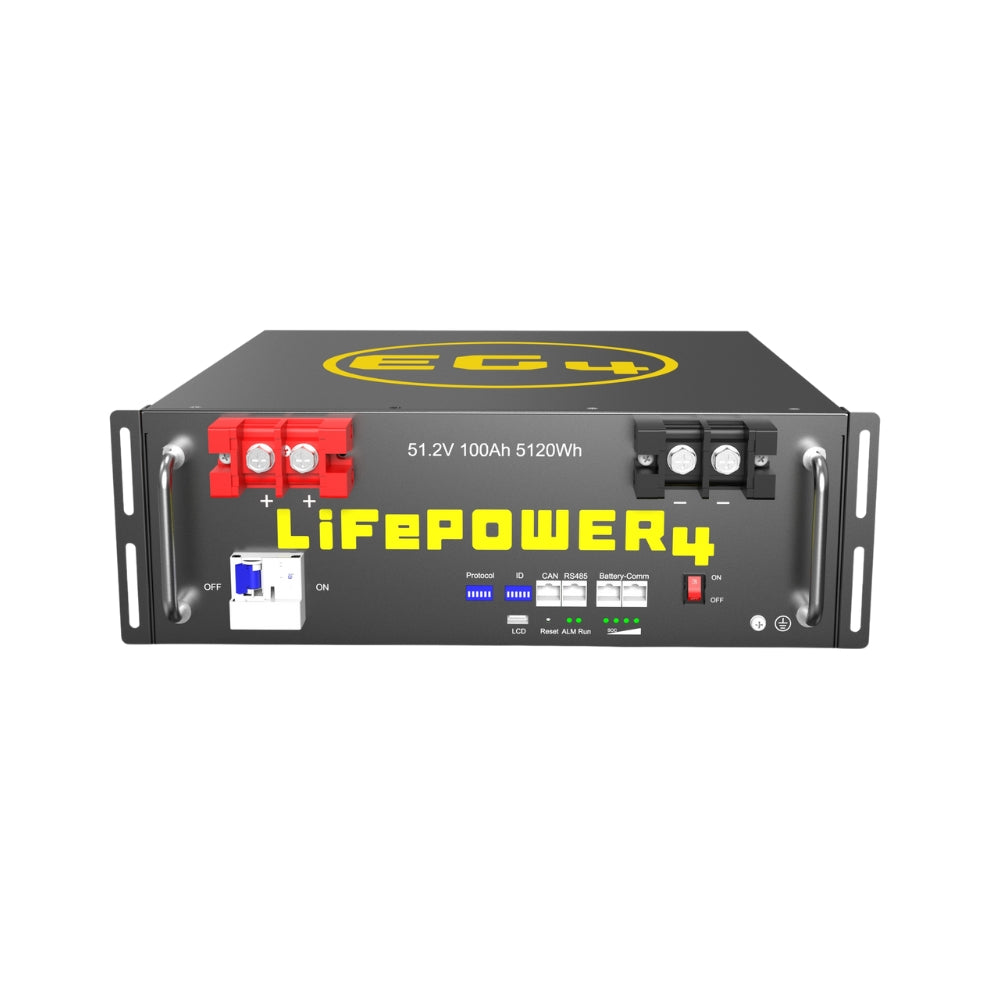

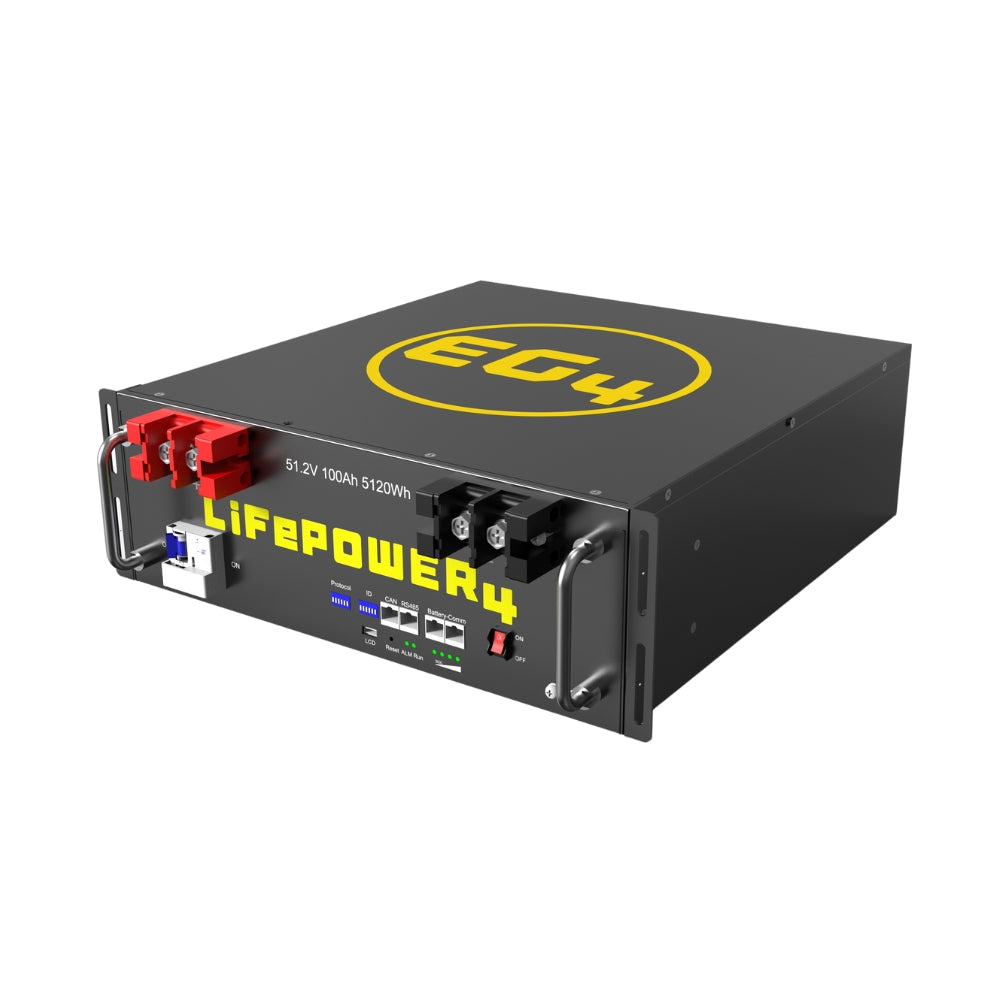

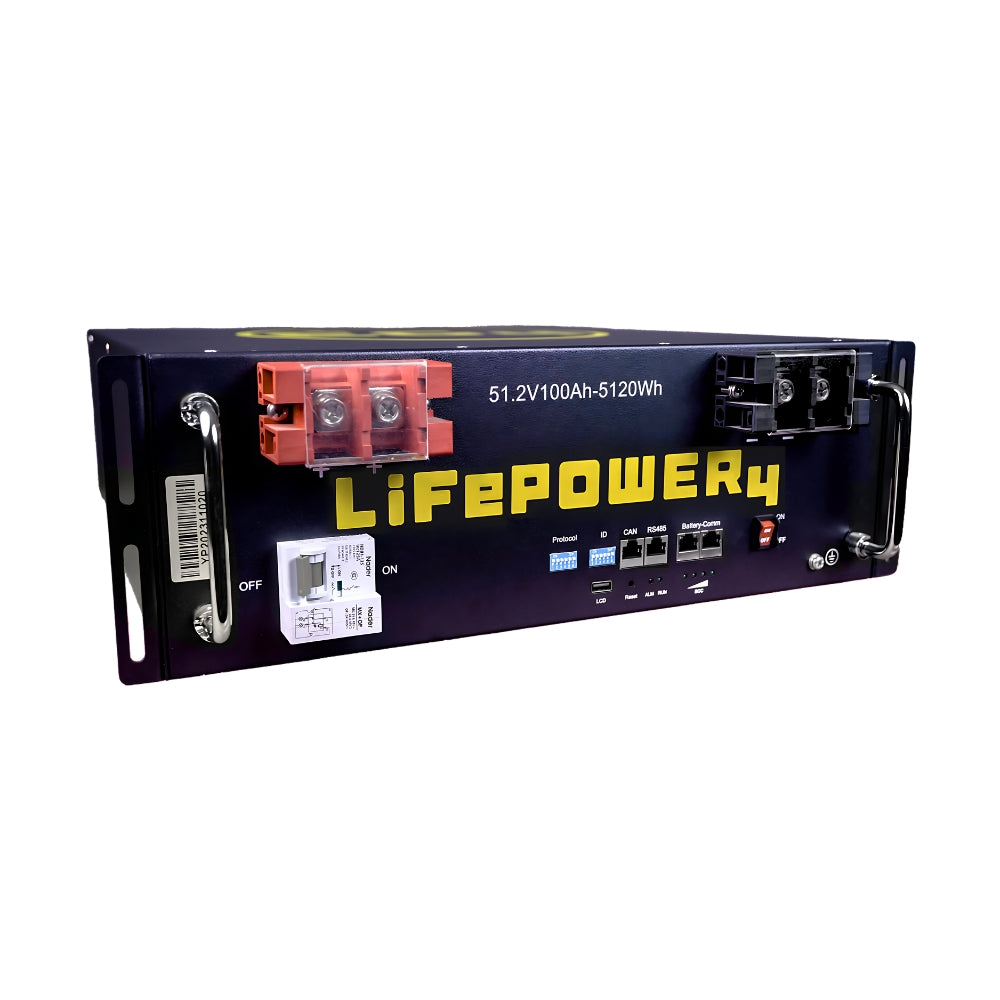

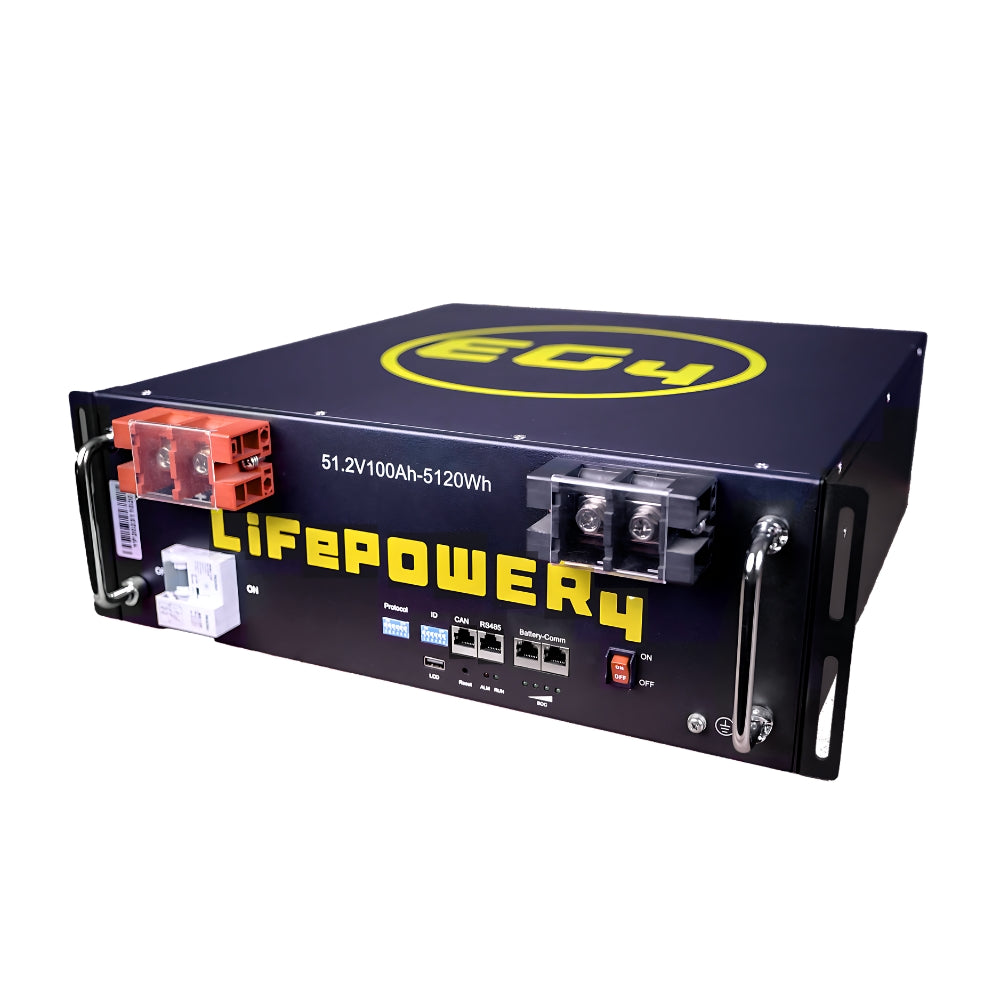

EG4 Lifepower4 V2 Lithium Server Rack Battery

The EG4 LiFePOWER4 48V V2 battery maintains the sturdy design and high performance of the original model, while adding new features for an improved user experience and better system integration. This Lithium Iron Phosphate (LiFePO4) battery is composed of 16 UL recognized prismatic 3.2V cells in series, offering over 6,000 deep discharge cycles at 80% Depth of Discharge (DoD). It has a nominal voltage of 51.2V, an energy capacity of 5.12kWh, and an internal 100A Battery Management System (BMS).

The battery supports parallel connections of up to 64 units and includes a 10-year limited warranty. Improved terminal connections make it easier to attach chargers or EMP shields. The LiFePOWER4 48V V2 also features RS485 and CAN bus communication for broader inverter compatibility, along with a new Protocol 6 DIP switch for straightforward and convenient inverter and battery customization. Additionally, the E-Stop (Emergency Stop) rapid shutdown (RSD) functionality ensures fail-safe operation in high-risk environments, and dual on-board fire arrestors provide added peace of mind during operation.

EG4 Lifepower4 V2 Features and Benefits

• Retains the robust architecture and high performance of its predecessor
• Composed of 16 UL recognized prismatic 3.2V cells in series
• Tested for over 6,000 deep discharge cycles at 80% Depth of Discharge (DoD)
• Nominal voltage: 51.2V
• Energy capacity: 5.12kWh
• Charge capacity: 100Ah
• New 10-year warranty
• Internal 100A Battery Management System (BMS)
• Equipped with BMS communication on/off switch
• New Protocol 6 DIP switch for convenient inverter and battery customization
• Supports closed-loop communication of up to 64 batteries in parallel, for a maximum storage capacity of 327.7kWh
• Enhanced terminal connections with two positive and two negative terminals
• CAN bus and RS485 ports for communication with a wider range of inverters
• E-Stop (Emergency Stop) rapid shutdown (RSD) functionality for fail-safe operation in high-risk environments
• Dual on-board fire arrestors for added safety during operation
• UL 1973 Recognized Component, UL 9540A (passed), UL 9540 Listed with 18kPV-12LV
