Description
Specifications
Battery
- Cell Type: LiFePO4 (Lithium Iron Phosphate)
- Nominal Voltage: 12.8V
- Nominal Capacity: 200Ah
- Energy Capacity: 2560Wh
- Cycle Life: Up to 7000 cycles
- Maximum Expansion (Parallel & Series): 4P4S

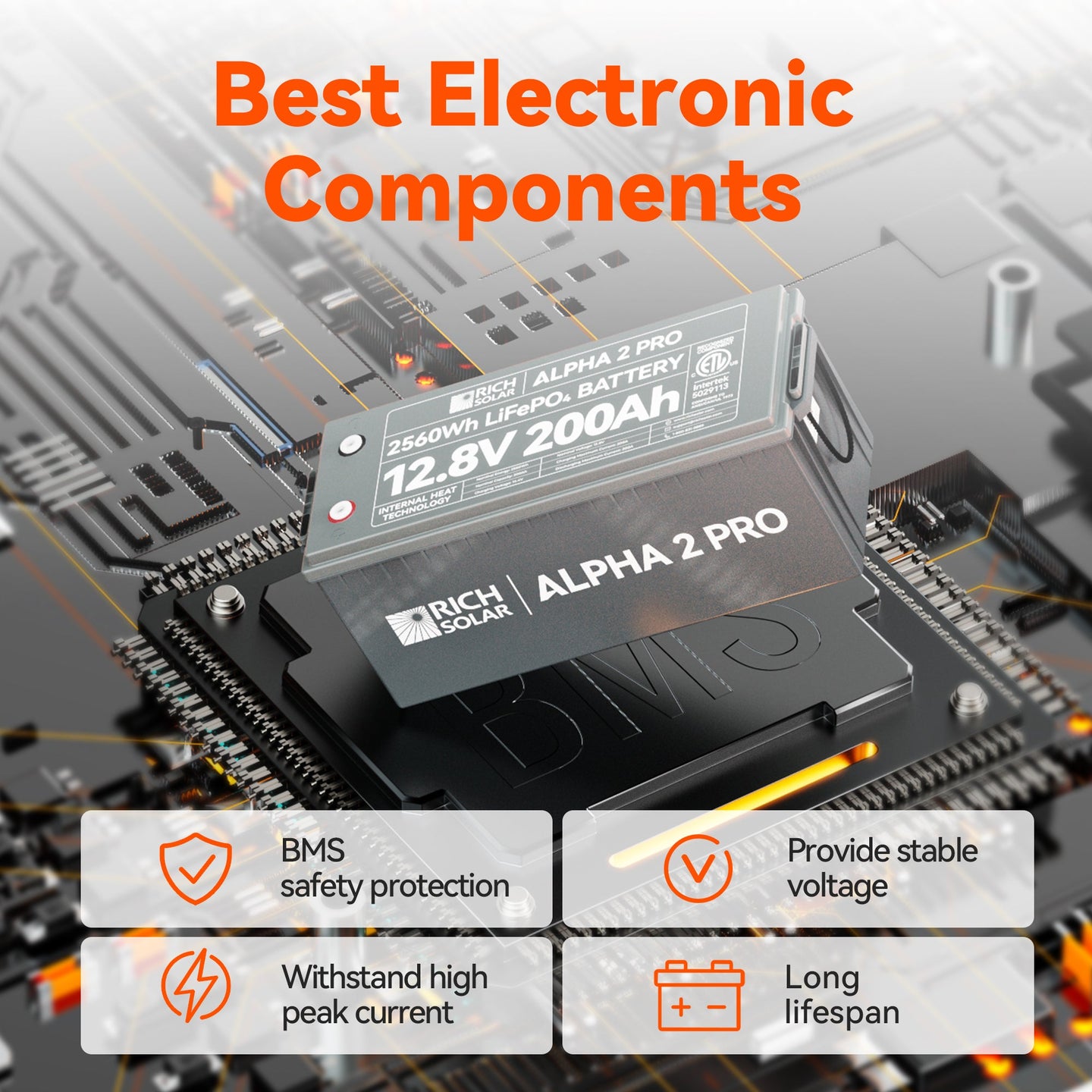

BMS (Battery Management System)
- BMS Rating: 100A
- Max Charging Current: 200A
- Max Continuous Discharge Current: 200A
- Max Discharge Voltage (CC/CV): 14.4V
Charging
- Charge Method: Constant Current / Constant Voltage (CC/CV)
- Charge Voltage: 14.4V ± 0.2V
- Recommended Charge Current: 50A (0.2C)
Temperature Range
- Charge Temperature: 32°F to 131°F (0°C to 55°C)
- Discharge Temperature: -4°F to 140°F (-20°C to 60°C)
- Storage Temperature: 14°F to 95°F (-10°C to 35°C)

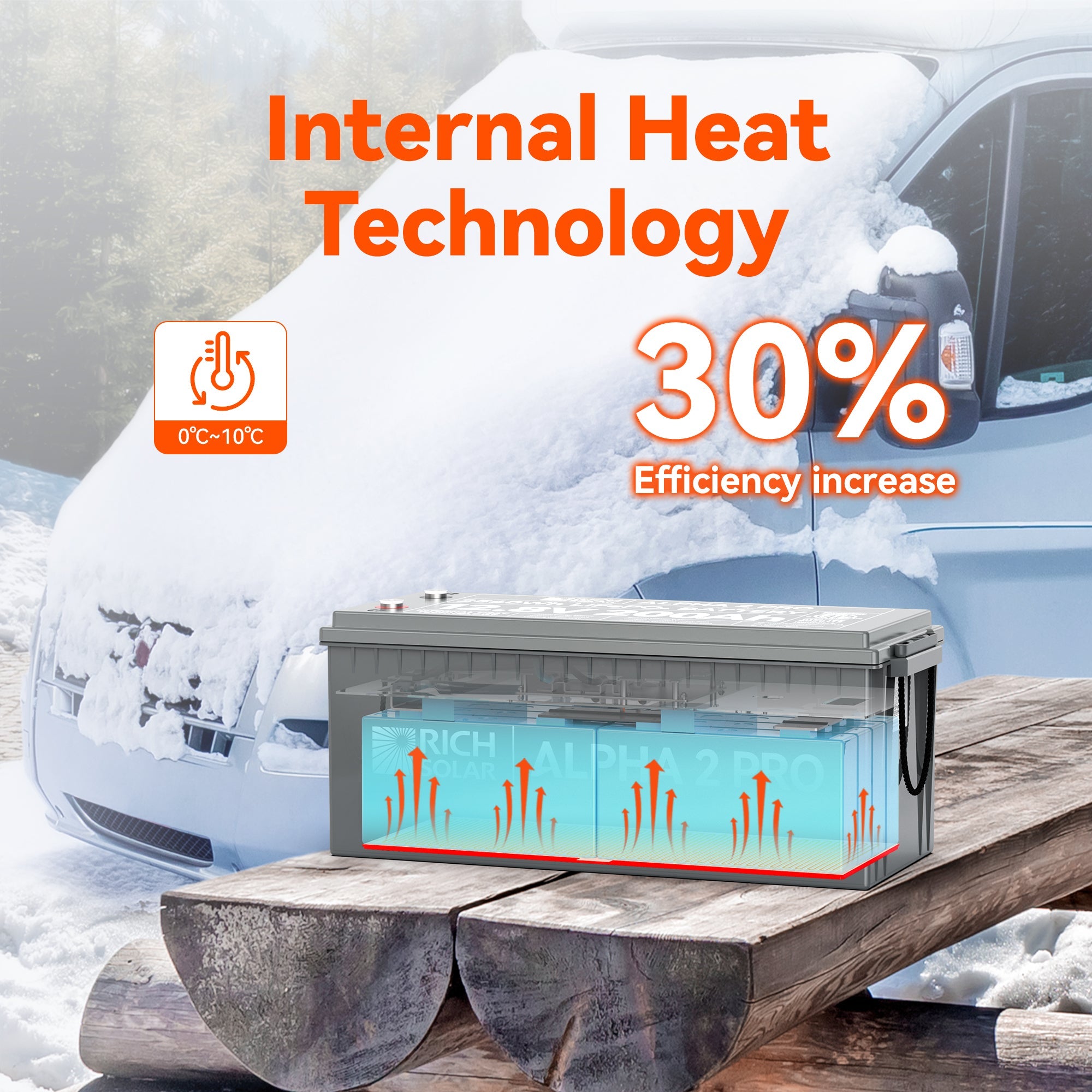

Self-Heating
- External Power Draw: 100W
- Heating Activation: Below 41°F (5°C)
- Heating Deactivation: Above 50°F (10°C)
Additional Specifications
- Net Weight: 52.9 lbs

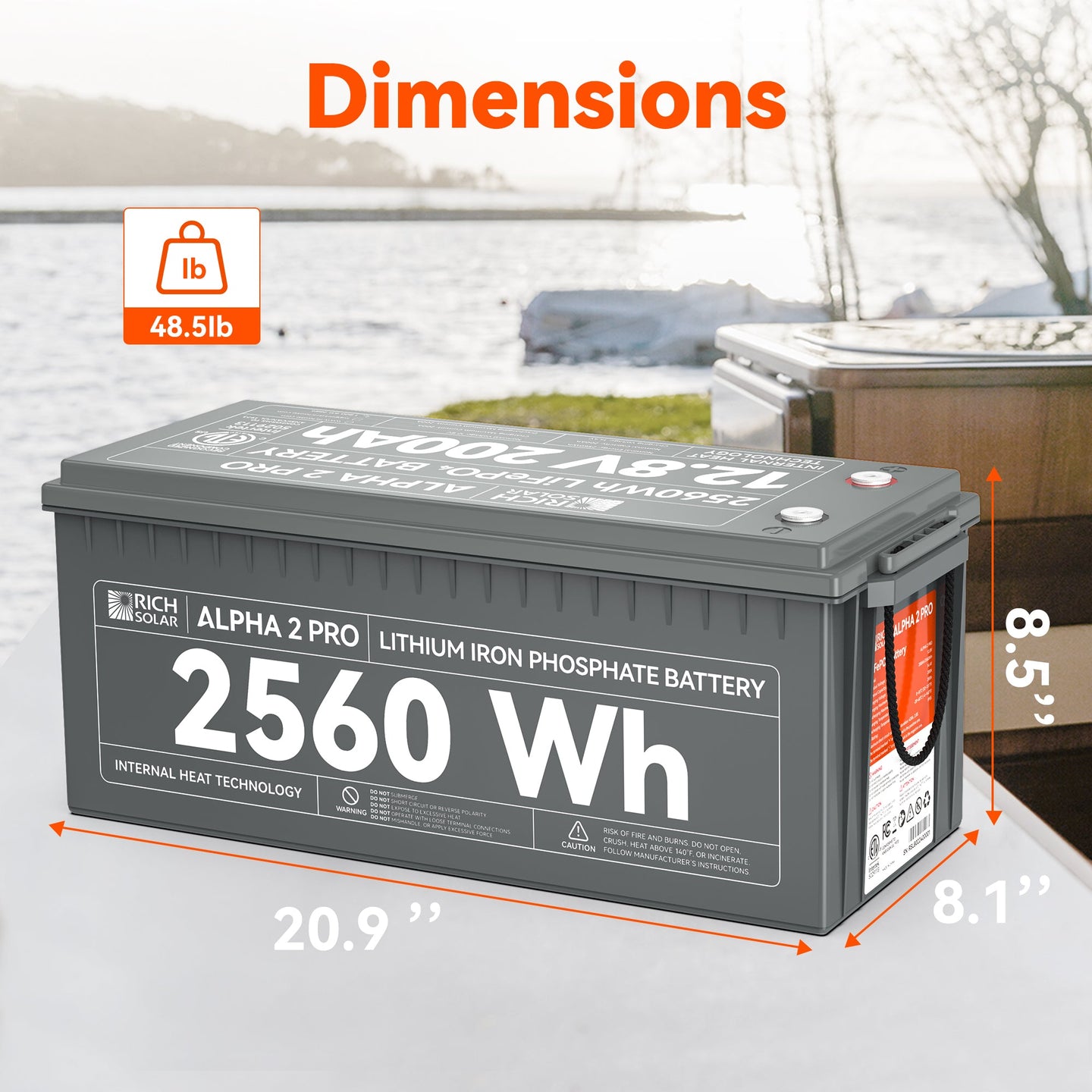

- Dimensions (LWH): 20.9 x 8.1 x 8.5 in

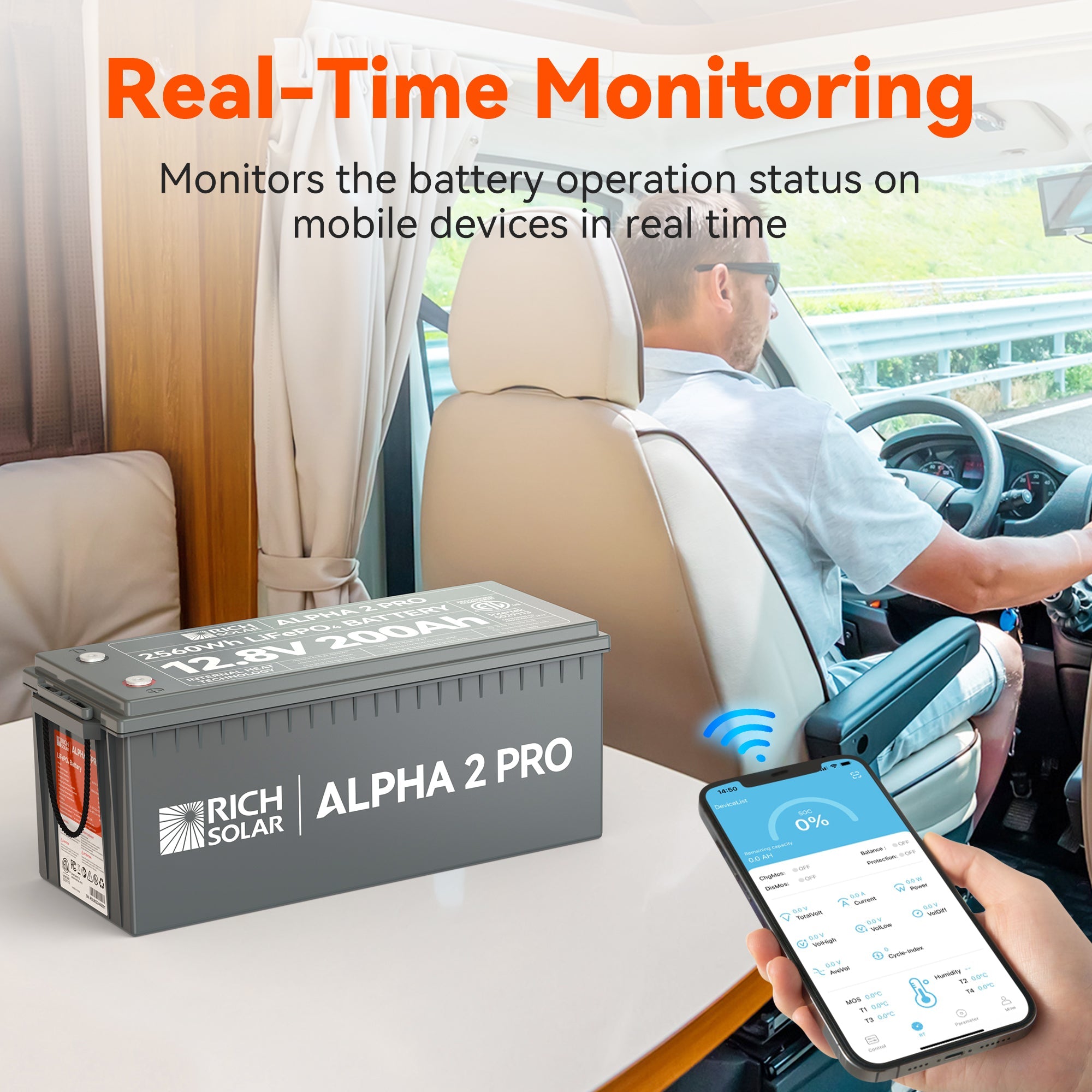

- Bluetooth Remote Monitoring: Supported
- Housing Material: ABS (Flame Retardant Plastic)
- Protection Class: IP55
- Warranty: 10 Years
- Certifications: UL1973, FCC, UN38.3, ETL
