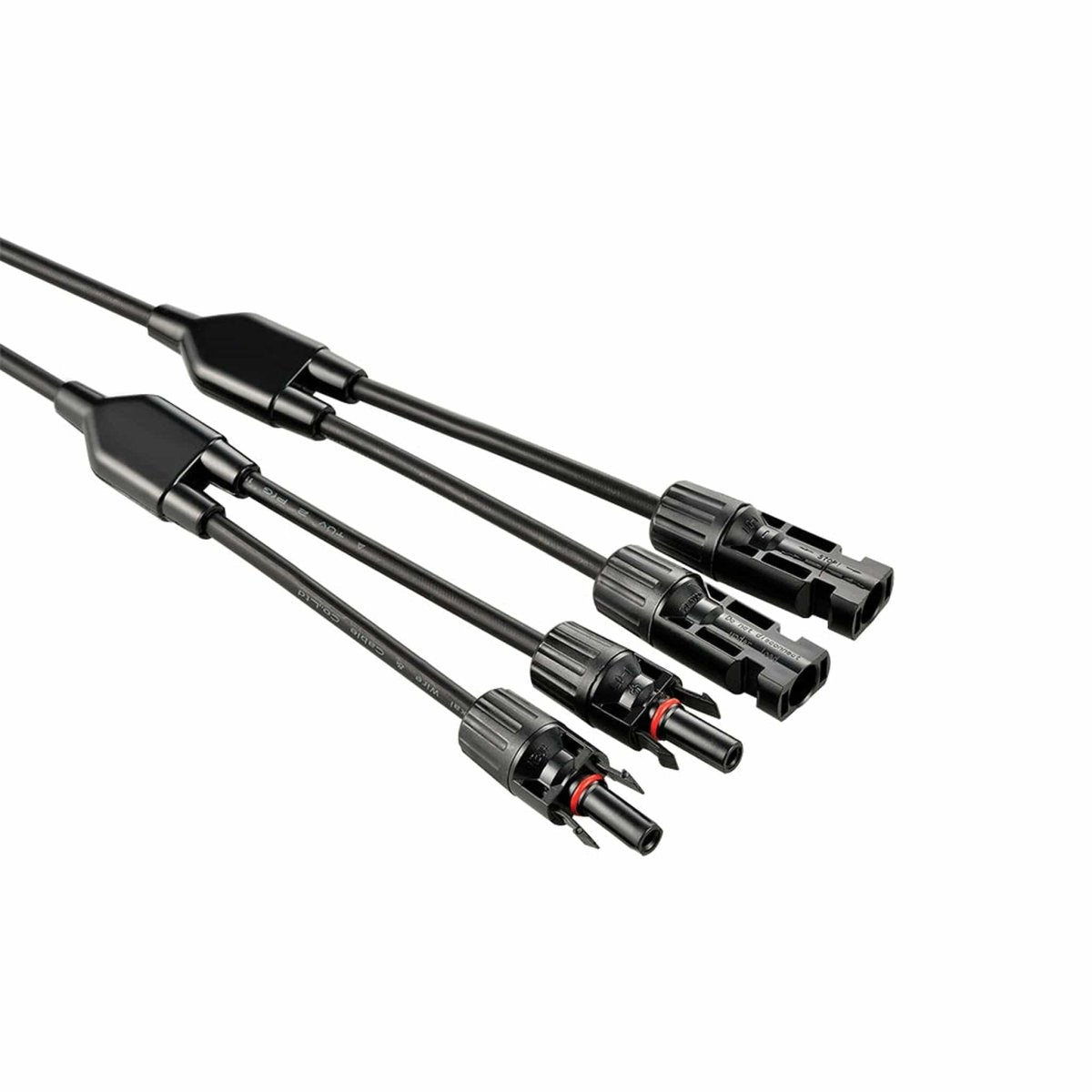

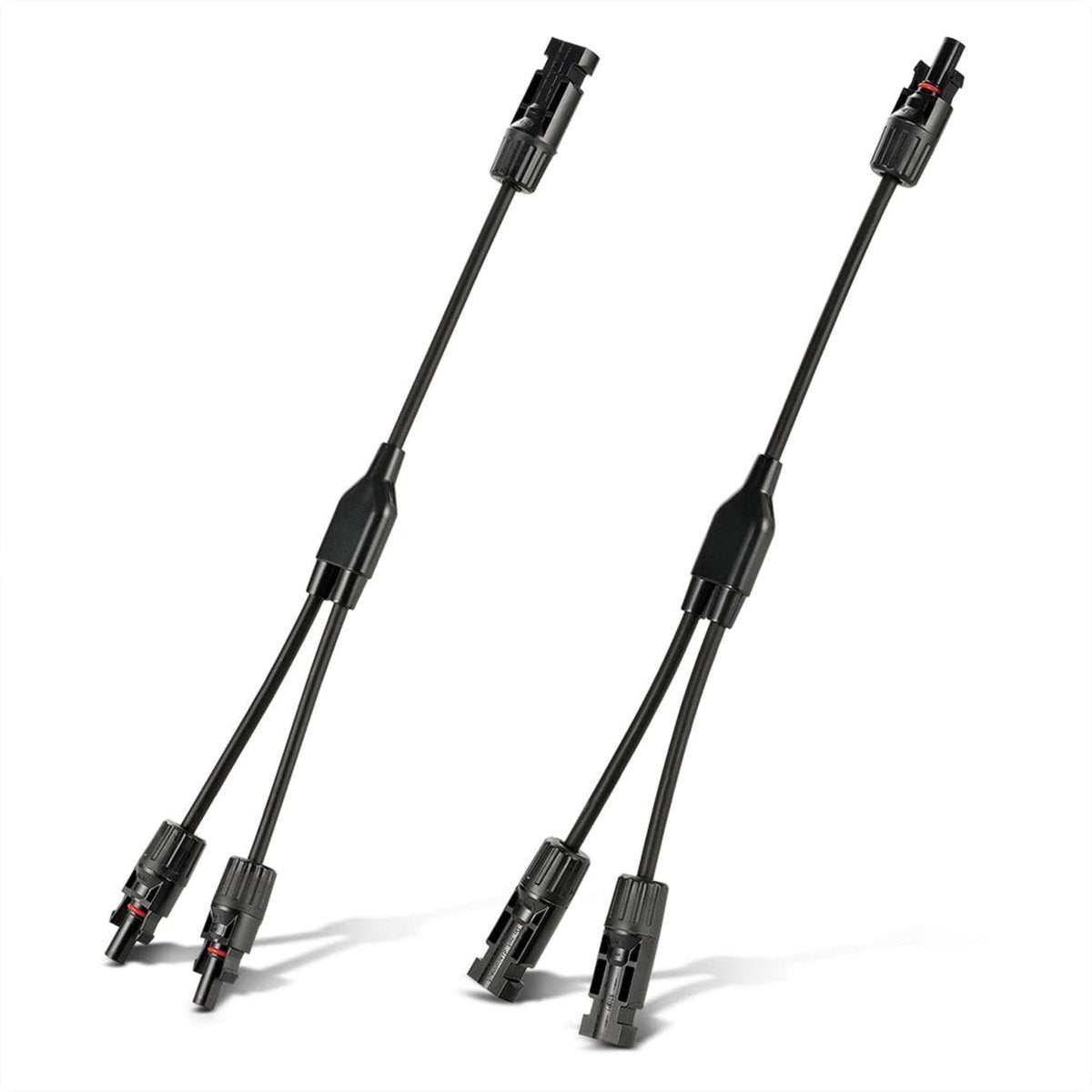

Y Branch 2 to 1 Solar Panel Parallel Adapters

Overview

These Y Branch 2 to 1 Parallel Adapters provide a reliable and weatherproof connection for combining multiple solar panels. Designed for easy installation, they support expansion of off grid solar systems and are compatible with standard solar connectors. Their durable design makes them suitable for outdoor use in various conditions.

Benefits

• Quick parallel wiring to connect two solar panels and increase current output

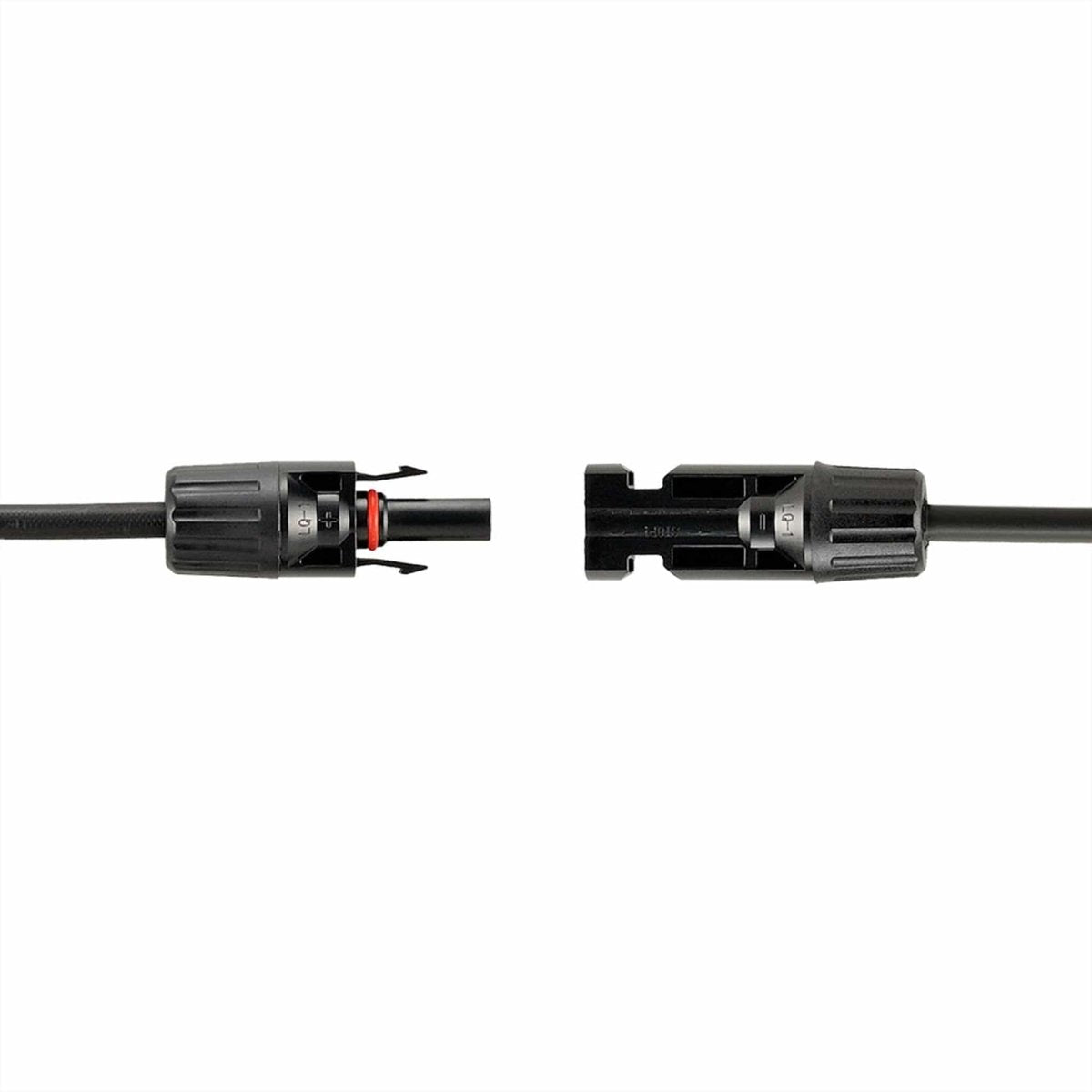

• Works with all standard solar connectors for simple integration
• Durable materials resist mechanical stress and harsh weather
• Tool free installation and removal for convenience
• Waterproof and dustproof to protect against moisture and debris

Features

• Rated current of 20 amps
• Maximum voltage of 1000 volts DC
• Waterproof rating of IP67
• Supports wire size 12 AWG
• Insulation made from TPE and PPO
• Internal contacts made of tinned copper
• Temperature range from minus 40 degrees Celsius to plus 90 degrees Celsius
• Safety level two

Specifications

• Rated Current: 20A
• Maximum Voltage: 1000VDC
• Waterproof: IP67
• Wire Range: 12 AWG
• Insulation Material: TPE/PPO
• Inner Material: Tinned Copper
• Temperature Range: -40°C to +90°C
• Safety Degree: II
