FEATURES

• Pure Sine Wave Output
• Integrated MPPT Solar Charge Controller

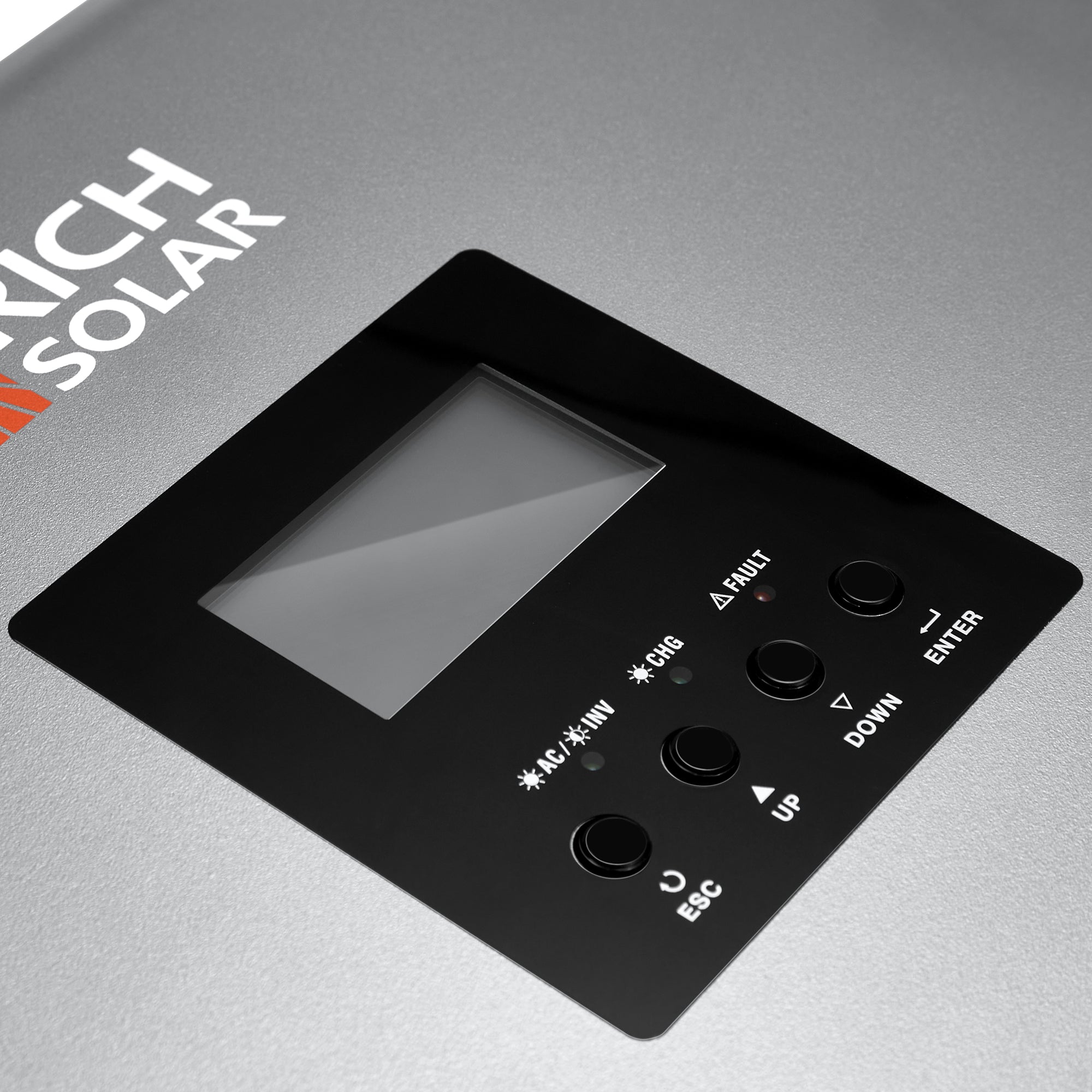

• Adjustable input voltage range for home appliances and personal computers via LCD settings
• Customizable battery charging current based on application needs via LCD settings
• Selectable AC/Solar charger priority through LCD settings
• Compatible with grid power or generator input
• Automatic restart when AC power is restored
• Protection against overload, overheating, and short circuits
• Intelligent battery charger design for optimal battery performance
• Cold start capability

SPECIFICATIONS

INVERTER

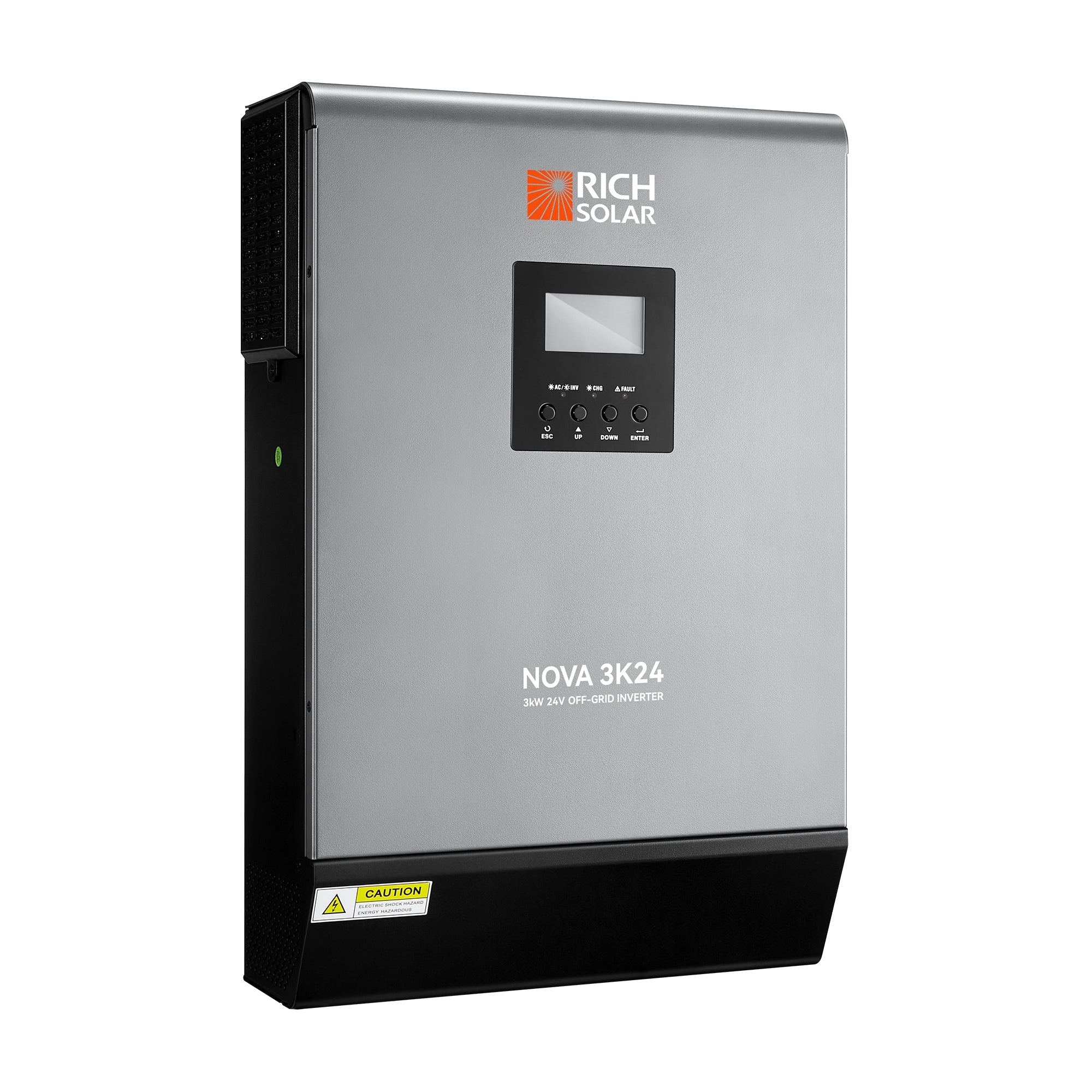

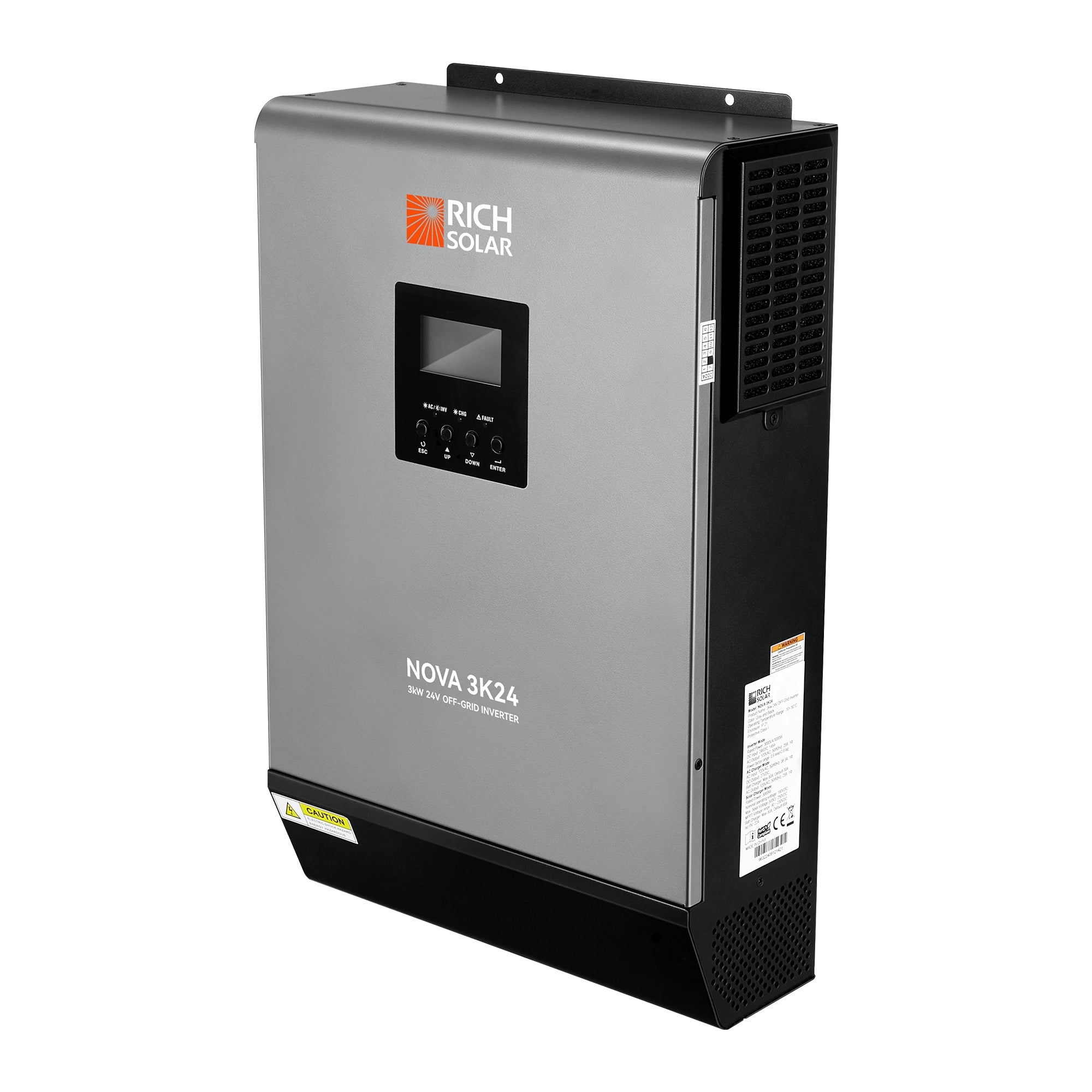

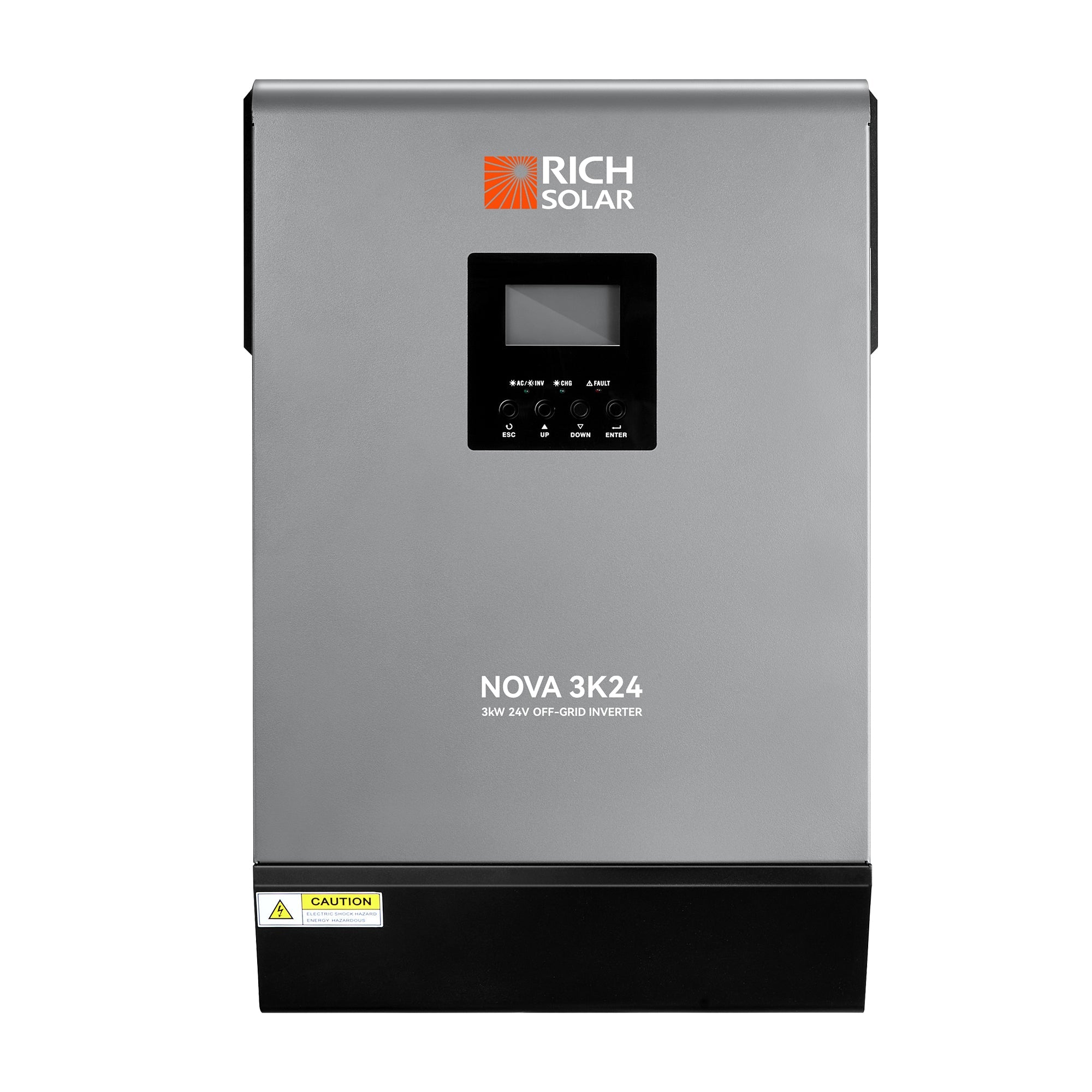

• Model: NOVA 3K24
• Rated Power: 3KVA / 3KW
• Output Voltage Waveform: Pure Sine Wave
• Voltage Regulation: 120VAC ±5%
• Output Frequency: 60Hz / 50Hz
• Peak Efficiency: 91%
• Surge Capacity: 2x rated power for 5 seconds
• Nominal DC Voltage: 24VDC

SOLAR INPUT

• Max. PV Array Open Circuit Voltage: 250VDC
• PV Array MPPT Voltage Range: 90VDC to 230VDC
• Max. Input Current: 18A

PHYSICAL

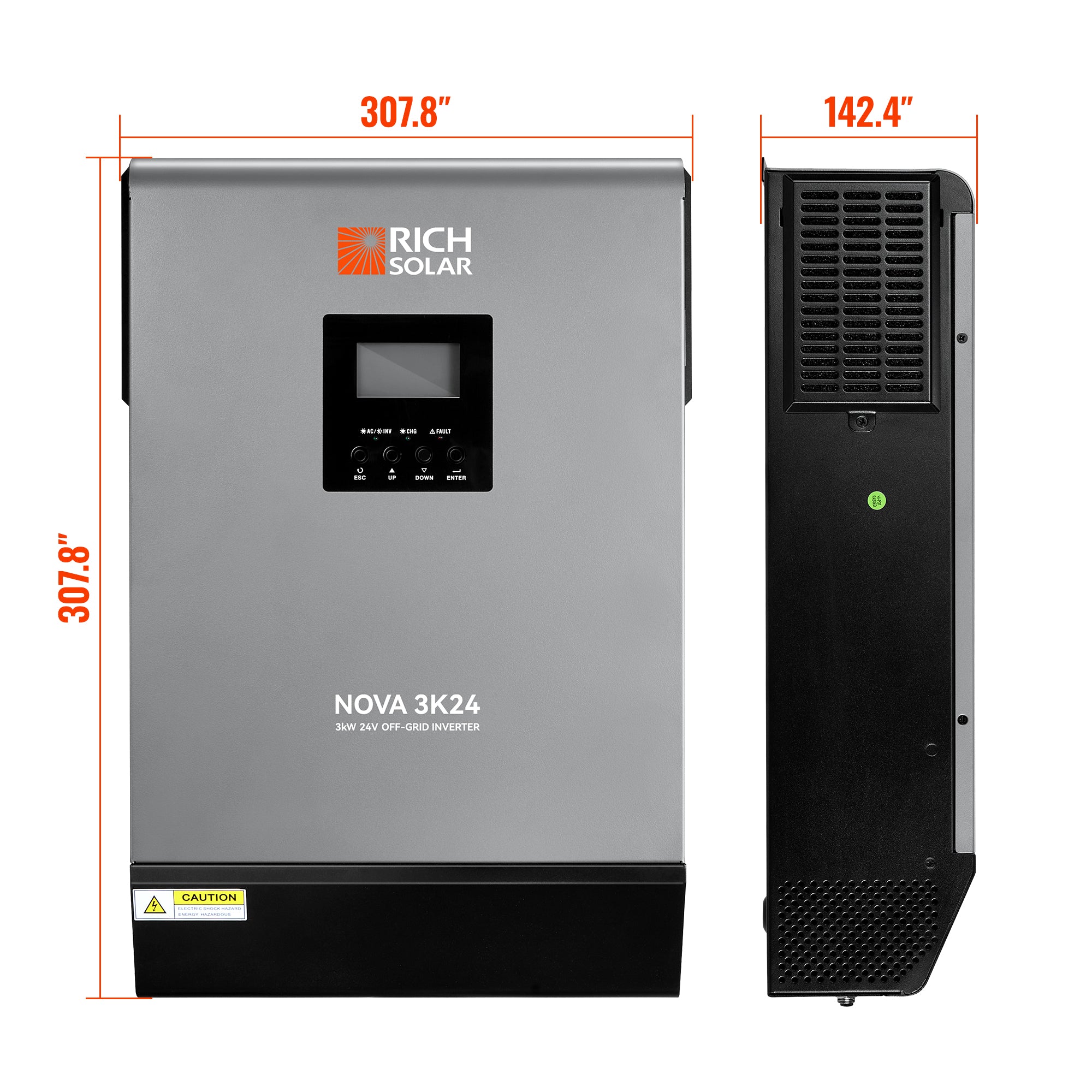

• Dimensions (L x W x H): 5.6 x 12.1 x 18.8 in (142.4 x 307.8 x 477.6 mm)
• Weight: 26.5 lb (12 kg)
