Description

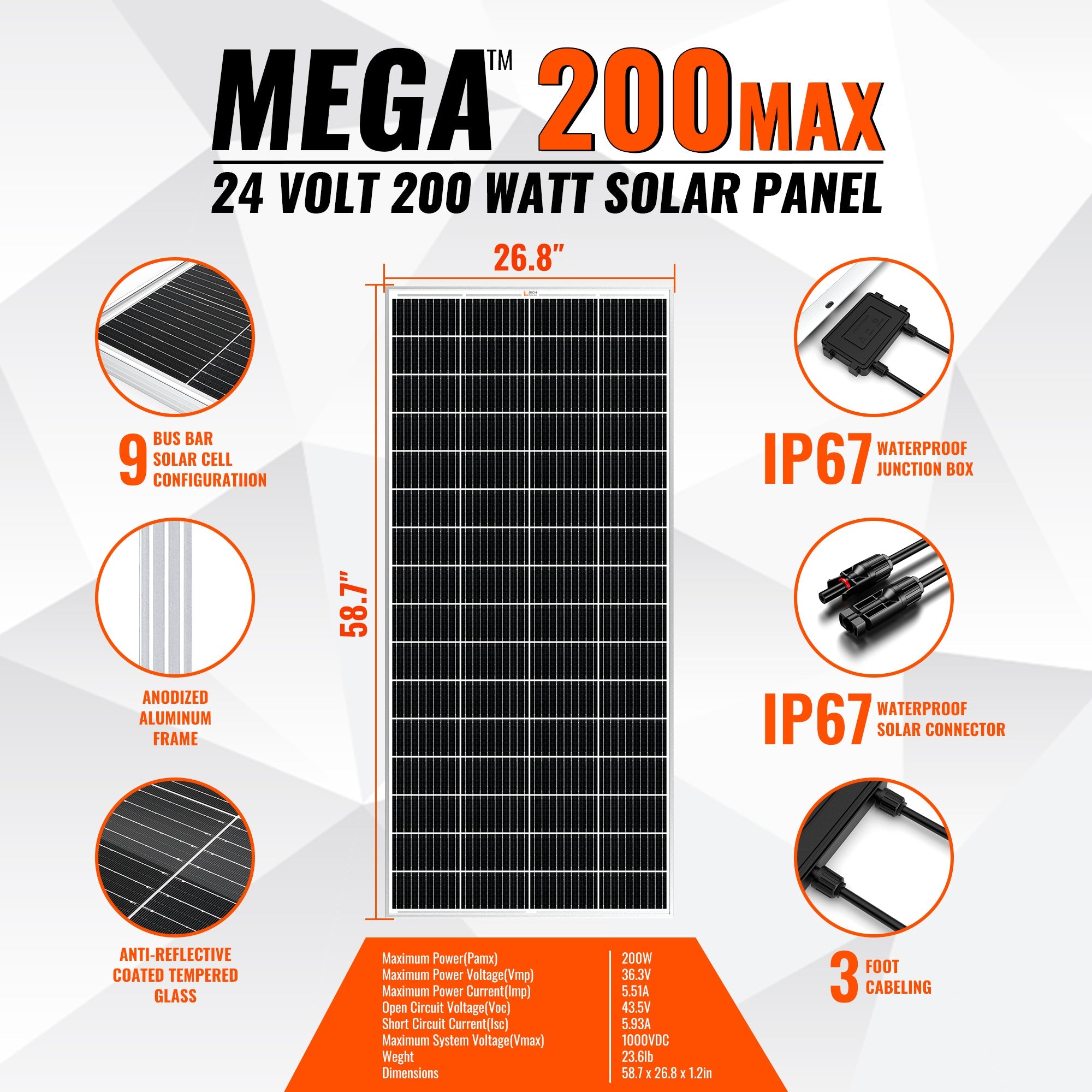

MEGA 200 MAX
200W 24V Solar Panel

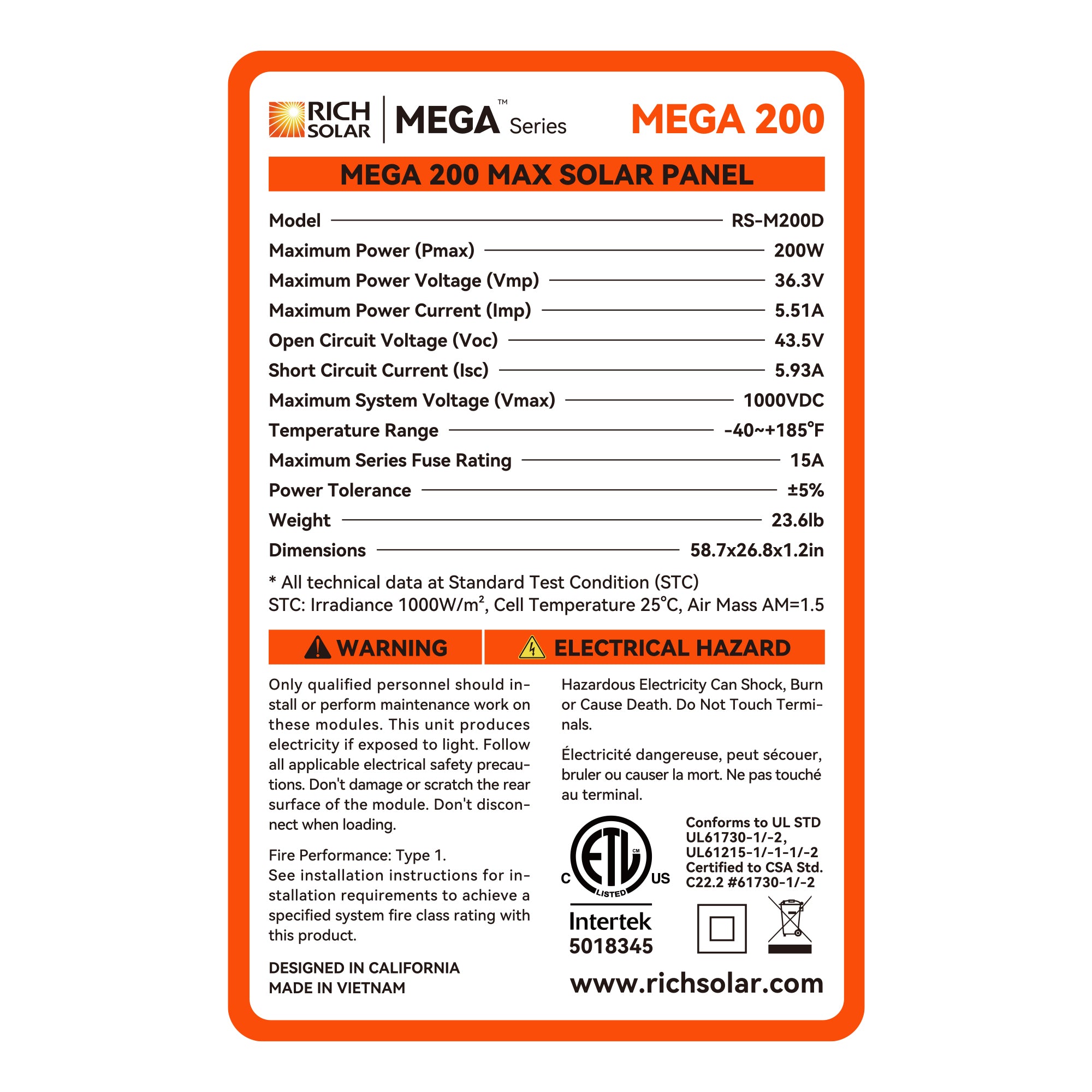

- Peak Power (Pmax): 200W
- Voltage at Max Power (Vmp): 36.3V
- Current at Max Power (Imp): 5.51A
- Open Circuit Voltage (Voc): 43.5V
- Short Circuit Current (Isc): 5.93A
- Nominal Operating Cell Temperature (NOCT): 113 ± 35°F
- Operating Temperature Range: -40°F to +185°F
- Weight: 23.6 lbs

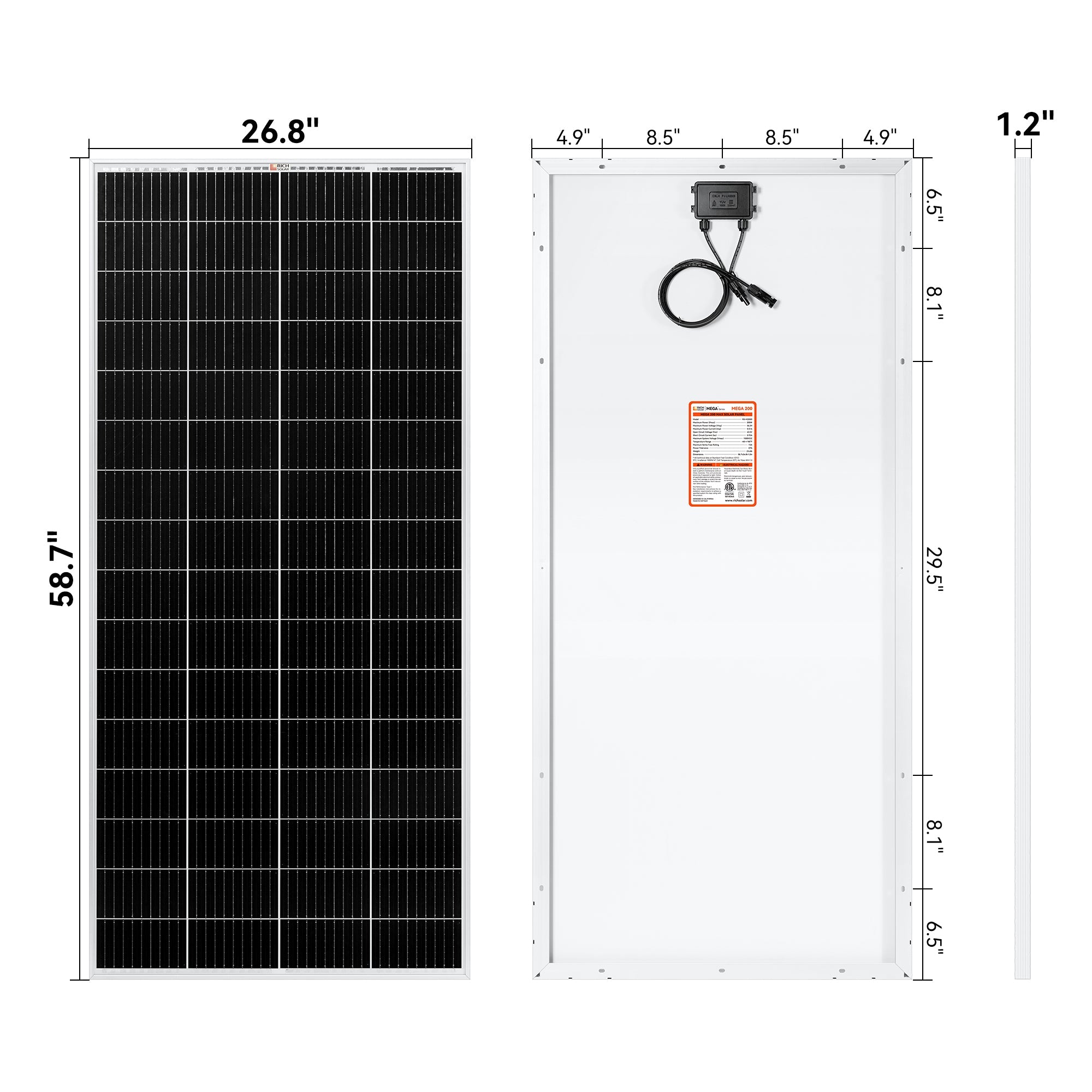

- Dimensions: 58.7 x 26.8 x 1.2 inches
Power Output
Delivers 9.8 amps of current, charges 24-volt batteries, includes 3-foot quick connect cables with connectors, and is suitable for both series and parallel configurations.
Outstanding Performance
Provides exceptional performance in low-light conditions, including early mornings, evenings, and overcast days.
Built to Last

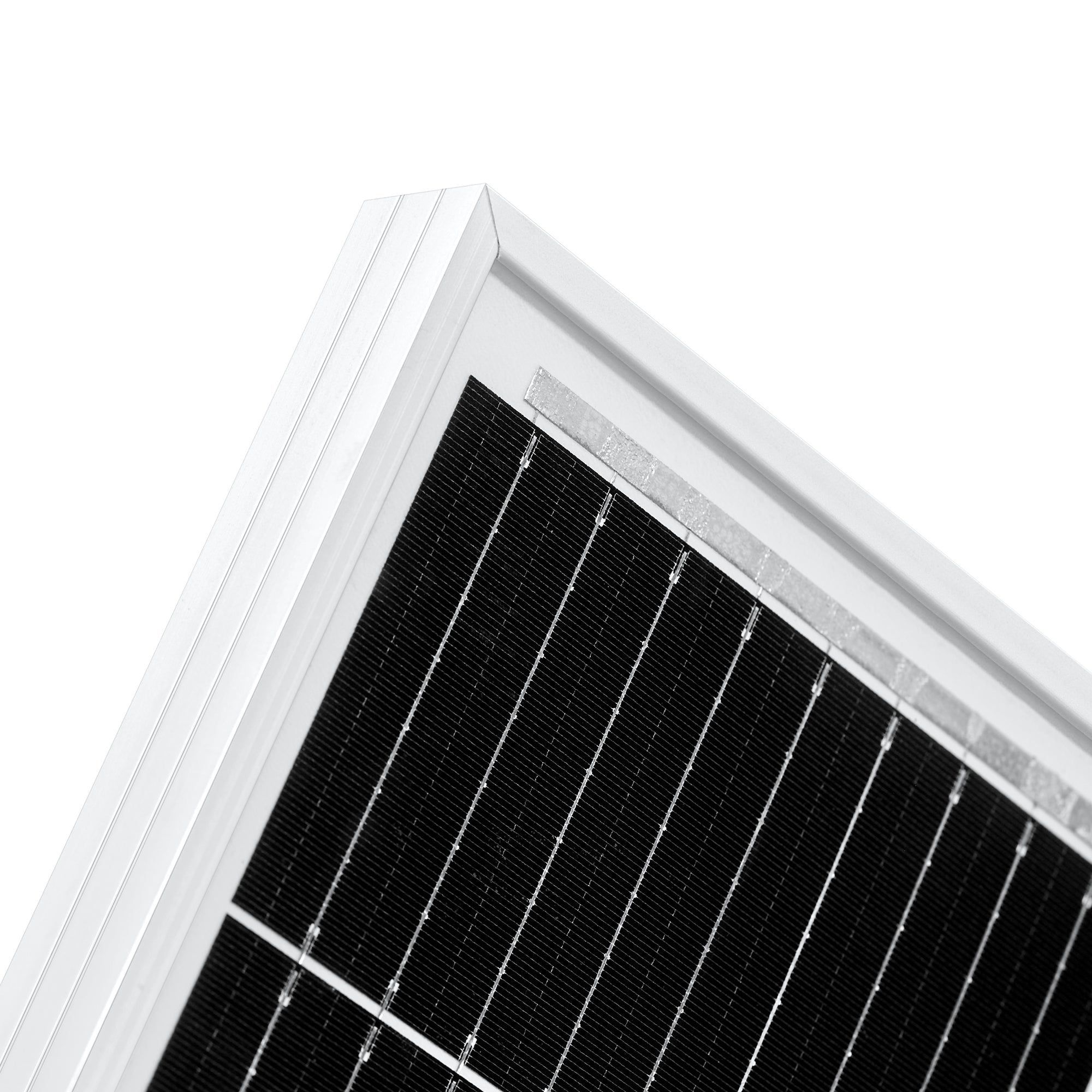

Constructed with durable, high-transmission tempered glass featuring an anti-reflective coating, and supported by a rugged anodized aluminum frame.
Easy Installation
Quick and hassle-free setup with 14 pre-drilled holes, compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
Warranty
25-year limited power output warranty and a 10-year workmanship warranty for peace of mind.
