SunGold Power | Server Rack 48V 100AH Lithium Battery Self-Heating | SGH48100T - 1 unit

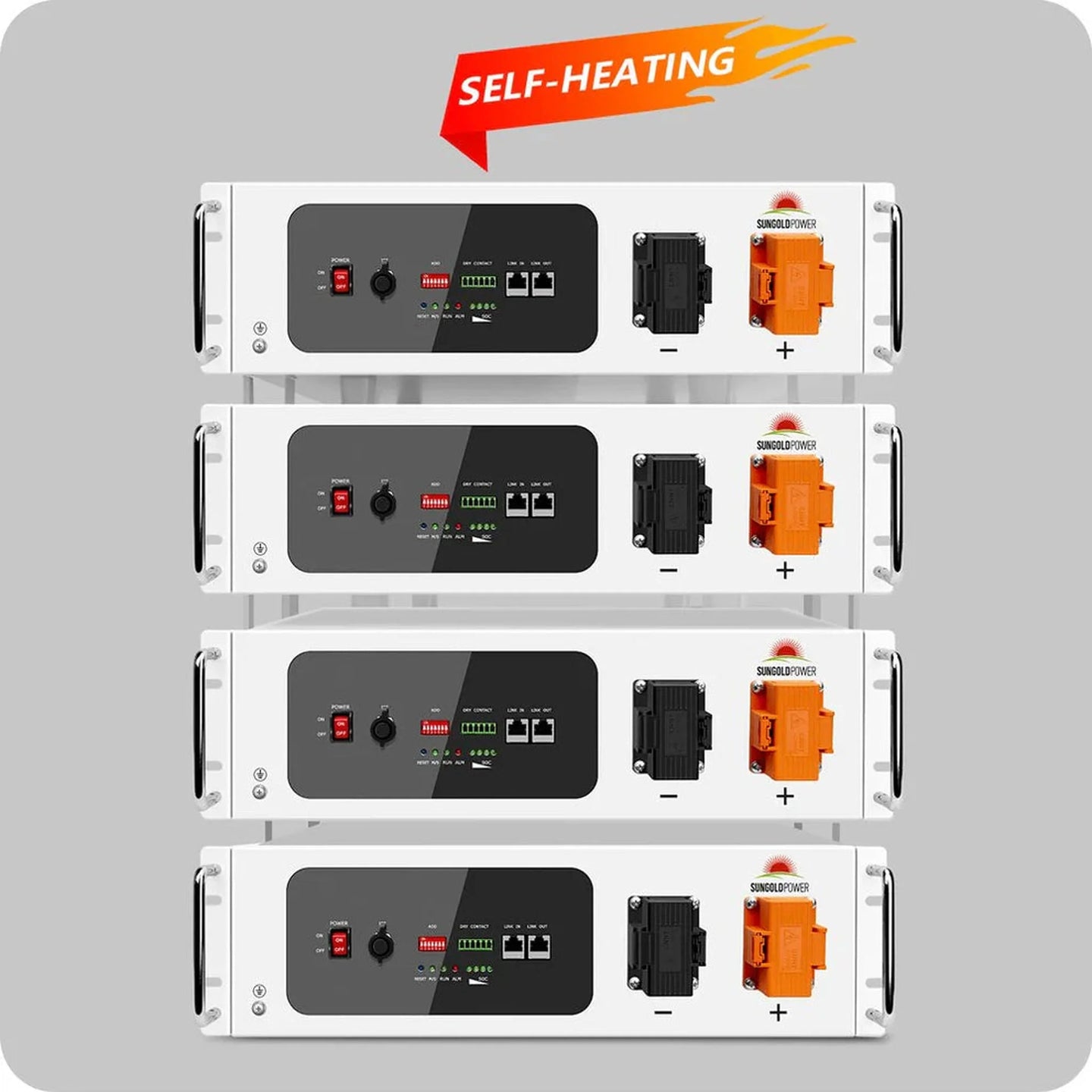

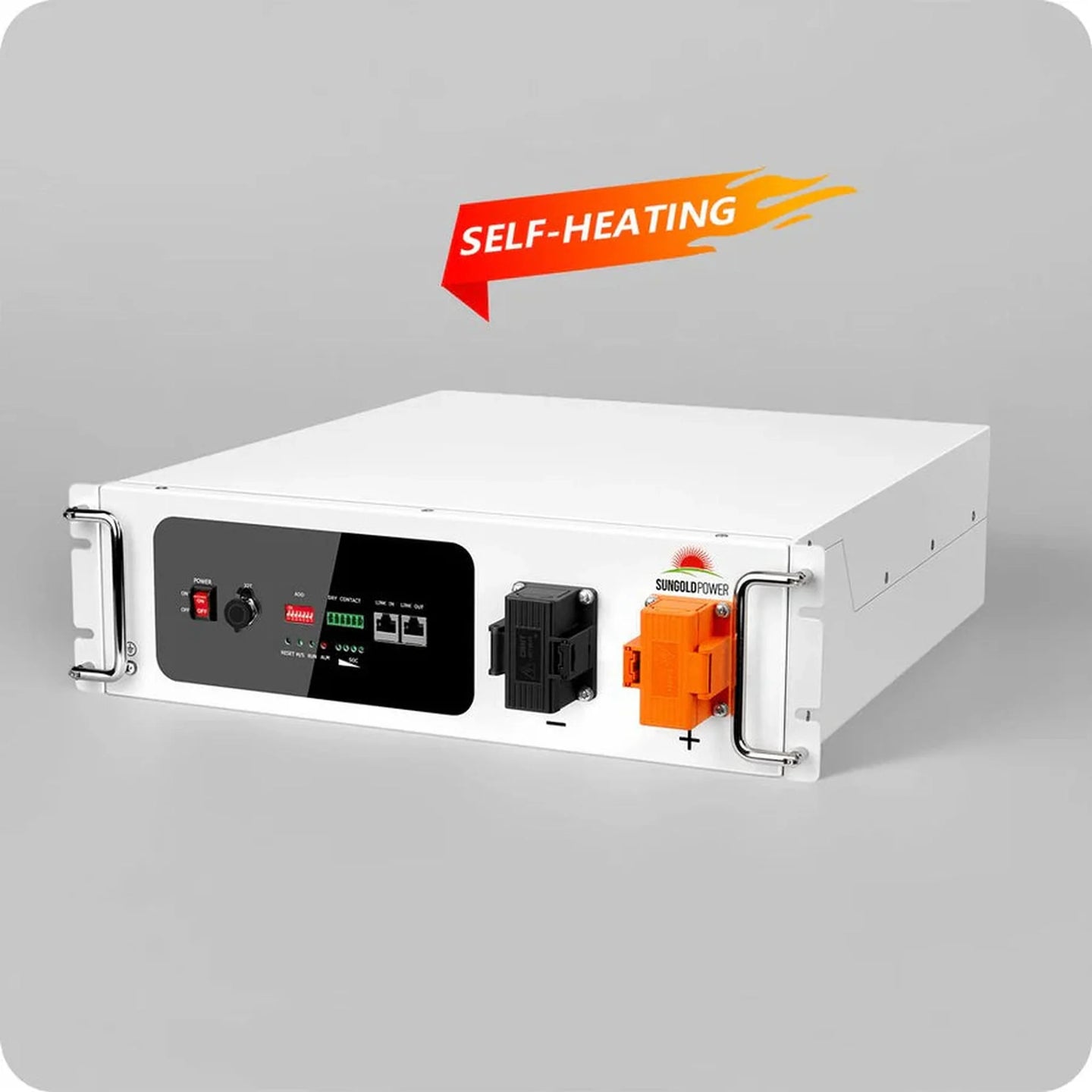

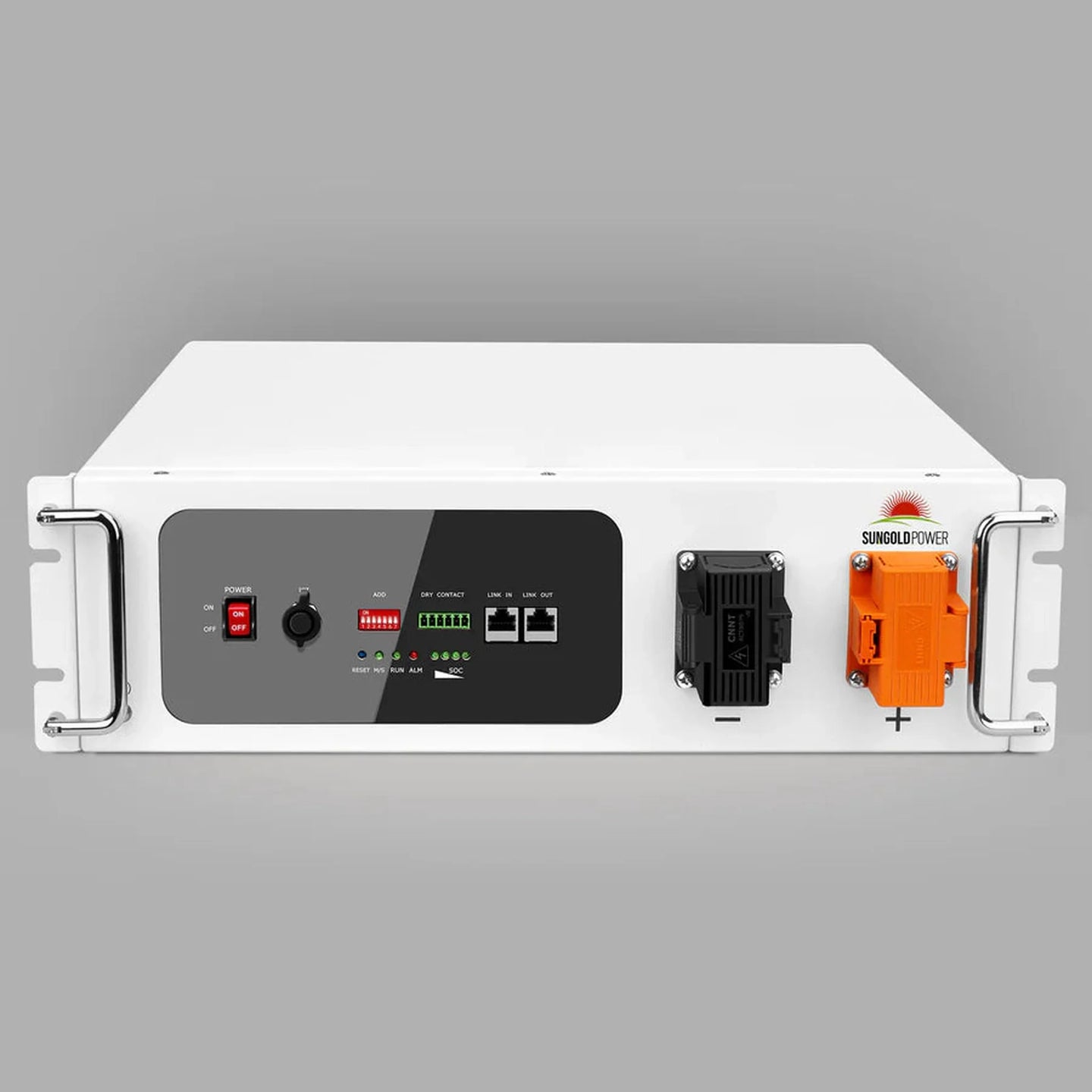

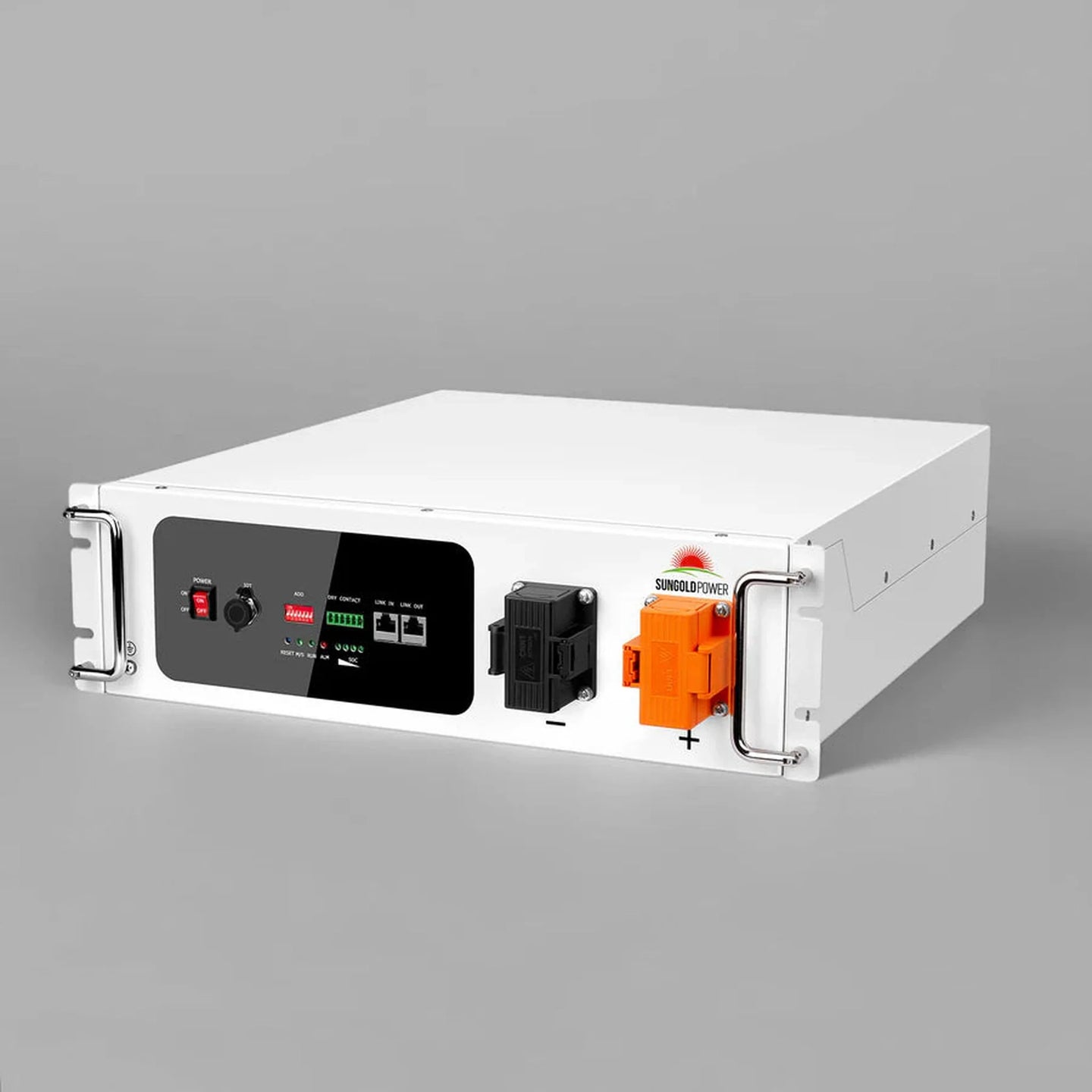

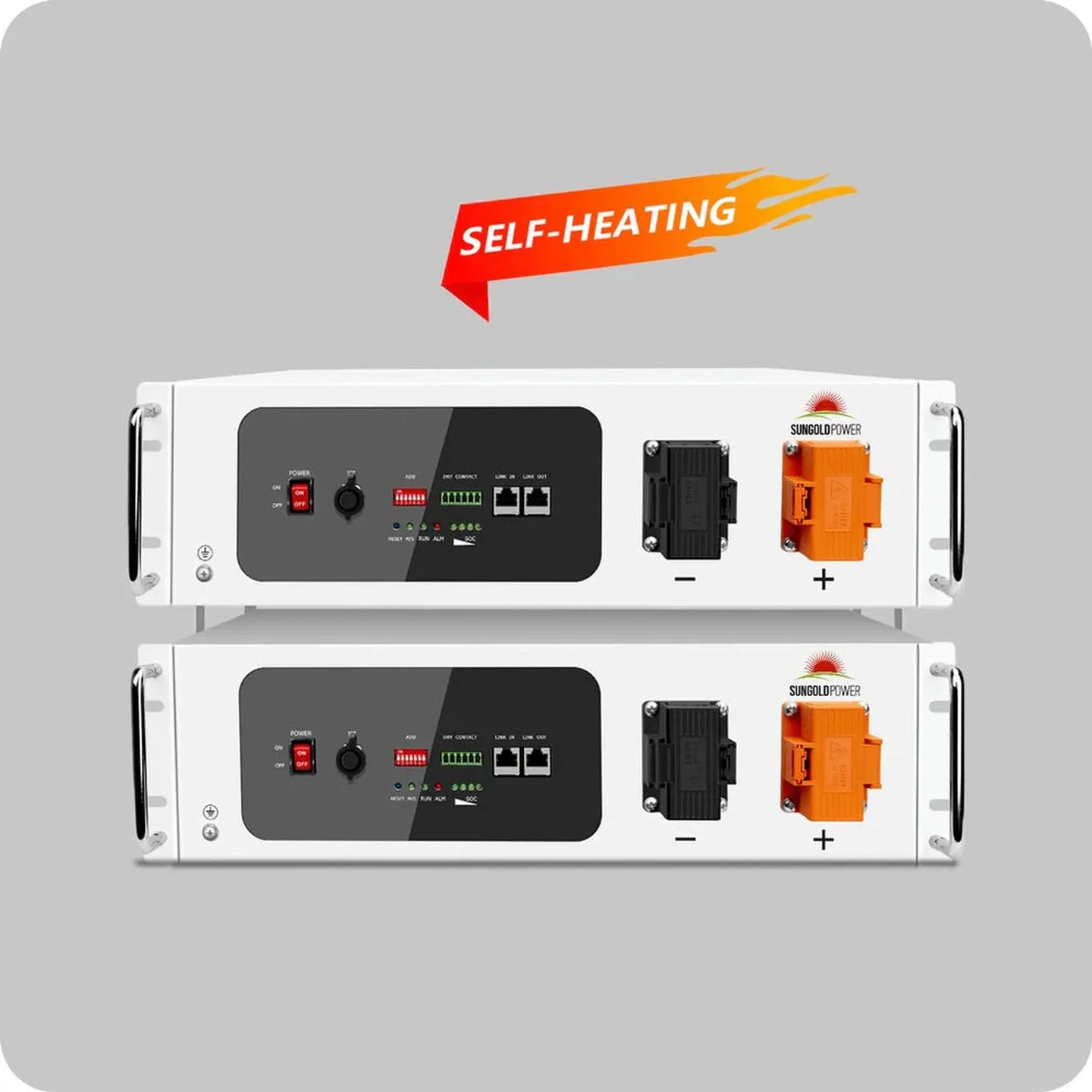

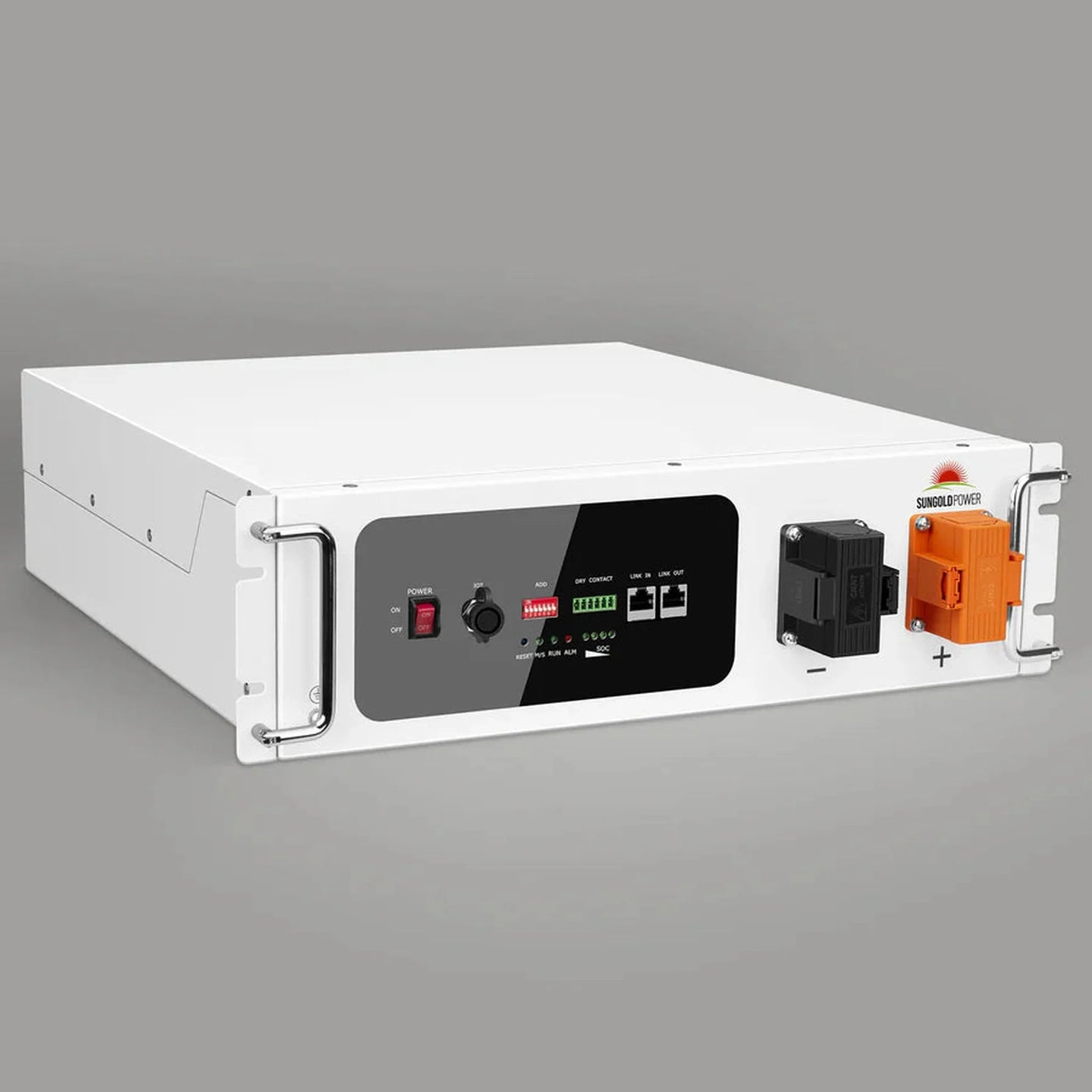

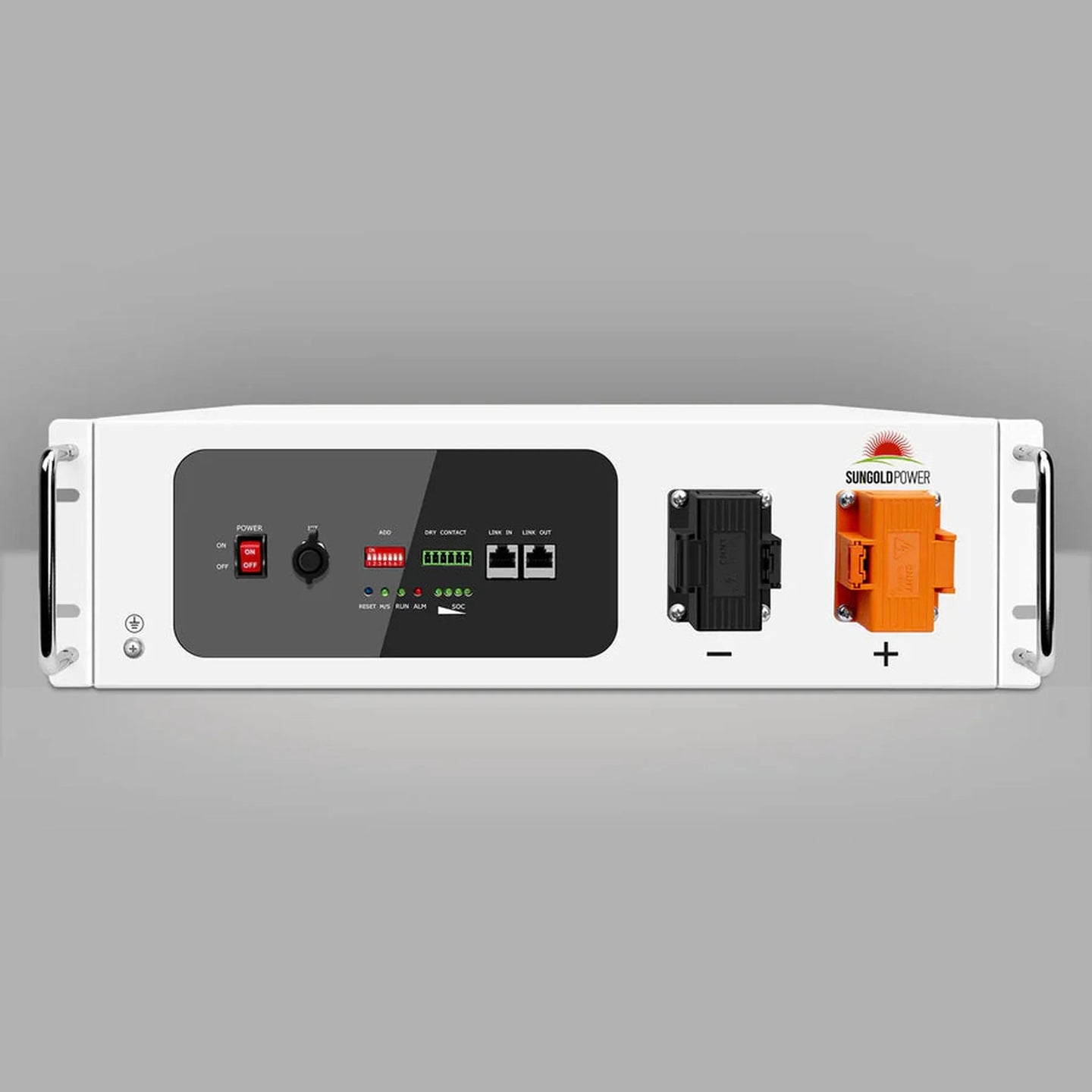

Server Rack 48V 100AH Lithium Battery Self-Heating

The SGH48100T is a high-performance 5.12kWh lithium iron phosphate (LiFePO₄) battery engineered for both residential and commercial energy storage systems. Designed in a compact 3U server-rack form factor, it supports easy installation and scalability—up to 32 units in parallel, offering a total capacity of 163.84kWh.

Features

• Self-Heating Function - Automatically activates when ambient temperatures drop below 41°F (5°C), heating the battery to 53.6°F (12°C) to enable efficient charging—even in cold climates. Operates effectively down to -13°F (-25°C)
• Advanced Smart BMS - Integrated Battery Management System protects against overcharge, deep discharge, short circuits, and includes temperature management for safe low-temperature operation
• Long Lifecycle & Warranty - Delivers over 7,000 deep cycles with a 15-year lifespan and 10-year warranty, ensuring long-term performance and reliability
• Seamless Integration - Compatible with RS485 and CAN Bus protocols for smooth integration with leading inverter brands like Growatt, Deye, Sol-Ark, SunGoldPower, Luxpower, EG4, Victron, Schneider, SMA, Solis, and more
• Certifications - Undergoing UL1973 and UL9540 certification to meet stringent safety and industry standards
• Scalable & Modular - Easily expandable by connecting up to 32 units in parallel, making it suitable for diverse storage needs—from homes to small businesses and industrial sites

Specifications

• Battery Model SGH: 48100T
• Nominal Voltage: 51.2V
• Charge voltage: 56.0V
• Nominal energy@: 0.2C 5.12 kWh
• Dimension: 19.3*17.3*5.2 inch (490*441*133mm)
• Standard charge current: <50A
• Standard discharge current: <50A
• Peak discharge current: 101~119A@5mins 120~200A@15S
• Max parallel number: 32pcs
• Operation temperature: 1
• Discharge: -4°F to 122°F (-20 to 50°C)
• Heating opening condition: 2 -13°F(-25°C)sT<41°F(5'C)@I>0.08C
• Storage temperature @off mode: 14°F(-10°C)<T<113°F(45°C) = <3 months
• Recommended environment: 59°F to 95°F (15~35°C), 5~75%RH

Warranty and Resources

10 Year Warranty

• 48V 100AH Self-heating Lithuim Battery User Manual
