SunGold Power | (12kw Inv+12*415w PV+5*100ah Bat) | SGR-12K20E

(12kw Inv+12*415w PV+5*100ah Bat)

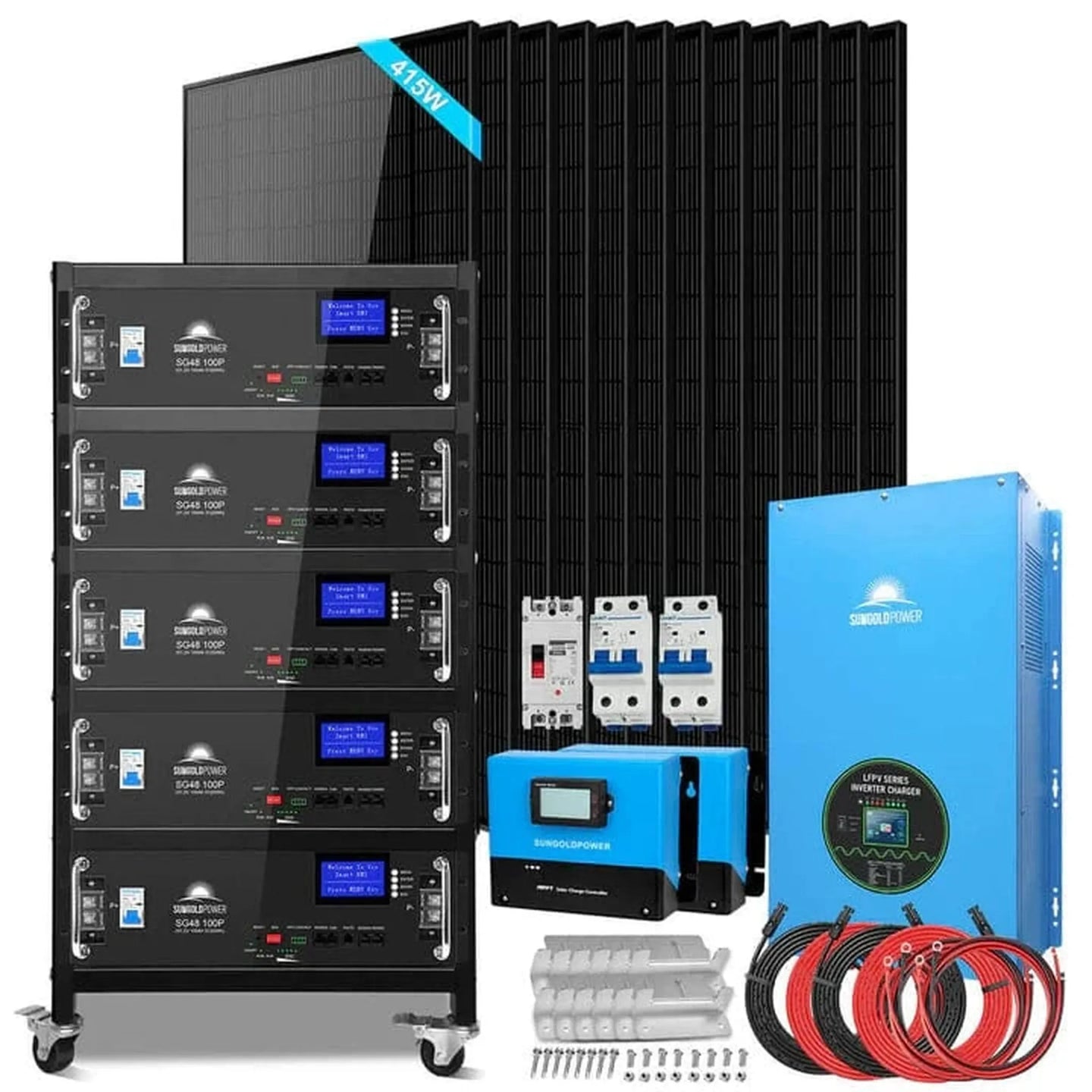

The Off-Grid Solar Kit 12000W 48VDC 120V/240V LifePo4 20.48KWH Lithium Battery | 12x 415 Watts Solar Panels SGR-12K20E is a powerful and scalable solution for homeowners, cabins, or remote locations looking to achieve energy independence. With a 12KW split-phase inverter, 20.48KWh of lithium storage, and 4.98KW of solar generation capacity, this kit delivers clean, quiet, and reliable off-grid electricity—perfect for powering heavy appliances and daily household needs.

Features

• 12,000W 48VDC Split-Phase InverterDelivers - both 120V and 240V AC power to run everything from refrigerators to water pumps and air conditioners
• 20.48KWH Lithium Iron Phosphate - Battery BankIncludes 4 x 5.12KWH LiFePO4 PowerWall batteries for safe, long-lasting energy storage
• 12 x 415W Monocrystalline - Solar PanelsHigh-output panels delivering up to 4.98KW of solar input for robust energy production
• Estimated Daily Output - 20KWHBased on 4 hours of peak sunlight—supports typical home energy usage of ~600KWH/month
• Expandable System DesignEasily add - batteries and solar panels to grow your system as needed

Specifications

• AC Output: 12000W
• Output Waveform: Pure Sine Wave
• AC Output Voltage: 120V/240V
• AC Input Voltage: 240V
• Type: Low Frequency Inverter
• Support: Generator
• Surge Rating (20s): 36.0 kW
• Dimension: 27.6 x 16.5 x 8 inch
• Weight: 159.5 LB
• Warranty: 3 Years

Warranty and Resources

12000W Solar Inverter - 3 Years Warranty LifePo4 5.12KWH Lithium Battery - 10 Years Warranty 415 Watts Solar Panels - 25 Years Warranty 100A MPPT Solar Controller - 3 Years Warranty

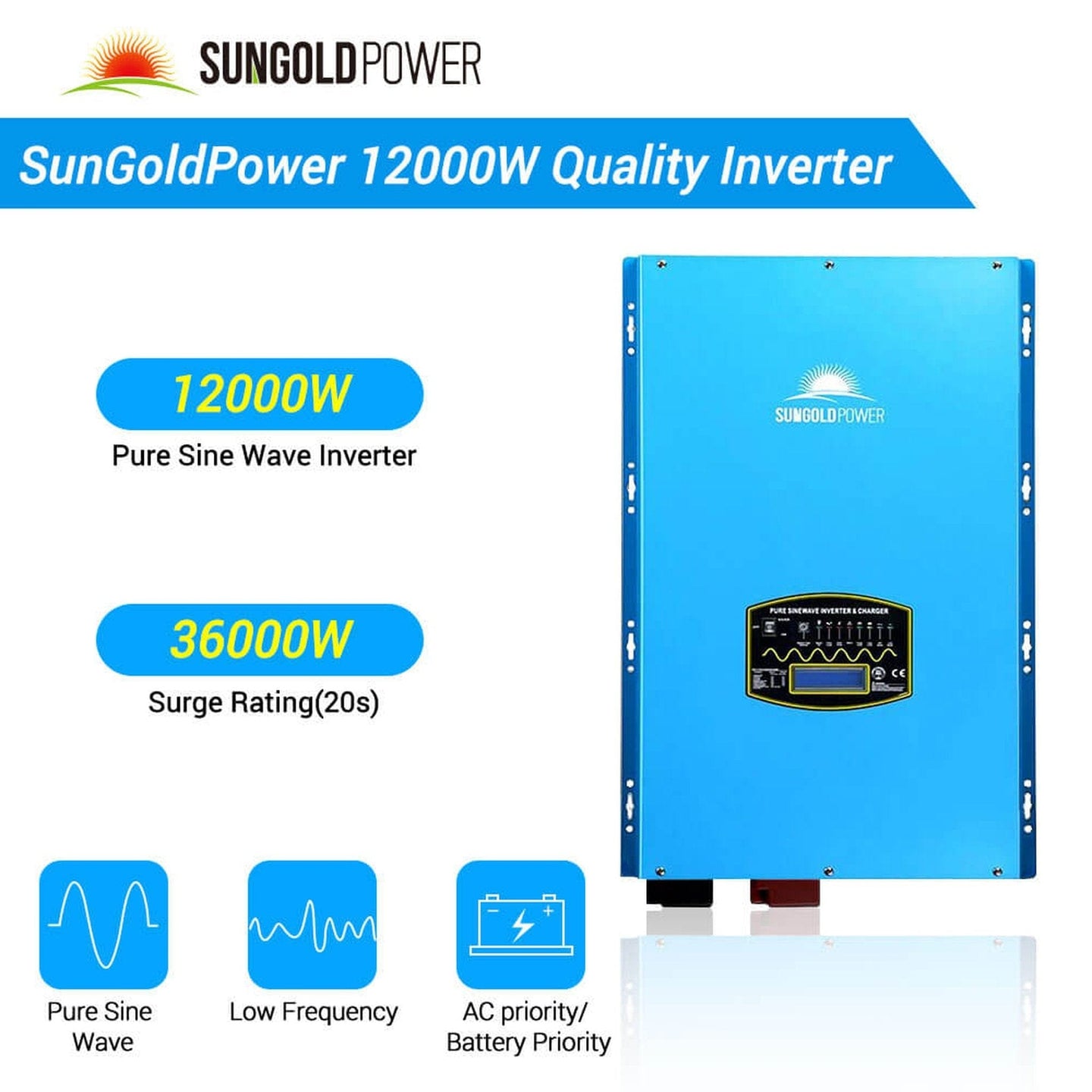

• 12000W Solar Inverter

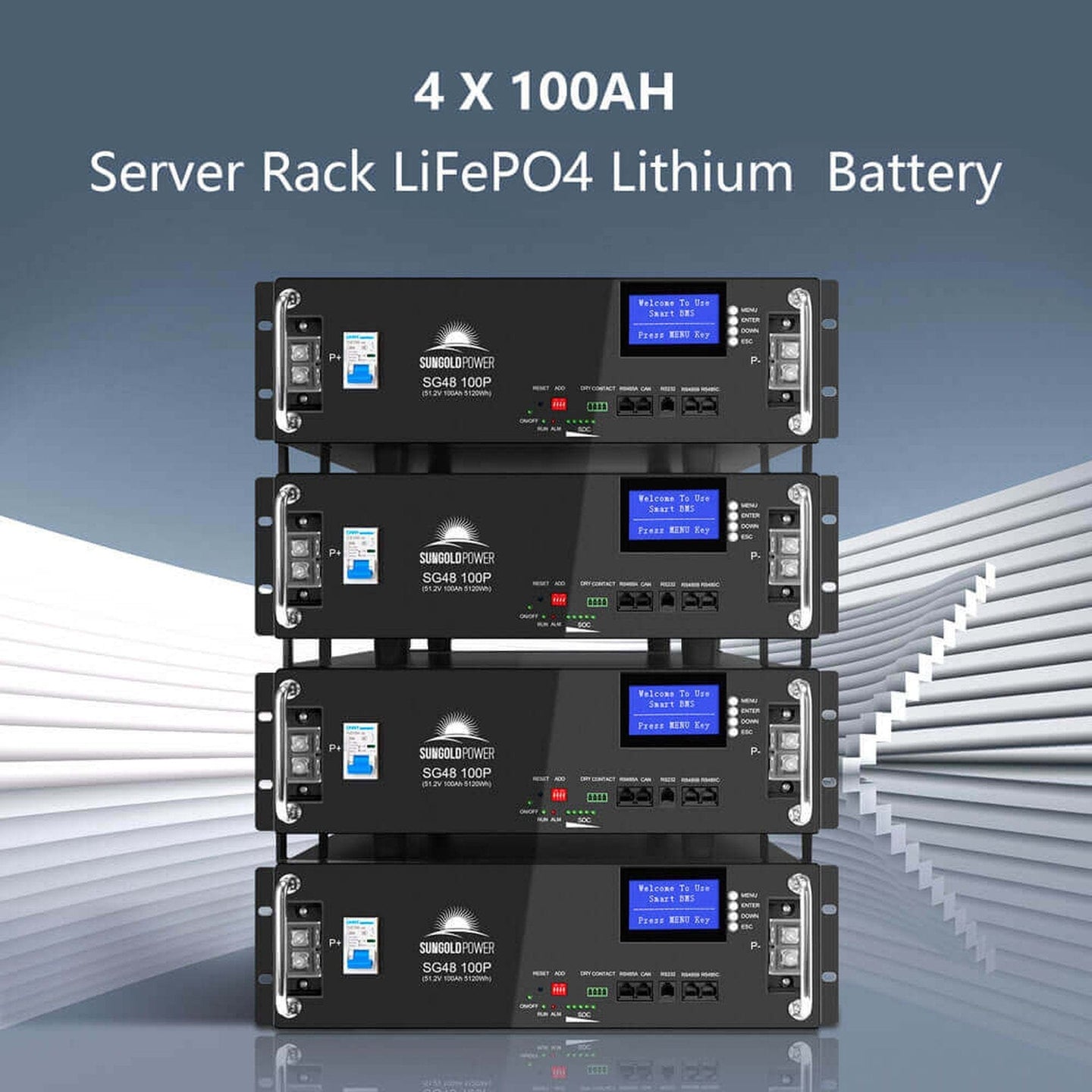

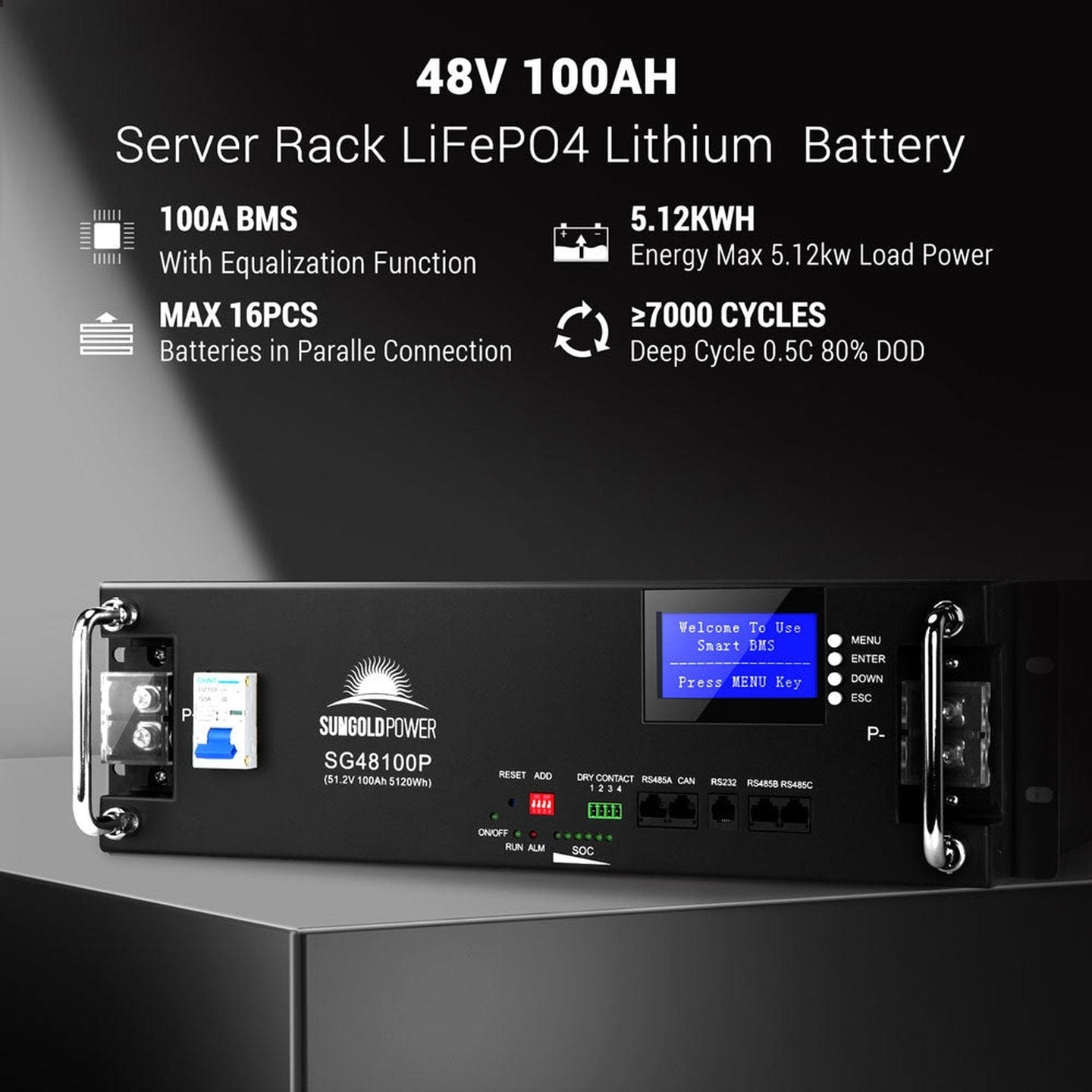

• 48V 100Ah Server Rack LiFePO4 Lithium Battery SG48100P (Product Page)
• LifePo4 5.12KWH Lithium Battery
• 12V 24V LiFePO4 Battery Instruction Datasheet

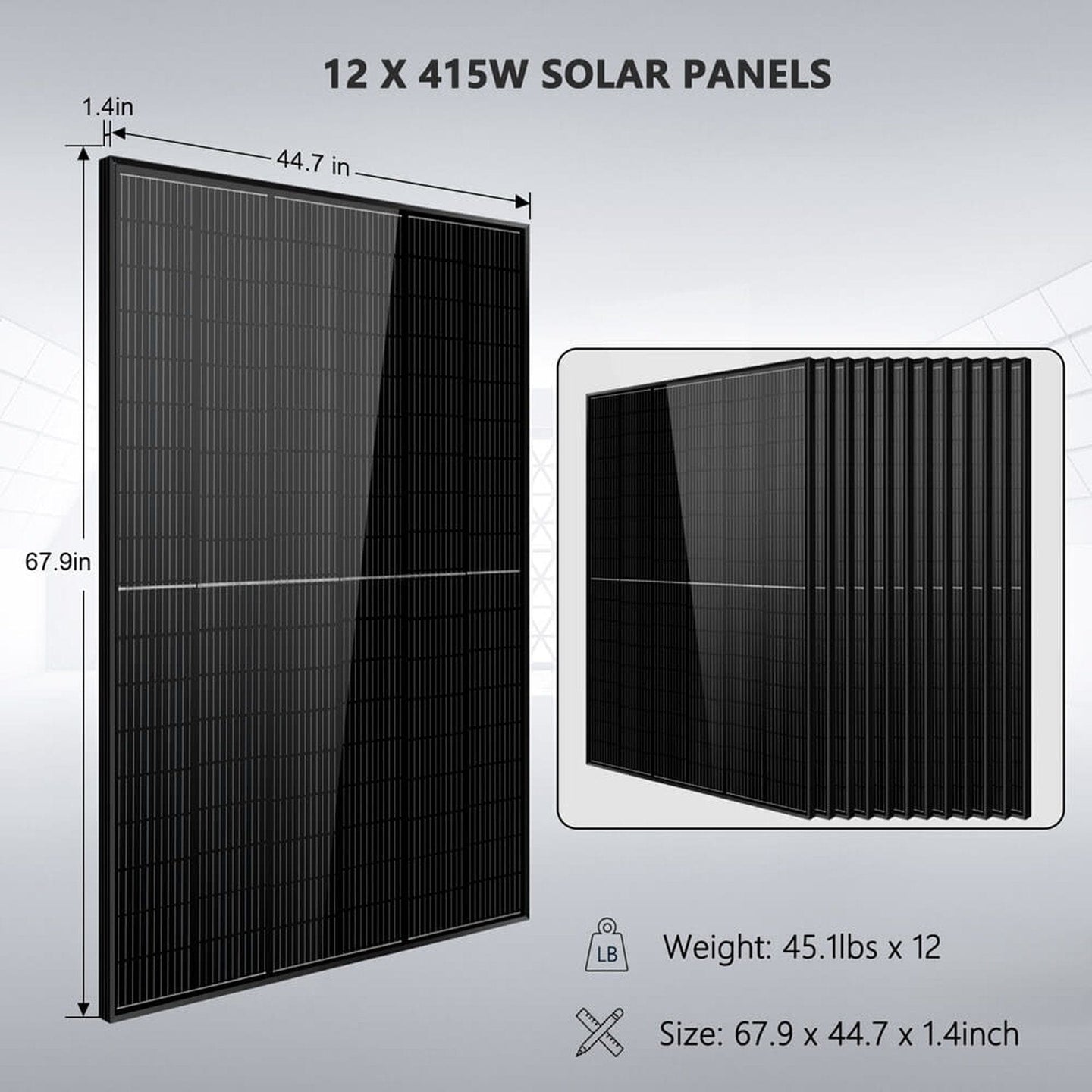

• 415W Mono Black Solar Panel (Product Page)
• 415 Watts Solar Panels
• 100A MPPT Solar Controller
• Wiring Diagram
