SunGold Power | Sgm-655m(6.5kw Inv+6*370w PV+100ah Bat) | SGM655M/SGM6510M

Sgm-655m(6.5kw Inv+6*370w PV+100ah Bat)

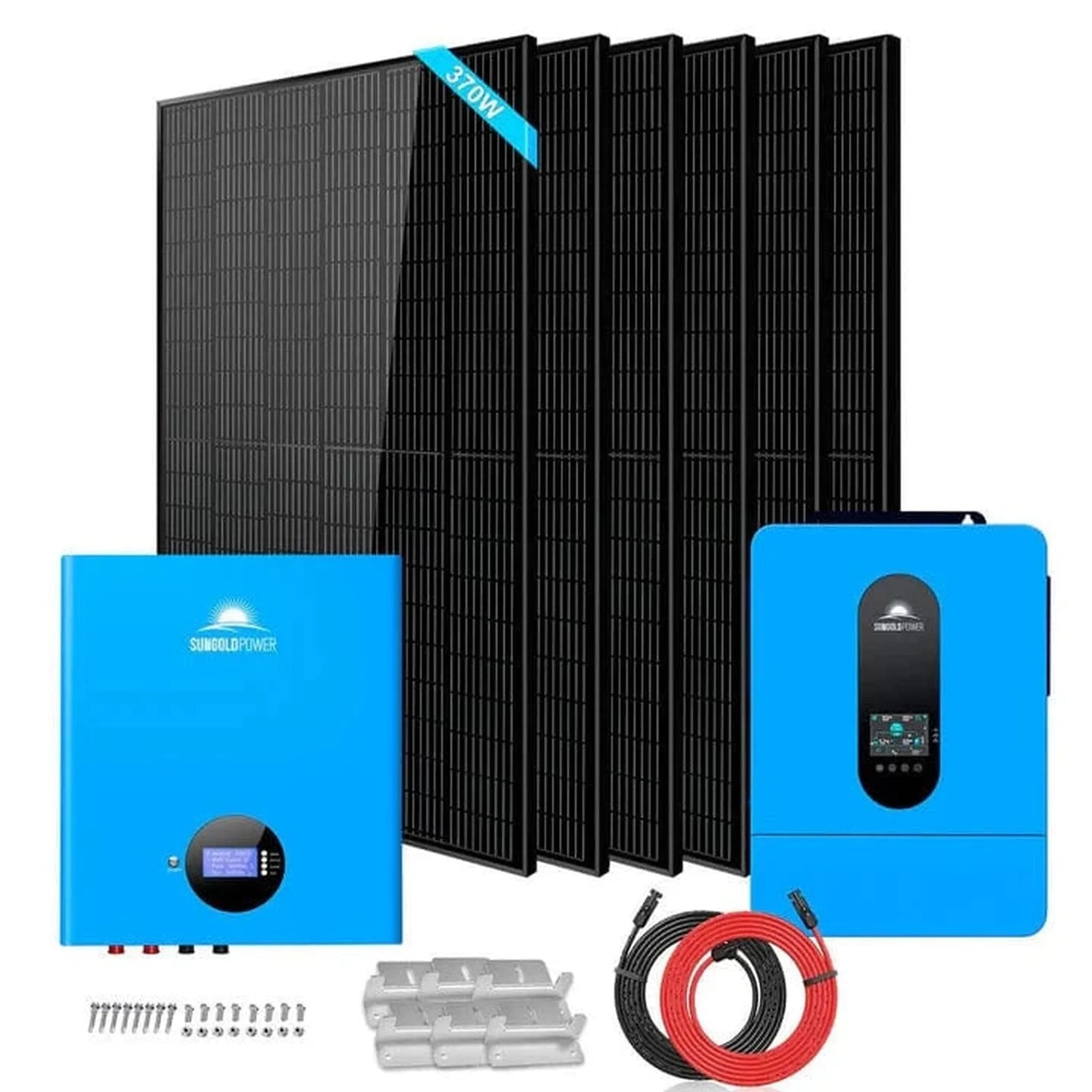

The Off-Grid Solar Kit 6500W 48VDC 120VAC 5.12KWH PowerWall Lithium Battery | 6 x 370 Watts Solar Panels is a powerful and efficient entry-level solar solution tailored for off-grid cabins, shops, tiny homes, and RVs. It’s designed to provide dependable, scalable power for smaller applications while offering room for future system expansion.

Features

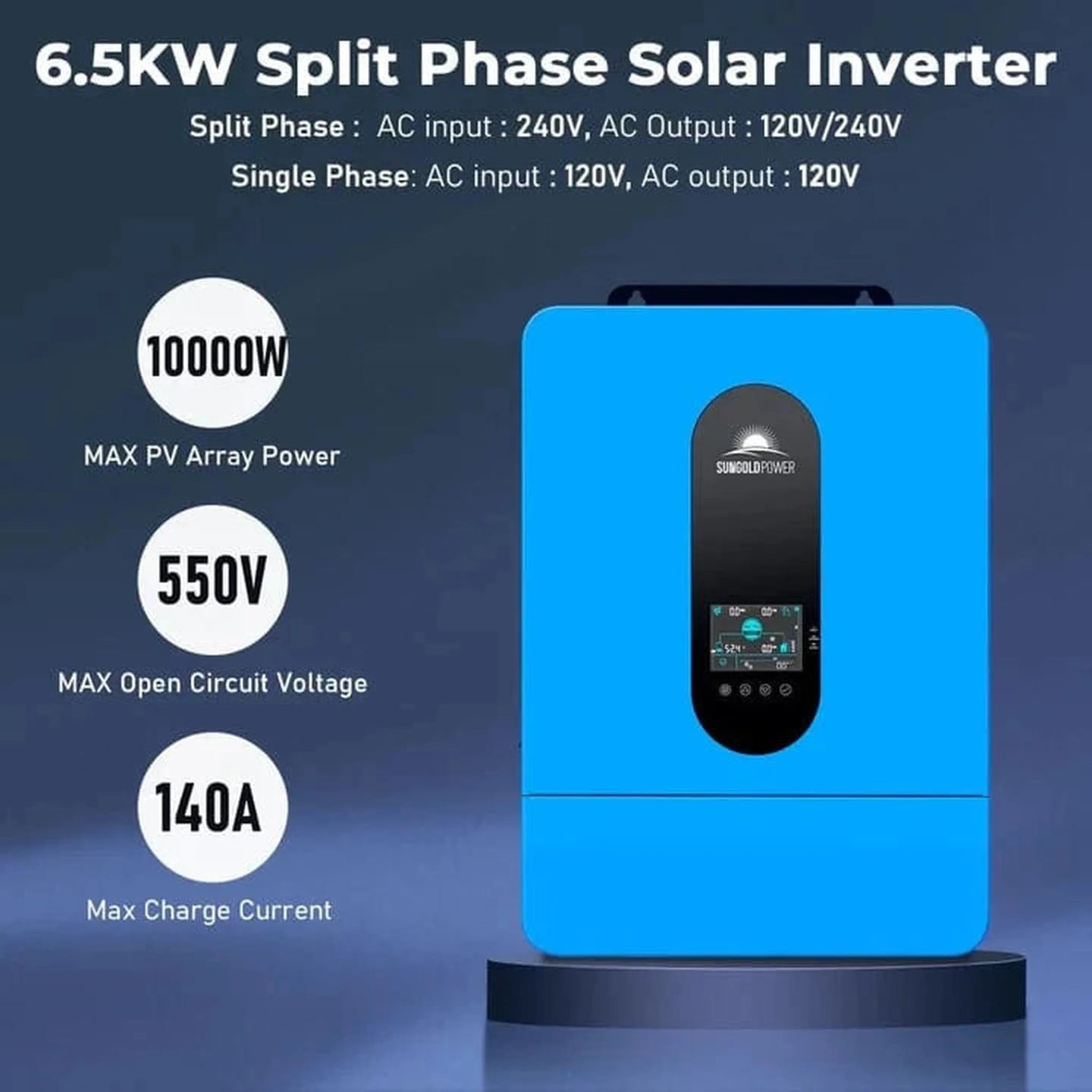

• 6500W 48VDC Inverter (Pure - Sine Wave)Delivers consistent 120V AC power—ideal for off-grid appliances, lights, and tools

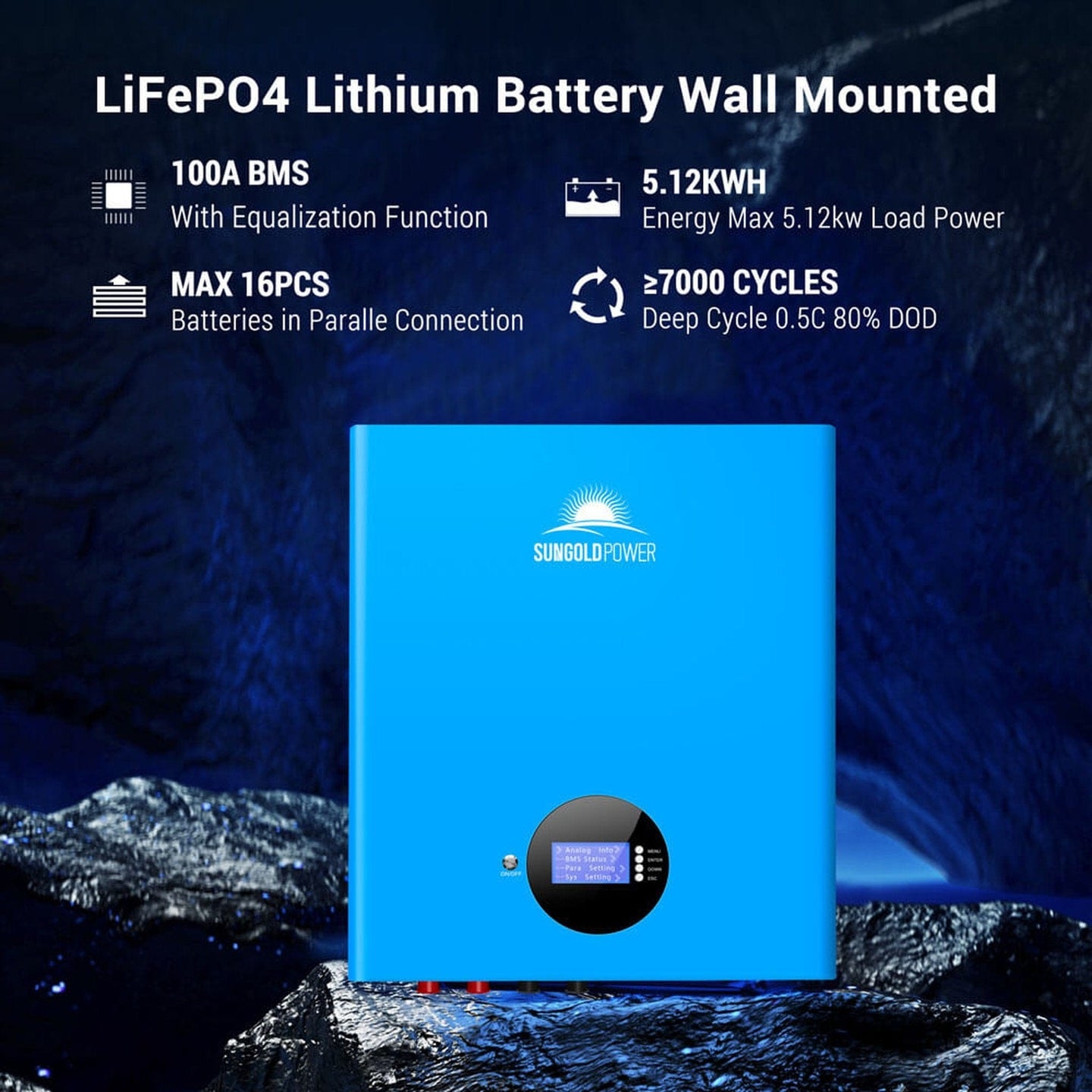

• 5.12KWH PowerWall Lithium Battery - (LiFePO4)Reliable and safe energy storage with long cycle life and high efficiency

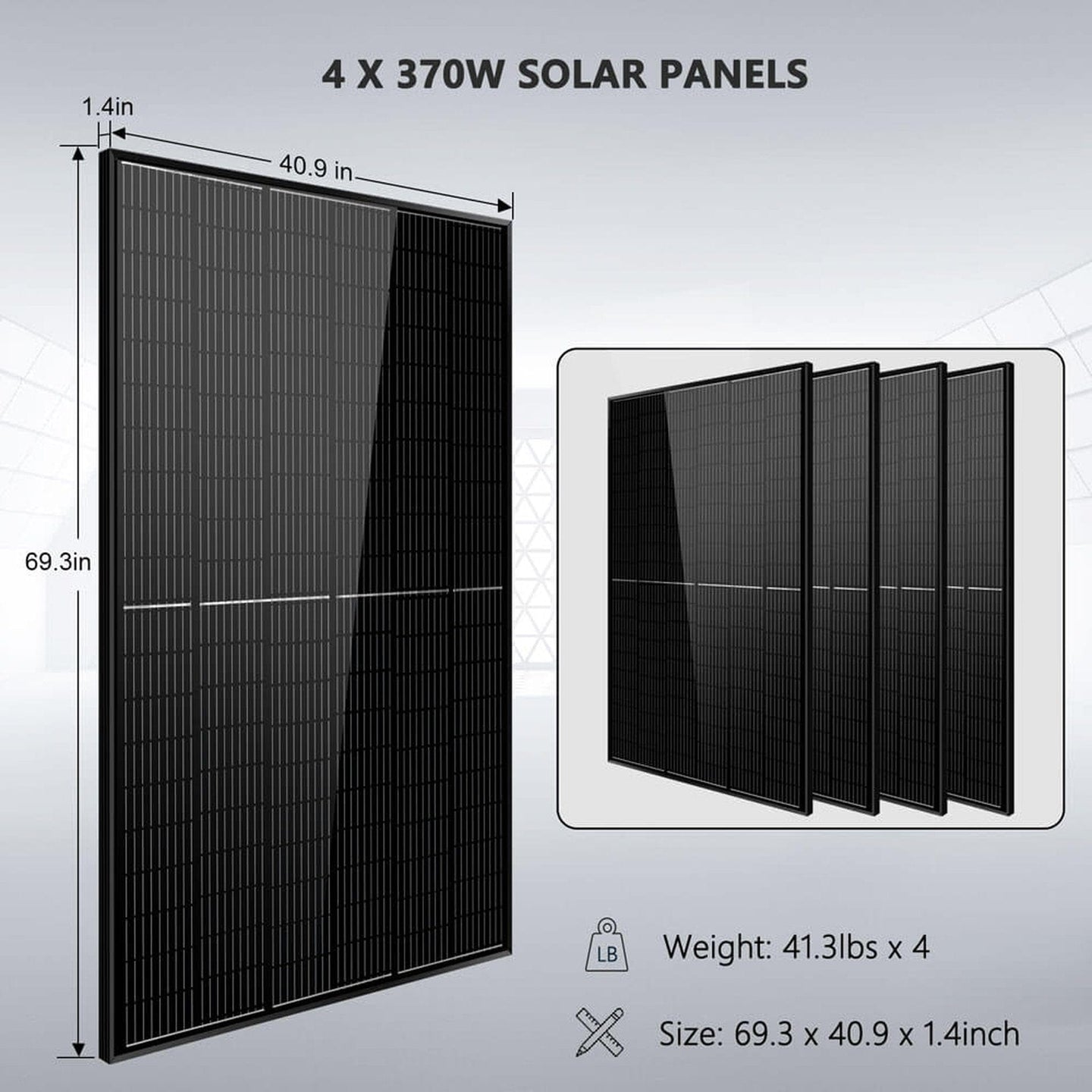

• 1.48KW Solar ArrayIncludes 4 - x 370W high-efficiency monocrystalline solar panels
• Estimated Daily Output - 5.92KWHBased on 4 hours of direct sunlight—perfect for users with ~177KWH monthly energy needs
• Modular DesignExpandable system - easily integrate more panels or battery storage as needed
• Simple InstallationIncludes solar cables, - connectors, and mounting support for quick and secure setup

Specifications

• AC Output: 6.5kW with Parallel Function
• Output Waveform: Pure Sine Wave
• AC Output Voltage: 120/240 VAC (split phase/single phase)
• Parallel Function: Up to 6 units Parallel
• Efficiency: 93%
• Max Charging Current: 140A
• Maximum PV Array Power: 5000W + 5000W
• Dimension: 23.0 x 16.2 x 5.3 inch
• Weight: 42 LB
• Warranty: 3 Years

Warranty and Resources

6500 Watt Solar Inverter UL1741 - 3 Years Warranty LifePo4 5.12KWH Lithium Battery - 10 Years Warranty 370 Watts Solar Panels - 25 Years Warranty

• 6500 Watt Split Phase Solar Inverter
• Bluepower SP6548 Edcd 4BFB 8793 Datasheet
• LifePo4 5.12KWH Lithium Battery
• 12V 24V LiFePO4 Battery Instruction Datasheet
• 370 Watts Solar Panels
• Wiring Diagram
