SunGold Power | Sgm-6510m(6.5kw Inv+6*370w PV+2*100ah Bat) | SGM655M/SGM6510M

Sgm-6510m(6.5kw Inv+6*370w PV+2*100ah Bat)

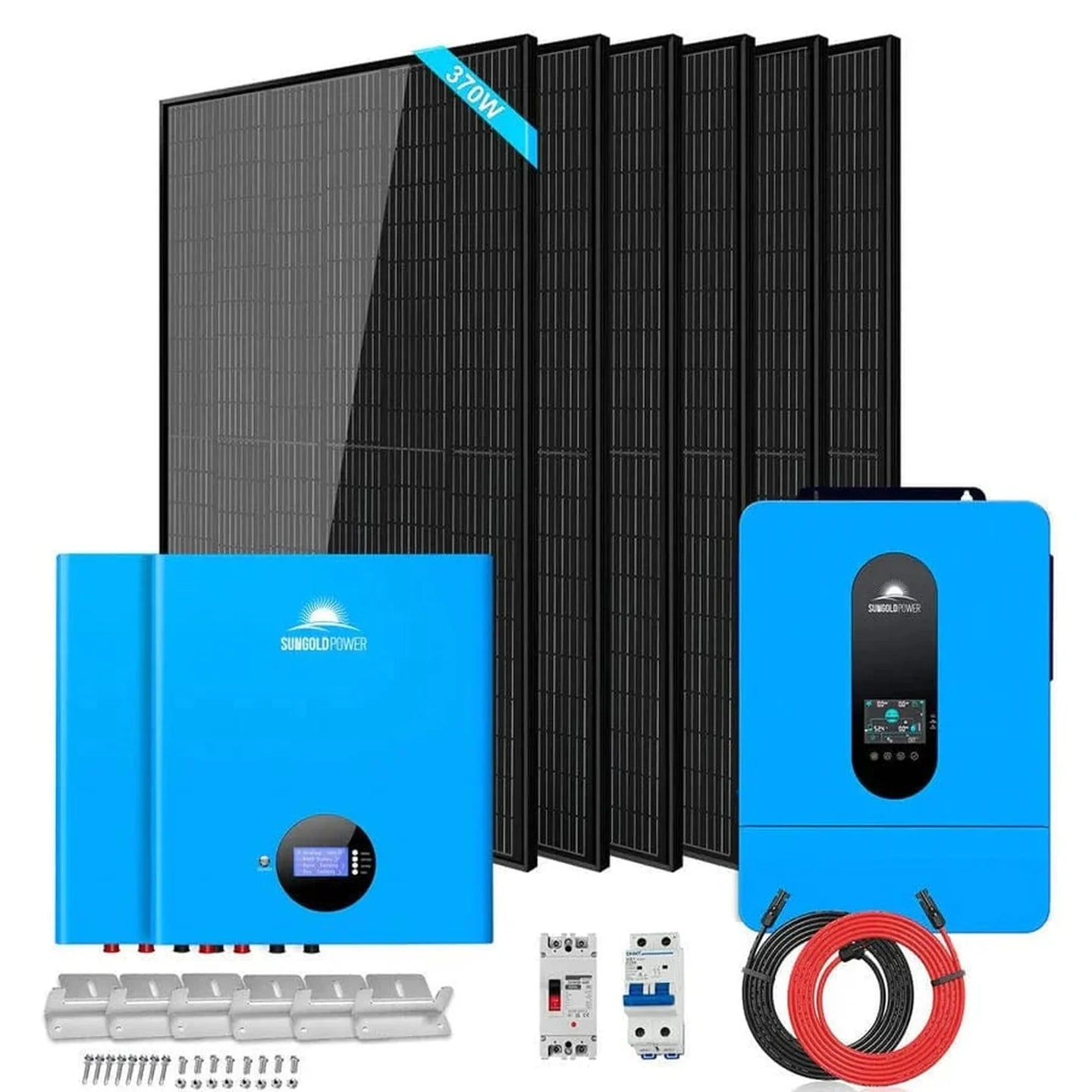

The Off-Grid Solar Kit 6500W 48VDC 120/240VAC 10.24KWH PowerWall Lithium Battery 6 X 370 Watts Solar Panels SGM-6510M is a complete, entry-level solution for powering off-grid cabins, shops, tiny homes, or RVs. With clean energy generation, powerful battery storage, and reliable inverter output, this kit delivers all the essentials you need for true energy independence—plus the flexibility to grow with your power needs.

Features

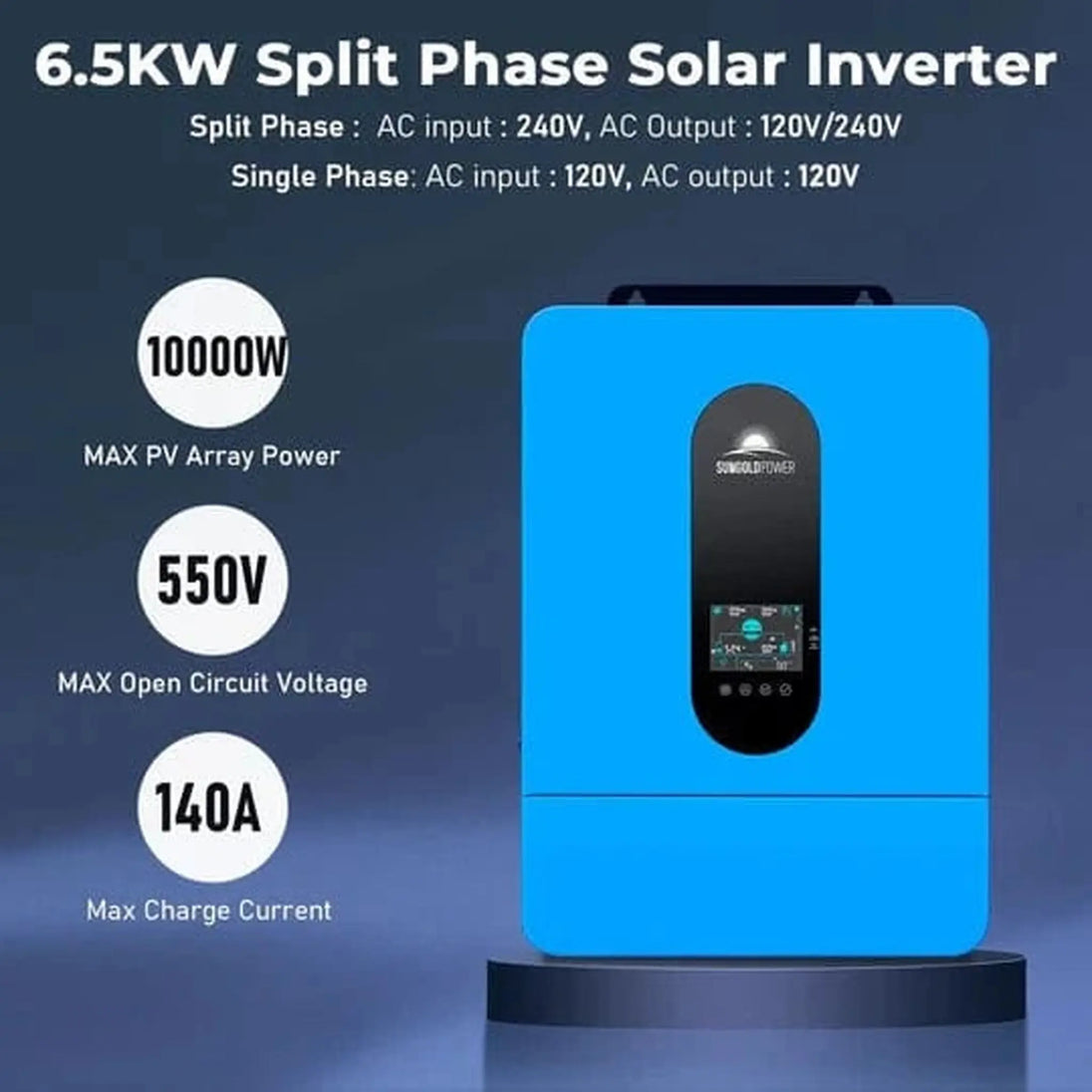

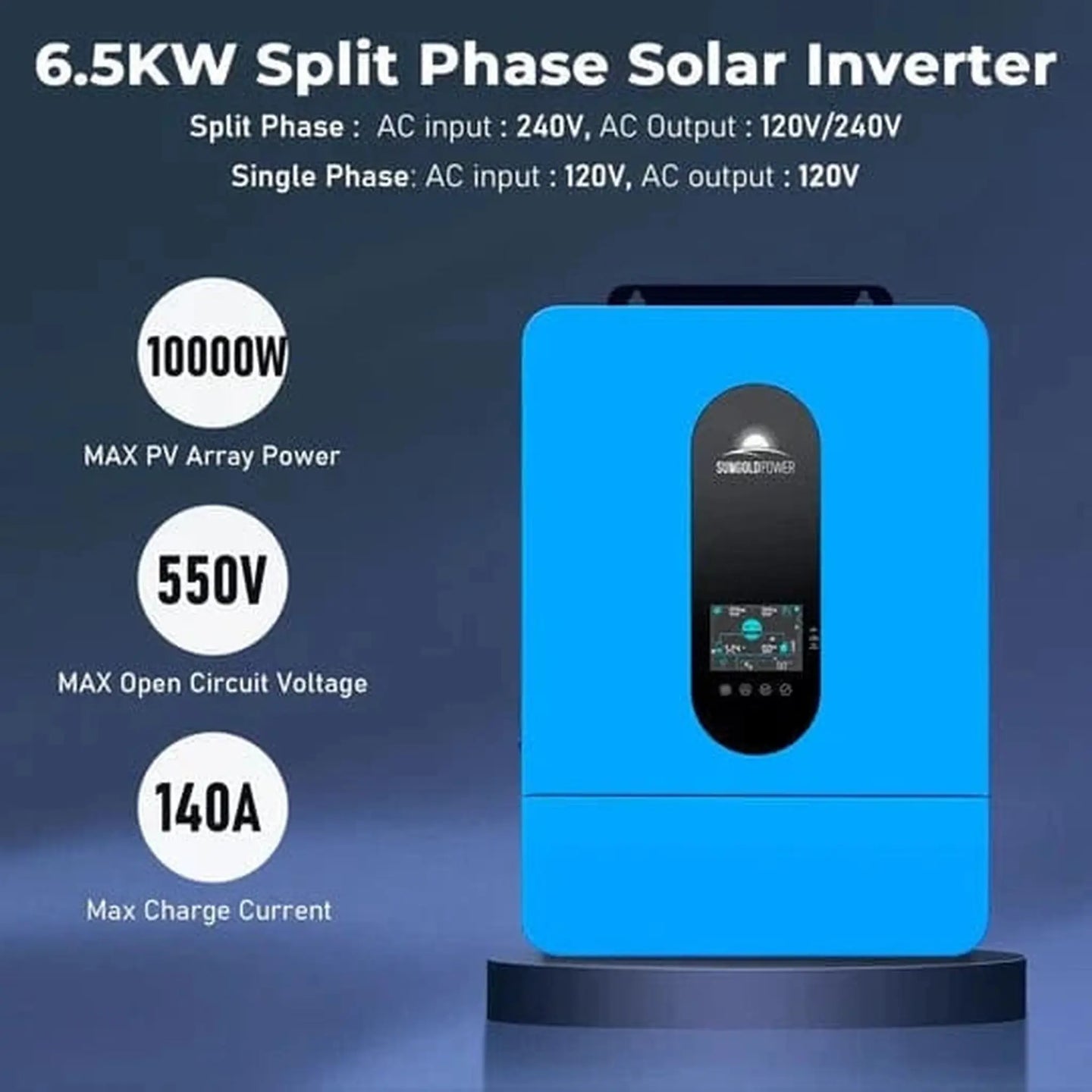

• 6500W 48VDC Split-Phase InverterProvides - dual 120V and 240V AC output, perfect for both light and heavy-duty appliances

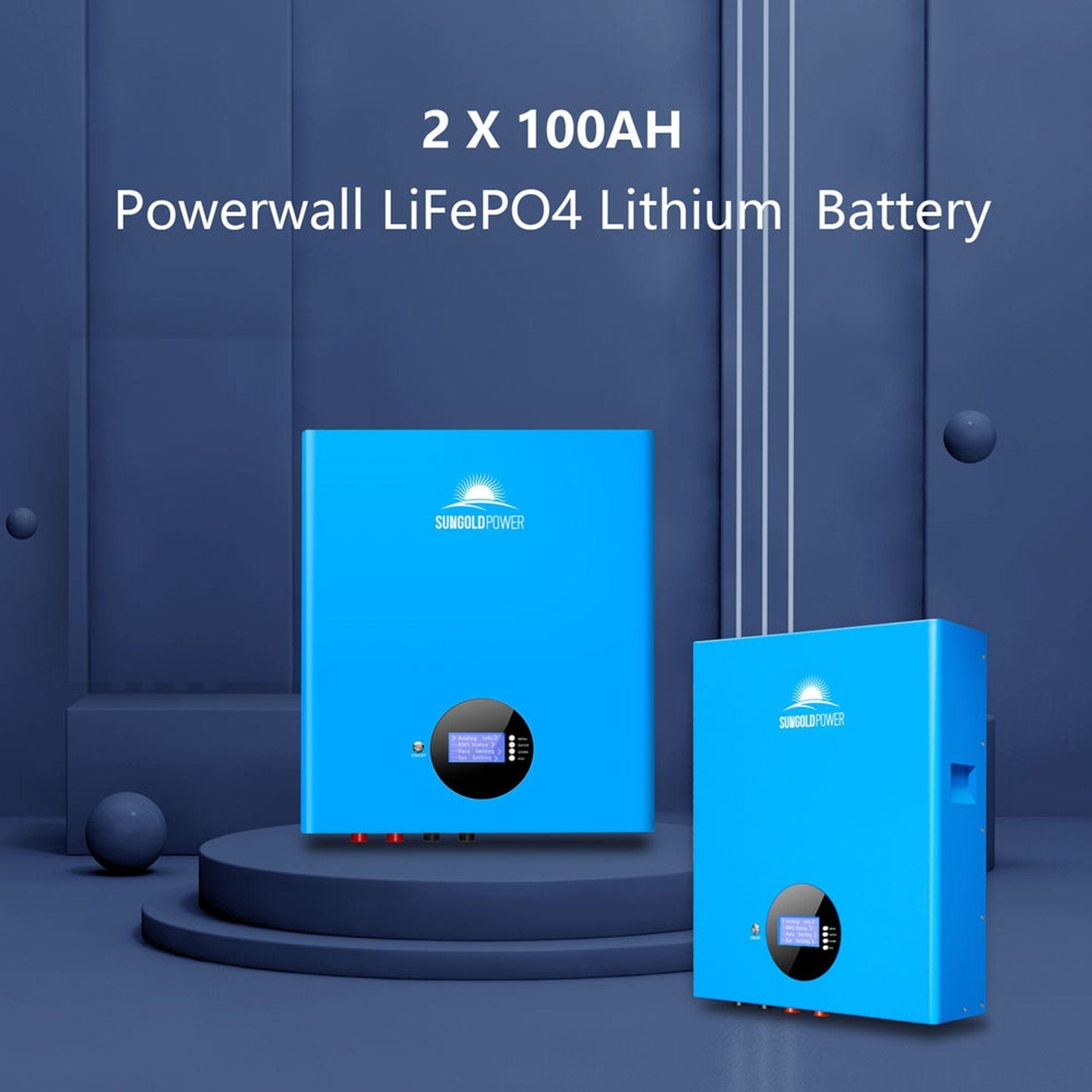

• 10.24KWH PowerWall Lithium BatteryIncludes - a high-capacity 51.2V 200AH LiFePO4 battery for long-lasting, safe energy storage

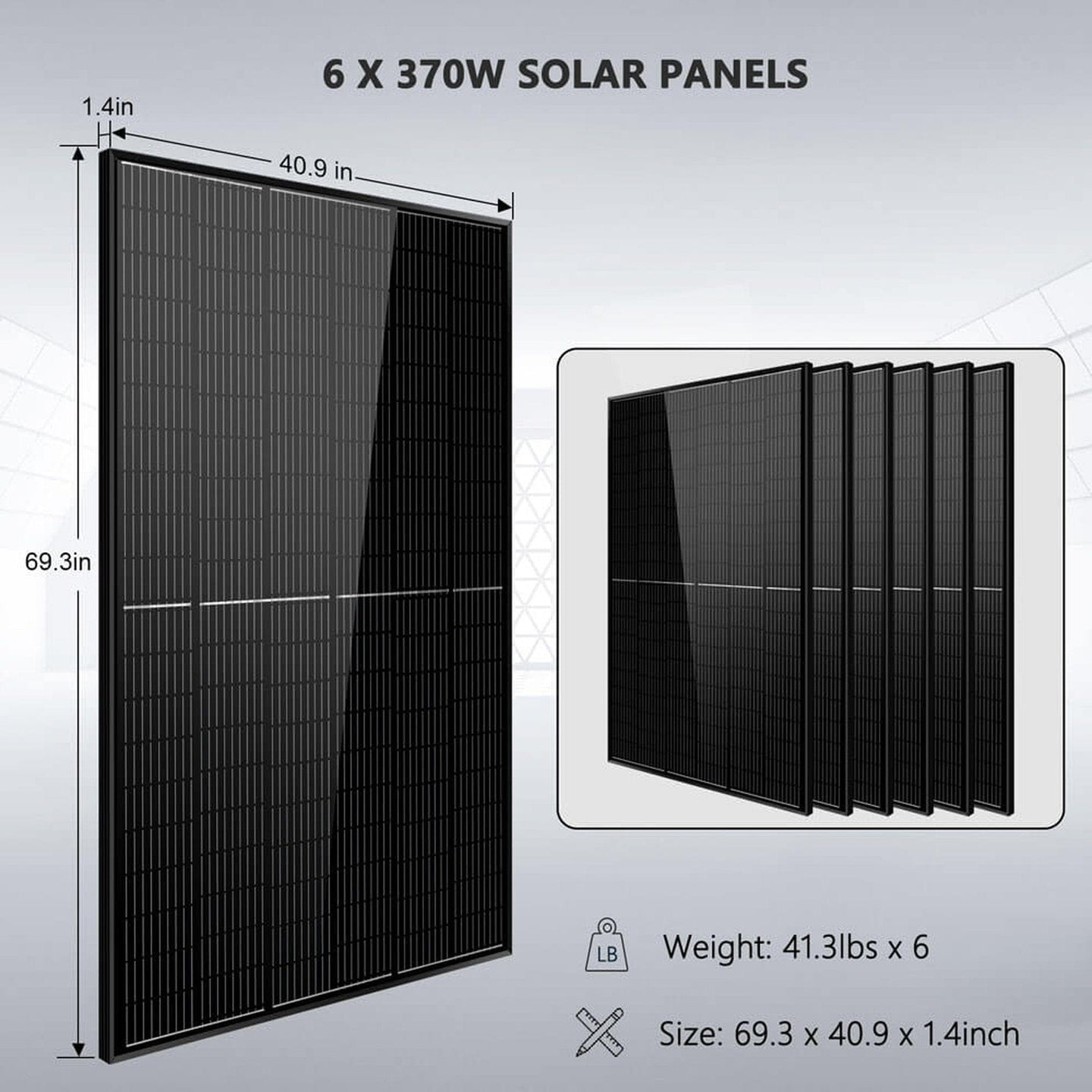

• 2.22KW Solar ArrayIncludes 6 - x 370W monocrystalline solar panels, optimized for off-grid efficiency and durability
• Daily Output Estimate - 8.88KWHBased on 4 hours of peak sunlight per day—ideal for users consuming up to 266KWH/month
• Expandable DesignAdd more solar - panels or batteries as your energy demands increase—no full replacement needed
• Complete Mounting & Cabling - KitIncludes brackets, connectors, and wiring—no guesswork, just installation

Specifications

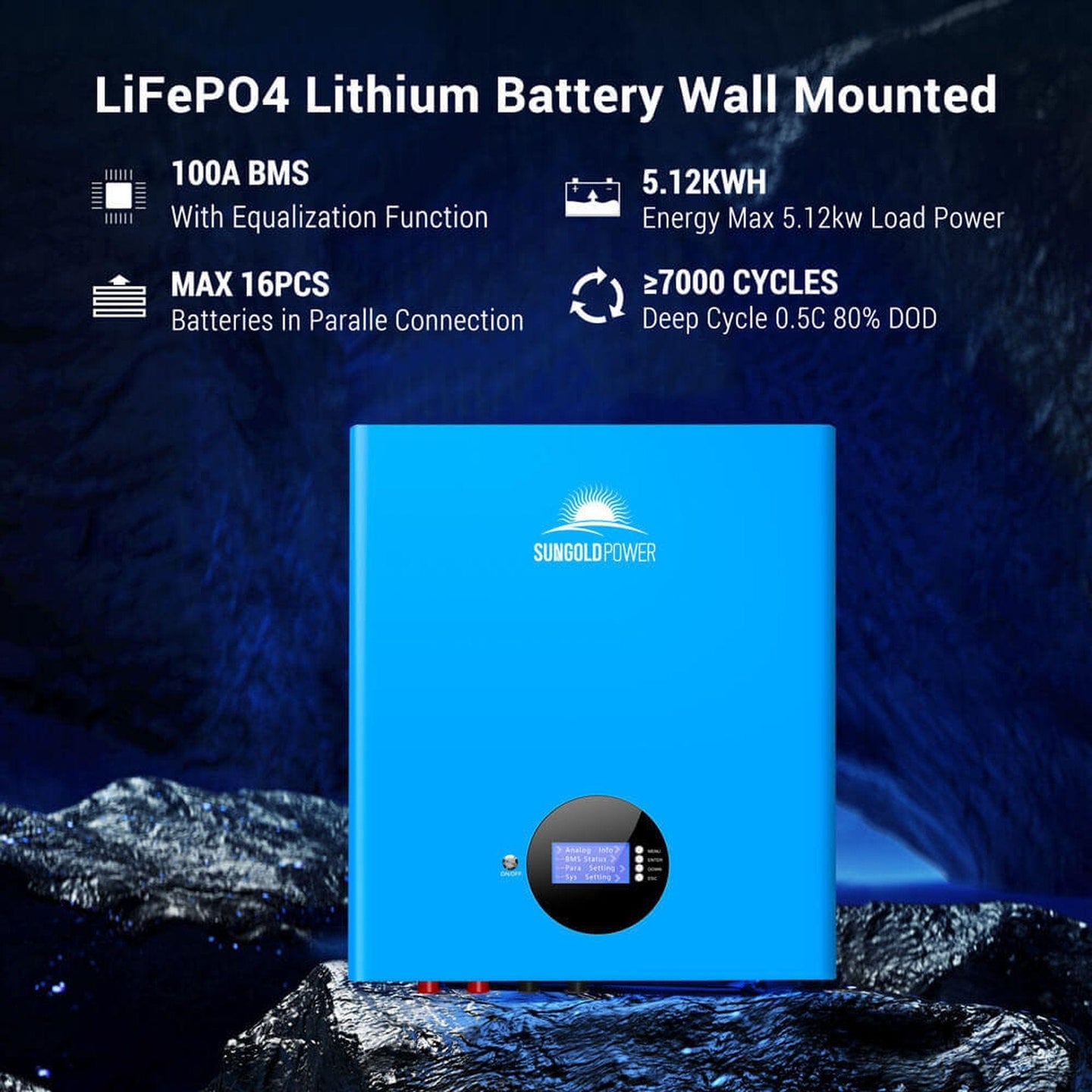

• Battery Type: LiFePO4
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Energy: 5.12 kWh
• Charge Cut-Off Current: 5A
• Max Continuous Charge Current: 100A
• Discharge Cut-Off Voltage: 43.2V
• Cycle Life: >=7000
• Communication Protocol: RS232 / RS485 / CAN (supports multiple protocols)
• Storage Temperature: -10C to +45C
• Warranty: 10 Years

Warranty and Resources

6500 Watt Solar Inverter UL1741 - 3Year Warranty LifePo4 5.12KWH Lithium Battery - 10 Year Warranty 370 Watts Solar Panels - 25 Year Warranty

• 6500 Watt Solar Inverter UL1741
• LifePo4 5.12KWH Lithium Battery
• 12V 24V LiFePO4 Battery Instruction Datasheet
• 370 Watts Solar Panels
• Wiring Diagram
