Offgrid Solar Kit 5000W 48VDC

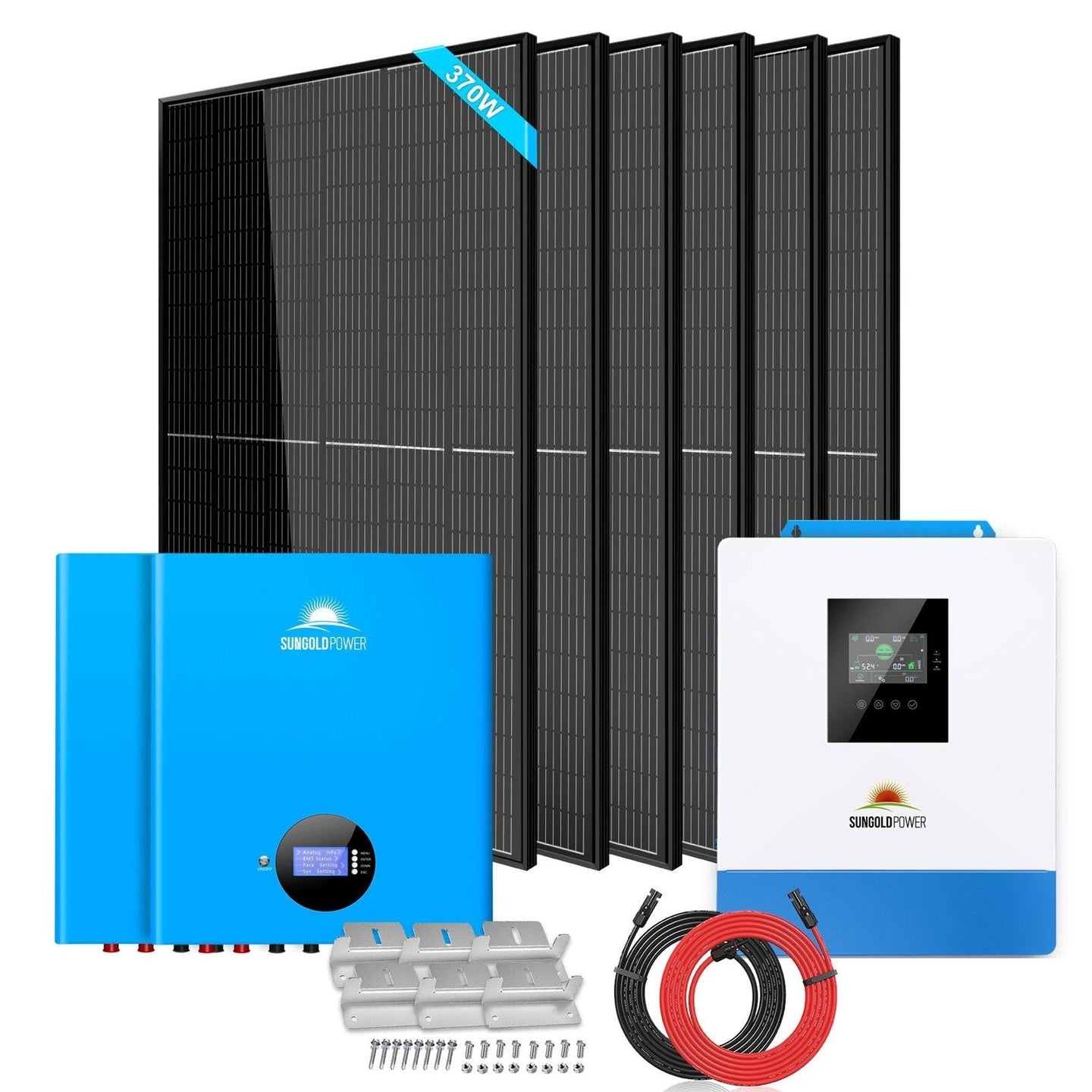

Step into energy independence with the Off-Grid Solar Kit 5000W 48VDC 120V 10.24KWH PowerWall Lithium Battery | 6x 370 Watts Solar Panels. Designed for medium-sized off-grid homes, cabins, or remote locations, this all-in-one solar energy system delivers reliable power day and night with expandability to grow as your energy needs increase.

Features

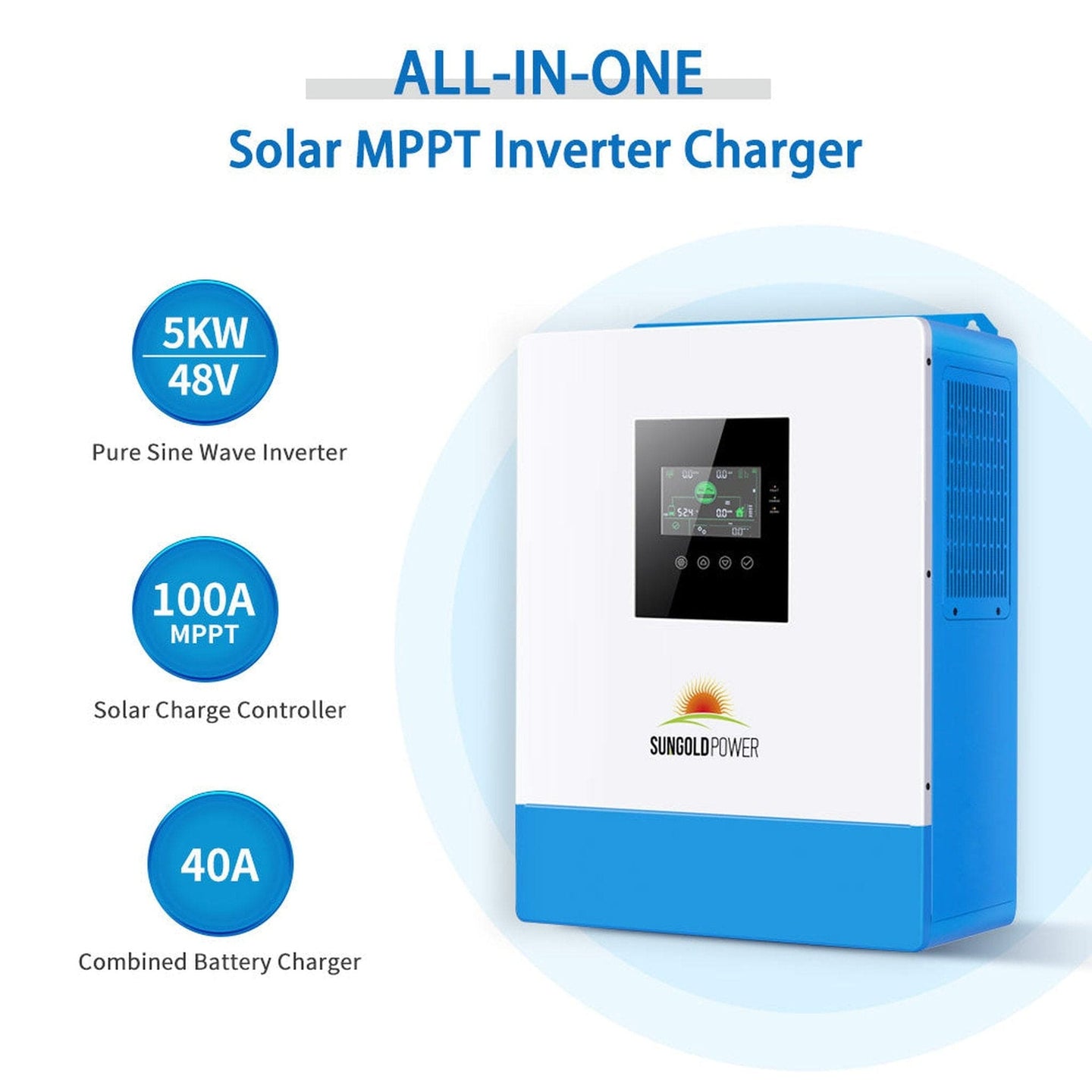

• 5000W 48V Pure Sine - Wave Inverter – Delivers stable 120V AC output, suitable for powering household appliances, electronics, and tools

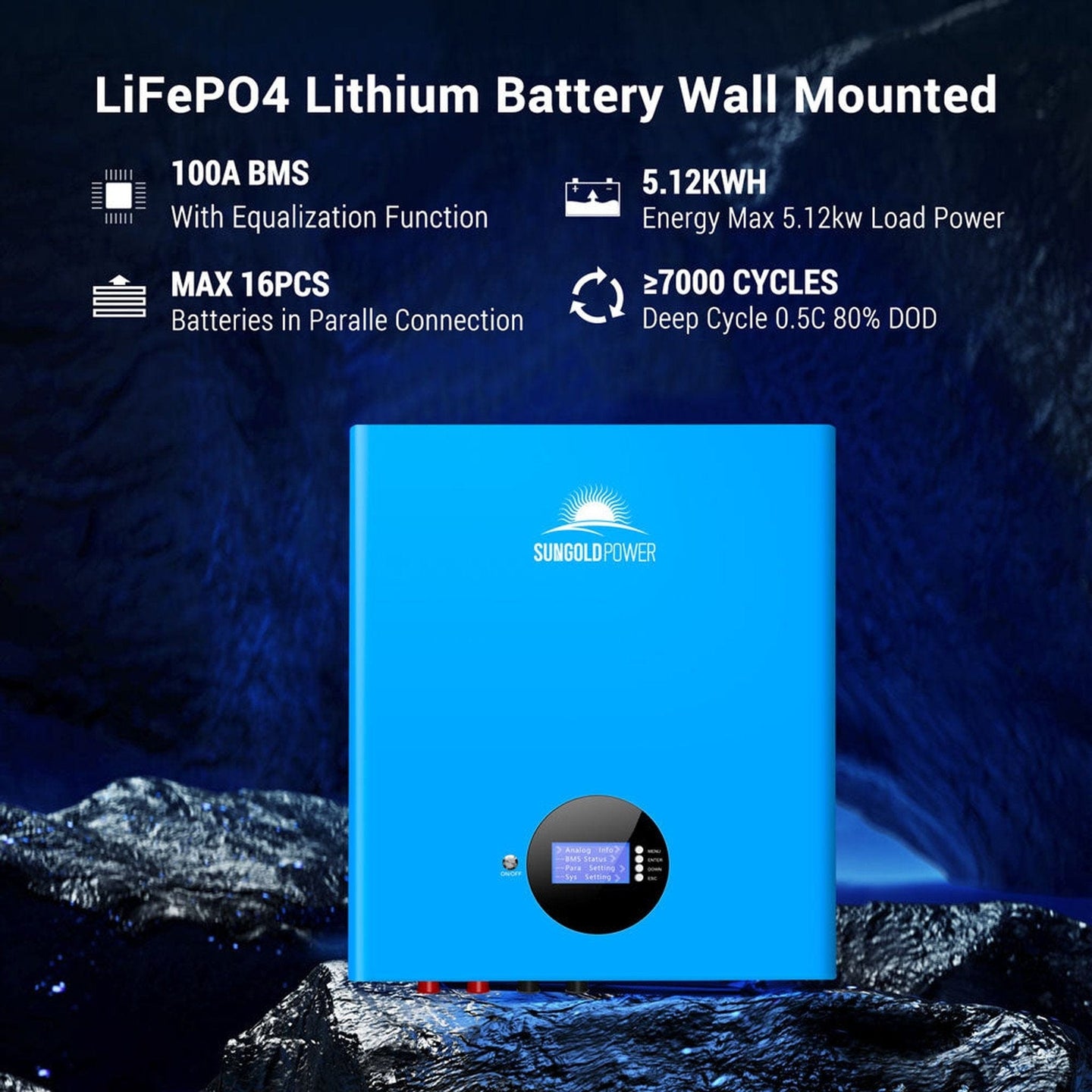

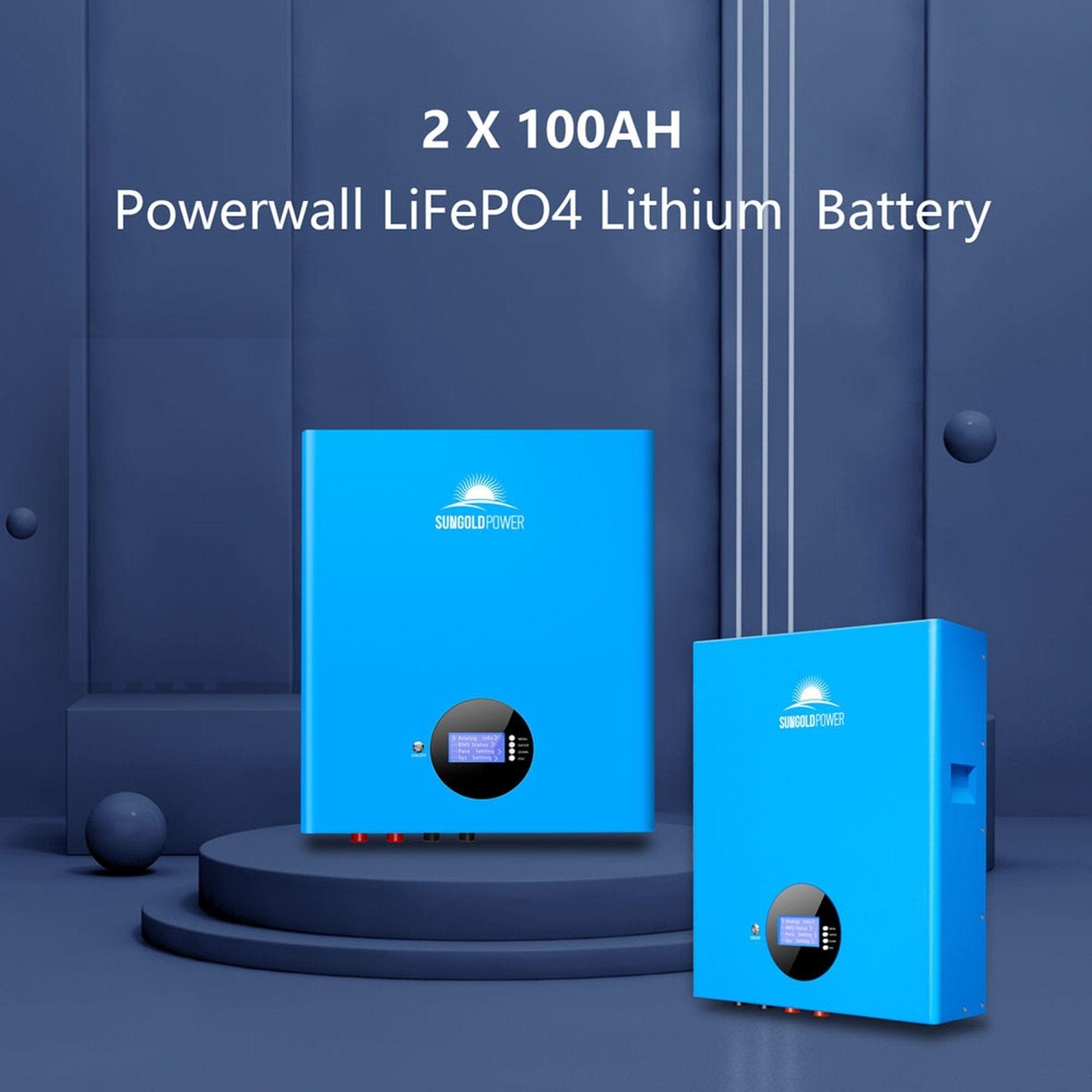

• 10.24KWH Energy Storage – - Includes 2 x 51.2V 100AH PowerWall Lithium Batteries with advanced BMS for safety and longevity

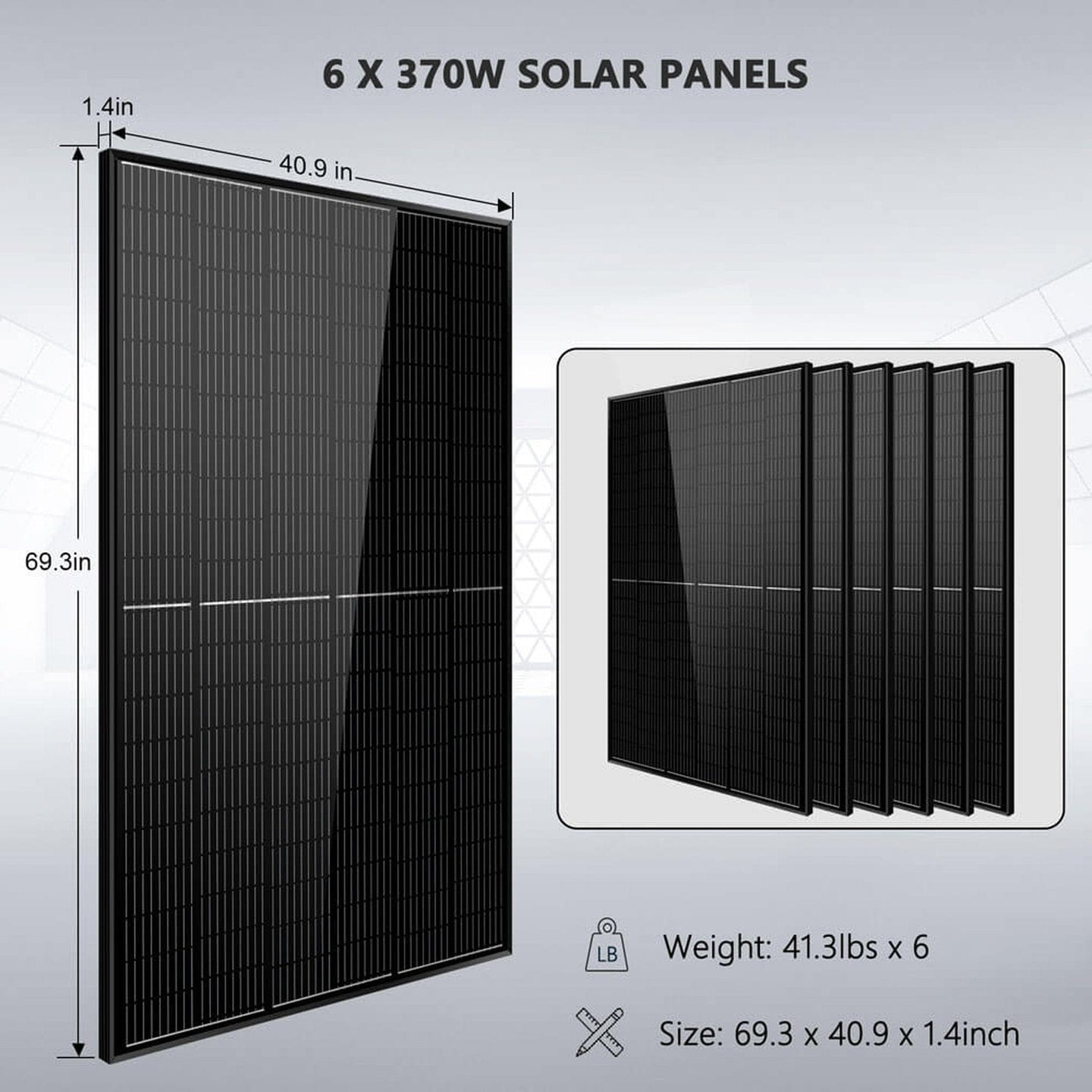

• 2.22KW Solar Array – - Equipped with 6 x 370W high-efficiency monocrystalline solar panels for consistent, renewable power generation
• Expandable Inverter Support – - Connect up to 6 inverters in parallel to increase system capacity as needed
• Wi-Fi Monitoring – Remotely - track power generation, consumption, and battery status via an intuitive mobile app
• Modular Design – Easily - add additional batteries or solar panels to expand your system over time

Specifications

• AC Output: 5000W Solar Inverter with Wi-Fi Model
• Output Waveform: Pure Sine Wave
• AC Output Voltage: 120V 50Hz/60Hz
• Max PV Input: 500 VDC
• Efficiency: >95%
• Max Charging Current: 100A
• Maximum PV Array Power: 5500W
• Dimension: 17.3 x 12.8 x 5.1 inch
• Weight: 28 LB
• Warranty: 3 Years

Warranty and Resources

5000 Watt Pure Sine Wave Inverter - 3 Years Warranty LifePo4 5.12KWH Lithium Battery - 10 Years Warranty 370 Watts Solar Panels - 25 Years Warranty

• 5000 Watt Pure Sine Wave Inverter
• 48V 100Ah Server Rack LiFePO4 Lithium Battery SG48100P (Product Page)
• LifePo4 5.12KWH Lithium Battery
• 12V 24V LiFePO4 Battery Instruction Datasheet
• 415W Mono Black Solar Panel (Product Page)
• 370 Watts Solar Panels
• Wiring Diagram
