Off Grid Solar Kit 10KW Inverter

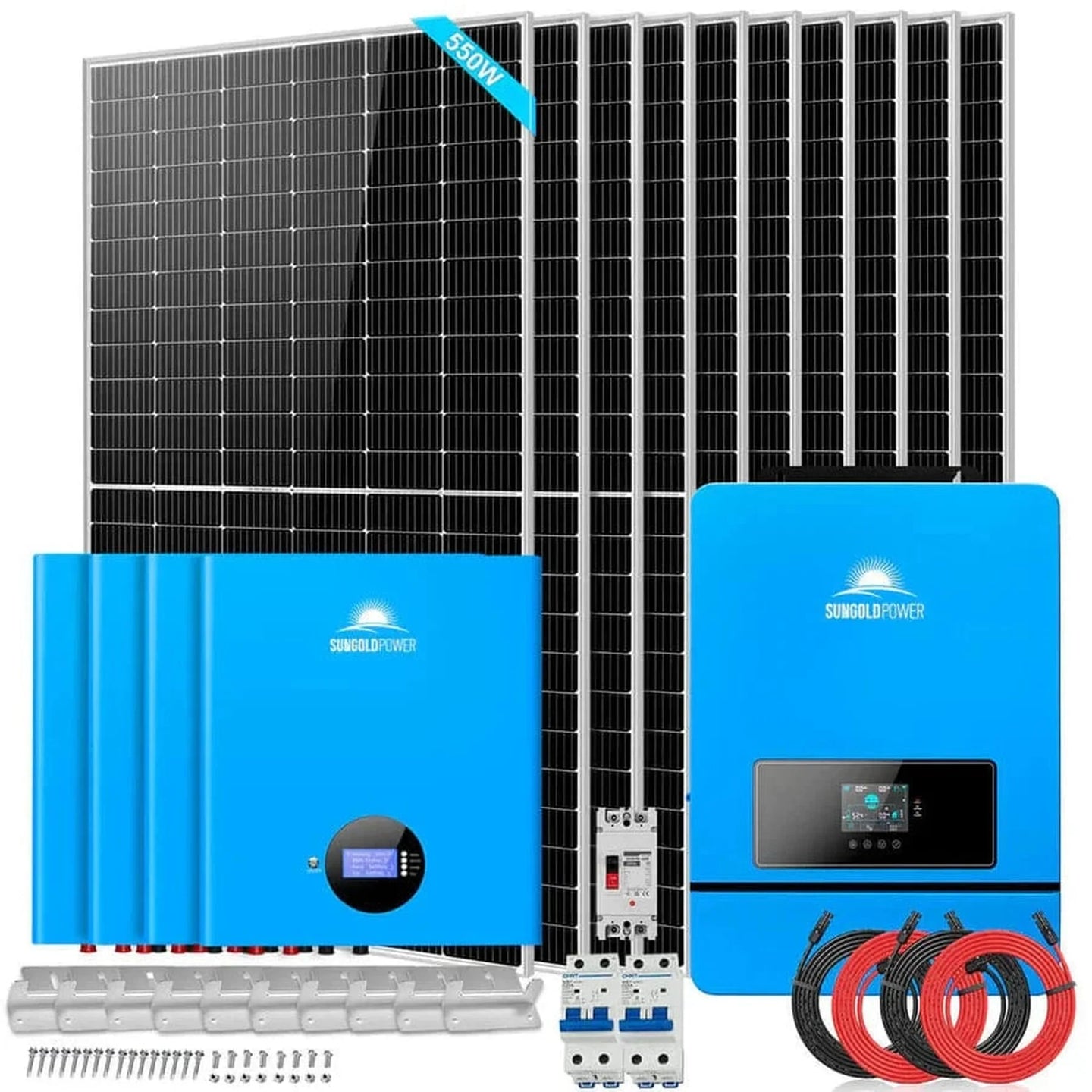

Power your property independently with this comprehensive 10kW Off Grid Solar Kit, designed for high-performance, reliable energy in remote or backup power applications. This kit includes ten 550W monocrystalline solar panels, four 5.12kWh Powerwall lithium batteries (totaling 20.48kWh), and a 10kW split-phase inverter to deliver clean, consistent power where and when you need it.

Features

• Complete Off-Grid SystemAll-in - one solar solution with everything you need: solar panels, batteries, inverter, cables, and mounting hardware. Ideal for cabins, workshops, homes, or emergency backup setups

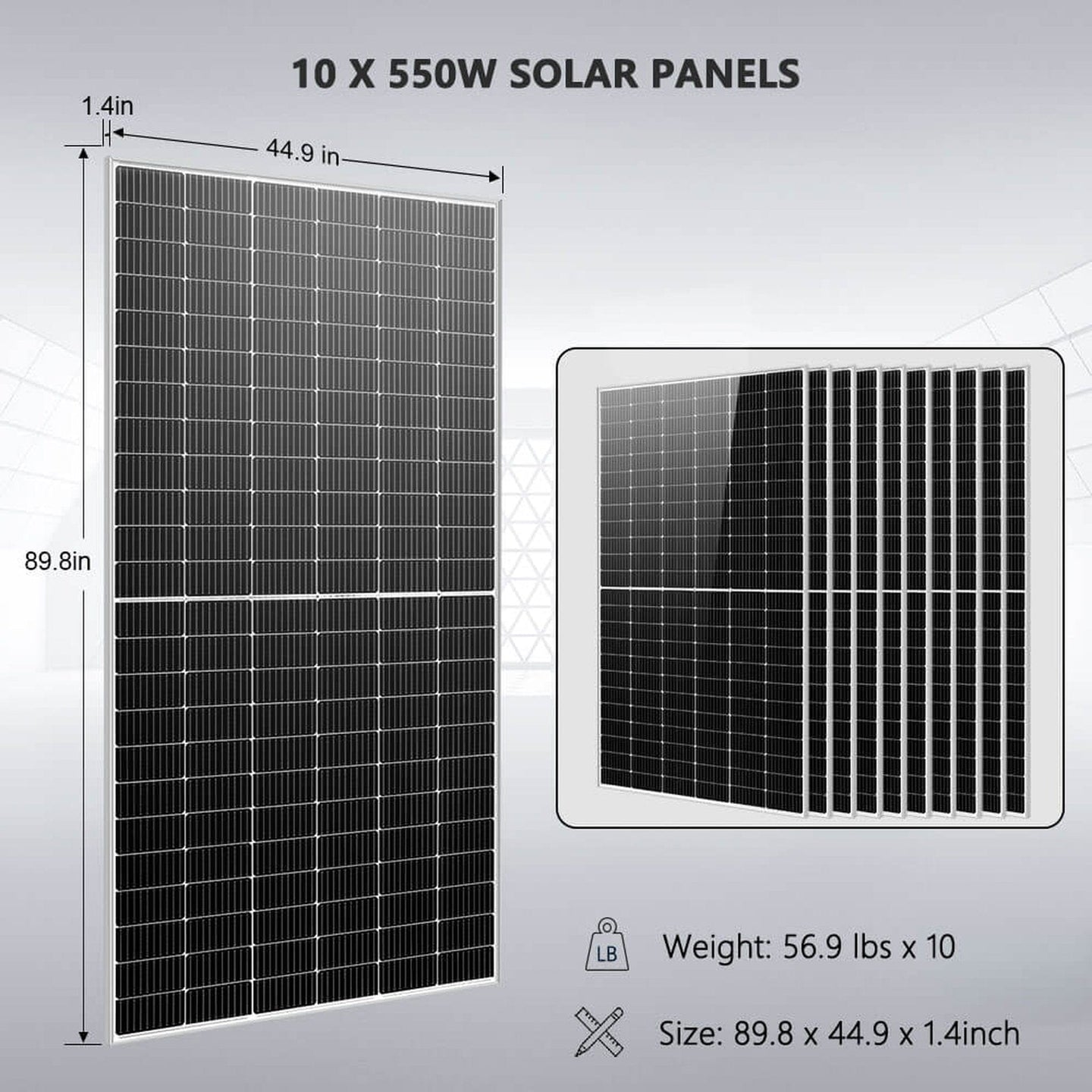

• High - Efficiency Solar ArrayIncludes 10 x 550W monocrystalline panels, delivering strong performance even in low-light conditions. The estimated daily power generation is up to 22kWh based on 4 hours of full sunlight

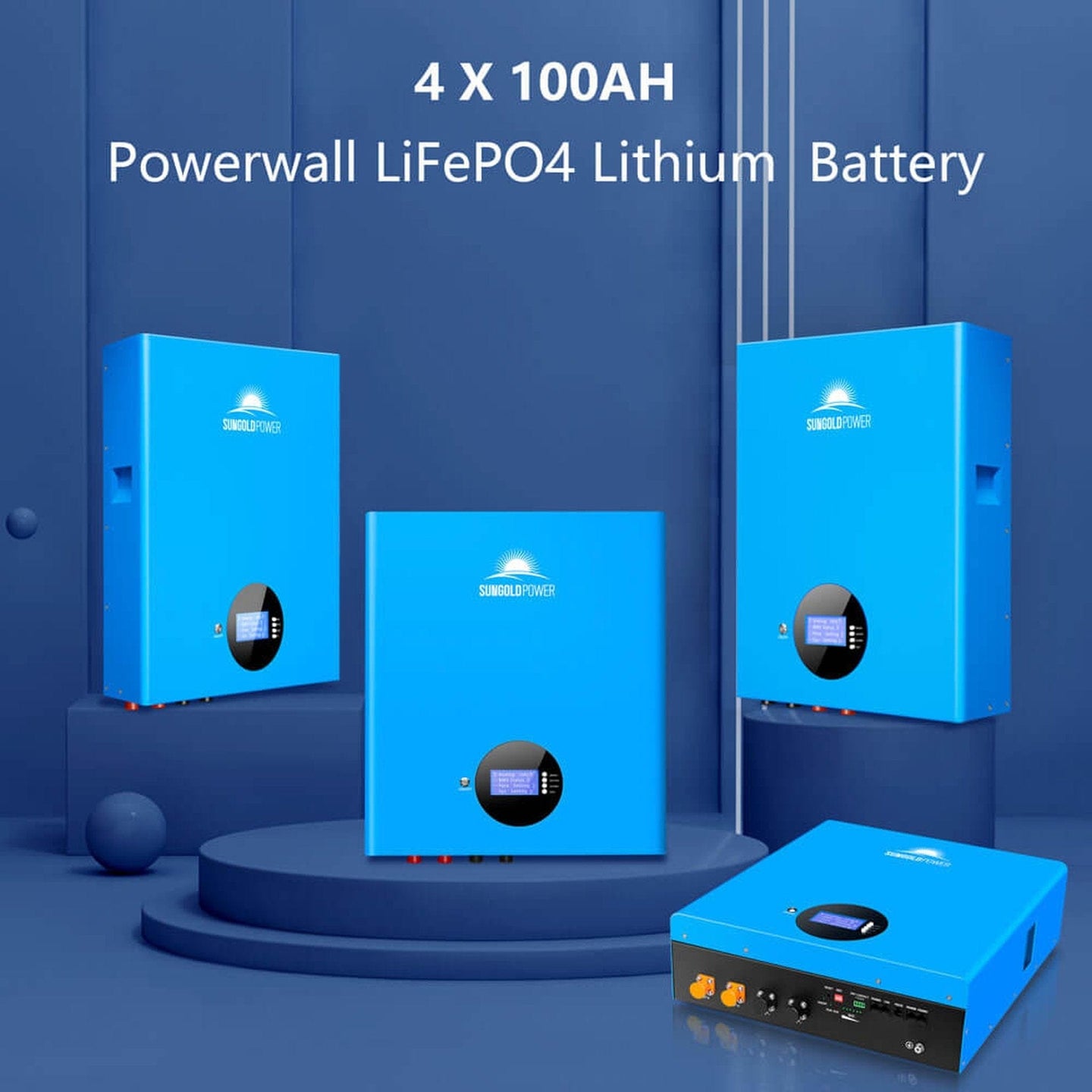

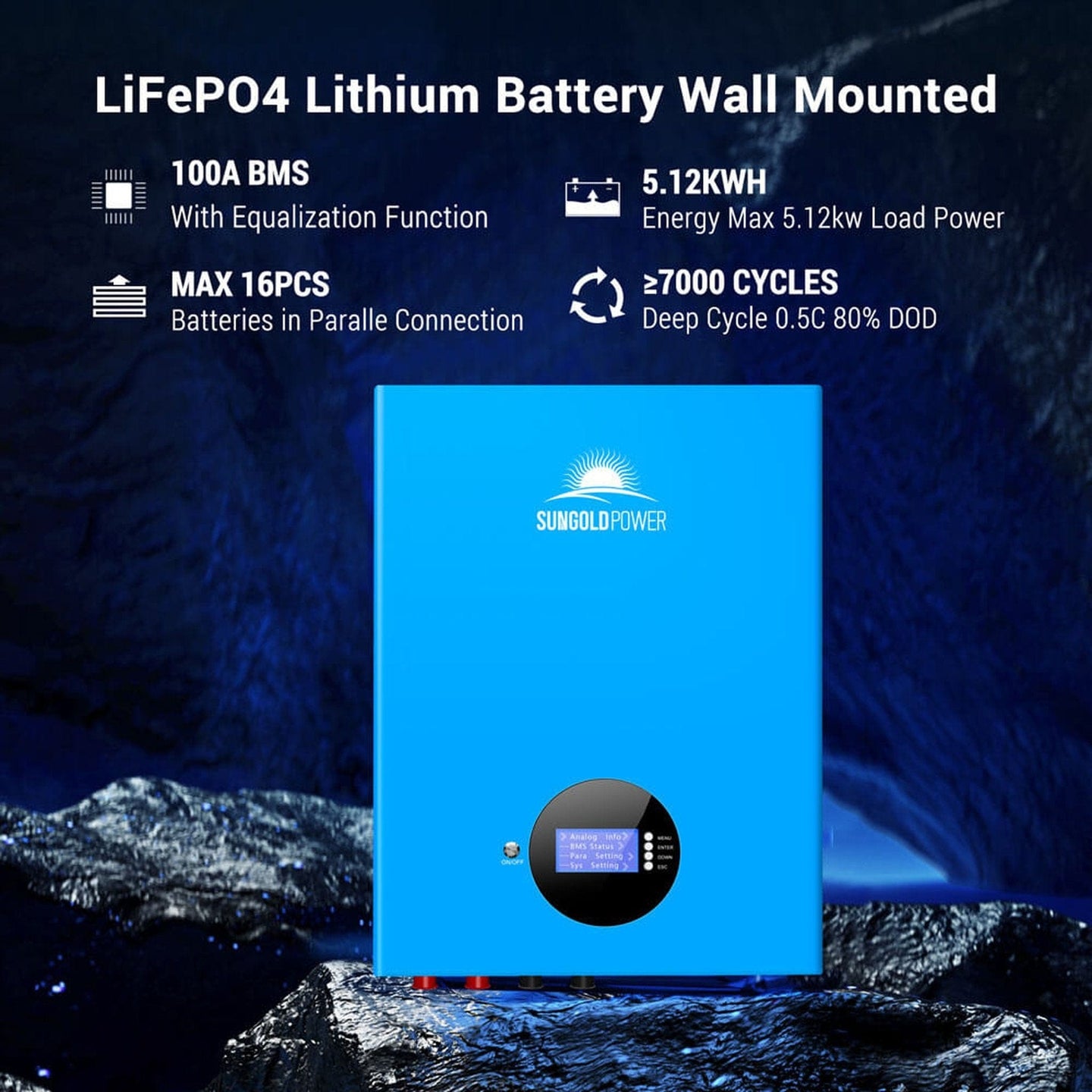

• Expandable Battery StorageEquipped with - four 5.12kWh LiFePO4 Powerwall batteries (totaling 20.48kWh). You can scale up the system by adding more batteries as energy demands increase
• Powerful 10kW Inverter (48VDC - Input)The split-phase 120V/240V inverter supports both 120V appliances and 240V loads. Delivers stable, pure sine wave output suitable for sensitive electronics and heavy-duty appliances
• Flexible and Future - ReadyModular design supports future expansion with additional panels or batteries. Suitable for permanent off-grid installations or semi-grid-tied configurations with generator backup

Specifications

• AC Output: 10000W
• Output Waveform: Pure Sine Wave
• AC Output Voltage: 120/240V (split phase/single phase)
• MPPT Operating Voltage Range: 125 Vdc - 425 Vdc
• Efficiency: 92%
• Max Charging Current: 200A
• Maximum PV Array Power: 11,000W
• Dimension: 26 x 17.9 x 5.1 inch
• Weight: 54 lbs
• Warranty: 3 Years
• Certificates: UL1741 Listed By ETL

Warranty and Resources

10000W Solar Inverter - 3 Years Warranty LifePo4 5.12KWH Lithium Battery- 10 Years Warranty 550 Watts Solar Panels- 25 Years Warranty

• 10000W Solar Inverter
• LifePo4 5.12KWH Lithium Battery
• 550 Watts Solar Panels
• Wiring Diagram
