SunGold Power | Off Grid Solar Kit 10000W 48VDC 120VAC/240V | SGM-10M2T

Off Grid Solar Kit 10000W 48VDC 120VAC/240V

Experience reliable and scalable off-grid power with the SGM-10M2T Solar Energy Kit, designed to provide high daily energy output, efficient performance, and future-ready expandability. This all-in-one kit includes 12 x 415W solar panels, 4 x 5.12kWh Powerwall lithium batteries (totaling 20.48kWh), and 2 x 5kW split-phase inverters for a combined 10kW output at 48VDC.

Features

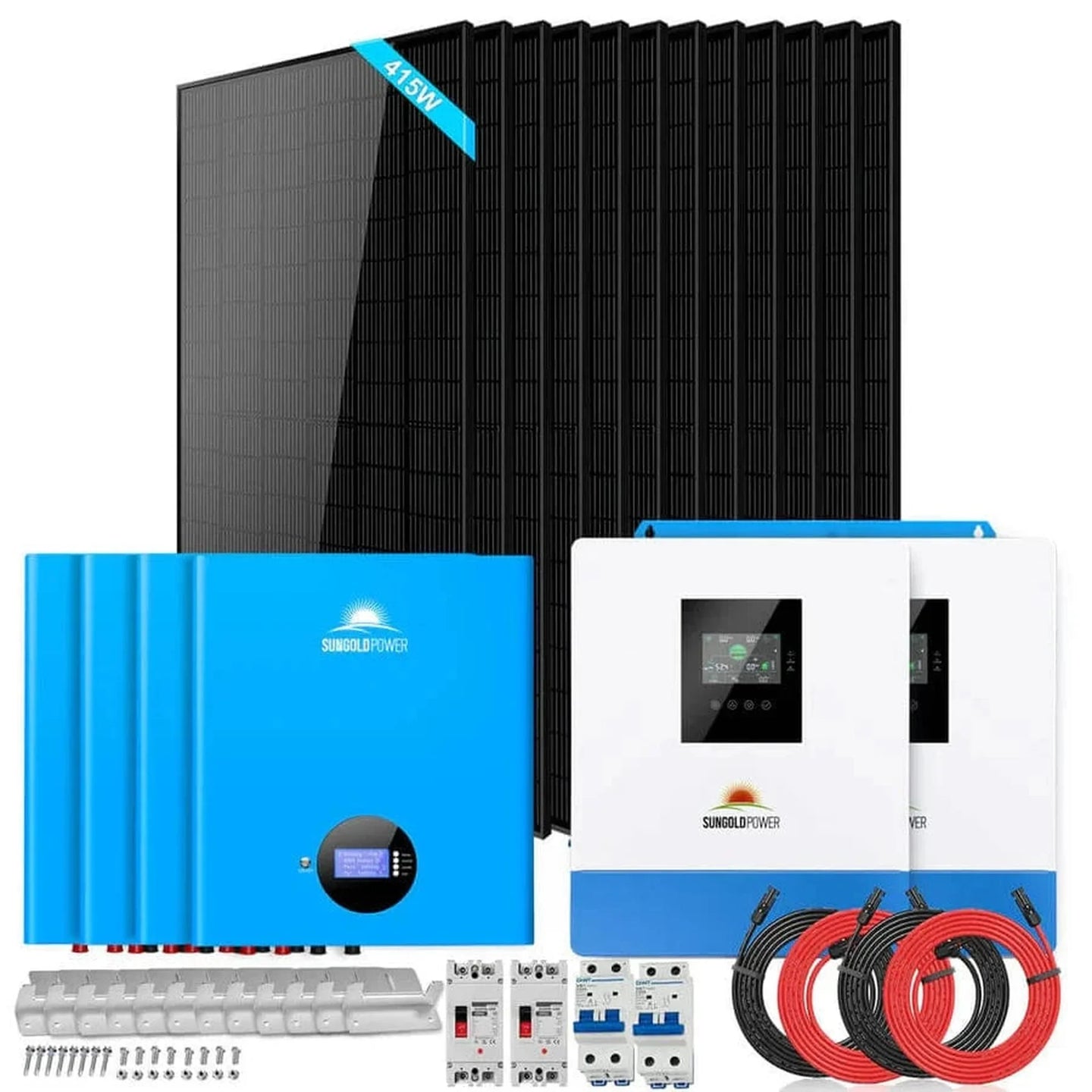

• Complete Off - Grid SystemIncludes 12 solar panels, 4 lithium batteries, 2 inverters, plus all required cables and mounting brackets—everything you need for setup and operation
• High Daily OutputGenerates approximately - 20kWh per day with 4 hours of peak sunlight, making it suitable for residential homes, workshops, or agricultural applications
• Dual 5kW Inverters – - 10kW Combined OutputThe split-phase inverters deliver 120VAC/240VAC output for powering both standard and heavy-duty appliances such as air conditioners, water pumps, and kitchen equipment
• Expandable and Parallel CapableSupports - up to 6 inverters in parallel, enabling you to expand system capacity as your energy needs grow. Add more solar panels or batteries with ease

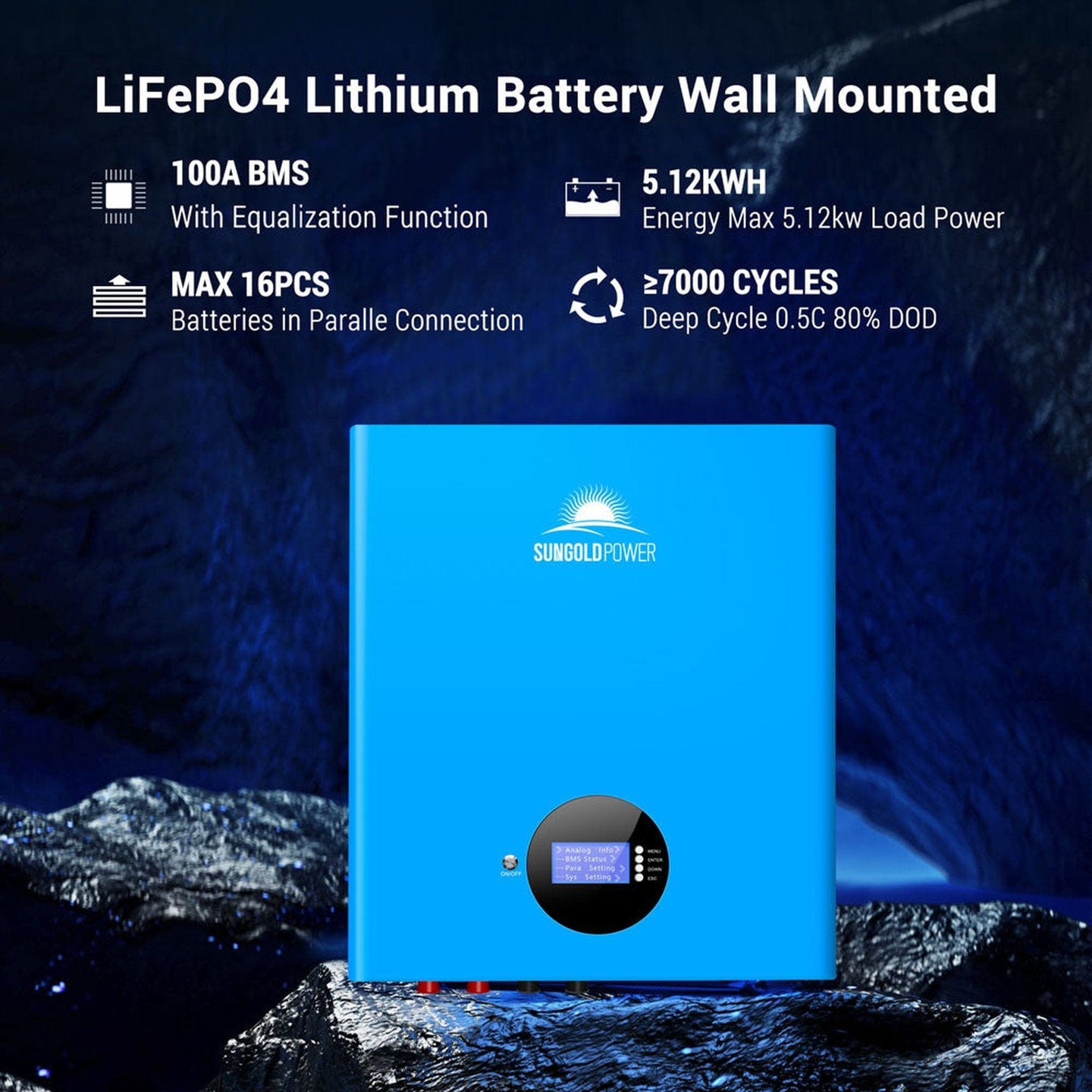

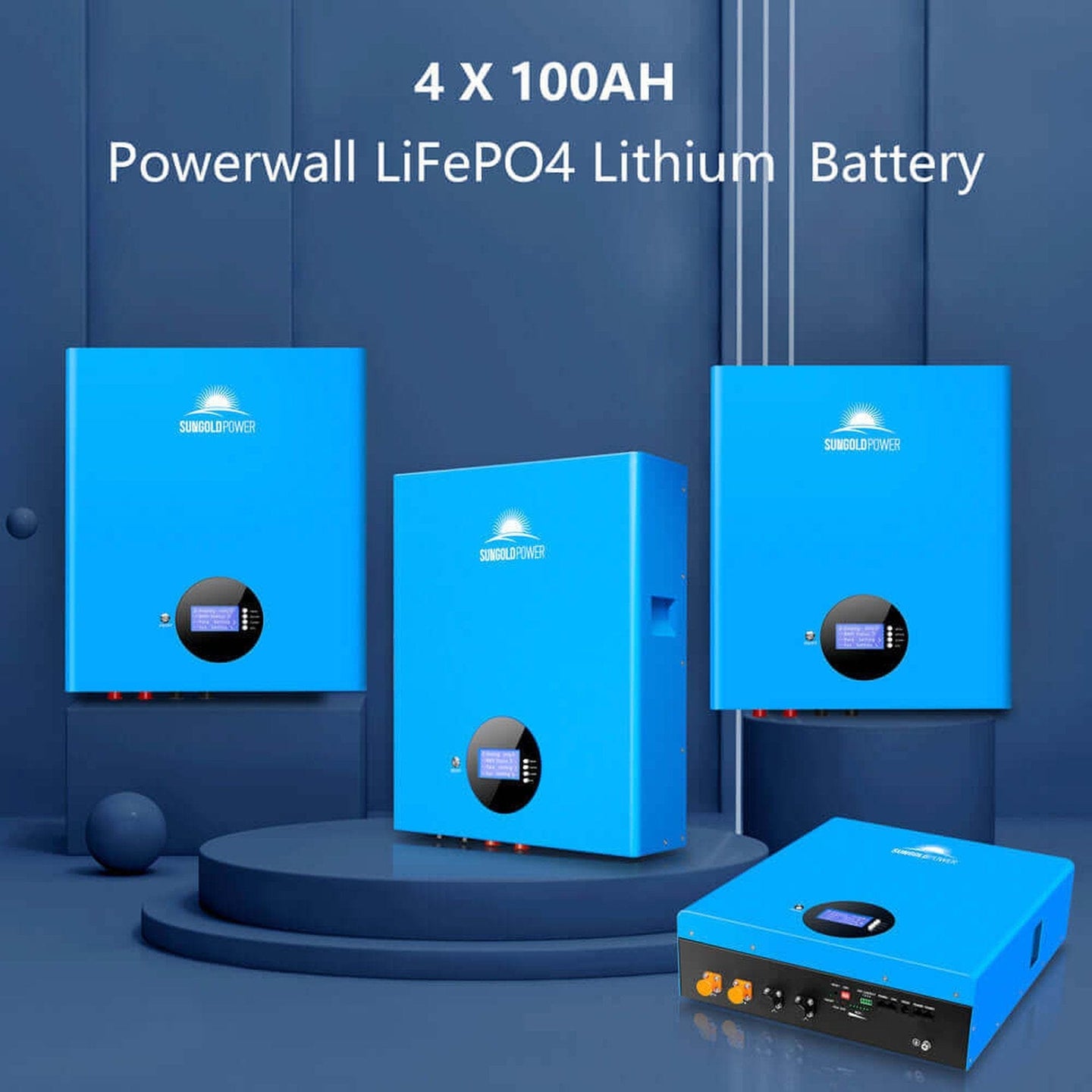

• Reliable Lithium StorageComes with - four 5.12kWh LiFePO4 Powerwall batteries, offering a total of 20.48kWh of high-efficiency, deep-cycle energy storage with long lifespan and BMS protection

Specifications

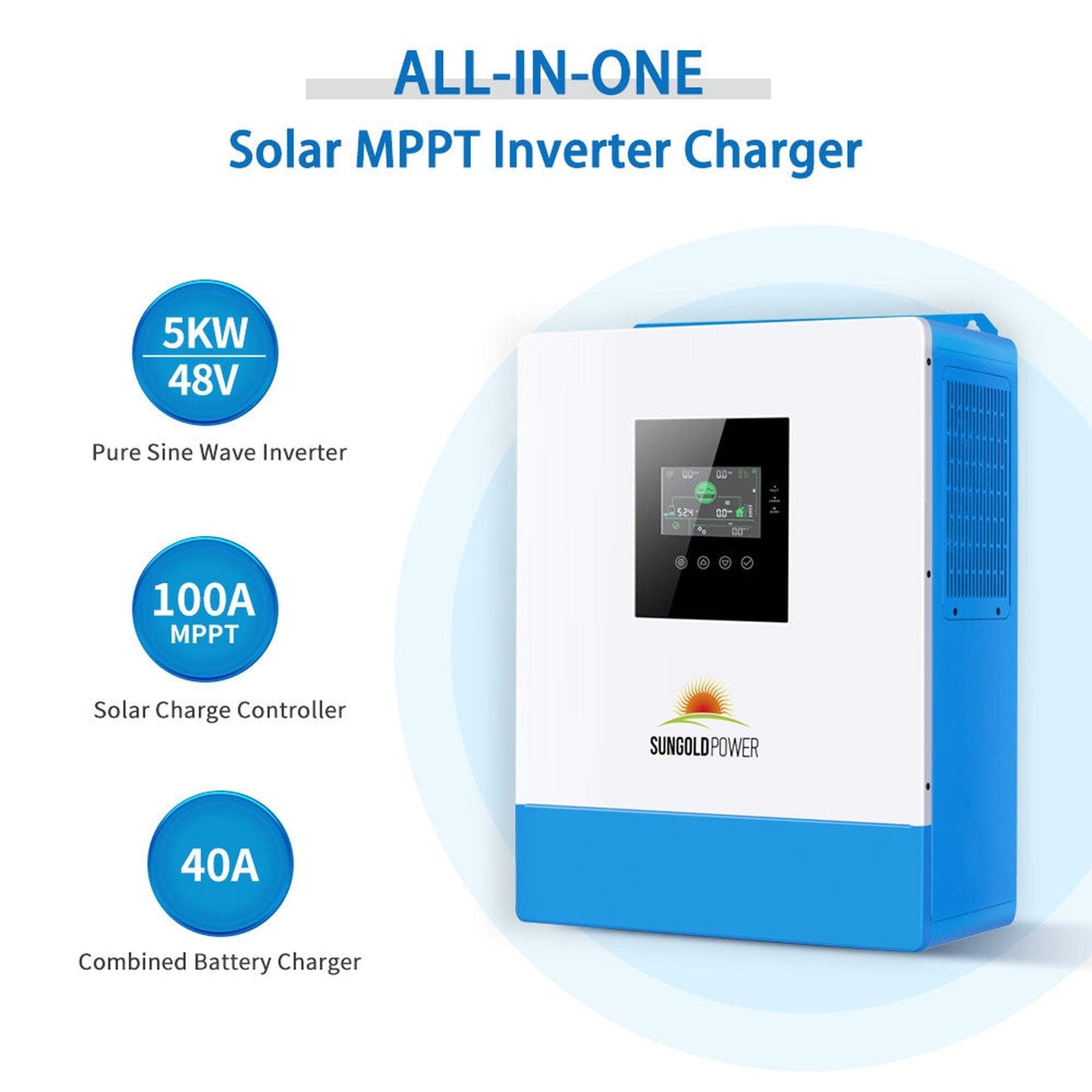

• AC Output: 5000W Solar Inverter with Wi-Fi Model
• Output Waveform: Pure Sine Wave
• AC Output Voltage: 120V 50Hz/60Hz
• Max PV Input: 500 VDC
• Efficiency: >95%
• Max Charging Current: 100A
• Maximum PV Array Power: 5500W
• Dimension: 17.3 x 12.8 x 5.1 inch
• Weight: 28 LB
• Warranty: 3 Years

Warranty and Resources

5000 Watt Pure Sine Wave Inverter - 3 Years Warranty LifePo4 5.12KWH Lithium Battery - 10 Years Warranty 415 Watts Solar Panels - 25 Years Warranty

• 5000 Watt Pure Sine Wave Inverter
• 48V 100Ah Server Rack LiFePO4 Lithium Battery SG48100P (Product Page)
• LifePo4 5.12KWH Lithium Battery
• 12V 24V LiFePO4 Battery Instruction Datasheet

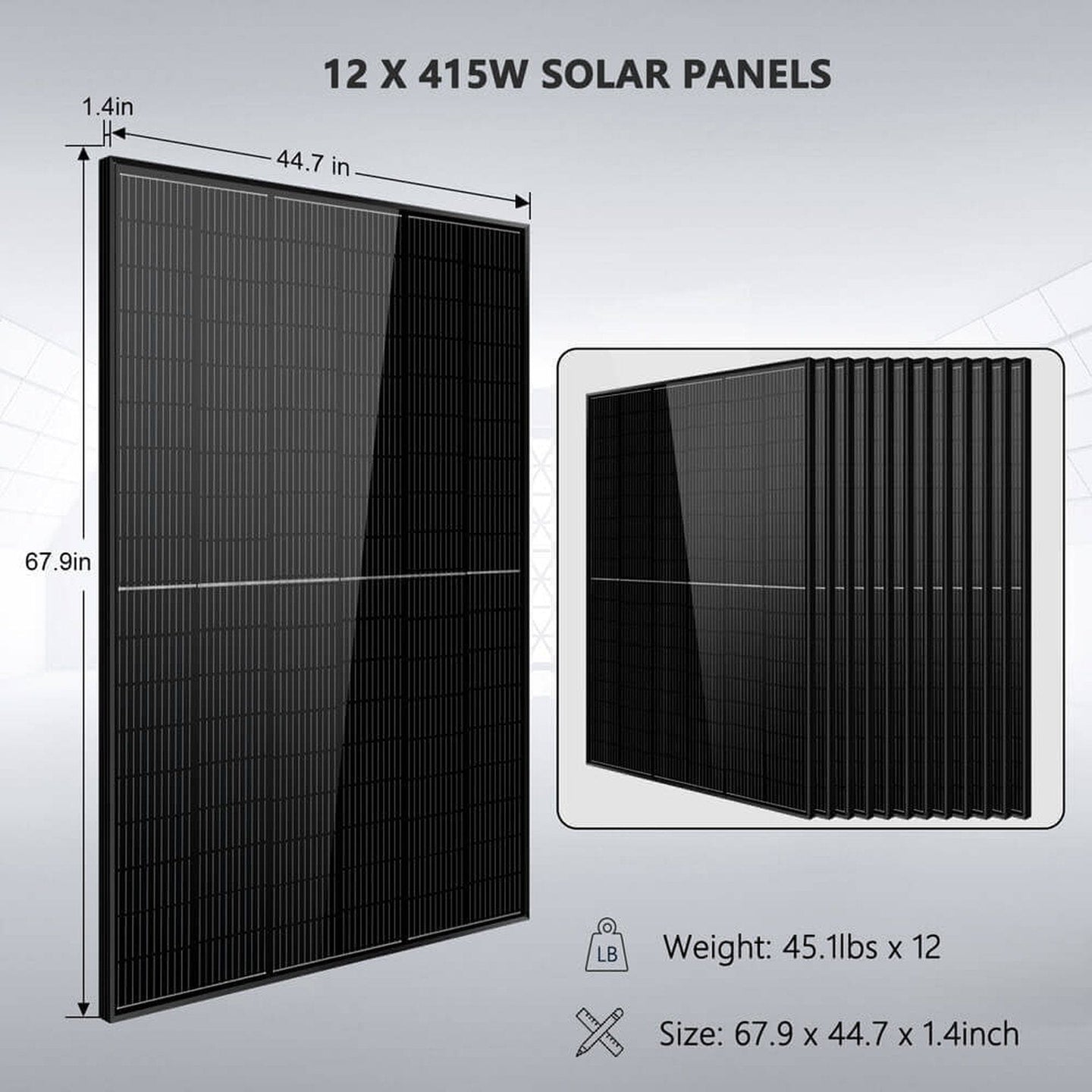

• 415W Mono Black Solar Panel (Product Page)
• 415 Watts Solar Panels
• Wiring Diagram
