SunGold Power | 6000W 24V Split Phase Pure Sine Wave Inverter Charger | LFP6K24V240VSP

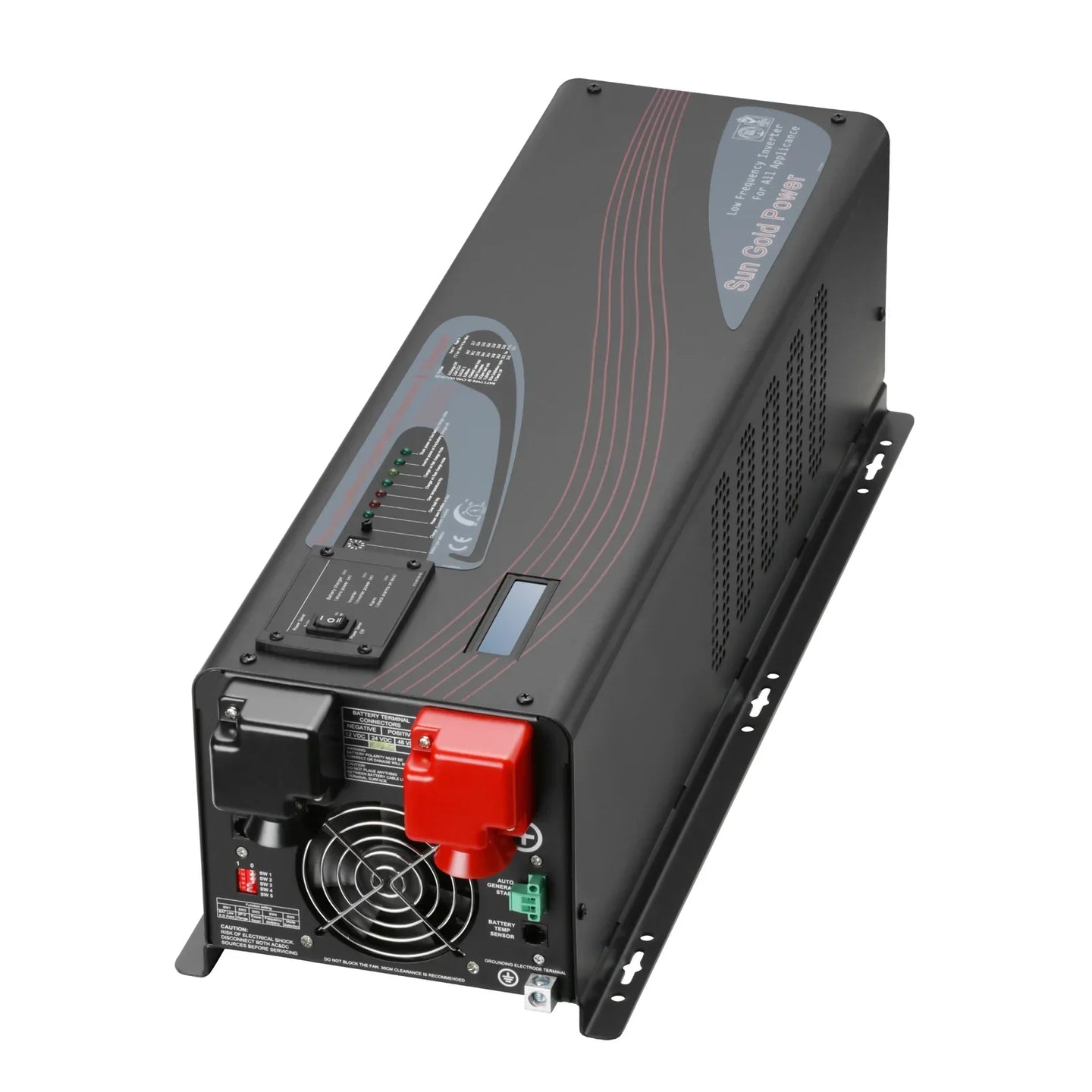

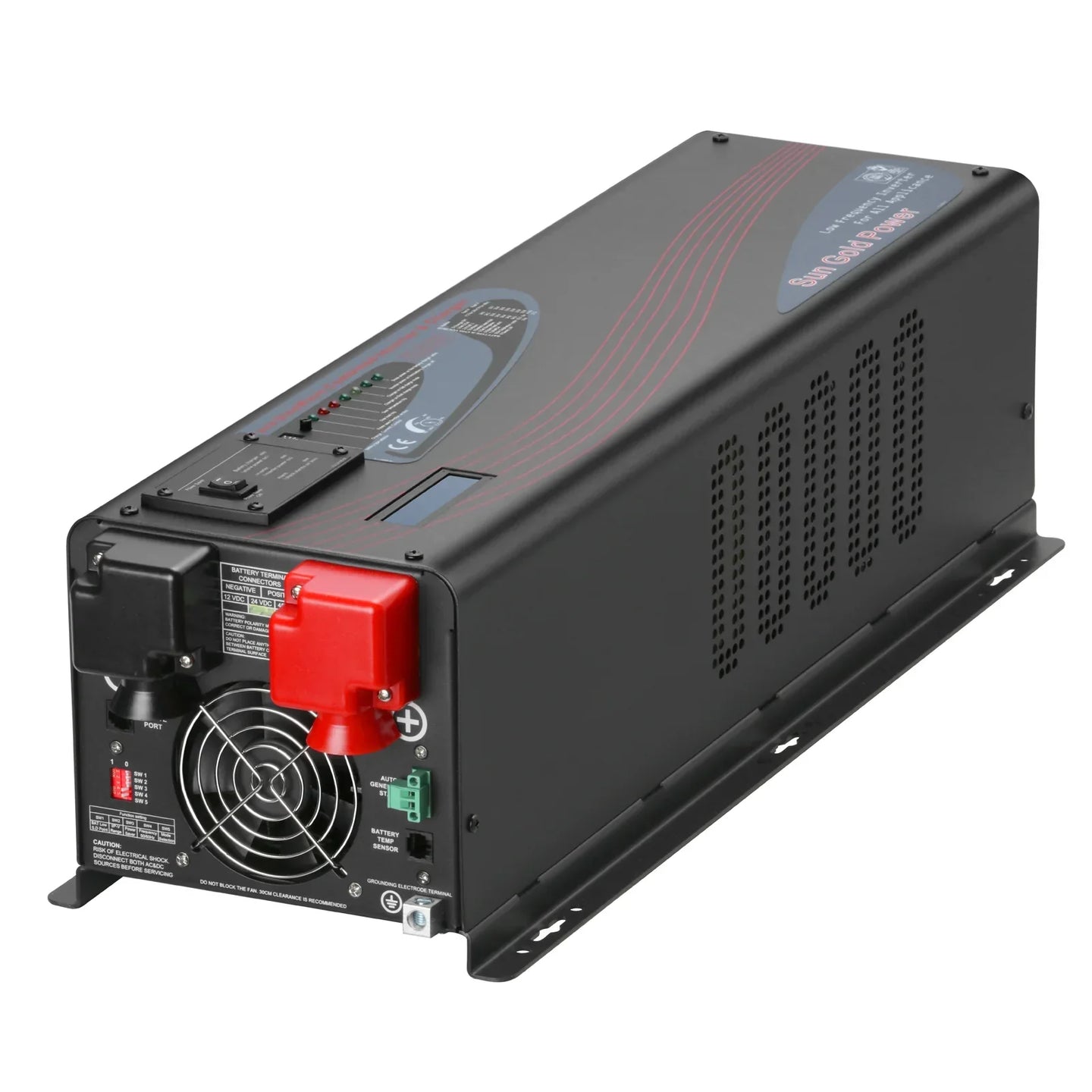

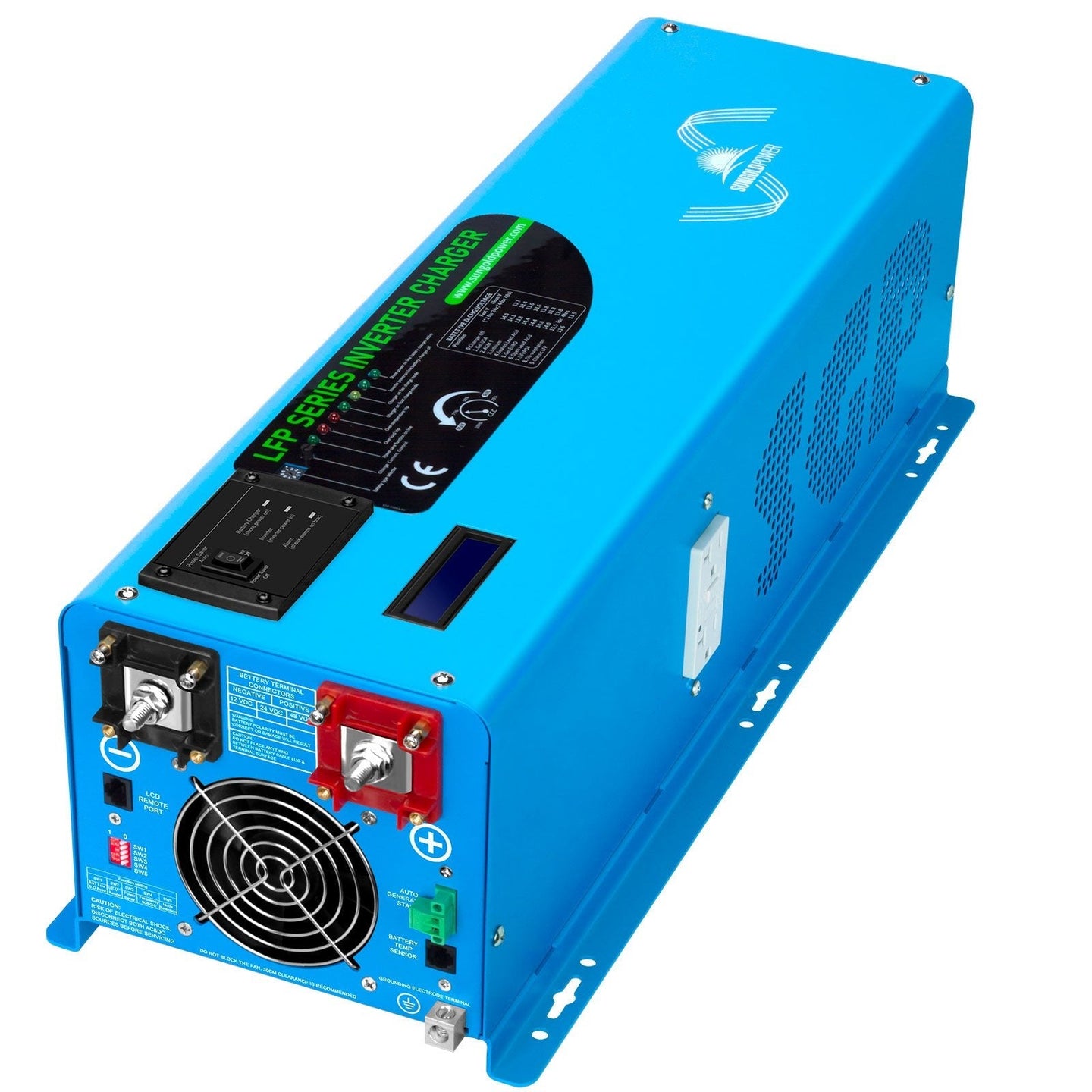

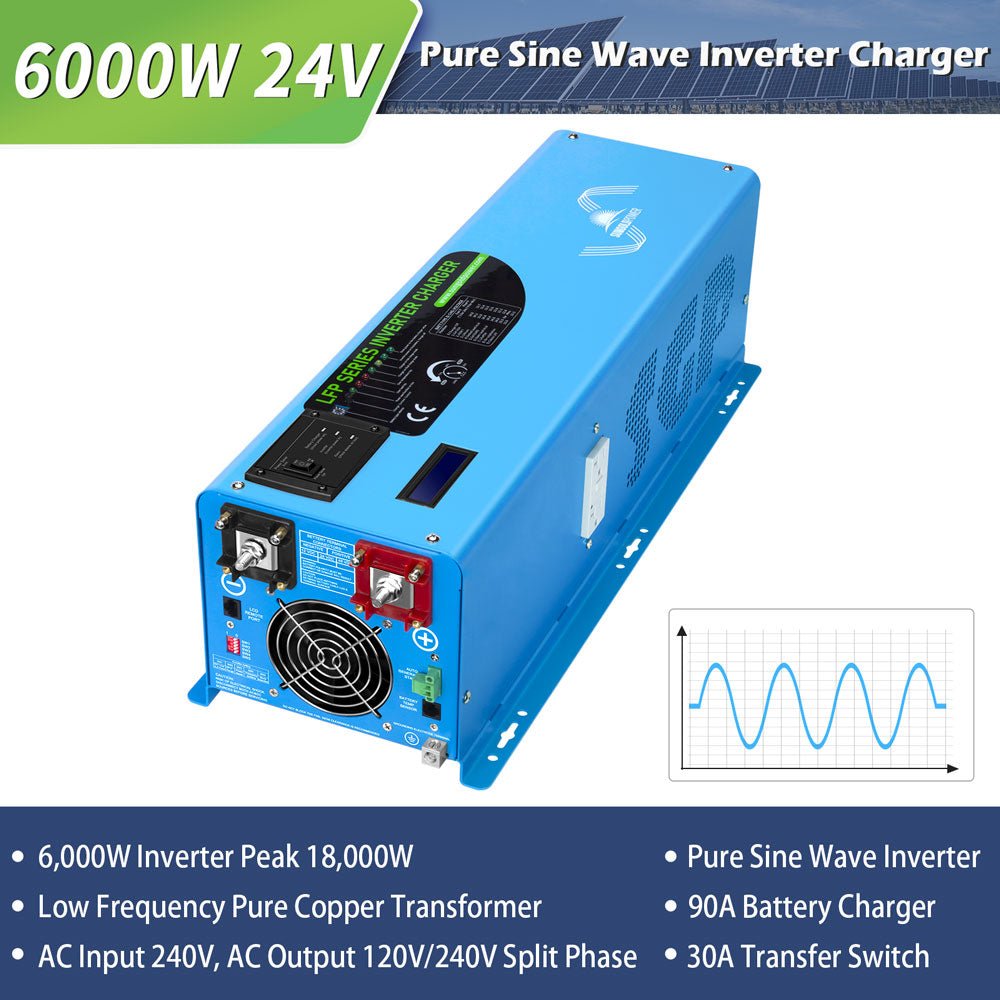

SunGold Power 6000W 24V Split Phase Pure Sine Wave Inverter Charger

Build a reliable off-grid or backup power system around a 24V battery bank. The SunGold Power LFP 6000W split phase inverter charger converts 24V DC to clean 120V/240V AC power, delivering enough capacity to run a small home, RV, trailer, or boat. Its low-frequency transformer architecture handles heavy inrush currents from compressors, pumps, and motors that lesser inverters cannot manage.

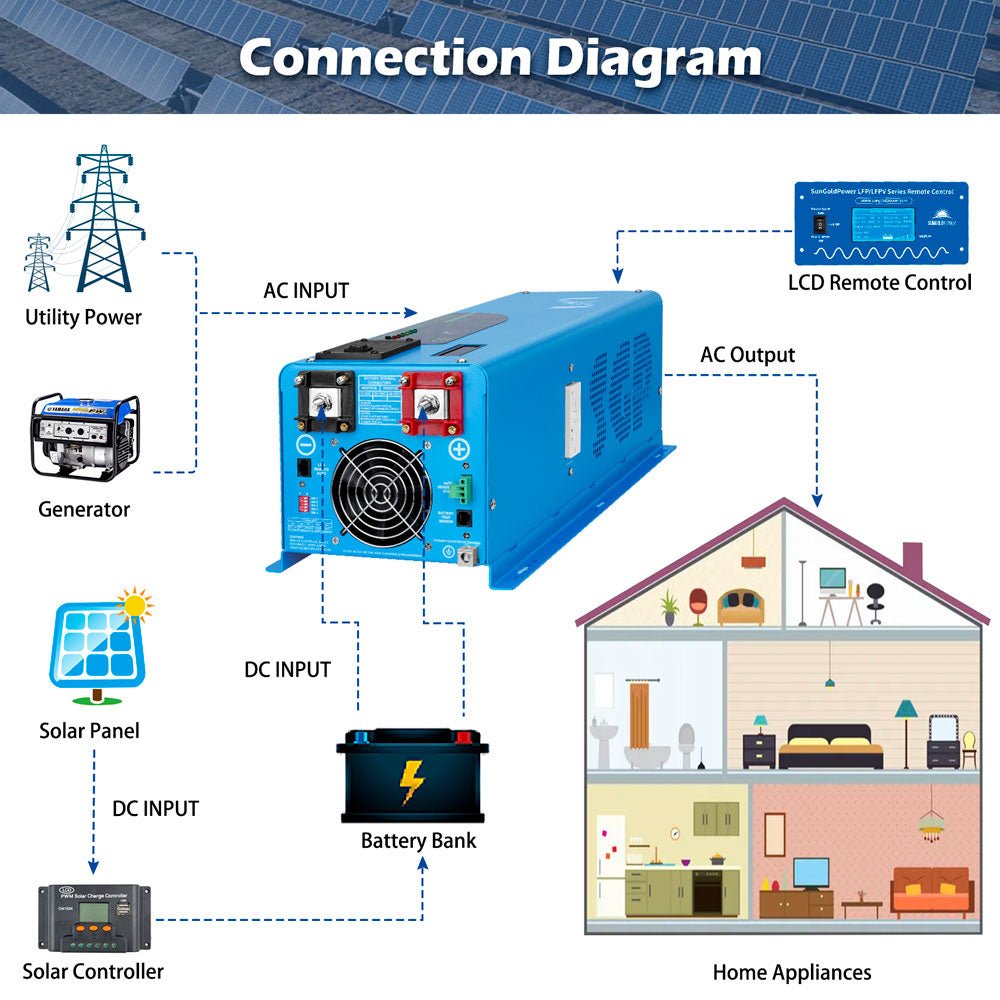

Everything you need is built into one box: a 6000W pure sine wave inverter, a 60-amp multi-stage battery charger, and an 80-amp automatic transfer switch. Connect it to shore power or a generator and it charges your batteries while passing power through to your loads. Lose that external power source and it takes over from battery in under 10 milliseconds. Adjustable charging current, AC/battery priority switching, and automatic generator start mean your system runs exactly the way you want it to - hands-off.

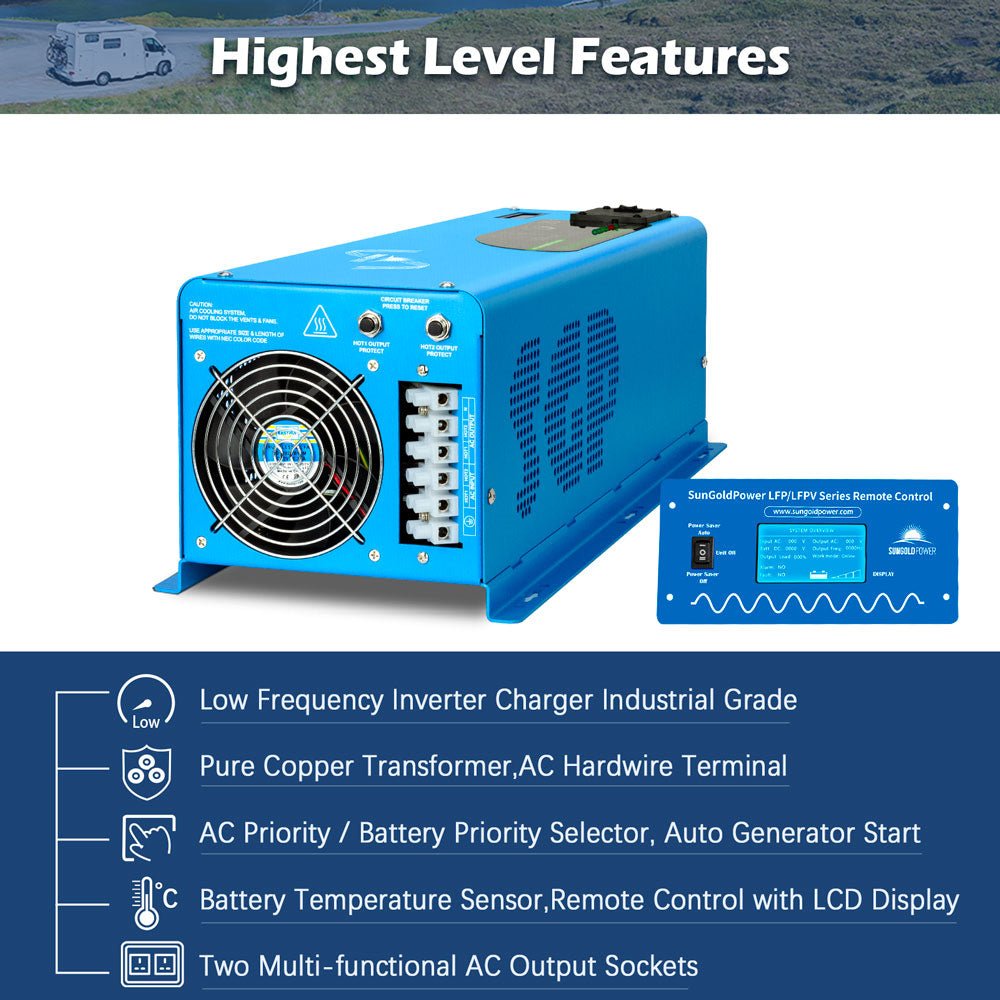

Features

• Pure Sine Wave Output - Produces clean AC power identical to utility-grade electricity, safe for all electronics and appliances

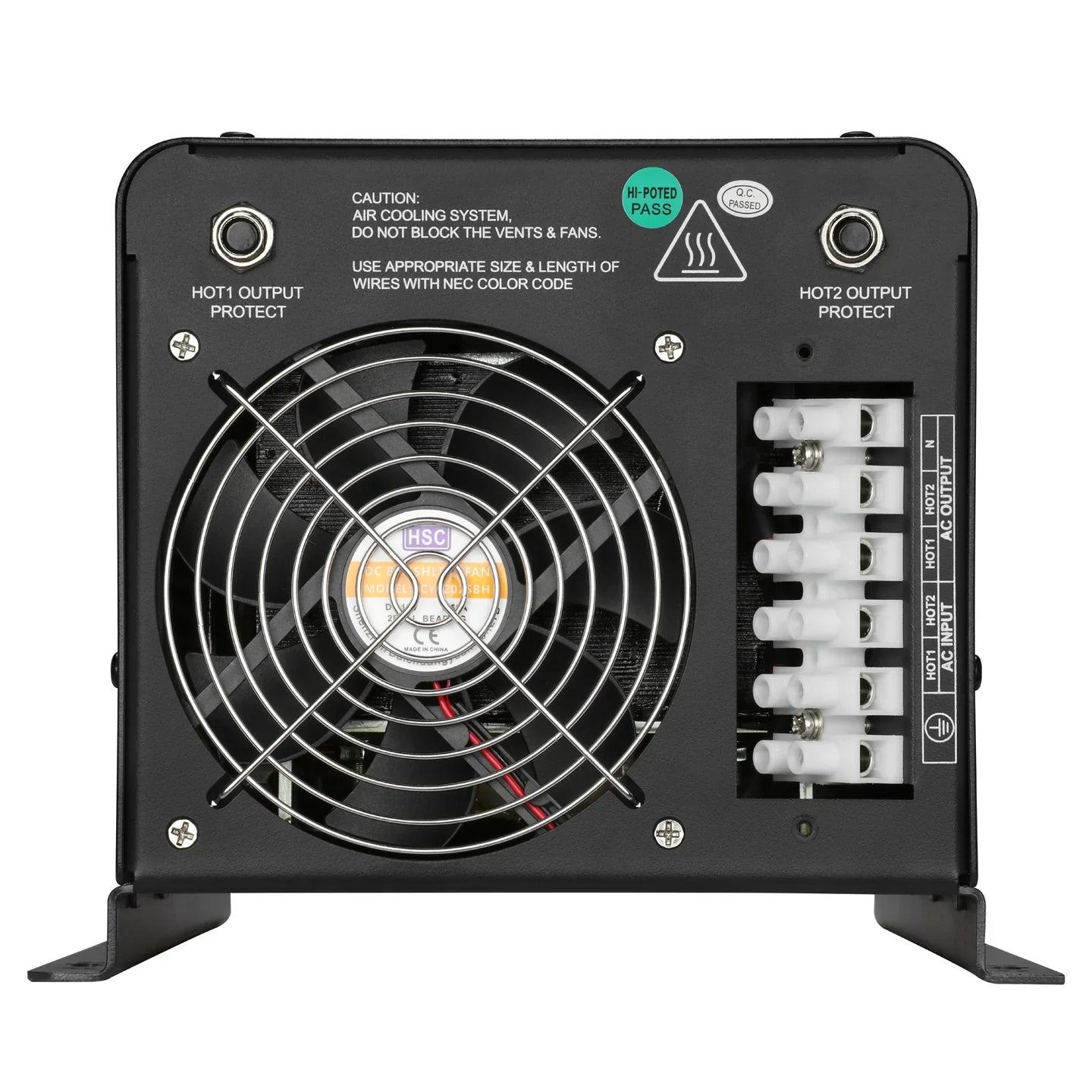

• Split Phase 120V/240V Output - Two legs of 120V for full 240V capability, compatible with standard residential panels and 220V equipment
• 24V DC Input - Designed for 24V battery bank configurations, ideal for smaller solar arrays and RV setups
• Built-in 60A Battery Charger - Multi-stage charging with adjustable current from 0% to 100% via liner switch
• 80A Automatic Transfer Switch - Switches between shore/generator power and battery in under 10 milliseconds
• Auto Generator Start (AGS) - Starts your generator on low battery and shuts it down after charging completes
• AC/Battery Priority Modes - Select AC priority for grid-backup or battery priority for solar-first operation via SW5
• Low-Frequency Transformer - Handles high surge loads reliably for demanding startup currents

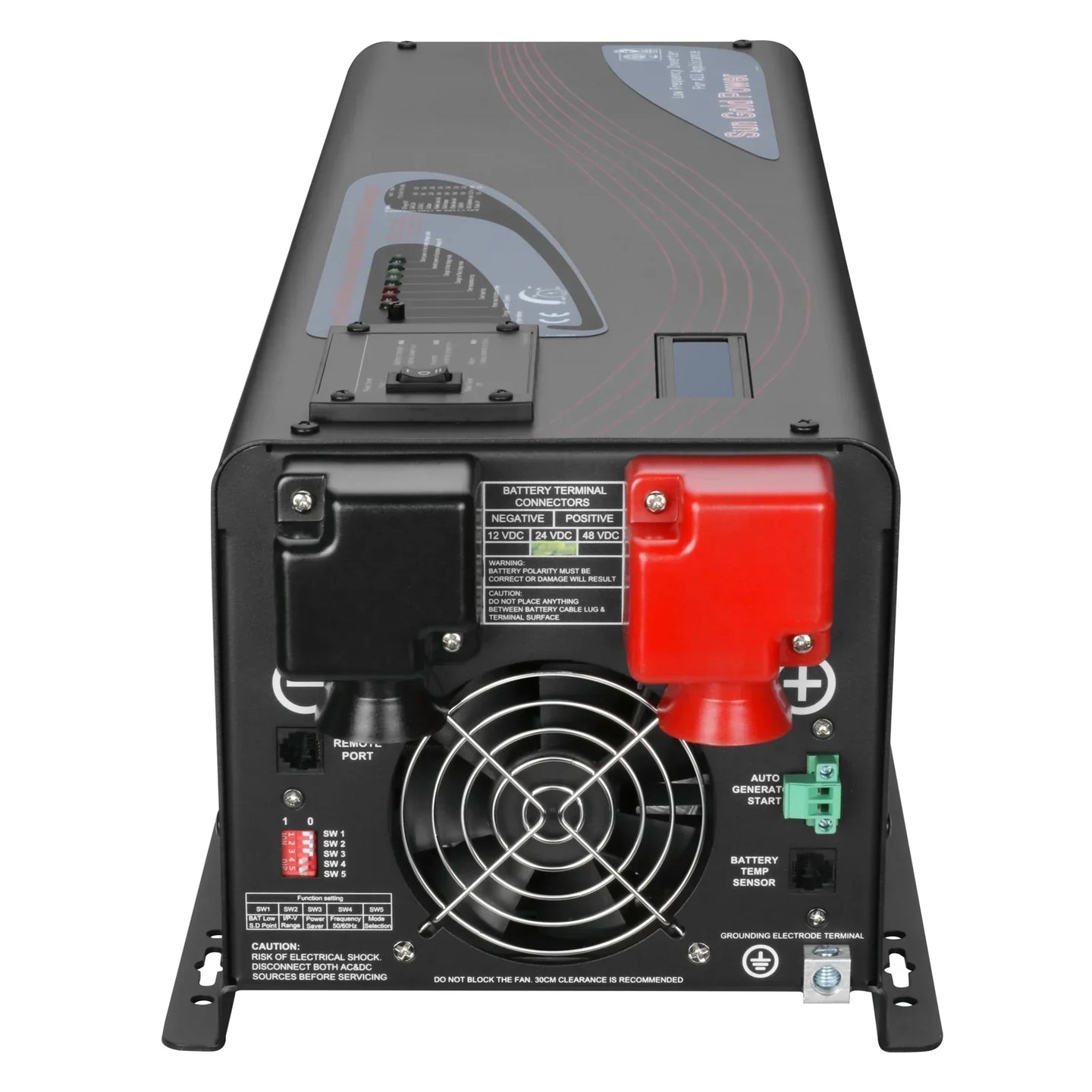

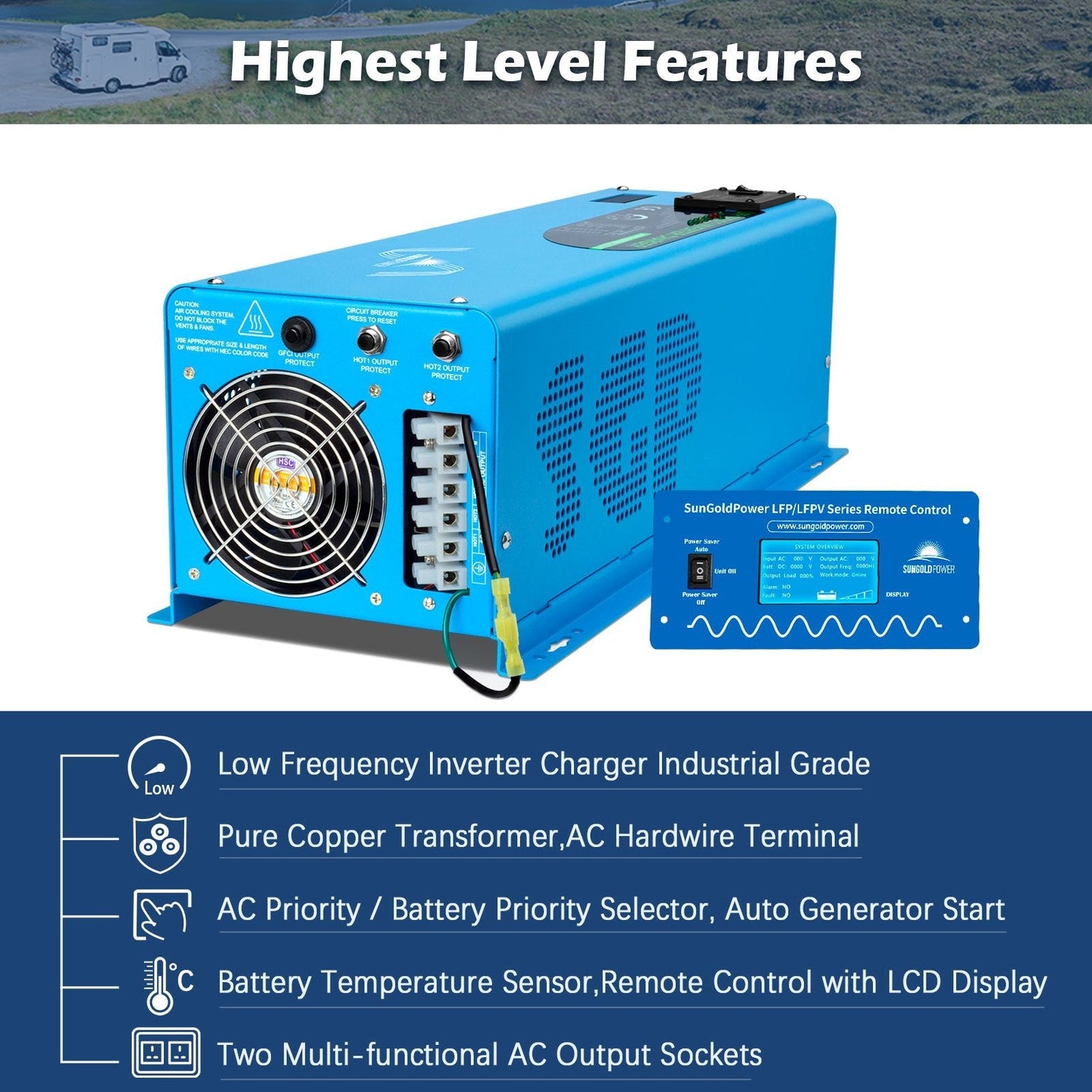

• Remote Control and BTS Cable Included - Full remote monitoring plus battery temperature-compensated charging
• Selectable 50Hz/60Hz Output - Switch output frequency via SW4 for international compatibility

Specifications

• Continuous Output Power: 6000W
• Output Waveform: Pure Sine Wave
• DC Battery Voltage: 24V
• AC Input Voltage: 240VAC
• AC Output Voltage: 120VAC / 240VAC (Split Phase)
• Output Frequency: 50Hz / 60Hz (Selectable via SW4)
• Battery Charger: 60A Max (Adjustable 0%-100%)
• Transfer Switch: 80A Built-in
• Transfer Time: Under 10ms

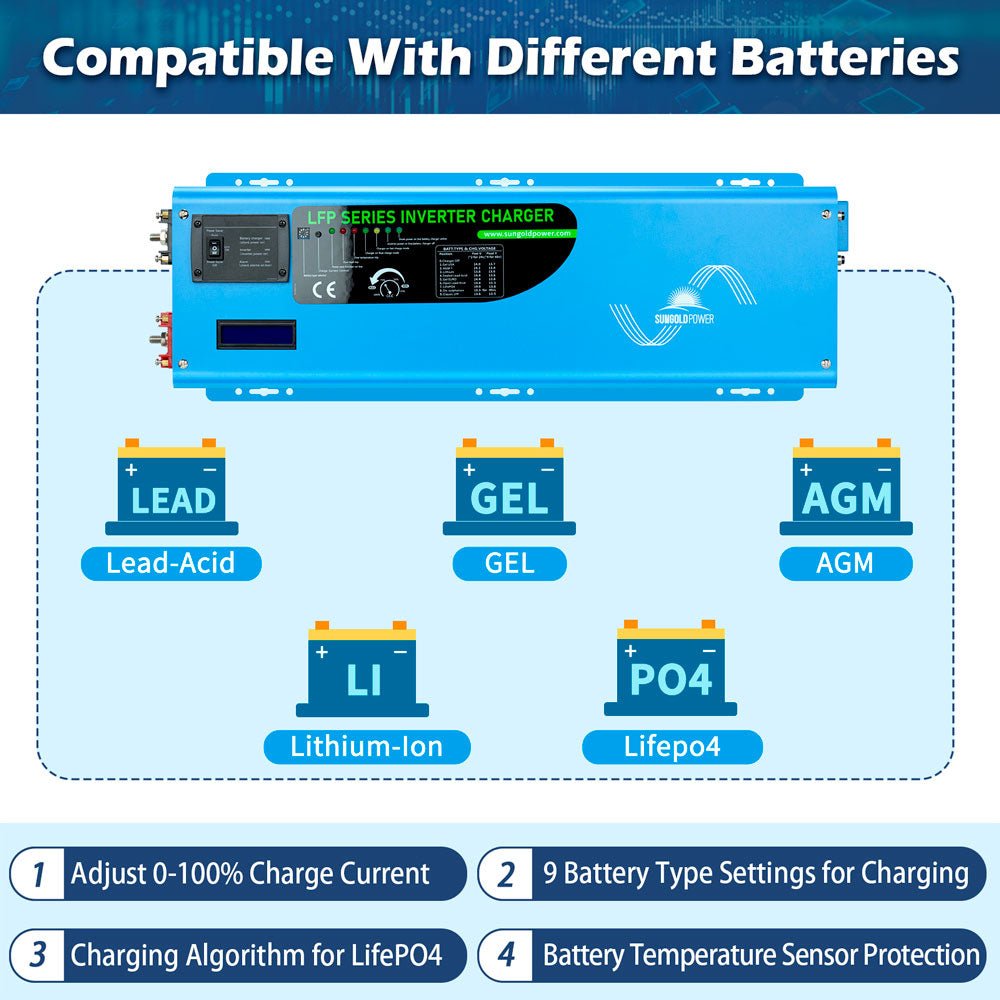

• Battery Compatibility: LiFePO4, Gel, AGM, Lead Acid

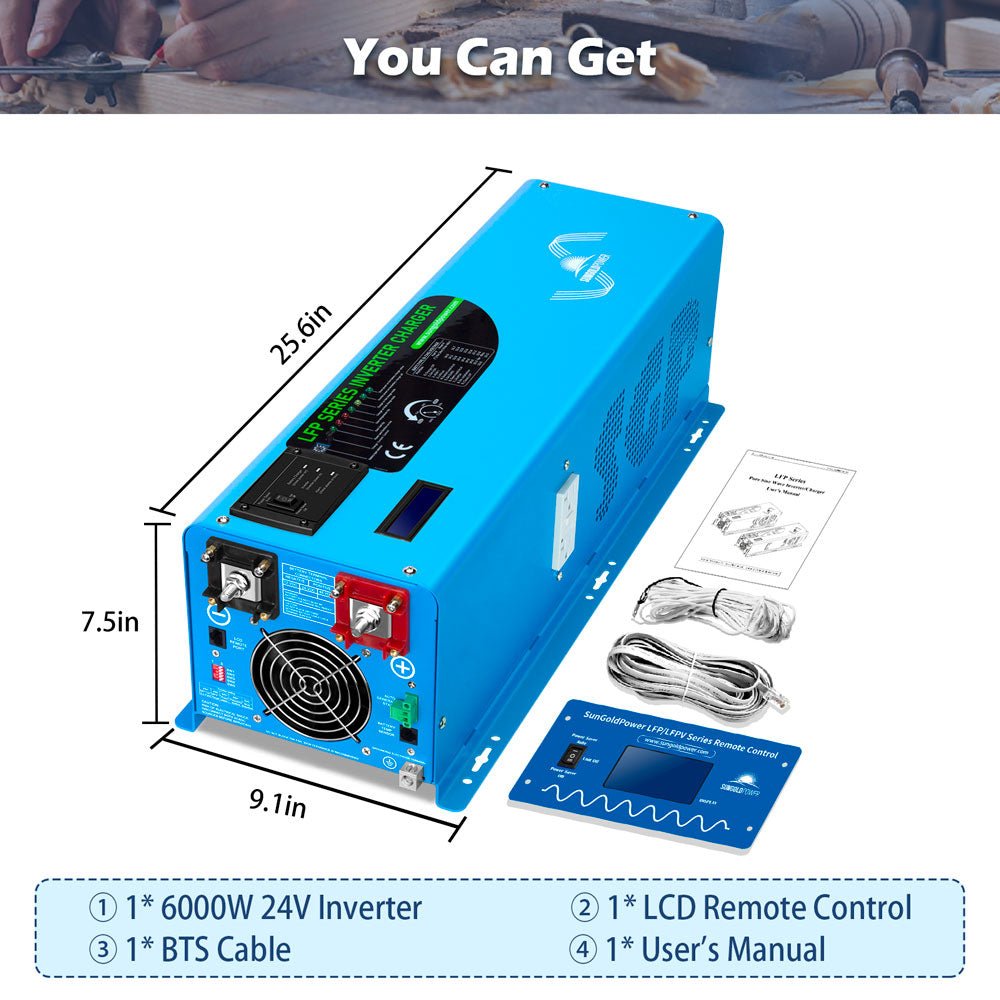

• Included Accessories: Remote Control, BTS Cable, English Manual

Warranty and Resources

LFP 6KW 24V Data Sheet (PDF)

LFP Series User Manual (PDF)
