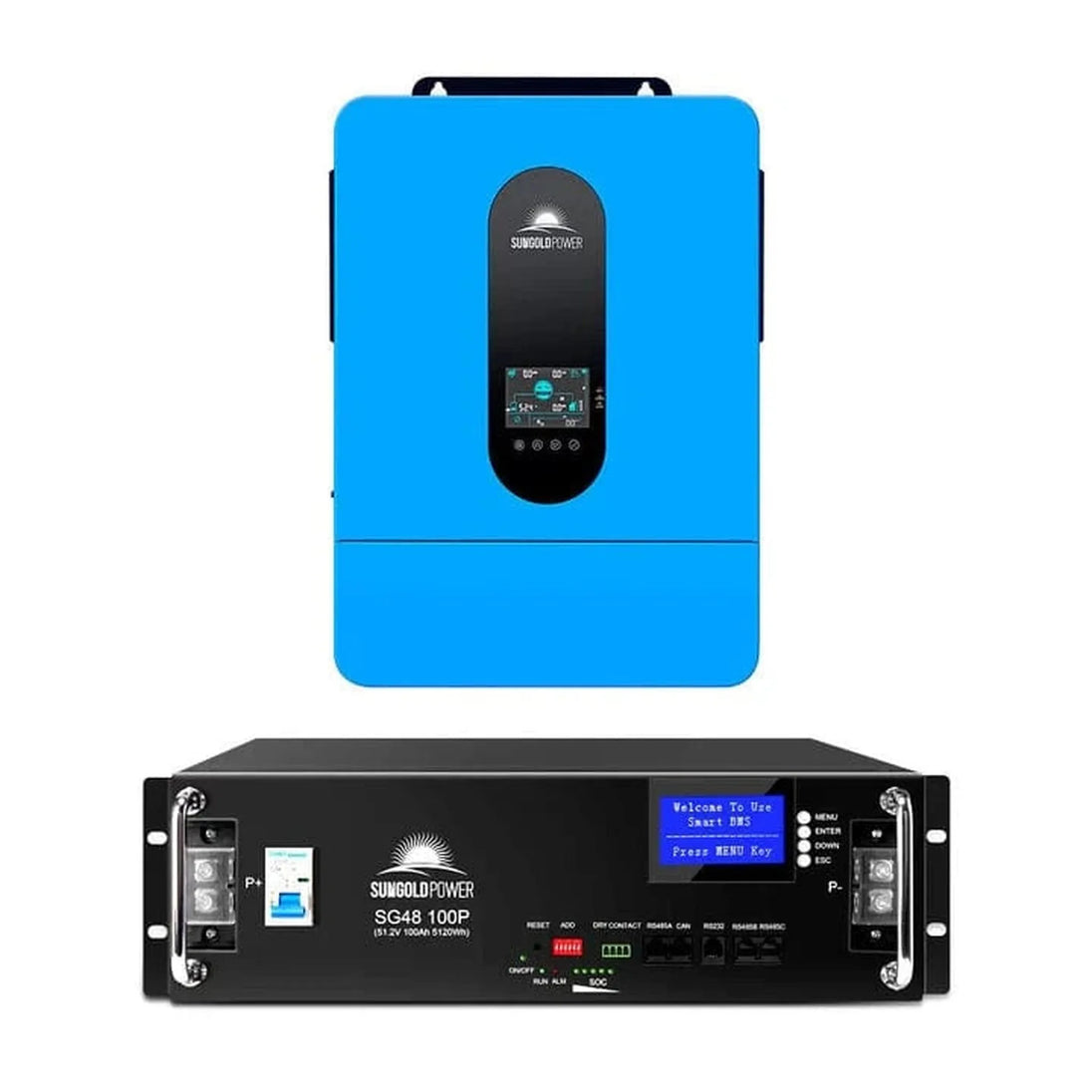

SunGold Power | 6.5kw 48V Split Phase Solar Inverter SPH6548P | SG48200T

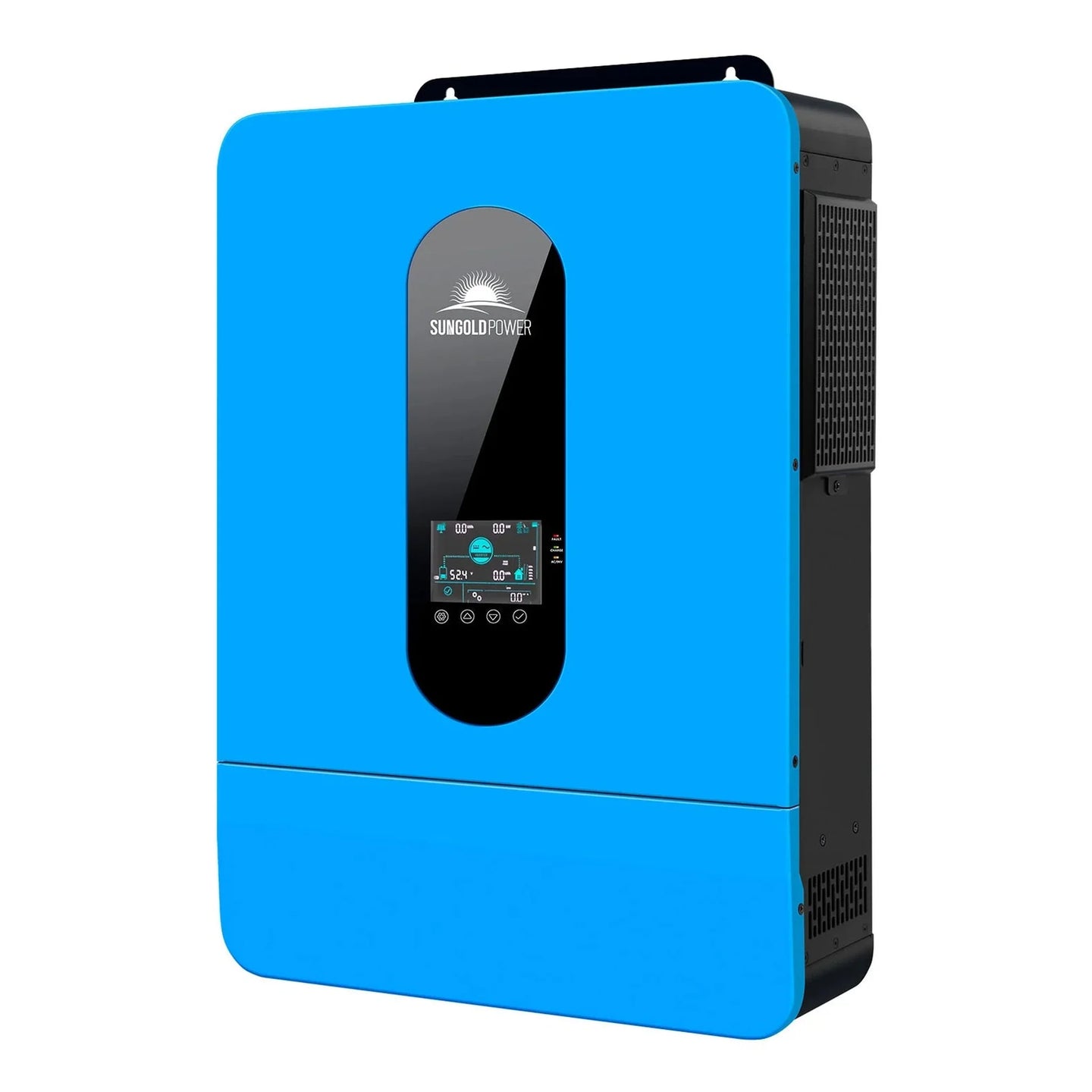

6.5kw 48V Split Phase Solar Inverter SPH6548P

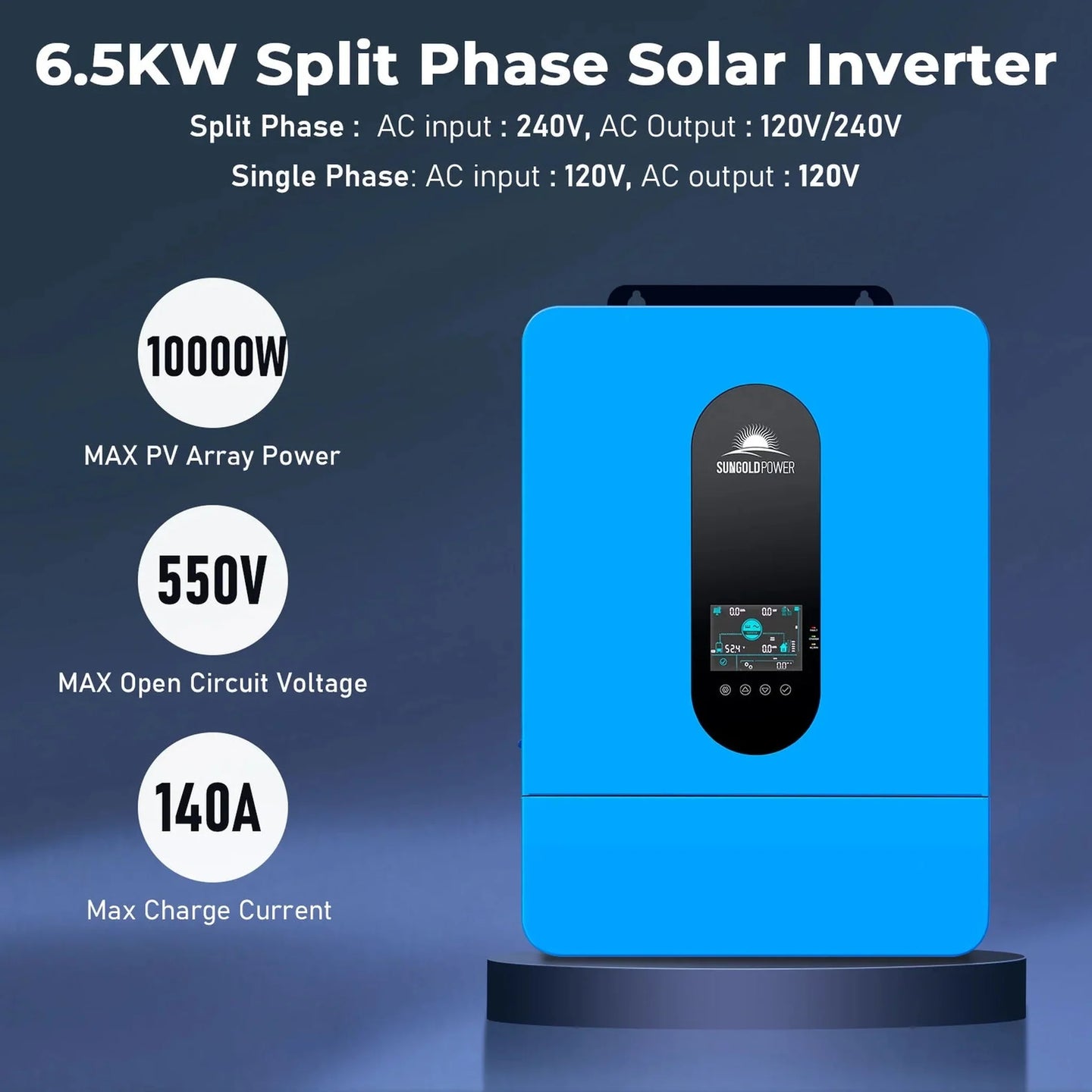

The SunGold Power 6.5KW 48V Split Phase Solar Inverter SPH6548P is a high-performance, all-in-one energy solution designed for off-grid, grid-tied, and hybrid solar systems. Featuring a pure sine wave output, dual MPPT solar controllers, and support for split-phase (120V/240V) or single-phase (120V) output, this inverter is ideal for residential and light commercial applications.

With a 140A maximum battery charging current, this inverter ensures fast and efficient energy storage. It offers parallel capability with up to six units (for a combined 39KW output), providing flexible configurations including 208V three-phase support. The system is compatible with various battery types, including 48V AGM, Gel, Flooded, and Lithium batteries, with CAN/RS485 communication support for seamless integration.

Features

• 6.5KW Continuous Output (13,000VA Peak Power)
• Split Phase 120V/240V Output, - Supports Single-Phase and 3-Phase with Parallel Setup
• Dual MPPT Solar Controllers - – Up to 550VDC Open Circuit Voltage

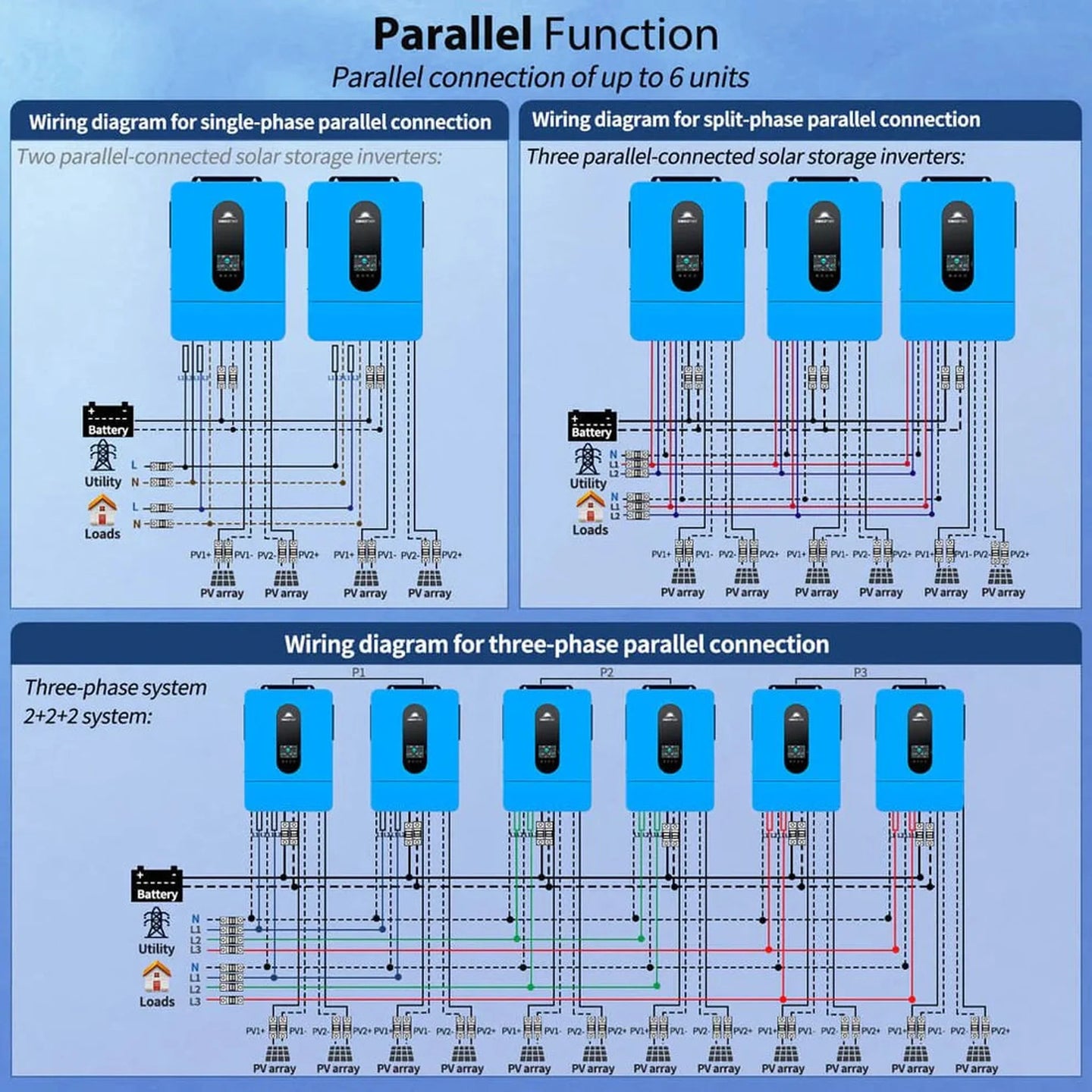

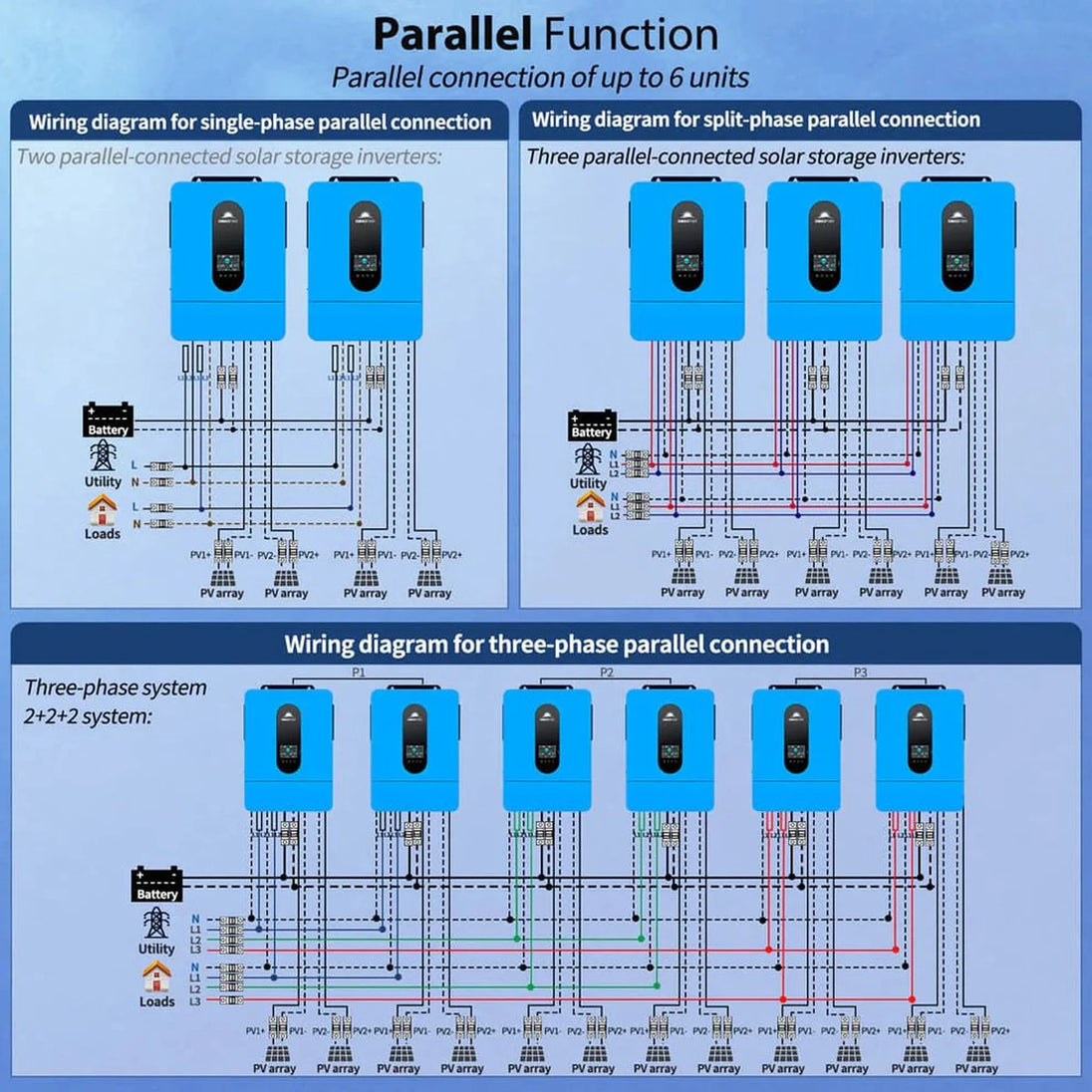

• Supports Parallel Connection of - up to 6 Units for 39KW Output

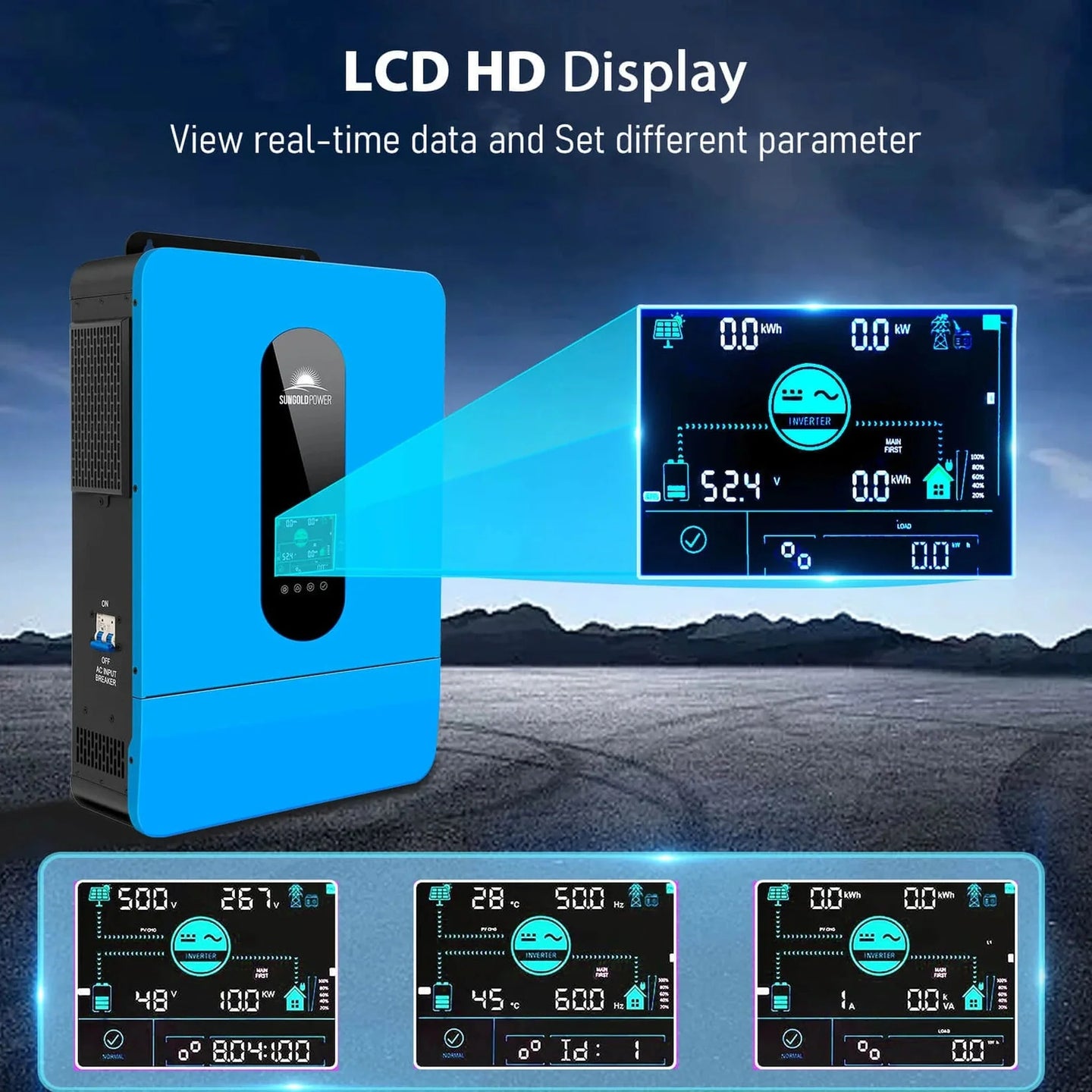

• Built-in Wi - Fi Module – Monitor Real-Time Performance via App

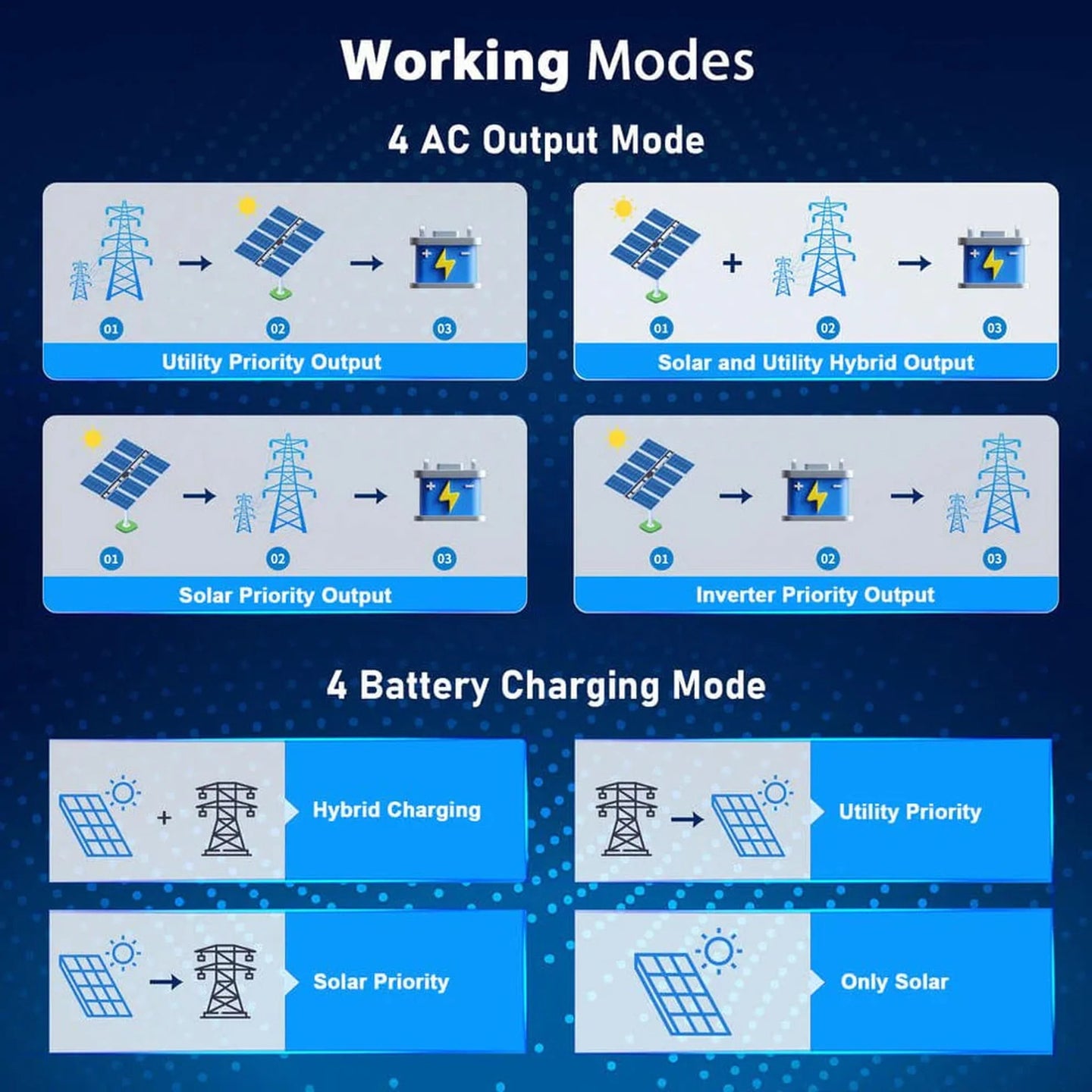

• Multiple Charging Modes - Hybrid, Utility Priority, Solar Priority, Only Solar

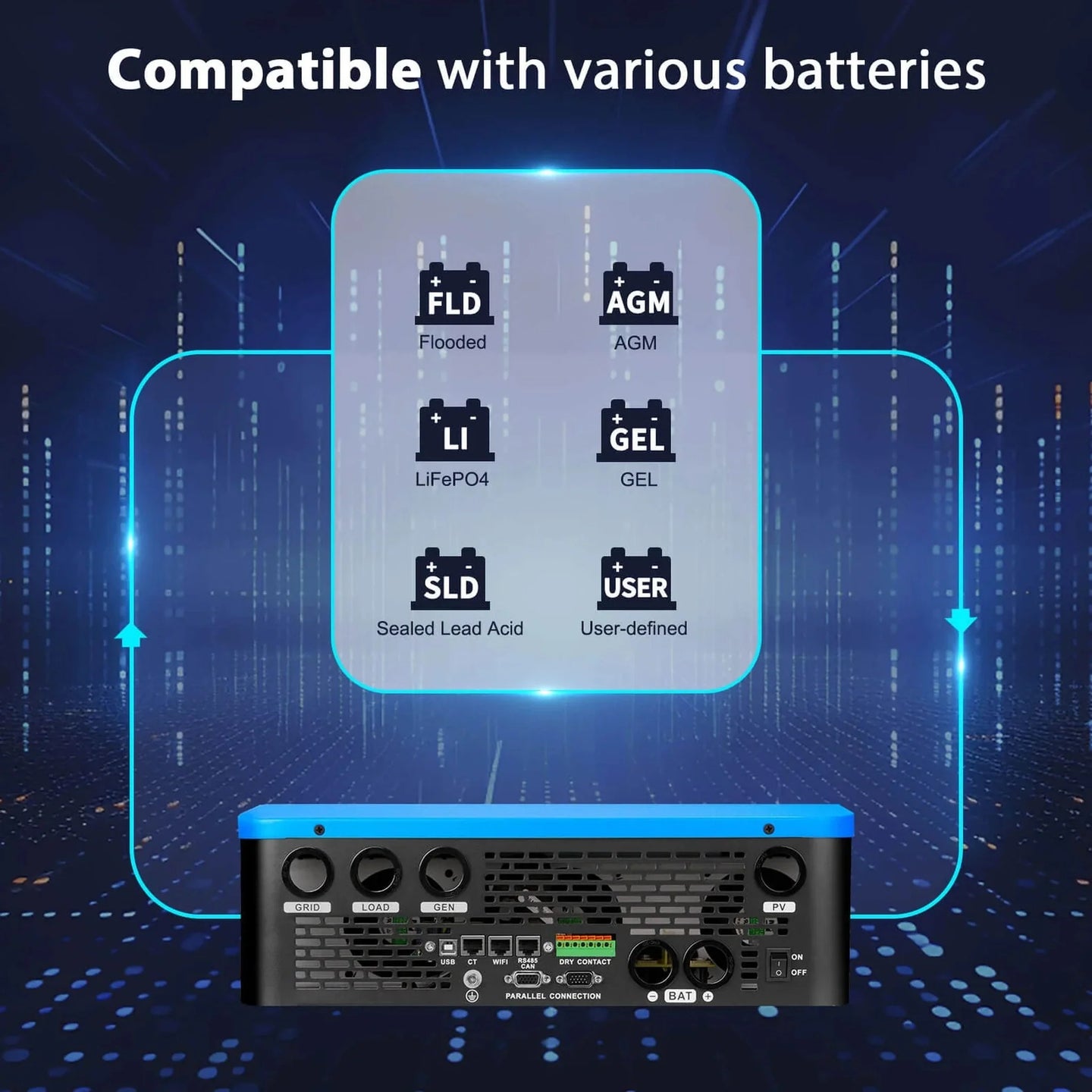

• Smart Battery Management - Compatible with AGM, Gel, Flooded, and Lithium (with battery-free option)

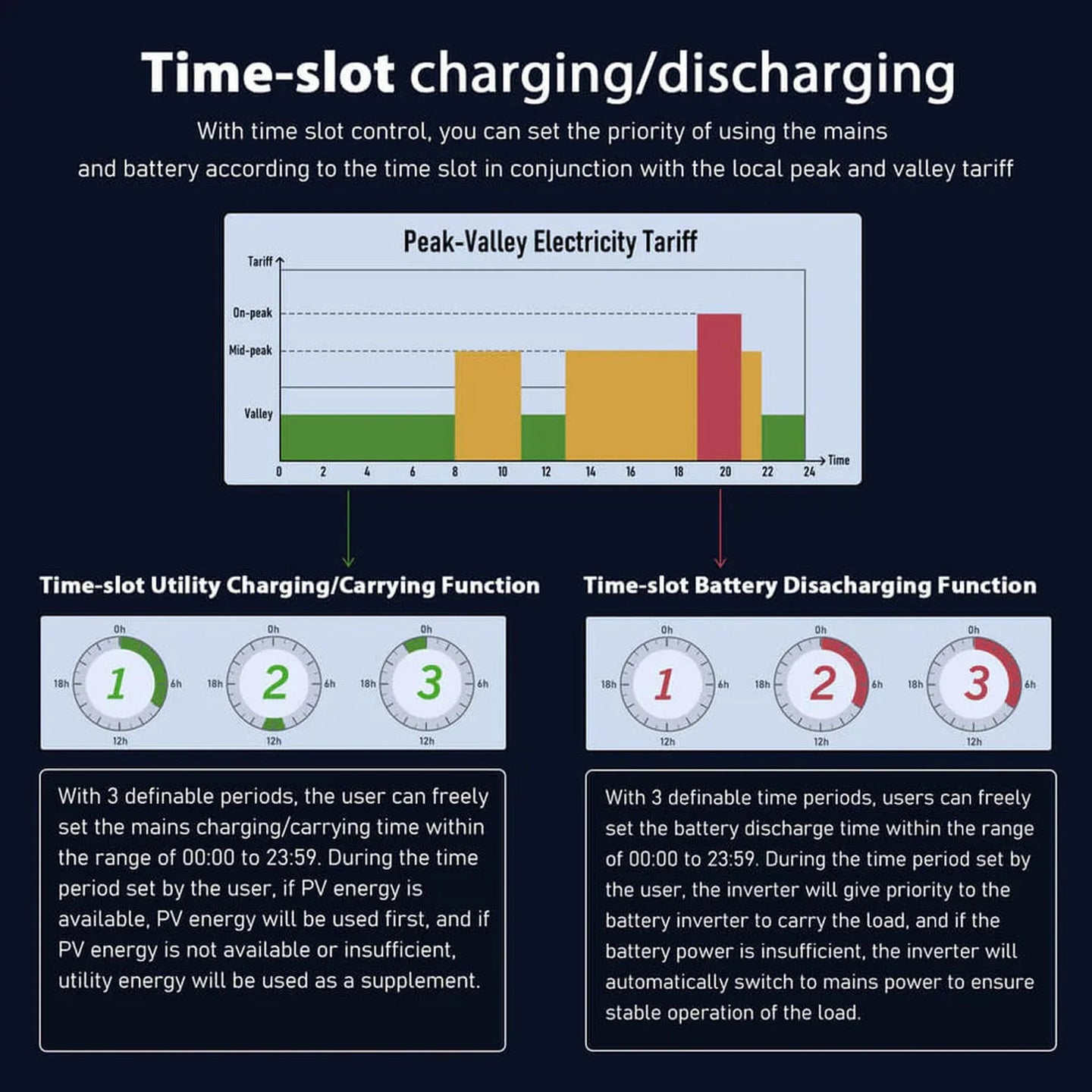

• Time - Based Charging/Discharging for Utility Cost Optimization

Specifications

• Product Model SPH: 6548P
• Rated Output Power: 6500W
• Max.Peak Power: 13,000 VA
• Rated Output Voltage: 120/240Vac ( split phase/single phase )
• Rated AC Frequency: 50/60Hz
• Output wave: Pure Sine Wave
• Switch Time: 10ms ( typical )
• Parallel number: 6
• Battery Type: Lithium-ion battery/lead-acid battery/user-defined battery
• Rated Battery Voltage: 48Vdc
• Voltage Range: 40Vdc-60Vde
• Max.Mains/Generator Charging Current: 80A
• Maximum mix charge current: 140A
• MPPT channel number: 2
• Maximum input power: 5000W+5000W
• Maximum Input Current: 18/18A
• Maximum open circuit voltage: 550Vdc+550Vdc
• MPPT operating voltage range: 150Vdc-450Vde

Warranty and Resources

2 Year Warranty

• User Manual
