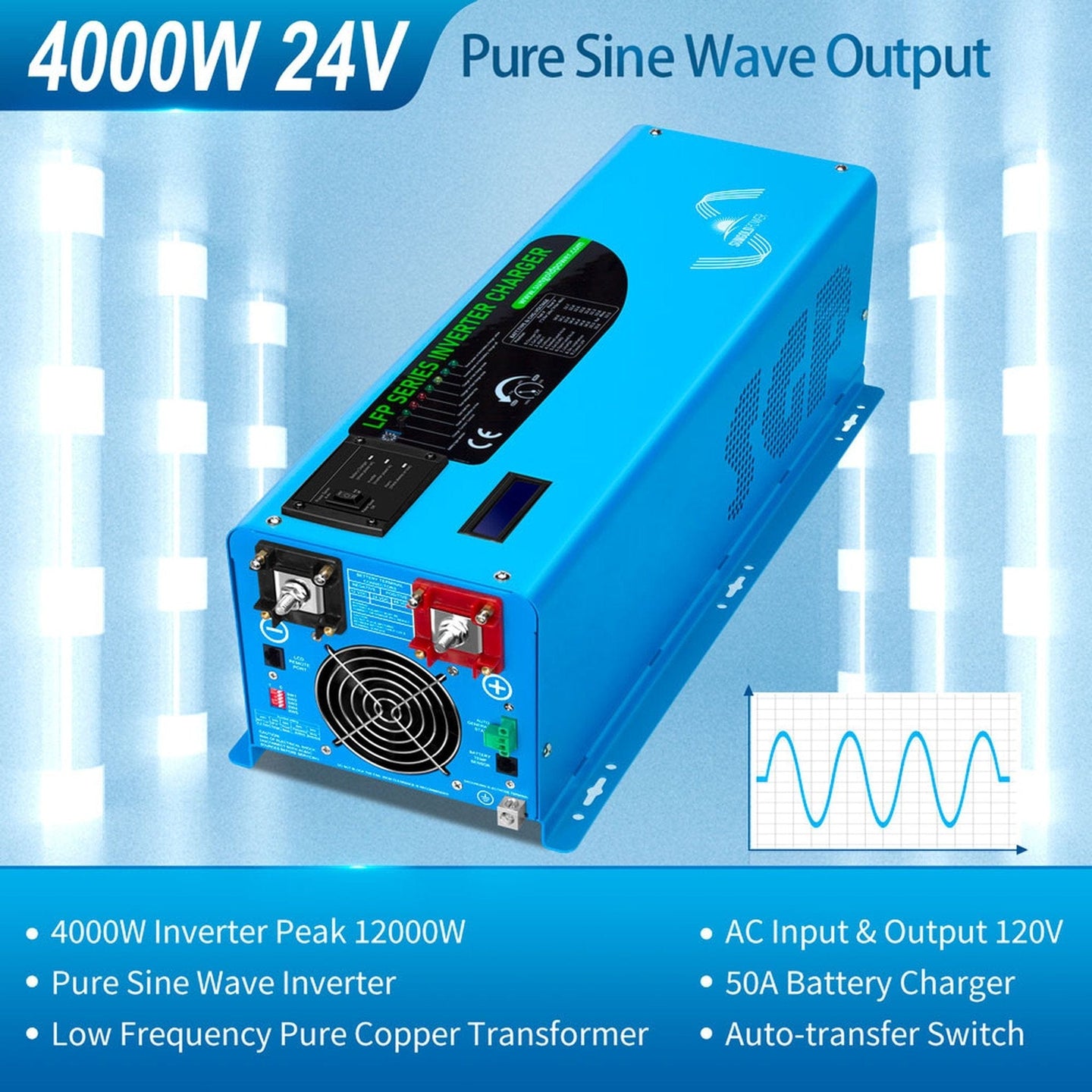

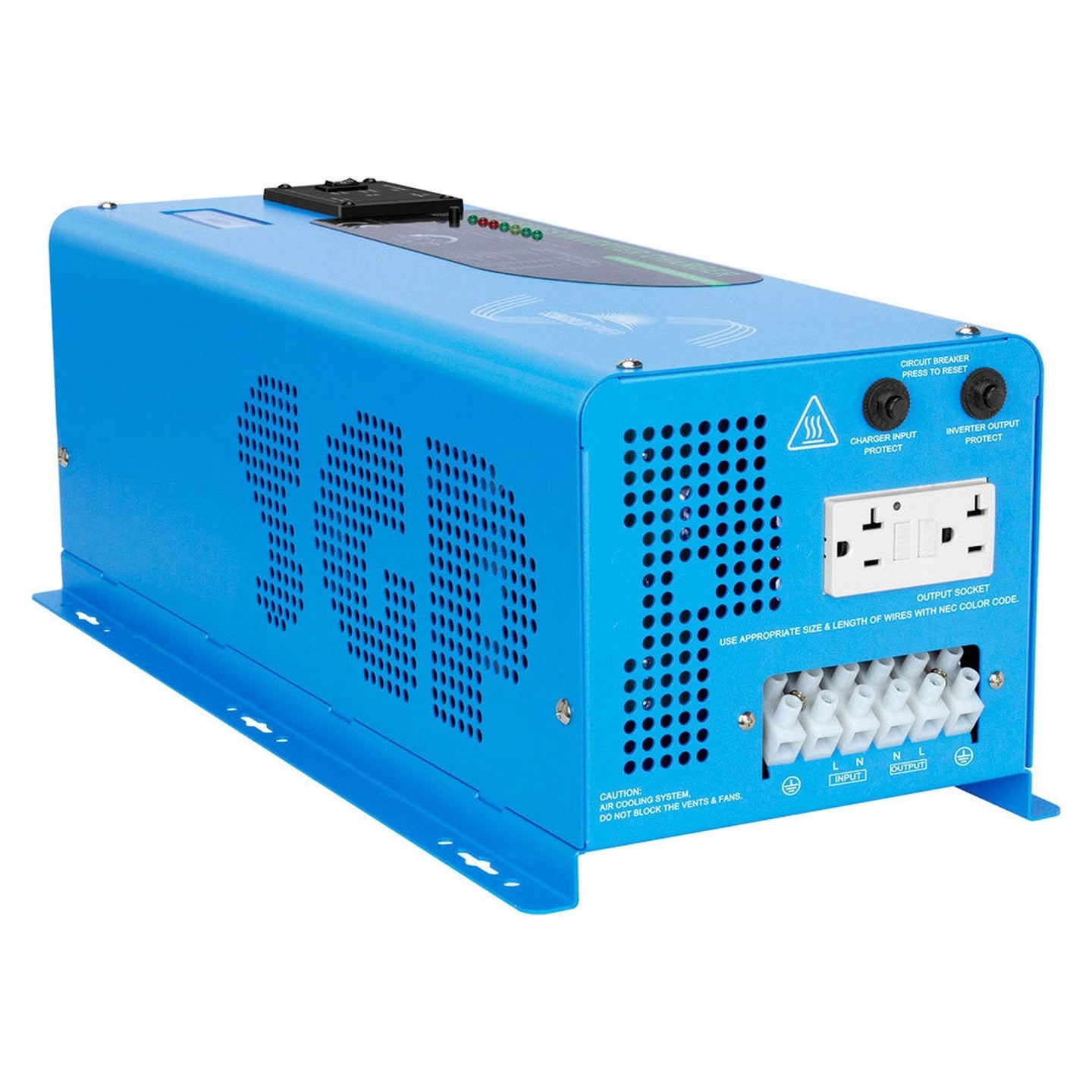

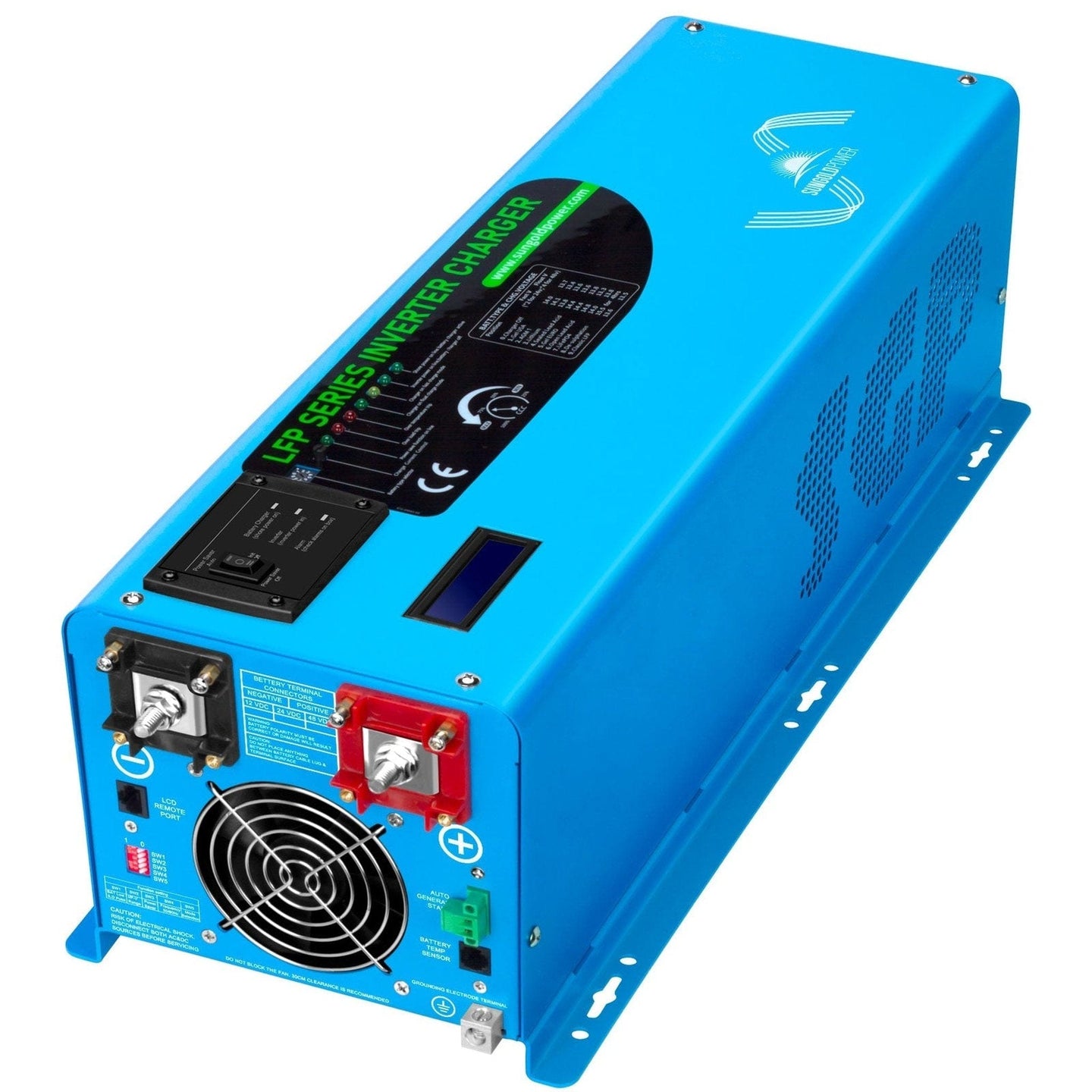

4000W DC 24V Pure Sine Wave Inverter with Charger

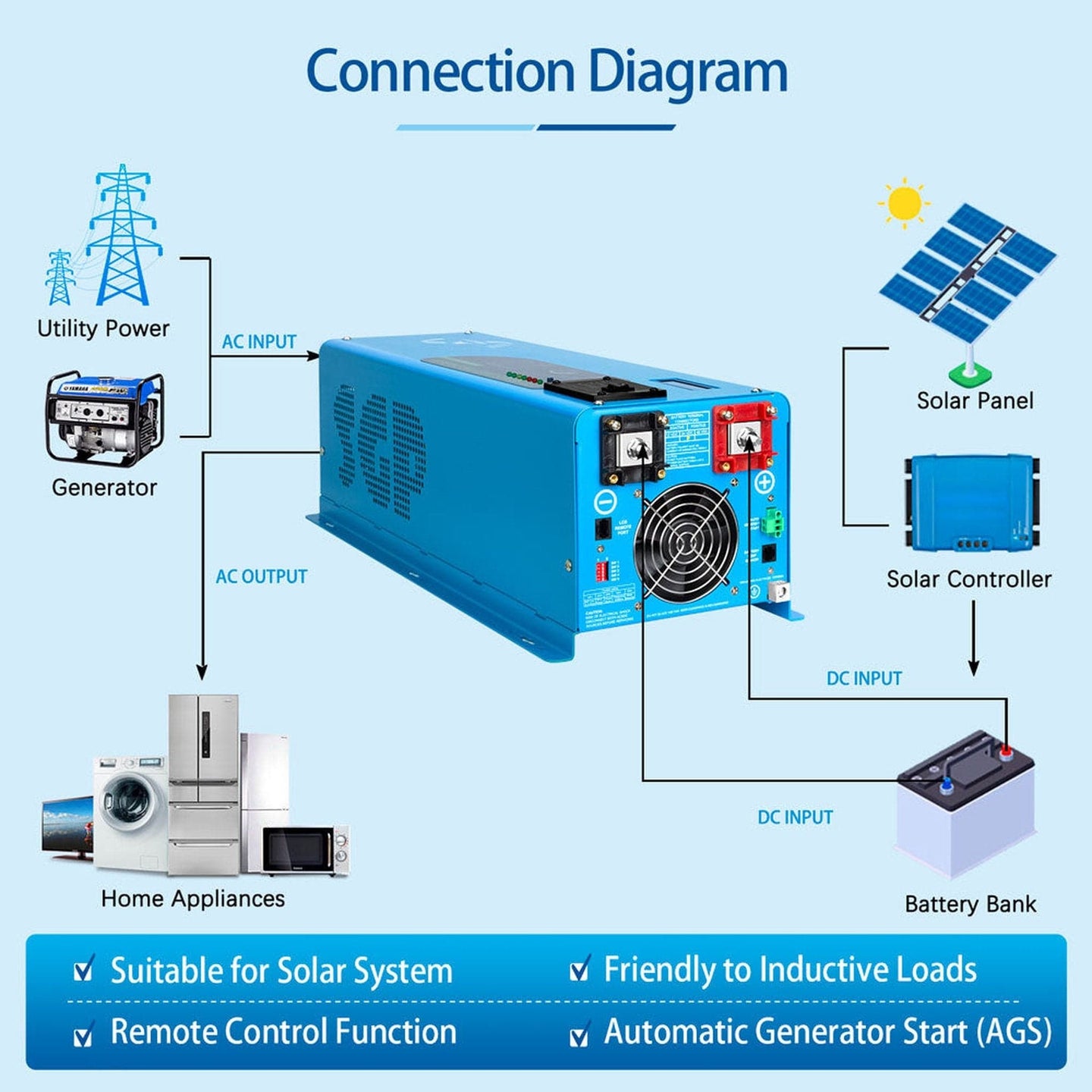

The LFP Series 4000W DC 24V Pure Sine Wave Inverter With Charger is an all-in-one power solution designed for off-grid living, RV systems, home backup power, and more. This low-frequency inverter integrates a pure sine wave inverter, multi-stage battery charger, and automatic AC transfer switch to ensure smooth and uninterrupted power delivery.

This unit operates from a 24V DC input and delivers 120V AC output, making it compatible with a wide variety of household appliances and sensitive electronics. Output frequency is user-adjustable to 50Hz or 60Hz using the SW4 switch.

Features

• 4000W Low-Frequency Pure Sine - Inverter with Charger
• DC Input - 24VDC
• AC Output - 120VAC, perfect for home and mobile appliances
• Selectable Output Frequency - 50Hz / 60Hz (via SW4 switch)
• AC/Battery Priority Selector - Choose between grid or battery as your main source (via SW5 switch)
• Adjustable Charging Current - 0% to 100% with a linear dial
• Automatic Generator Start - Starts generator on low battery and stops it after charging

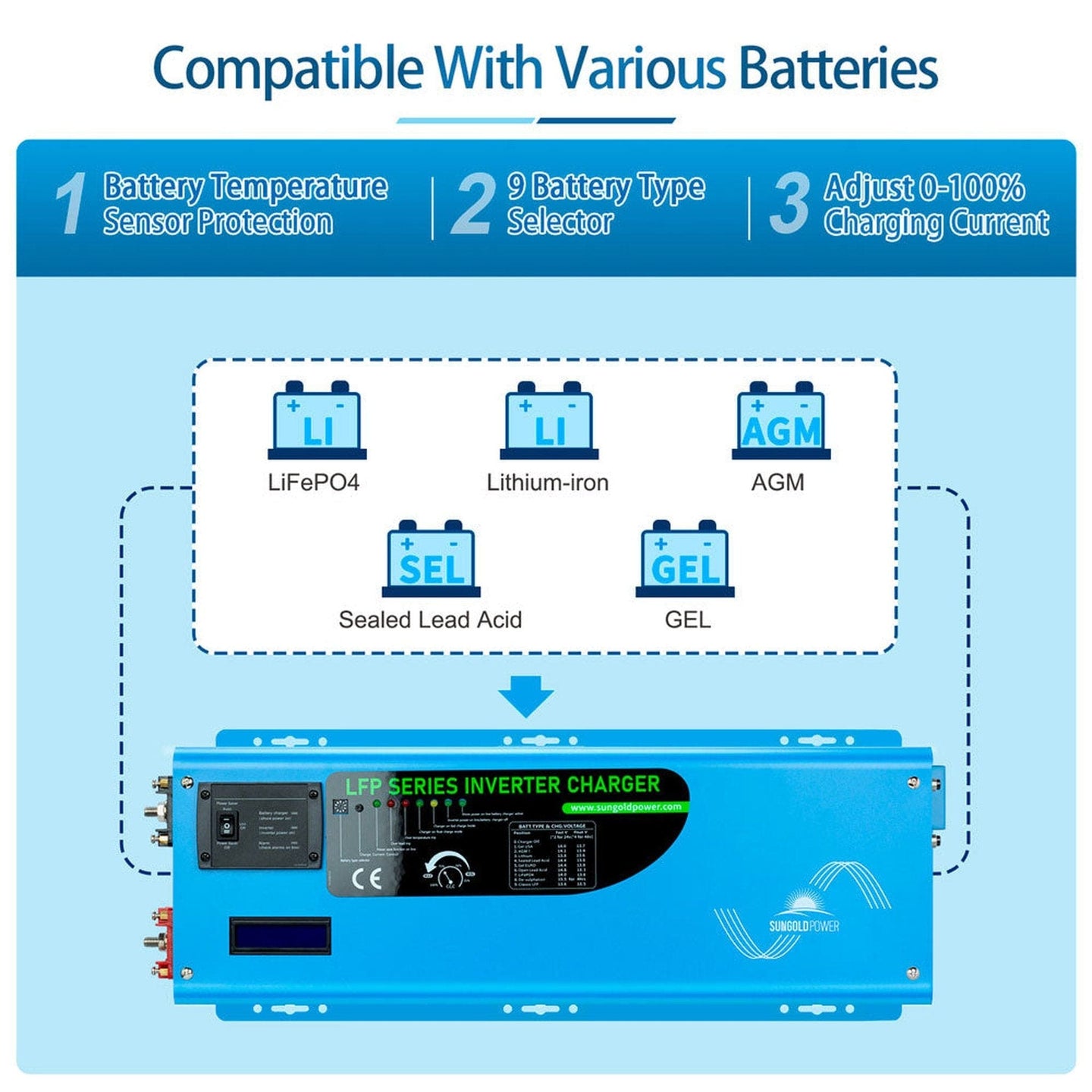

• Multi-Stage Smart Charger - 65A ±5A with 7 battery type compatibility

Specifications

• Unit Size: 17.4 x 9.5 x 7.8 inches
• Unit Weight: 53 lbs
• Shipping Size: 26 x 12.6 x 12.0 inches
• Shipping Weight: 57 lbs
• Unit Size: 17.4 x 9.5 x 7.8 inches
• Unit Weight: 53 lbs
• Shipping Size: 26 x 12.6 x 12.0 inches
• Shipping Weight: 57 lbs
• Continuous Output Power: 4000W
• Surge Rating: 12000W (20 Seconds)
• Output: 120VAC, 60hz
• Output Wave: Pure Sine Wave (bypass mode)
• Typical Transfer Time: 10ms (MAX)
• Nominal Efficiency: >88%
• Nominal Input Voltage: 24.0Vdc
• Minimum Start Voltage: 20.0Vdc
• Low Battery Alarm: 21.0Vdc-22.0Vdc
• Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
• High Voltage Alarm: 32.0Vdc
• Low battery Voltage Restart: 26.0Vdc
• Idle Consumption: 48W
• Power Saver Mode Idle Consumption: 19W
• Charger Rate: 65+/-5A
• AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (selected by SW2)
• Over Charge Protection Shutdown: 31.4V
• Selectable Charge Setting based on battery type Adjustable charge current: off-20%-100%
• 4-step intelligent battery charger
• Inverter Output:
• DC Input:
• AC Charger :

Warranty and Resources

2 Year Warranty

• LFP Manual
