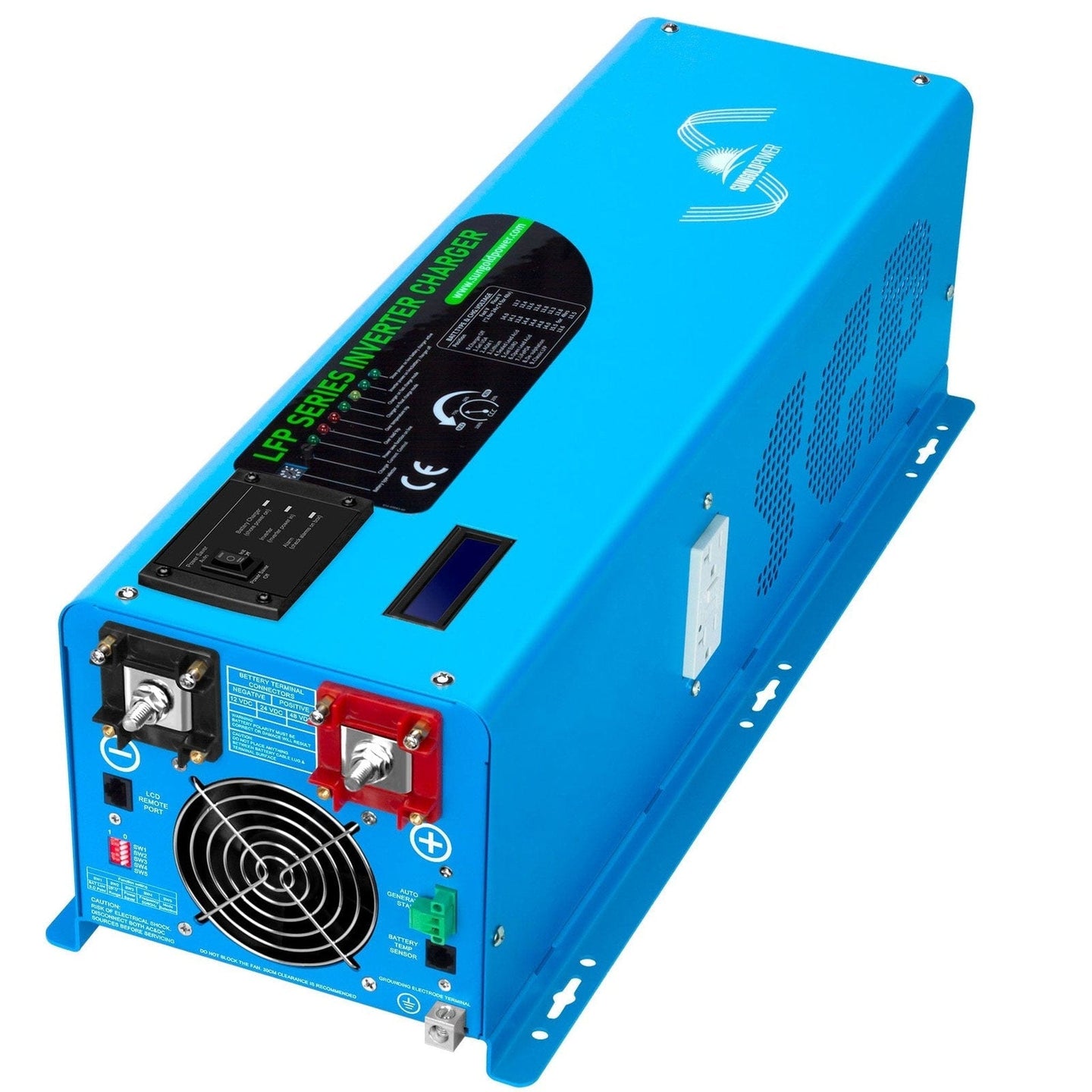

SunGold Power | 4000W DC 12V Pure Sine Wave Inverter with Charger | LFP4K12V120VSG

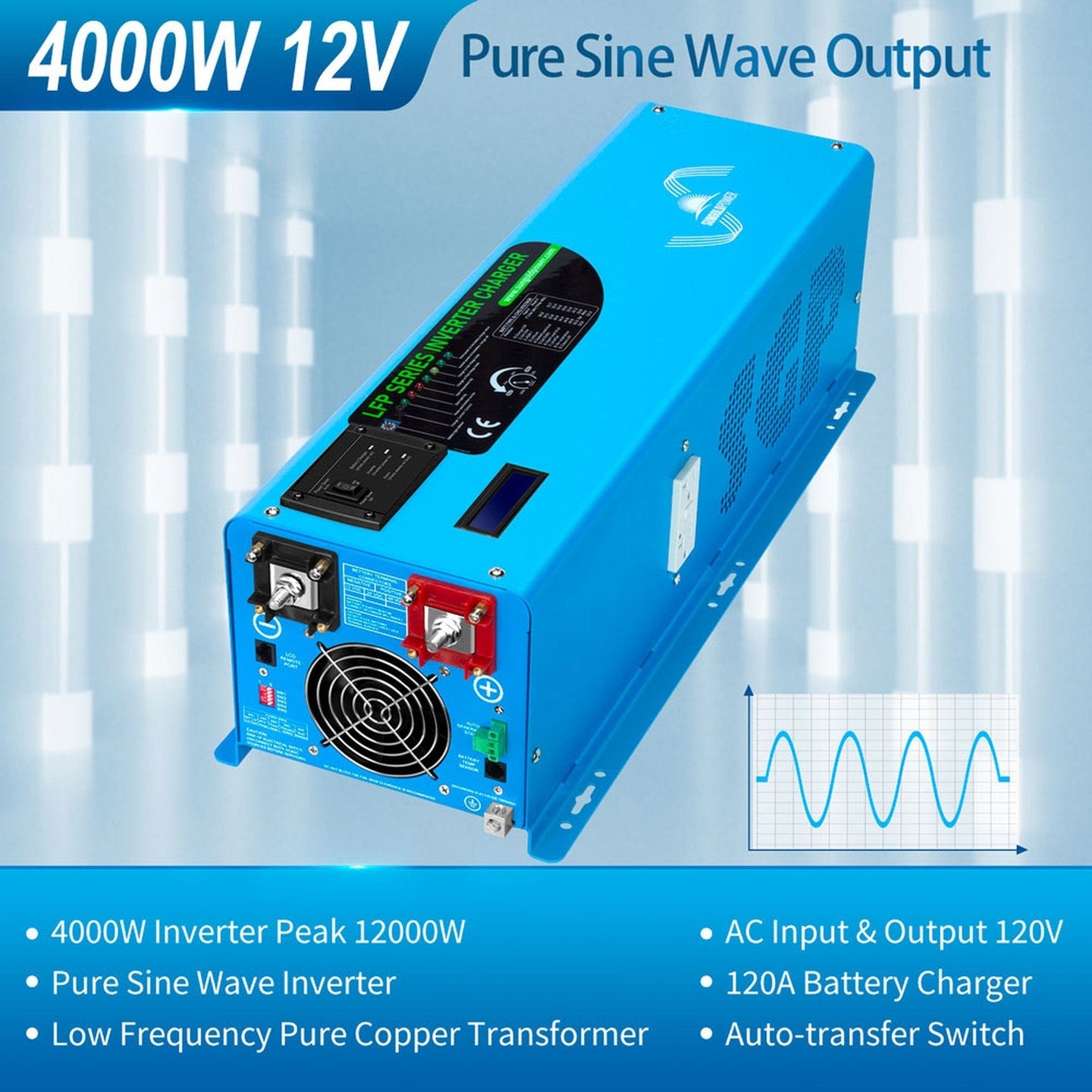

4000W DC 12V Pure Sine Wave Inverter with Charger

The LFP Series 4000W DC 12V Pure Sine Wave Inverter With Charger combines an inverter, battery charger, and automatic transfer switch into a single integrated solution. Engineered with low-frequency design and minimal idle power consumption, it includes a Battery Temperature Sensor (BTS) and remote control for advanced monitoring and control.

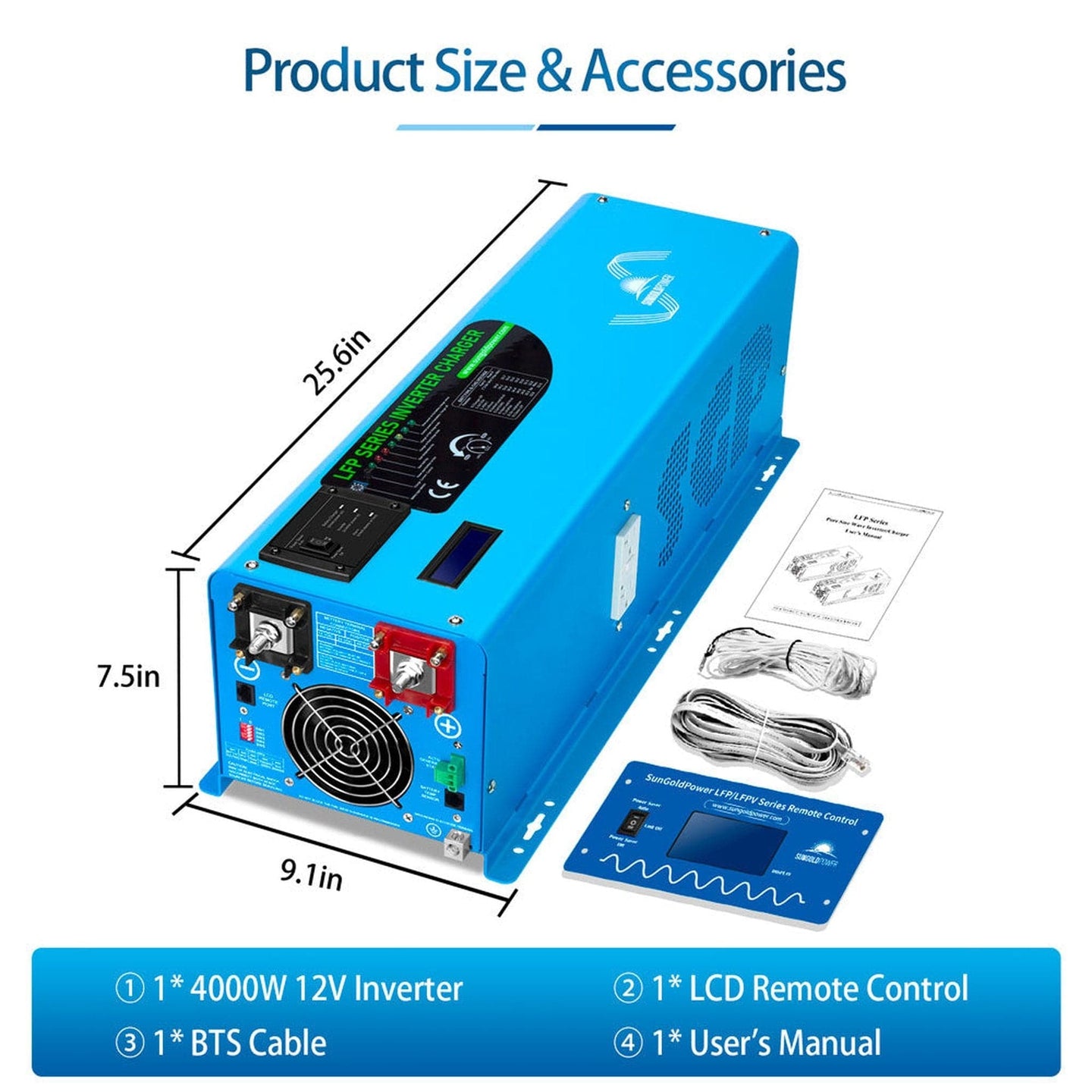

Features

• Included - 4000W 12V Low-Frequency Pure Sine Inverter With Charger
• Included - English Manual
• Included - Remote Control
• Included - BTS Cable

Specifications

• Input Voltage: 120VAC
• Output Voltage: 120VAC
• Frequency Selectable: 50Hz or 60Hz via SW4

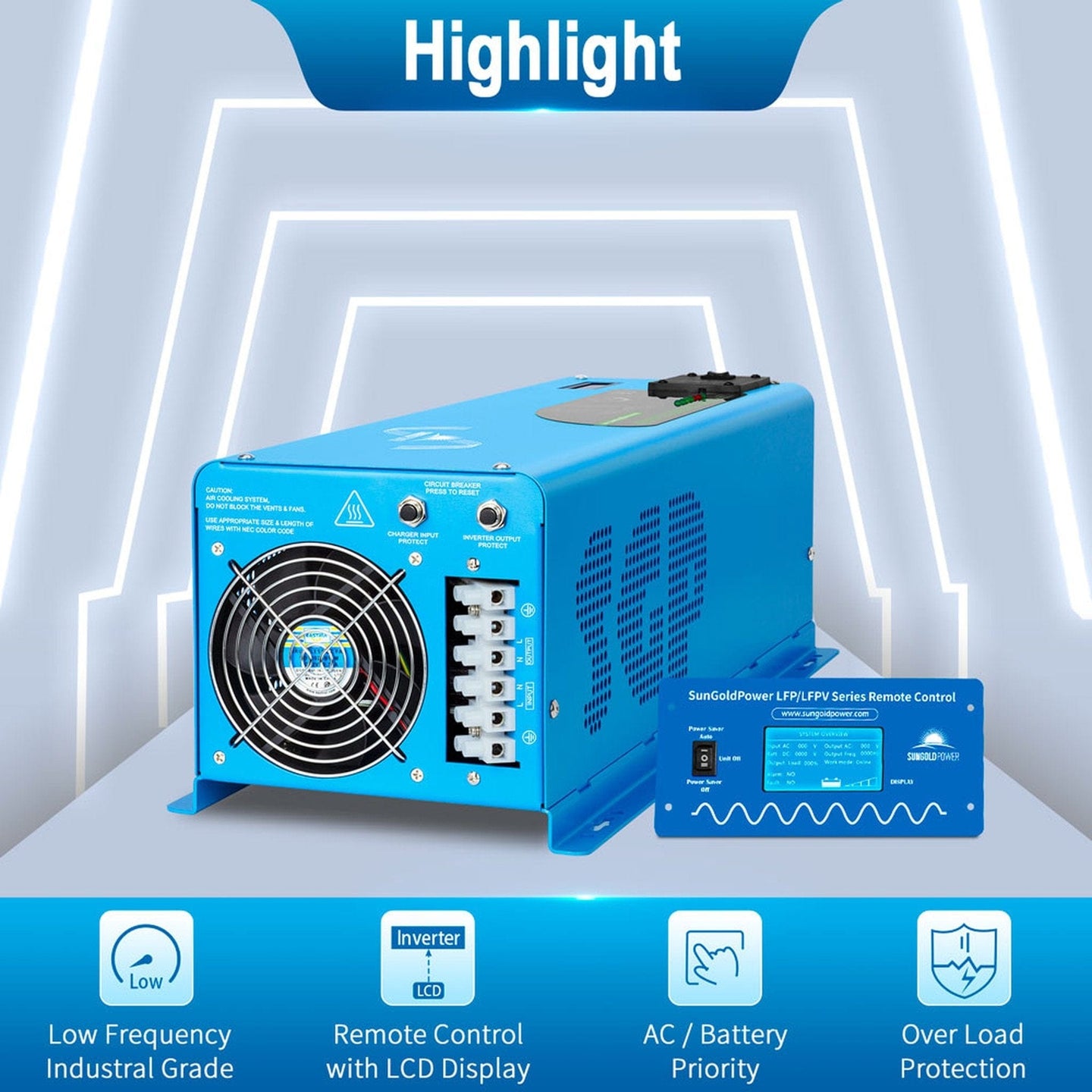

• AC/Battery Priority Mode: Defaults to AC input but can be changed to battery priority using the SW5 switch
• Input Voltage: 120VAC
• Output Voltage: 120VAC
• Frequency Selectable: 50Hz or 60Hz via SW4
• AC/Battery Priority Mode: Defaults to AC input but can be changed to battery priority using the SW5 switch
• Continuous Output Power: 4000W
• Surge Rating: 12000W (20 Seconds)
• Output: 120VAC, 60hz
• Output Wave: Pure Sine Wave (bypass mode)
• Typical Transfer Time: 10ms (MAX)
• Nominal Efficiency: >88%
• Nominal Input Voltage: 12.0Vdc
• Minimum Start Voltage: 10.0Vdc
• Low Battery Alarm: 10.5Vdc-11.0Vdc
• Low battery Trip: 10.0Vdc-10.5Vdc (select by SW1)
• High Voltage Alarm: 16.0Vdc
• Low battery Voltage Restart: 13Vdc
• Idle Consumption: 45W
• Power Saver Mode Idle Consumption: 18W
• Charger Rate: 120+/-5A

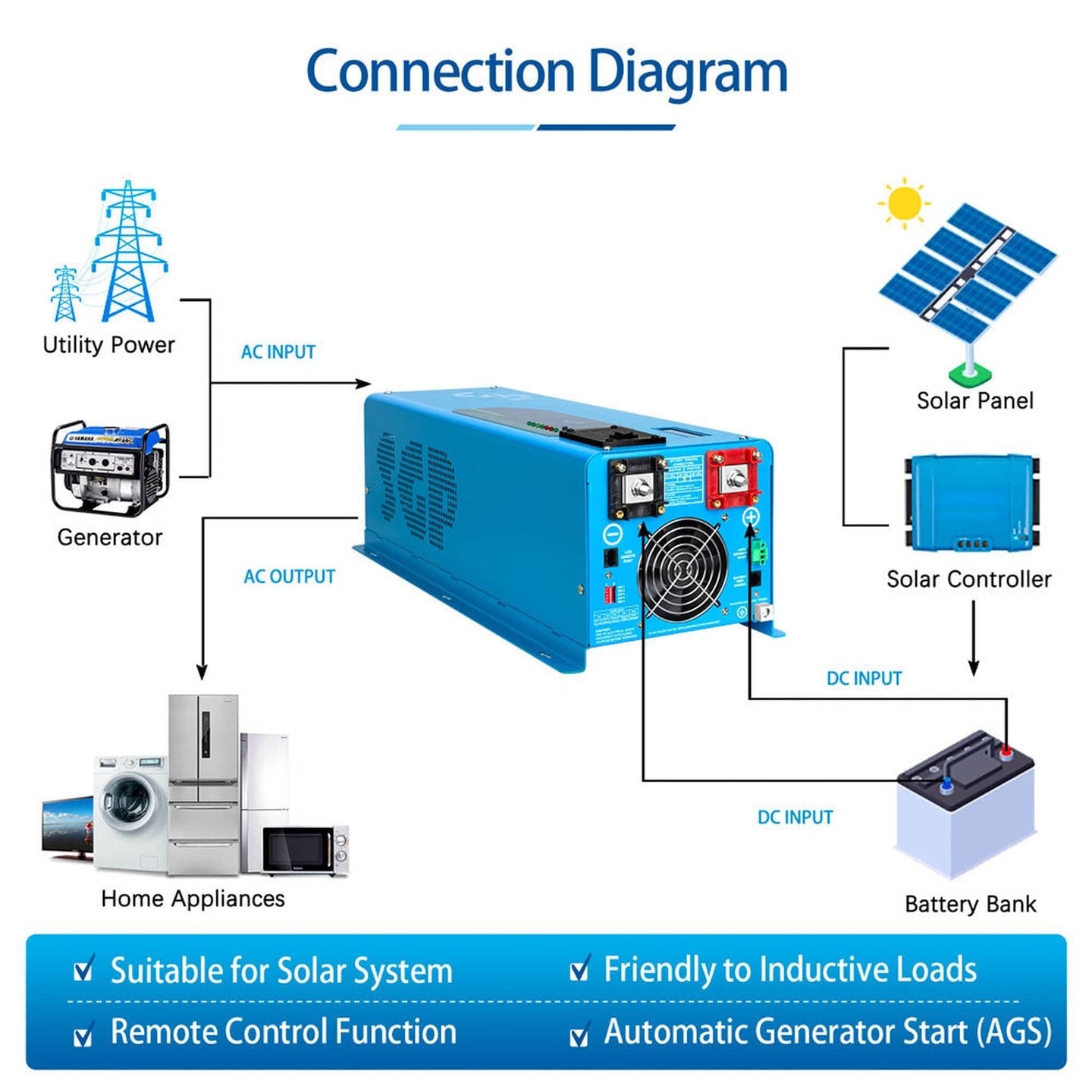

• AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (selected by SW2)
• Over Charge Protection Shutdown: 15.7V

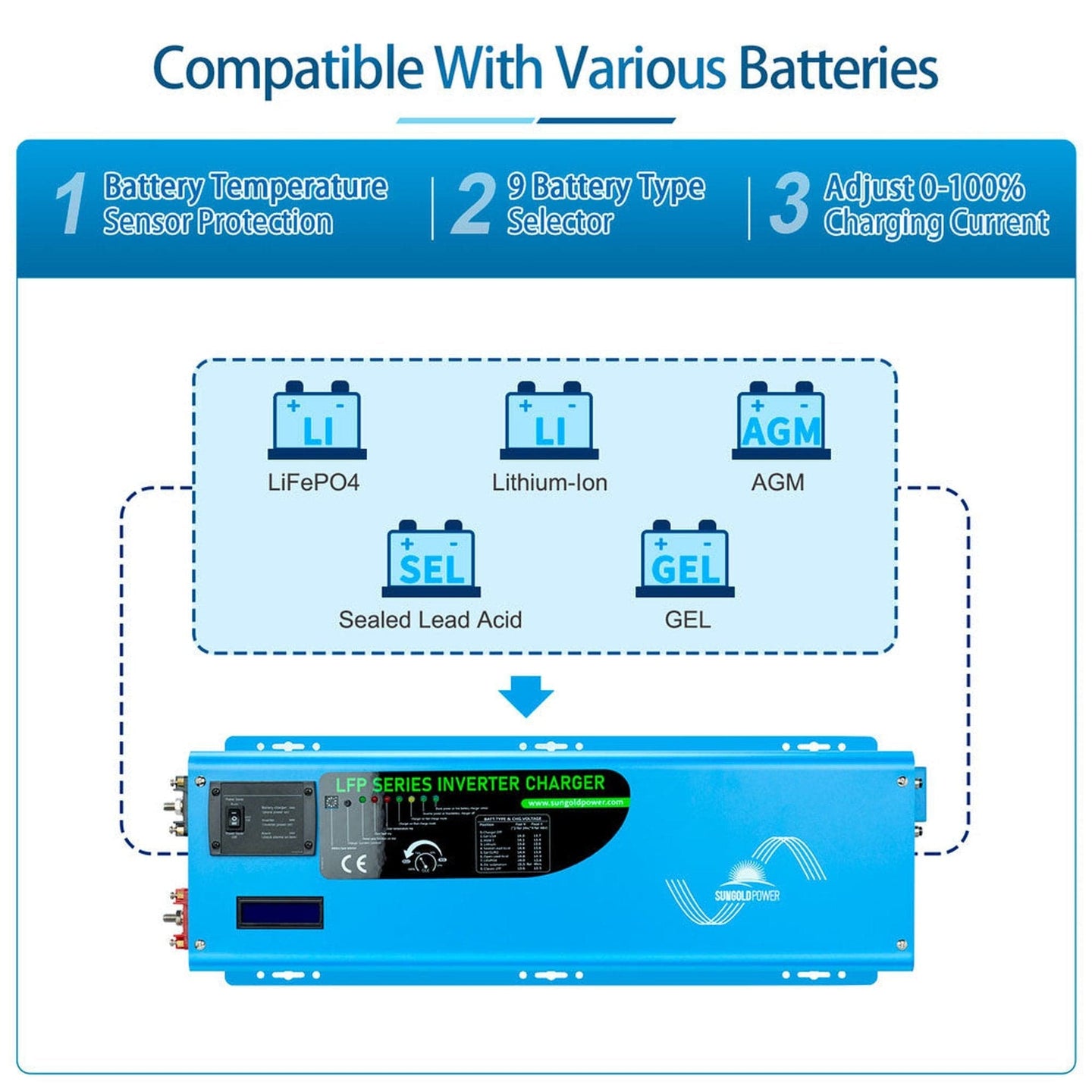

• Selectable Charge Setting based on battery type Adjustable charge current: off 0%-100%
• 3-step intelligent battery charger
• Inverter Output:
• DC Input:
• AC Charger :

Warranty and Resources

2 Year Warranty

• LFP Manual
