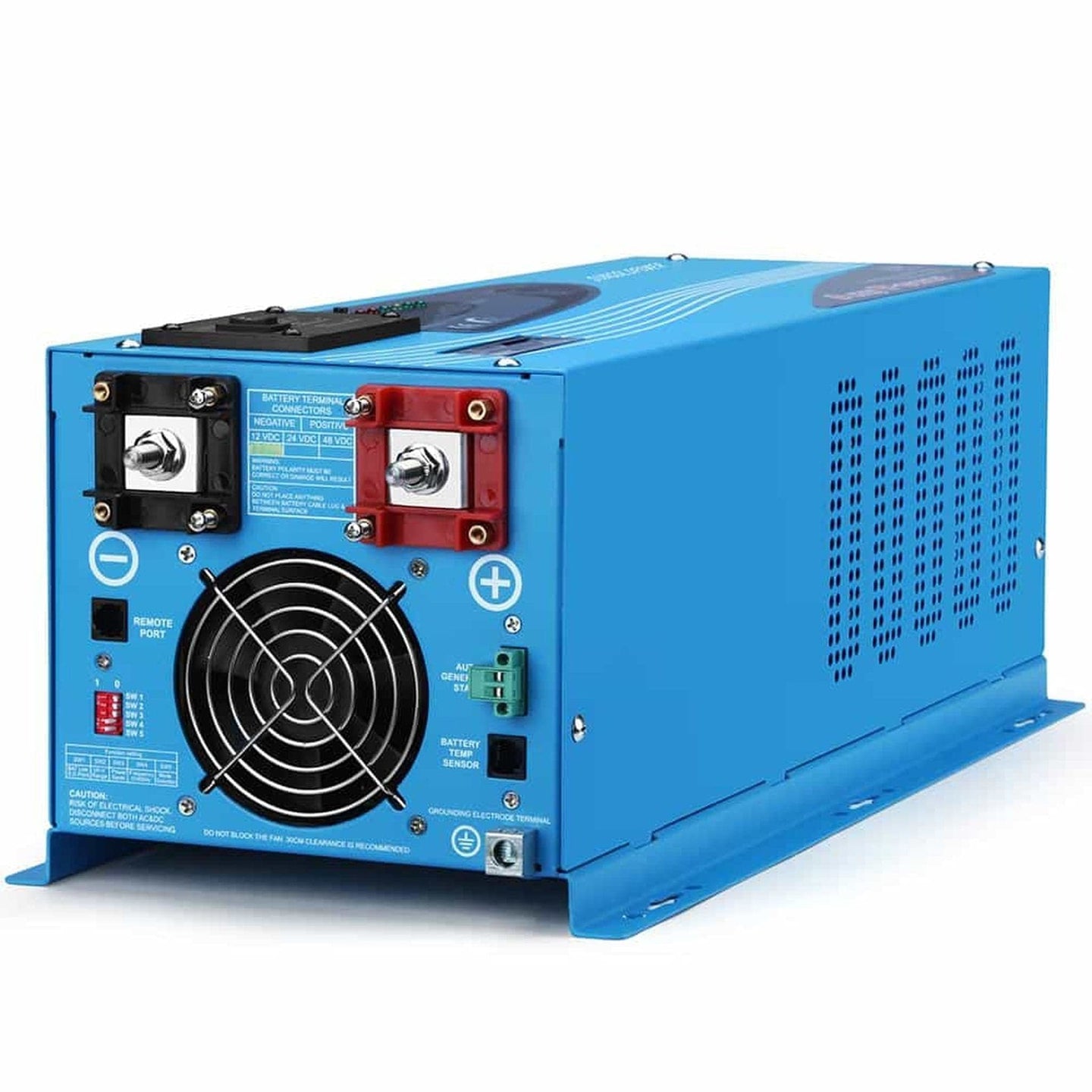

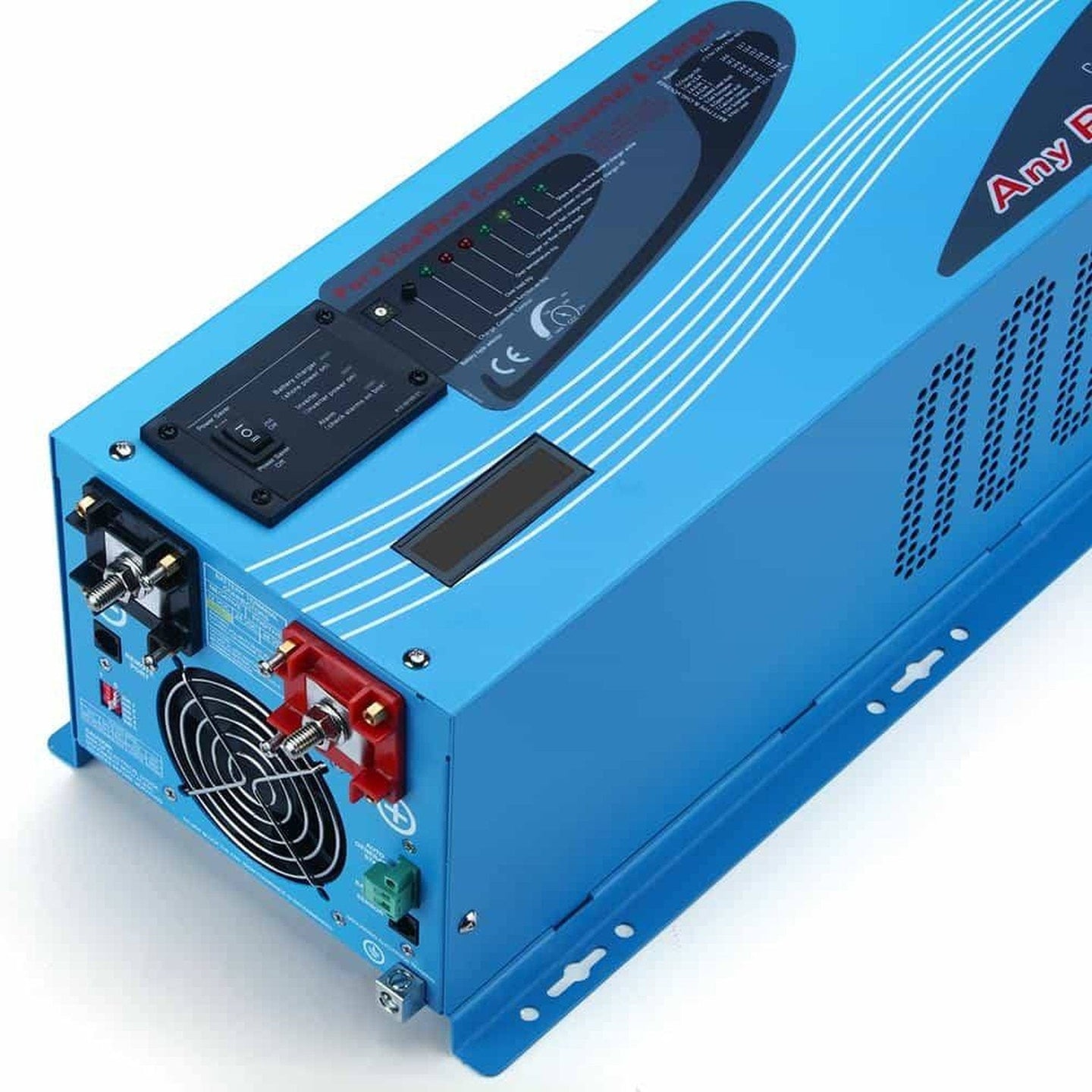

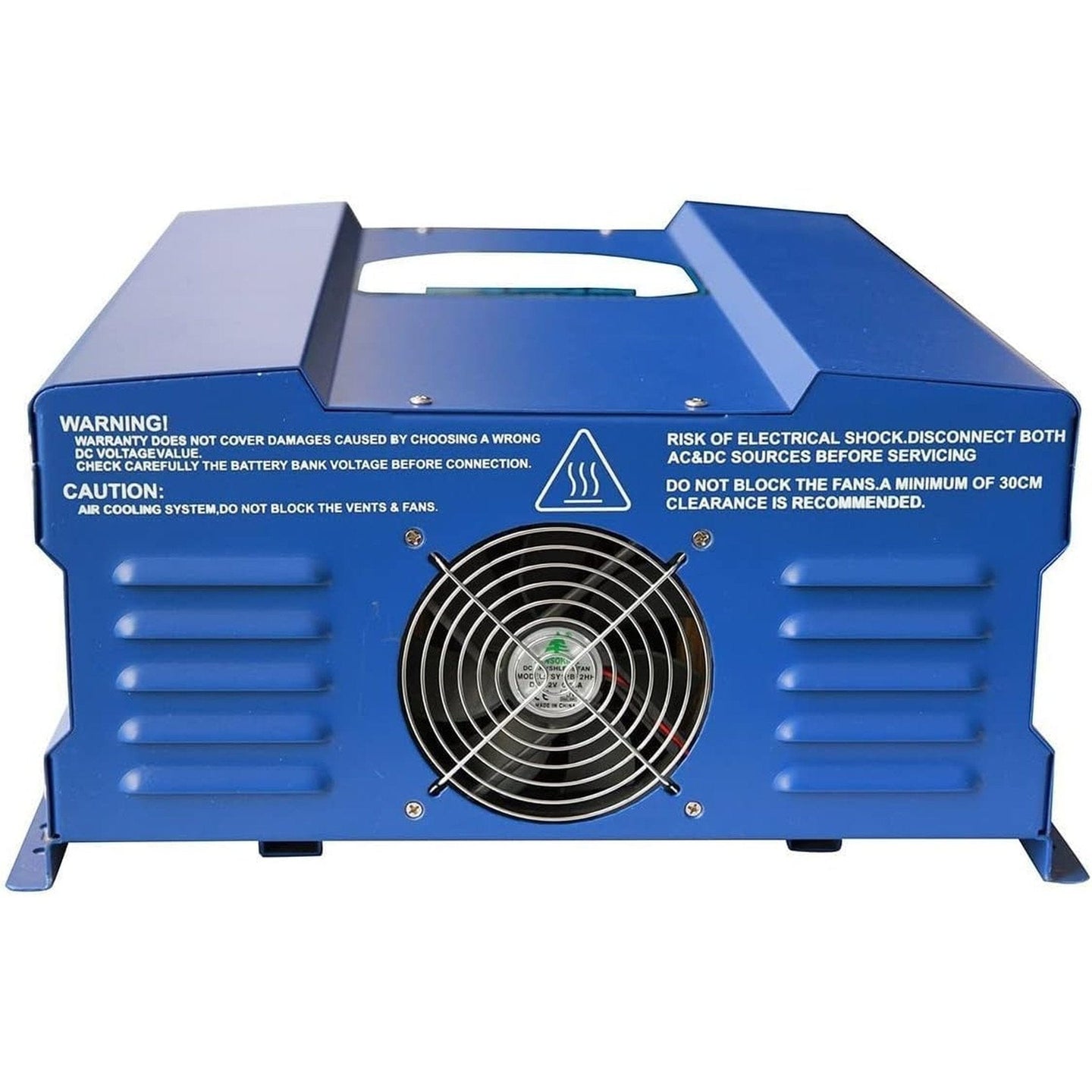

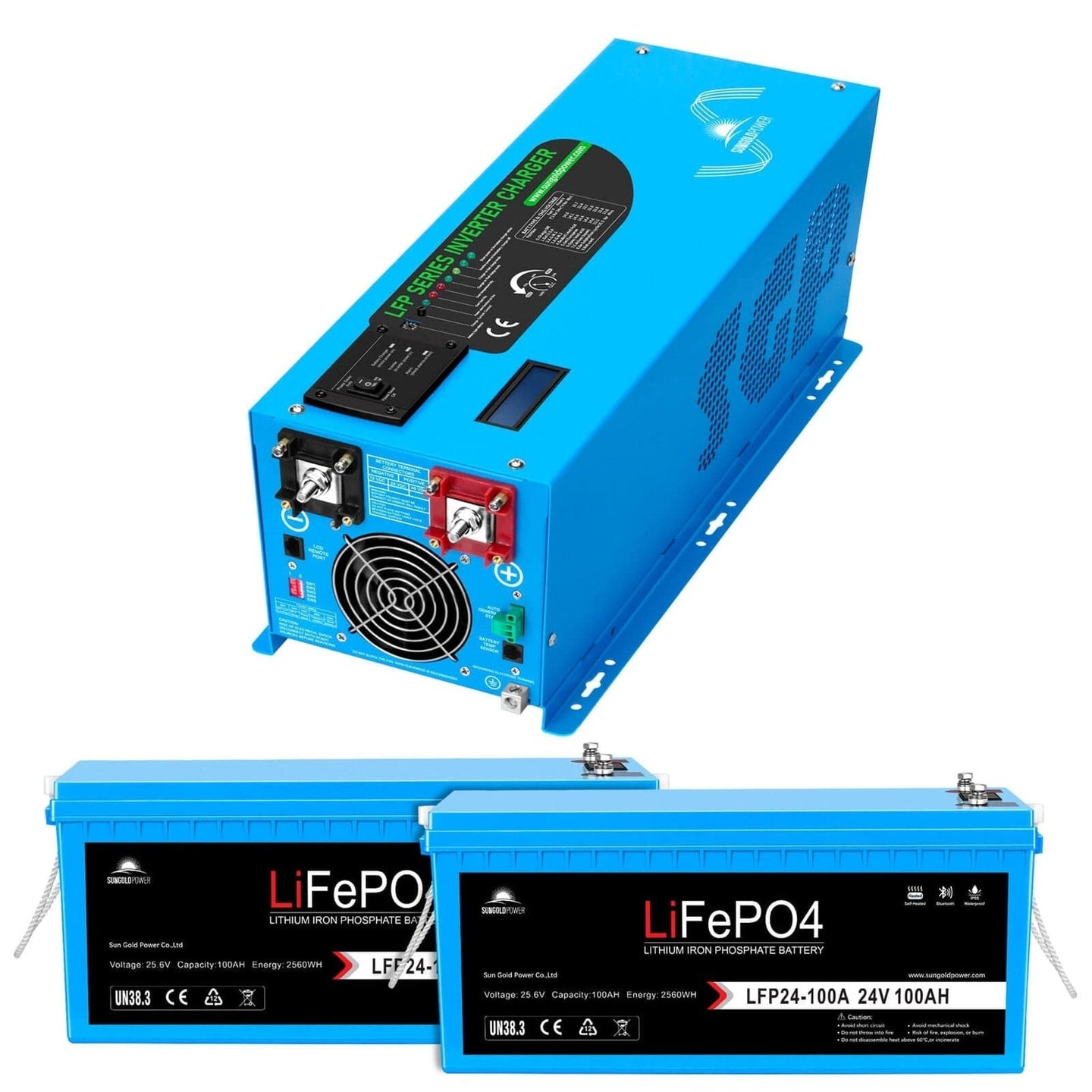

SunGold Power | 3000W DC 24V Pure Sine Wave Inverter with Charger | LFP3K24V120VSG

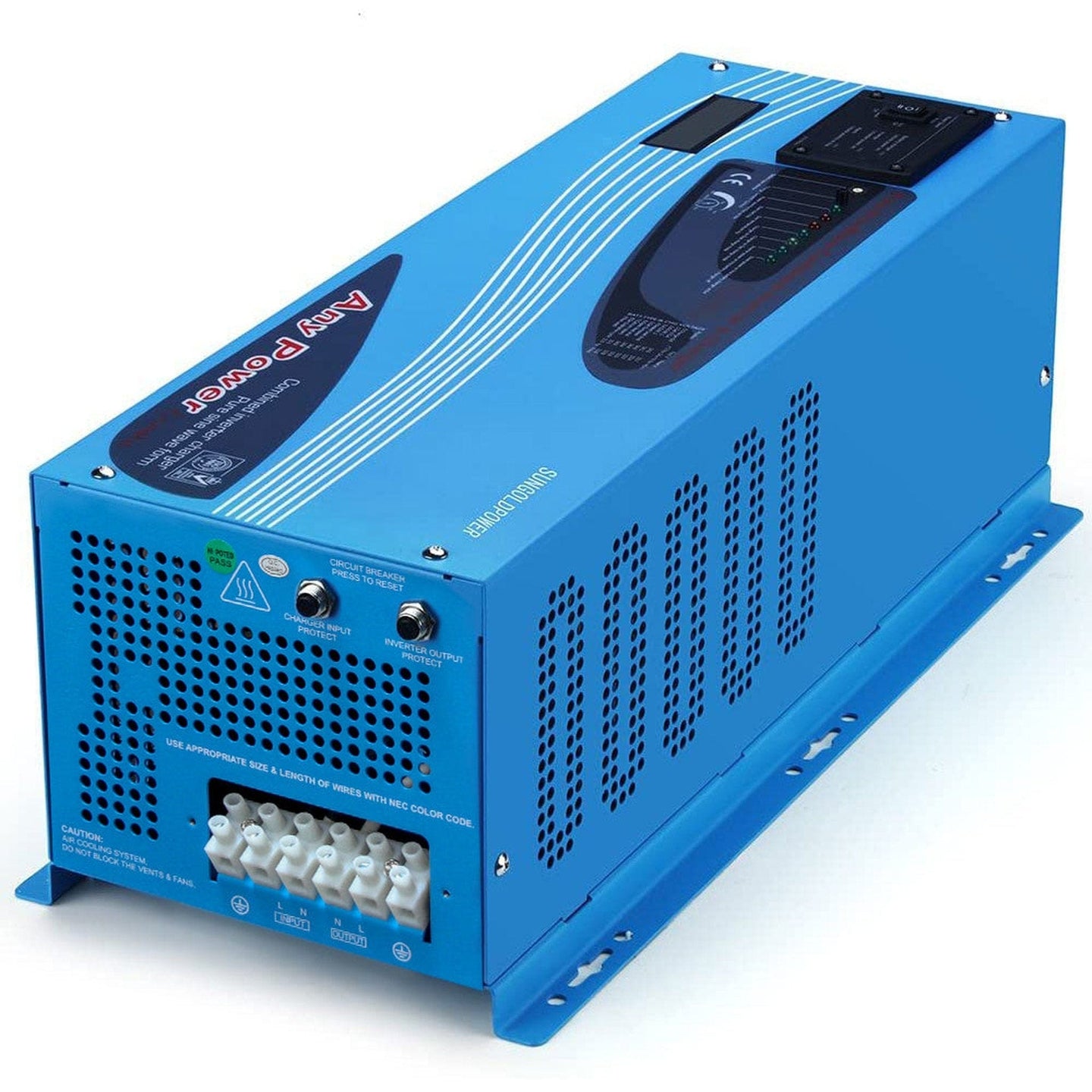

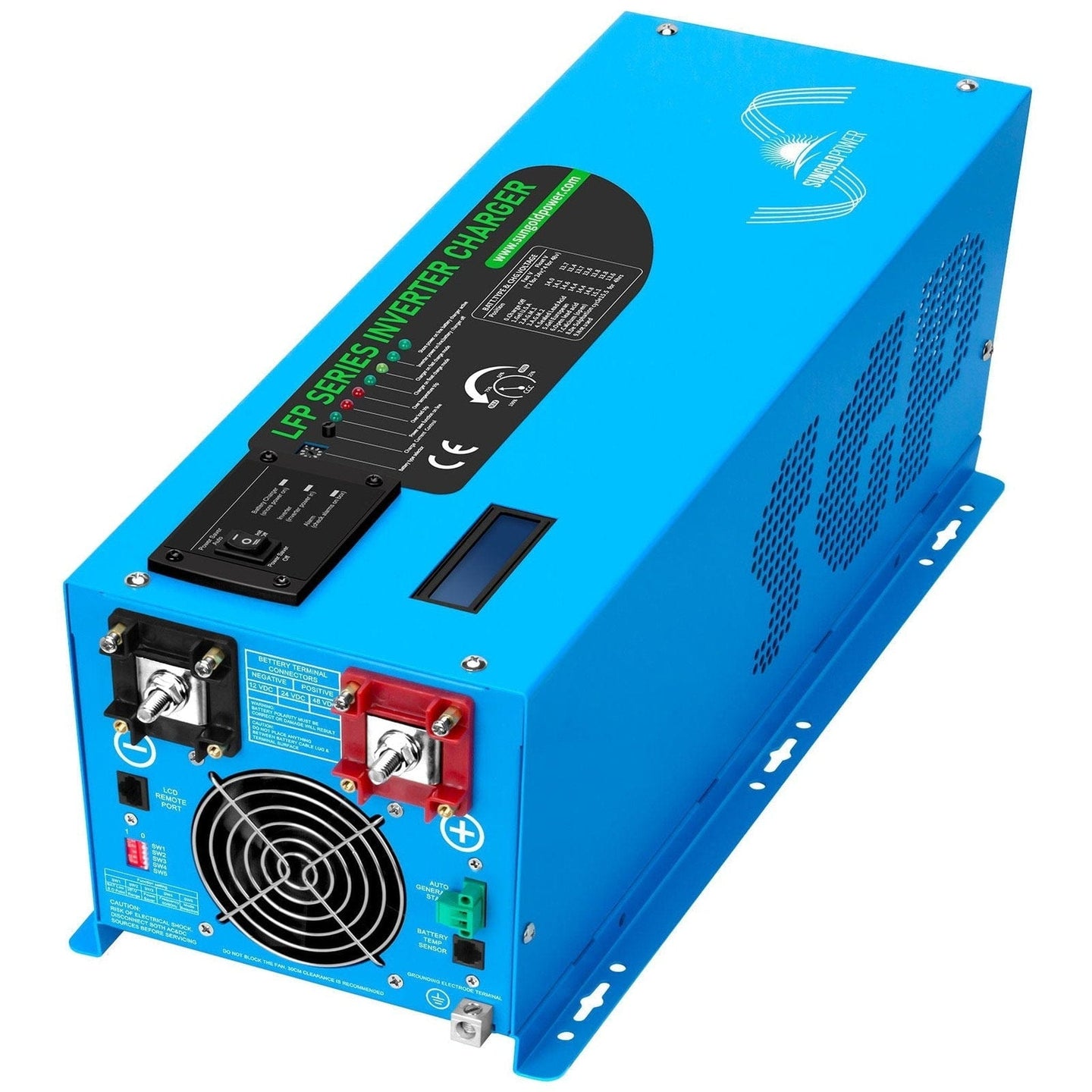

3000W DC 24V Pure Sine Wave Inverter with Charger

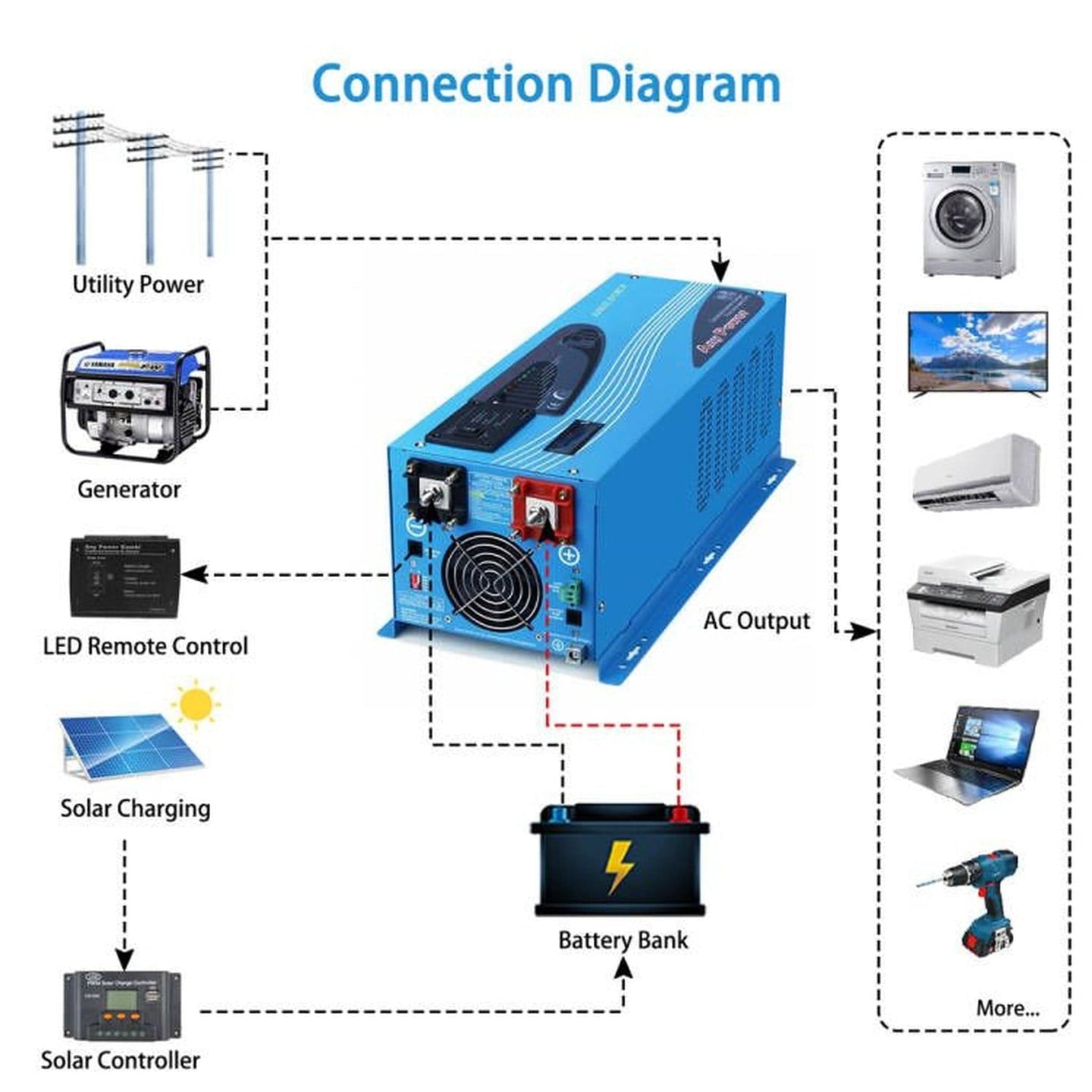

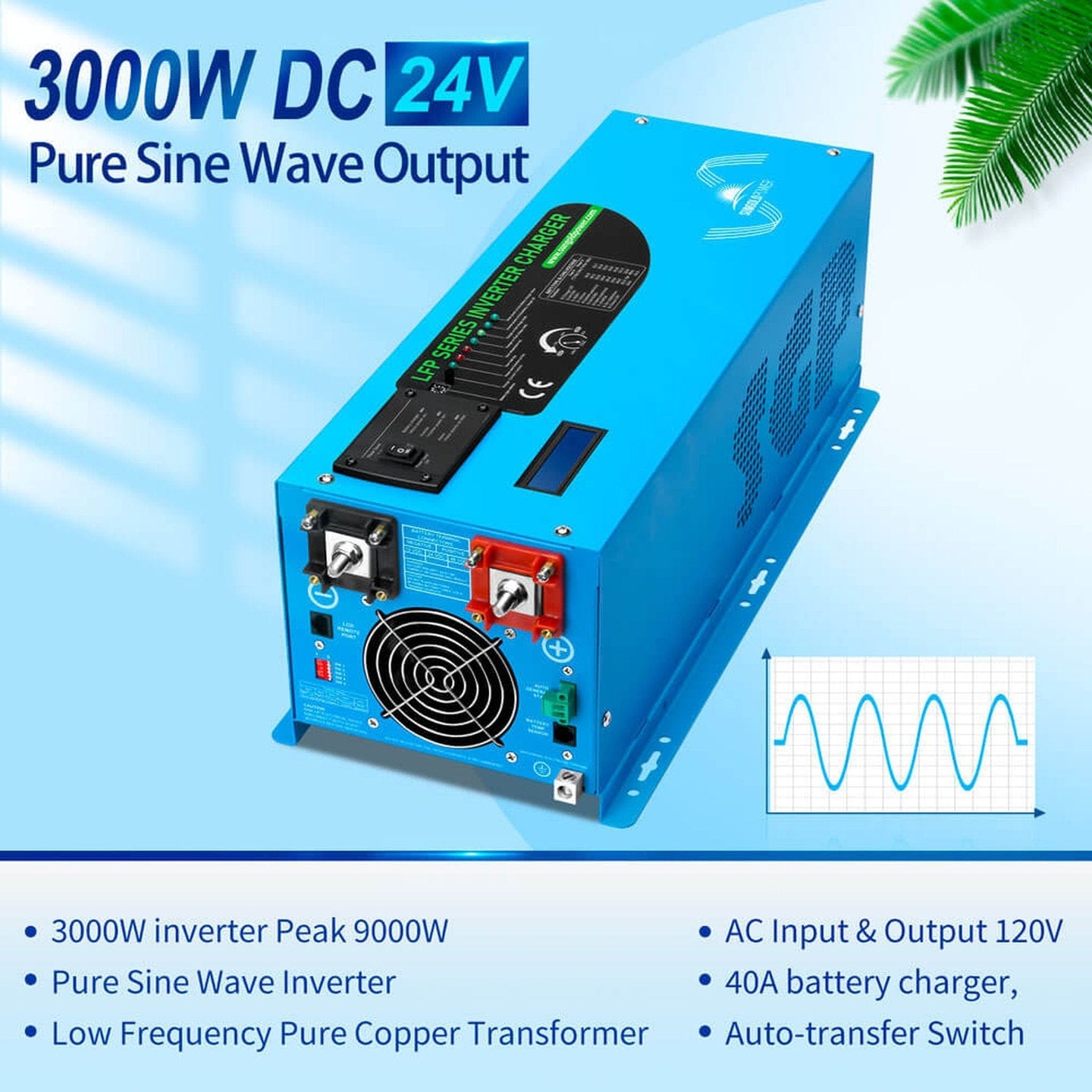

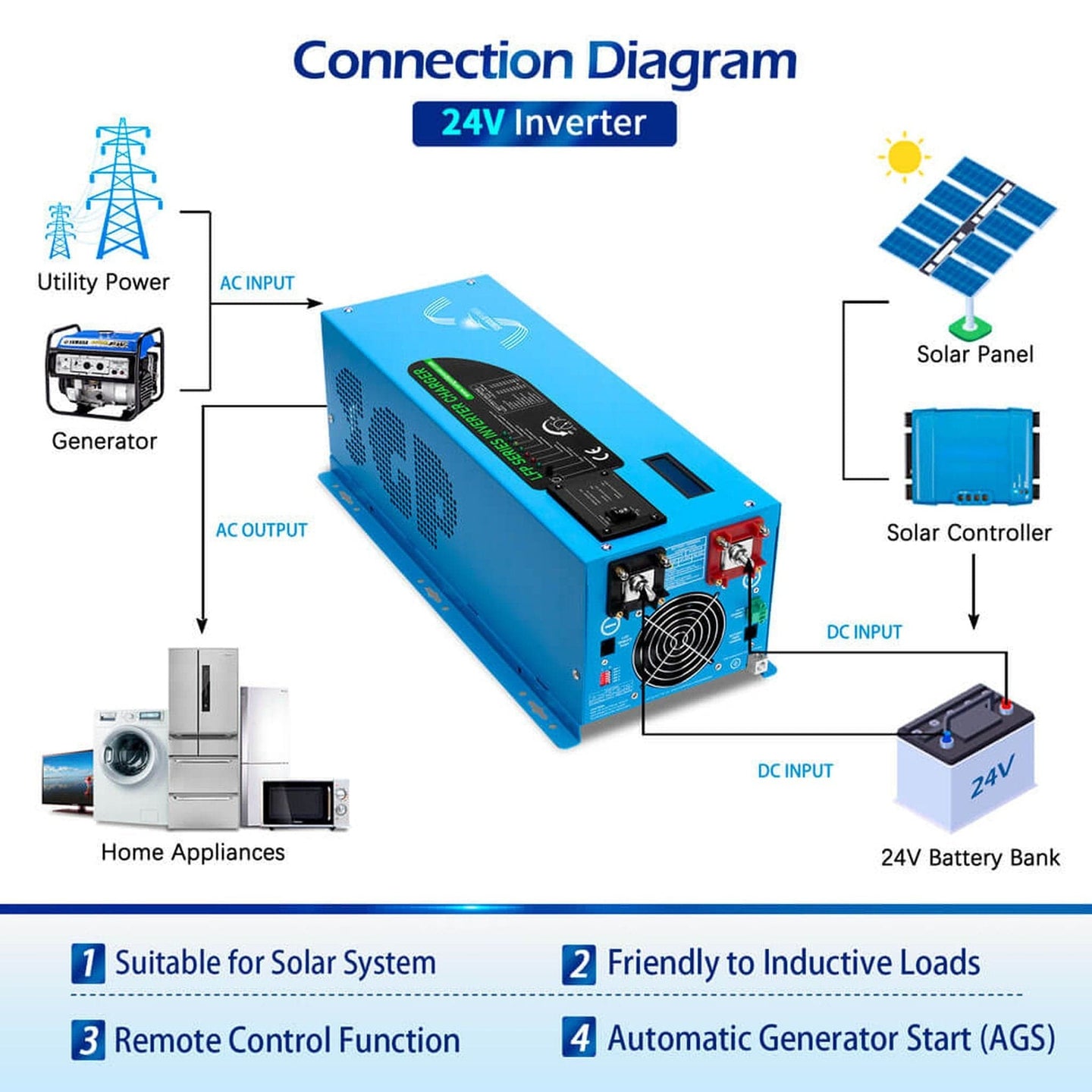

The LFP Series 3000W DC 24V Pure Sine Wave Inverter With Charger is a versatile all-in-one unit that combines a pure sine wave inverter, intelligent battery charger, and AC auto-transfer switch. Designed for off-grid homes, RVs, boats, and backup power systems, this inverter offers stable and clean energy for sensitive electronics and appliances.

This 3000W inverter operates on a 24V DC input and delivers 120V AC output. Output frequency is adjustable to 50Hz or 60Hz via the SW4 switch, providing flexibility across global power standards.

Features

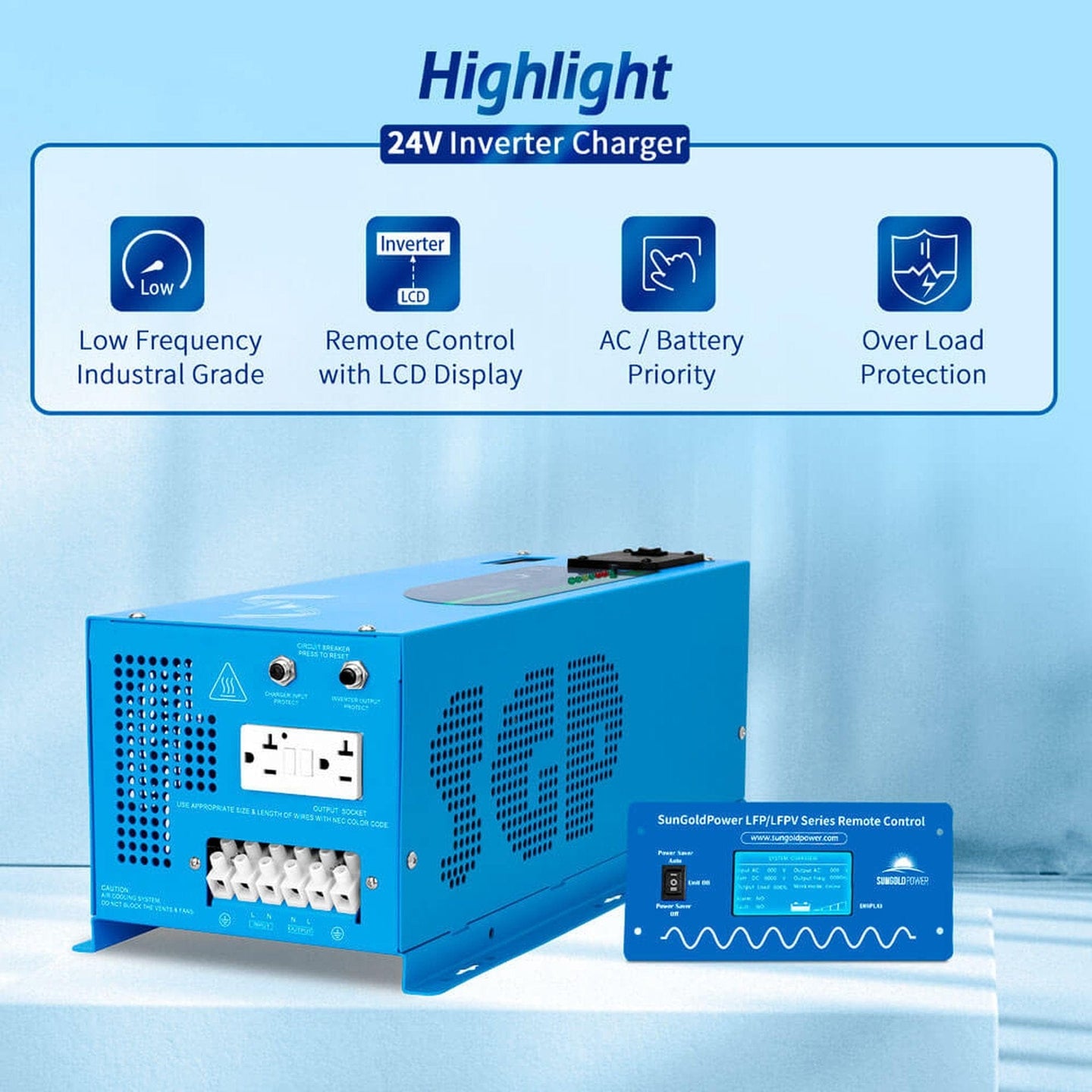

• 3000W Low-Frequency Pure Sine - Inverter with Built-In Charger
• 120V AC Input and Output

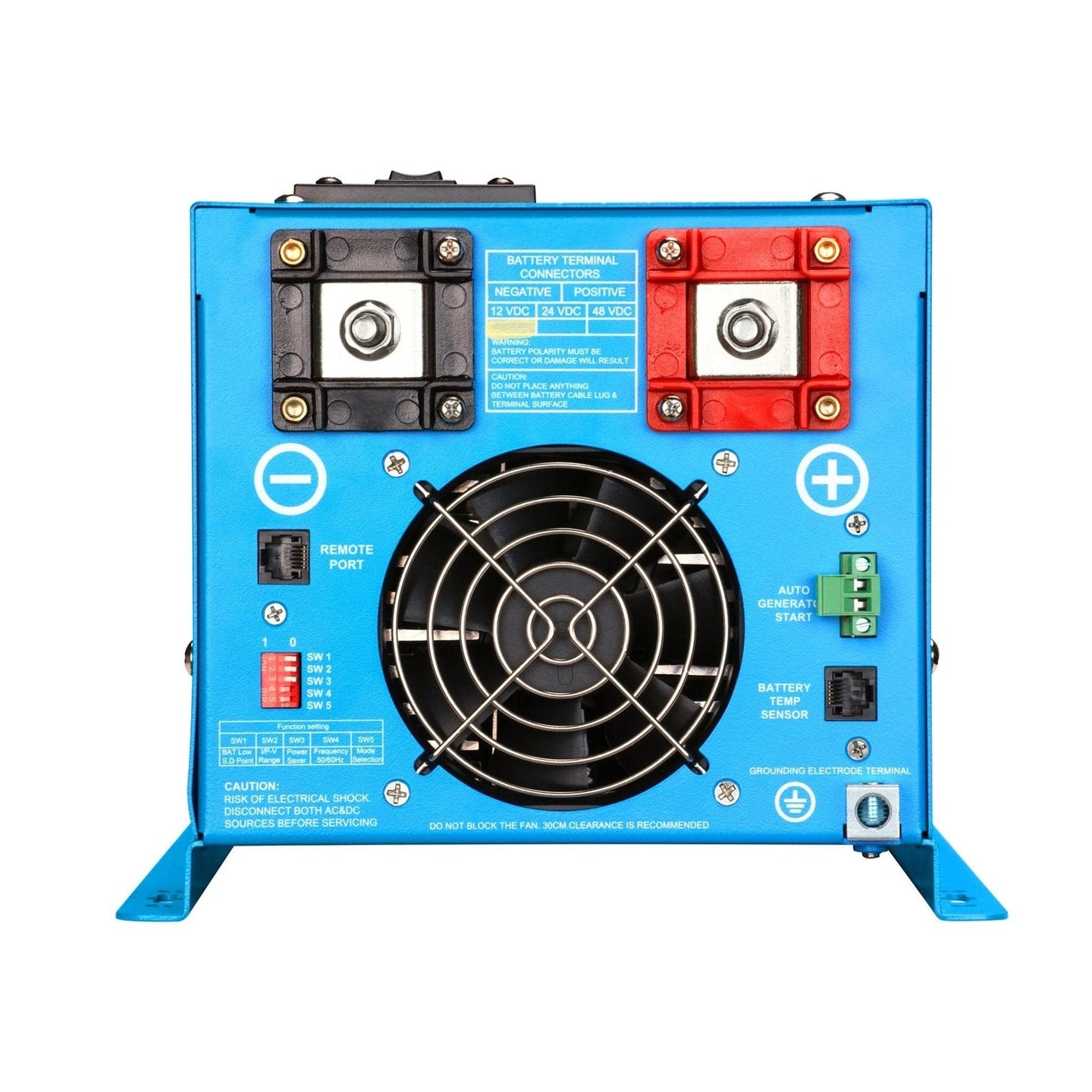

• Selectable Frequency Output - 50Hz or 60Hz (via SW4 switch)
• AC/Battery Priority Selector - Easily switch between AC or battery as your main power source (via SW5 switch)
• Adjustable Charging Current - From 0% to 100% using a linear control
• Auto Generator Start - Starts and stops the generator based on battery voltage
• Marine Coated and Protected - For added durability in harsh environments
• Low Idle Power Consumption - Energy-efficient design

Specifications

• Unit Dimensions: 17.4 x 9.5 x 7.8 inches
• Unit Weight: 53 lbs
• Shipping Dimensions: 23 x 12.6 x 12.0 inches
• Shipping Weight: 57 lbs
• Unit Dimensions: 17.4 x 9.5 x 7.8 inches
• Unit Weight: 53 lbs
• Shipping Dimensions: 23 x 12.6 x 12.0 inches
• Shipping Weight: 57 lbs
• Continuous Output Power: 3000W
• Surge Rating: 9000W (20 Seconds)
• Output: 120VAC, 60hz
• Output Wave: Pure Sine Wave (bypass mode)
• Typical Transfer Time: 10ms (MAX)
• Nominal Efficiency: >88%
• Nominal Input Voltage: 24.0Vdc
• Minimum Start Voltage: 20.0Vdc
• Low Battery Alarm: 21.0Vdc-22.0Vdc
• Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
• High Voltage Alarm: 32.0Vdc
• Low battery Voltage Restart: 26Vdc
• Idle Consumption: 39W
• Power Saver Mode Idle Consumption: 16W
• Charger Rate: Max 40A
• AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (selected by SW2)
• Over Charge Protection Shutdown: 31.4V

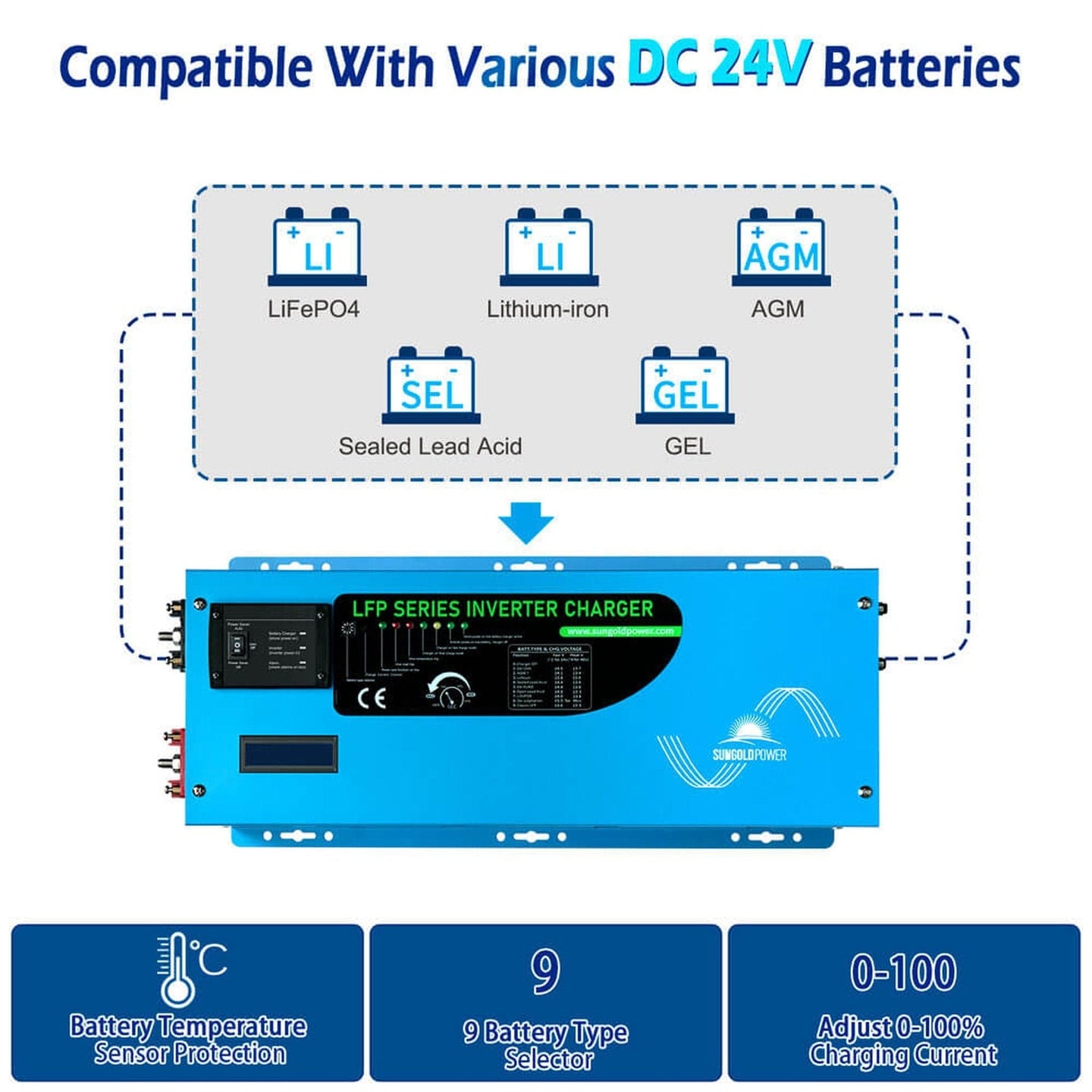

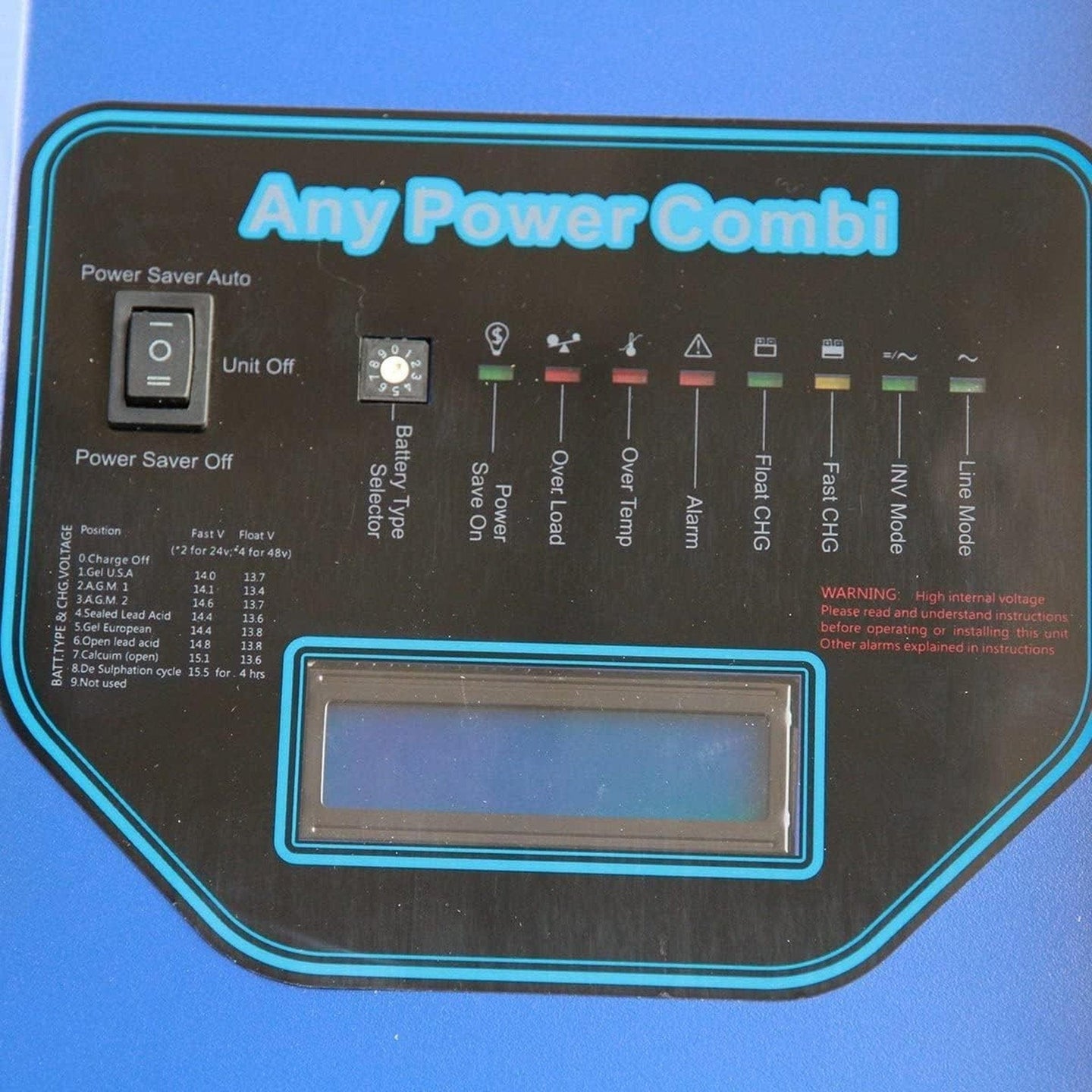

• Selectable Charge Setting based on battery type Adjustable charge current: off-20%-100%
• 4-step intelligent battery charger
• Inverter Output:
• DC Input:
• AC Charger :

Warranty and Resources

2 Year Warranty

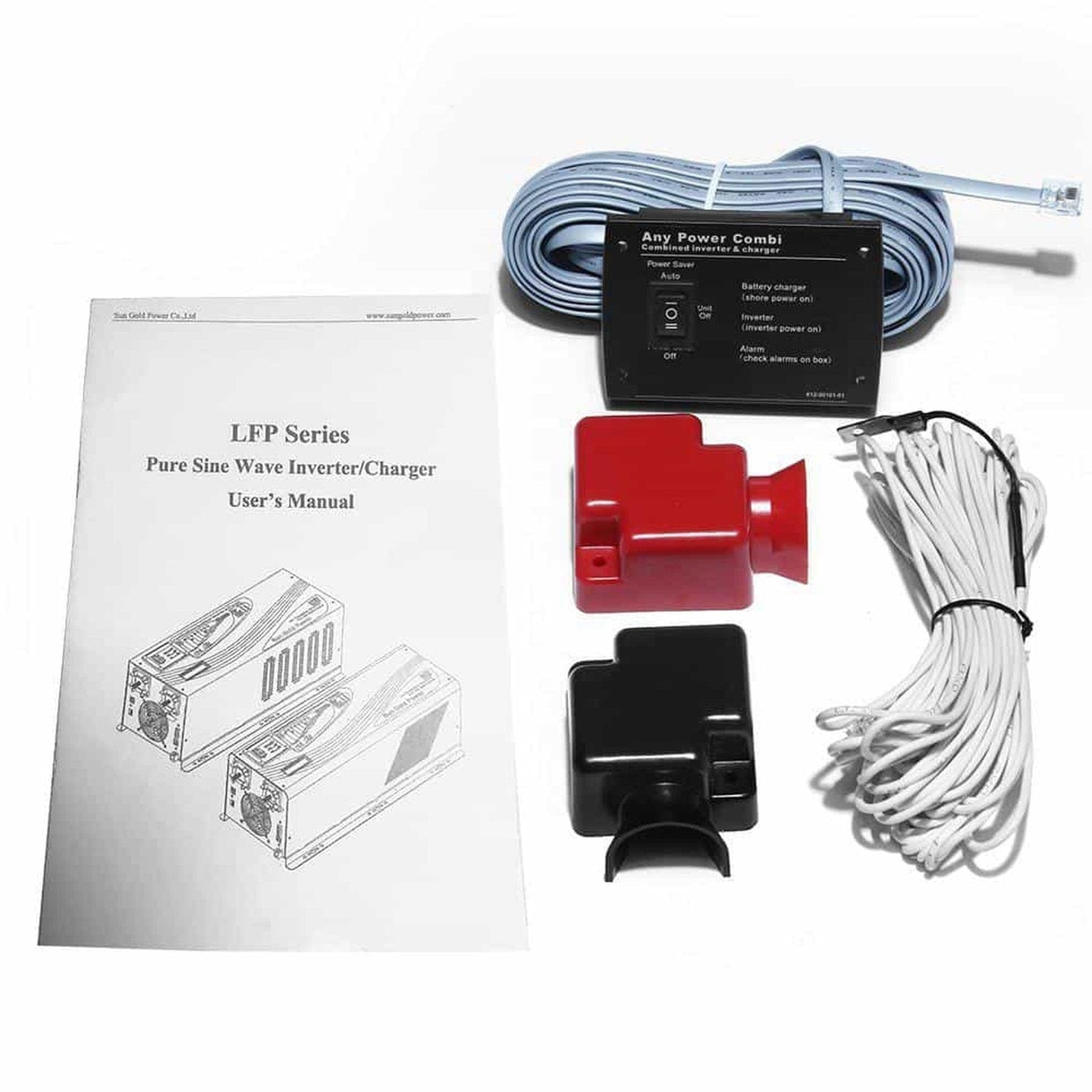

• LFP Manual
