SunGold Power | 2000W DC 12V Pure Sine Wave Inverter with Charger | LFP2K12V120VSG

2000W DC 12V Pure Sine Wave Inverter with Charger

The LFP Series 2000W DC 12V Pure Sine Wave Inverter With Charger is a comprehensive power solution designed for dependable off-grid and backup applications. This low-frequency inverter combines a 2000-watt inverter, an intelligent battery charger, and an automatic AC transfer switch—perfect for use in homes, cabins, RVs, and boats.

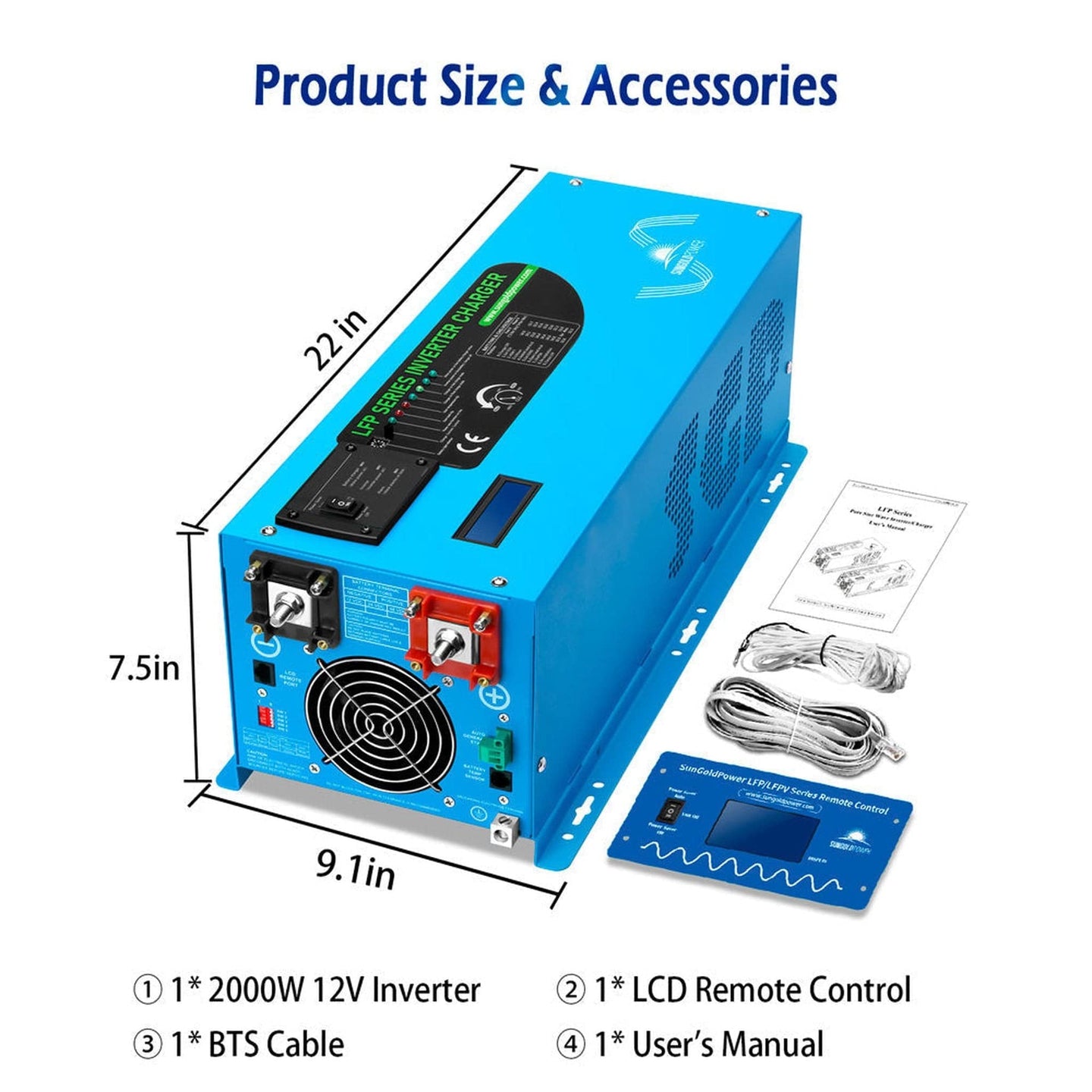

Delivering clean pure sine wave output, it safely powers a wide range of appliances, including sensitive electronics and heavy-duty tools. With built-in GFCI socket, LCD display, BTS cable, and remote control, it offers convenience and control in one durable unit.

Features

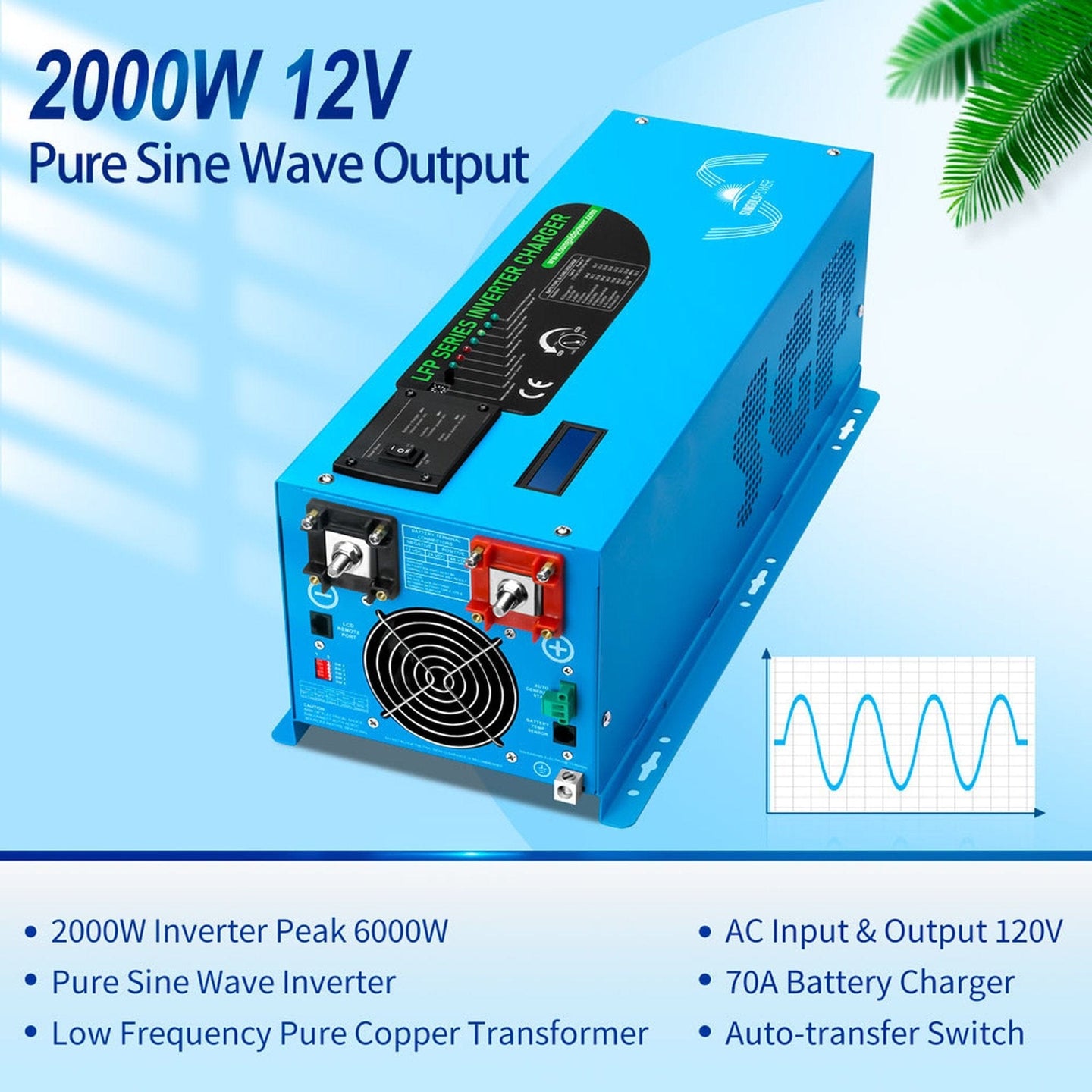

• 2000W Pure Sine Wave - Inverter with 12VDC Input / 120VAC Output
• Low-Frequency Design ensures strong - surge capability and extended durability
• Smart 70A Adjustable Battery - Charger with multiple battery profiles
• AC/Battery Priority Mode Selector - for tailored power management
• Automatic Generator Start when - battery voltage is low
• Low Idle Power Consumption - for greater efficiency

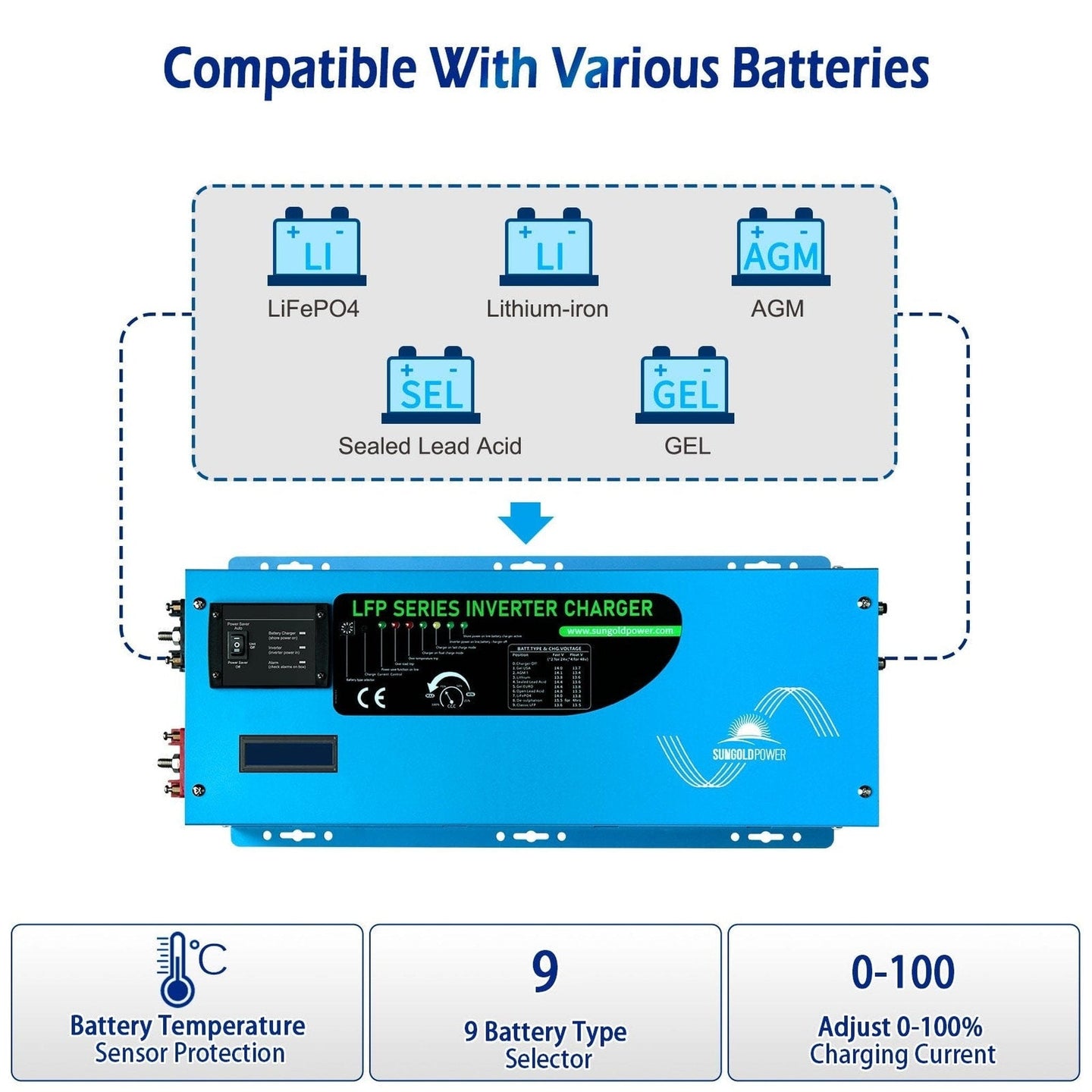

• 7 Battery Charging Modes - including support for AGM, Gel, Flooded, and LiFePO₄ batteries

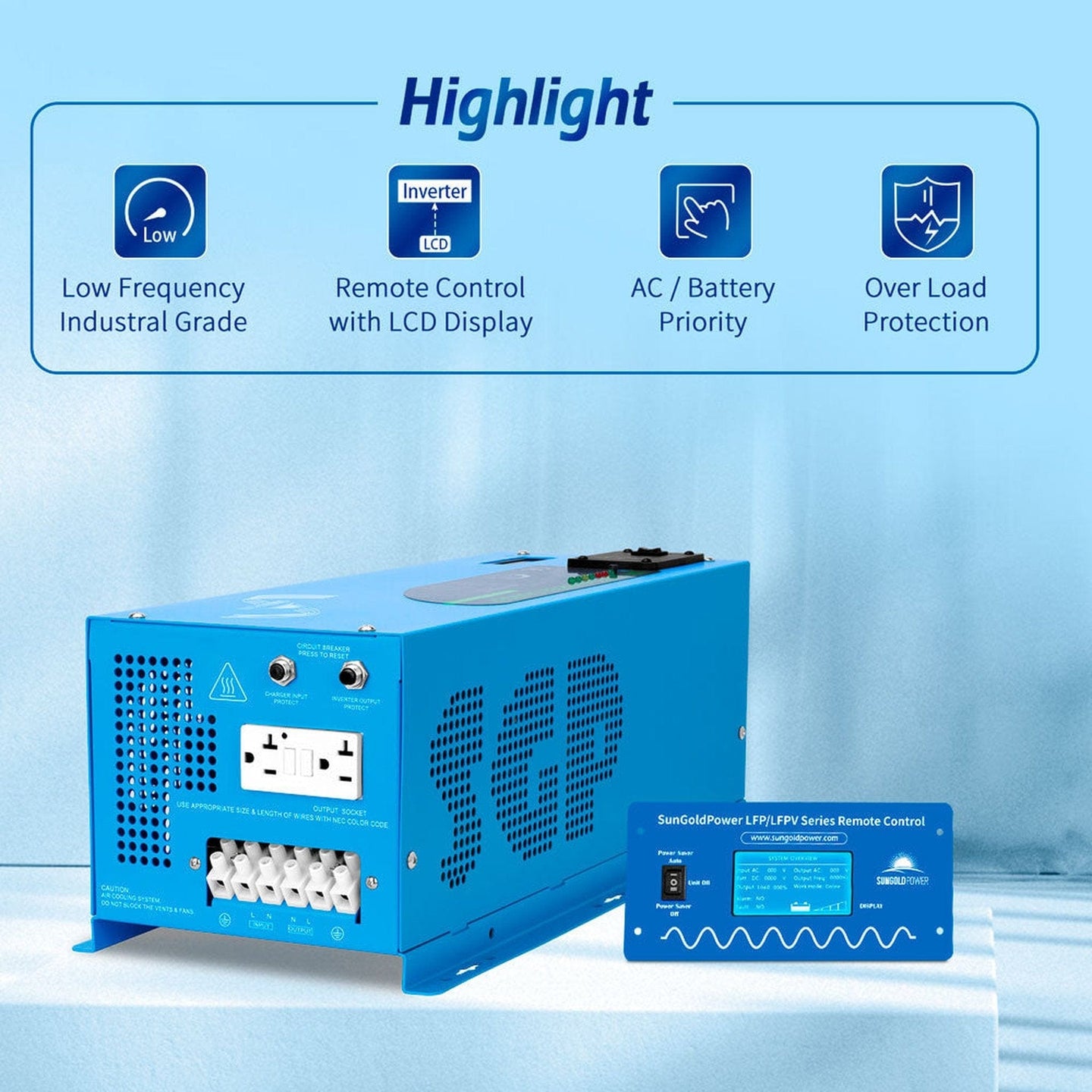

• GFCI Output Socket and - Remote Monitoring Capabilities

Specifications

• Input Voltage: 12VDC
• Output Voltage: 120VAC (Selectable 50Hz/60Hz via SW4 switch)
• Charging Current: Adjustable from 0% to 100%
• AC/Battery Priority: Switchable using SW5
• Input Voltage: 12VDC
• Output Voltage: 120VAC (Selectable 50Hz/60Hz via SW4 switch)
• Charging Current: Adjustable from 0% to 100%
• AC/Battery Priority: Switchable using SW5
• Continuous Output Power: 2000W
• Surge Rating: 6000W (20 Seconds)
• Output: 120VAC, 60hz
• Output Wave: Pure Sine Wave (bypass mode)
• Typical Transfer Time: 10ms (MAX)
• Nominal Efficiency: >88%
• Nominal Input Voltage: 12.0Vdc
• Minimum Start Voltage: 10.0Vdc
• Low Battery Alarm: 10.5Vdc-11.0Vdc
• Low battery Trip: 10.0Vdc-10.5Vdc (select by SW1)
• High Voltage Alarm: 16.0Vdc
• Low battery Voltage Restart: 13Vdc
• Idle Consumption: 25W
• Power Saver Mode Idle Consumption: 12W
• Charger Rate: 70+/-5A
• AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (select by SW2);
• Over Charge Protection Shutdown: 15.7V
• Selectable Charge Setting: off 0%-100%
• 3-step intelligent battery charger
• Inverter Output:
• DC Input:
• AC Charger:

Warranty and Resources

2 Year Warranty

• LFP Manual
