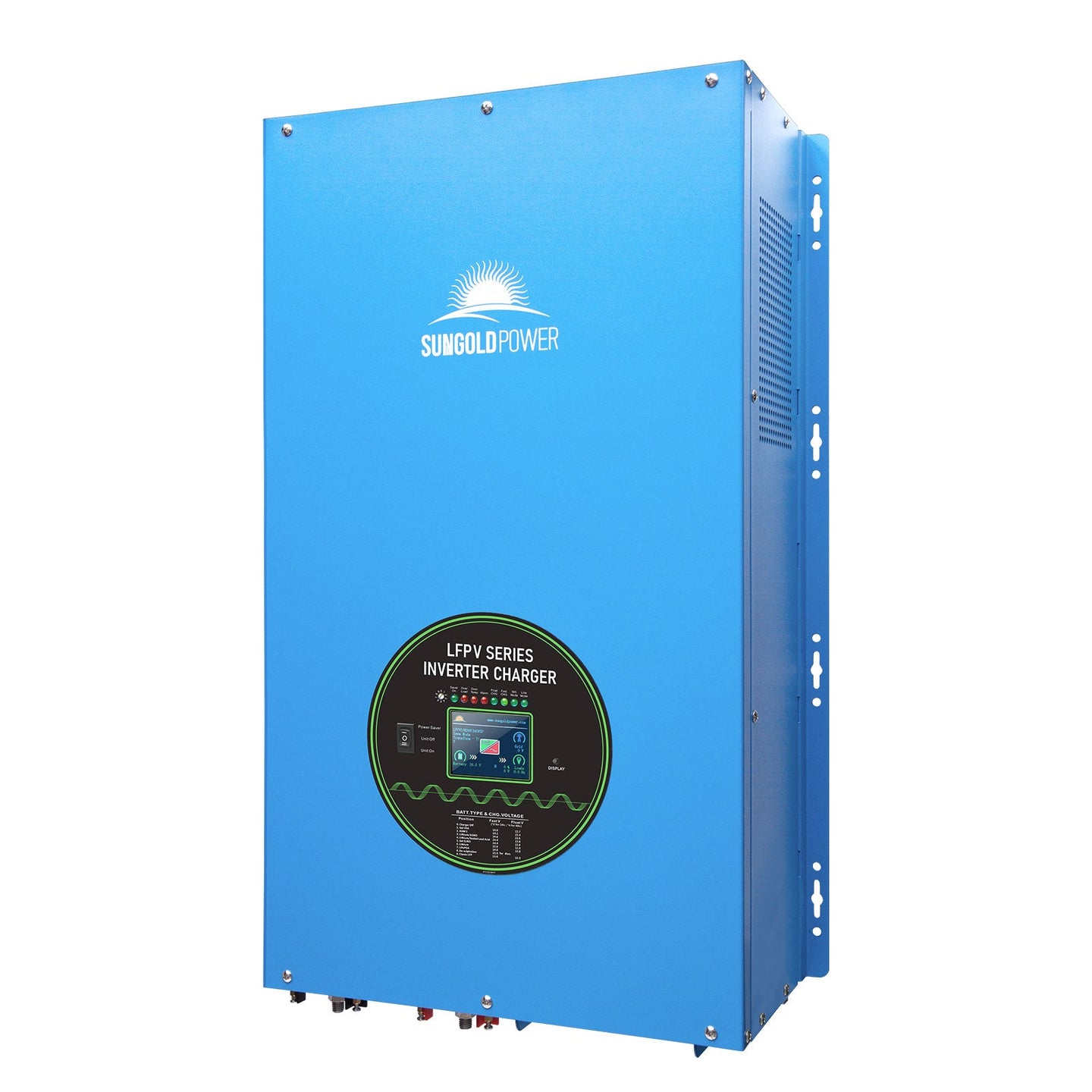

SunGold Power 15000W 48V Split Phase Pure Sine Wave Inverter Charger

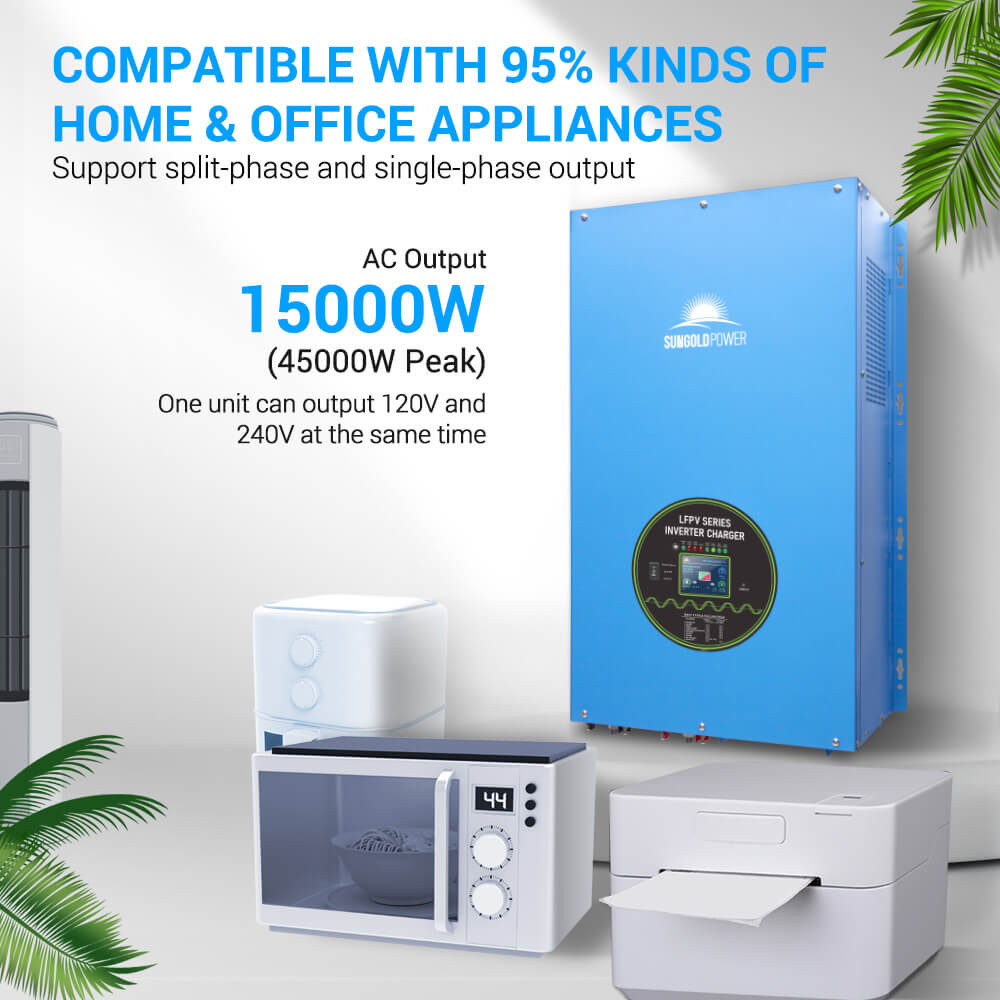

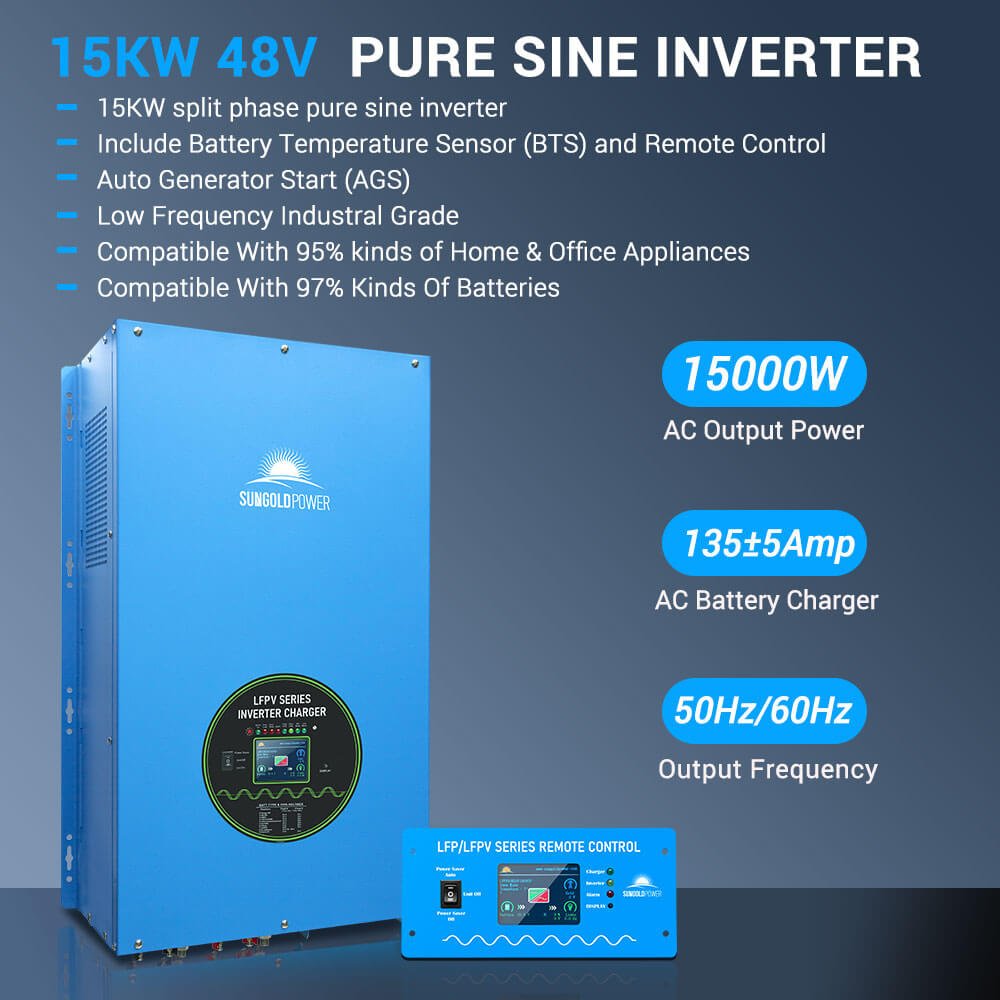

This is the unit you reach for when your power demands outgrow everything else. The SunGold Power LF-PV 15000W split phase inverter charger delivers 15KW of continuous pure sine wave power from a 48V battery bank, with a 45KW surge rating that absorbs the startup punishment of multiple large appliances running simultaneously. Air conditioners, well pumps, dryers, commercial refrigeration - this inverter handles the full electrical load of a standard-size home or a demanding commercial space.

Like its 12KW sibling, the 15KW LF-PV integrates an inverter, a 100-amp battery charger, and an automatic transfer switch into a single chassis. It supports eight battery types, features 4-step intelligent charging with PFC, and transfers between grid and battery in 10 milliseconds. At 176 lbs with a 45KW surge ceiling, this is built for permanent installations where you need serious, uninterrupted power capacity and zero compromises on waveform quality.

Features

• 15KW Continuous / 45KW Surge - Powers a full-size home and handles extreme inrush currents from multiple motors for up to 20 seconds
• Split Phase 120V/240V Output - Full residential and commercial panel compatibility with two legs of 120V
• 100A Battery Charger - High-capacity multi-stage charging adjustable from 0% to 100% for rapid battery bank recovery

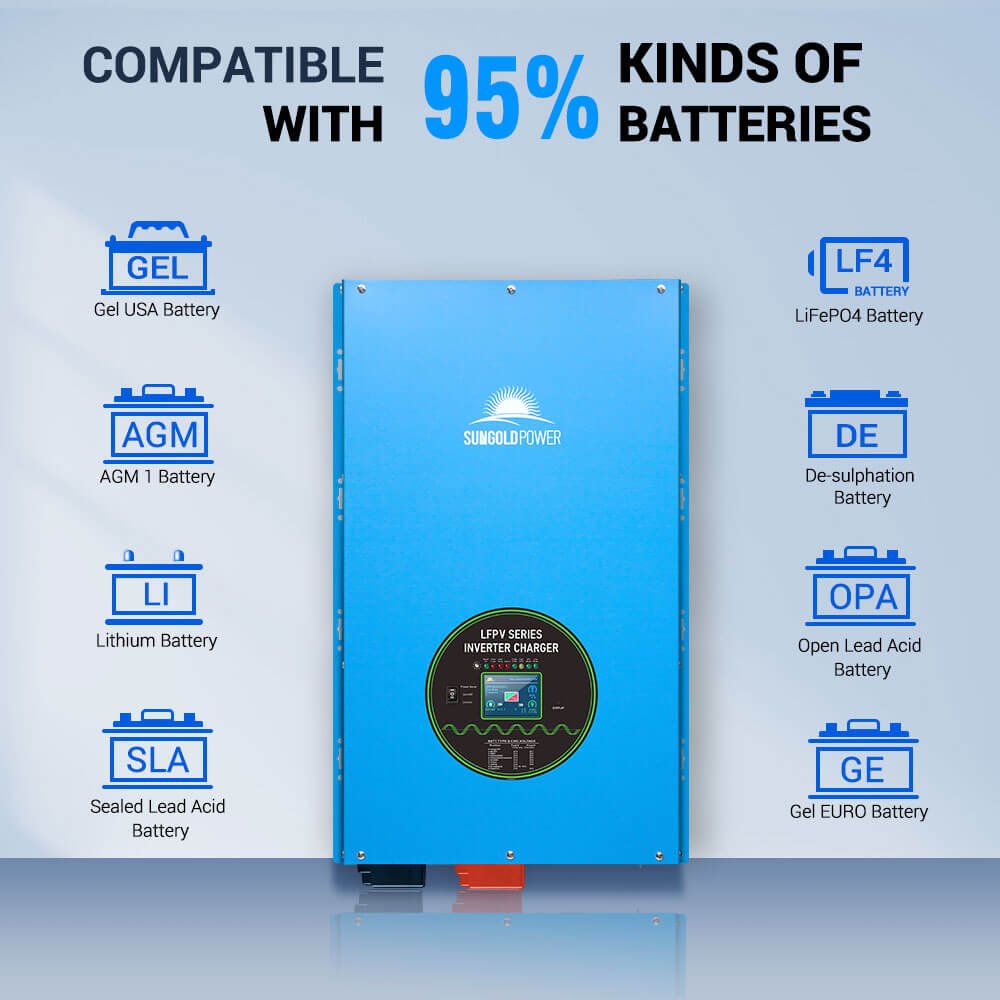

• 8 Battery Type Selections - Works with LiFePO4, gel, AGM, and lead acid batteries
• 4-Step Intelligent Charging with PFC - Power Factor Correction maximizes charger efficiency and extends battery life
• Auto Generator Start (AGS) - Automatically manages generator run cycles based on battery voltage
• AC/Battery Priority Modes - SW5 switch lets you configure grid-backup or battery-first operation
• 10ms Max Transfer Time - Seamless switchover keeps sensitive equipment running without interruption

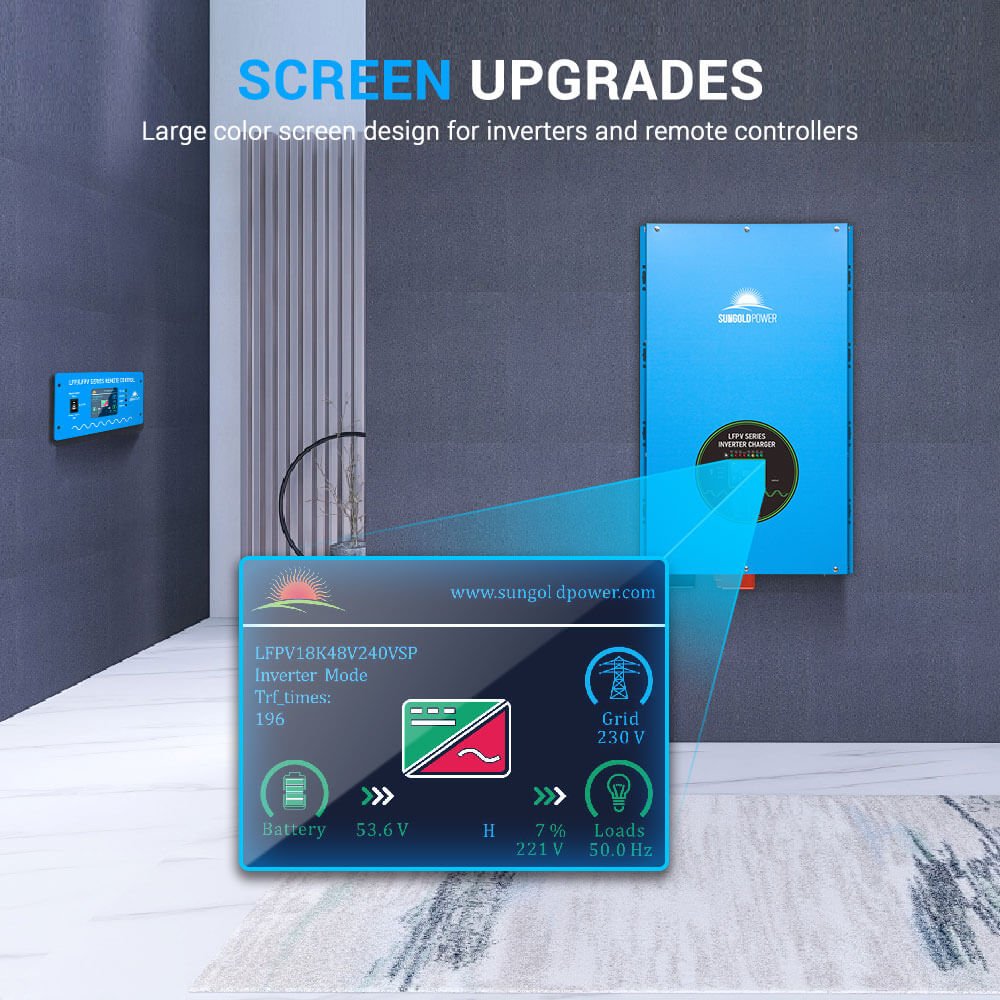

• Remote Control and BTS Included - Remote system monitoring plus temperature-compensated charging
• 15-Second AC Recovery Delay - Protects connected loads from unstable power during generator warmup

Specifications

• Continuous Output Power: 15,000W (15KW)
• Surge Rating (20s): 45,000W (45KW)
• Output Waveform: Pure Sine Wave
• DC Battery Voltage: 48VDC
• AC Input Voltage: 240VAC (not suitable for 120VAC input)
• AC Output Voltage: 120V and 240V (Split Phase)
• Output Frequency: 50Hz / 60Hz
• AC Battery Charger: 100 +/- 5A
• Charger Breaker: 100A
• AC Input Range: 184-253VAC / 140-270VAC
• Typical Transfer Time: 10ms Max
• Nominal Input Voltage: 48.0VDC
• Minimum Start Voltage: 40.0VDC / 42.0VDC
• Low Battery Alarm: 42.0VDC / 44.0VDC
• Low Battery Trip: 40.0VDC / 42.0VDC
• High Voltage Alarm: 64.0VDC
• Idle Consumption (Power Saver On): 45W
• Idle Consumption (Power Saver Off): 225W
• Battery Initial Voltage for Start Up: 40-62.8V
• Over Charge Protection Shutdown: 62.8V
• Input Frequency: 50Hz or 60Hz (Auto Detect)
• Unit Weight: 176.6 lbs (80.1 kg)

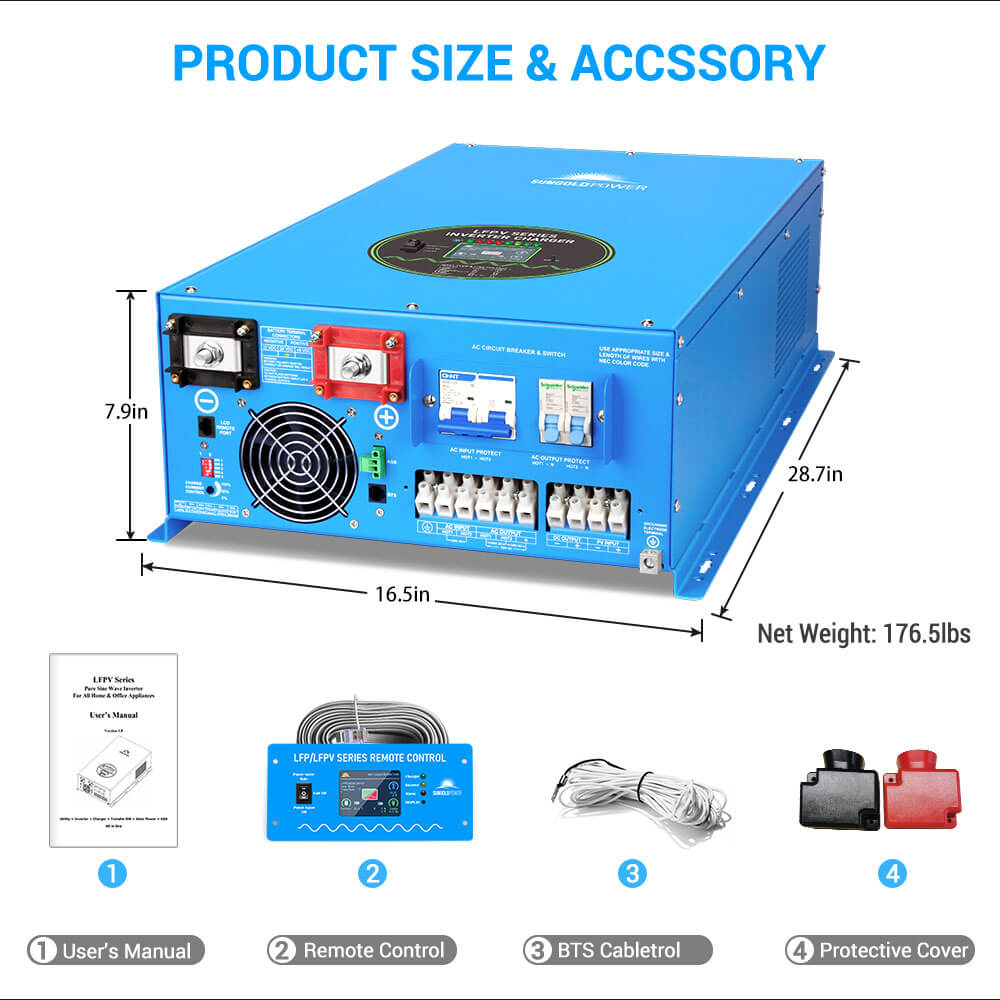

• Unit Dimensions: 28.7 x 16.5 x 8 inches (72.9 x 41.9 x 20.3 cm)
• Shipping Weight: 213 lbs (96.6 kg)
• Shipping Dimensions: 34.25 x 21.3 x 16.2 inches (87 x 54.1 x 41.1 cm)
• Battery Compatibility: LiFePO4, Gel, AGM, Lead Acid (8 selections)

What is in the Box

• 15000W 48V Split Phase Pure Sine Wave Power Inverter
• English Manual
• Remote Control
• BTS Cable

Warranty and Resources

LF-PV Series User Manual (PDF)
