SunGold Power | 12KW All in One Off Grid Solar Inverter | FR12K-B

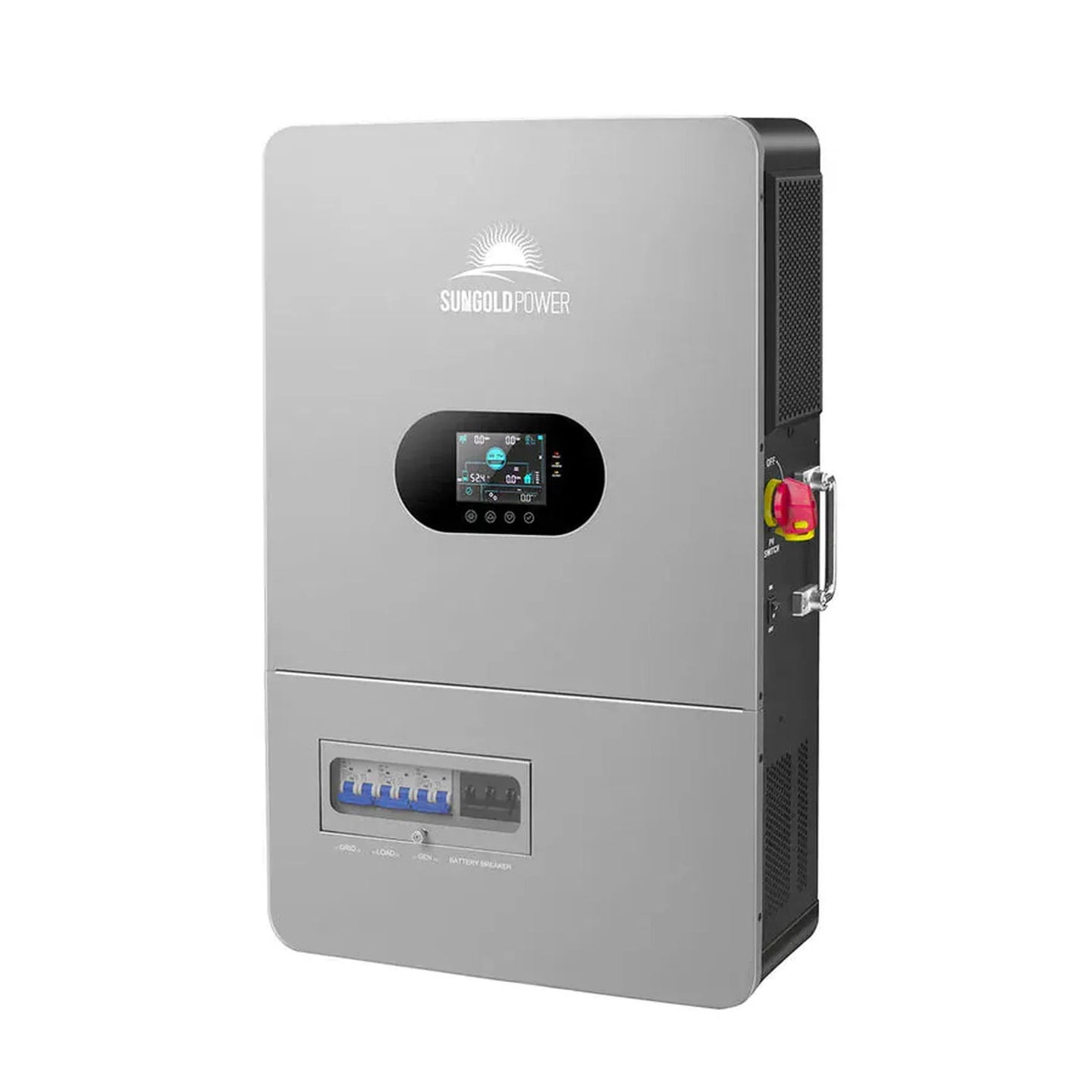

12KW All in One Off Grid Solar Inverter

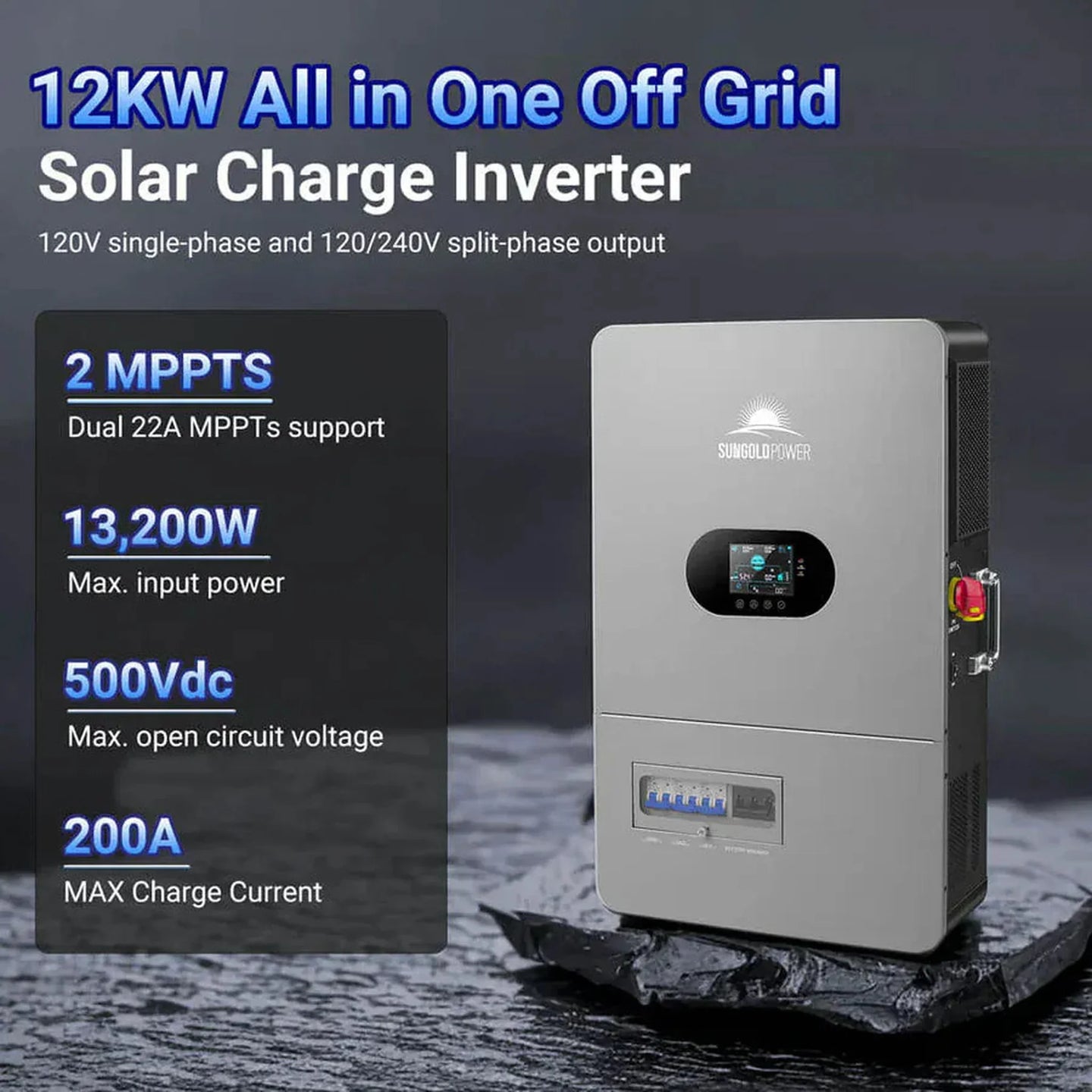

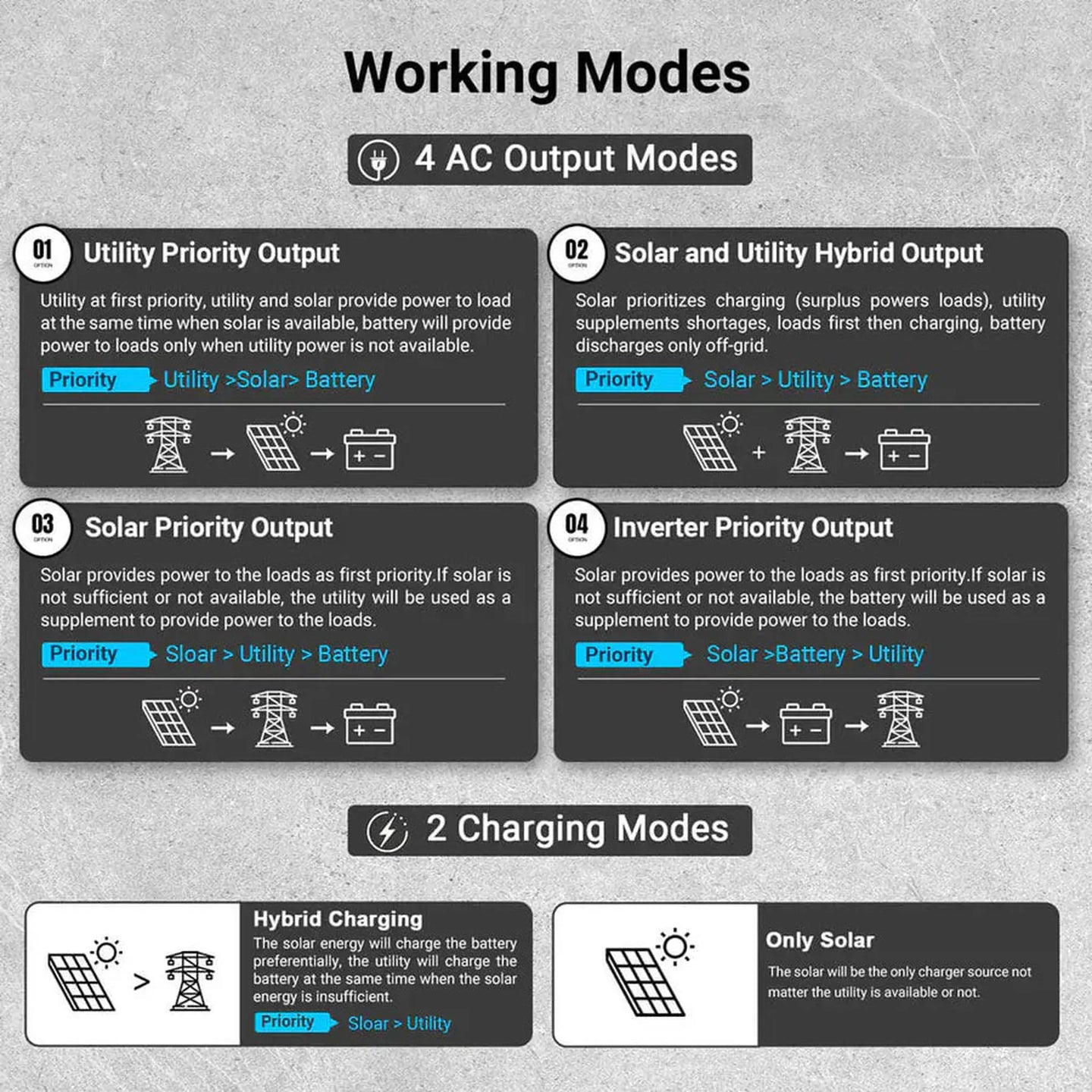

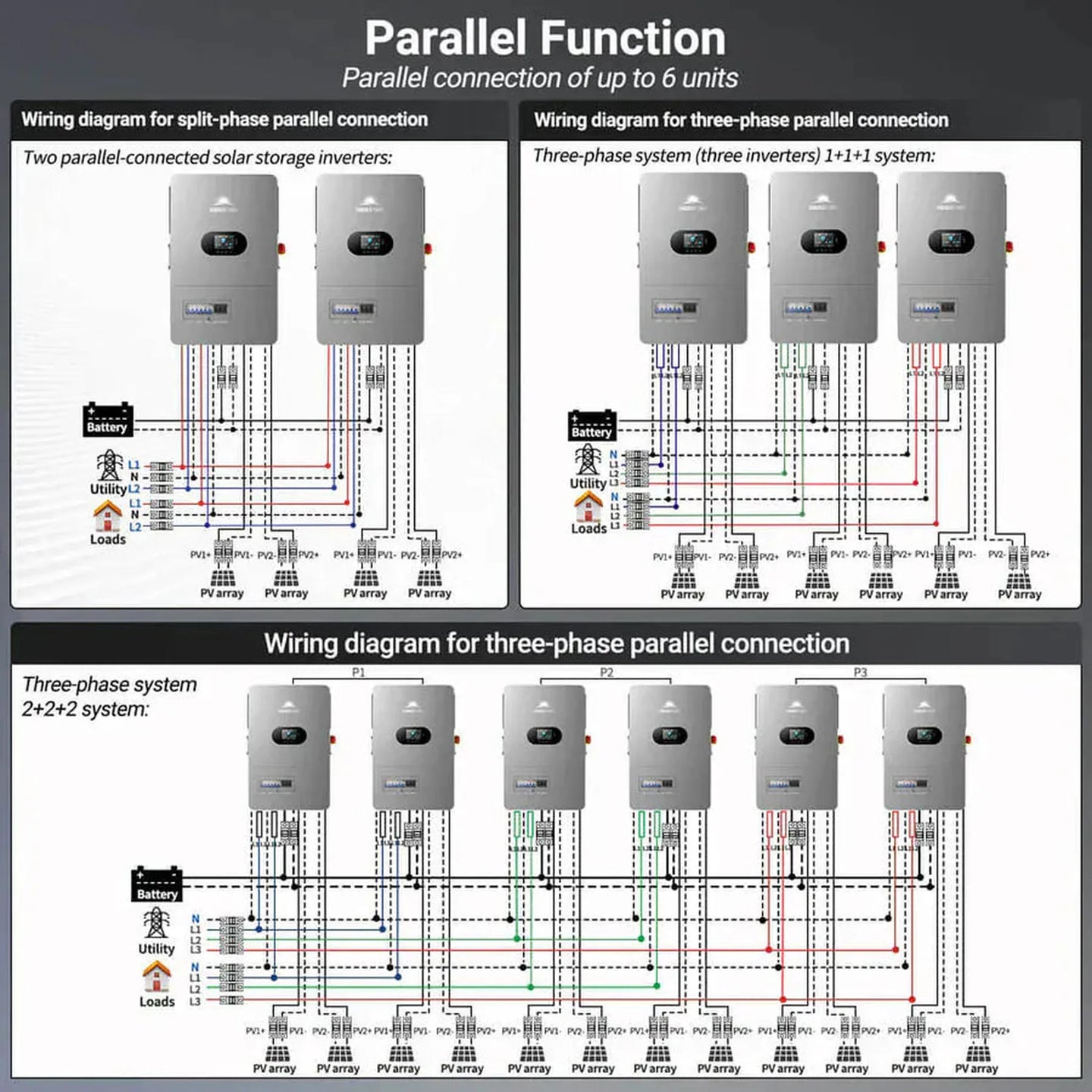

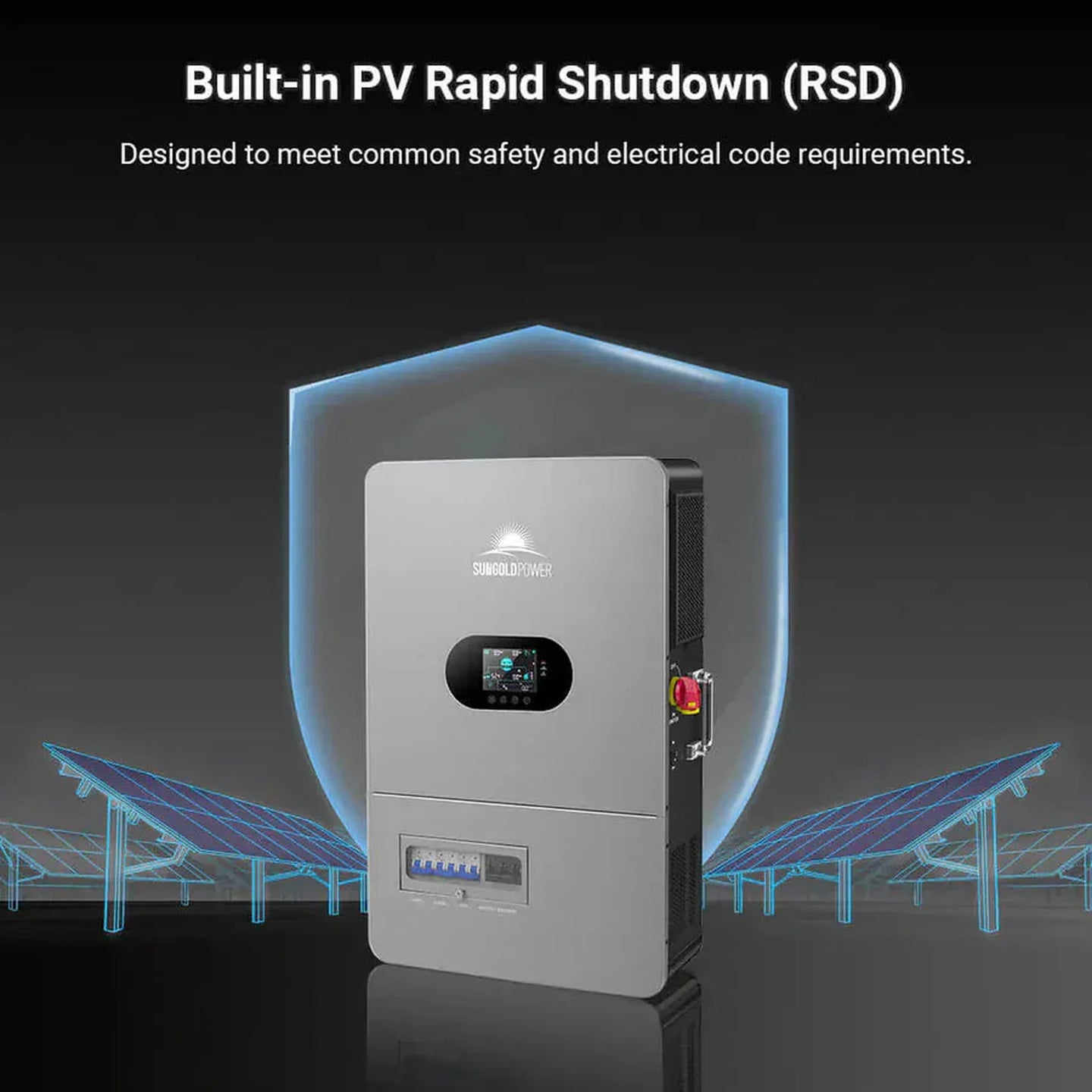

This high-output, all-in-one off-grid inverter provides 12,000W per unit and supports 120V single-phase as well as 120V/240V split-phase configurations, making it well-suited for residential and small commercial systems. Up to six units can be paralleled to deliver a combined output of 72,000W. Equipped with dual 22A MPPT controllers, it accommodates up to 13,200W of solar input and supports both PV-only and hybrid charging. An independent generator port that can also function as a secondary load output allows easy separation of critical and non-critical loads. Integrated PV Rapid Shutdown (RSD) protection enhances safety and reliability for off-grid installations.

Specifications

• Rated Output Power: 12,000W
• Max.Peak Power: 24,000W
• Rated Output Voltage: 120/240 VAC (single-phase/split-phase)
• Load Motor Capacity: 6HP
• Rated Frequency: 50/60Hz
• Output wave: Pure Sine Wave
• Switching Time: 10ms ( typical )
• Parallel Number: 6
• Overload Proterction (: 102%< load <110%): An error will be reported, and the output will be turned off after 5 min
• Load: >125%: An error will be reported, and the output will be turned off after 5s

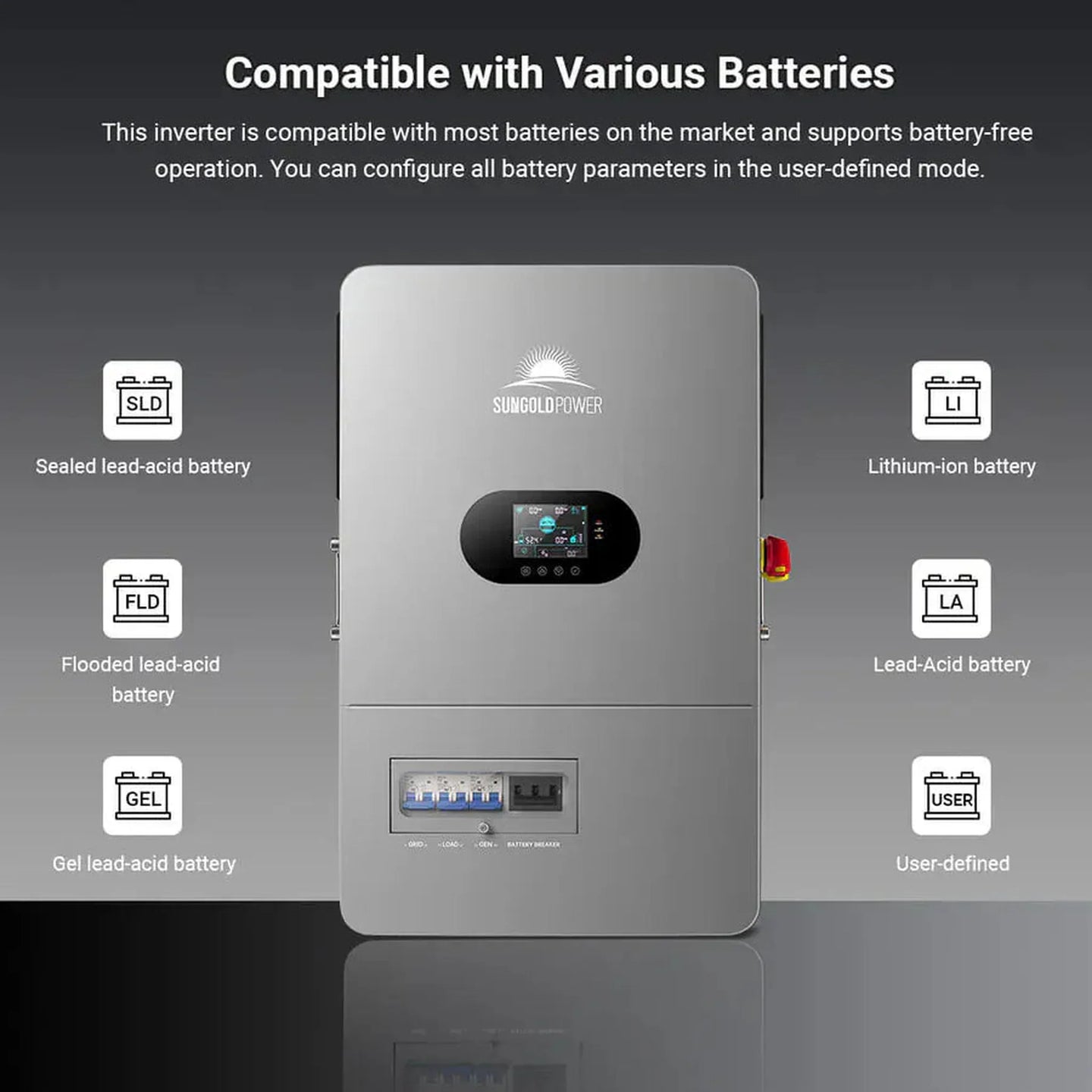

• Battery Type: Lithium-ion battery/lead-acid battery/user-defined
• Rated Battery Voltage: 48Vdc
• Voltage Range: 40-60Vdc
• Max.PV Charging Current: 200A
• Max: Grid/Generator Charging Current 120A
• Max: Hybrid Charging Current 200A
• MPPT Channel Number: 2

Warranty and Resources

2 Years Warranty

• 6.5KW 48V Split Phase Solar Inverter SPH6548P BB31 4465 8707 Datasheet
• User&#x27;s Manual
